JH 19T14 MMD

Overview

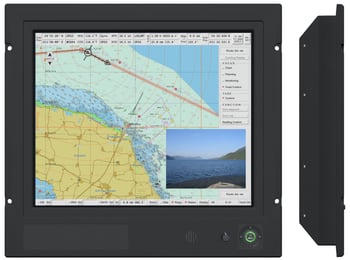

Monitor - LED - HATTELAND® Series 1 G2 - 19.0 inch

JH 19T14 MMD

The Series 1 Generation 2 (G2) Maritime Multi Display (MMD) models are delivered with Multi-power (AC and DC built in) ensuring that they are compatible with all power systems on vessels. The monitors will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike. In addition, a single power AC model is available.

icon
LED-backlit
Send Request

Description

Monitor - HATTELAND® Series 1 G2

The onboard connections include DVI-I, DP, Composite Video, as well as VGA out, RS-232 for touch, RS-422/485, USB Type A for SCOM, SCOM Ethernet and Potmeter/user connection for access to monitor settings.

The Series 1 Generation 2 (G2) MMD models are available in a wide range of monitor size and format, making them suitable for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility. Be it for ship navigation, automation or safety and security, this range with all it's possible options provides a robust and versatile platform from which to display and manage multisource data from all of a vessels systems.

All models and variations can be offered with Optical Technology bonding that mitigates screen misting. By factory standards the unit is ECDIS Compliant.

The Series 1 Generation 2 (G2) Maritime Multi Display (MMD) feature control buttons on the front of the monitor (keypad control) as well as an potentiometer knob, providing fast and easy user access to the monitors OSD features and settings. An Keypad Control only (no potmeter) model is also available.
Specifications
TFT Technology: LED Backlight Technology, TFT Active-matrix liquid crystal panel,
VA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 35ms (typ), black to white
Light Intensity and Contrast Ratio: 350 cd/m² (typ) - 1500:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s): Composite (BNC)
Supported Video Signals: Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video
Product Features: LED Backlight Technology, PBP (Picture By Picture), Multi-power AC&DC, PIP (Picture In Picture), Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption: Multi-power 100-240V AC - 50/60Hz + 24VDC
or Single-power 100-240V AC - 50/60Hz
Operating: 75W (max)
User Controls and Activity: Power On/Off + On Screen Display Menu (push button)*,
rightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator
*OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors: • DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter)
• DP1.2 IN: 1 x 20p DisplayPort (female)
• Comp. Video IN: 3 x BNC Connector (female)
• SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
• SCOM USB: 1 x USB TYPE A Connector (female)
• SCOM Ethernet: 1 x RJ45 Connector
• SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer
• VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN
• Potmeter/User: 1 x 9p D-SUB (male)
(Potentiometer IN, +5VDC OUT, BRT +/- IN)
• If Touch Screen: 1 x 9p D-SUB (female)
• AC Power IN: 1 x Std IEC Inlet
• If DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight: W:483.00 [19.02"] x H:444.00 [17.48"] x D:82.00 [3.23"] mm [inch]
Approx. 7.6kg / 16.7lbs
Product Carton Size and Weight: L:690.00 [27.17"] x W:240.00 [9.45"] x H:655.00 [25.79"] mm [inch]
10.0kg / 22.0lbs
Factory Options: • Resistive* or Capacitive Touch Screen
• Color Calibrated models (ECDIS)
• Optical Bonding Technology
• Multi-Power Input Model or Single AC Power Input Model
• Keypad only or Keypad+Potmeter+Buzzer controls
*Can not be combined with Optical Bonding Technology
Accessories: • JH MMDBR STD-A1: Mounting Bracket
• HD TMB STD-A1: Mounting Bracket EN60945 Tested
• JH MMDRO STD-A1: Rotary Bracket
• JH 19TSV STD-A1: Sun Visor
• JH 19VED STD-A1: VESA Adapter 75/100mm. Not EN60945 Tested.
• JH 19TAP STD-A1: 21" CRT Adapter frame
• JH 19TAP STD-B1: 21" CRT Custom Adapter frame
• JH 19TAP STD-A2: 20" TFT Adapter frame
• JH 19TWC STD-B1: Water Cover
• HD REM SX1-A1: External Remote Control, EN60945 Tested
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance: Standard: 110.00 [43.31"] - Steering: 70.00 [27.56"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EN55024, EN55022 Class A, EU RO MR - Mutual Recognition, LRS - Lloyd's Register of Shipping, ABS - American Bureau of Shipping, CCS - China Classification Society, KR - Korean Register of Shipping, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: May 8, 2025 @ 13:05
