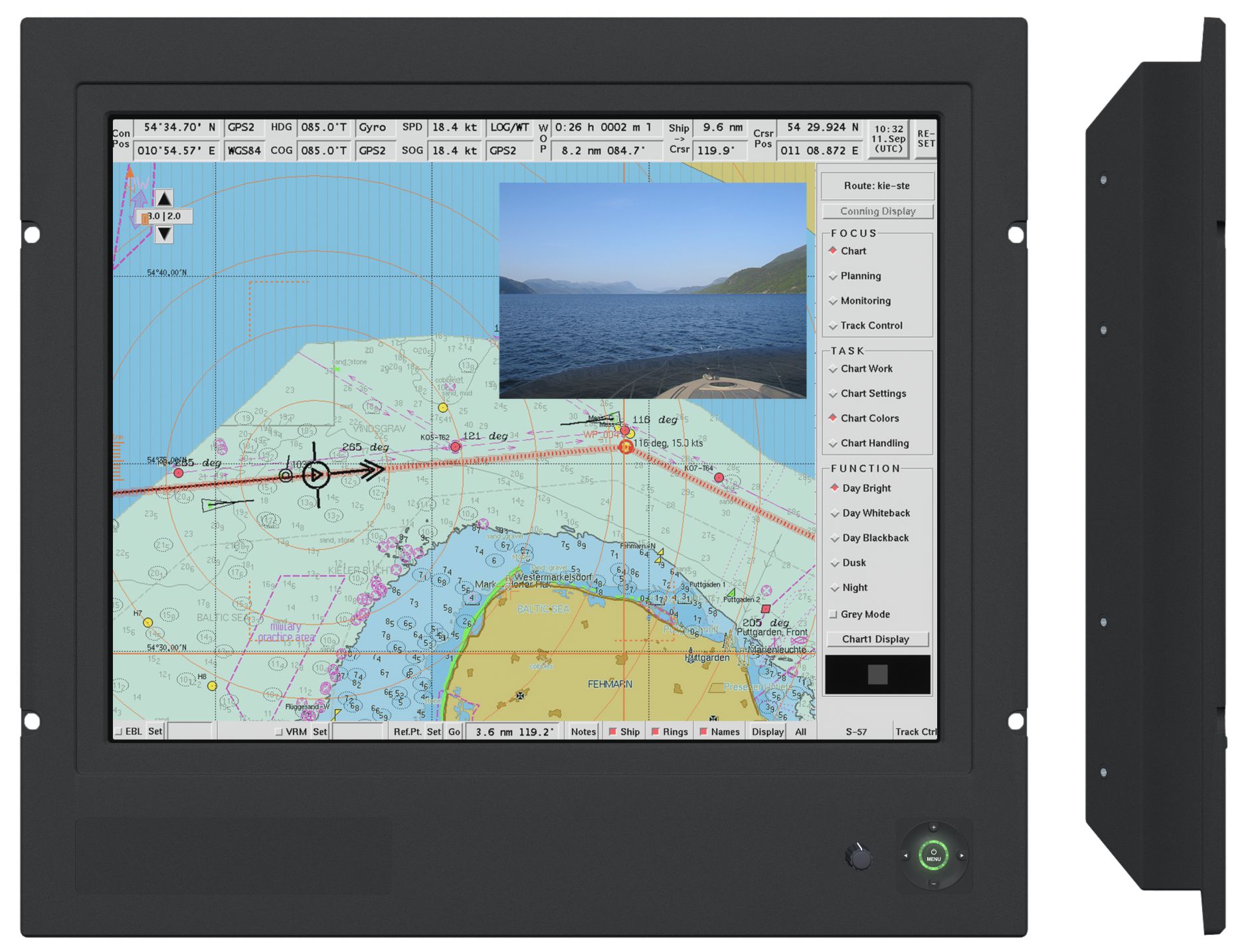

JH 23T14 MMD
Monitor - LED - HATTELAND® Series 1 G2 - 23.1 inch

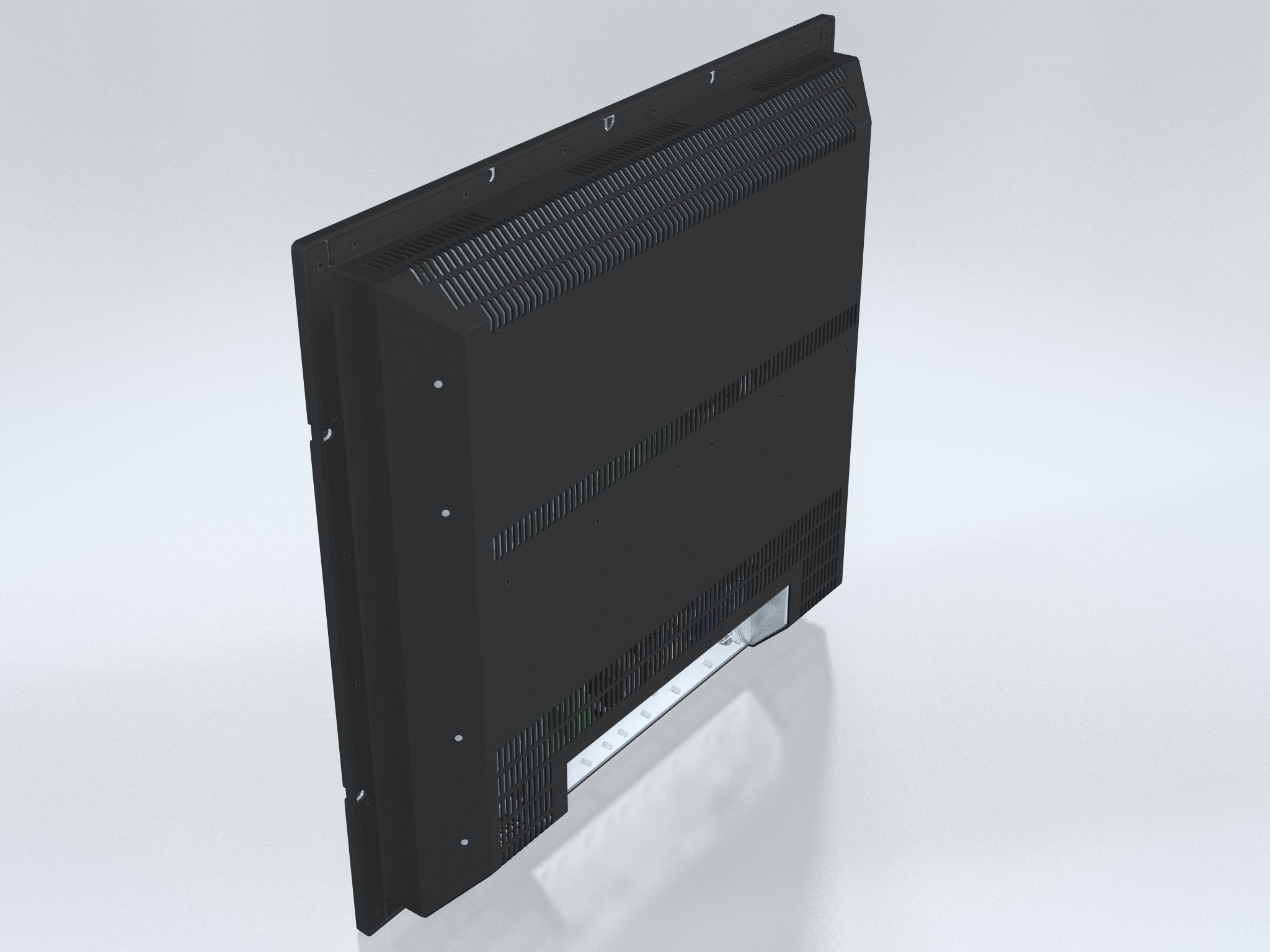

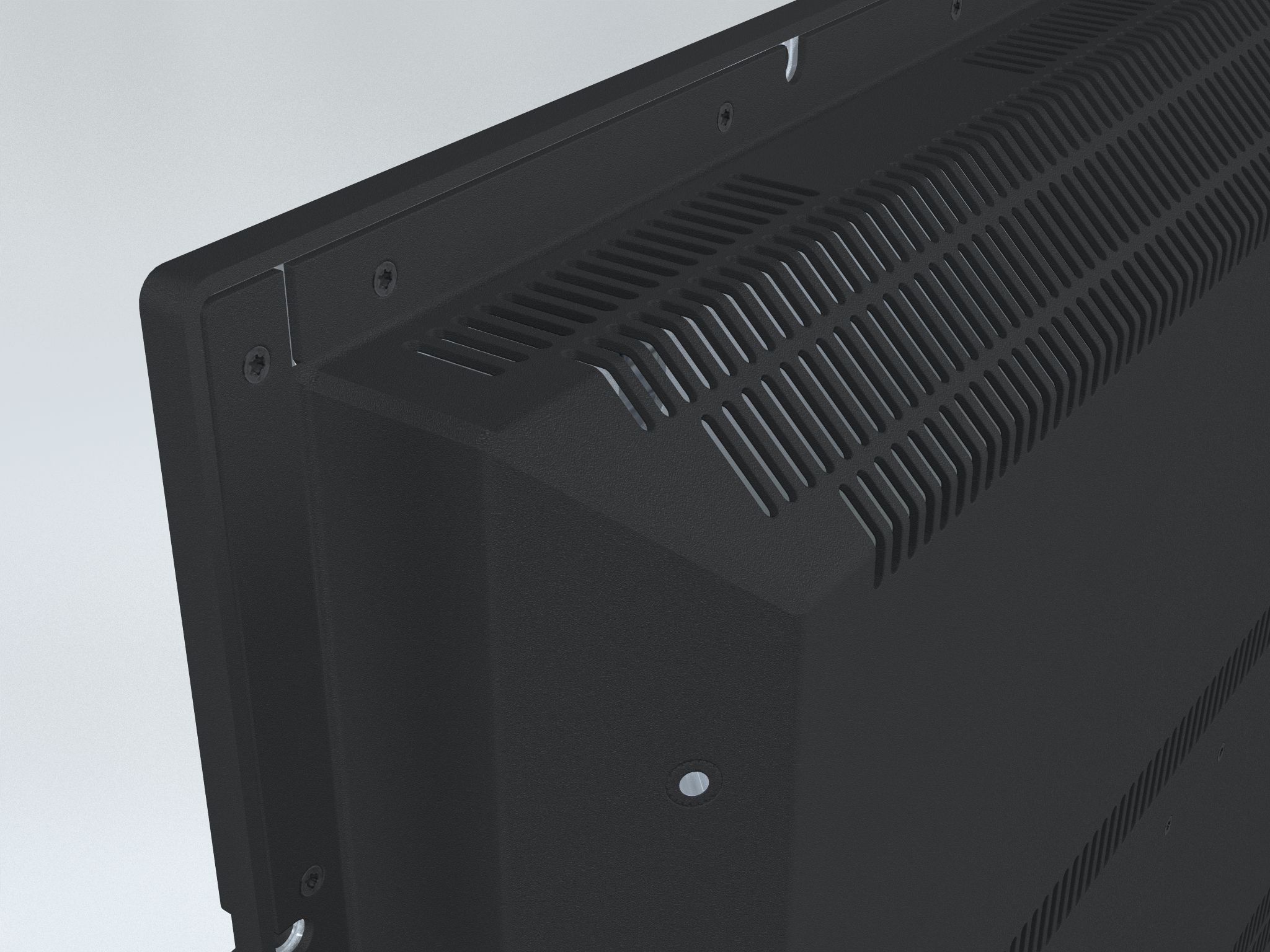

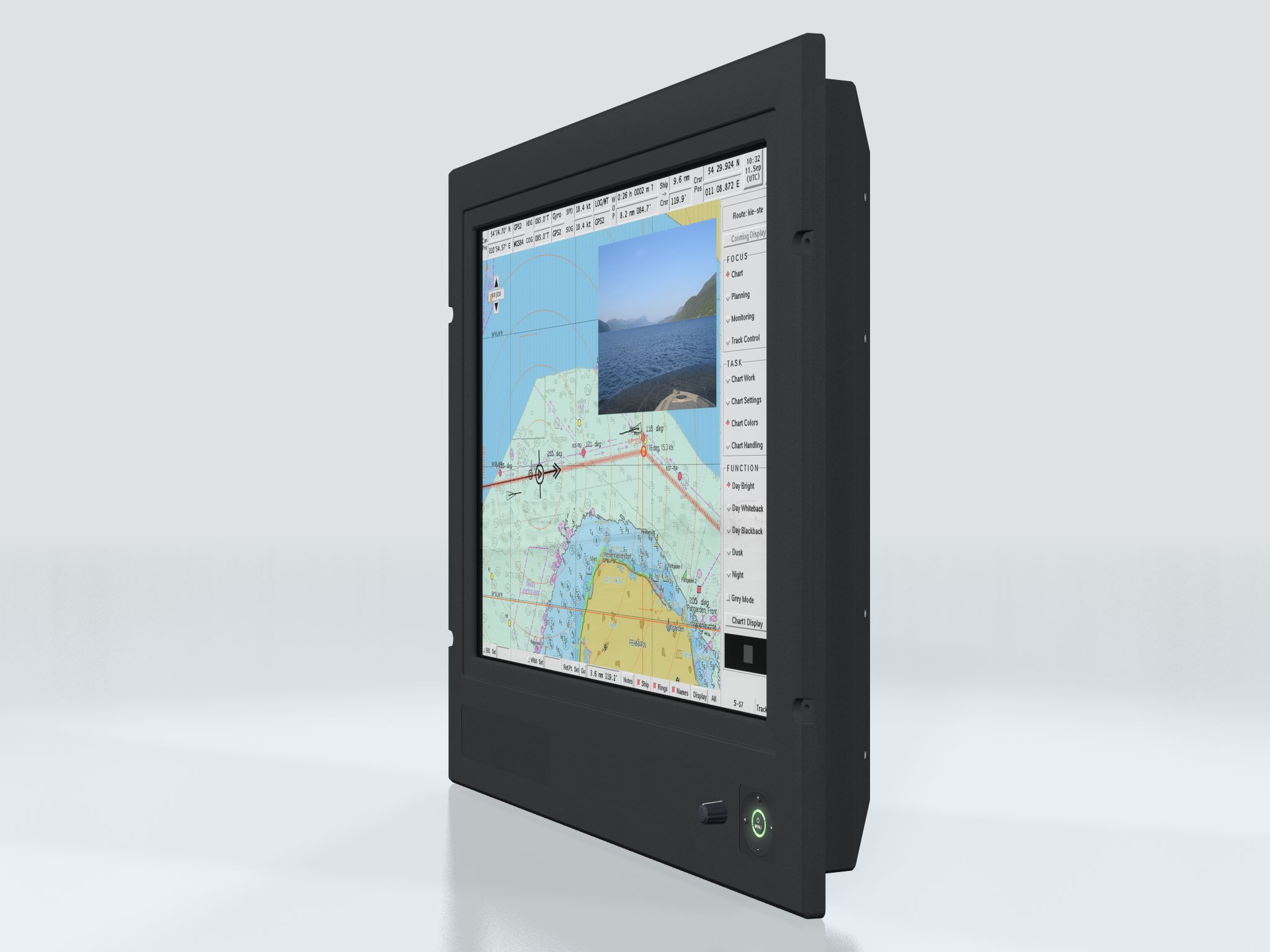

JH 23T14 MMD
The Series 1 Generation 2 (G2) Maritime Multi Display (MMD) models are delivered with Multi-power (AC and DC built in) ensuring that they are compatible with all power systems on vessels. The monitors will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.
LED-backlit

Monitor - HATTELAND® Series 1 G2
The onboard connections include DVI-I, DP, Composite Video, as well as VGA out, RS-232 for touch, RS-422/485, USB Type A for SCOM, SCOM Ethernet and Potmeter/user connection for access to monitor settings.The Series 1 Generation 2 (G2) MMD models are available in a wide range of monitor size and format, making them suitable for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility. Be it for ship navigation, automation or safety and security, this range with all it's possible options provides a robust and versatile platform from which to display and manage multisource data from all of a vessels systems.

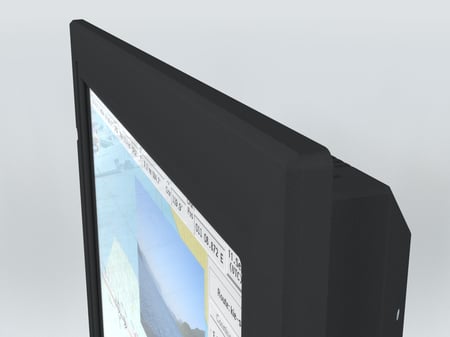

All models and variations can be offered with Optical Technology bonding that mitigates screen misting. By factory standards the unit is ECDIS Compliant.
The Series 1 Generation 2 (G2) Maritime Multi Display (MMD) feature control buttons on the front of the monitor (keypad control) as well as an potentiometer knob, providing fast and easy user access to the monitors OSD features and settings. An Keypad Control only (no potmeter) model is also available.
Typenumber (Long): |
JH 23T14 MMD-xRx-xxxx |
TFT Technology: |
LED Backlight Technology, TFT active-matrix liquid crystal panel, MVA (Multi-domain Vertical Alignment) LCD Technology |
Viewable Size and Active Area: |
23.1 inch - 470.40 [18.52"] (H) x 352.80 [13.89"] (V) mm [inch] |
Native Resolution and Pixel Pitch: |
1600 x 1200 (UXGA) - 0.294 (H) x 0.294 (V) mm |
Aspect Ratio and Response Time: |
4:3 - 12ms (typ), black-white-black or 8ms gray to gray |
Light Intensity and Contrast Ratio: |
500 cd/m² (typ) - 600:1 (typ) |
View Angle and Max Colors: |
85 deg. (up/down/left/right) - 16.7 million |
Optimal Resolution and Hz: |
1600 x 1200 @ 60 Hz |
Detectable Resolutions: |
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200 |
Composite Video Input(s): |
Composite (BNC) |
Supported Video Signals: |
Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video |
Product Features: |
LED Backlight Technology, PBP (Picture By Picture), Multi-power AC&DC, PIP (Picture In Picture), Hotkey Functionality, Dimmable 0-100% |
Power Specifications and Consumption: |
Multi-power 100-240V AC - 50/60Hz + 24VDC Operating: 156W (max) |

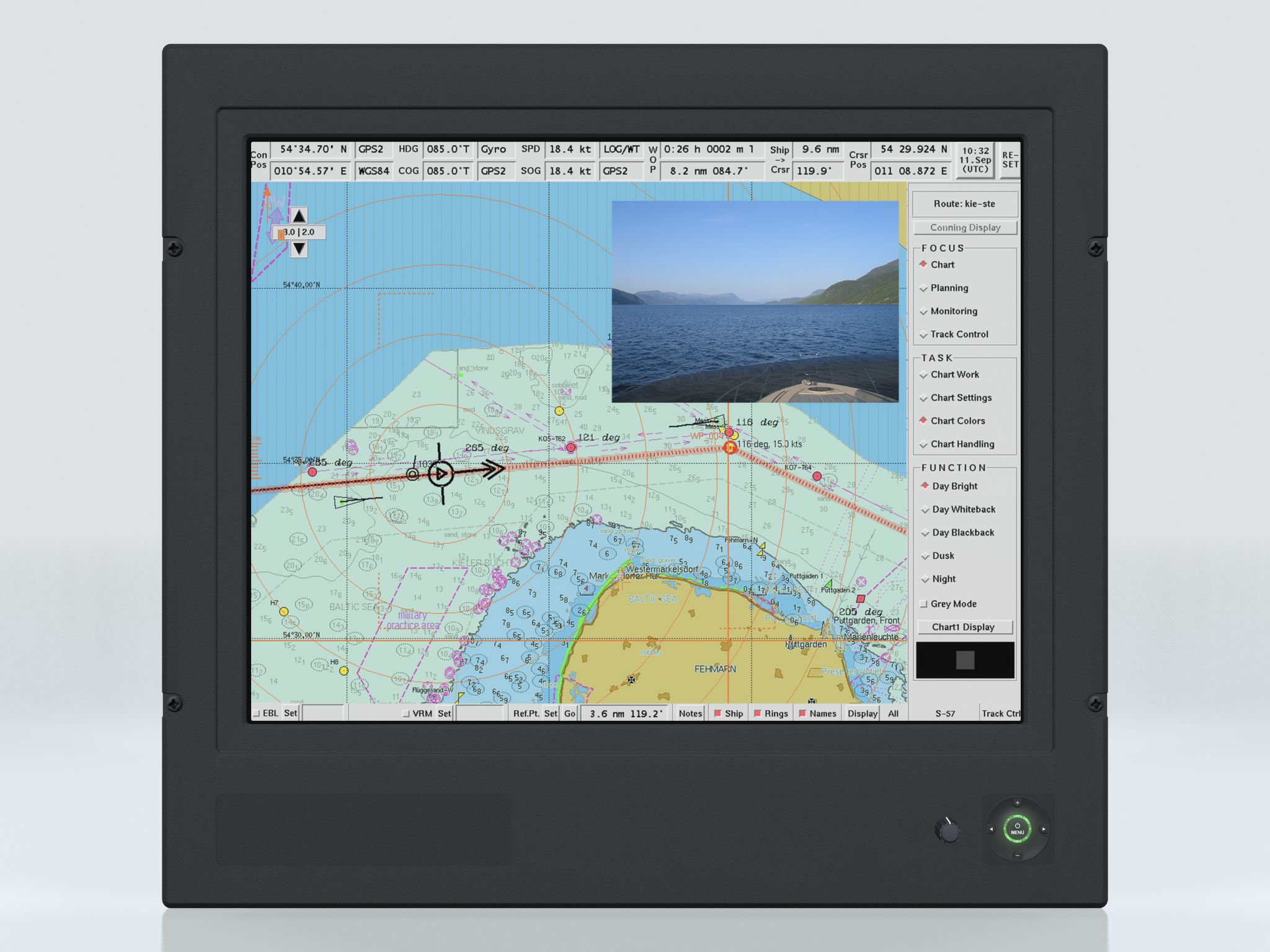

User Controls and Activity: |

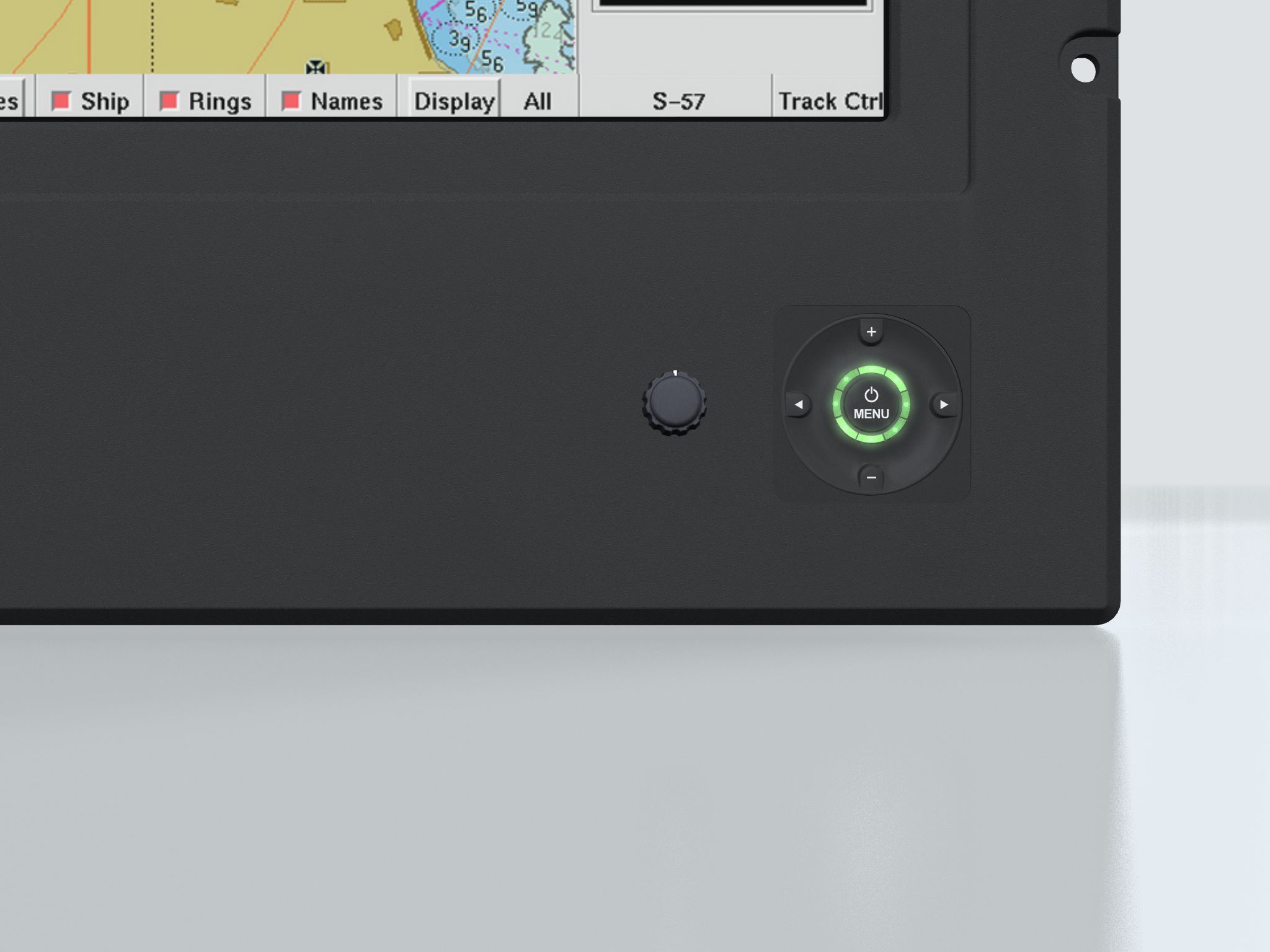

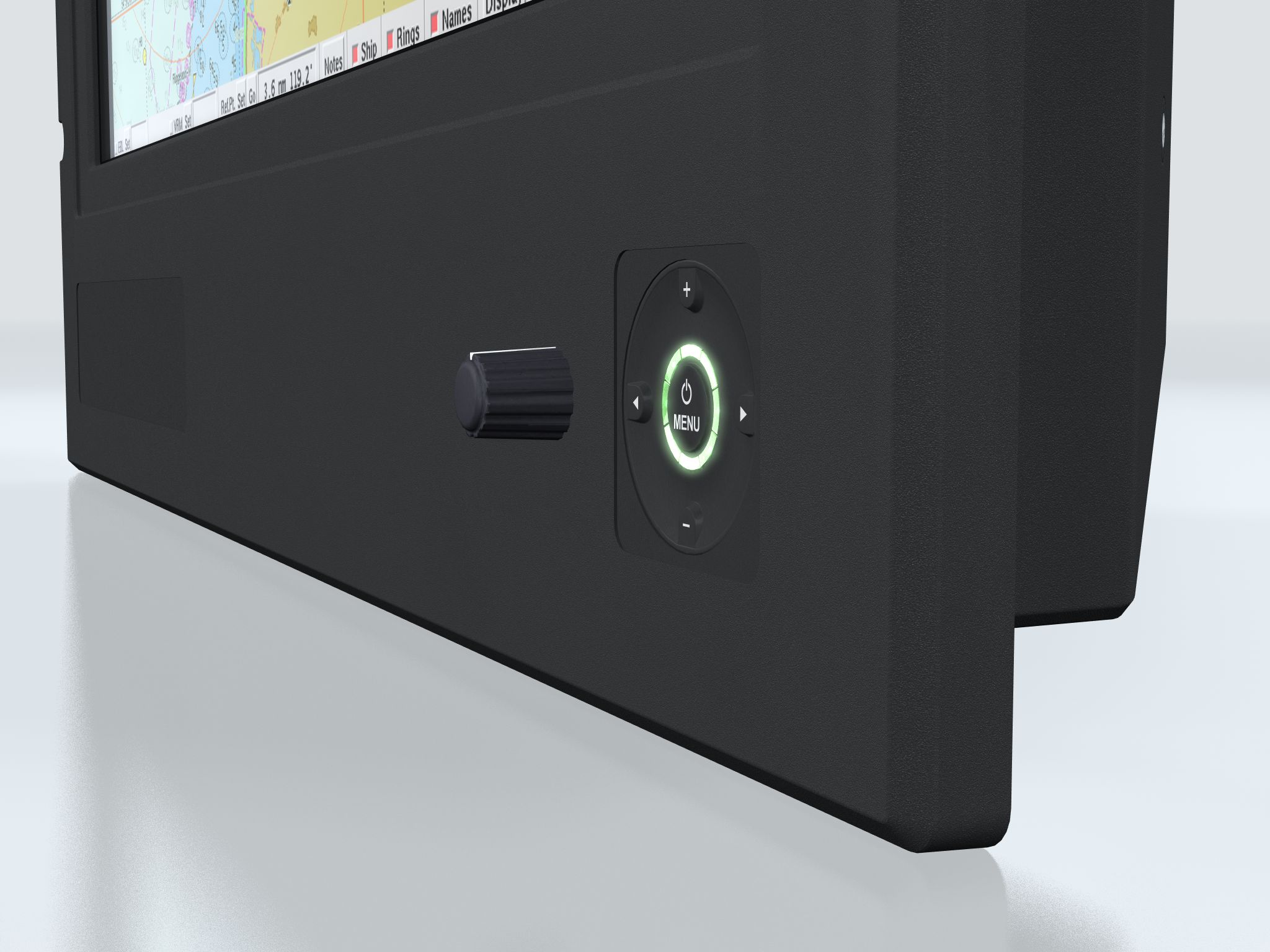

Power On/Off + On Screen Display Menu (push button)*, Brightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode |

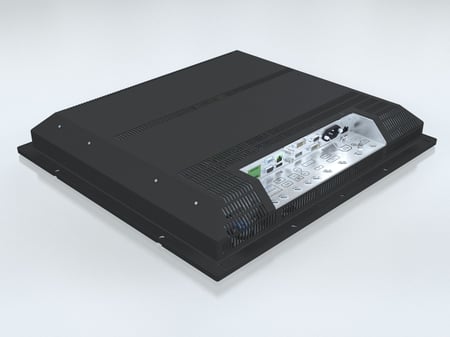

Connectors: |

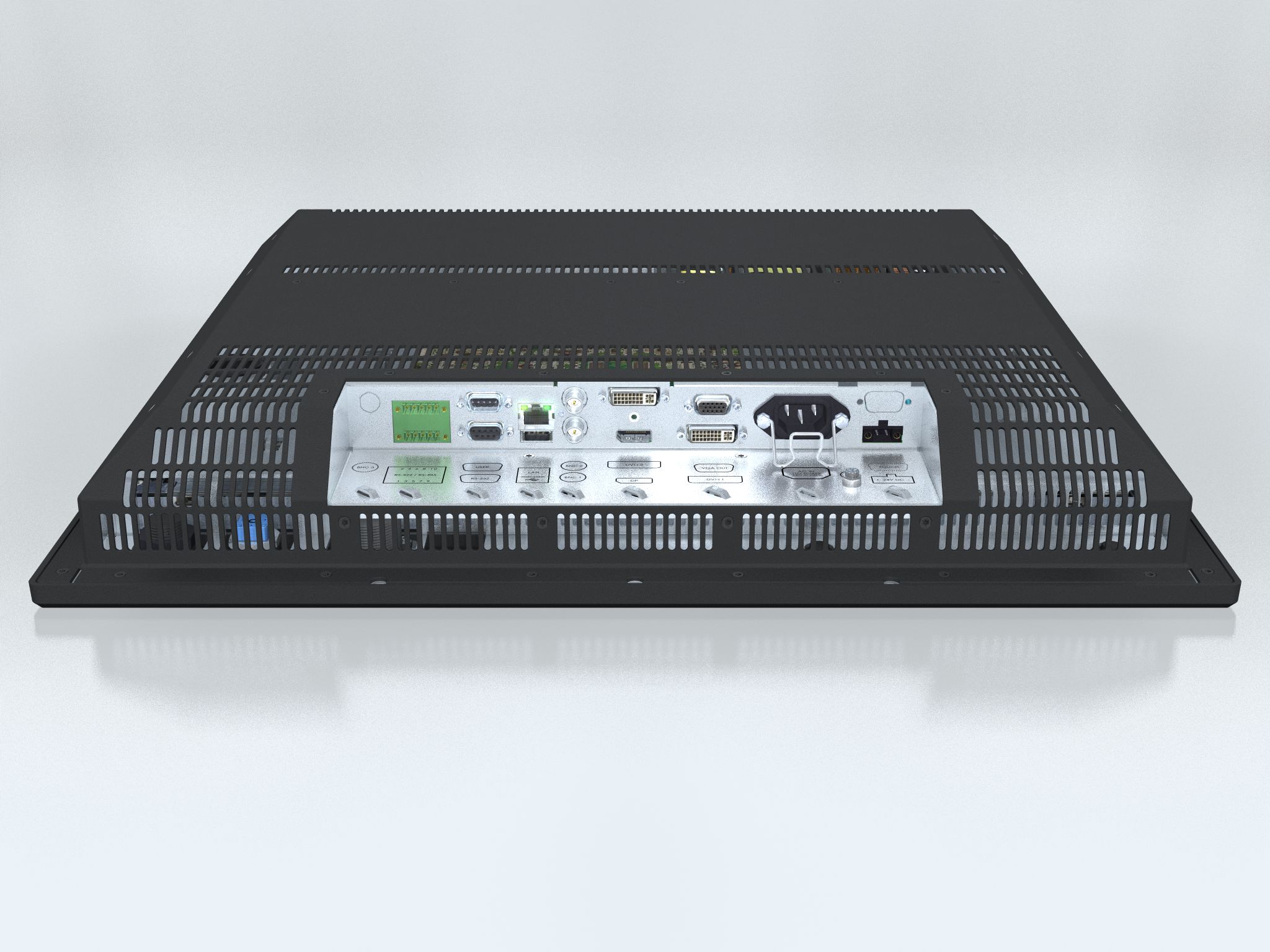

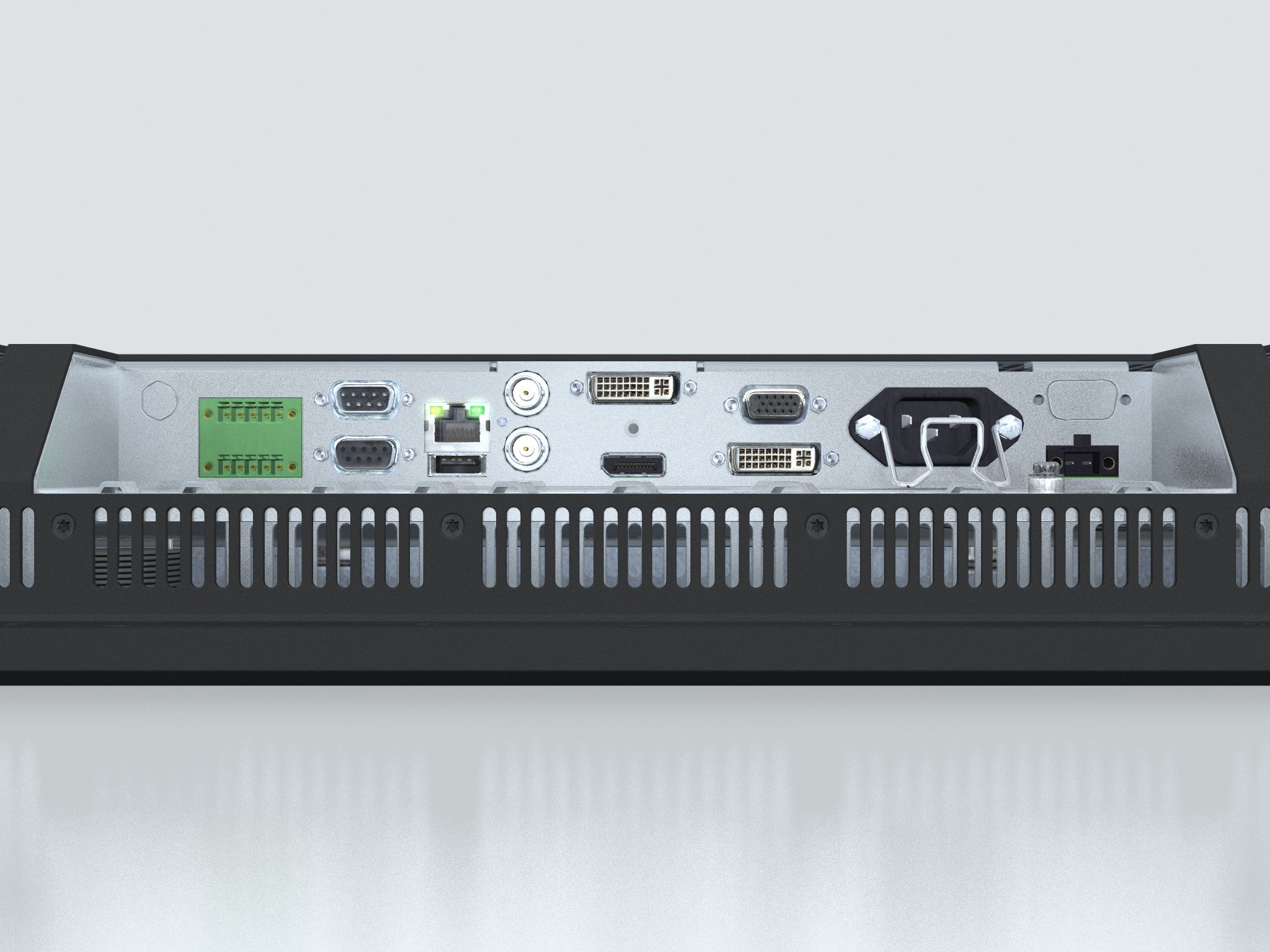

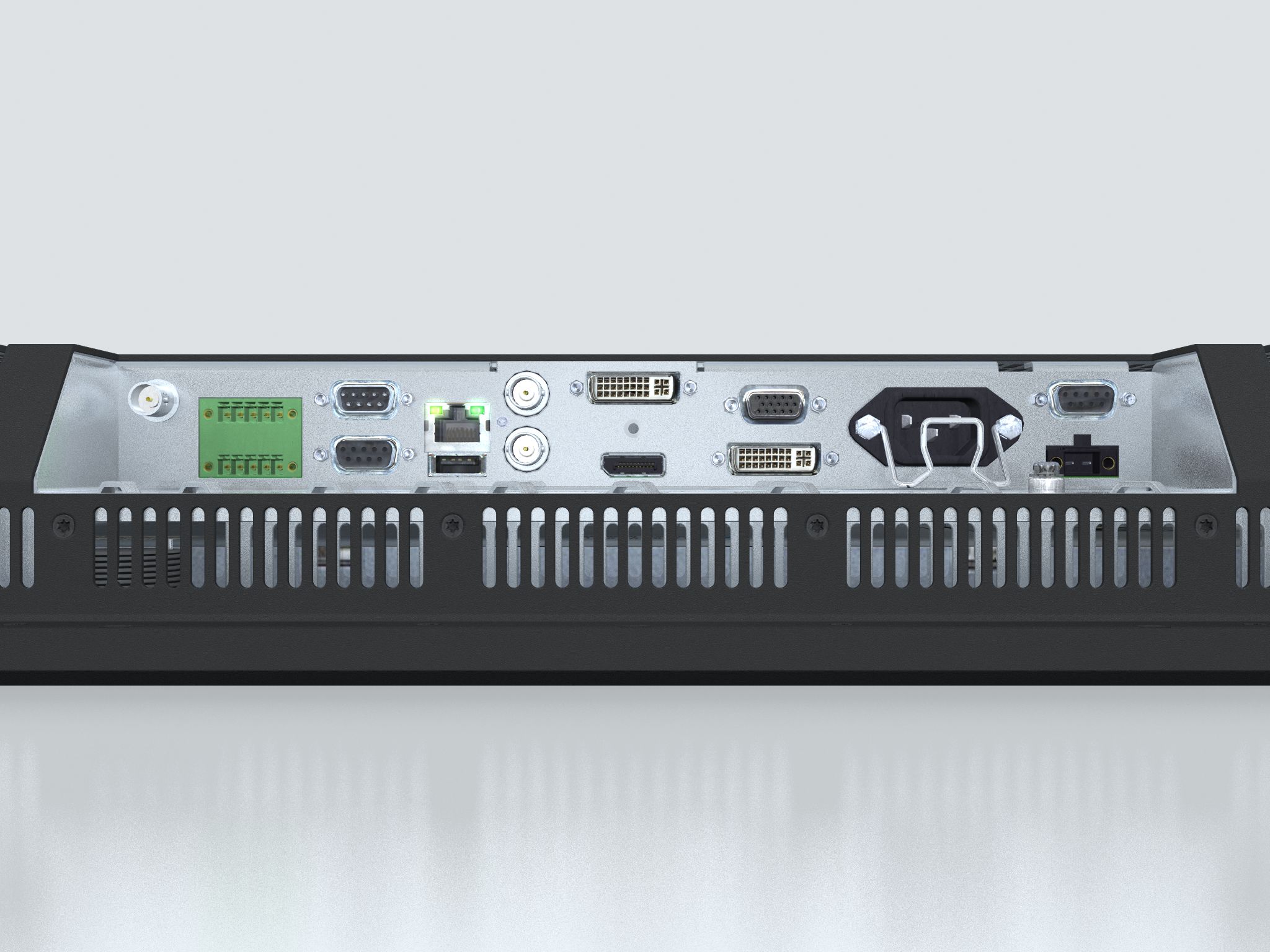

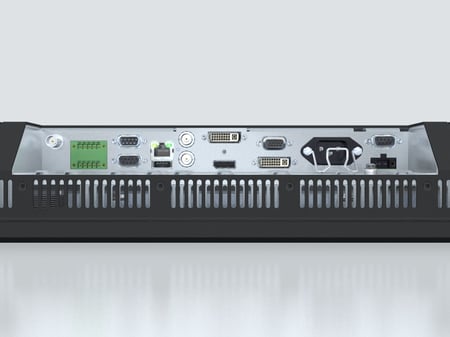

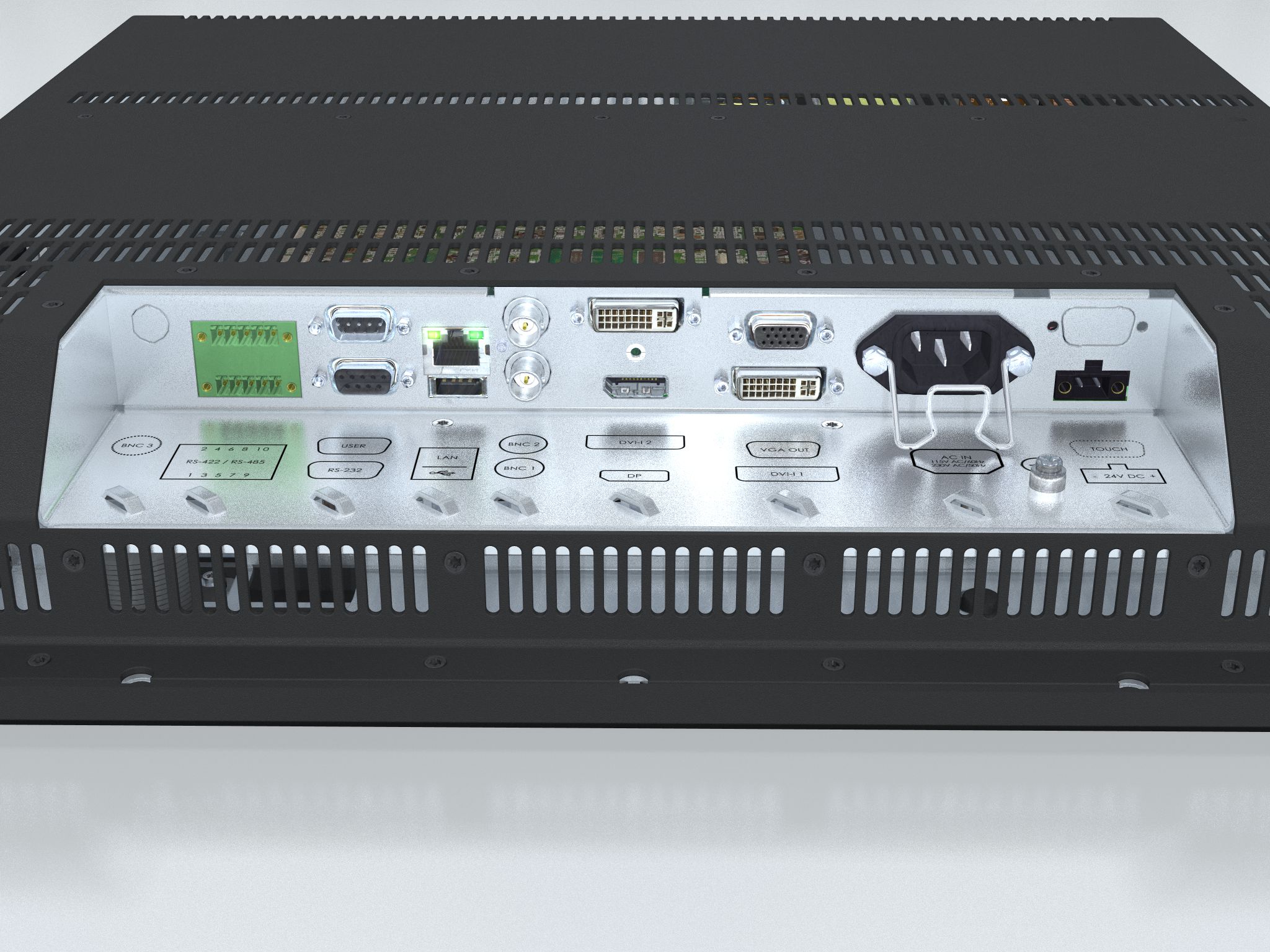

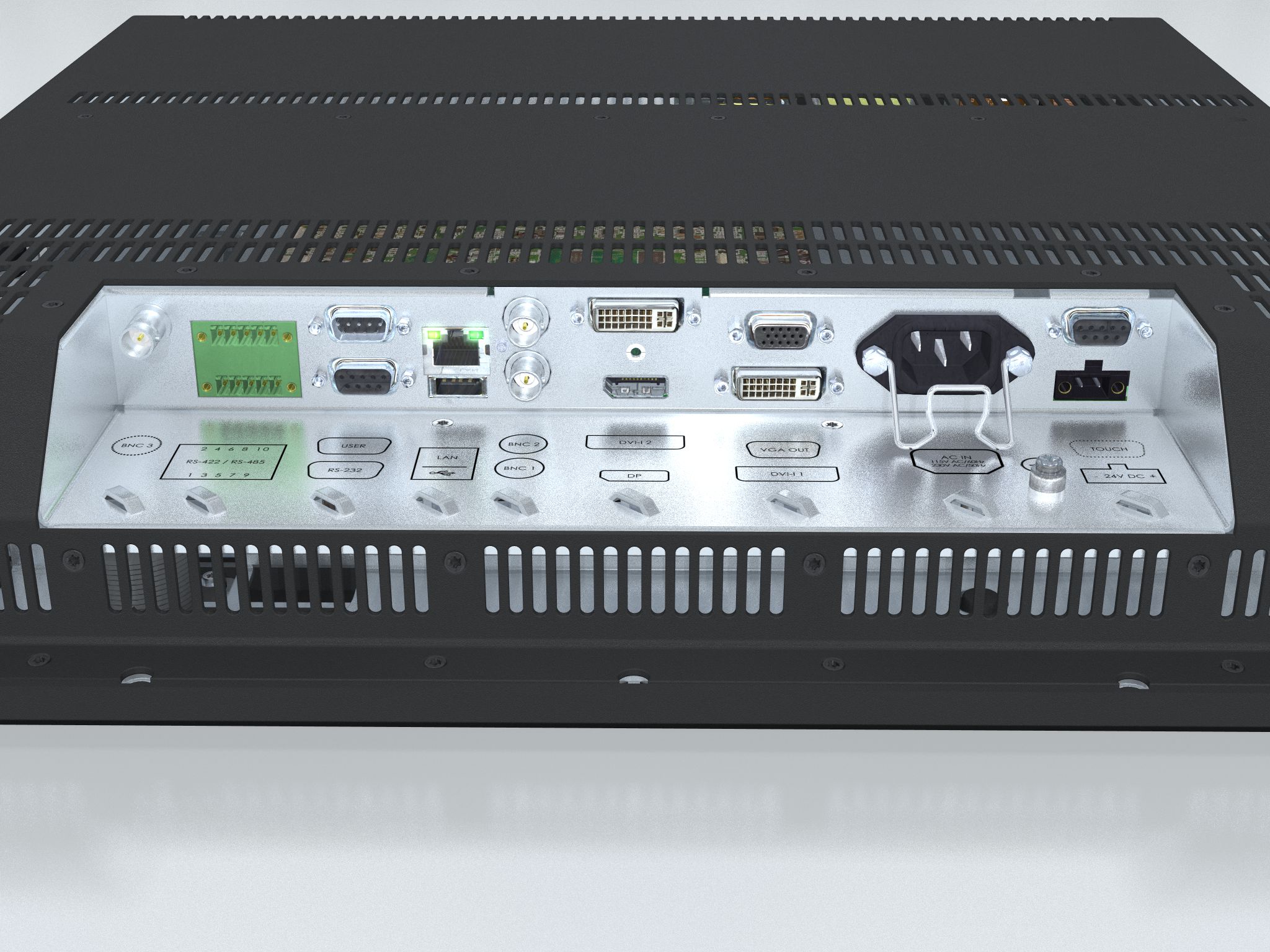

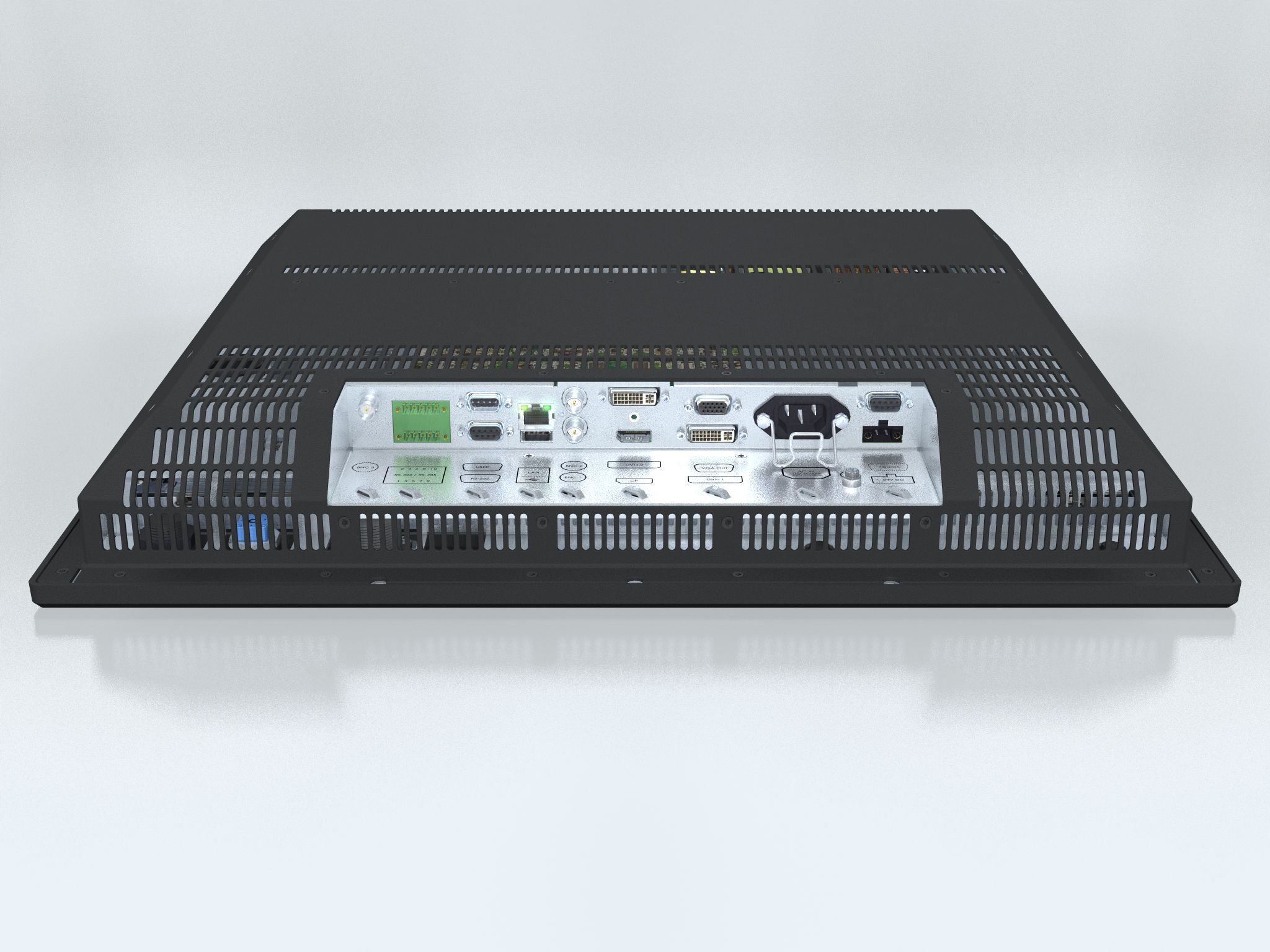

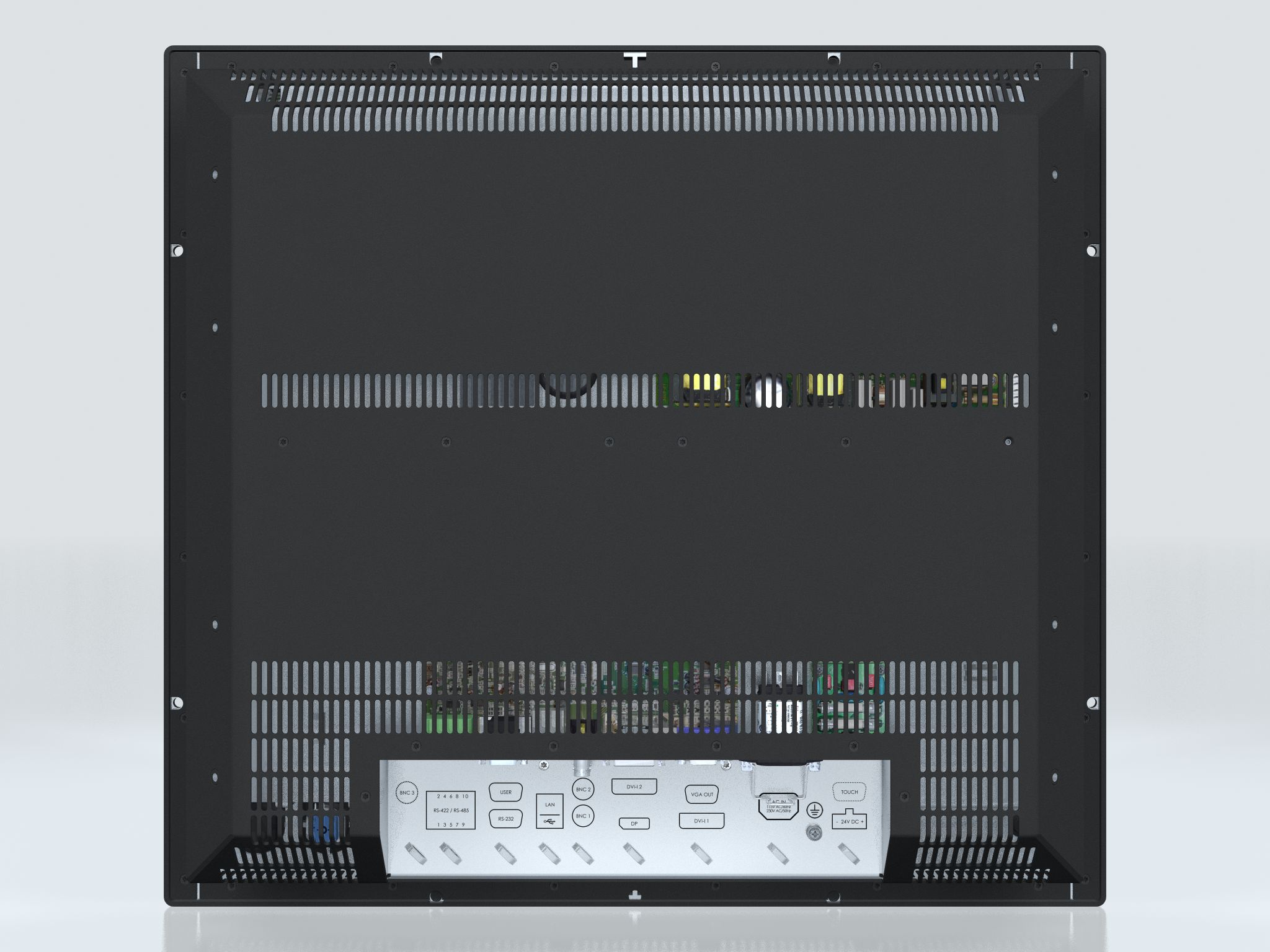

• DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter) • DP1.2 IN: 1 x 20p DisplayPort (female) • Comp. Video IN: 3 x BNC Connector (female) • SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer • SCOM USB: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer • VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN • Potmeter/User: 1 x 9p D-SUB (male), (Potentiometer IN, +5VDC OUT, BRT +/- IN) • If Touch Screen: 1 x 9p D-SUB (female) • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08 |

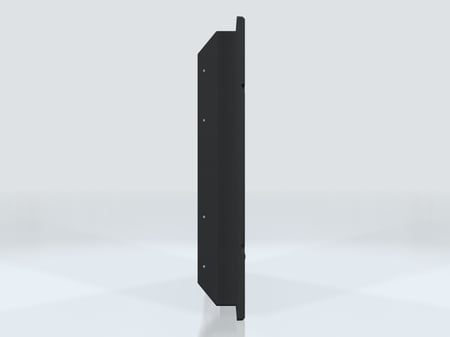

Product Dimensions and Weight: |
W:584.00 [22.99"] x H:534.00 [21.02"] x D:85.00 [3.35"] mm [inch] Approx. 13.5kg / 29.7lbs |
Product Carton Size and Weight: |
L:720.00 [28.35"] x W:220.00 [8.66"] x H:685.00 [26.97"] mm [inch] 17.0kg / 37.4lbs |
Factory Options: |

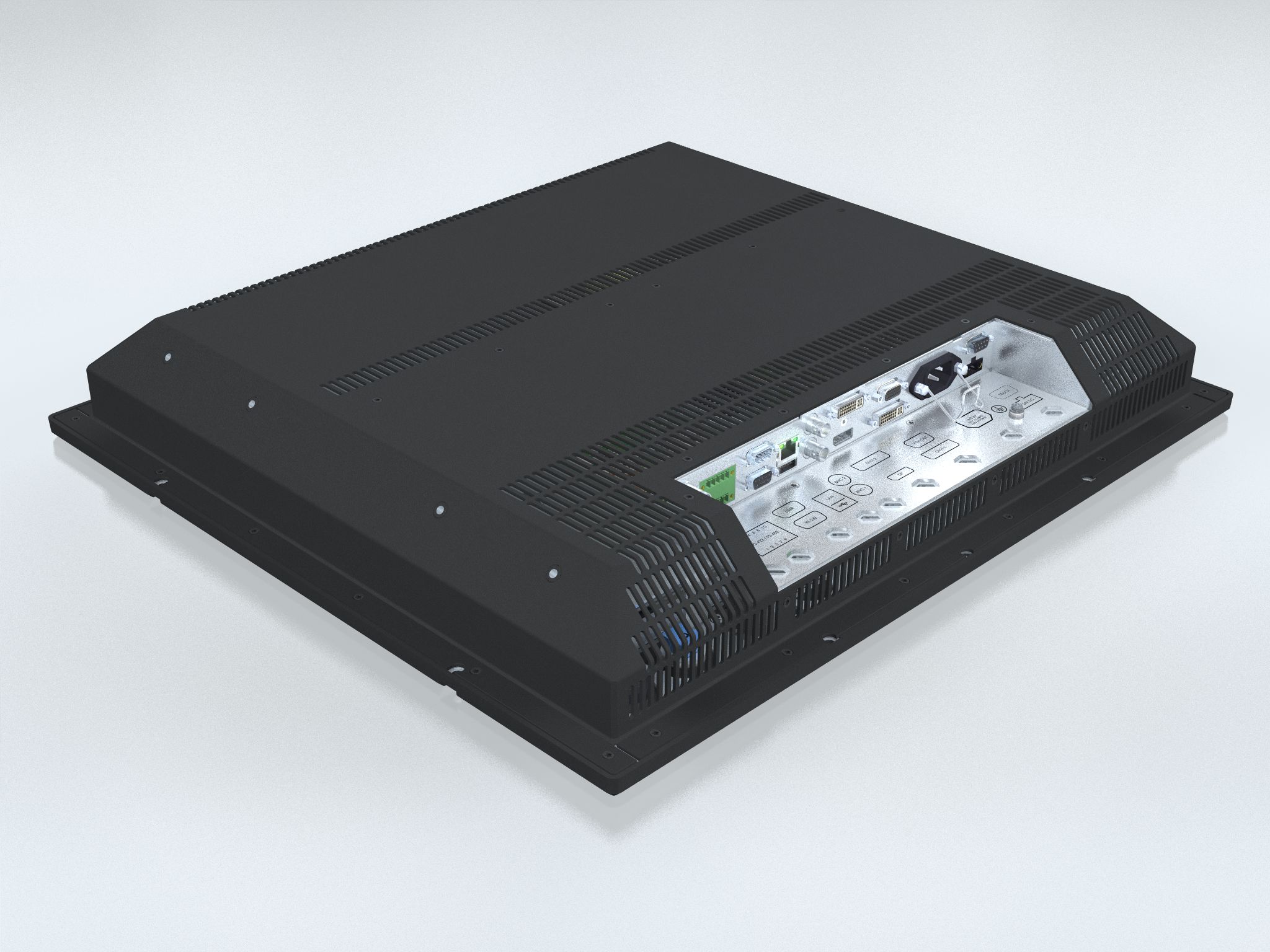

• Capacitive* Touch Screen • Optical Bonding Technology • Color Calibrated models (ECDIS) • Keypad only or Keypad+Potmeter+Buzzer controls *Note that touch screen additionally require factory default optical bonding technology |
Accessories: |
• JH 23TBR T01-A1: Mounting Bracket • JH 23BRD STD-A1: Mounting Bracket EN6095 Tested • JH MMDRO STD-A1: Rotary Bracket • JH 23TSV STD-A1: Sun Visor • JH 23VED STD-A1: VESA Adapter 75/100mm. Not EN60945 Tested. • JH 23TWC STD-A1: Water Cover • HD REM SX1-A1: External Remote Control, EN60945 Tested |
Capabilities - Prepared for: |
N/A |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
IP Rating: |
Protection: IP66 front - IP20 rear (EN60529) |
Compass Safe Distance: |
Standard: 110.00 [43.31"] - Steering: 70.00 [27.56"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, EN55024, EN55022 Class A, EU RO MR - Mutual Recognition, LRS - Lloyd's Register of Shipping, ABS - American Bureau of Shipping, CCS - China Classification Society, KR - Korean Register, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m |
Specifications last updated: July 7, 2025 @ 10:01 |
