Installed Operating System Options:	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	2 or 4 x 2.5" Removable Front Trays with options of: - 2.5"/M.2 SSD SATA 3.0 (6GB/s) 240GB (0.9PBW),480GB (1.2PBW),960GB (3.4PBW), 1.9TB (7.1PBW) M.2 Storage (PCIe options): 1 x M.2 2280 M-key (one SATA + NVMEx4) 1 x M.2 2230 E-Key (PCIe + USB for WiFi)
Processor / CPU and FSB Speed Options:	1 x Intel® Core™ i3-9100E, 4-Core 3.10GHz - 3.70GHz, 6MB Cache or 1 x Intel® Core™ i5-9500E, 6-Core 3.00GHz - 4.20GHz, 9MB Cache or 1 x Intel® Core™ i7-9700E, 8-Core 2.60GHz - 4.40GHz, 12MB Cache
Memory Options:	1 x 8GB (single channel, DDR4) installed. Max 64GB RAM possible, Single or Dual Channel available Options: Single Channel: 1 x 8GB (2400MHz) Dual Channel: 2 x 8GB (2400MHz), 2 x 16GB (2400MHz), 2 x 32GB (2666MHz).
System+Graphics Chipset / Connectors:	Intel® Q370 / Intel® UHD 630, DirectX Support 12.0, Shader Model 6.4, OpenCL 2.1, OpenGL Support 4.5/linux, Vulkan 1.1.97 1 x USB-C + 2 x DisplayPort 1.2 (2 x Display clone + 1 extended)
Max Resolution / Max Hz:	Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS:	UEFI, ACPI support
PCI Slots / PCIe Slots:	1 x PCIe 3.0 x16 (reserved for additional Graphics Card, see options) 1 x PCIe 3.0 x4 (x8 socket) 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1 All slots are Full Height&Full Length profile
Media Drive(s):	None
LPT / Parallel Port:	None
Serial Port(s):	1 x DB9M, RS-232/RS-422/RS-485 un-isolated, Baud Rate: Max 115.2Kbps
Ethernet Port(s):	2 x RJ-45, LAN 10/100/1000Mbps, Intel®, Intel 210IT Support for Intel® Teaming 2 x RJ-45, LAN 10/100/1000Mbps Realtek RTL8111H
USB Port(s):	2 x USB 3.1 Type A (<3m) ports in front 4 x USB 3.1 Type A (<3m) ports in rear 1 x USB-C (DisplayPort - Power Distrubution enabled, 60W) in rear
Keyboard and Mouse Ports:	None
Audio Ports:	Realtek HD Audio supports 2.0 channel, Mic. in, Line out (2x3.5mm Jack) + Audio 2W Amplified with Line-in, Line-Out, Mic via 1 x DB9F
Buzzer:	None
Power Manager and Monitoring:	ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step
Power Specifications and Consumption:	100-240V AC - 50/60Hz Operating 70W (typ) - 240W (max) AC Power IN: 1 x Std IEC inlet
Digital I/O Connectors:	None or option: 1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
Key Features:	High Performance, Easy Removable Front Air Filter, Internal Cooling fan in front (120x120mm), Service friendly, Includes mounting brackets, LAN Wakeup, USB Boot, Trusted Platform Module 2.0 (TPM2.0), Intel® Management Engine. True power on after power fail, Firmware Raid
Product Dimensions and Weight:	W:345.00 [13.58"] x H:133.00 [5.24"] x D:392.30 [15.44"] mm [inch] 3U Rack size in height. Approx 9kg / 19.8lbs
Product Carton Size and Weight:	L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch] Approx. 12kg / 26.4lbs
User Controls / Activity:	Front: Power/Reset/Power LED Combined Function

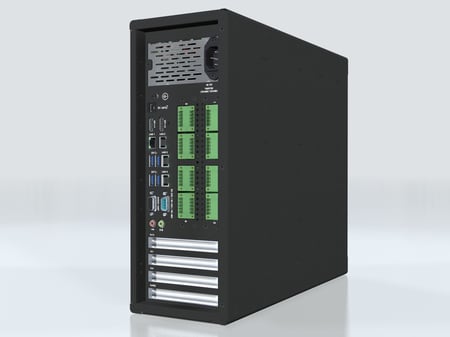

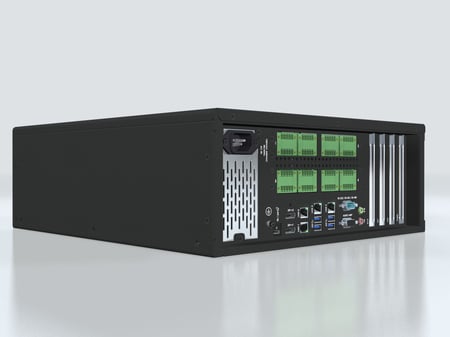

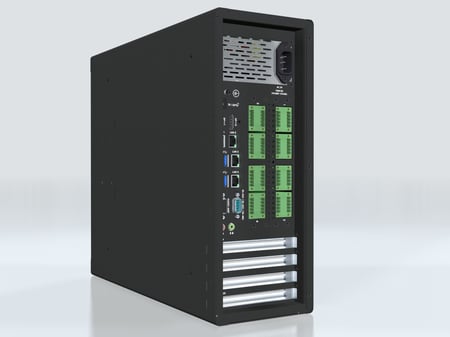

Factory Options:	• PNY NVIDIA T400 4GB PCIe 3.0 x16, LP, 3x mDP • PNY NVIDIA T1000 8GB PCIe x16, 4x mDP 1.4 • CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485) • X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45 • I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45 • X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+ • HT LAN-F INT: 2x SFP-1000BaseLX-RGD-C • PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT* • PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) module* • PCA100309-1: Dual Isolated RS-232, 2xDB9 module* • PCA200828-1: COM RS-422/485 isolated NMEA 4 channel, 5-pin T. Block 3.81* • PCA200898-1: NMEA Kit (4xRS422/RS485 isolated) SW Configurable PENDING • HTA2020002-SLCAN: Socket CAN isolated, 2 channel module* • HTA2020002-AD1033: CAN isolated, 2 channel module* • HT EPB STD-A4: REMOTE ON/OFF Module • HD550N1 HDV M2: Frame grabber HDMI / RGB • HD550N1 SDI M2: Frame grabber SDI-HD * For all Factory Mounted Options, review User Manual for possible HW combinations. **In combination with graphic-card, only USB 2.0 in front. Installed in x4 slot.
Accessories:	• HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mounting kit for 19" Rack • HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mounting kit for 19" Rack • HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit(compatible with HT00224/00225) • HT 00226 OPT-A1: 2 x Mounting Bracket, 4mm SECC+Zinc Plating, RAL9011 • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00275 OPT-A1: 1 x PCI Mount Kit EN60945, Low Profile (LP, any len.) • HT MBK STD-C1: Mounting Bracket Kit HTC03/HTC04 - L-Shaped • HT RET STD-A3: 1 x Cable/Retainer Kit • HT 00300 MSOS: OS options -> www.hattelandtechnology.com/os • JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle • H733S30Q20-SP000-0: 1 x Replacement Front Air Filter w/4 screws • HD 000TR SX2-A3: 1 x Removable Tray 2.5" w/4xM3x4mm Phillips Countersunk Screws • 895-0492: USB-C cable, 2m • VSD203404-1 R2 USB-C to DP Adapter • VSDDPVGA340 / HT DPM2VGAF-A1: 1 x DP to VGA adapter • RC3473 / HT DPM2DVI-DF-A1: 1 x DP to DVI adapter • ZA-A391: mini DP to HDMI(female) • ZA-A390: mini DP to DVI(female) • VSD203733-1: External Power Button Cable 4.6m (no power button included) • VSD203400-1: External Power Button Cable 2m • VSD203400-2: External Power Button Cable 5m • HD xxxayy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device*
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 260.00 [10.24"] - Steering: 170.00 [6.69"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

PRODUCT DETAILS

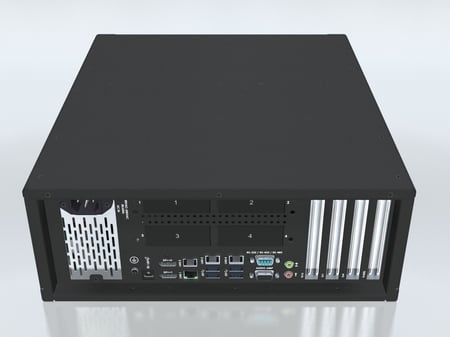

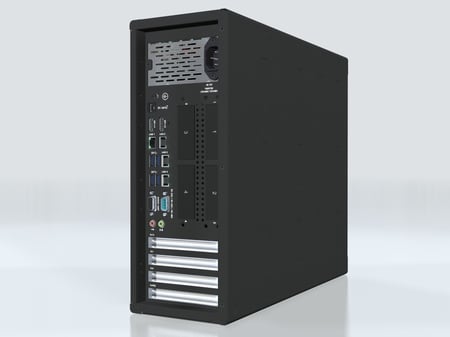

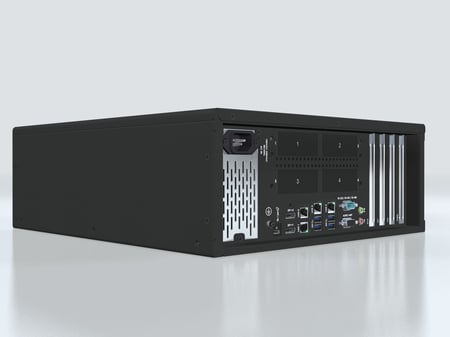

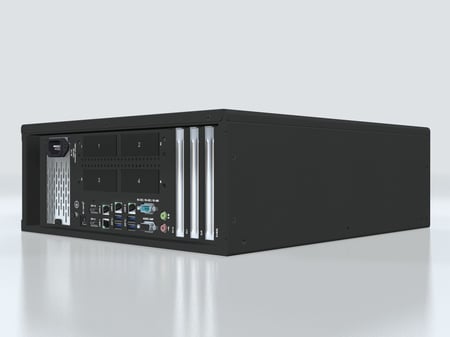

HTC03 AC
