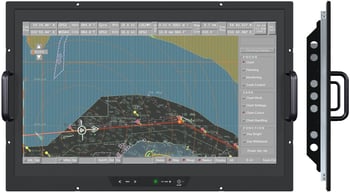

Monitor - Widescreen - 4K UHD - LED - TEMPEST Certified - 32.0 inch - MIL Qualified / Rugged Marine

HM 32T22 RMD

Hatteland Technology's rugged Military range of monitors (HM) are designed to provide high-quality provides large 4K resolution video and graphics performance into modern military platforms. The 32 inch TEMPEST monitor is engineered to provide naval installations with the latest in a combinations of technologies. By merging the COTS maritime standards and military requirements for TEMPEST the unit fulfill severe conditions encountered in naval installations.

Widescreen

High-res

LED-backlit

EN60945

MIL-STD 167

MIL-STD 810

MIL-STD 461

TEMPEST Certified

Send Request

Description

Specifications

Typenumber (Long):	HM 32T22 RMD-MAT-6OVA
TFT Technology:	LED Backlight Technology,Widescreen, TFT active-matrix liquid crystal panel, RGB vertical stripe, AHVA (Advanced Hyper Viewing Angles) LCD
Viewable Size and Active Area:	32.0 inch - 708.48 [27.89"] (H) x 398.52 [15.69"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm
Aspect Ratio and Response Time:	16:9 - 12ms (typical) (G to G)
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz
Detectable Resolutions:	VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Enhanced AR (anti-reflective) glass coating, Front Mounted Handles (removable), Optical Bonding Technology (bonded mesh glass), EMI gasket for console mount, Full Dimming 0-100%, PIP (Picture In Picture)
Power Specifications and Consumption:	Multi-power 100-240V AC - 50/60Hz + 24 VDC • Operating: 156W (max) - 65W (typ) • Inrush Current: 50A for VAC/VDC, Max. (@ 25.0°C / 77.0°F)
User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: • Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm) • Power On/Off button, On Screen Display control (OSD)* button • Up/Down OSD Navigation / Hotkey buttons • +/- Brightness Control Buttons, ECDIS Button *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI-D Input: 1 x 24p DVI (female) - Max 3840x2160@30Hz. NOTE: Not approved for TEMPEST. Connector blocked (hatch cover) by factory default. • VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz, NOTE: Not approved for TEMPEST. Connector blocked (hatch cover) by factory default. • HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz • SCOM USB: 1 x USB TYPE A Connector (female) • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • SW Interface: 1 x USB TYPE A (female) for Firmware Update • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	With Handles: W:800.00 [31.50"] x H:530.00 [20.87"] x D:126.00 [4.96] mm [inch] Without Handles: W:800.00 [31.50"] x H:530.00 [20.87"] x D:75.00 [2.95] mm [inch] Weight: Approx. 21.5 kg / 47.3lbs
Product Carton Size and Weight:	L:885.00 [33.46"] x W:185.00 [7.28"] x H:700.00 [27.56"] mm [inch] - 0.11 cbm Weight: 25.0kg / 55.0lbs TBD
Factory Options:	• Color Calibrated models (ECDIS)
Accessories:	• HD CMB SX2-E1: 1 x Console Mount Kit. EN60945 Tested • HD TMB SX2-A2: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX2-G1: 1 x VESA Adapter. EN60945 Tested • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • P020518: 1 x EMI Shield Gasket
Capabilities - Prepared for:	SDIP-27 Level B has been approved with the following configurations: • HDMI 2.0 Input: 1 x 19p HDMI (female) using ART: C-HM/HM-6* • DP 1.2 Input: 1 x 20p DisplayPort (female) using ART: VSD101004-2* *1 pcs of each cable is included in delivery.
Operating Temperature:	AC Model: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810F&G) DC Model: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810F&G) Humidity up to 95% at +40.0°C / 104.0°F (MIL-STD 810F&G)
Storage Temperature:	Dry Heat: +70.0°C / 158.0°F (MIL-STD 810F&G) Cold: -40.0°C / -40.0°F (MIL-STD 810F&G) Humidity up to 95% at +40.0°C / 104.0°F (MIL-STD 810F&G)
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 240.00 [94.49"] - Steering: 145.00 [57.09"] cm [inch]
Type Approval, Testing and Certificates:	MIL-STD 461F&G, MIL-STD 810F&G, IACS E10, MIL-STD-167-1A, KR - Korean Register, IEC 60945 4th (EN 60945:2002), EU RO MR - Mutual Recognition by DNV, LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, ABS - American Bureau of Shipping, TEMPEST SDIP-27 Level B - TEMPEST certified by the Norwegian National Security Authority Environmental Performance: Shock: 20g&50g/11ms, 50g/30ms (MIL-STD 810F&G) Rain (drip proof): MIL-STD-810F&G - Console mounted Salt Fog: MIL-STD-810F&G Vibration Testing: MIL-STD-167-1A EMI Testing: IL-STD 461F&G, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103 Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: August 18, 2025 @ 08:00

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

9 Dec 2024
AVA VS Firmware change

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

27 Jun 2023
VSD100699 new connector

17 Feb 2023
Updated GDC (keypad) HW and supporting FW for Series X ...

21 May 2021
TEMPEST products - change of standard accessories

End of Life Notifications (EOL):

6 Dec 2021
32 and 55 inch TEMPEST certified models
