Monitor - Widescreen - 4K UHD - LED - TEMPEST Certified - 32.0 inch - MIL Qualified

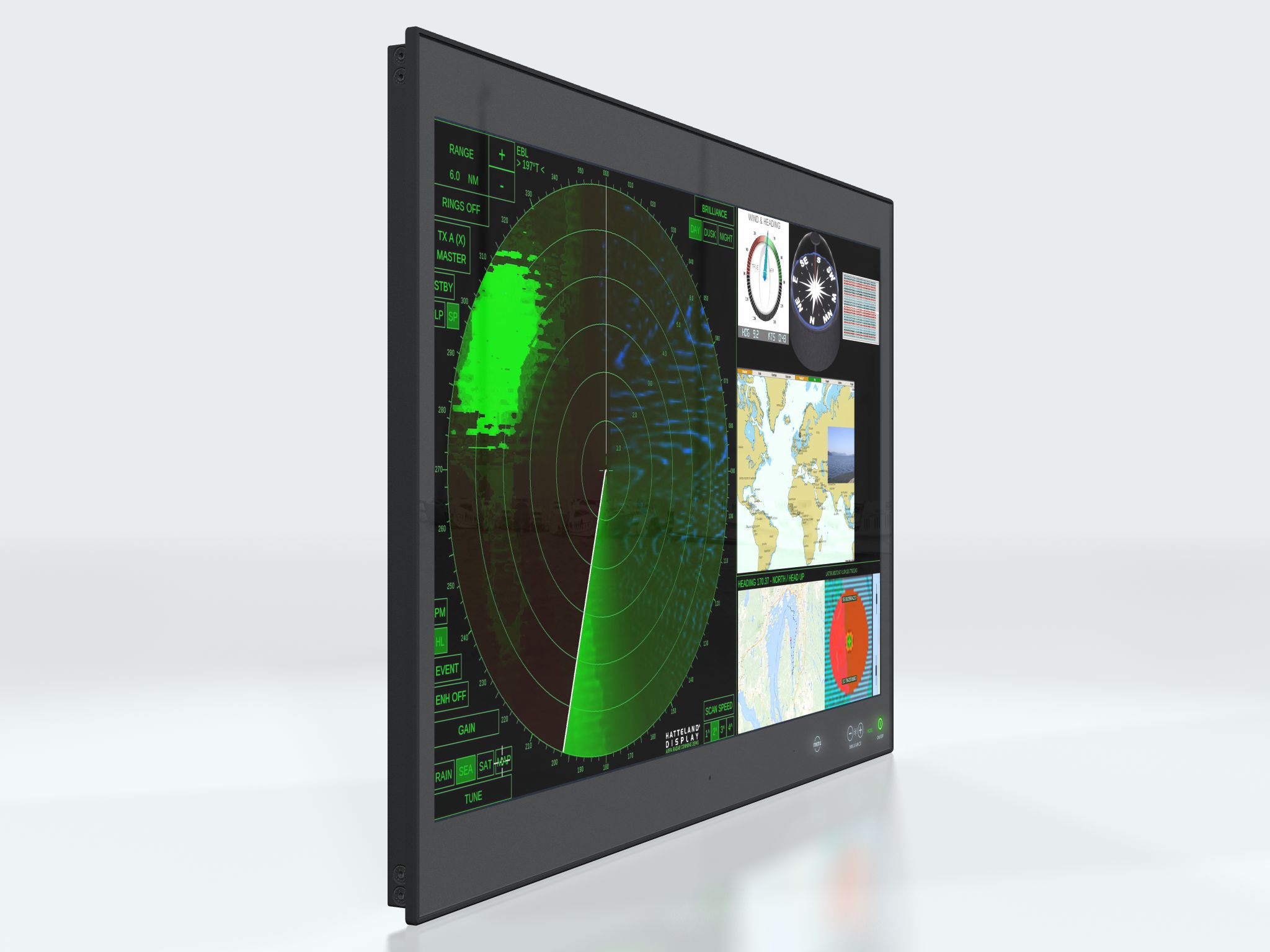

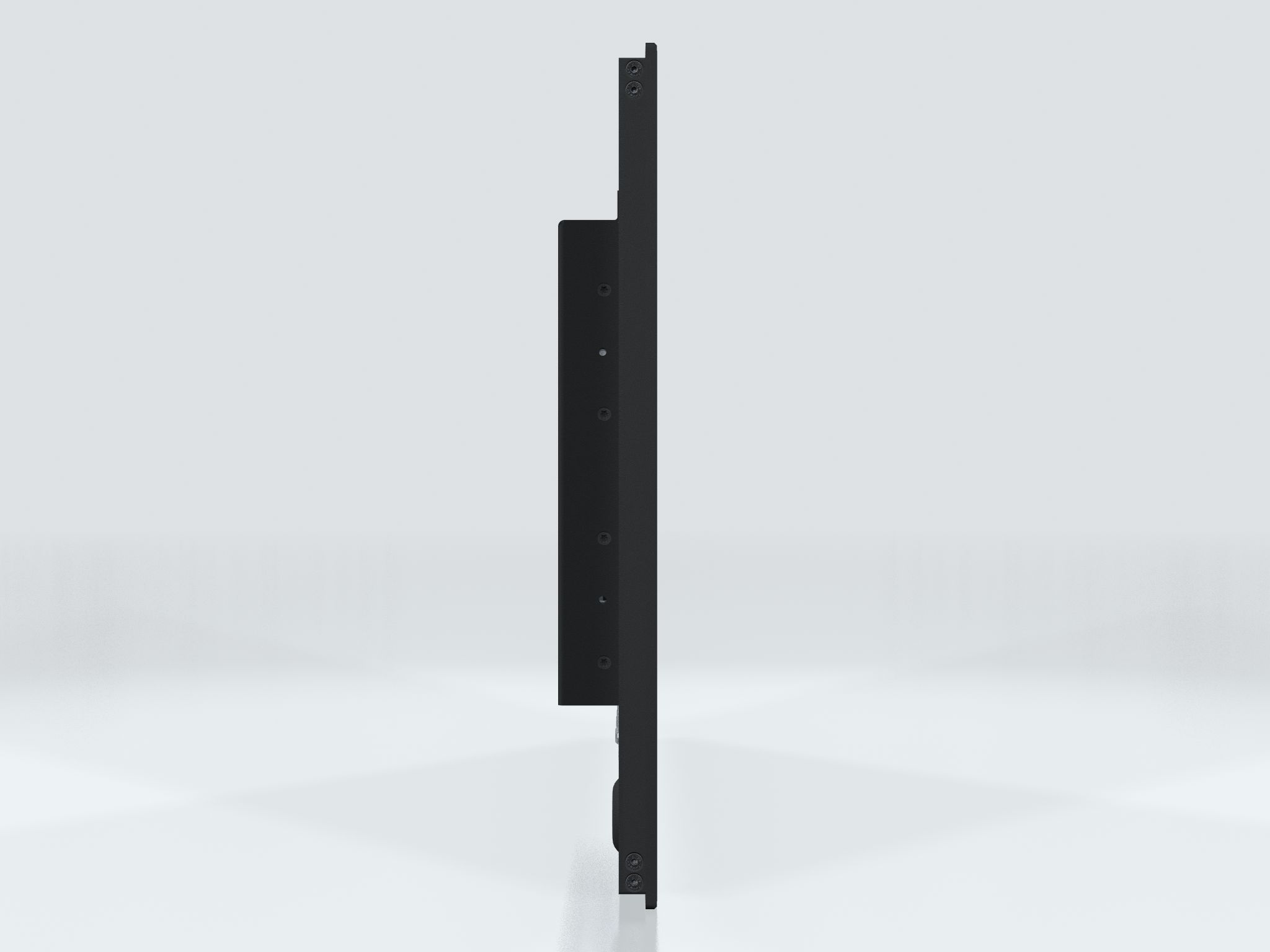

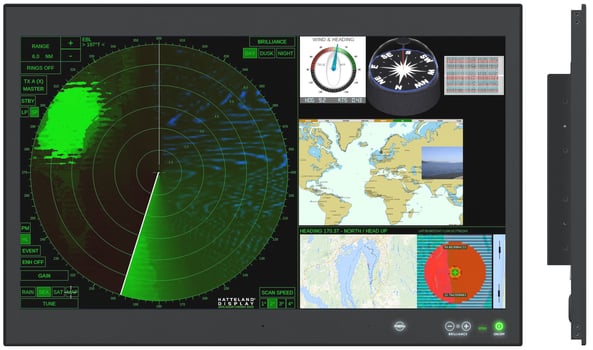

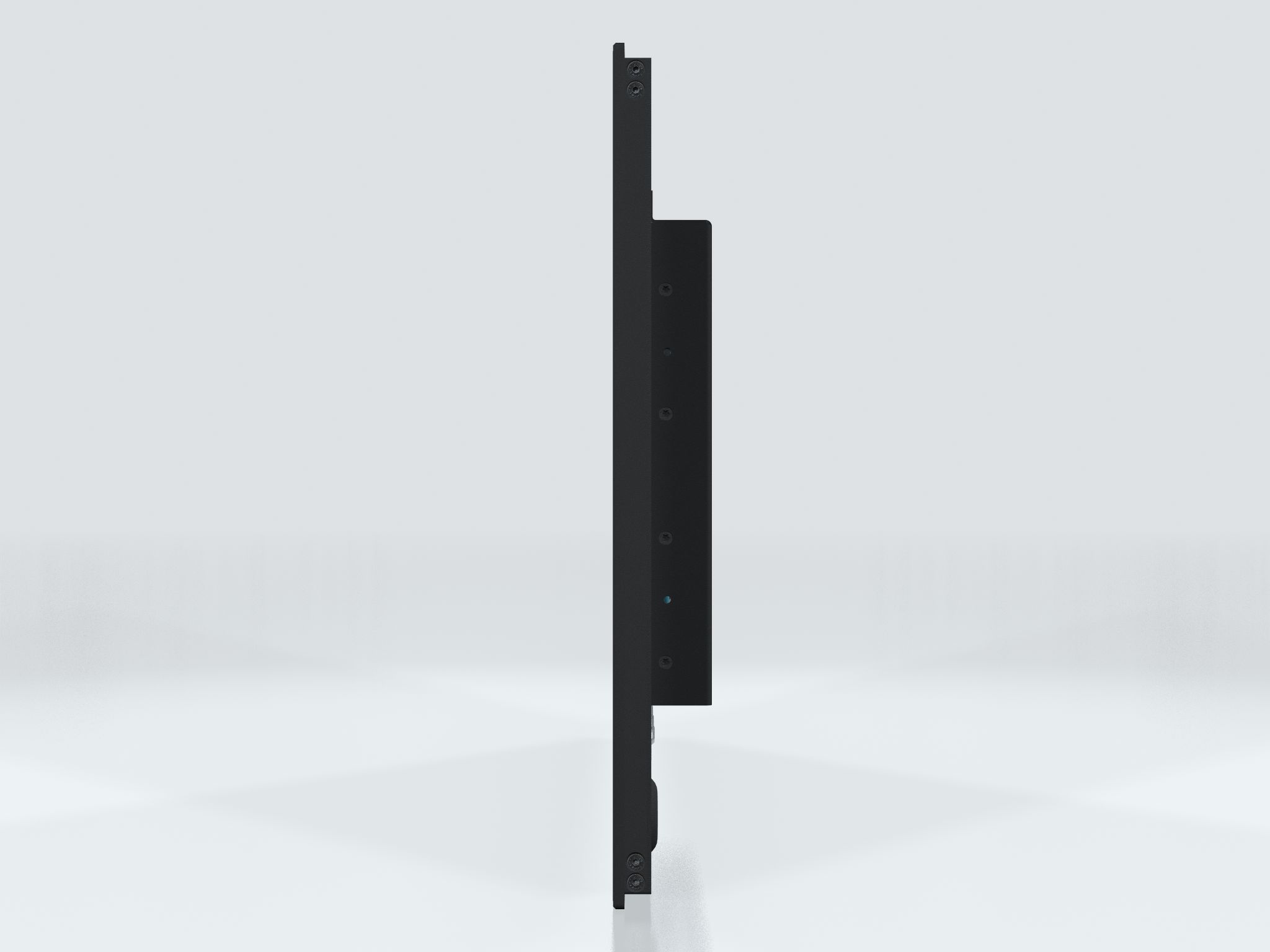

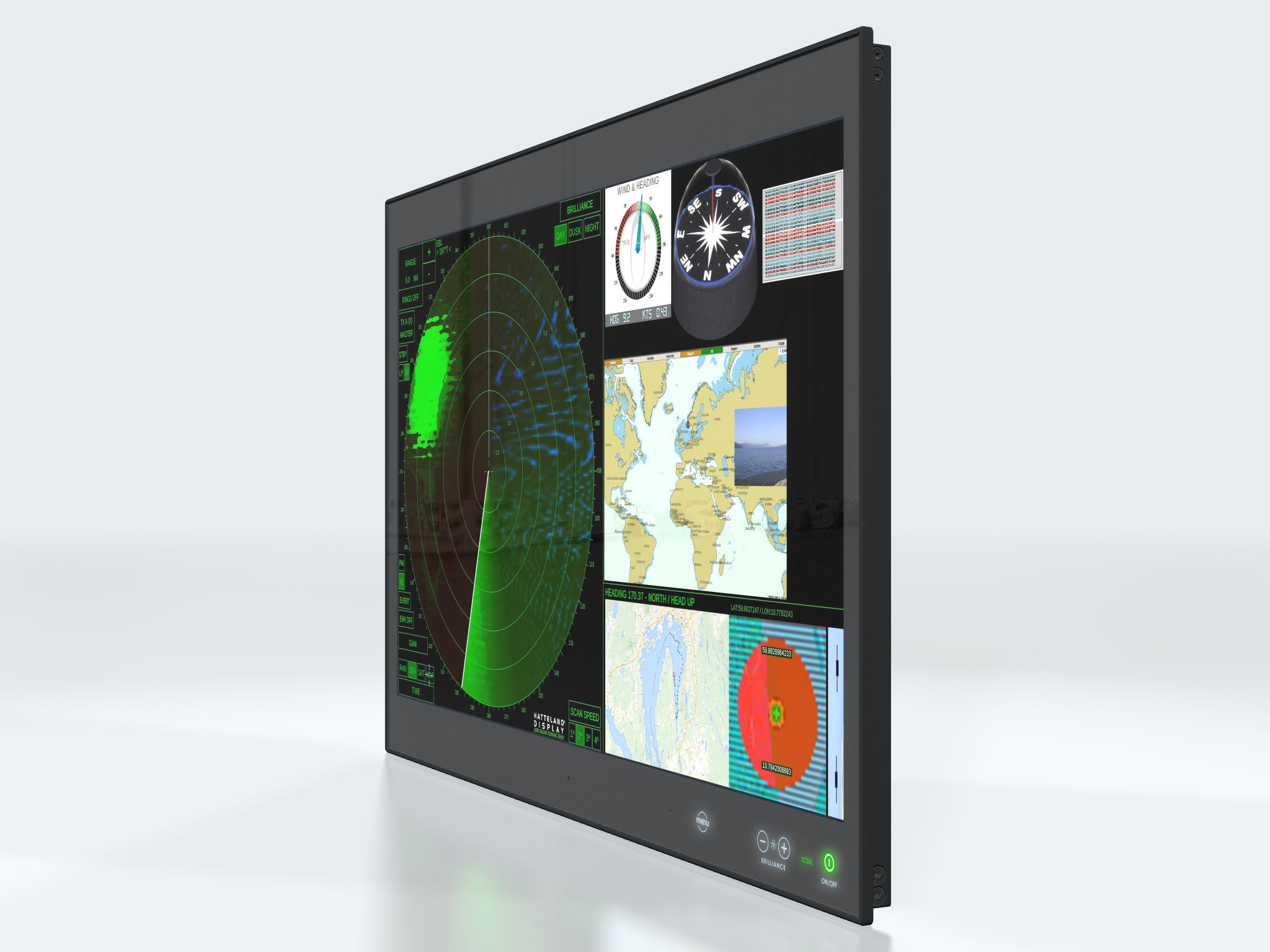

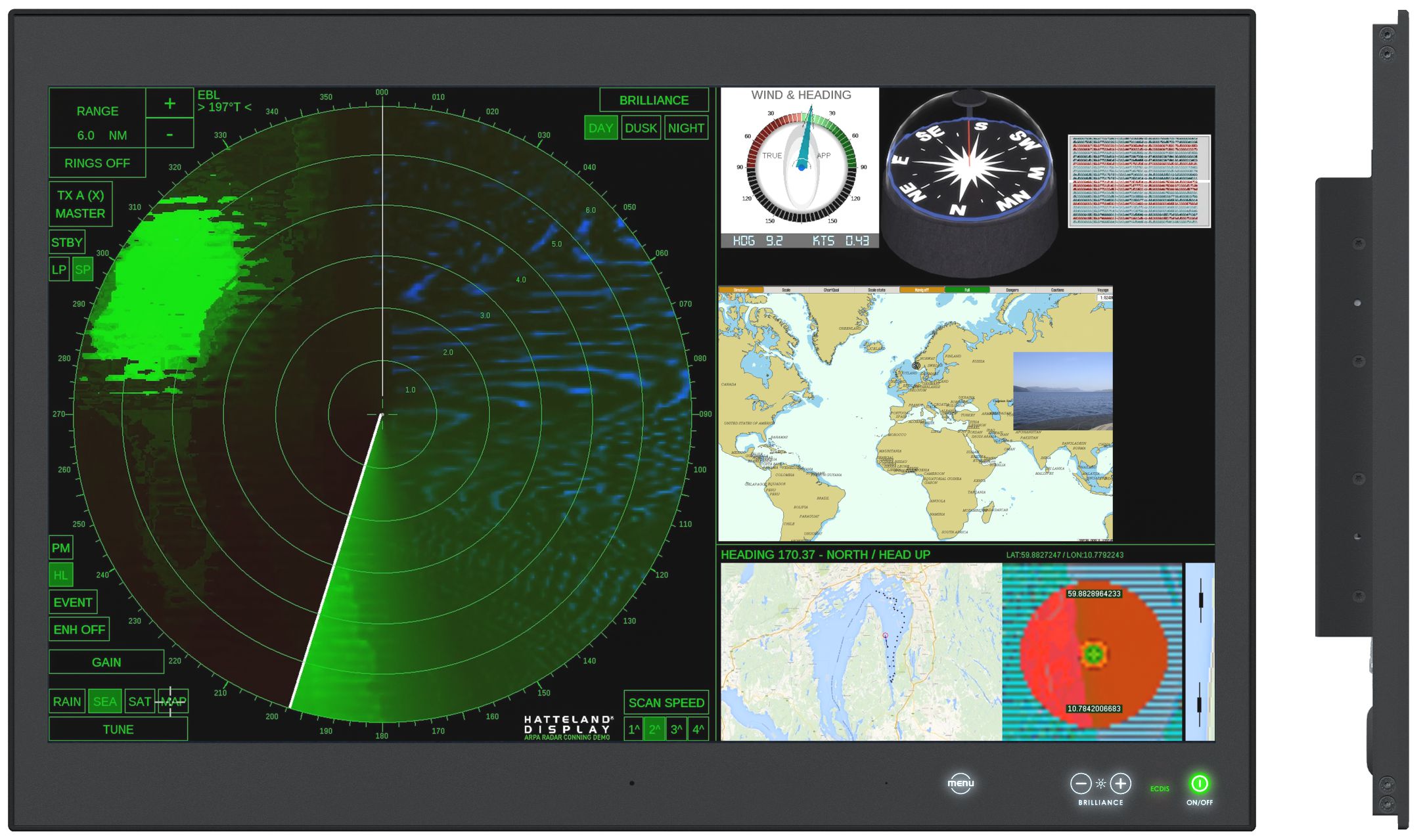

HM 32T22 MVD

Hatteland Technology's Multi Vision Display (MVD) Military range of monitors (HM) are designed to provide high-quality provides large 4K resolution video and graphics performance into modern military platforms. The 32 inch TEMPEST monitor is engineered to provide naval installations with the latest in a combinations of technologies. By merging the COTS maritime standards and military requirements for TEMPEST the unit fulfill severe conditions encountered in naval installations.

Widescreen

High-res

LED-backlit

EN60945

TEMPEST Certified

Send Request

Description

Specifications

Typenumber (Long):	HM 32T22 MVD-MAT-AOGA
TFT Technology:	LED Backlight Technology, Widescreen, RGB Vertical Stripe, TFT active-matrix liquid crystal panel, AHVA (Advanced Hyper Viewing Angles) LCD Technology THIS PRODUCT IS NOT SPECIFIED PROPERLY IN TABLES YET
Viewable Size and Active Area:	32.0 inch - 708.48 [27.89"] (H) x 398.52 [15.69"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm
Aspect Ratio and Response Time:	16:9 - 12ms (typical) (G to G)
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz
Detectable Resolutions:	VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	TEMPEST Certified, Optical Bonding Technology, Toughened Glass, Full Dimming 0-100%,PIP (Picture In Picture), Front Mounted Handles (removable), EMI gasket for console mount (P020518). MTBF: 23700 hours (pending)
Power Specifications and Consumption:	Multi-power 115/230VAC - 50/60Hz + 24VDC • Operating: TBD (typ) - 156W (max) • Inrush Current: xA for xVDC, Max. (@ x deg. C) • Inrush Current: xA for xVAC, Max. (@ x deg. C)
User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm), Power On/Off button, On Screen Display control (OSD) button, Up/Down OSD Navigation / Hotkey buttons, +/- Brightness Control Buttons, BIT/ECDIS Button OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI-D Input: 1 x 24p DVI (female) • VGA Input: 1 x 15p HD D-SUB (female) • HDMI 2.0 Input: 1 x 19p HDMI (female) • DP 1.2 Input: 1 x 20p DisplayPort (female) • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • FW Update: 1 x USB TYPE A (female) for Firmware Update • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:
Product Carton Size and Weight:	L:860.00 [33.86"] x W:180.00 [7.09"] x H:670.00 [26.38"] mm [inch] TBD kg / TBD lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch,USB,Glove/Pen support) • Color Calibrated models (ECDIS) on request
Accessories:	None
Capabilities - Prepared for:	N/A
Operating Temperature:	AC: -15.0°C / 5.0°F to 55.0°C / 131.0°F DC: -15.0°C / 5.0°F to 55.0°C / 131.0°F umidity up to 95% at 40.0°C / 104.0°F MIL-STD 810F&G
Storage Temperature:	Dry Heat: 70.0°C / 158.0°F old: -40.0°C / -40.0°F Humidity up to 95% at 40.0°C / 104.0°F MIL-STD 810F&G
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 195.00 [76.77"] - Steering: 125.00 [49.21"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, MIL-STD 461F&G, IL-S-901D Class I (hard-mounted) Grade A, Shock, EU RO MR - Mutual Recognition, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, KR - Korean Register Environmental Performance: Shock: 30g&50g/11ms, 50g/30ms (MIL-STD 810F&G) Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D) Rain (drip proof): MIL-STD-810F&G - Console mounted Salt Fog: MIL-STD-810F&G Vibration Testing: MIL-STD-167-1A EMI Testing: IL-STD 461F&G, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103 Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: August 18, 2025 @ 08:00

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

9 Dec 2024
AVA VS Firmware change

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

24 Nov 2023
GEV2/AVA NXP Firmware change

7 Aug 2023
Changes product marking - all products

13 Mar 2023
NXP FW update for Series X T22/T23 MMD/MVD Monitors wit...

End of Life Notifications (EOL):

6 Dec 2021
32 and 55 inch TEMPEST certified models

News Stories:

9 Jun 2021
Product released to website
