HD 21T30 MxA

Overview

Panel Computer - Widescreen - LED - ARM CPU - HATTELAND® Series E - 21.5 inch - Smart Monitor

HD 21T30 MxA

The HATTELAND® Smart Monitors have a cost-effective architecture with easy installation, which enables tangible cost savings for maritime technology manufacturers and systems integrators. It is an all-in-one solution for diverse maritime applications based on ARM CPU with an open Android™ platform where any app from Google Play can be installed. HATTELAND® Smart Monitors have a slim design and PoE support.

icon
Widescreen
icon
LED-backlit
icon
EN60945
icon
ECDIS
icon
TPM 2.0
icon
Android™
icon
Linux
Send Request

Description

Panel Computer - HATTELAND® Series E

The HATTELAND® Smart Monitors are based on the Series E family and configured as a Marine Panel Computer (MPA). The unit also meet the same extreme quality standards as the proven Series X Panel Computer range and feature LED Backlight Technology, full dimming (0-100%) all as standard. This is a Solid State Fan-less Construction - No Moving Parts, Embedded light sensor, Buzzer and Aluminum Chassis. The unit supports multi-format video decoders including H.264/H.265/VP9 up to 4k & 2k @60fps (HW), H.264/MVC/VP8 encoders by 1080p@30fps and high-quality JPEG encoder/decoder (HW), typical use case such as running thin client app to control your VM's (like VMware Horizon Client) and VMS app to access your surveillance cameras.

In addition there are options such as factory mounted Projected Capacitive Touch Screen (Multitouch, USB interface), Optical Bonding, variations of Storage Devices and prepared for WiFi and Bluetooth antennas. By factory default the unit is ECDIS Compliant.

Android is a trademark of Google LLC. Google Play are the property of Google LLC.
Specifications
Typenumber (Long): HD 21T30 MxA-x0A-0xPJxI
TFT Technology: LED Backlight Technology, Widescreen, TFT Liquid Crystal Display module, VA (Vertical Alignment), a-si TFT Active Matrix
Viewable Size and Active Area: 21.5 inch - 476.06 [18.74"] (H) 267.79 [10.54"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1920 x 1080 (FHD) - 0.24795 (H) x 0.24795 (V) mm
Aspect Ratio and Response Time: 16:9 - 25ms (tr+tf) (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors: 89 deg. (up/down/left/right) - 16.77M colors (RGB 8-bit)
Optimal Resolution and Hz: 1920 x 1080 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: 640 x 480 to 4096 x 2304 @ 60Hz (DP++ Out Max Resolution)
Power Specifications and Consumption: Multipower 100-240V AC - 50/60Hz+ 24VDC
or Single AC Power Option 100-240V AC - 50/60Hz
Operating AC/DC: 44W (typ) - 156W (max)
Operating AC: 44W (typ) - 125W (max)
Product Features: MULTITOUCH (Projected Capacitive Technology), Fan-less Design, ARM CPU, open Android™ platform, Low Power Consumption, Extended lifetime (+10 years), Dimmable 0-100%, Buzzer, Multi-power AC & DC or Single Power AC, WiFi and Bluetooth antennas, Supports wide range of HD Expansion I/O Modules
Installed Operating System (OS): Android™ 8.1 (Optional Linux 4.x)
Storage Options: Internal Storage: 1 x 32GB eMMC (default)
or additional internal 1 x M.2 SSD (240GB->)
CPU / Processor Options: CPU/Processor: Rockchip RK3399, Dual-core ARM Cortex-A72 + Quad-core ARM Cortex-A53
Memory Options: 2 x 2GB (4GB Dual Channel DDR3L)
System Chipset / Graphics Chipset: SoC (System on a Chip) / Mali-T864 GPU
Supports OpenGL ES 1.1/2.0/3.0/3.1/3.2,OpenCL 1.2 and DirectX 11.1
BIOS / Buzzer: No BIOS / Buzzer: Yes (according to EN60945), 75-85dB.
Power Manager and Monitoring: Support Trustzone Technology, Temperature sensor, Light sensor, RTC, Battery alarm, WakeOnLan, TPM2.0 in Linux.
WatchDog Timer: 3 x Watchdogs in SoC w/32bits counter width

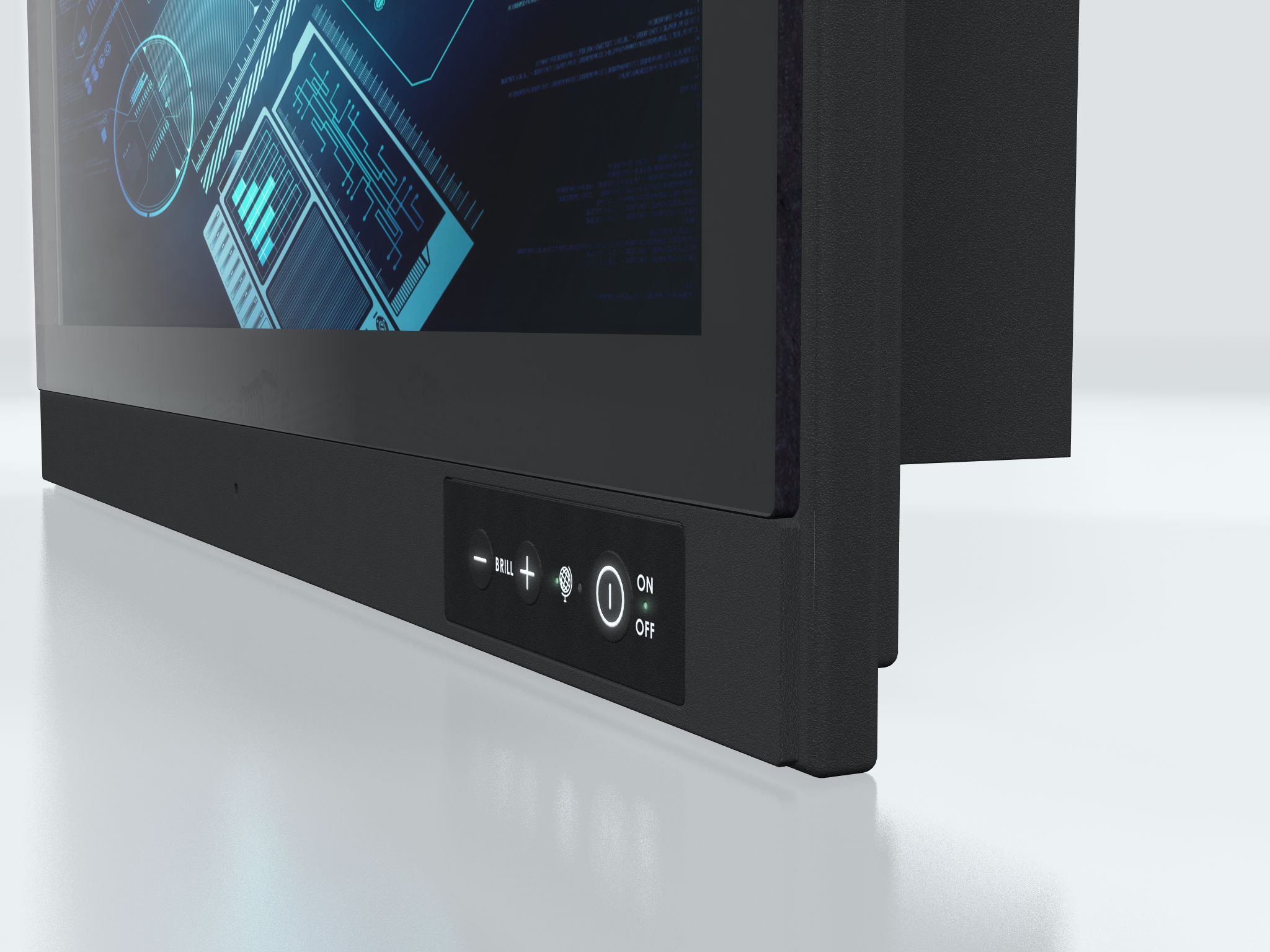

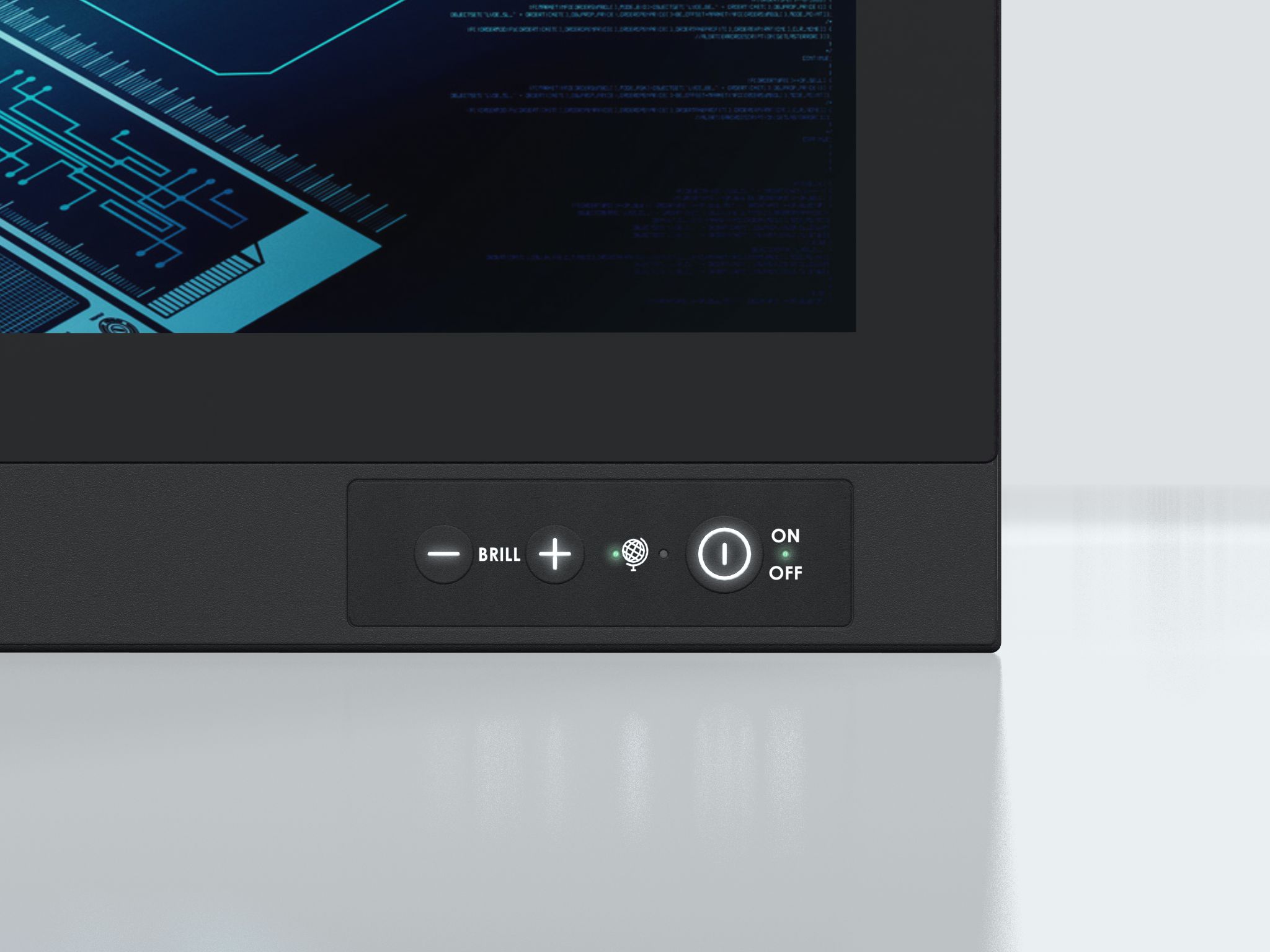

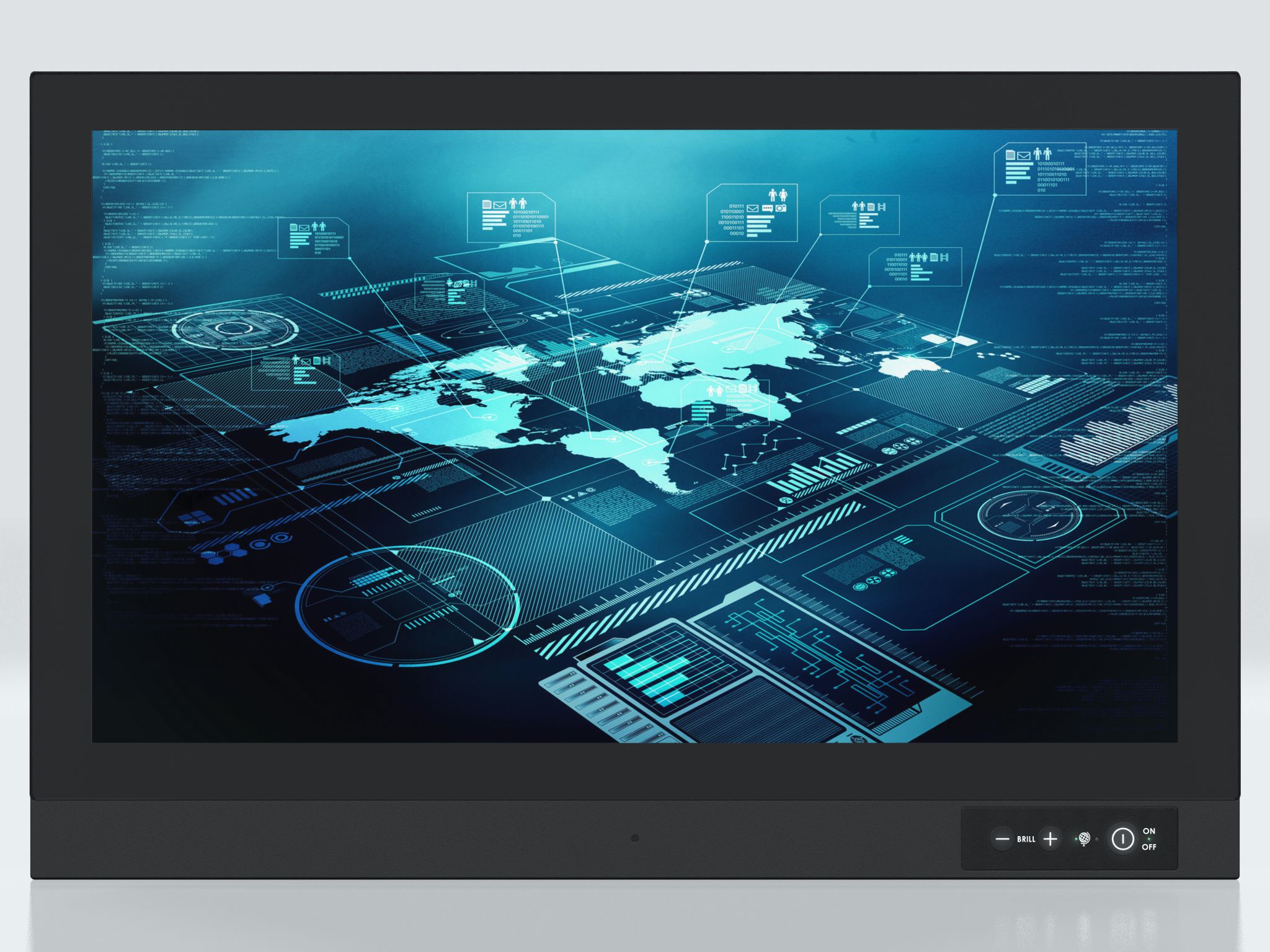

User Controls and Activity: On Front Bezel (IP66): Power On/Off, Brightness Control (-/+), Power LED, ECDIS LED, Buzzer, Light Sensor

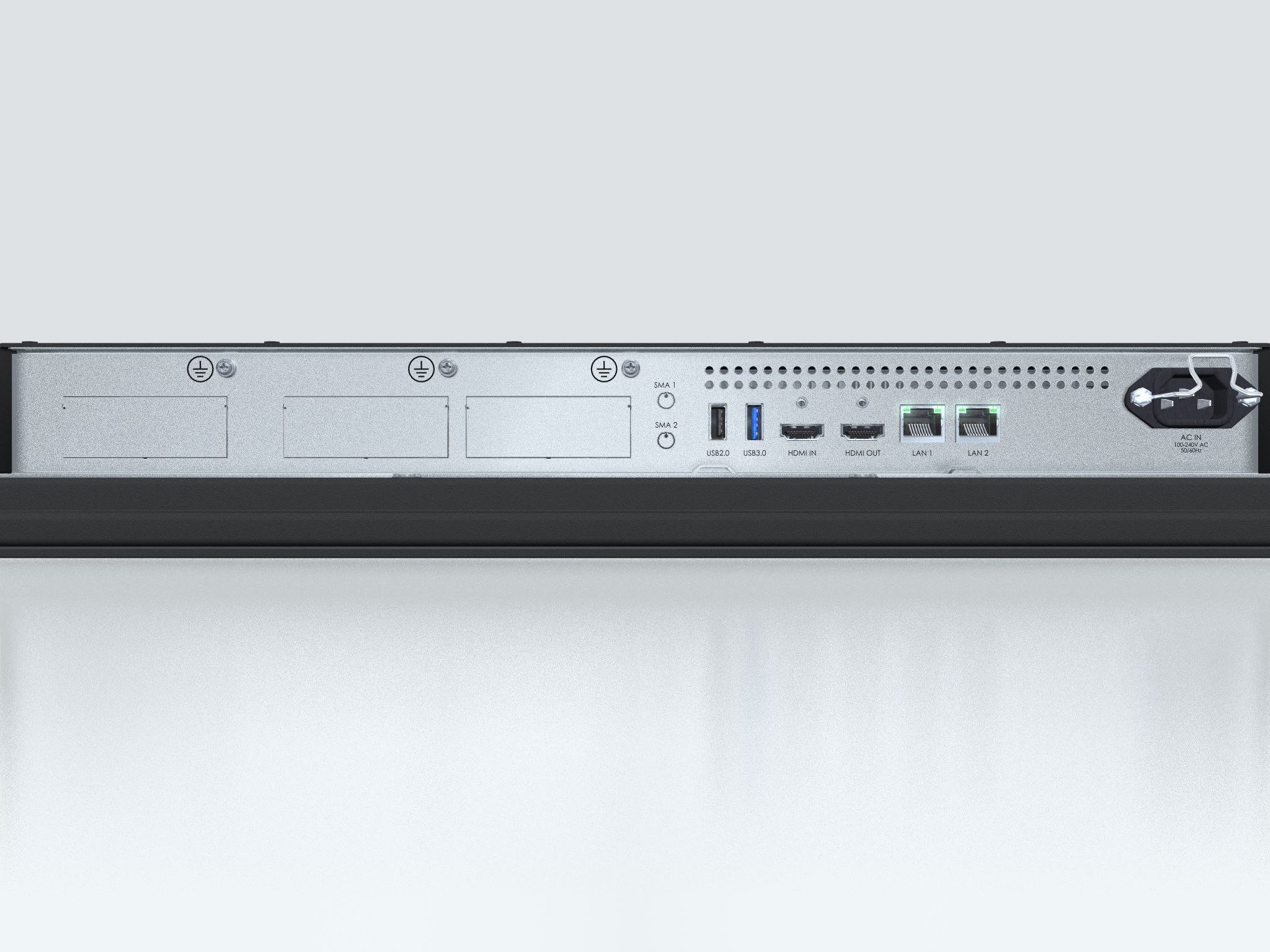

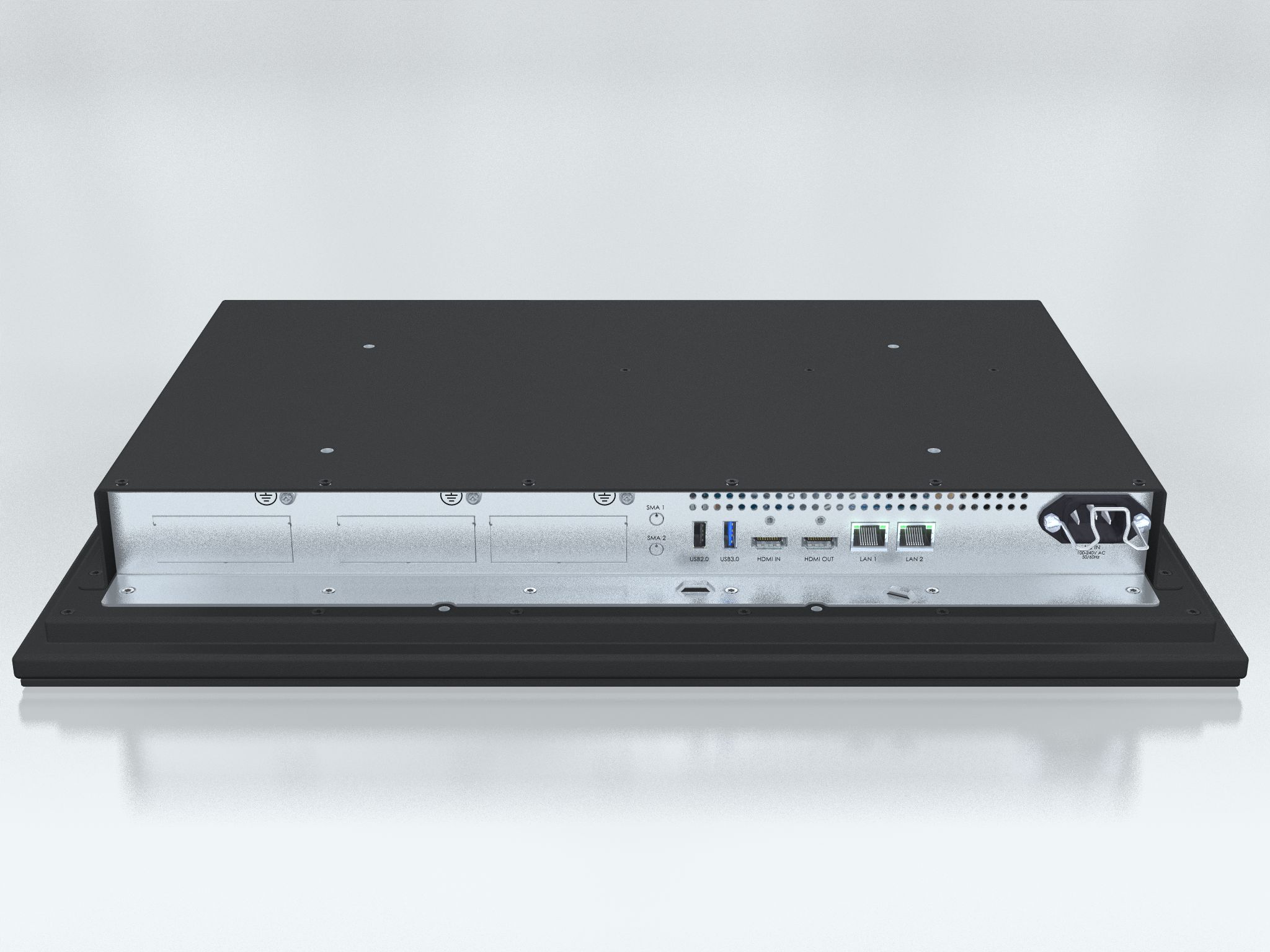

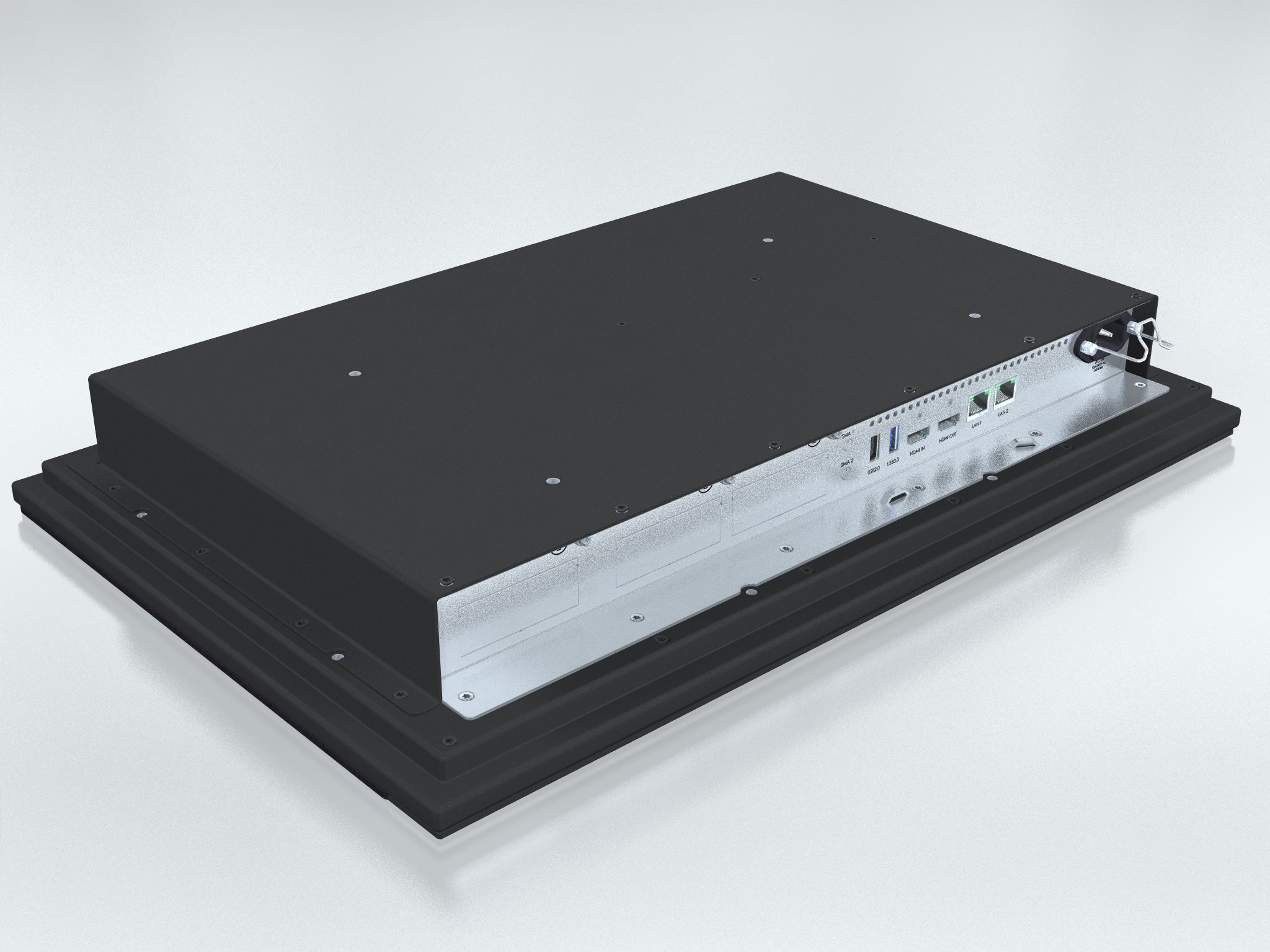

Connectors: • HDMI IN (UHD 60Hz): 1 x 19p HDMI (female)
• HDMI OUT (FHD 30Hz): 1 x 19p HDMI (female)
• USB2.0: 1 x USB Type A
• USB3.0: 1 x USB Type A
• Ethernet GBLan: 2 x RJ-45
• Wifi Antenna: 1 x SMA Coaxial RF connector (SMA1)
• Bluetooth Antenna: 1 x SMA Coaxial RF connector (SMA2)
• AC Power IN: 1 x Std IEC inlet
• If DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight: W:536.00 [21.10"] x H:358.50 [14.11"] x D:78.50 [3.09"] mm [inch]
Approx. 6.5kg / 14.33lbs

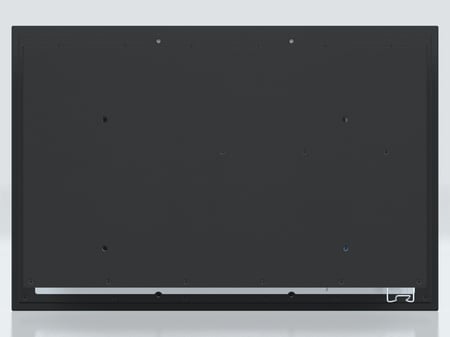

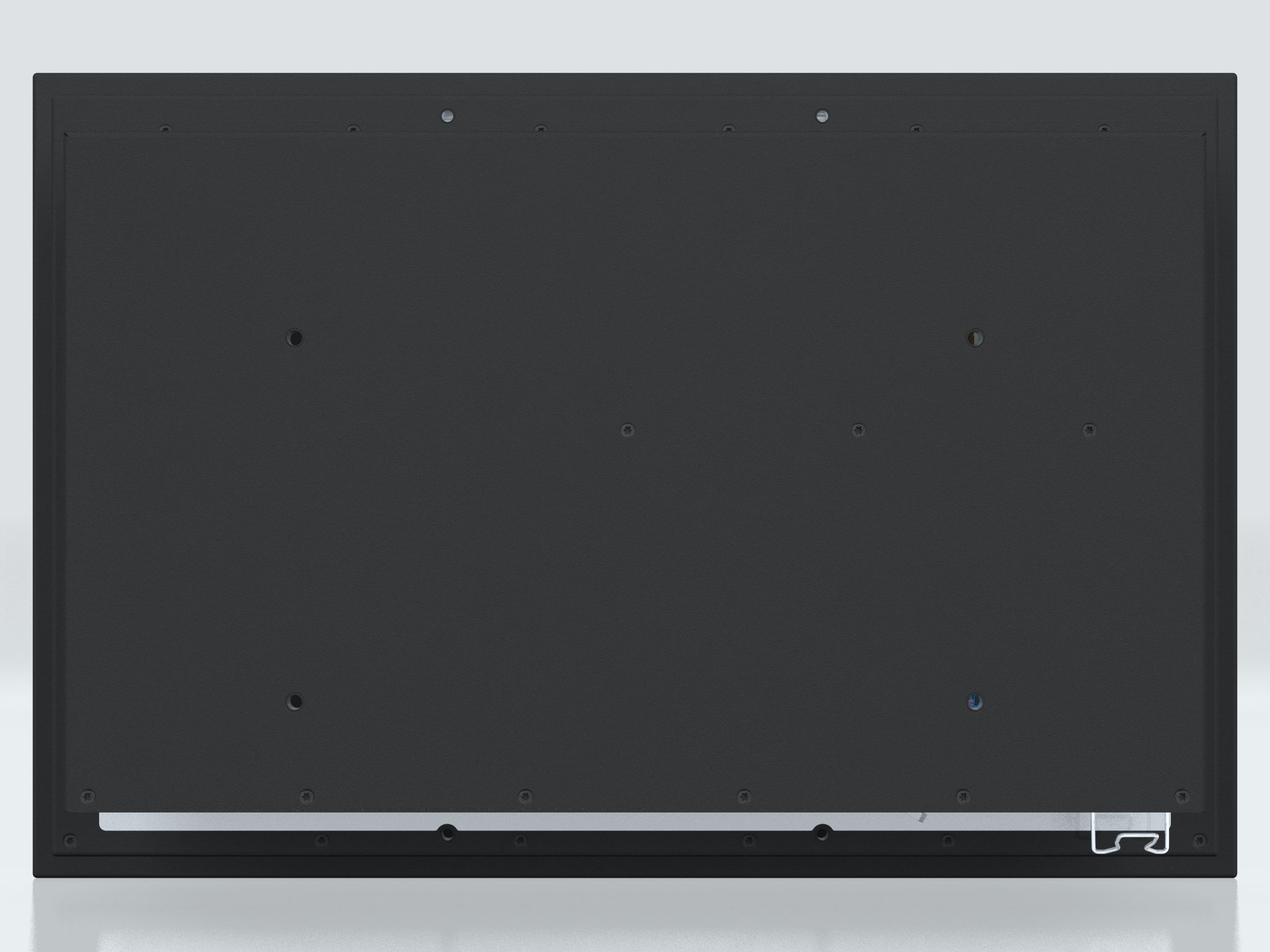

VESA 280x150mm supported.
Product Carton Size and Weight: L:700.00 [27.56"] x W:185.00 [7.28"] x H:585.00 [23.03"] mm [inch]
Approx.TBD kg / TBD lbs
Factory Options: • Color Calibrated model (ECDIS)
• Optical Bonding Technology
• Without Projected Capacitive Touch Screen (Multitouch) model
• Android™ OS or Linux OS

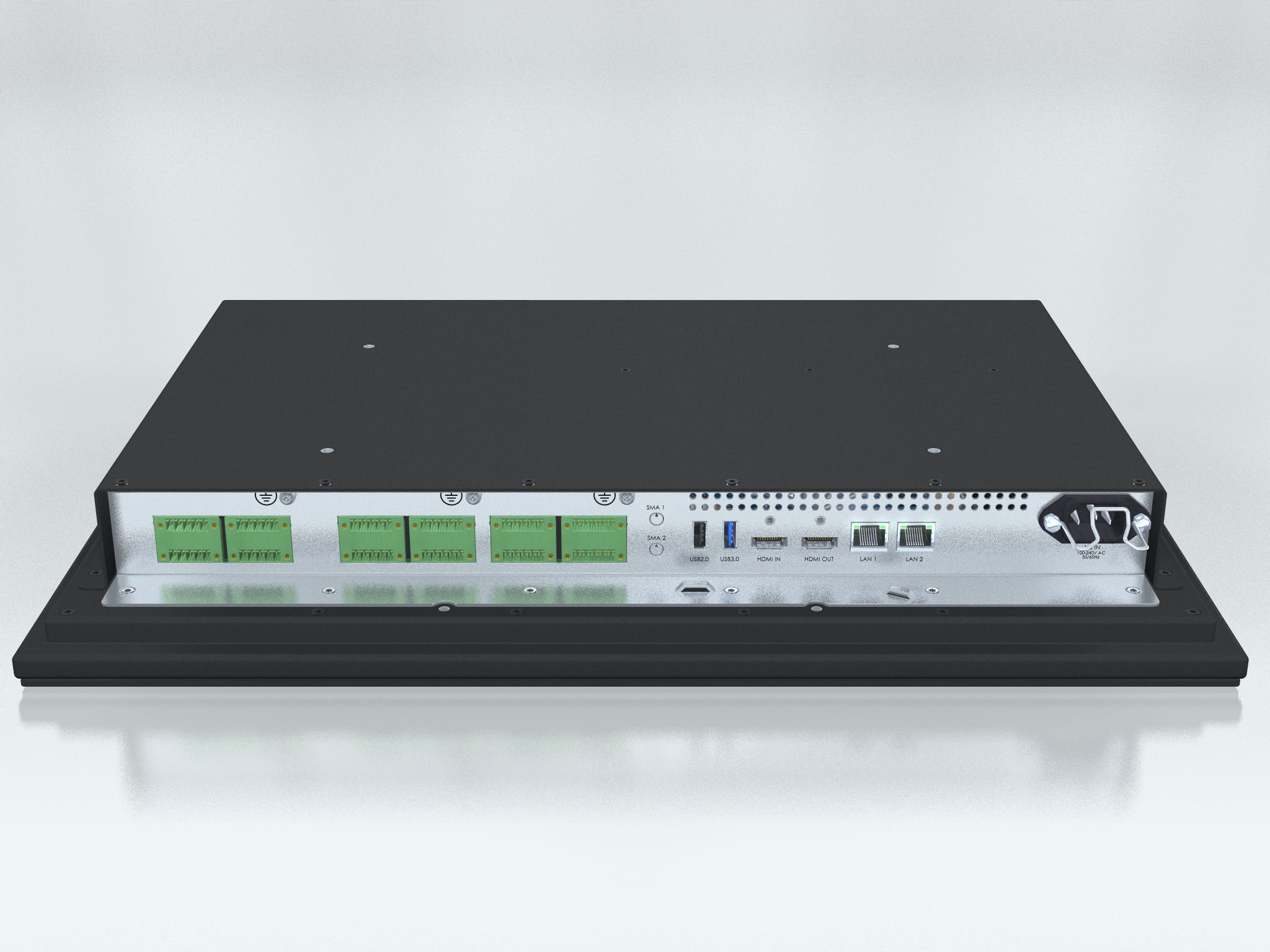

• 2 x Factory mounted HT modules, with options of:
- 1 or 2 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel
- 1 or 2 x PCA100309-1: Dual Isolated RS-232, connector 2xDB9
- 1 x HTA2020002-AD1033: CAN isolated 2 channel or 2 x 4 channel
- 1 x HTA2020002-SLCAN (1 x CAN isolated, 2 ch., socketCAN) module
- 1 x PCA100297-1: Isolated Digital IO module,4 x OUT/4 x IN
- 1 or 2 x PCA100298-1: LAN 10/100Mbps, 2 ports RJ45
Accessories: • HD CMB SE1-B1: 1 x Console Mount Kit. EN60945 Tested*

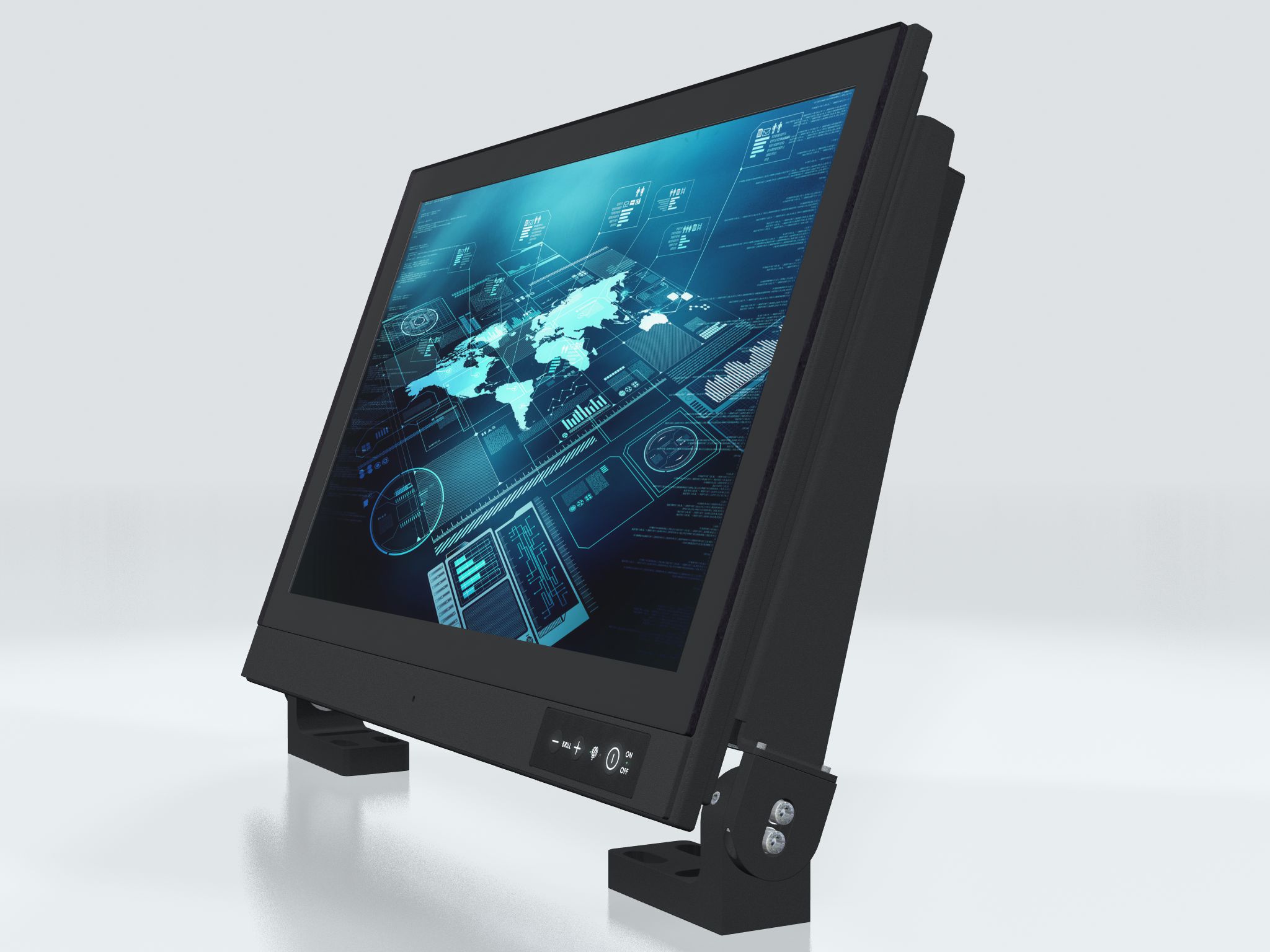

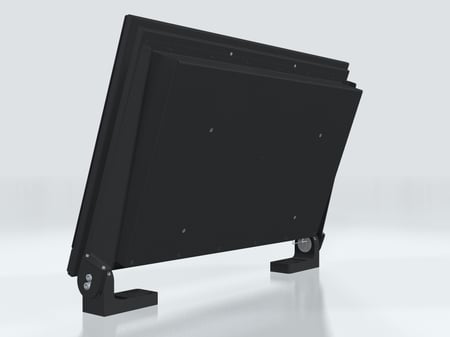

• HD TMB SE1-B1: 1 x Table Mount Bracket. EN60945 Tested
• HD VED SX1-A1: 1 x VESA Adapter, not EN60945 Tested
• JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle
• HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module
• HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module
• HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
• HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module
• HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
*Included in delivery
Capabilities / Prepared for: See Factory Options
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP20 rear (EN60529). IP22=option
Compass Safe Distance: Standard: 60.00 [23.62"] - Steering: 80.00 [31.40"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10,  EU-RO-MR - Mutual Recognition, ABS - American Bureau of Shipping, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society, KR - Korean Register, LRS - Lloyd's Register of Shipping

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: July 1, 2025 @ 09:58
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Feb 2025
New 21.5 inch LCD panel

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

10 Sep 2023
CAN FW Update

7 Aug 2023
Changes product marking - all products

23 Jun 2023
CAN FW Update

News Stories:
15 Dec 2021
Official Product Launch
