HT20470

Overview

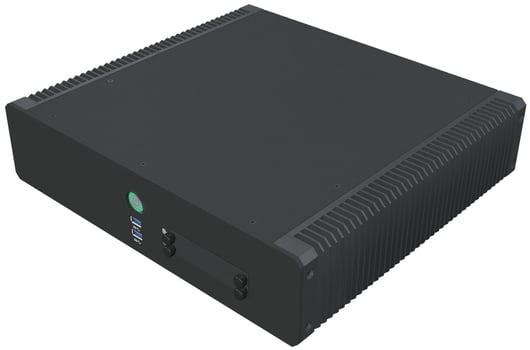

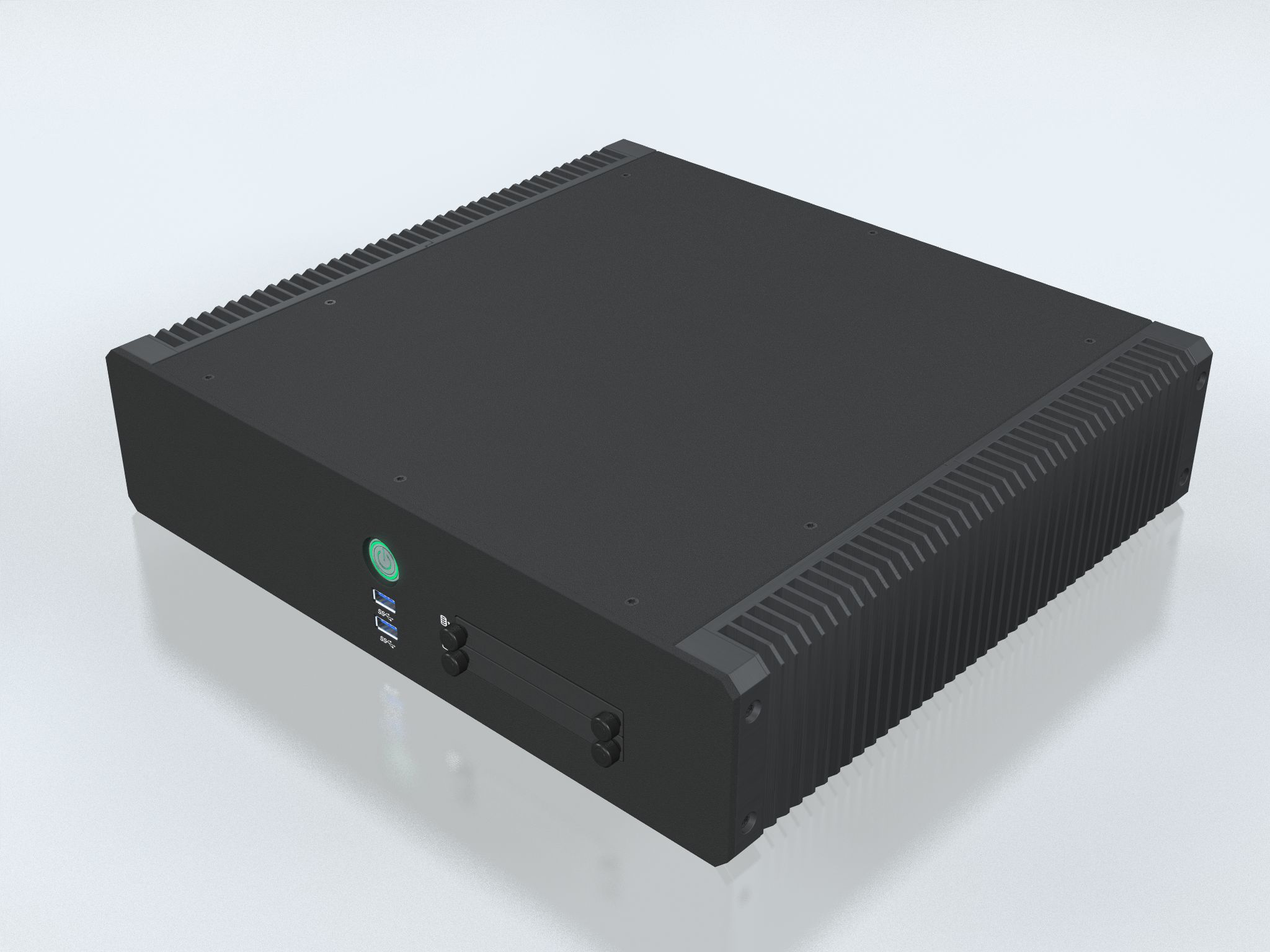

Computer - Fanless - Compact - 2-Bay - Industrial Marine

HT20470

The HT20470 model is the successor to the best in class and highly successful HT20370 computer. The new model incorporates latest processor technologies and enhanced feature sets, thus providing greater versatility for high-end maritime system applications. The HT20470 models are high-end platforms with an enhanced chassis that includes external disc bays at the front. A model with 4 removeable bays/trays is also available (contact your Sales Representative at Hatteland Technology for more details).

icon
Fanless
icon
IoT Enabled
icon
TPM 2.0
Send Request

Description

Computer - Compact

The HT20470 models are high-end platforms with an enhanced chassis that includes external disc bays at the front. The i3, i5, i7 or i9 processor options ensure state of the art computing performance is delivered; while the extensive feature options allows for the HT20470 to be built up to a quasi-Server capability.

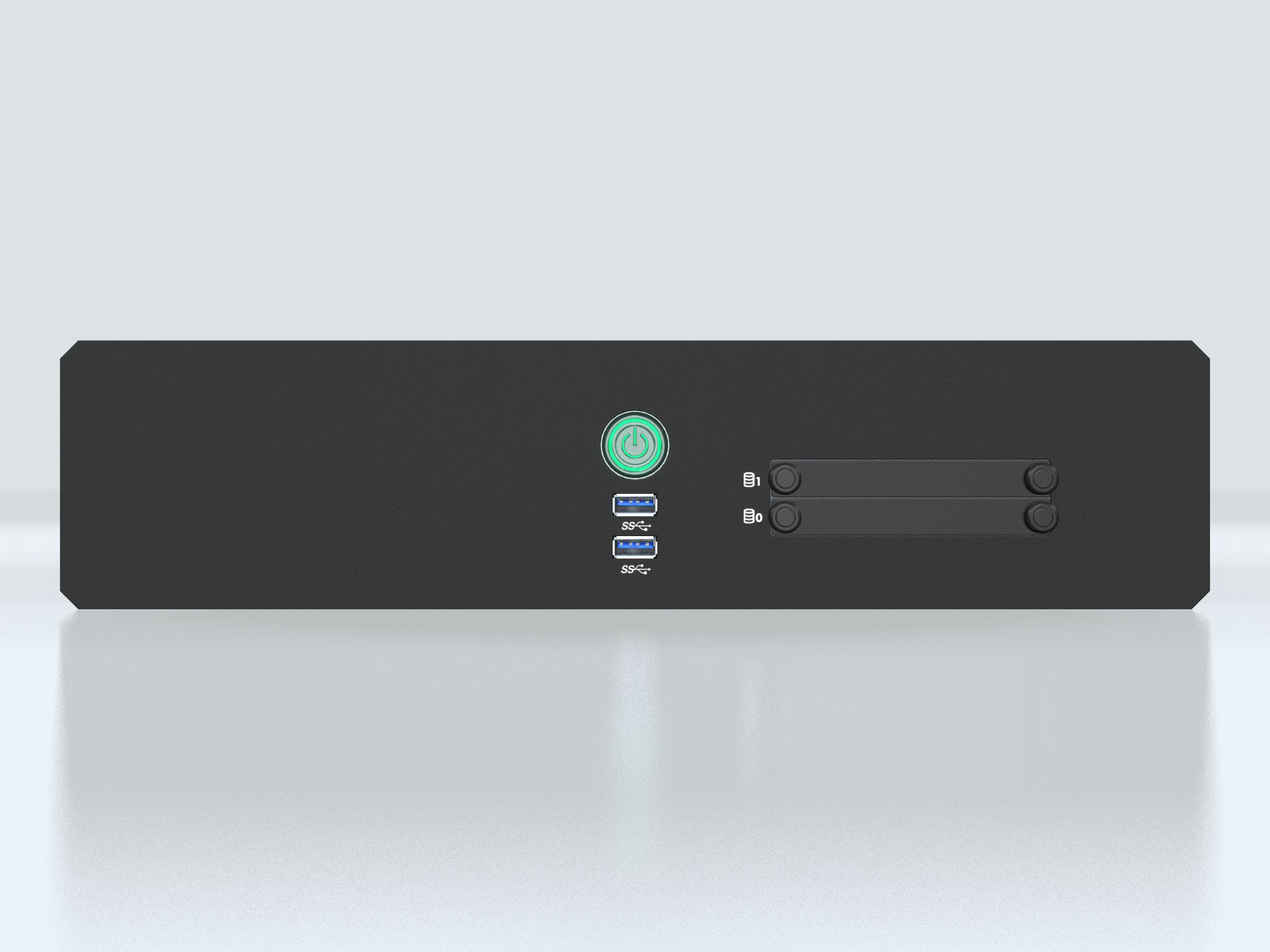

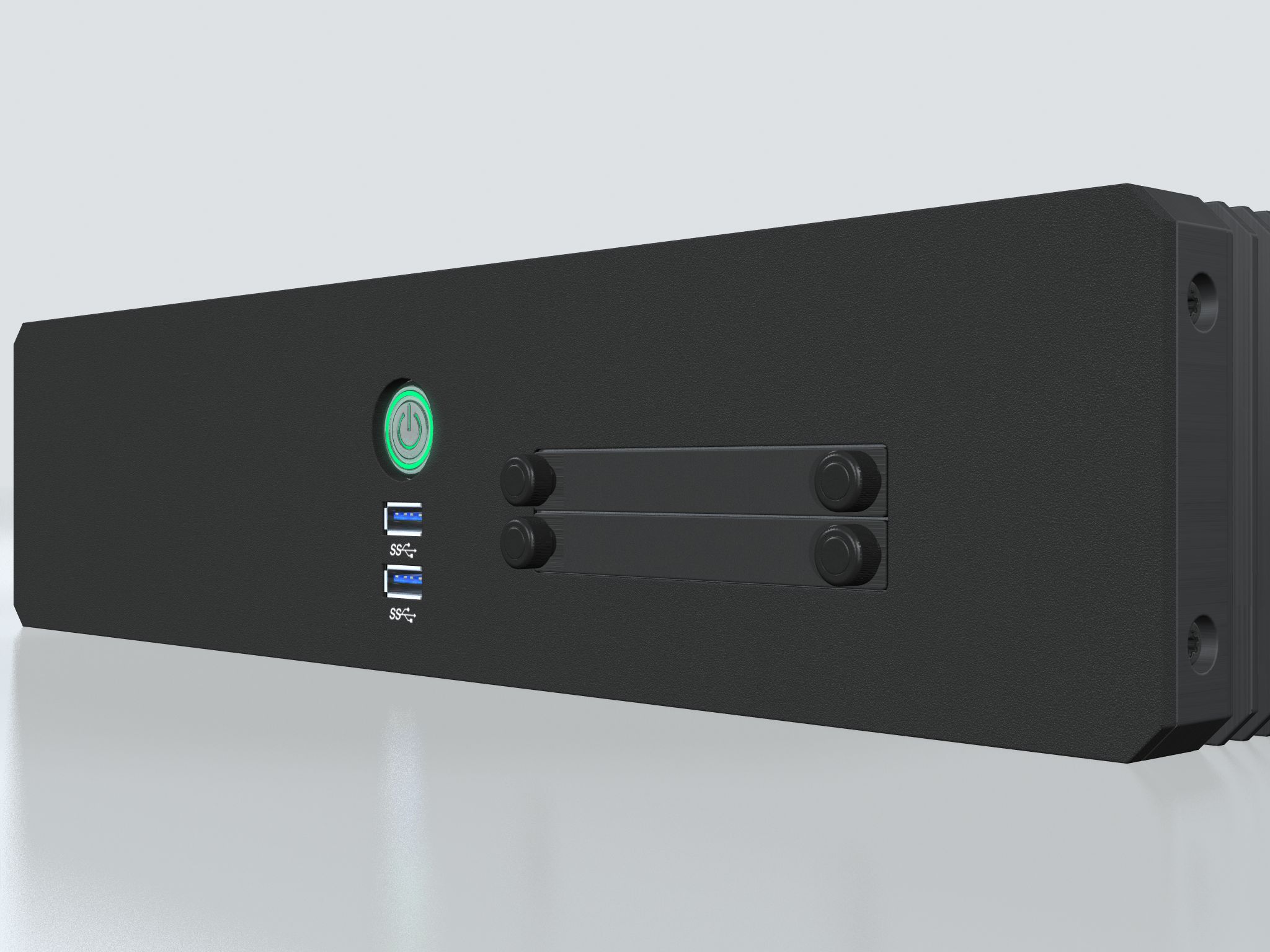

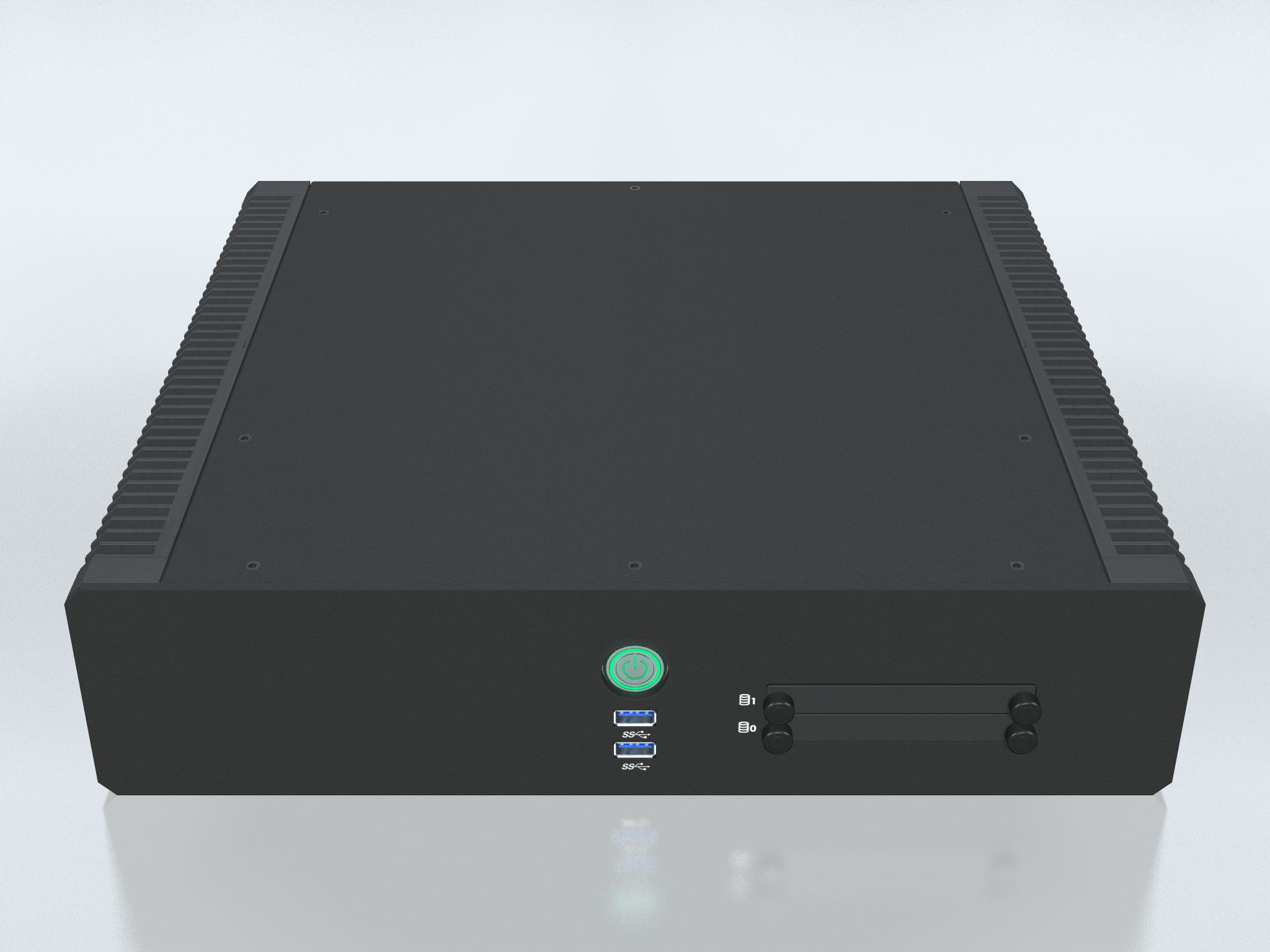

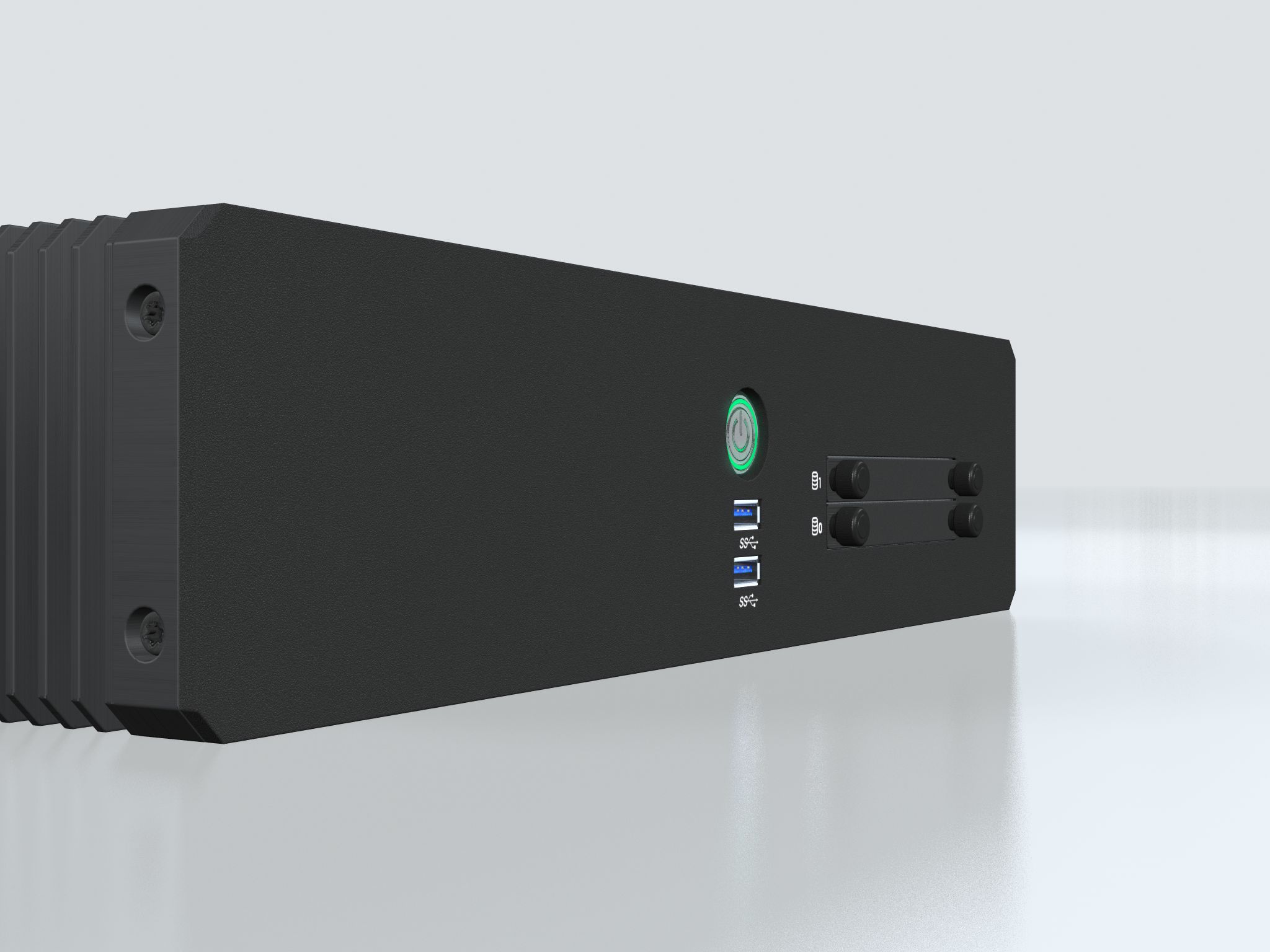

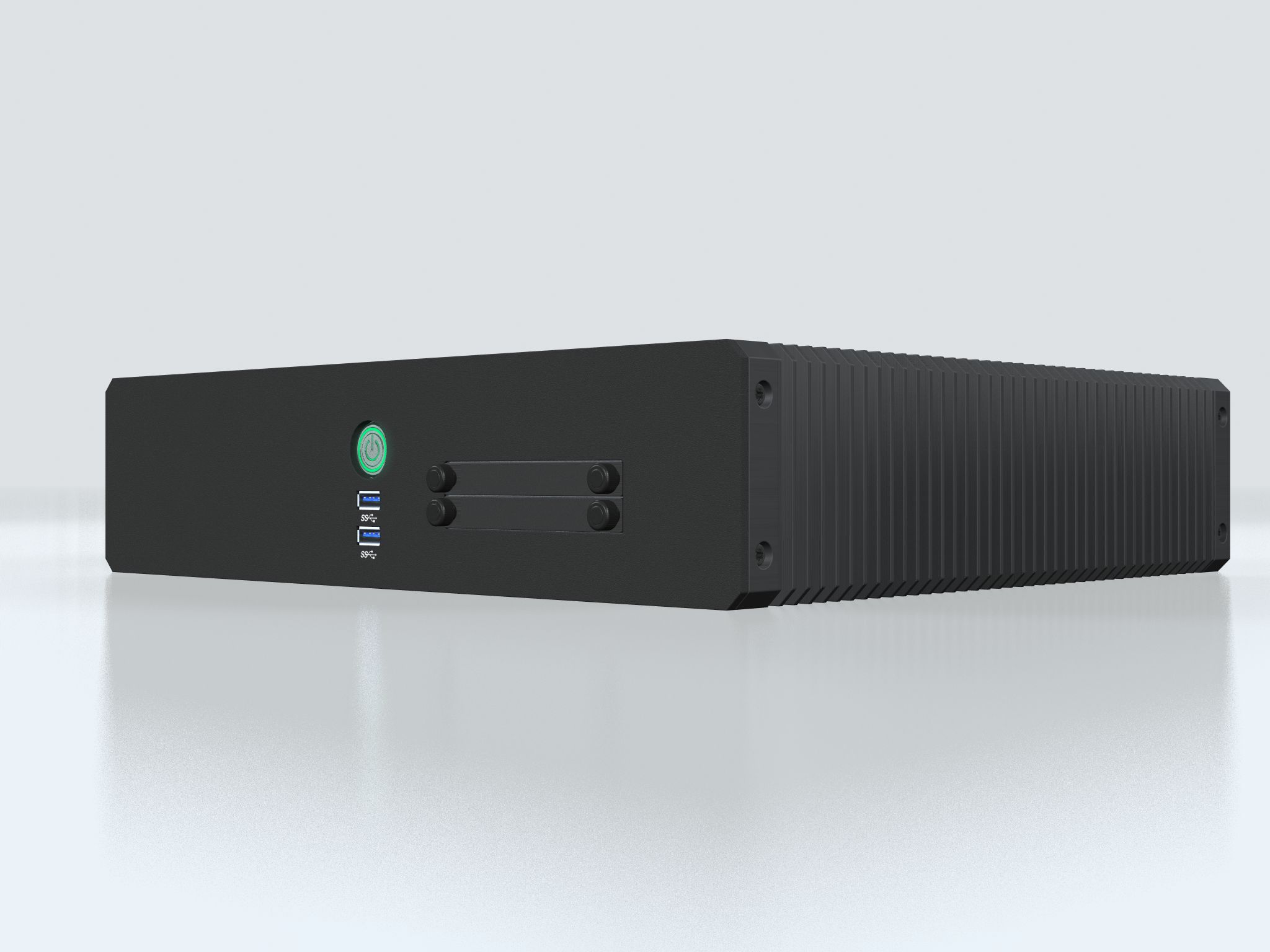

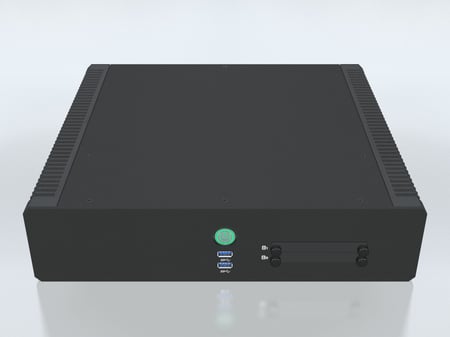

By default equipped with 2 x removable 2.5 SSD bays in front and internal space for 2 x 2.5 SSD's,4 x removable 2.5 SSD bays available as option, onboard raid, M.2, up till 4 x PCI-e slots, memory up to 64GB RAM, 6 x USB, 4 x LAN ports, 3 x Signal outputs (2 x DP+ and 1 x USB-C) and more, making the HT20470 the most versatile rugged PC solution for the professional maritime segment. Note: AC model contains only 3 x PCIe- slots.
Specifications
Typenumber (Long): HT20470-xx-xx xxxxxxx
Installed Operating System Options: Windows® 10 IoT Enterprise 2019 LTSC (64bit) installed, review datasheet for other options
Storage Options: 2 or 4 x 2.5" Removable Front Trays with options of:
- 2.5"/M.2 SSD SATA 3.0 (6GB/s)
240GB (0.9PBW),480GB (1.2PBW),960GB (3.4PBW), 1.9TB (7.1PBW)

M.2 Storage (PCIe options):
1 x M.2 2280 M-key (one SATA + NVMEx4)
1 x M.2 2230 E-Key (PCIe + USB for WiFi)
Processor / CPU and FSB Speed Options: 1 x Intel® Core i3-10100TE, 4-Core 2.3GHz - 3.6GHz, 6MB Cache
or 1 x Intel® Core™ i5-10500TE, 6-Core 2.3GHz - 3.7GHz, 9MB Cache
or 1 x Intel® Core™ i7-10700TE, 8-Core 2.0GHz - 4.4GHz, 16MB Cache
or 1 x Intel® Core™ i9-10900TE, 10-Core 1.8 GHz - 4.5 GHz 20 MB Cache
Memory Options: 1 x 8GB (single channel, DDR4) installed.
Max 64GB RAM possible, Single or Dual Channel available

Options:
Single Channel: 1 x 8GB (2400MHz)
Dual Channel: 2 x 8GB (2400MHz), 2 x 16GB (2400MHz), 2 x 32GB (2666MHz).
System+Graphics Chipset / Connectors: Intel® Q470 / Intel® UHD 630, DirectX Support 12.0, Shader Model 6.4, OpenCL 2.1, OpenGL Support 4.5/linux, Vulkan 1.1.97
1 x USB-C + 2 x DisplayPort 1.2 (2 x Display clone + 1 extended)
Max Resolution / Max Hz: Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS: UEFI, ACPI support

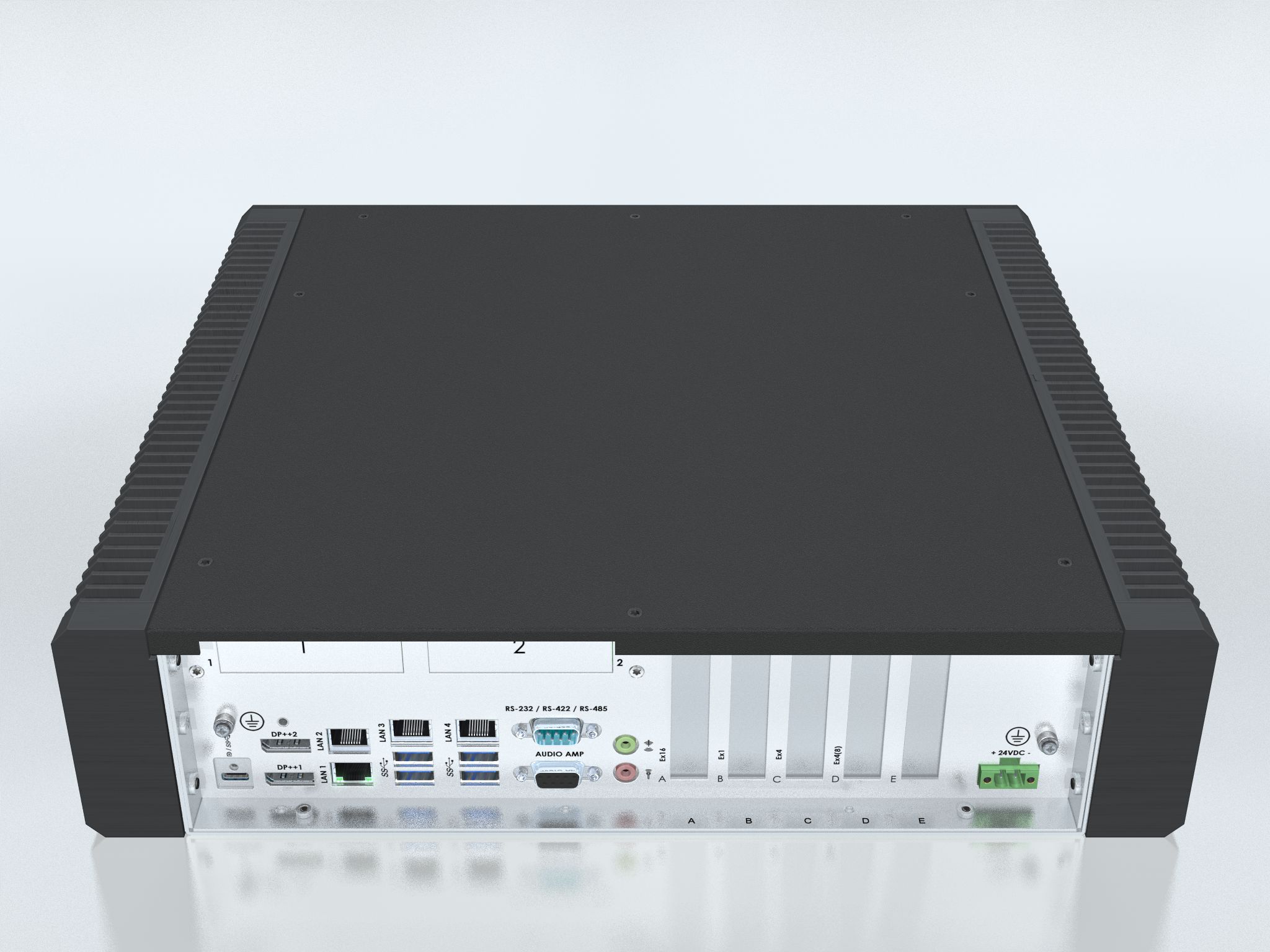

PCI Slots / PCIe Slots: 1 x PCIe 3.0 x16*, 1 x PCIe 3.0 x4 (x8)**, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1
*reserved for additional graphics card, see Factory Mounted Options
**Not available for AC model.
Media Drive(s): None
LPT / Parallel Port: None or option:
SX-118A: 1 x Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP, PCIe x1 card
Serial Port(s): 1 x DB9M, RS-232/RS-422/RS-485 un-isolated, Baud Rate: Max 115.2Kbps
Ethernet Port(s): 2 x RJ-45, LAN 10/100/1000Mbps, Intel®, Intel 210IT Support for Intel® Teaming
2 x RJ-45, LAN 10/100/1000Mbps (Realtek)
USB Port(s): 2 x USB 3.1 Type A (<3m) ports in front
4 x USB 3.1 Type A (<3m) ports in rear
1 x USB-C (DisplayPort - Power Distribution enabled)
Keyboard and Mouse Ports: None
Audio Ports: Realtek HD Audio supports 2.0 channel, Mic. in, Line out (2x3.5mm Jack) + Audio 2W Amplified with Line-in, Line-Out, Mic via 1 x DB9F
Buzzer: None
Power Manager and Monitoring: ACPI - Temperature, voltage, cooling fans with auto throttle.
Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step

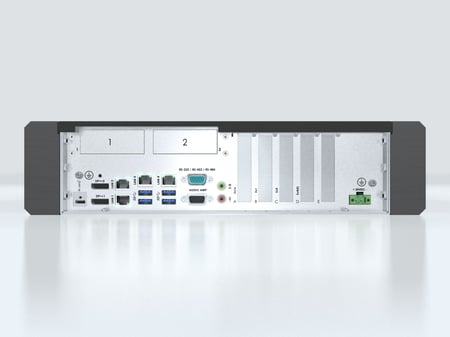

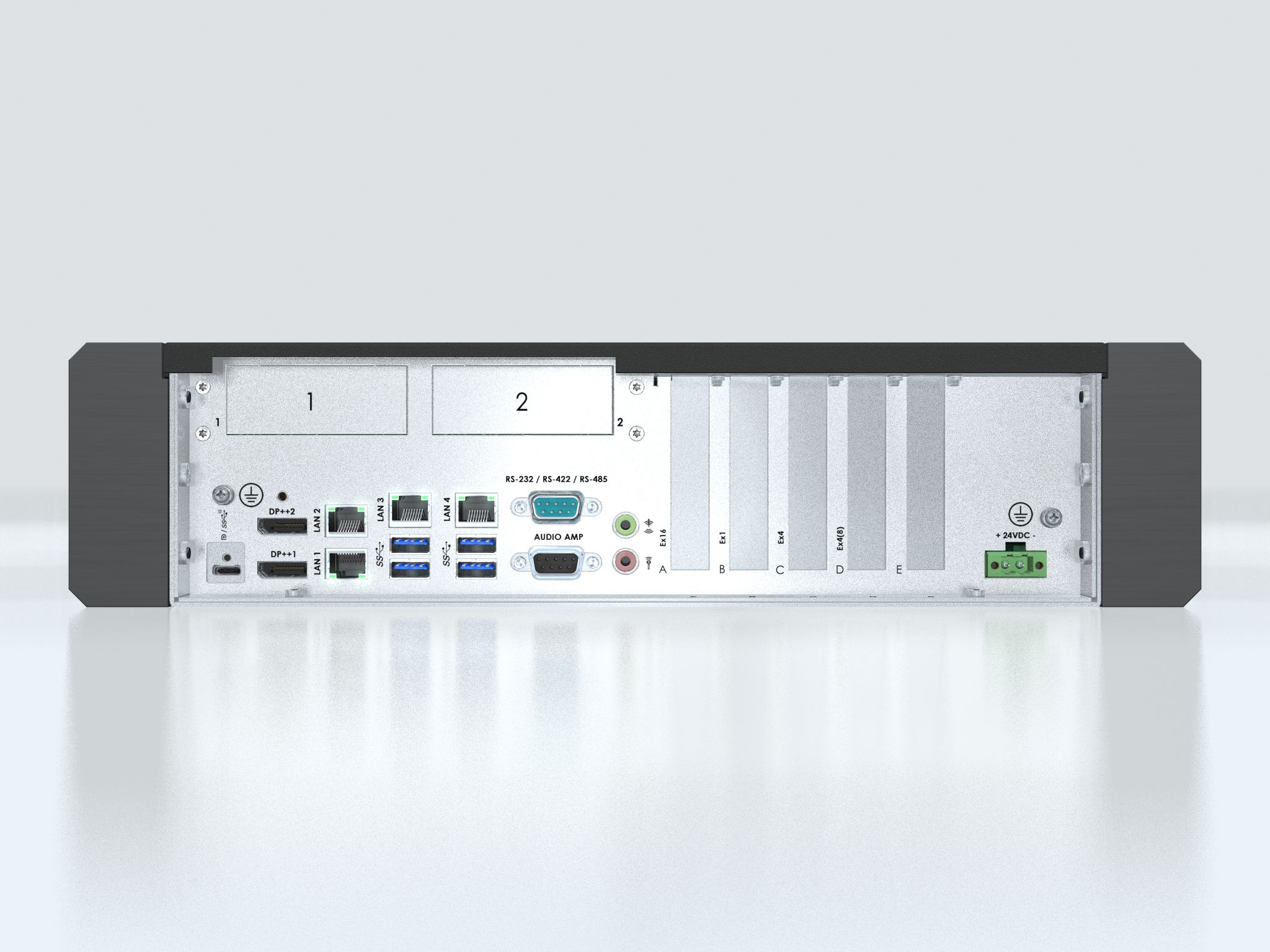

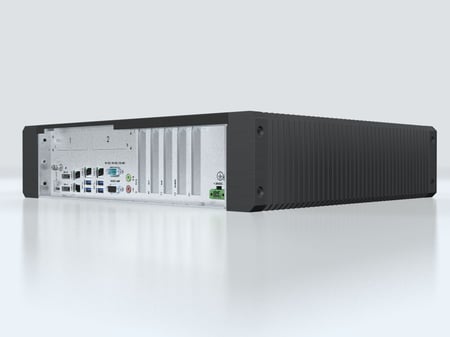

Power Specifications and Consumption: • Single DC: 24VDC, 1 x 2-pin T.Block 5.08
+ 1 x 2-pin Cable Hosuing KGG_MSTB 2.5/2 1803934
Operating: 85W Typical - 135W High Load - 240W Max

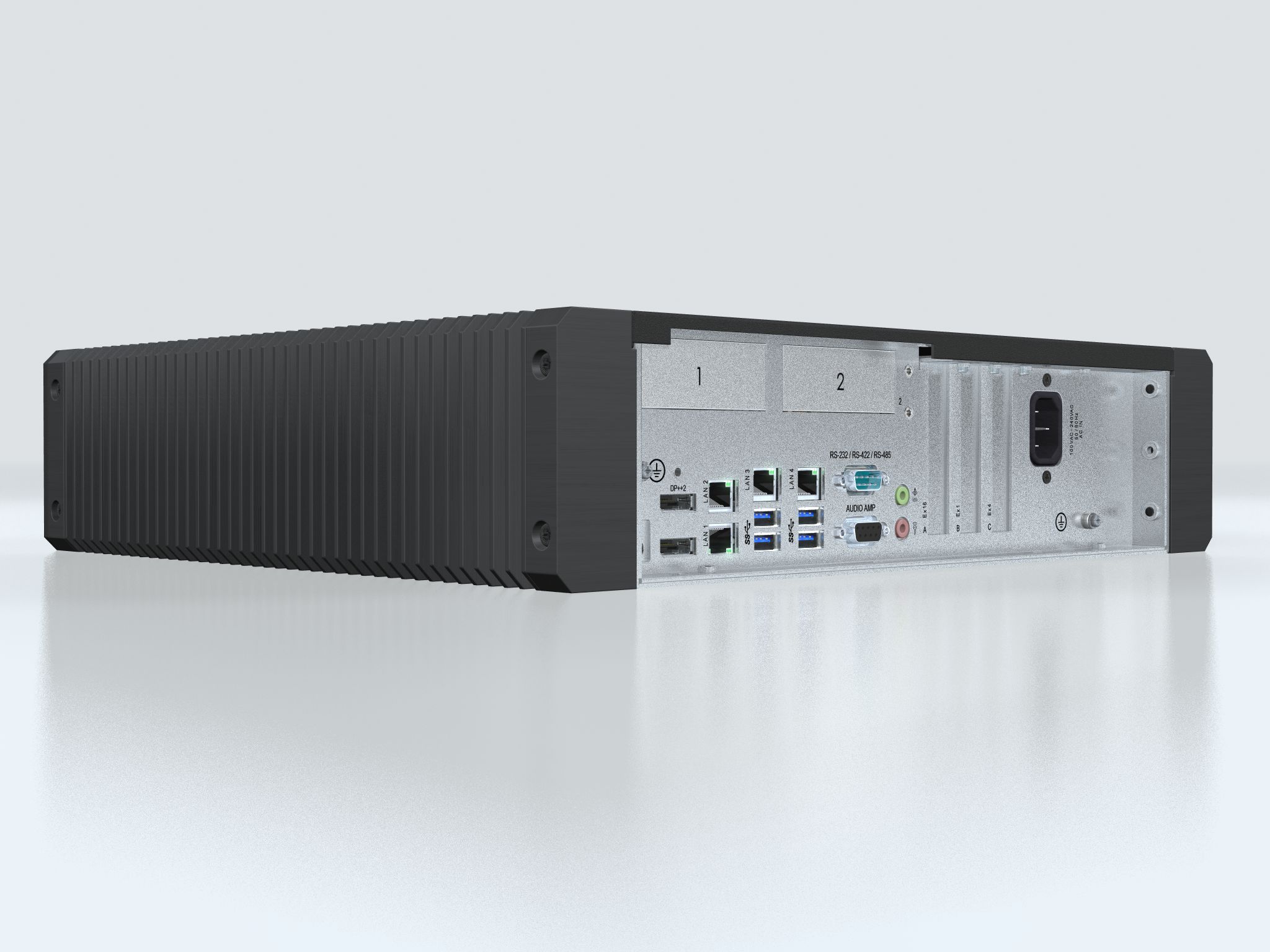

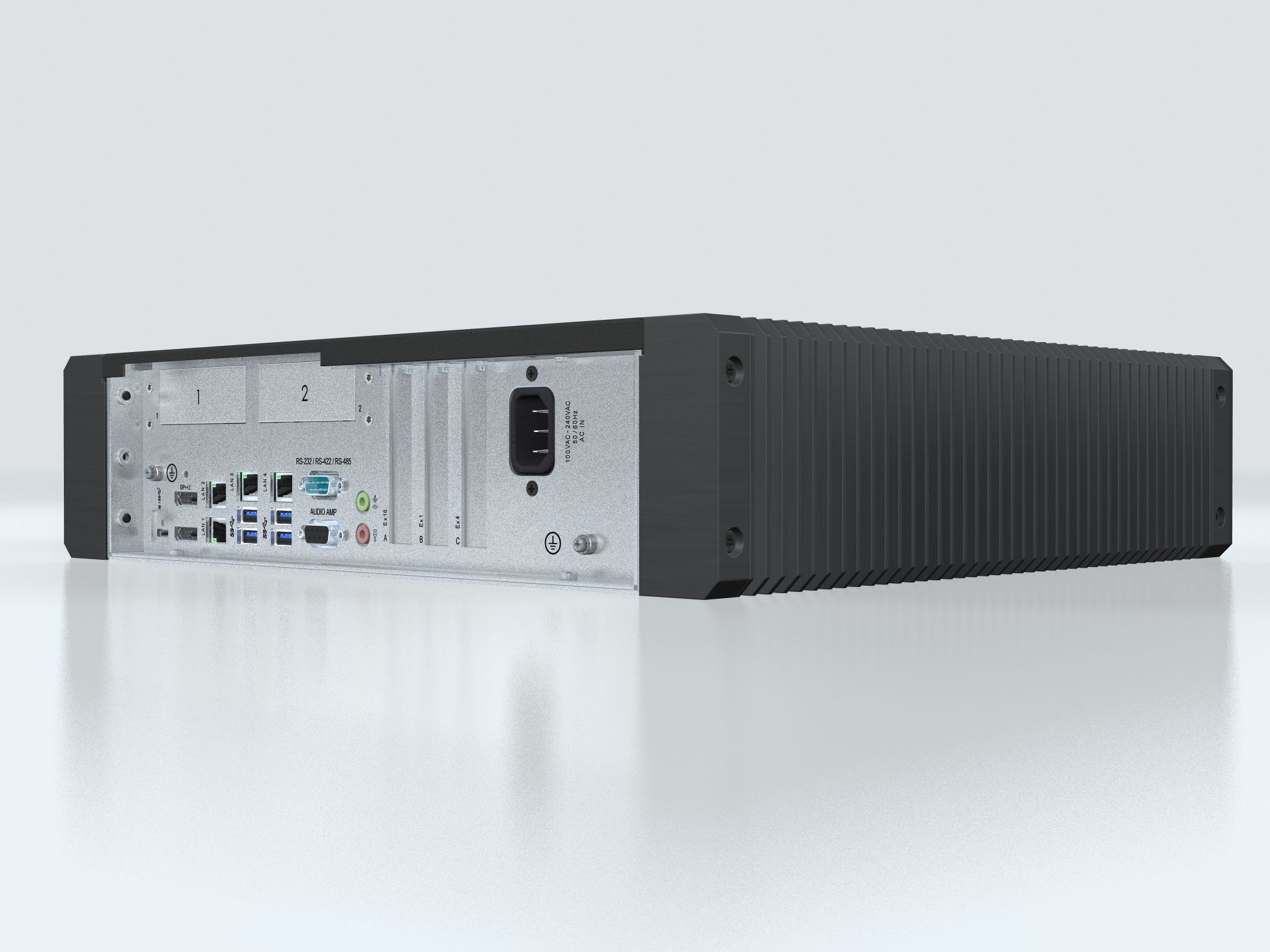

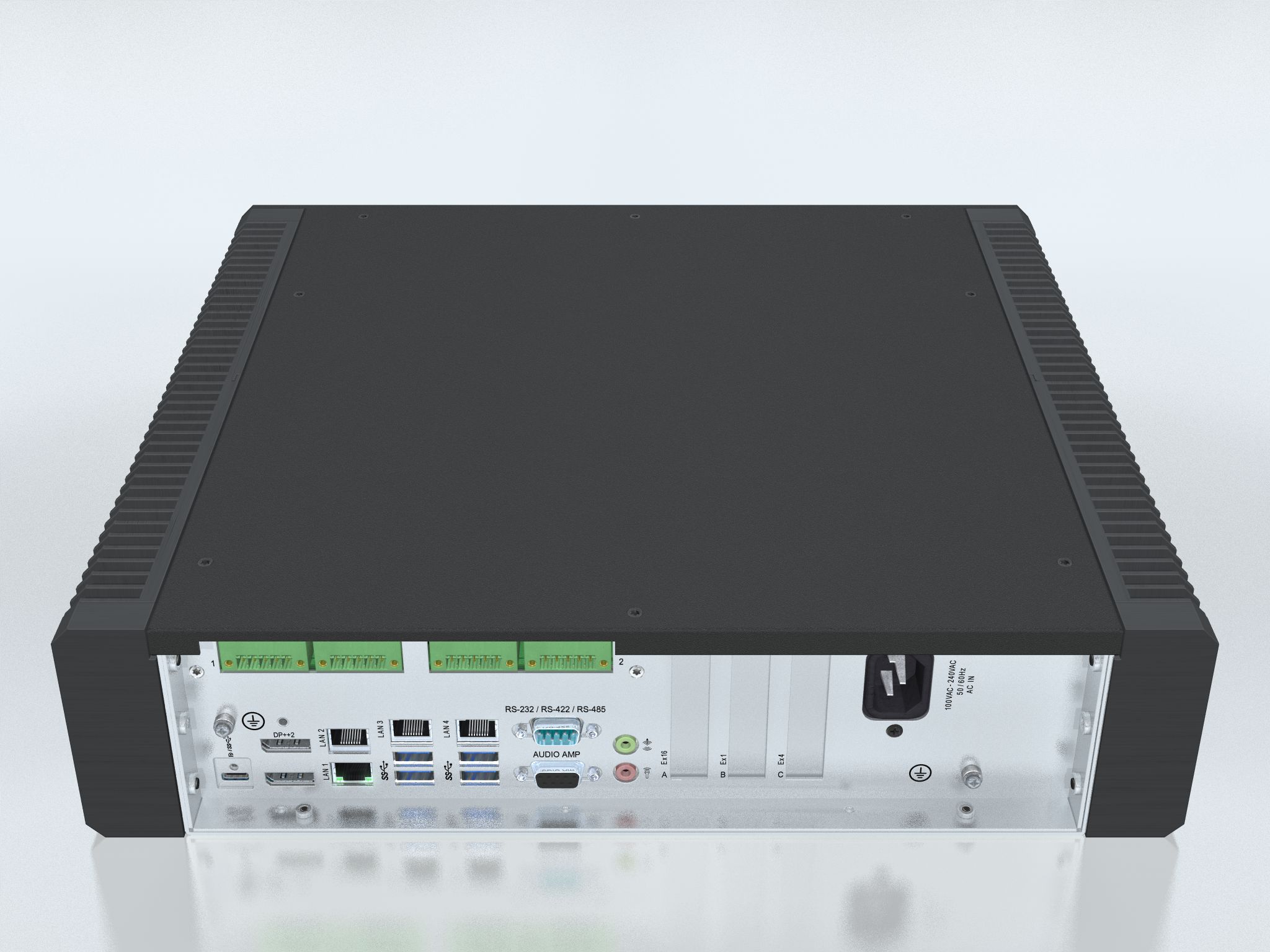

• Single AC: 100-240V AC - 50/60Hz, 1 x STD IEC
Operating: 85W Typical - 135W High Load - 412W Max
Digital I/O Connectors: None or option:
1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
Key Features: High Performance, Service friendly, Includes mounting brackets, LAN Wakeup, USB Boot, Trusted Platform Module 2.0 (TPM2.0), Intel® Management Engine. True power on after power fail, Firmware Raid
Product Dimensions and Weight: W:380.14 [14.97"] x H:88.90 [3.50"] x D:351.10 [13.82"] mm [inch]
2U Rack size in height. Approx 7.5kg / 16.5lbs
Product Carton Size and Weight: L:580.00 [22.83"] x W:160.00 [6.30"] x H:470.00 [18.50"] mm [inch]
10.0kg / 22.0lbs

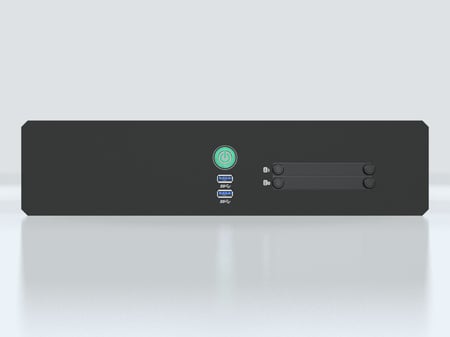

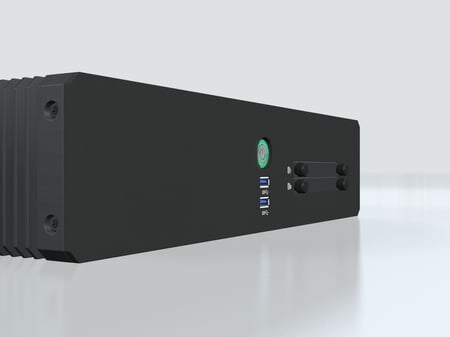

User Controls / Activity: Front: Power/Reset/Power LED Combined Function

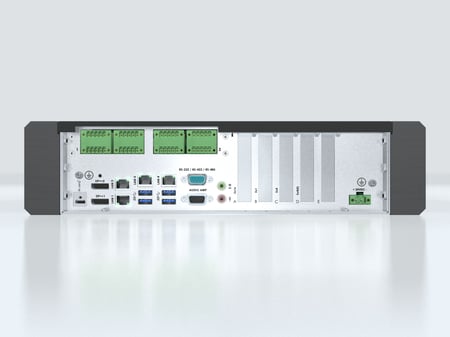

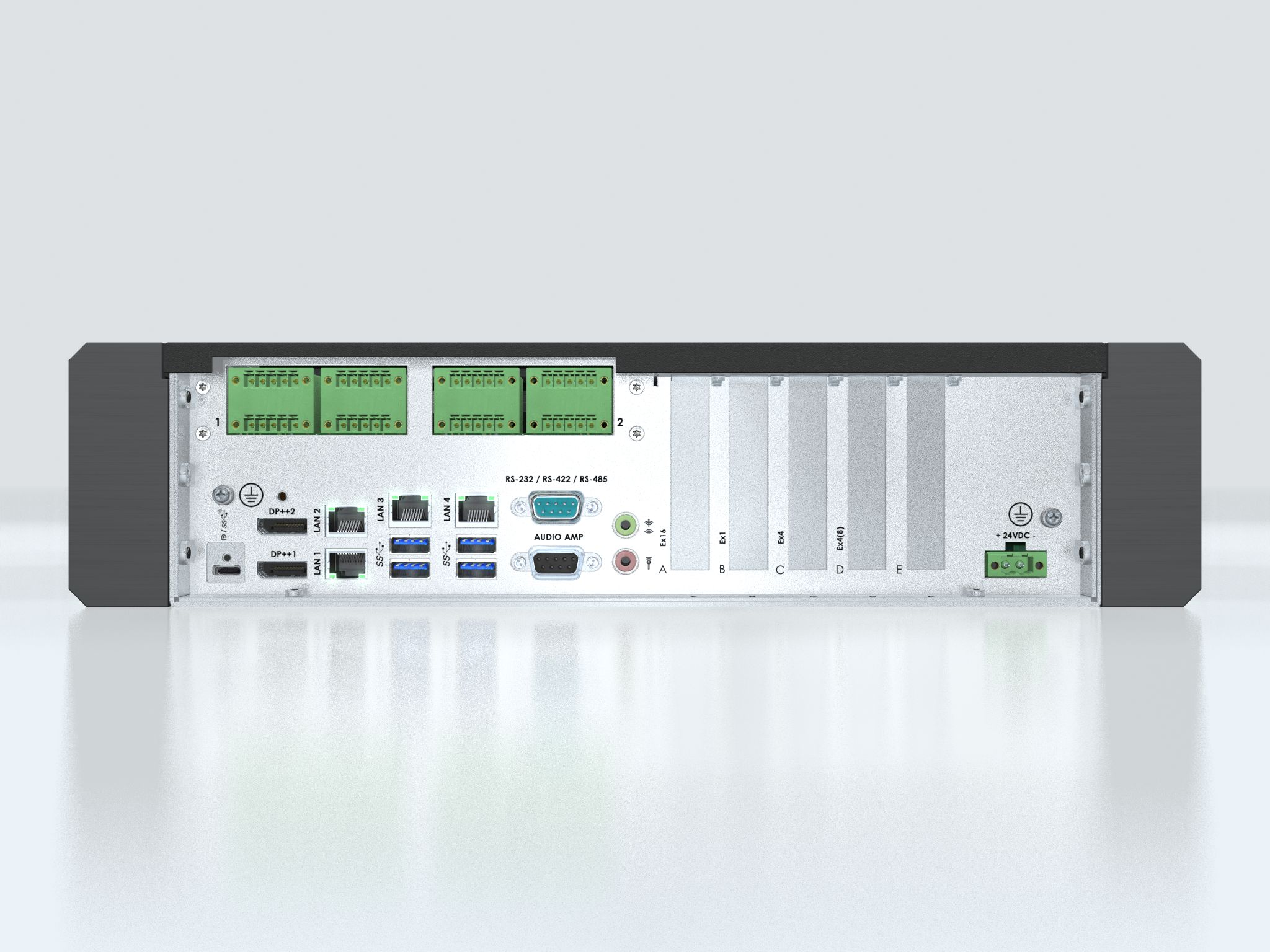

Factory Options: • PNY NVIDIA T400: PCIe 3.0 x16, 3x mDP 1.4, 4GB GDDR6
• CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485)
• HTA2020002-AD1033: CAN isolated, 2 channel module*
• PCA100309-1: Dual Isolated RS-232, 2xDB9 module*
• HTA2020002-SLCAN: Socket CAN isolated, 2 channel module*
• i350T4V2BL: Intel® Ethernet Server Adapter i350-T4V2
• PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) module**
• PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT module**
• PCA200828-1: COM RS-422/485 isolated NMEA 4 ch., 5-pin T. Block 3.81**
• x710DA2: Intel Fiber Network Adapter (10GbE), 2 x SFP+**

*For all Factory Mounted Options, review User Manual for possible HW combinations.
**Note: in combination with GPU, only USB 2.0 in front

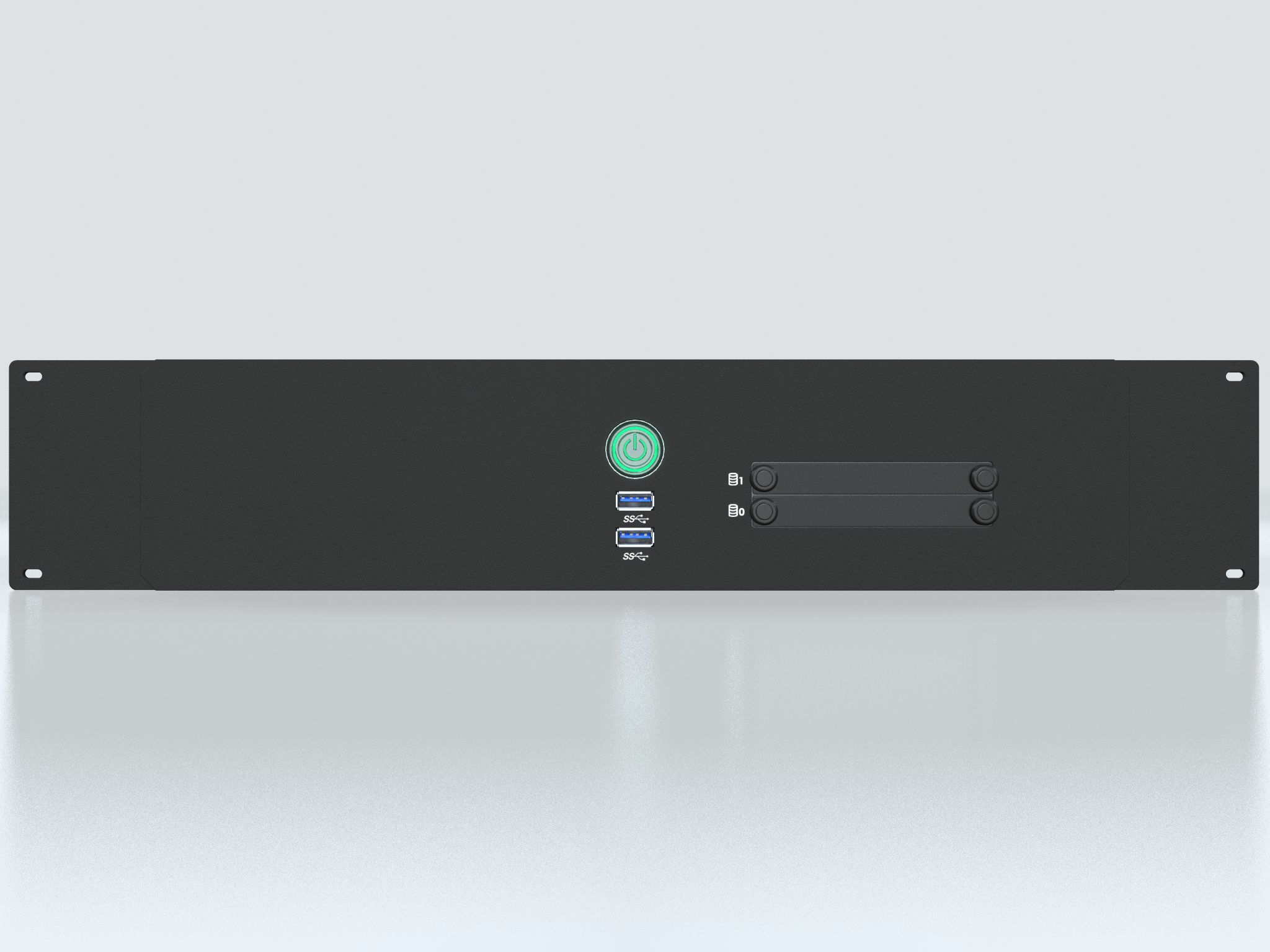

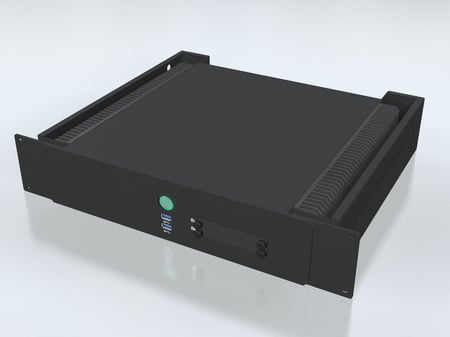

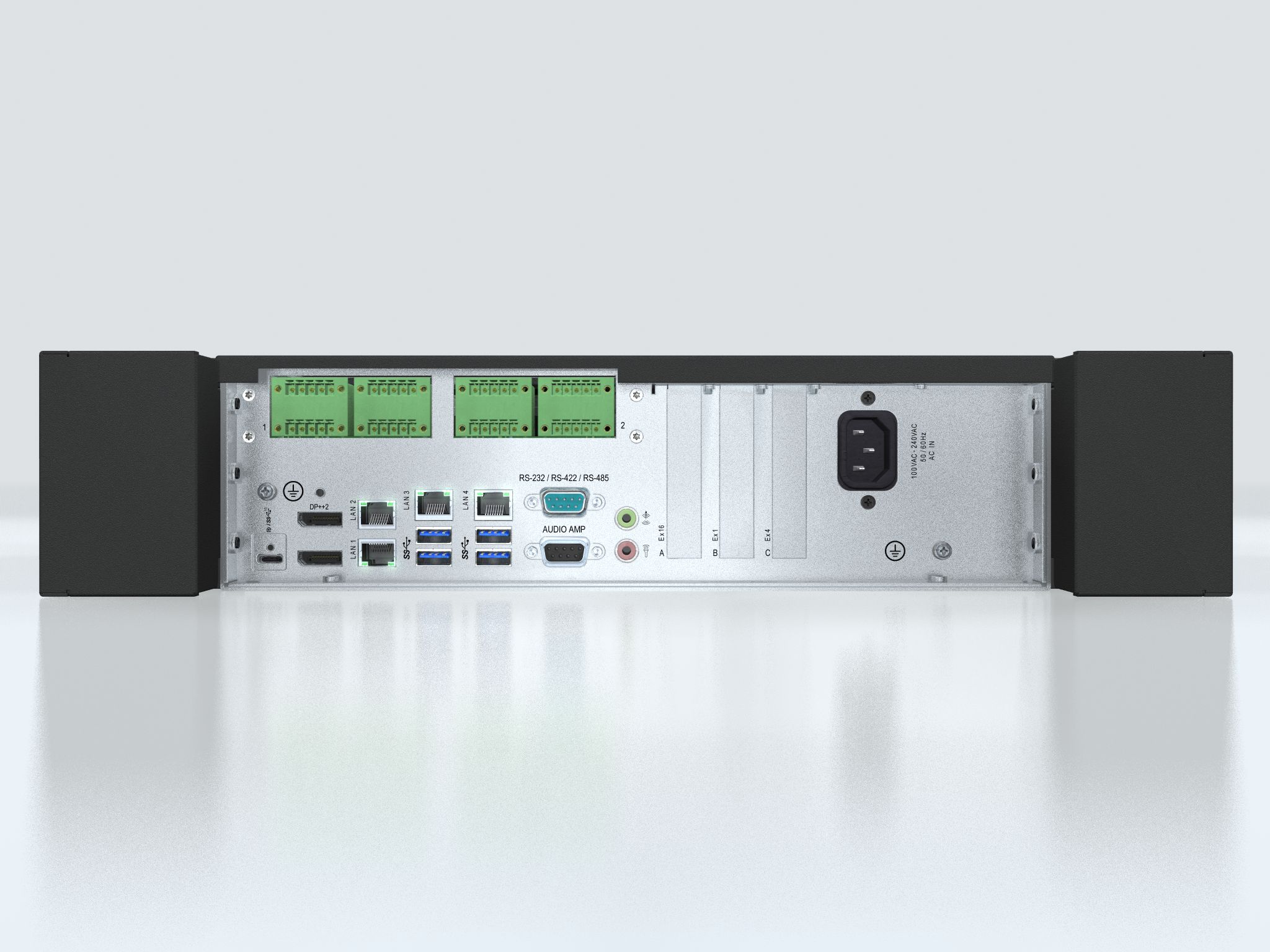

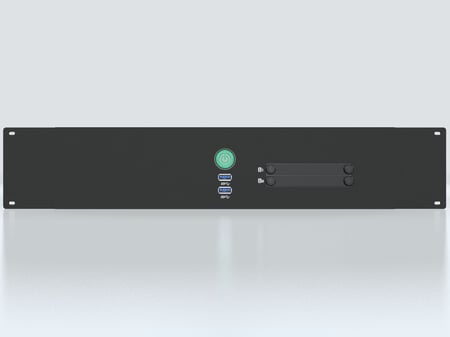

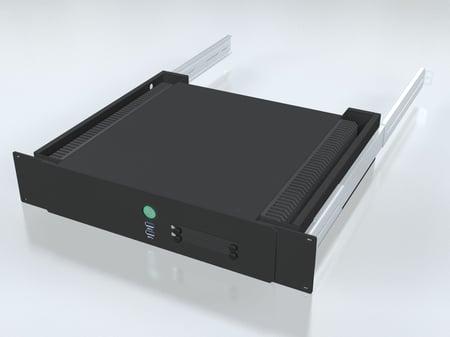

Accessories: • HT RMK STD-E1: 2U Rack Mount Kit 19" - HT20xxx

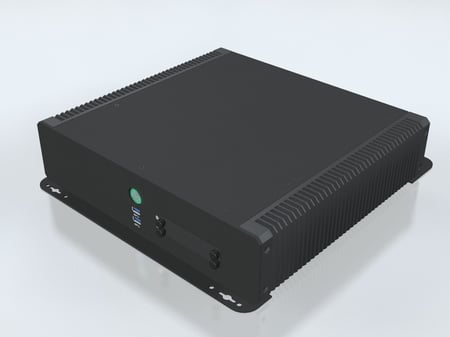

• HT MBK STD-E1: Desktop Mounting Kit HT20xxx – Plate Shaped

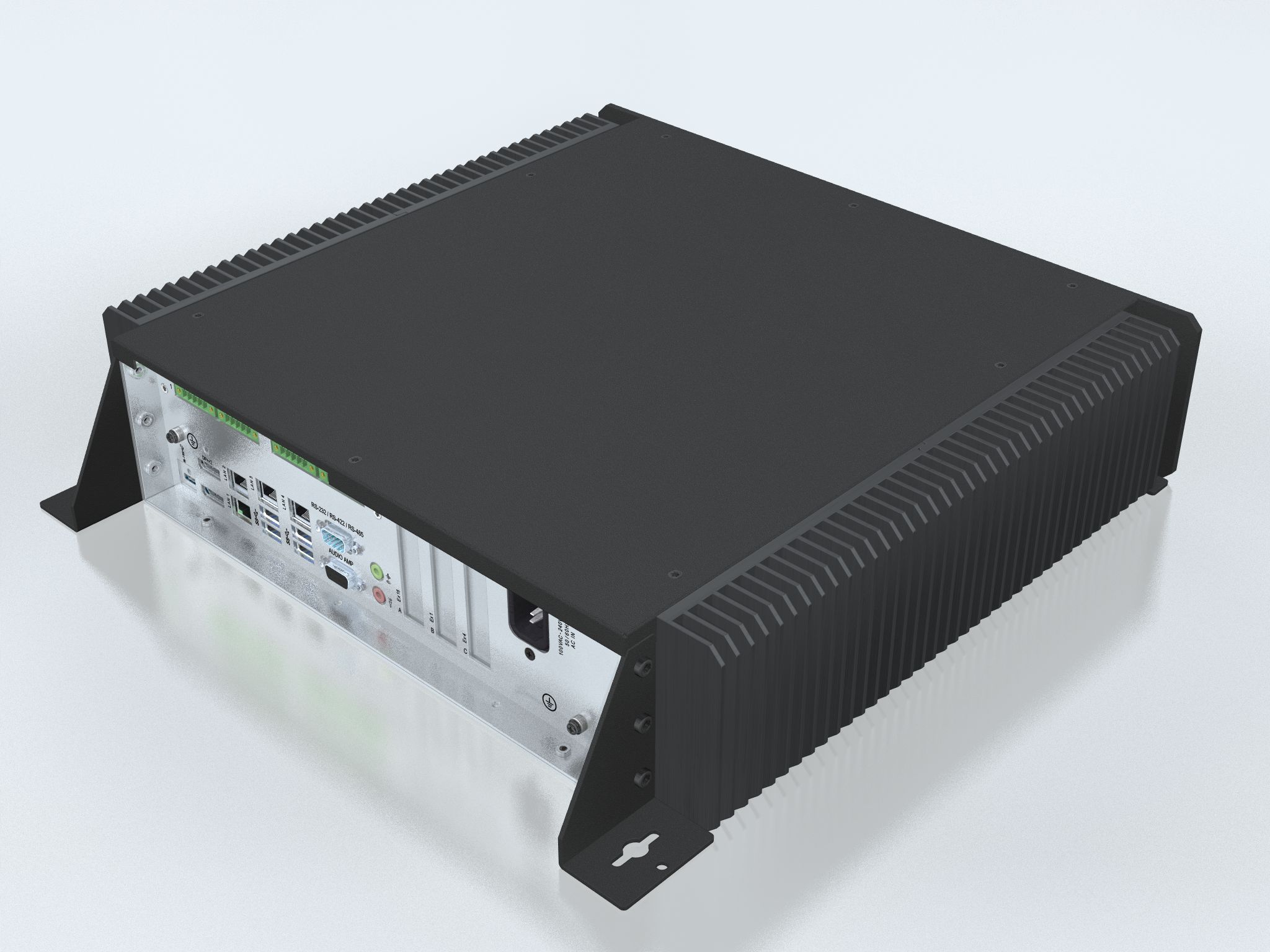

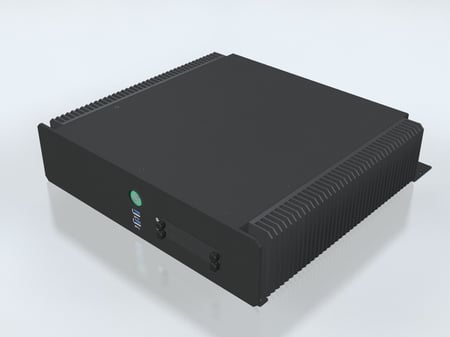

• HT MBK STD-F1: Mounting Bracket Kit HT20xxx – L-Shaped

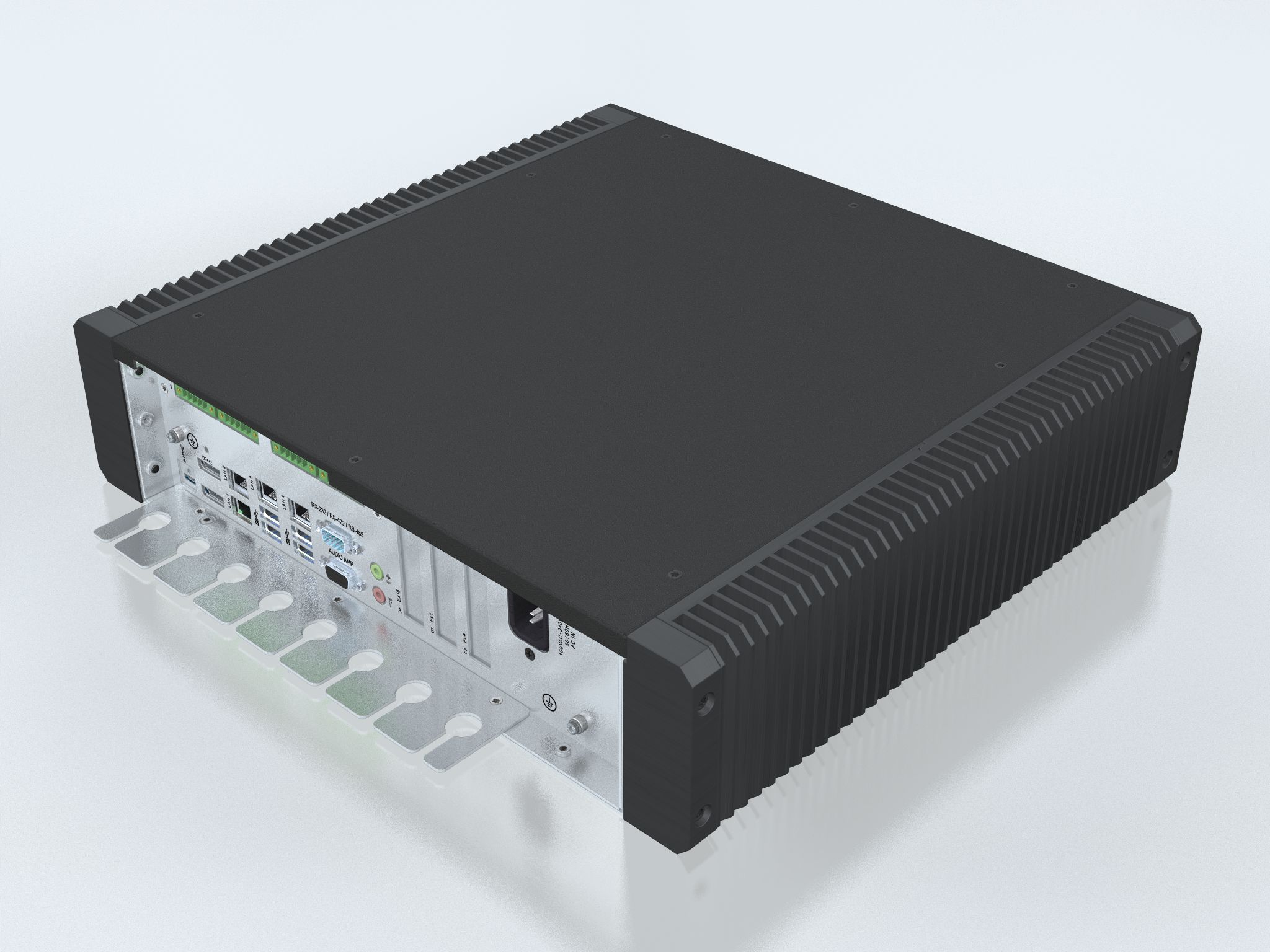

• HT RET STD-A3: 1 x Cable Retainer/Relief Kit (included w/delivery)
• HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mount kit for 19" Rack
• HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mount kit for 19" Rack
• HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module
• HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module
• HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
• HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
• HT 00300 MSOS: OS options -> http://www.hattelandtechnology.com/os
• HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module
• HD 000TR SX1-A1: 1 x Removable Tray 2.5" Empty
• HD xxxyy SX1-Z1: 1 x Removable Tray 2.5" w/Storage Device[3]
• HD 000TR SX2-A3: 1 x Removable Tray 2.5" w/4xM3x4mm Phillips Countersunk Screws
• JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle
• RC3473 / HT DPM2DVI-DF-A1: 1 x DP to DVI adapter
• ZA-A390: Mini DP to DVI(female) adapter
• ZA-A391: Mini DP to HDMI(female) adapter
• QSP-MINIDP/DPV3: miniDP to DP adapter
• VSD203400-1: External Power Button Cable 2m
• VSD203400-2: External Power Button Cable 5m
• VSD203733-1: External Power Button Cable 4.6m (no power button included)

[3]Where xxx=Size of device. yy=GB,TB. z=S (SSD), z=H (HDD) - Choose Storage Device from table above.
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 160 [62.99"] - Steering: 130 [51.18"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Specifications last updated: June 3, 2025 @ 10:21
