 Marine & Offshore  / Computer  / Ultra Compact  / HT D30ML

HT D30ML

Overview

Computer - Fanless - ARM CPU - Ultra Compact

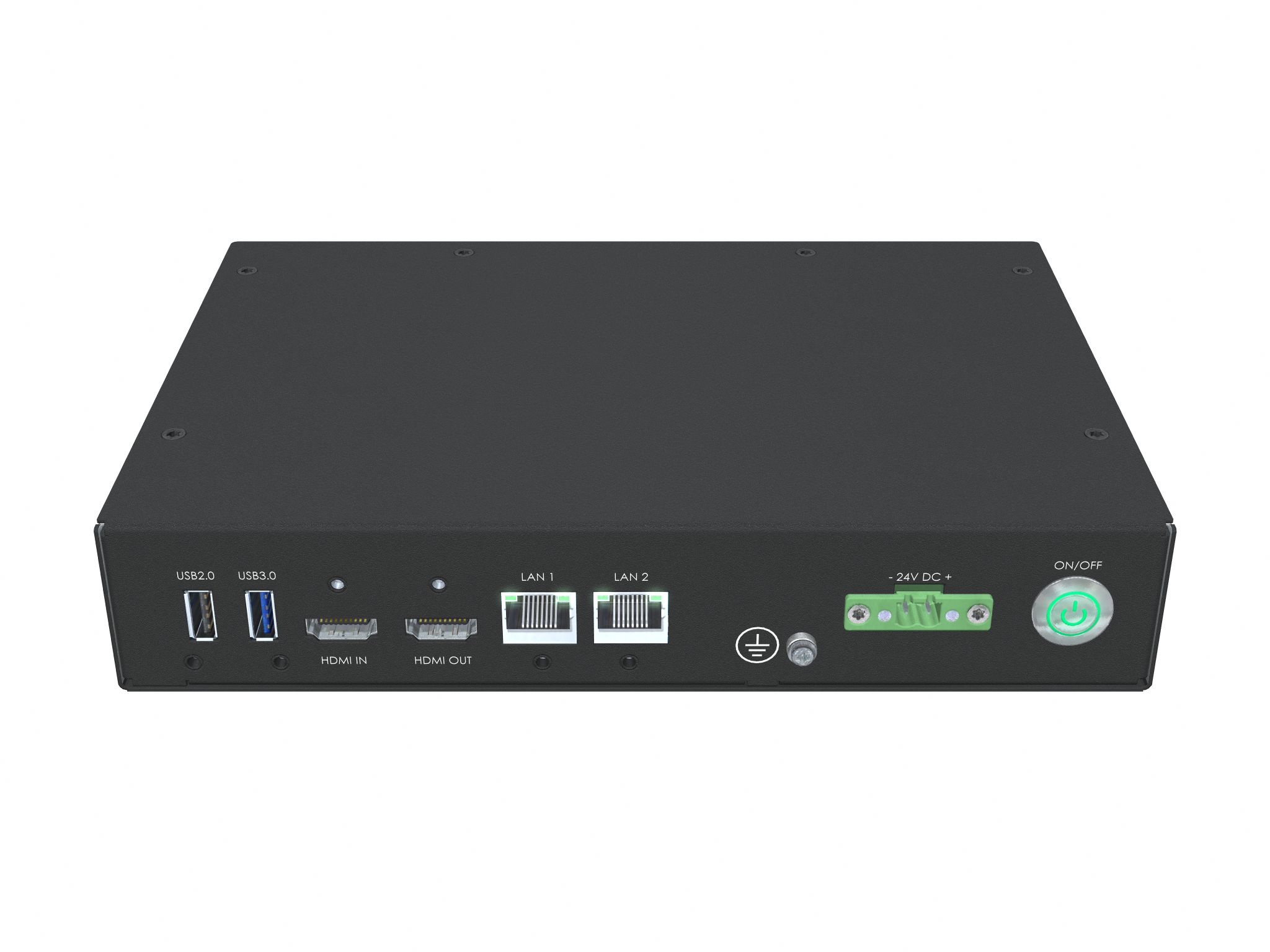

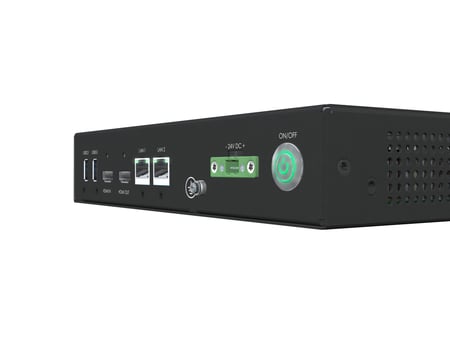

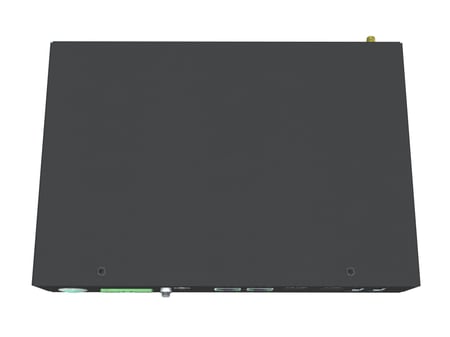

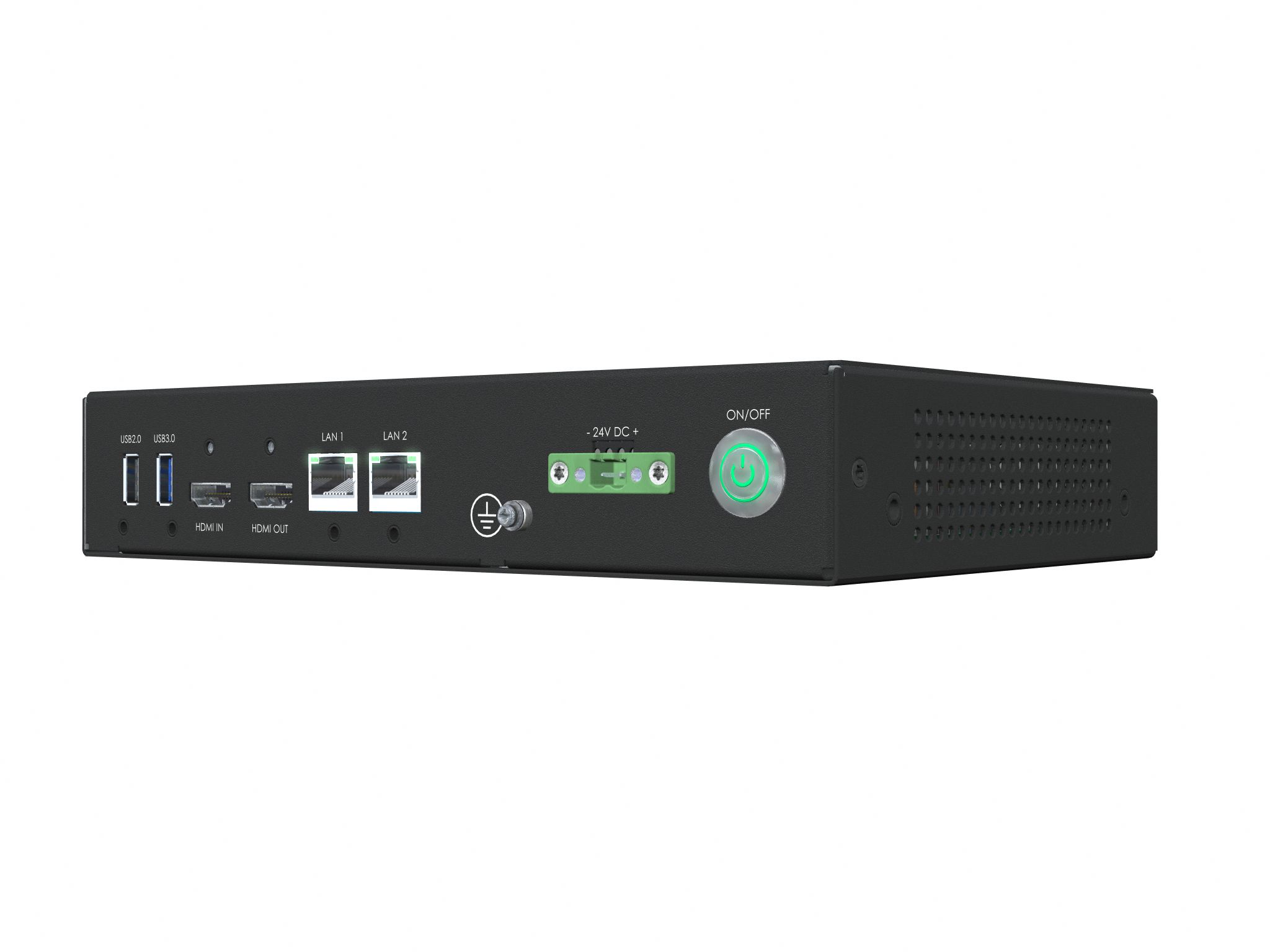

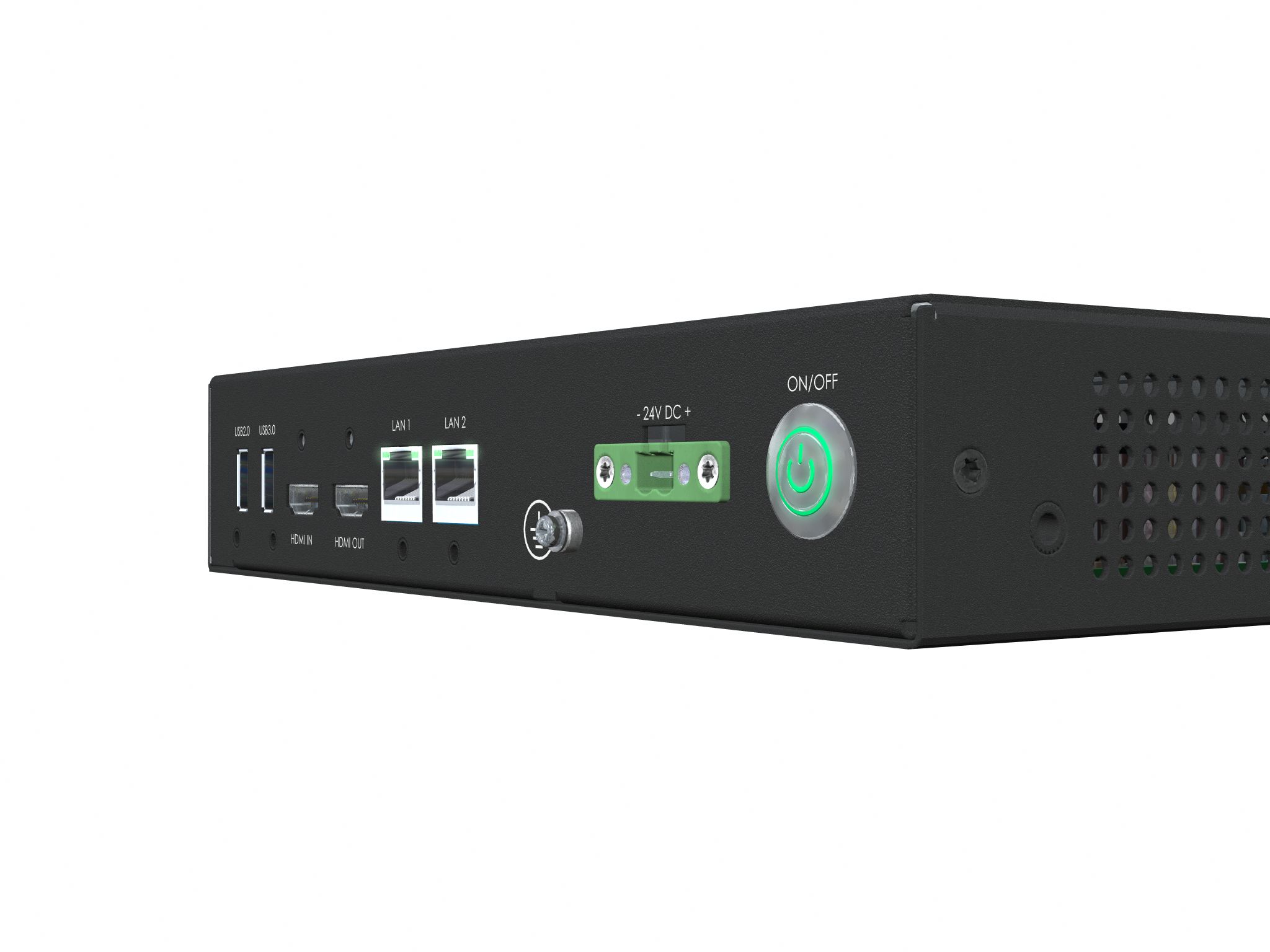

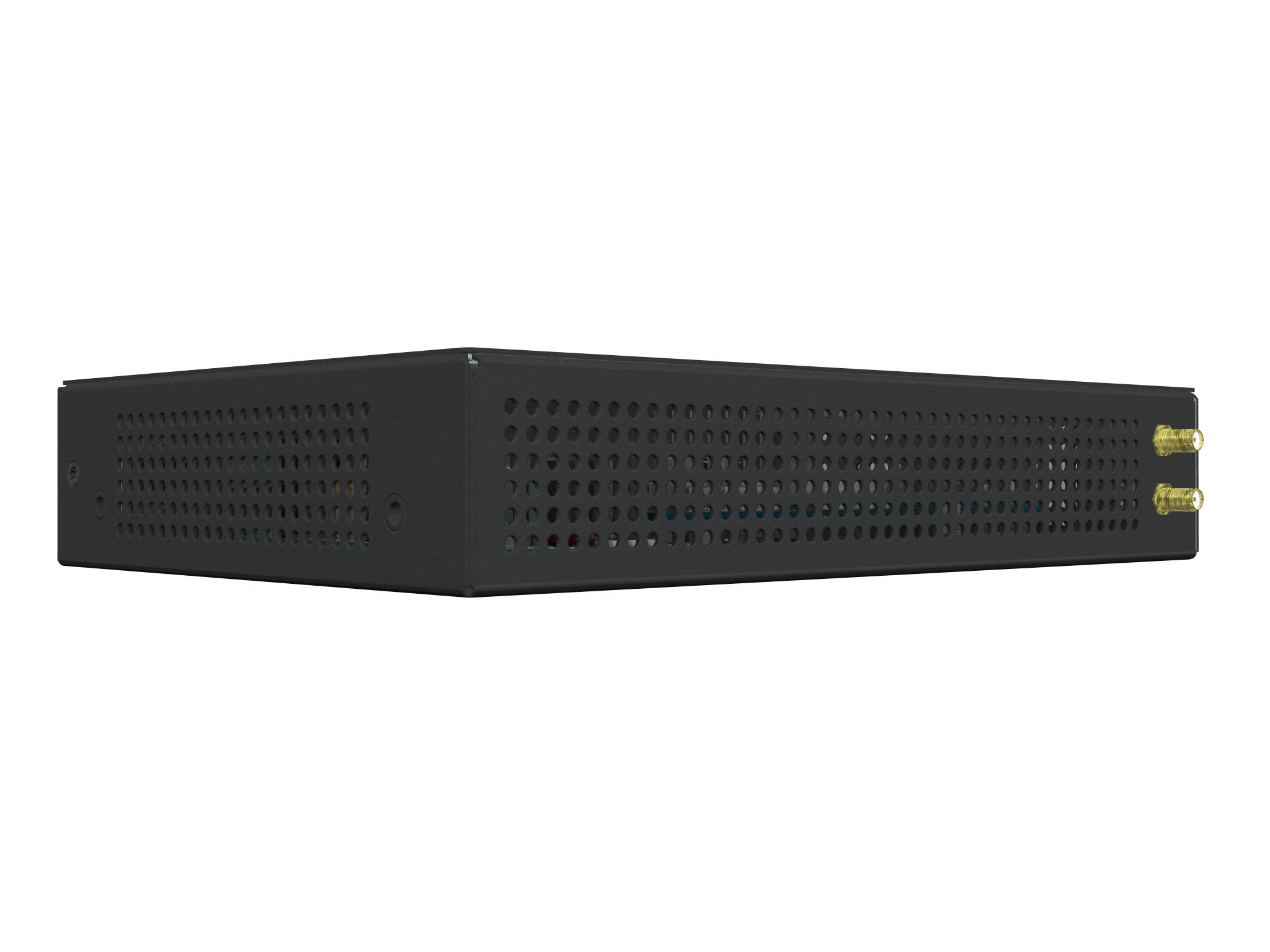

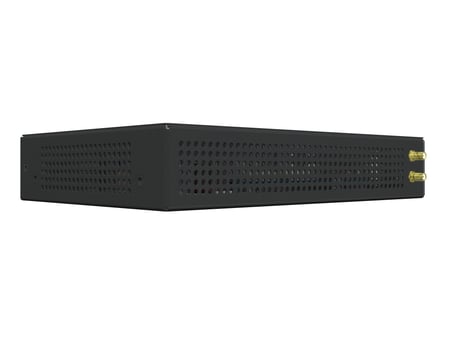

HT D30ML

The Marine Computer ARM (MCA) is based on ARM processor platform. Capable of delivering flexible power for maritime technology developers to design and build high-end vessel control and monitoring solutions that enable safer and more efficient maritime operations. The integrated nature of the MCA Computer enables tangible cost savings for maritime technology and equipment manufacturers as well as systems integrators.

icon
Fanless
icon
Android™
icon
Linux
Send Request
Description

Computer - Ultra Compact

Especially suited to developing new bridge solutions for ECDIS, Radar and Automation applications. The ARM processor-based MCA have low power consumption capable to deliver a fast, reliable solution for diverse maritime applications. MCA Computers make it possible to continue improving safety and efficiency through safe navigation, while still retaining focus on quality and cost.

The MCA are allowing flexible installation options based on the small size factor. The MCA also meet the same extreme quality standards as the proven HATTELAND® Computer range. This is a Solid State Fan-less Construction - No Moving Parts and Aluminum Chassis. In addition there are options such as variations of storage, RAM and operating systems, WiFi and Bluetooth.
Specifications
Typenumber (Long): HT D30ML xxx-xxx-xxxxxx
Installed Operating System Options: Android 8.1 (Linux 4.x)
Storage Options: 32GB SSD eMMC, SD/uSD or m.2 SSD 240GB and up
Processor / CPU and FSB Speed Options: CPU/Processor: Rockchip RK3399, Dual-core ARM Cortex-A72 + Quad-core ARM Cortex-A53
Memory Options: 1 x 4GB Dual channel LPDDR3 / LPDDR4
System+Graphics Chipset / Connectors: SoC + Mali-T860MP4 GPU, support OpenGL ES 1.1/2.0/3.0/3.1, OpenCL, DirectX11.1

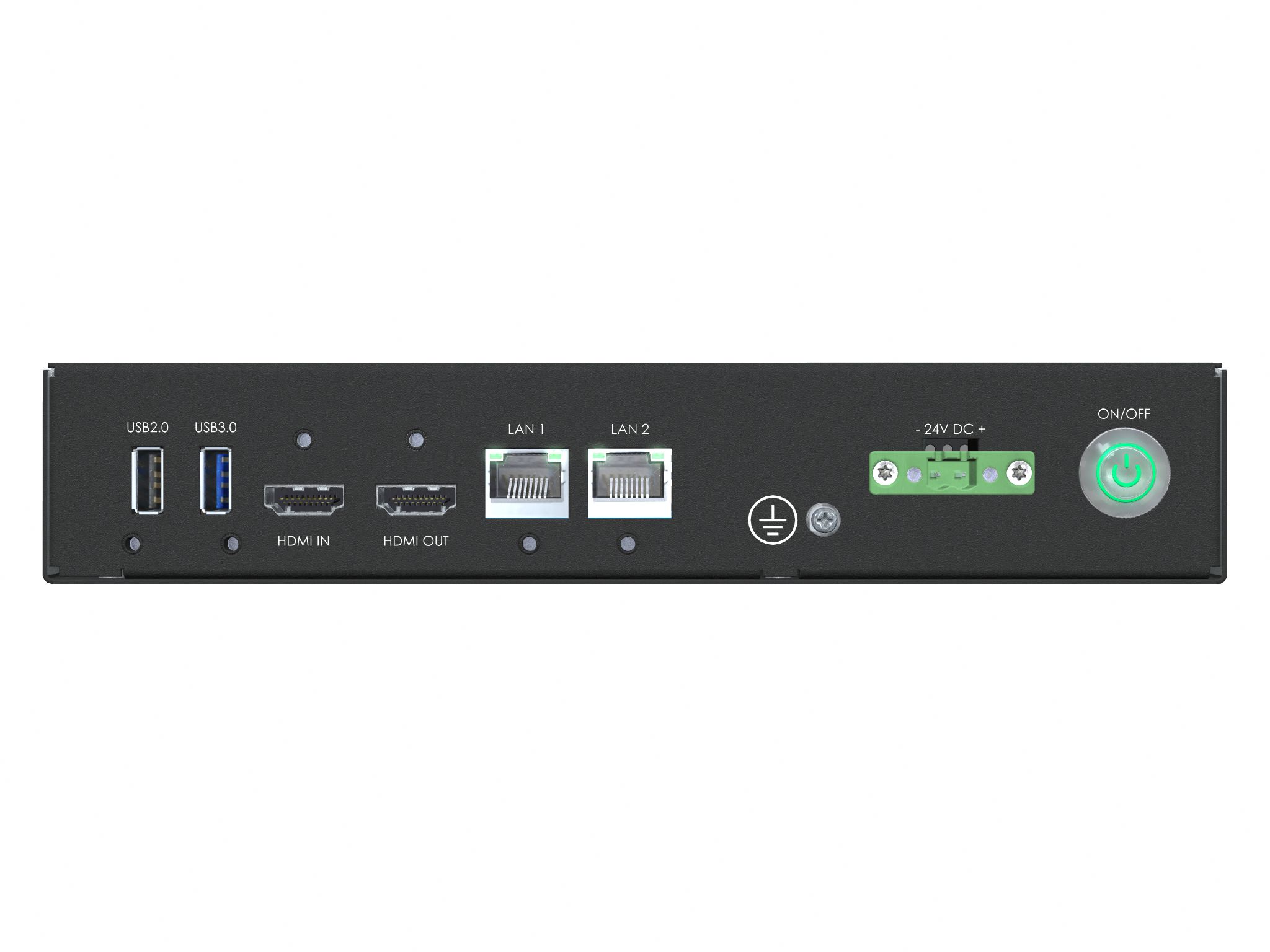

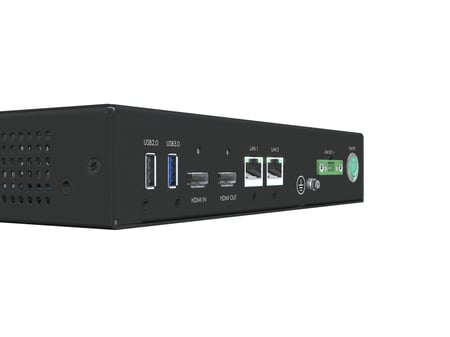

1 x HDMI Output (UHD 60Hz, Female) + 1 x HDMI Input (FHD 30Hz, Female)
Max Resolution / Max Hz: N/A
BIOS: N/A
PCI Slots / PCIe Slots: None
Media Drive(s): None
LPT / Parallel Port: None
Serial Port(s): None
Ethernet Port(s): 2 x RJ-45 10/100/1000Mbps Gigabit LAN
USB Port(s): 1 x USB2.0 (<5m)
1 x USB3.0 (<3m)
Keyboard and Mouse Ports: None
Audio Ports: None
Buzzer: None
Power Manager and Monitoring: 3 x Watchdogs in SoC w/ 32 bits counter width
Support Trustzone technology, Temperature sensor, Light sensor, RTC, Battery alarm, WakeOnLan
Power Specifications and Consumption: 12-24VDC Nominal. 1 x 2-pin Terminal Block 5.08
Operating: 15.2W (typ) - 50W (max) - at 25% load.
Max Allowed External USB load = 10W.
Digital I/O Connectors: None

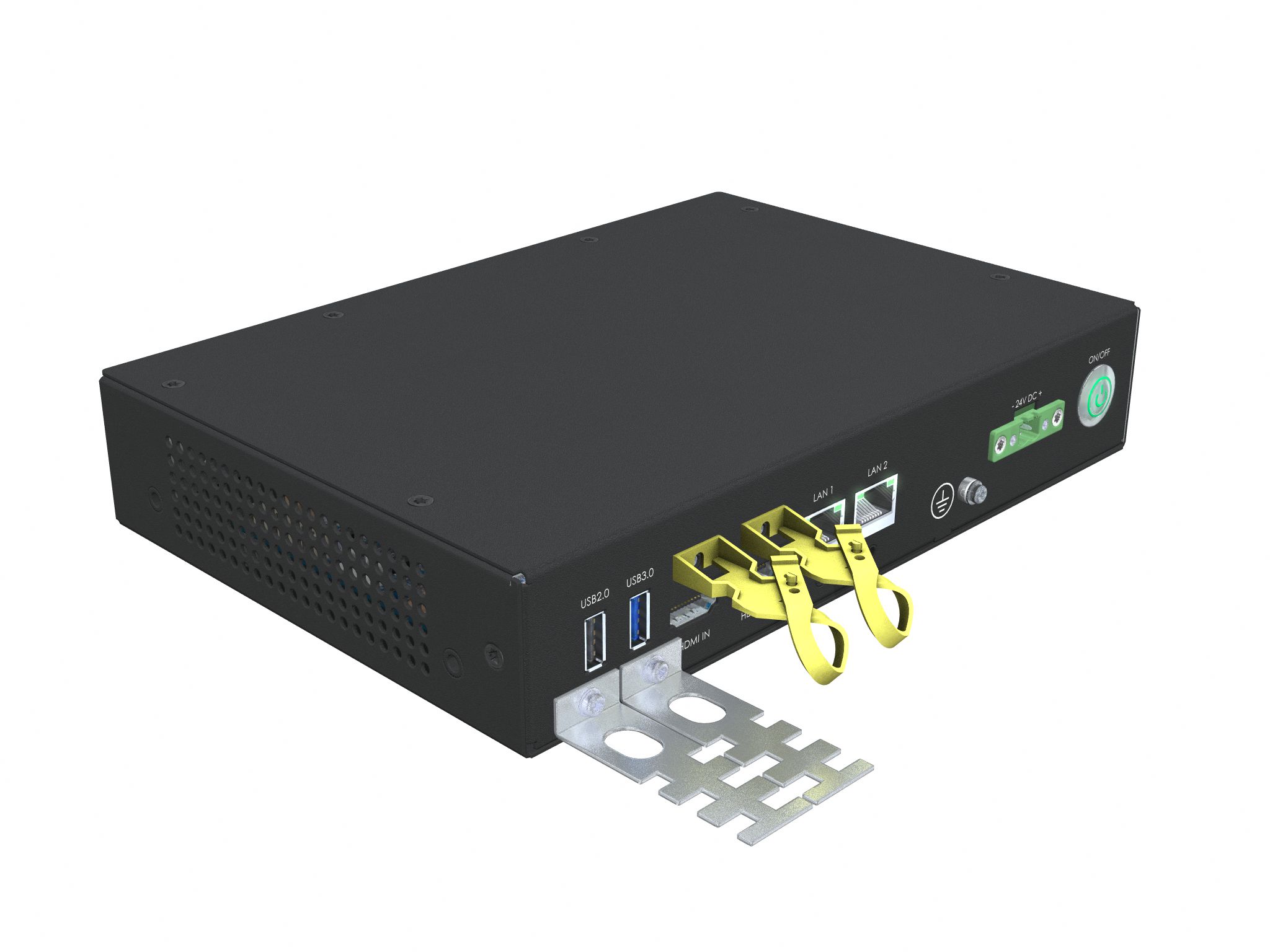

Key Features: ARM CPU, HDD-Free Solution possible with SSD, Fanless, no moving parts, Aluminium Cooling Chassis, Ultra Compact Form Factor, 1U Rack Compatible (height), Includes Mounting Bracket Kit, USB + DP/HDMI Retainers, Cable Relief Retainer
Product Dimensions and Weight: W:240.00 [9.45"] x H:45.00 [1.77"] x D:165.50 [6.52"] mm [inch]
Approx: 1.3kg / 2.86lbs
Product Carton Size and Weight: L:320.00 [12.60"] x W:195.00 [7.68"] x H:265.00 [10.54"] mm [inch]
TBDkg / TBDlbs
User Controls / Activity: Power On/Off button, Power LED, Activity LED in rear
Factory Options: • OS (Android/Linux) - Android 8.1 / Debian 9
• M.2. SSD 240GB and up (TBD) - Pending
• Internal SD card (TBD) - Pending
• Wifi/Bluetooth Antenna (TBD) - Supported, Pending (Antenna/approval)
• Power Inputs: 12-24VDC or PoE: PCA200827-1 (TBD)

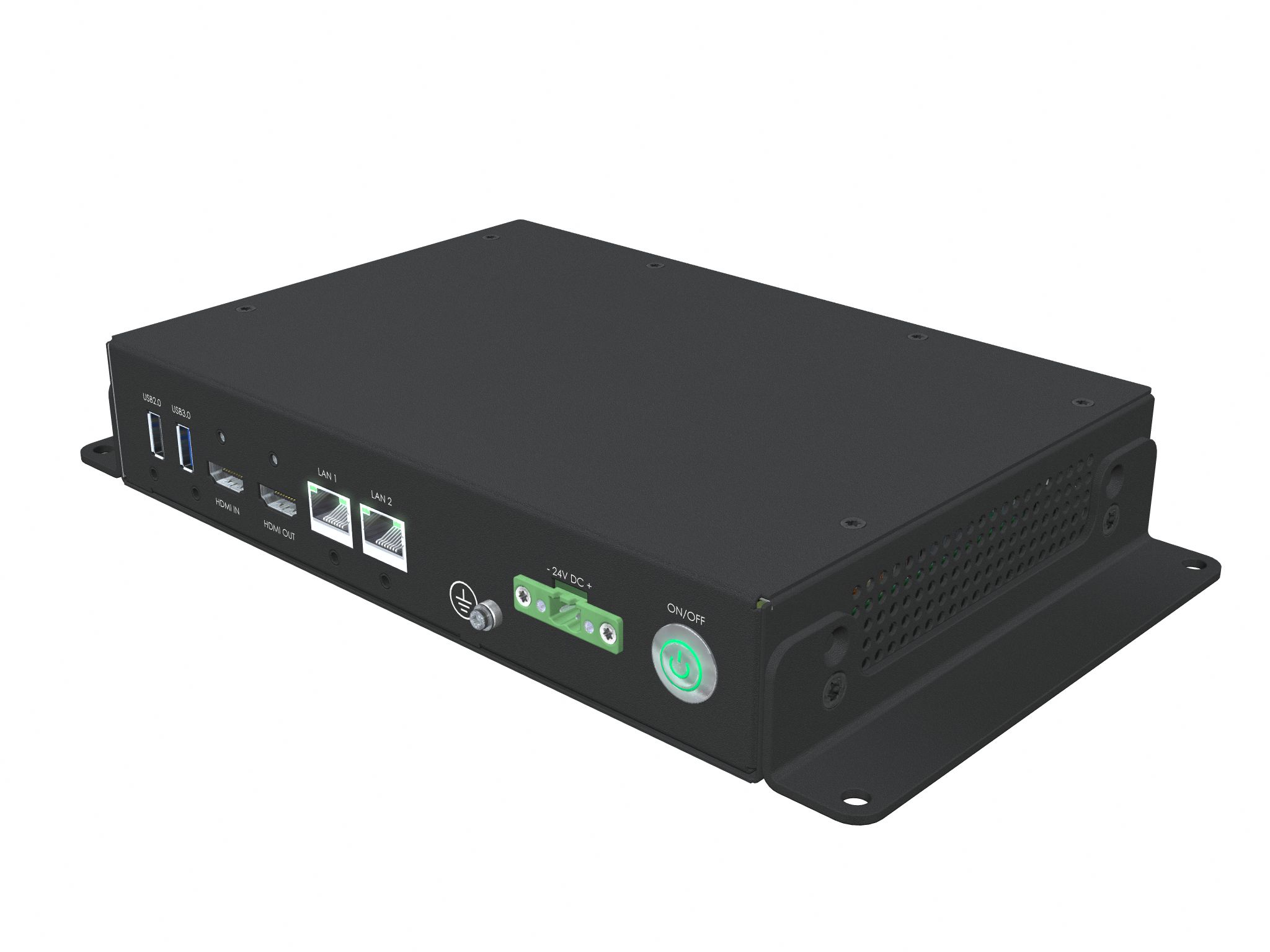

Accessories: • HT MBK D30-A1: Mounting Bracket Kit (included with delivery)
Capabilities / Prepared for: See Factory Options.
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 30.00 [11.81"] - Steering: 950.00 [37.40"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU RO MR - Mutual Recognition, ABS - American Bureau of Shipping, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society, KR - Korean Register, LRS - Lloyd's Register of Shipping
Specifications last updated: July 4, 2025 @ 08:44
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

News Stories:
9 Nov 2022
Product released to website
