ED 24T01 FHD

Overview

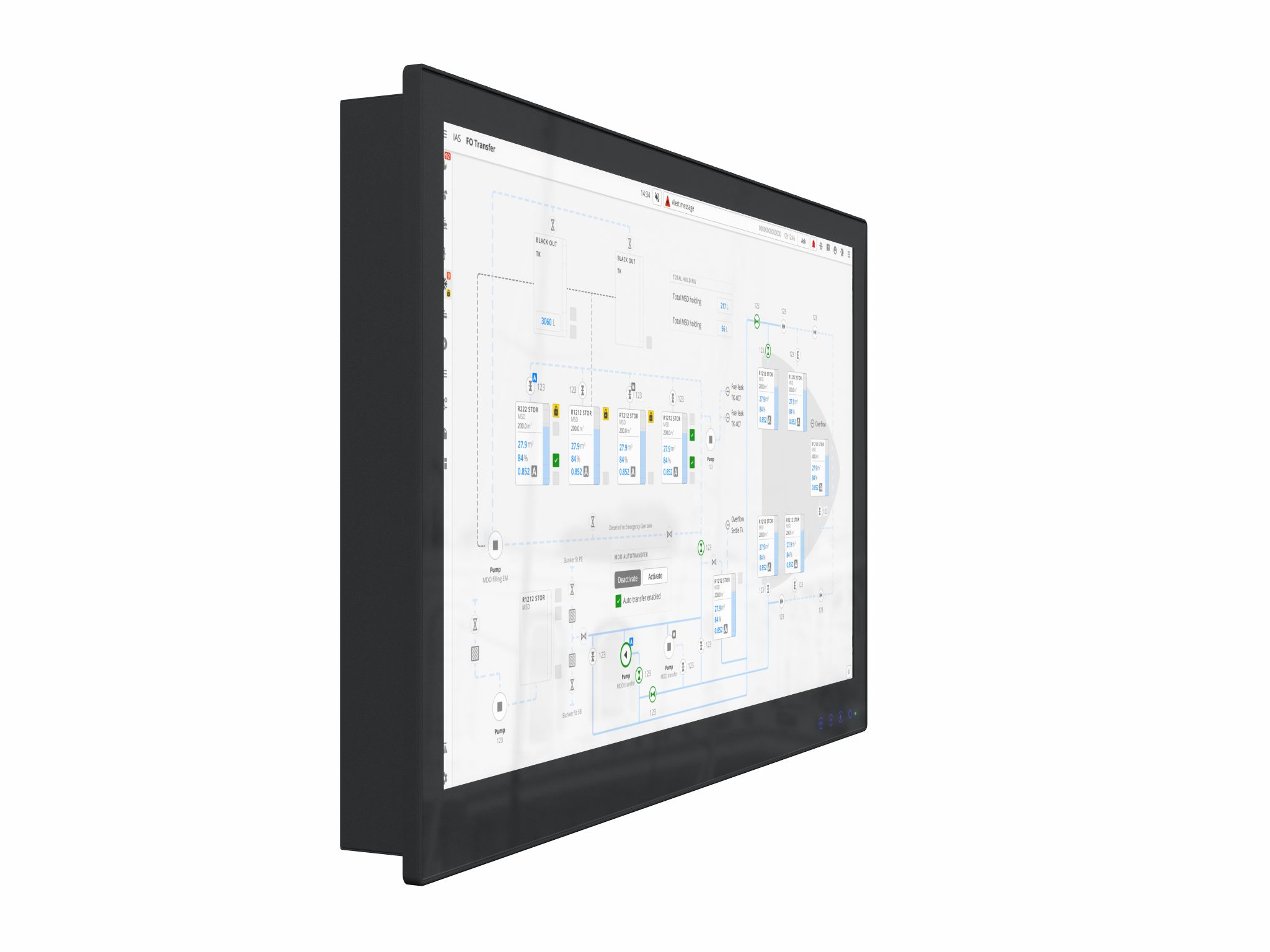

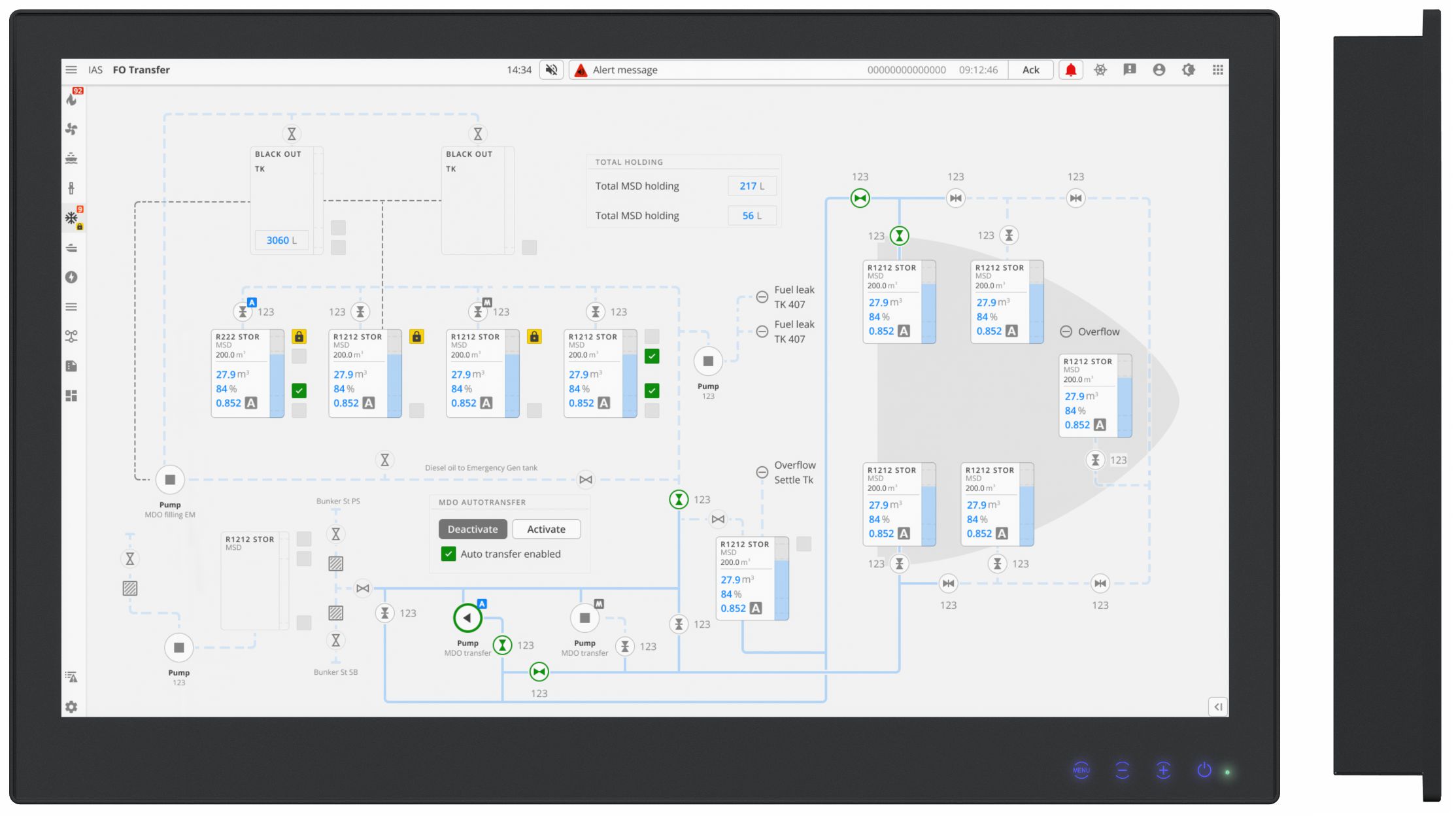

Monitor - Widescreen - LED - ENIX Pro Series ED - 23.8 inch - Industrial Monitor

ED 24T01 FHD

The ENIX Pro line - Series ED range of products provides SXGA to 4K resolution monitors to a wide range of industrial applications: HMI, safety systems, navigation, CCTV, voyage planning, sonar, tactical command & control platforms, and more.

icon
Widescreen
icon
LED-backlit
Send Request
Description

Monitor - ENIX Pro Series ED

Its cutting-edge, high-definition LED monitor technology enables the presentation of large amounts of data onto one screen, instead of multiple monitors.

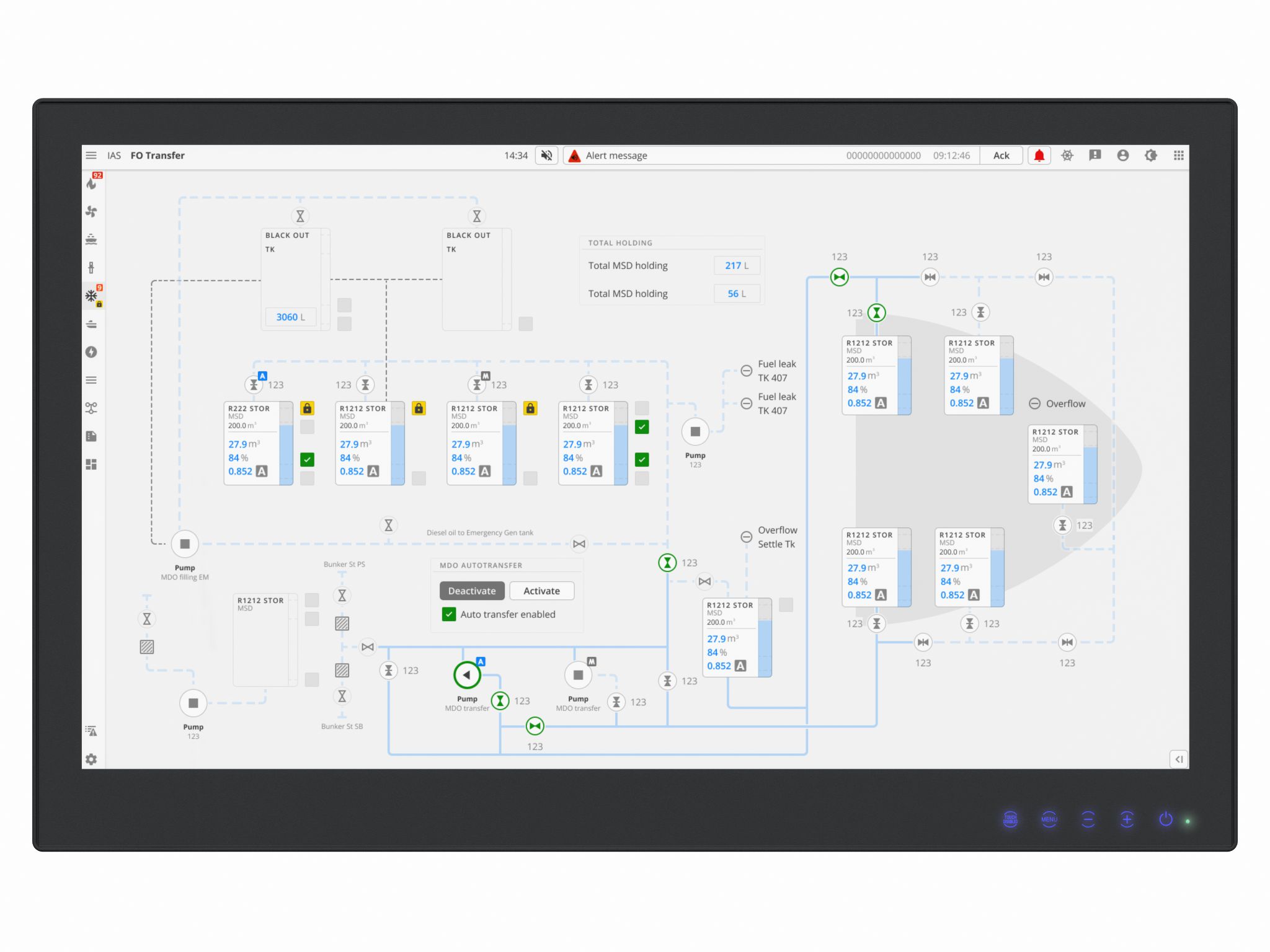

The 23.8” is available with Projected Capacitive Touch and Anti Glare coating for better functionality in all situations and conditions. It also features an On Screen Monitor menu and Keypad for ease of use.
Specifications
Typenumber (Long): ED 24T01 FHD-xxx-xx
TFT Technology: High Quality TFT with LED Backlight Technology, TFT active-matrix liquid crystal panel, RGB vertical stripe, AHVA (IPS: - Advanced Hyper Viewing Angle) LCD Technology, Backlight Lifetime 50000 hrs
Viewable Size and Active Area: 23.8 inch - 527.10 [20.75"] (H) x 296.50 [11.67"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1920 x 1080 (FHD) - 0.2745 (H) x 0.2745 (V) mm
Aspect Ratio and Response Time: 16:9 - 14 ms (typical) (G to G)
Light Intensity and Contrast Ratio: 400 cd/m² (typical) - 1000:1 (typical)
View Angle and Max Colors: 89 deg. (up/down/left/right)
16.7M color (RGB 8bits)
Optimal Resolution and Hz: 1920 x 1080 @ 60 Hz
Detectable Resolutions: FHD: 1920 x 1080@60Hz
UXGA: 1600 x 1200@60Hz
SXGA: 1280 x 1024@60Hz
XGA: 1024 x 768@60Hz
SVGA VESA Analog: 800 x 600@60/56Hz
VGA / VESA: 640 x 480@60Hz
MAC: 832 x 624@75Hz
Composite Video Input(s): None
Supported Video Signals: None

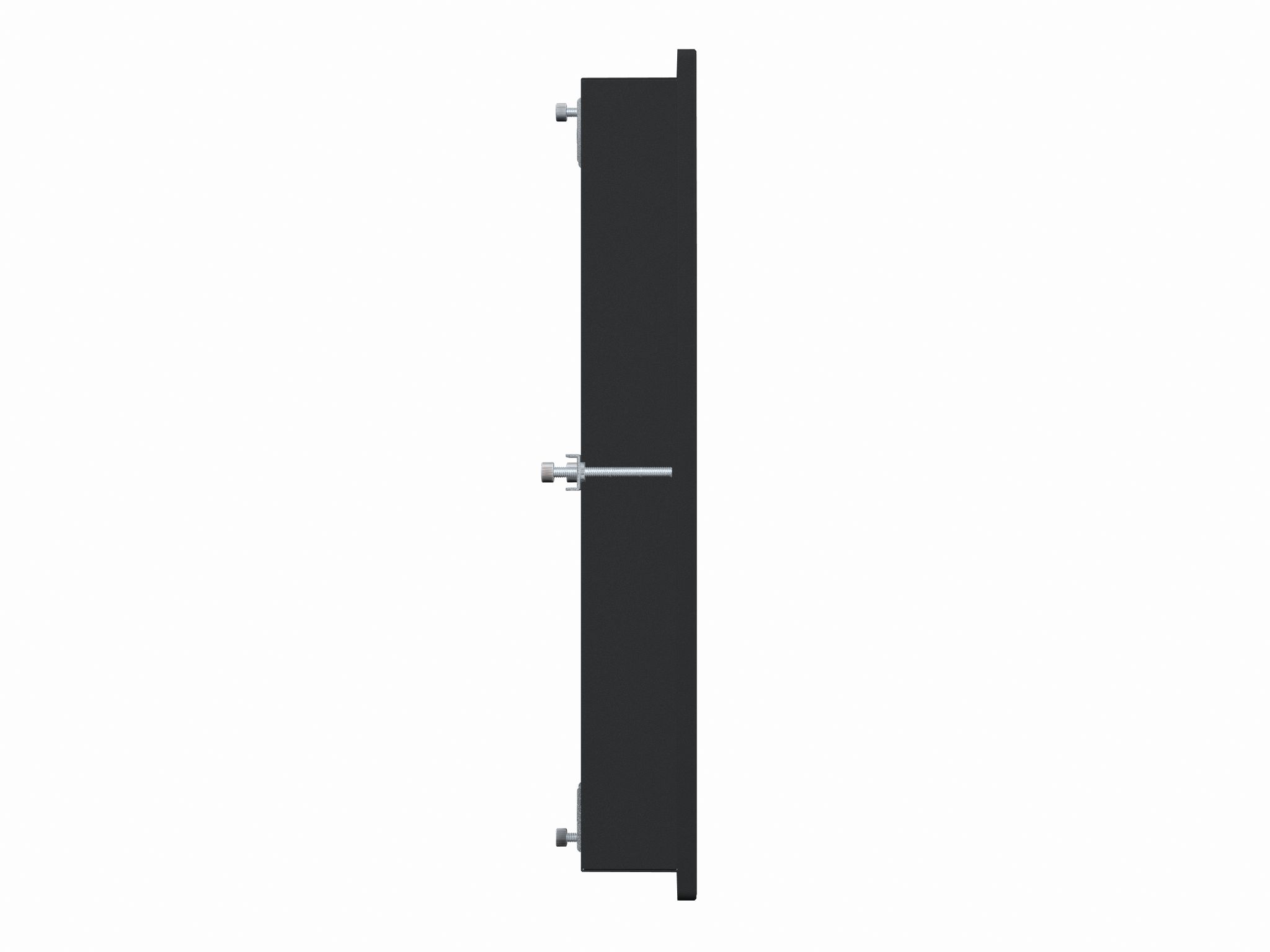

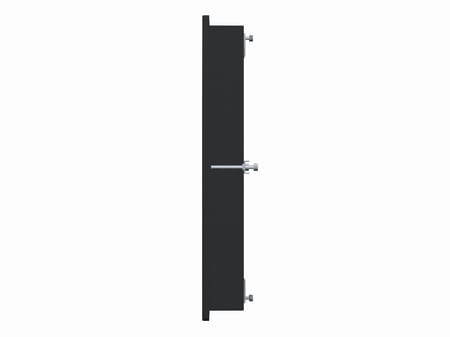

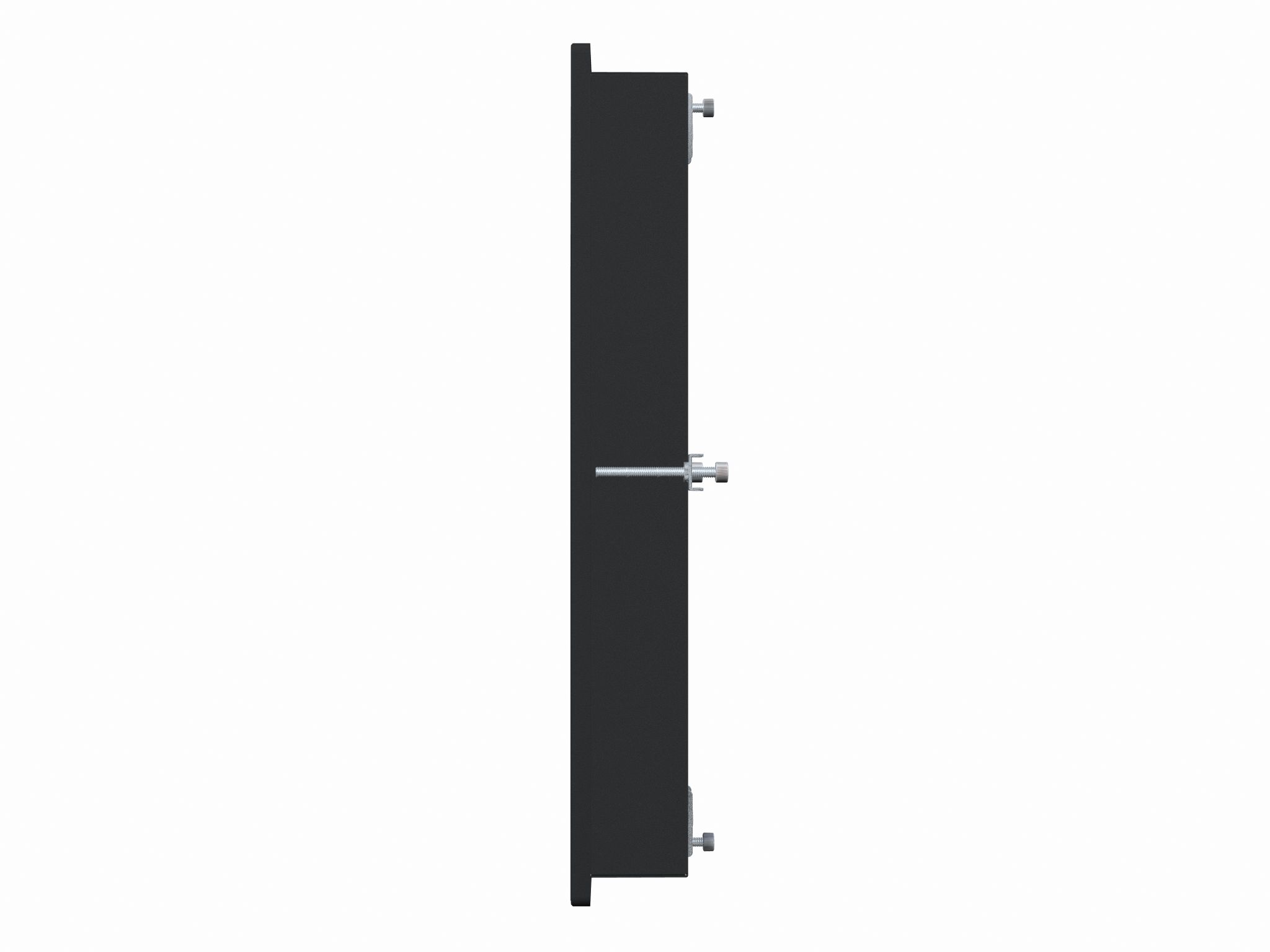

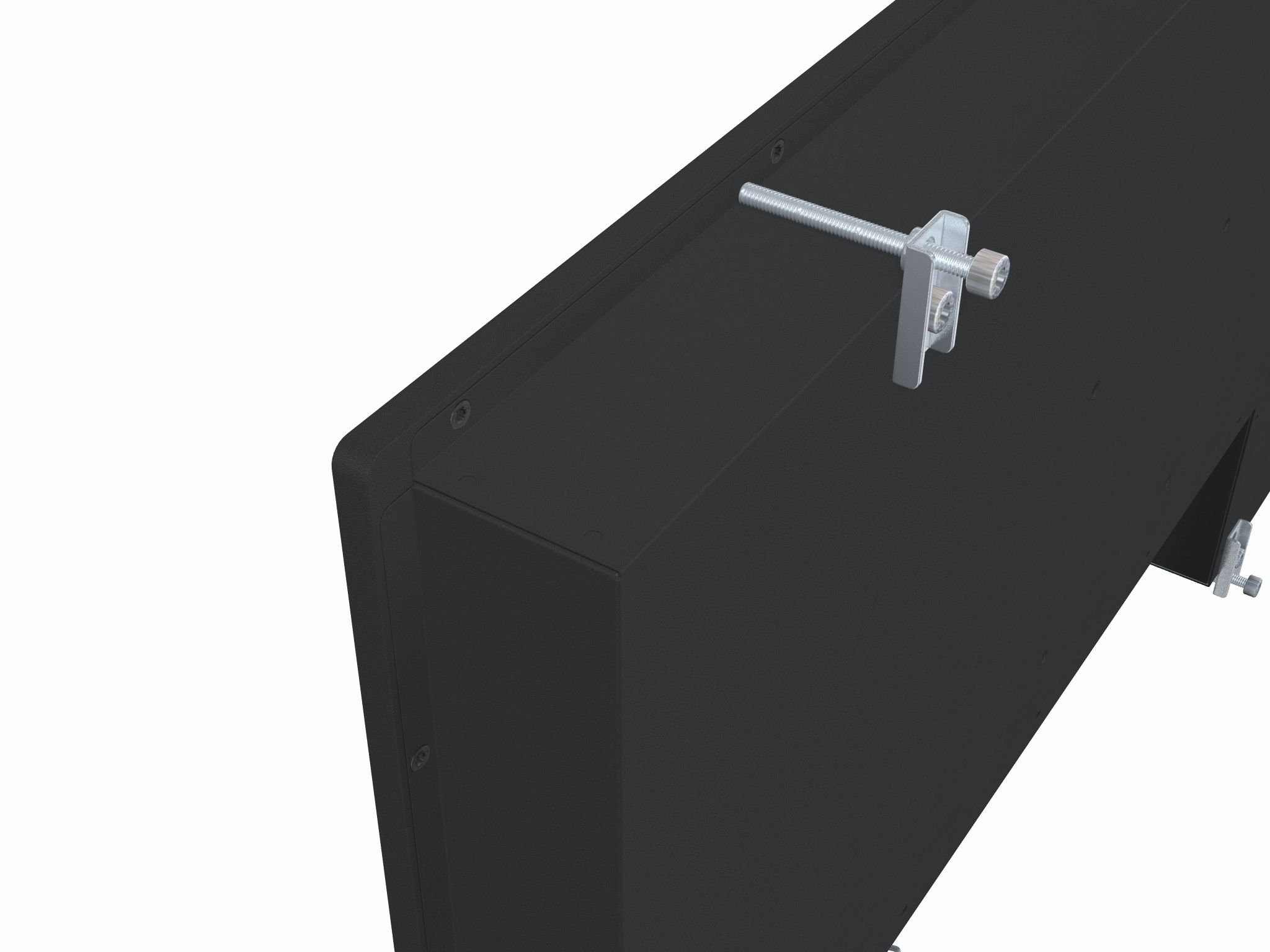

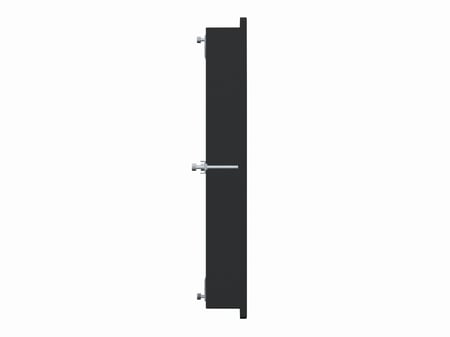

Product Features: Backlight dimmable to 0 cd/m², Touch keypad, Remote control, Panel mount clips
Power Specifications and Consumption: Multi-power 100-240V AC - 50/60Hz + 24VDC
Standard: 26W (Typ) - 60W (Max)
w/Touchscreen: 27W (Typ) - 60W (Max)

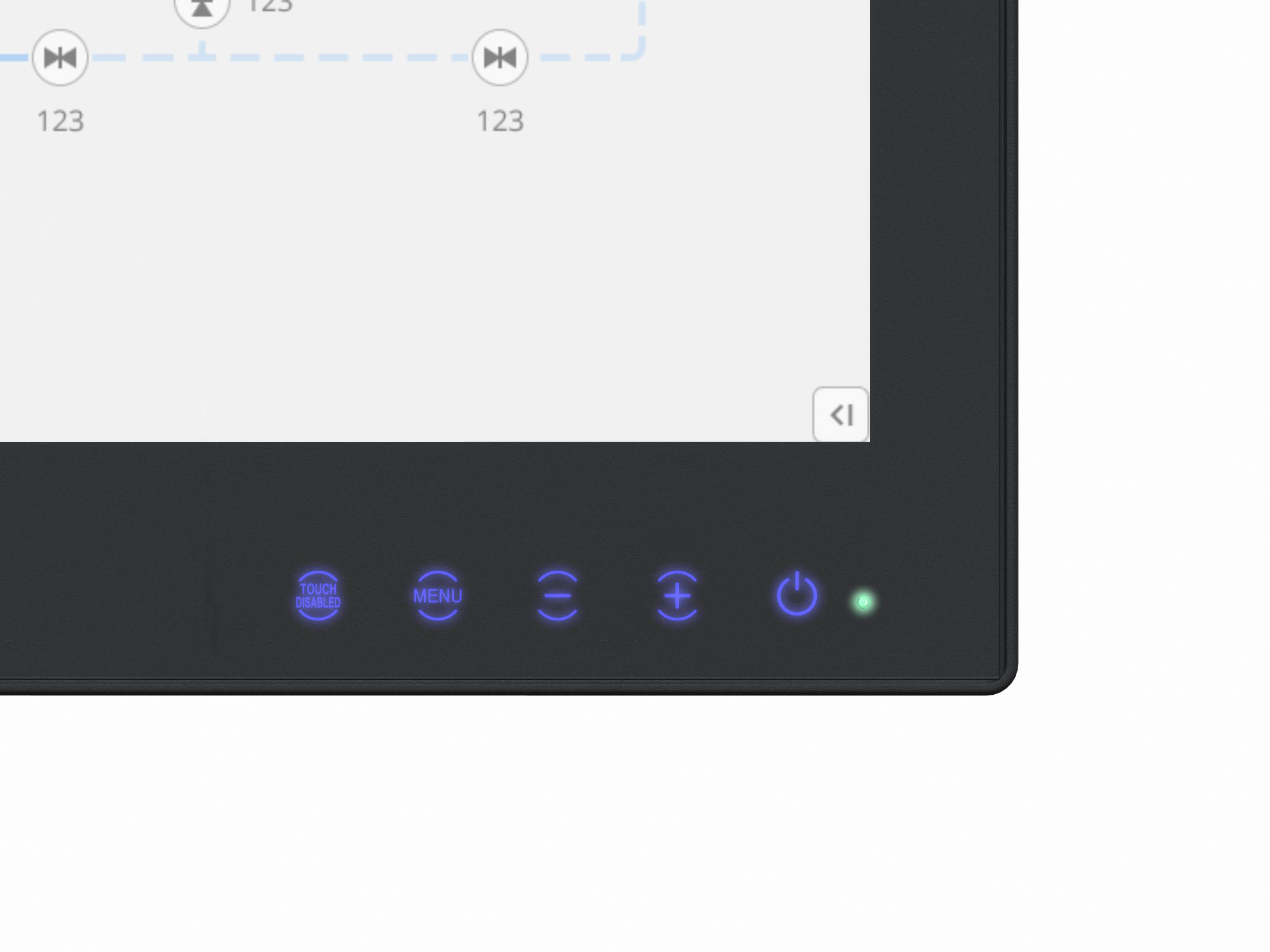

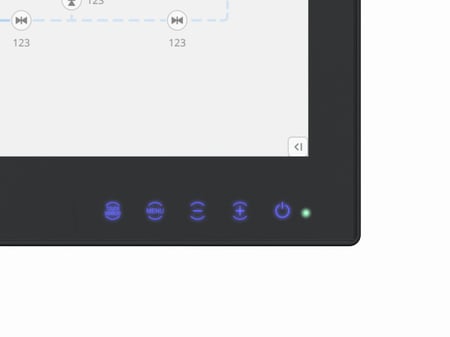

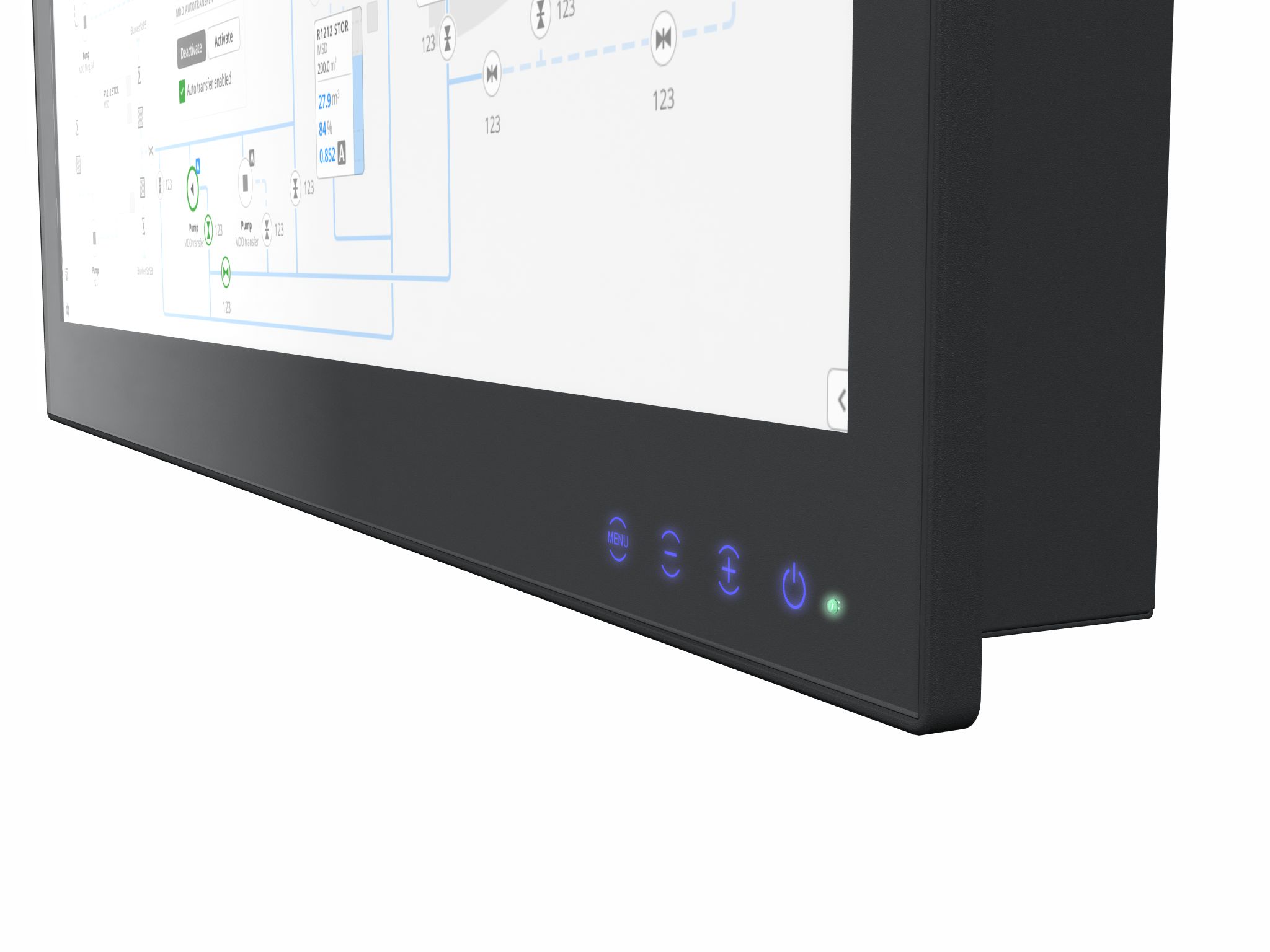

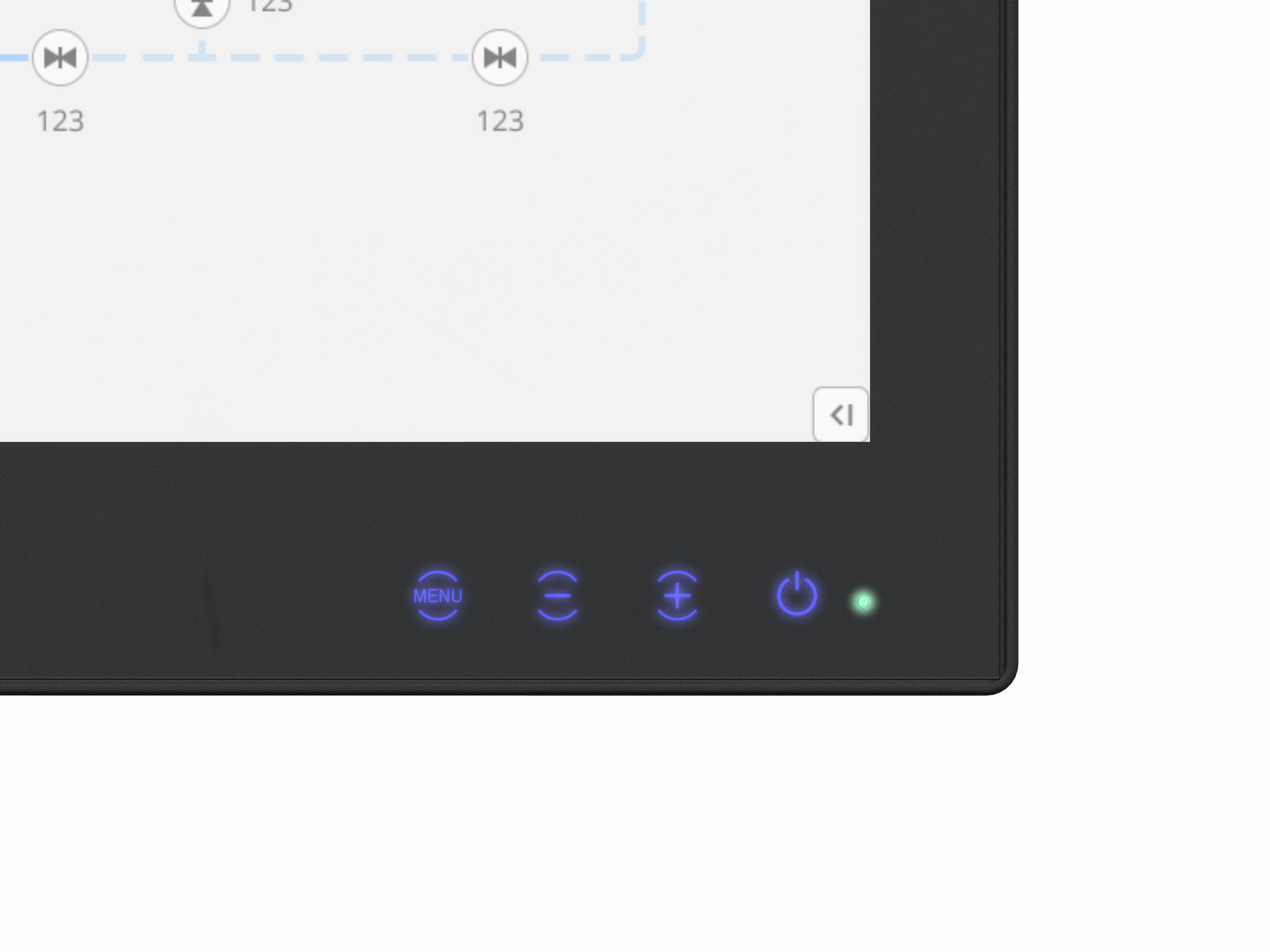

User Controls and Activity: User Controls (On right side - Touch Keypad):
Power On/Off (monitor), Brightness Control (-/+) also used for Navigation control, On Screen Monitor Menu

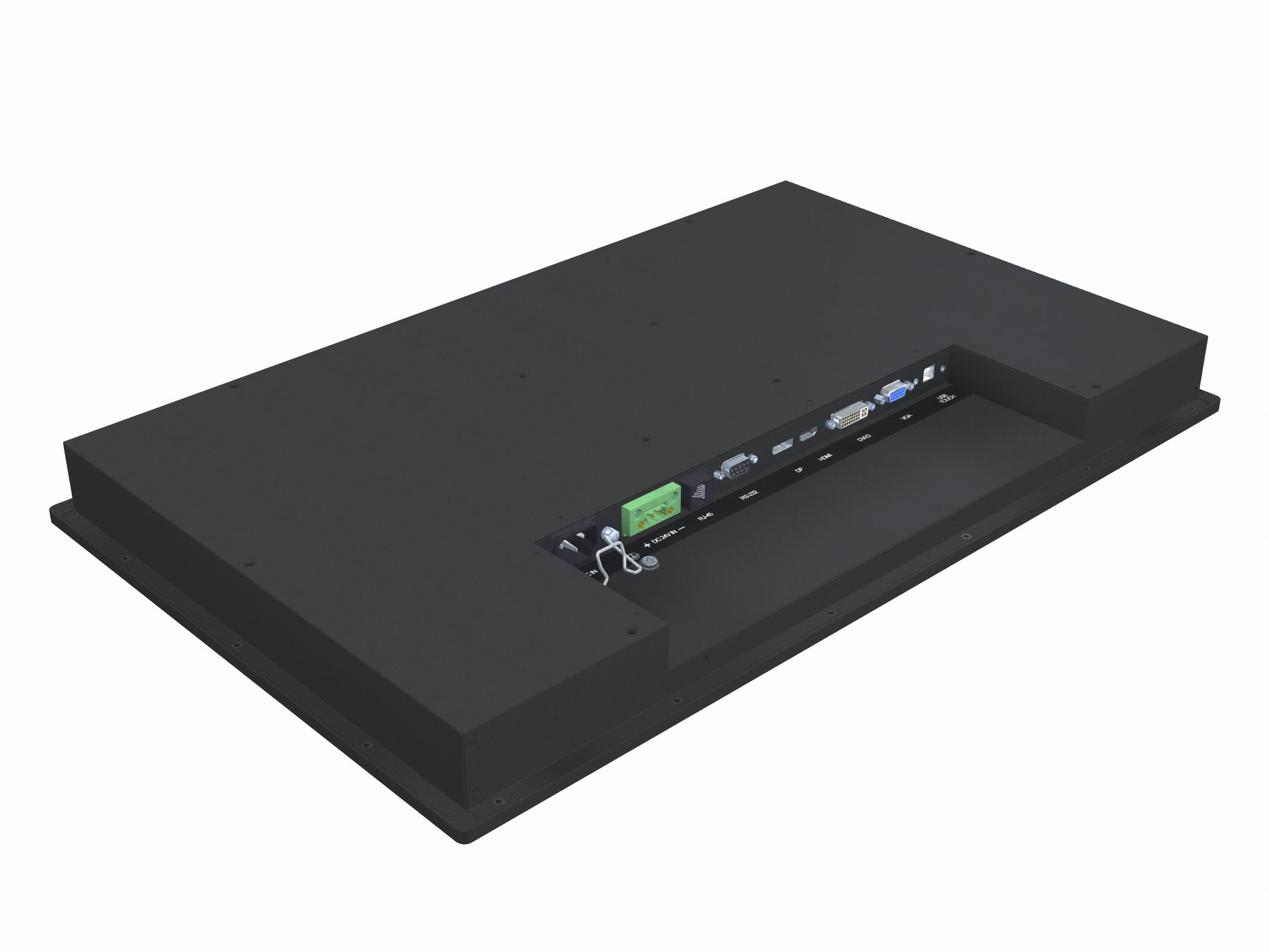

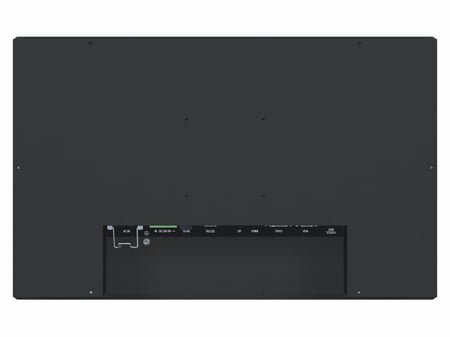

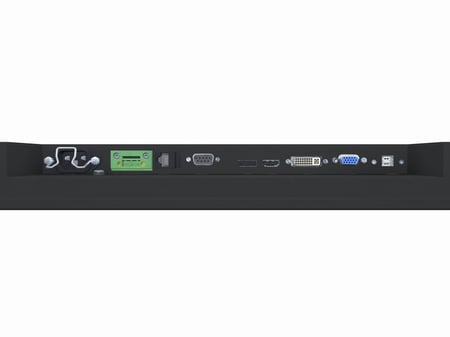

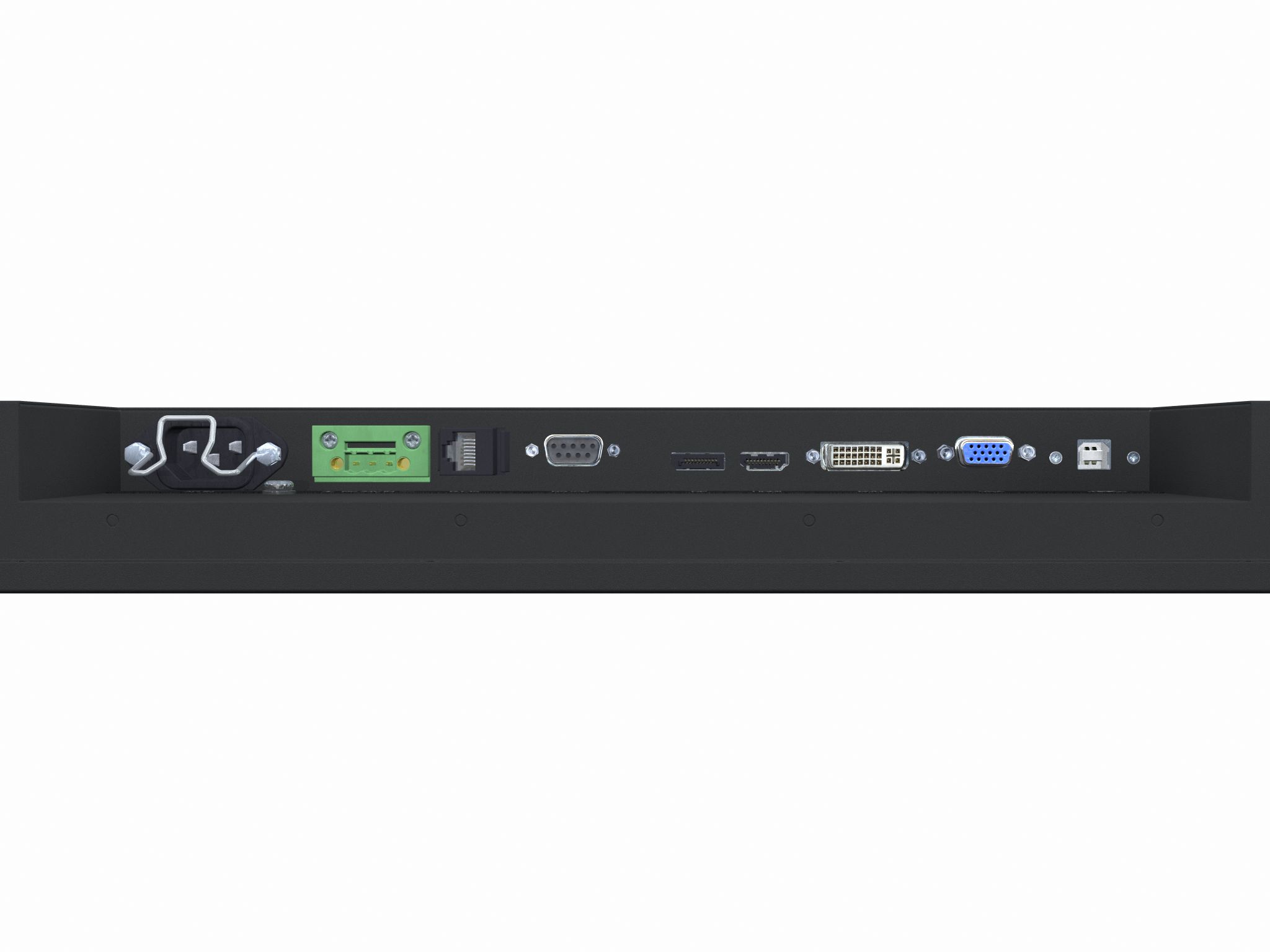

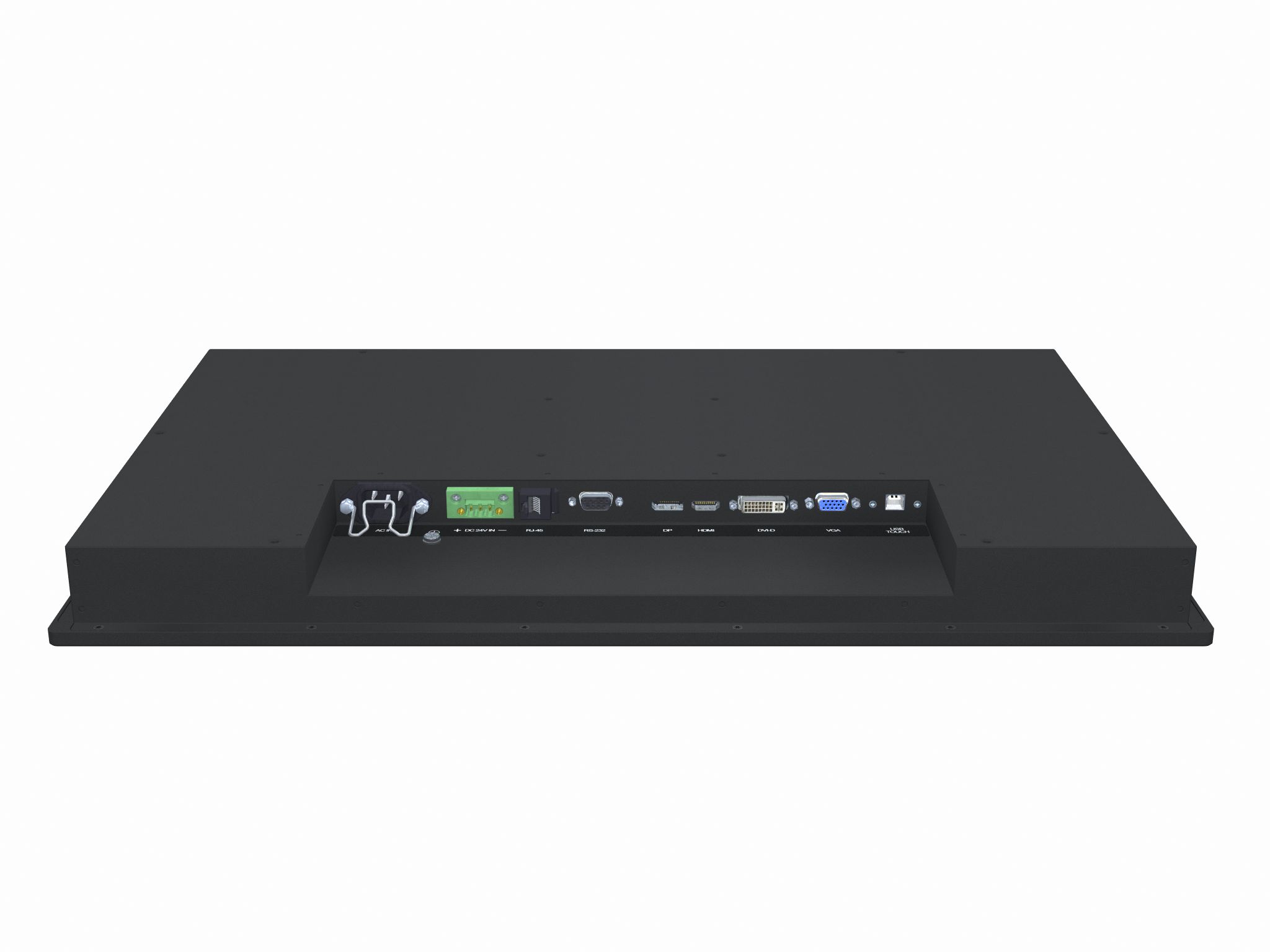

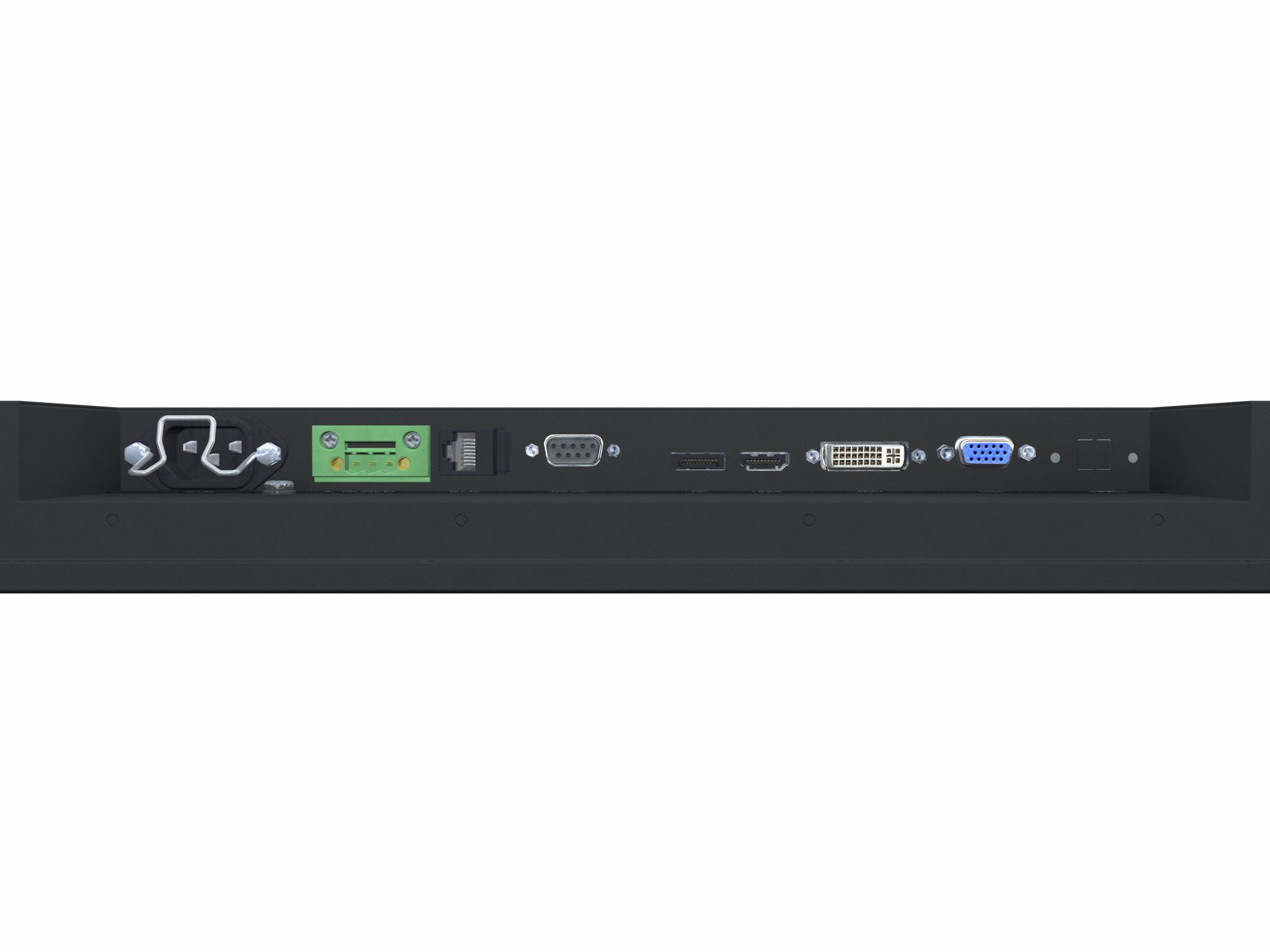

Connectors: • DVI-D Input: 1 x 24p DVI (female) - Max 1920x1080@60Hz
• VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1080@60Hz
• HDMI Input: 1 x 19p HDMI (female) - Max 1920x1080@60Hz (HDMI 1.3 compliant)
• DP Input: 1 x 20p DisplayPort (female) - Max 1920x1080@60Hz (DisplayPort 1.2a compliant)
• Touch Interface: 1 x USB Type B Connector (female)
• RS-232 Port: 1 x 9p D-SUB (female) non-isolated for Remote Control
• RJ-45 Port: 1 x Ethernet RJ45 8P8C, GPIO interface, for Remote Control
• DC Power IN: 1 x 3-pin Terminal Block 5.08
• AC Power IN: 1 x Std IEC Inlet

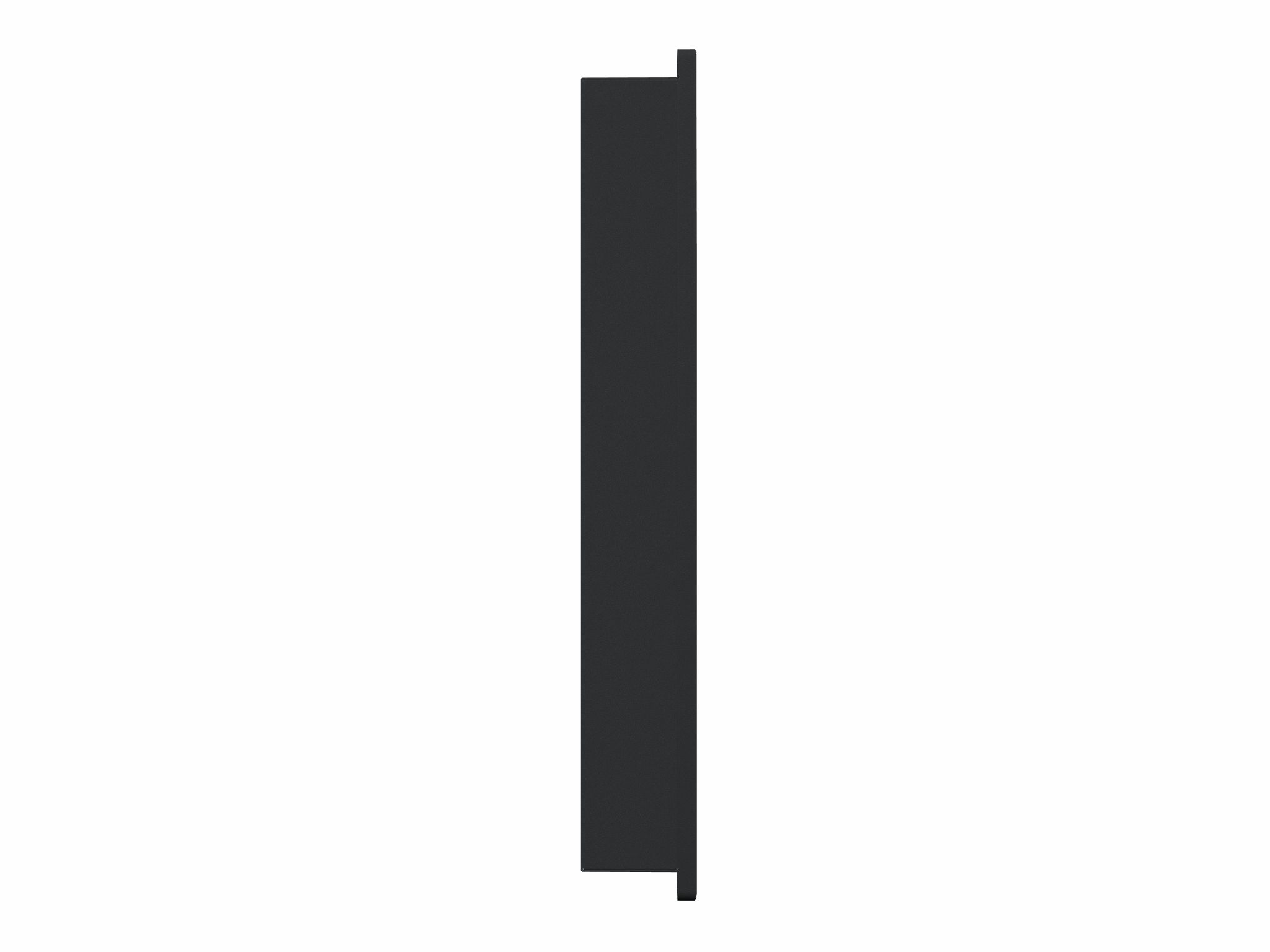

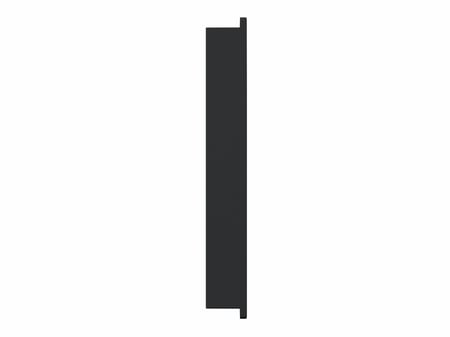

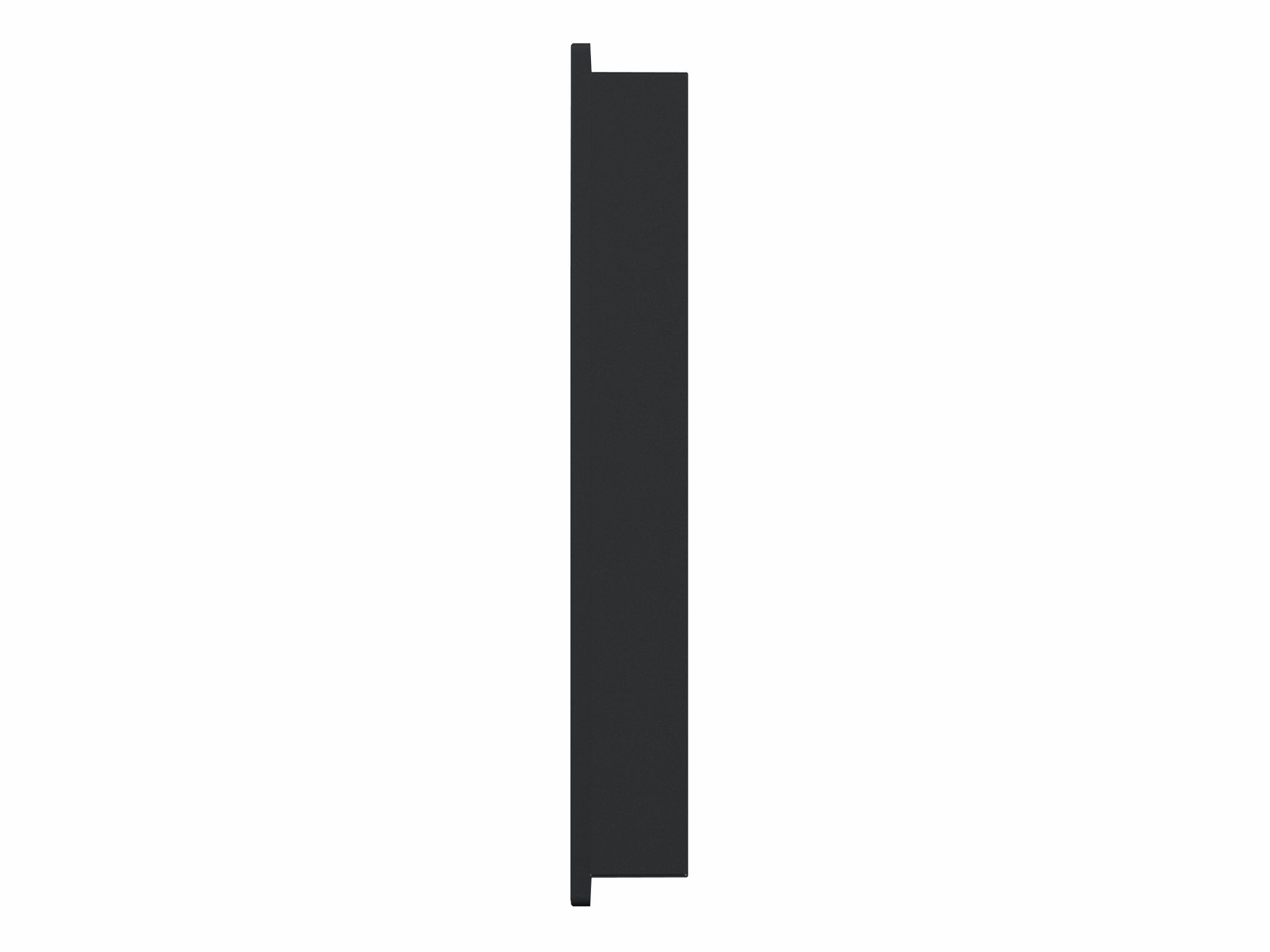

Product Dimensions and Weight: W:574.00 [22.60"] x H:359.00 [14.13"] x D:57.00 [2.24"] mm [inch]

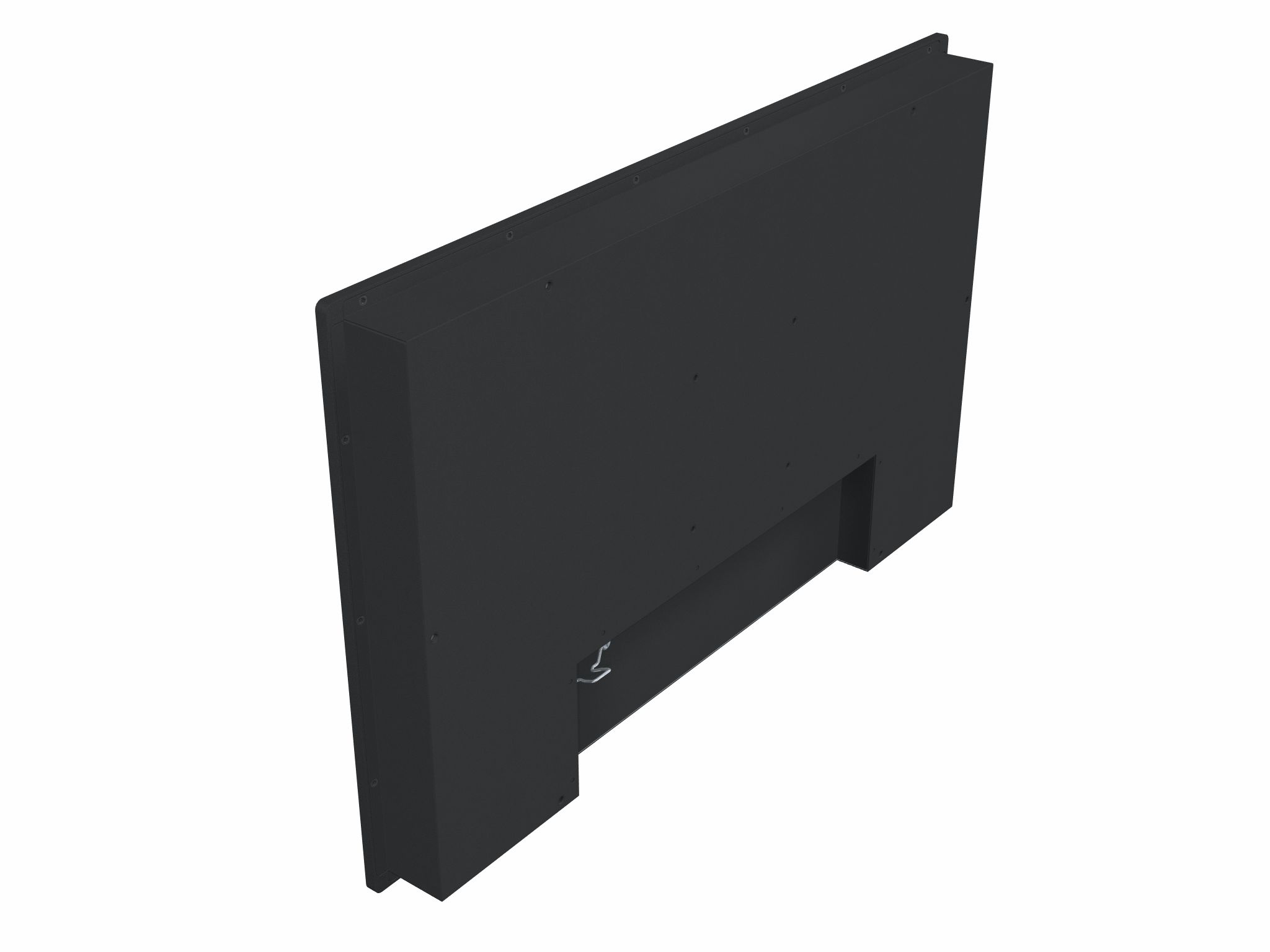

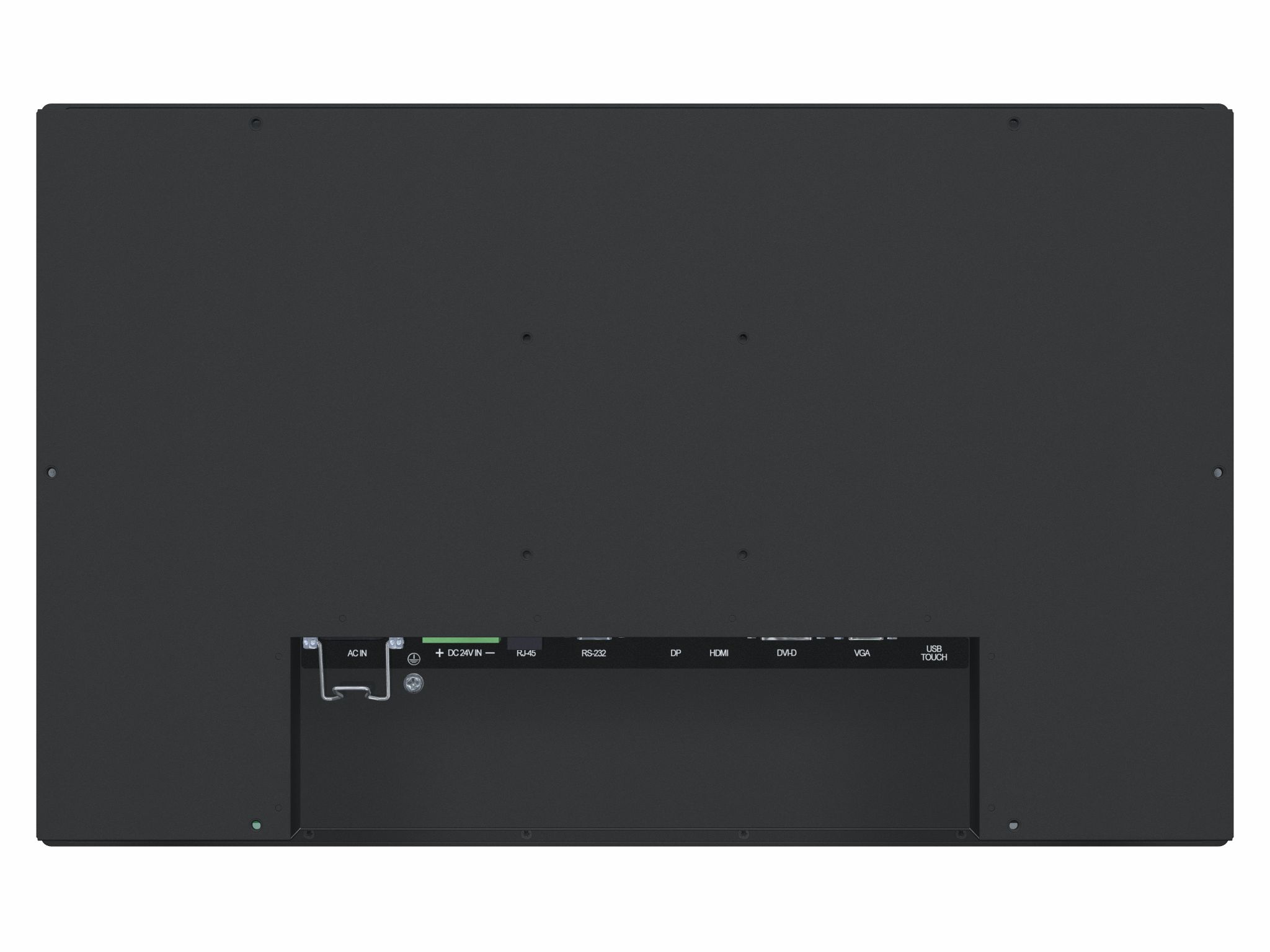

VESA Support: 100 x 100 mm (4 x M4)
Approx. 6.1kg / 13.4lbs (standard)
Approx. 6.6kg / 14.5lbs (w/touchscreen)
Product Carton Size and Weight: L:680.00 [26.77"] x W:165.00 [6.50"] x H:520.00 [20.47"] mm [inch]
Approx. 8.6kg / 18.9lbs
Factory Options: • Projected Capacitive Touch Screen (Multitouch, USB interface)
• AG Coated Glass
Accessories: • ET JGW STD-A1: 1 x ENIX Pro remote controller (RJ45 harness/encoder
Capabilities - Prepared for: None
Operating Temperature: -5.0°C / 23.0°F to +45.0°C / 113.0°F, Humidity up to 90%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / +140.0°F, Humidity up to 90%
IP Rating: Protection: IP65 front - IP22 Rest of unit
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: FCC, CE
Specifications last updated: July 7, 2025 @ 10:01
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

News Stories:
25 Jan 2023
Official Product Launch
