ED 32T01 UHD

Overview

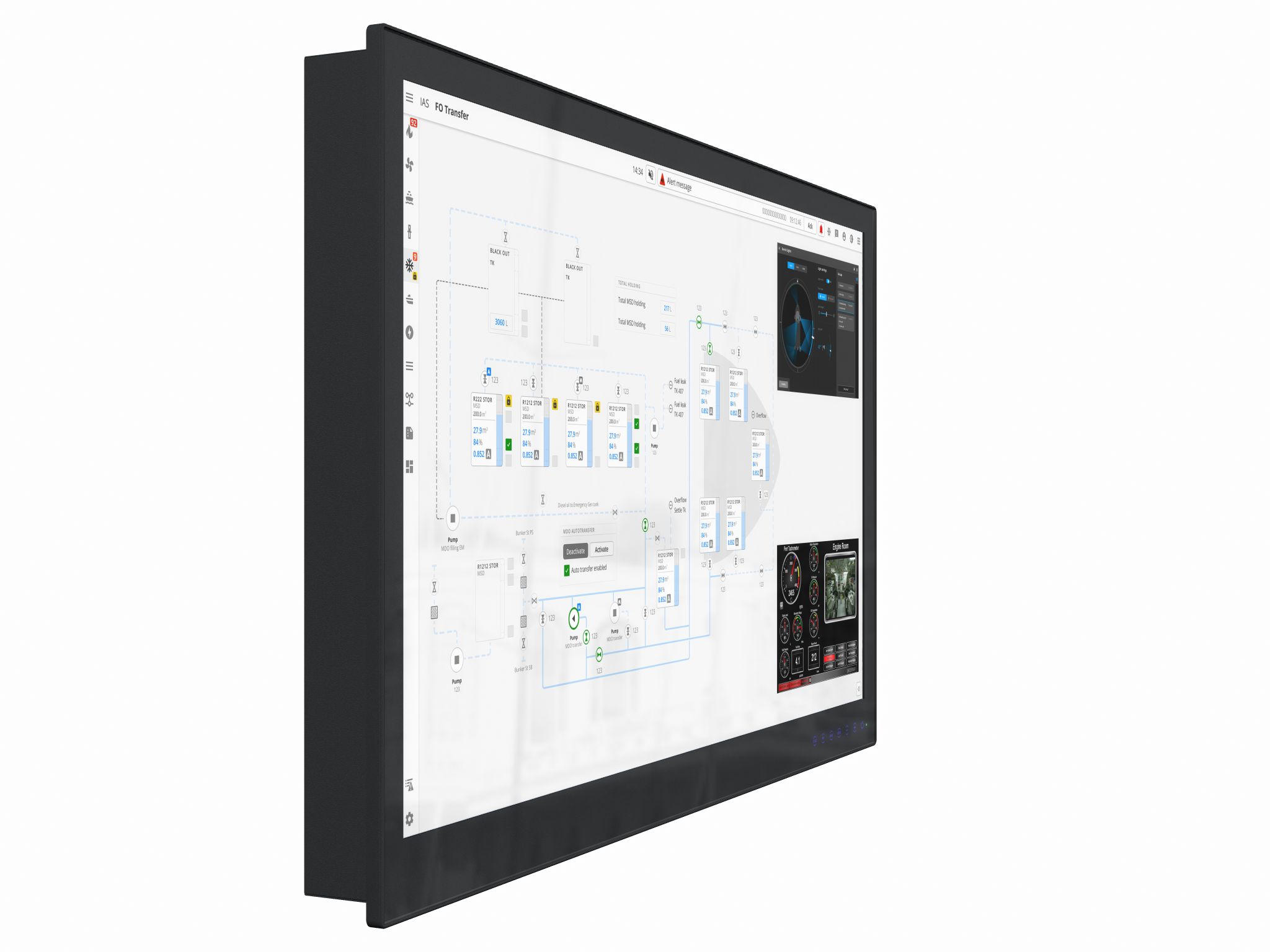

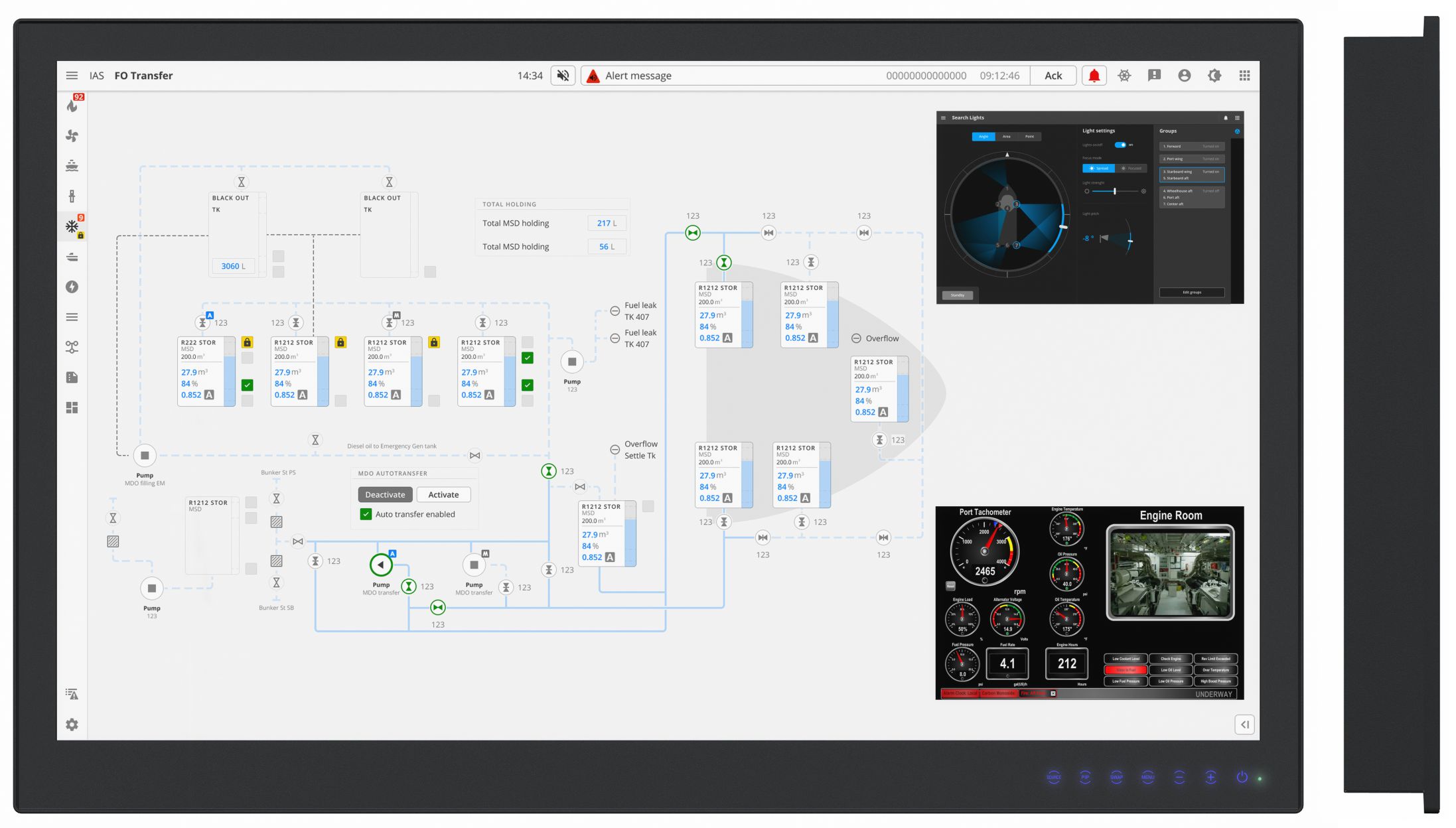

Monitor - Widescreen - 4K UHD - LED - ENIX Pro Series ED - 32.0 inch - Industrial Monitor

ED 32T01 UHD

The ENIX Pro line - Series ED range of products provides SXGA to 4K resolution monitors to a wide range of industrial applications: HMI, safety systems, navigation, CCTV, voyage planning, sonar, tactical command & control platforms, and more.

icon
Widescreen
icon
High-res
icon
LED-backlit
Send Request
Description

Monitor - ENIX Pro Series ED

Its cutting-edge, high-definition LED monitor technology enables the presentation of large amounts of data onto one screen, instead of multiple monitors.

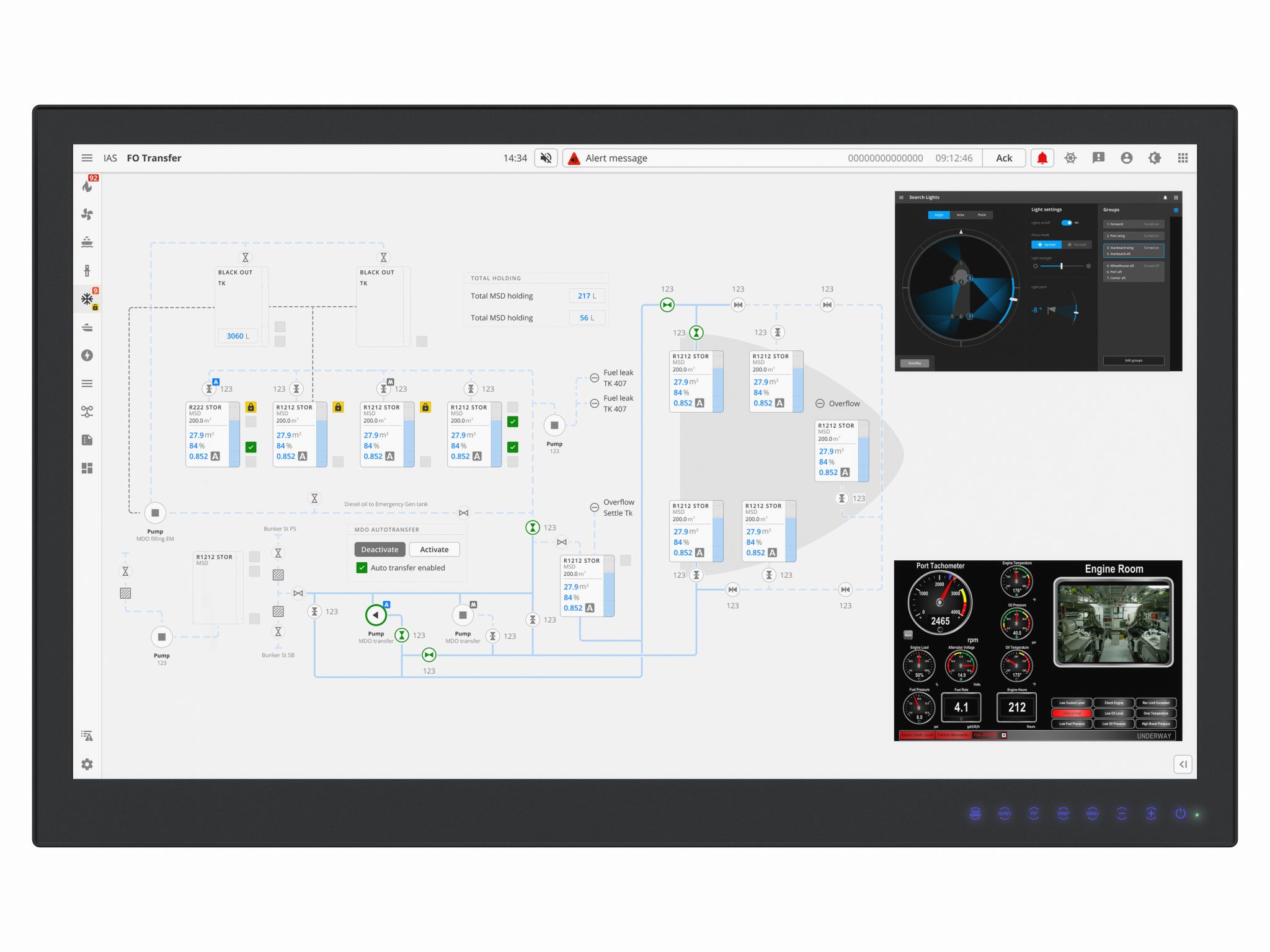

The 32.0” is available with Projected Capacitive Touch and Anti Glare coating for better functionality in all situations and conditions. It also features an On Screen Monitor menu and Keypad for ease of use.
Specifications
Typenumber (Long): ED 32T01 UHD-xxx-xx
TFT Technology: High Quality TFT with LED Backlight Technology, Widescreen, TFT active-matrix liquid crystal panel, RGB vertical stripe, AHVA LCD Technology, Backlight Lifetime 30000 hrs
Viewable Size and Active Area: 32.0 inch - 711.50 [28.01"] (H) x 401.50 [15.81"] (V) mm [inch]
Native Resolution and Pixel Pitch: 3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm
Aspect Ratio and Response Time: 16:9 - 12 ms (typ. G to G)
Light Intensity and Contrast Ratio: 350 cd/m² (typical) - 1000:1 (typical)
View Angle and Max Colors: 89 deg. (up/down/left/right)
1.07B color (8 bits +HI FRC)
Optimal Resolution and Hz: 3840 x 2160 @ 60 Hz
Detectable Resolutions: UHD: 3840 x 2160@60Hz
QHD: 2560 x 1440@60Hz
WUXGA: 1920 x 1600@60Hz
FHD: 1920 x 1080@60Hz
UXGA: 1600 x 1200@60Hz
SXGA: 1280 x 1024@75/60Hz
XGA: 1024 x 768@75/70/60Hz
SVGA (VESA Analog): 800 x 600@75/72/60/56Hz
VGA (VESA): 640 x 480@75/72/60Hz
Note: Actual supported signals may differ based on utilized graphics card.
Composite Video Input(s): None
Supported Video Signals: None

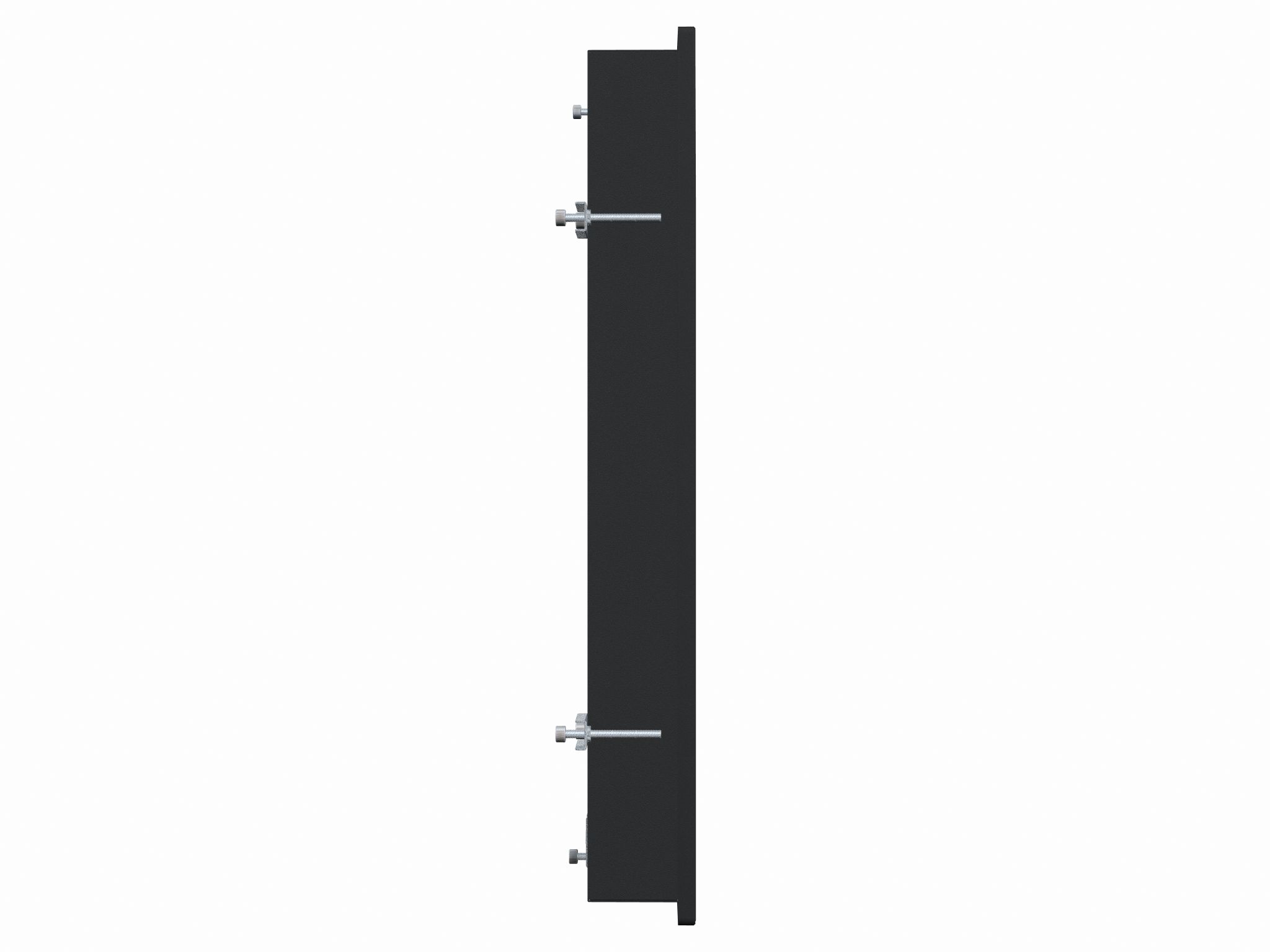

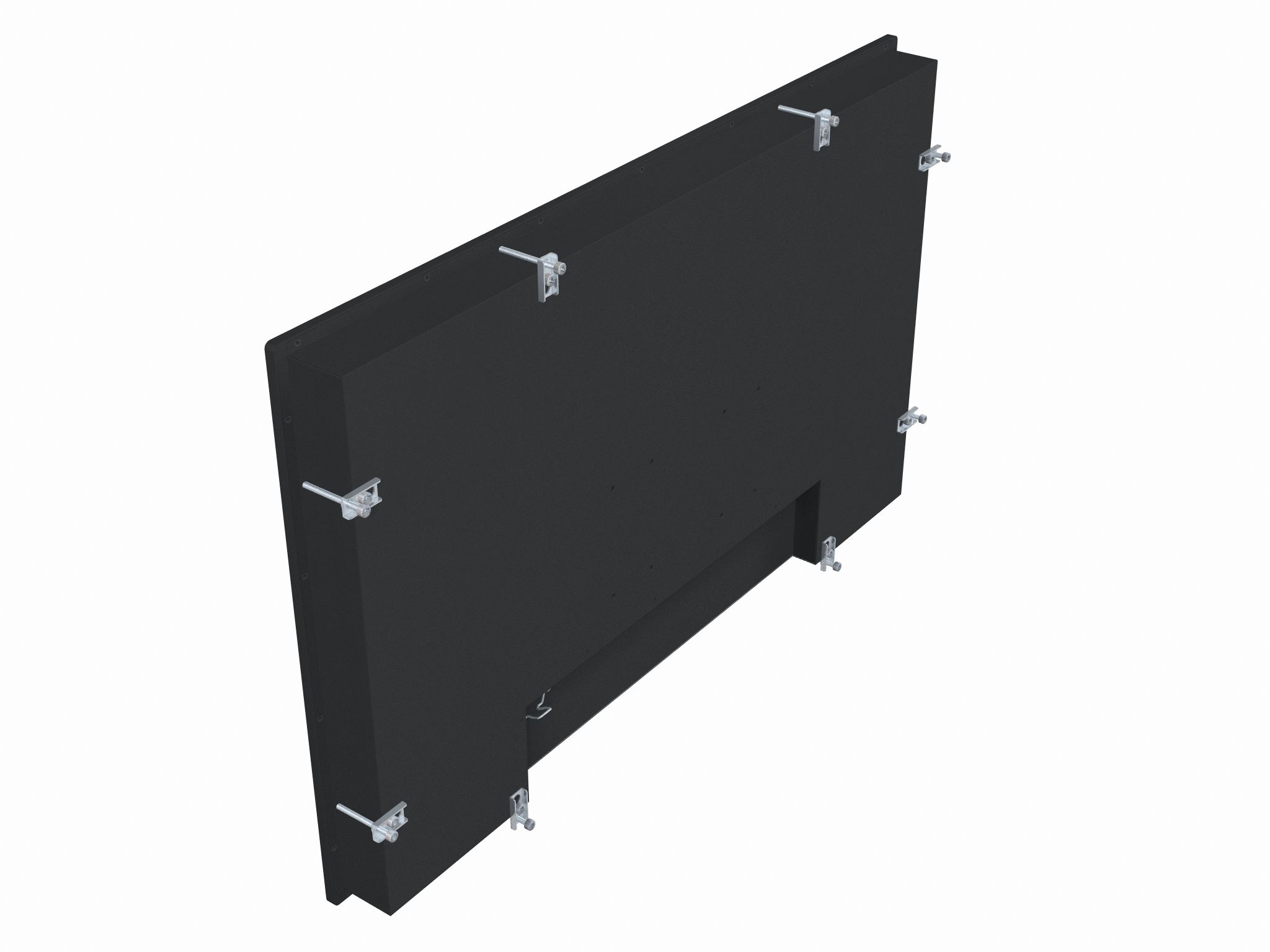

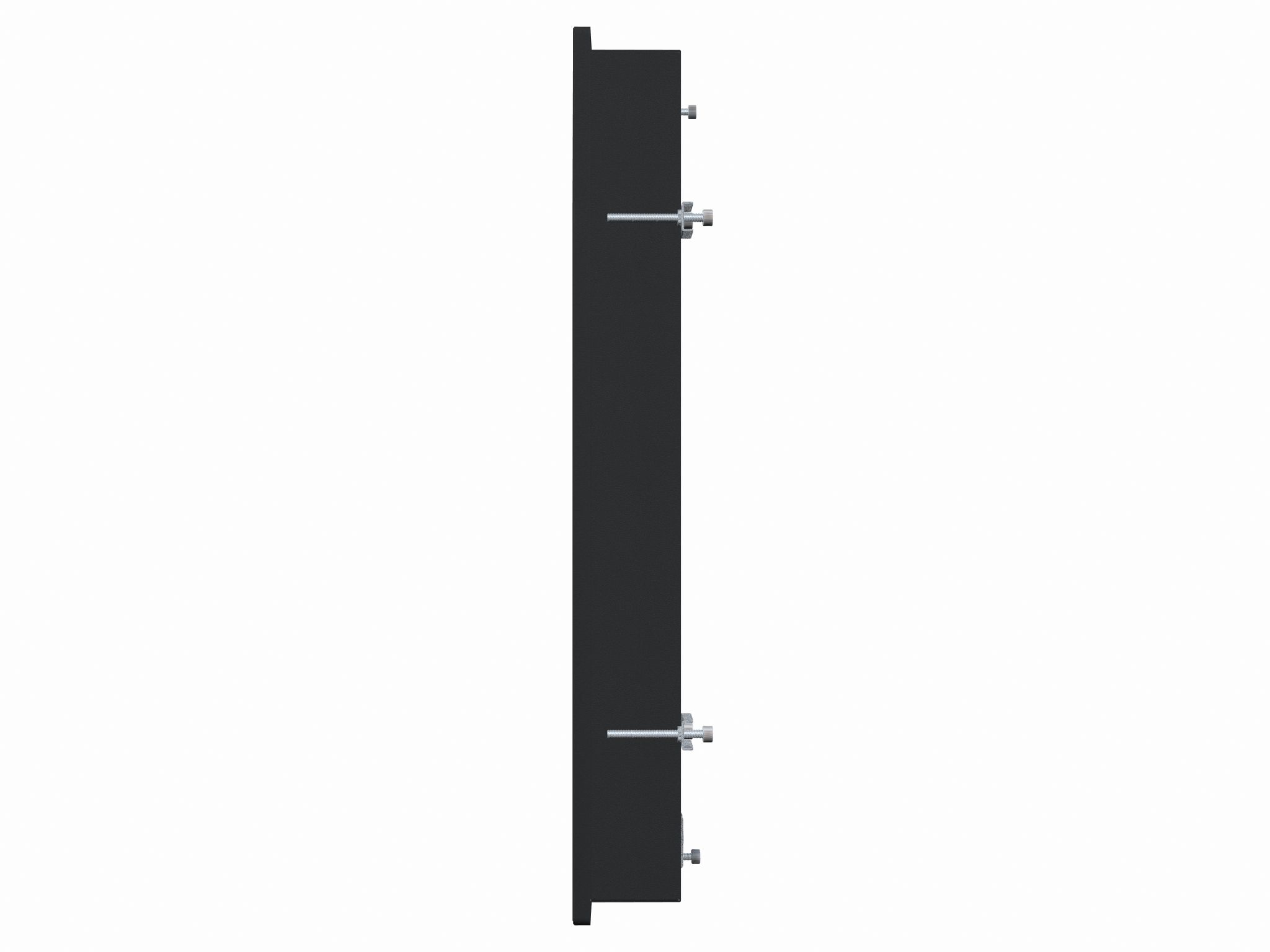

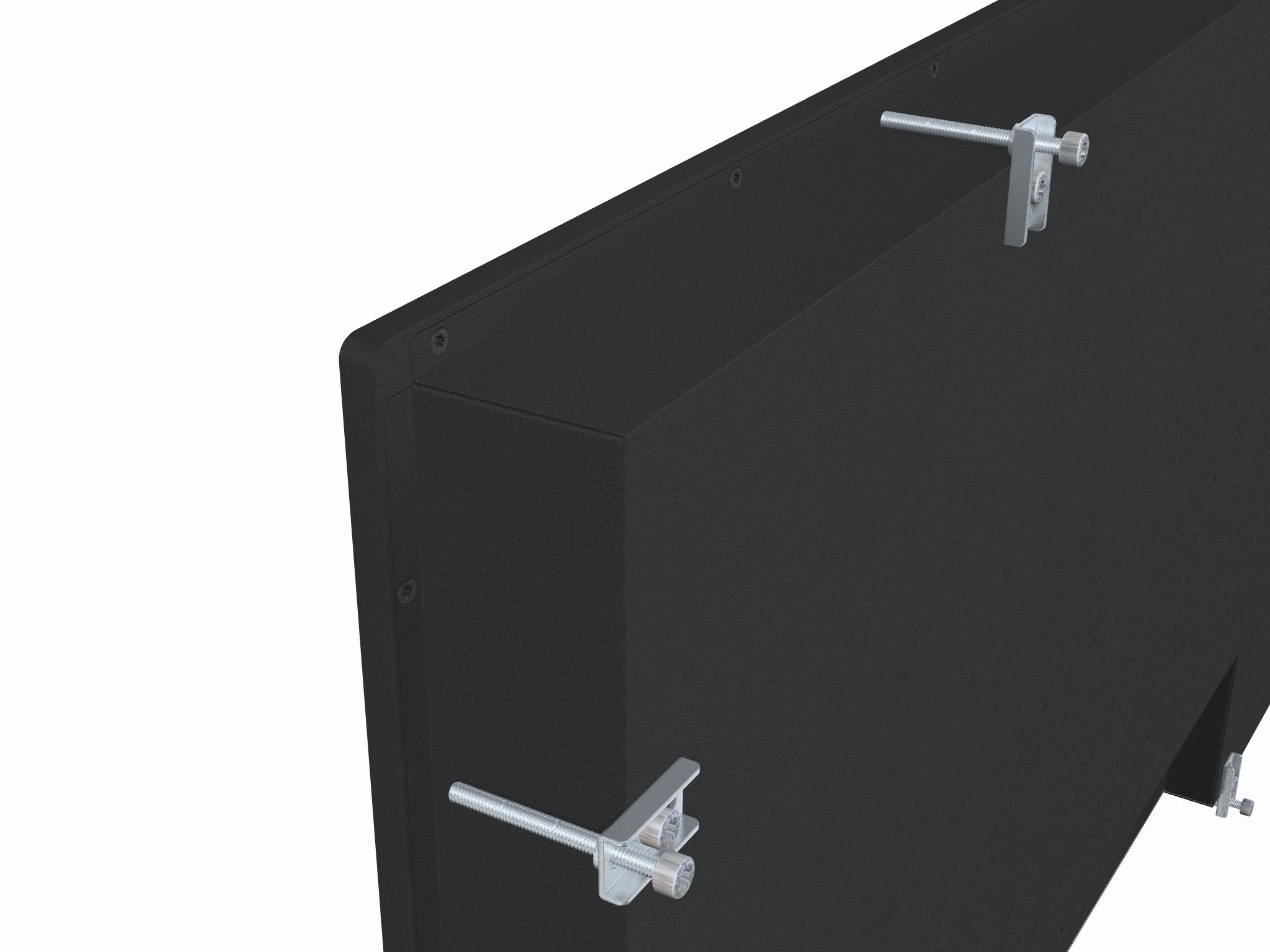

Product Features: Dimmable function to 0 cd/m², Remote control, RJ-45, external wheel key encoder tool, Remote control, RS-232, serial command, Touch keypad, Panel mount clips
Power Specifications and Consumption: Multi-power 100-240V AC - 50/60Hz + 24VDC
Standard: 51W (Typ) - 60W (Max)
w/Touchscreen: 53W (Typ) - 60W (Max)

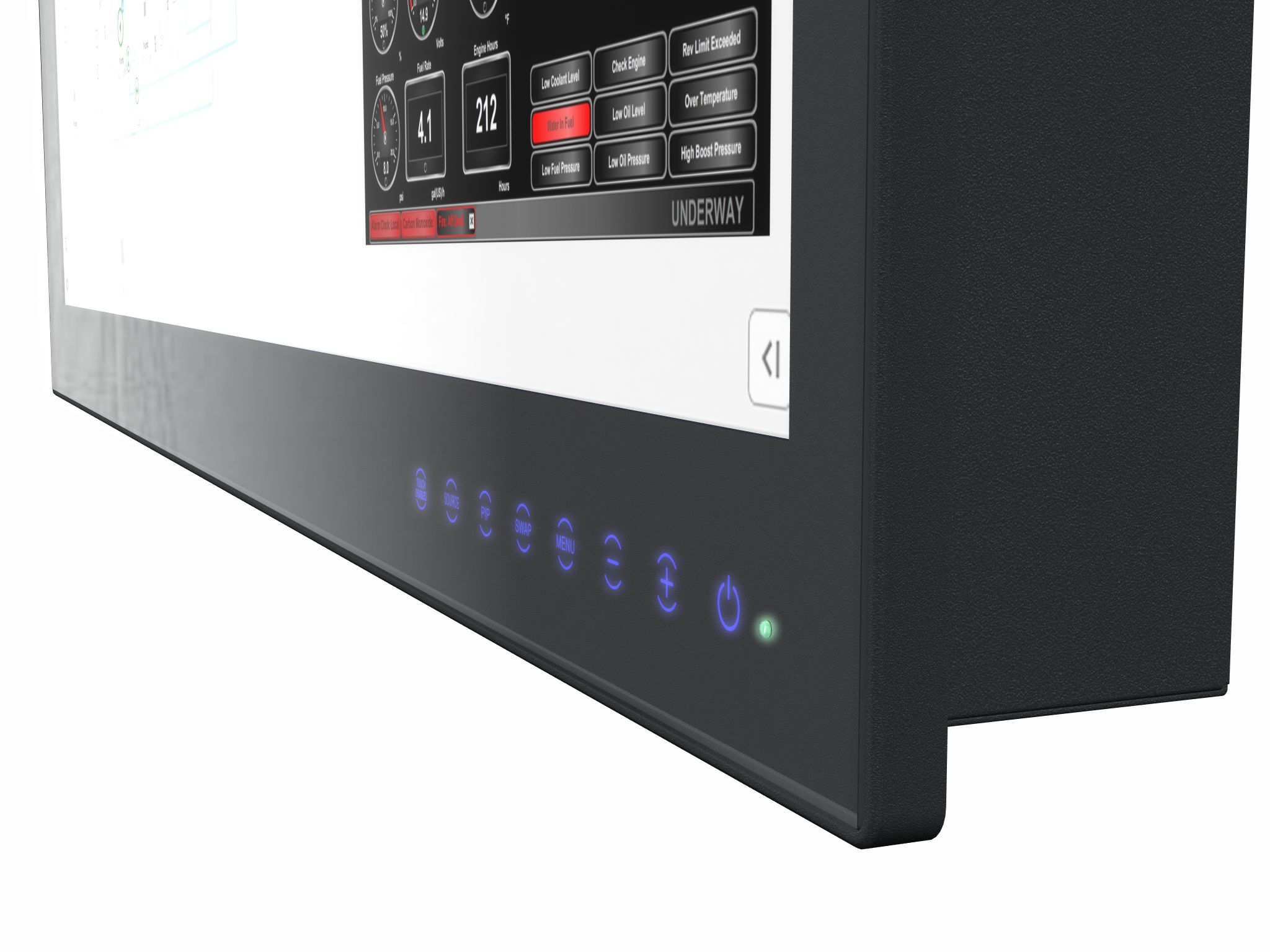

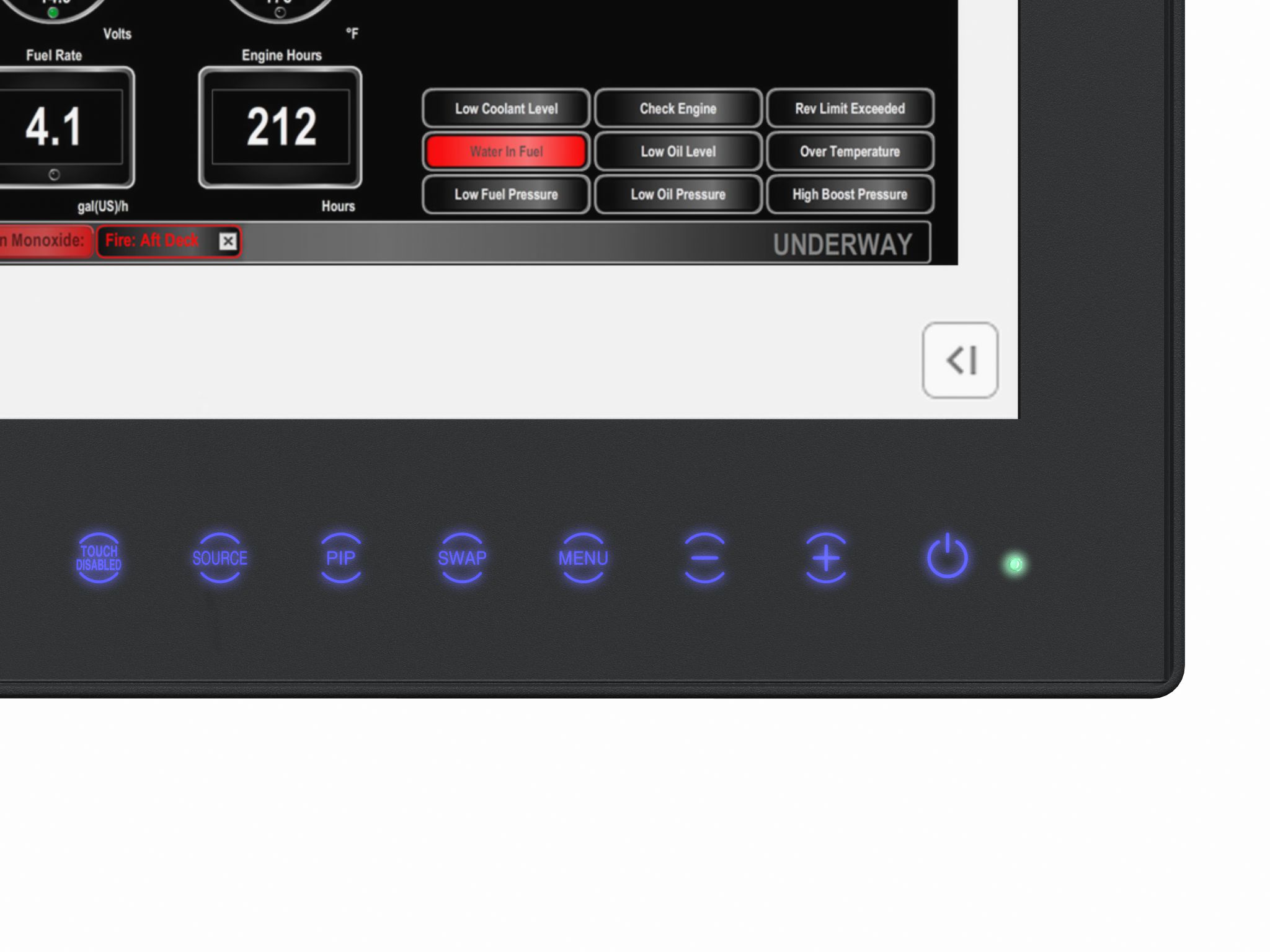

User Controls and Activity: User Controls (On right side - Touch Keypad):
Power On/Off (monitor), Brightness Control, backlight dimmable to 0 cd/m² (-/+), On Screen Monitor Menu, Swap Source, Picture in Picture, Touch disable, Navigation control (+/-)

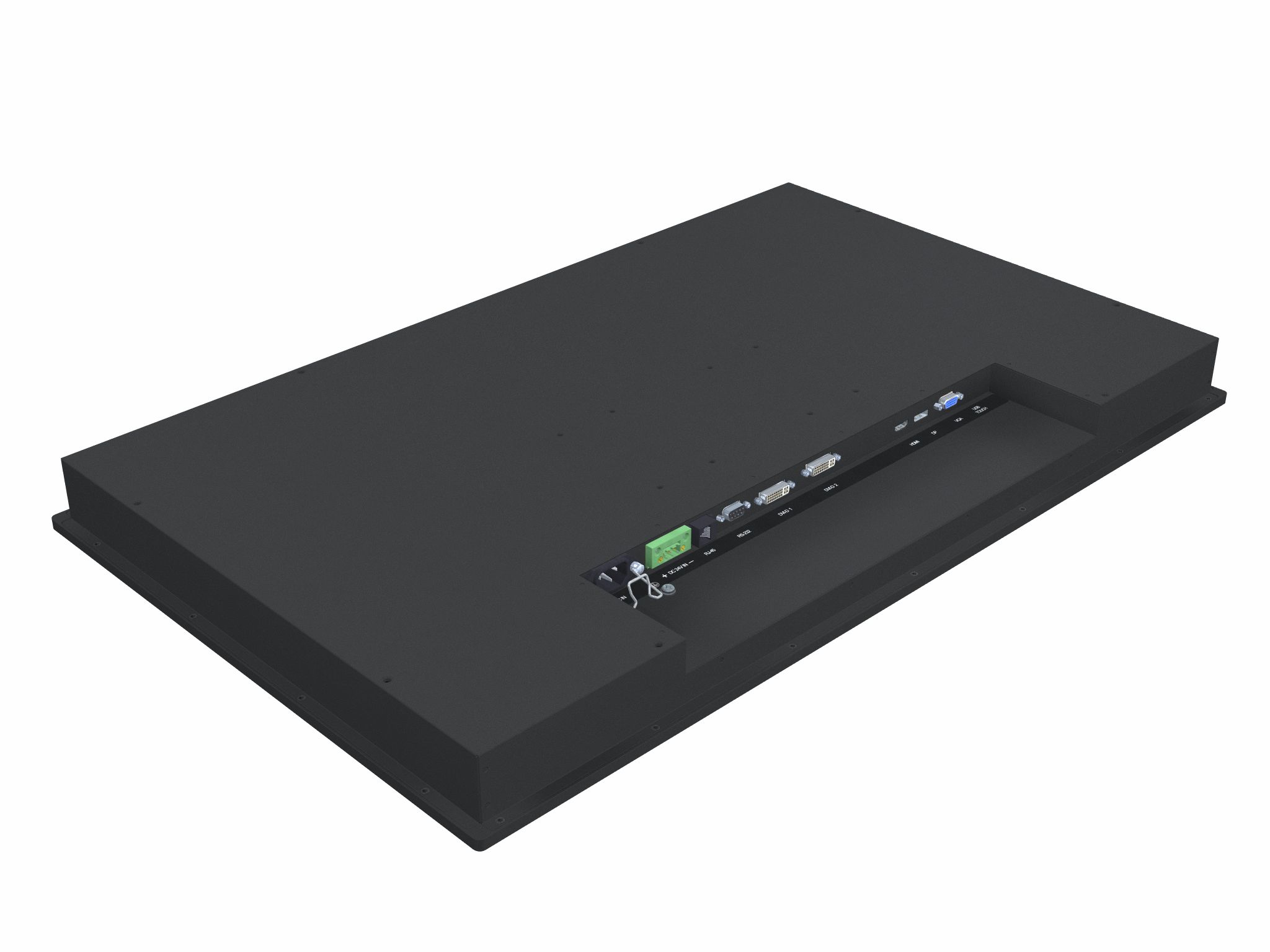

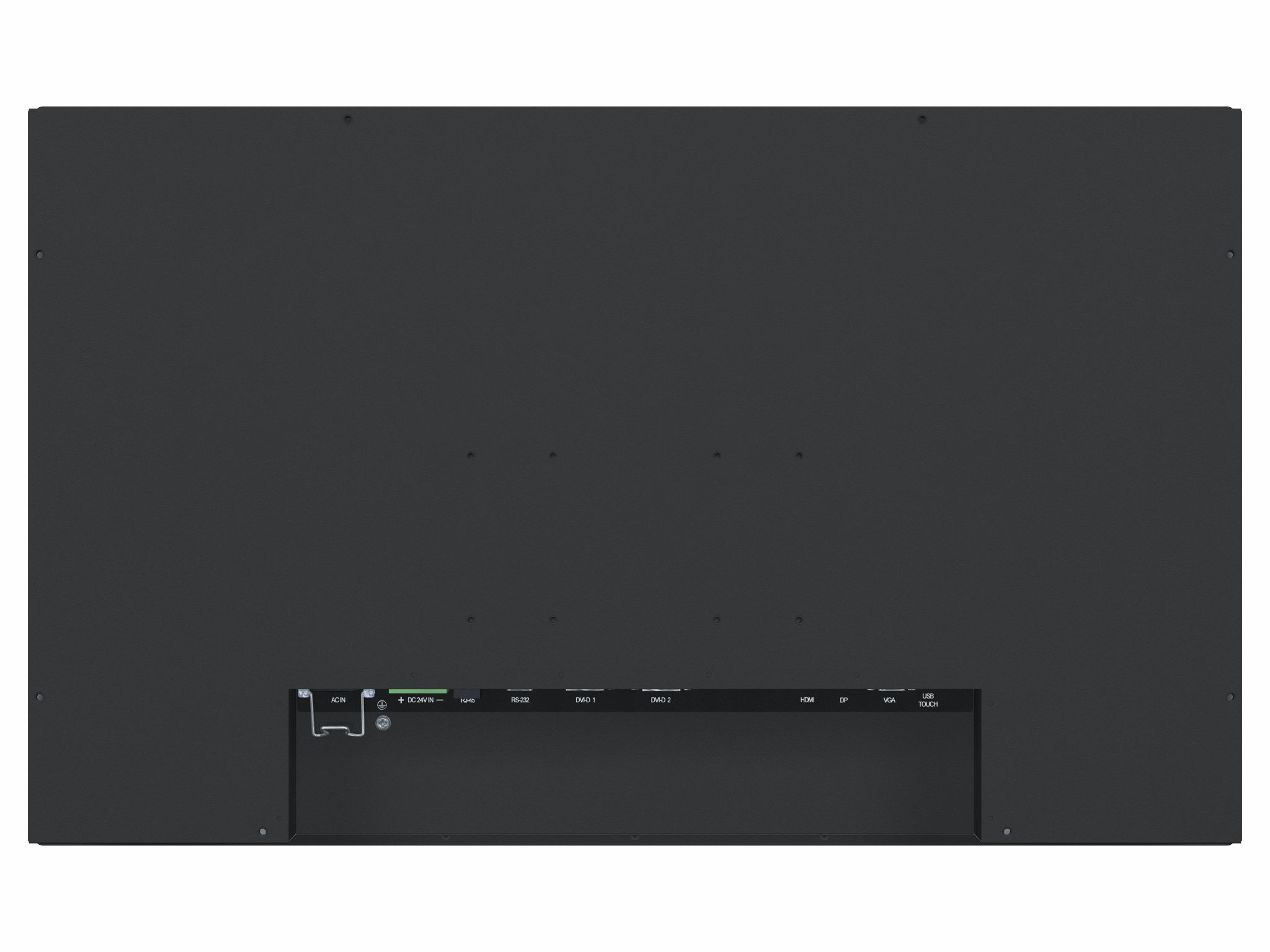

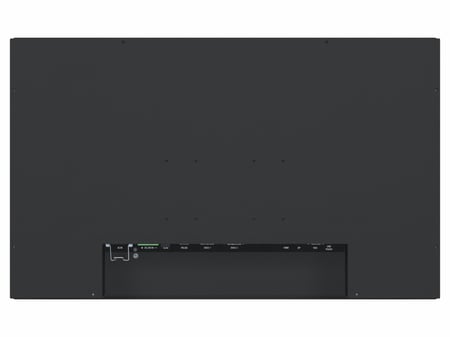

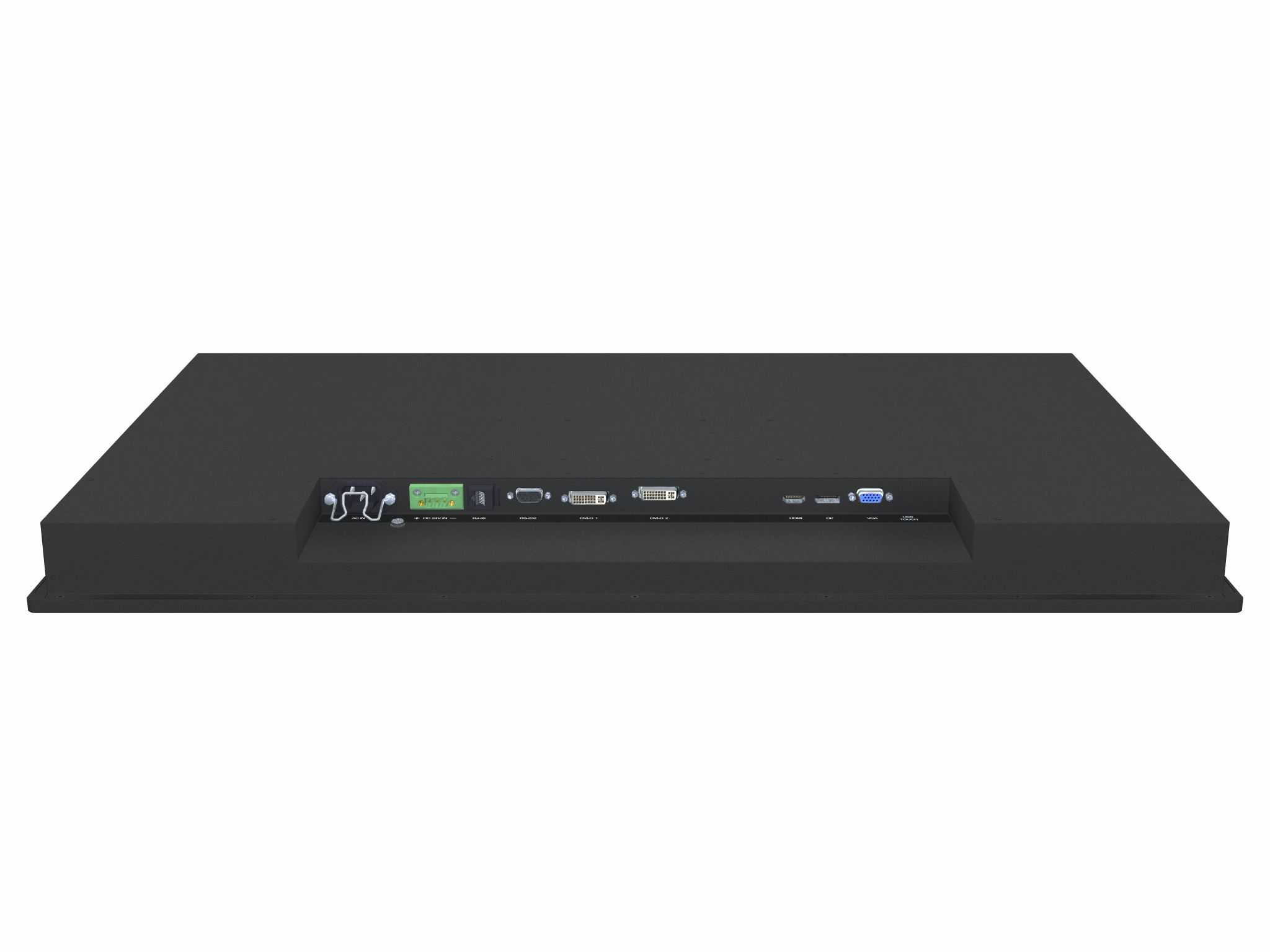

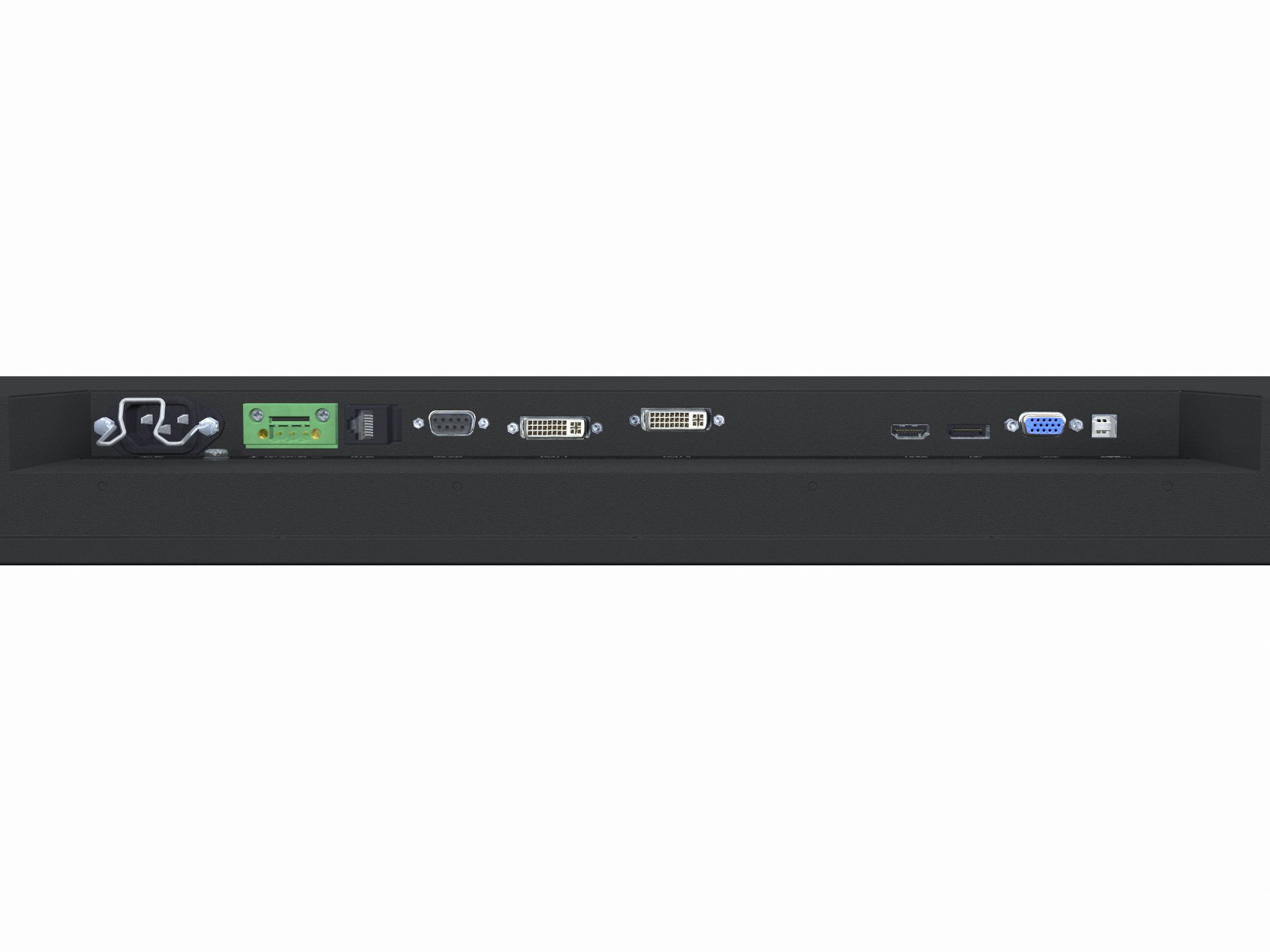

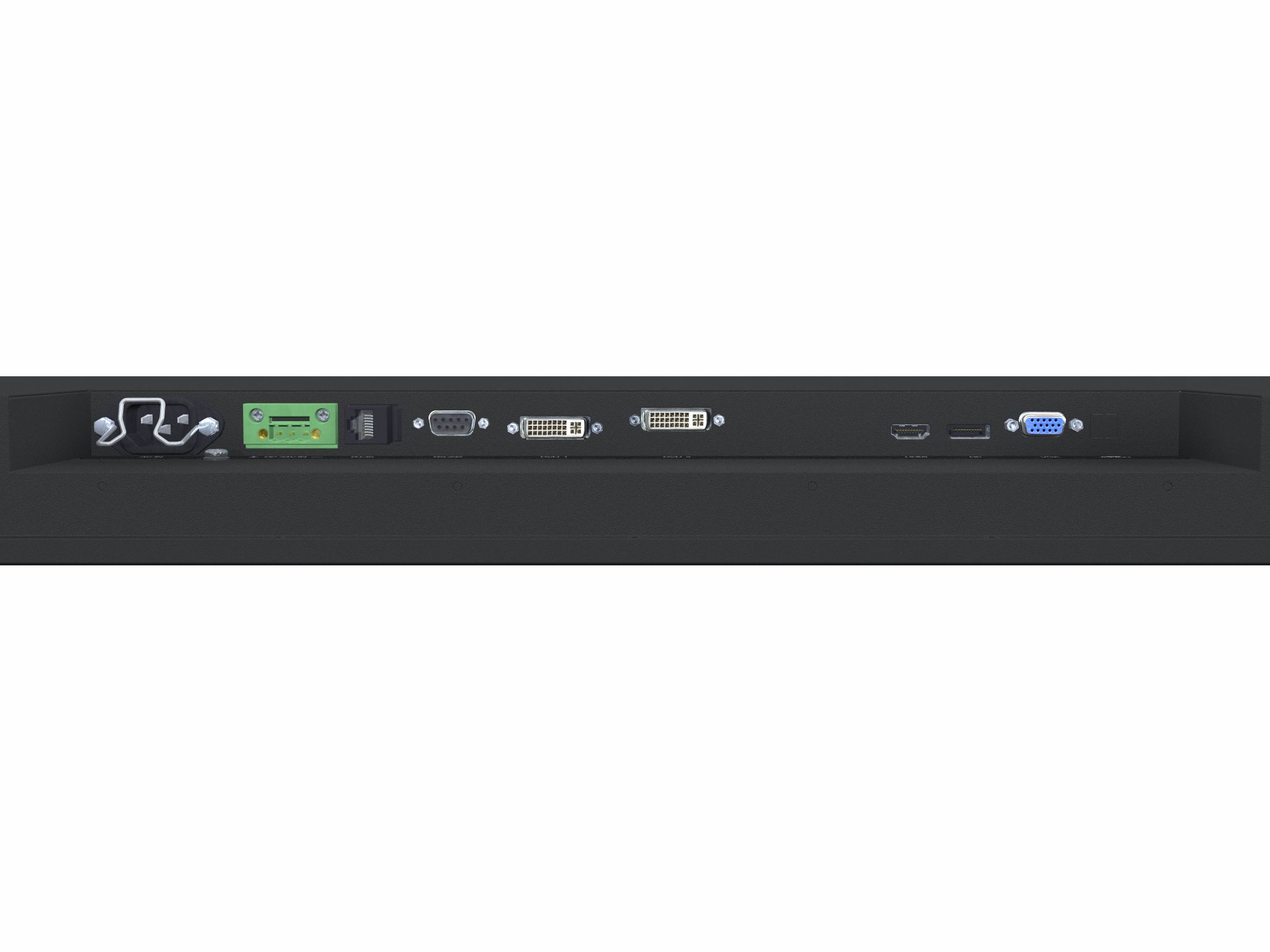

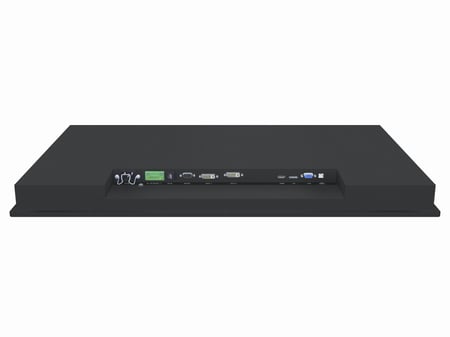

Connectors: • DVI Input: 2 x 24p DVI (female) - Max 3840x2160@30Hz (HDMI 1.4 compliant)
• VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
• HDMI Input: 1 x 19p HDMI (female) - Max 3840x2160@30Hz (HDMI 2.0 compliant)
• DP Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz (DisplayPort 1.2a compliant)
• USB Up&Down: 2 x USB2.0 type A Connector (female)
Touch Interface: 1 x USB Type B Connector (female)
• RS-232: 1 x 9p D-SUB (female) non-isolated for remote control
• RJ-45: 1 x Ethernet RJ45, 8P8C, GPIO interface, for Remote Control
• DC Power Input: 1 x 3-pin Terminal Block 5.08
• AC Power Input: 1 x Std IEC Inlet

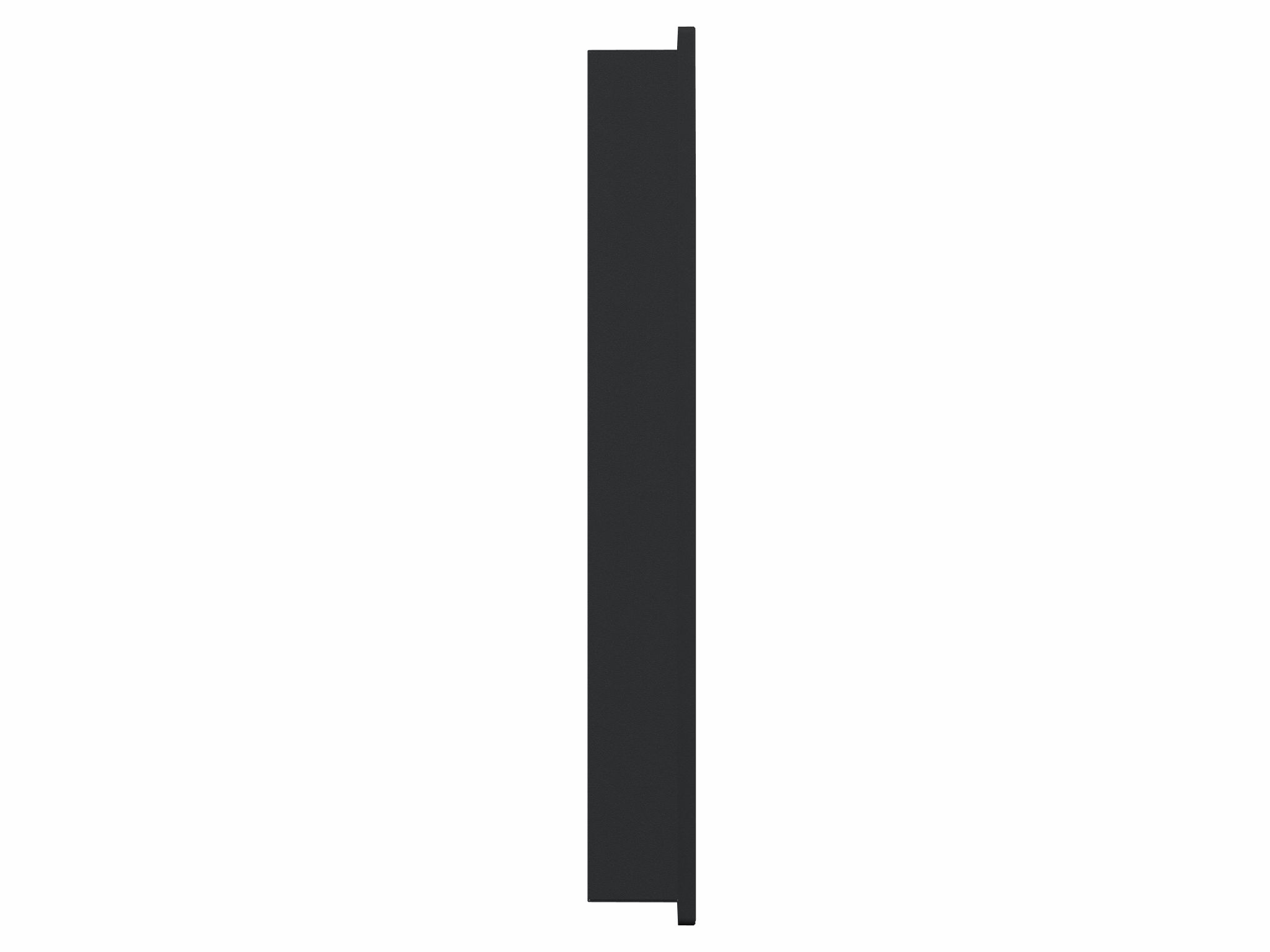

Product Dimensions and Weight: W:761.00 [29.96"] x H:469.00 [18.46"] x D:65.50 [2.58"] mm [inch]
VESA Support: 100 x 100/100 x 200 [l x w] mm (4 x M4)
Approx. 12.35kg / 27.227lbs (standard)
Approx. 12.7kg / 28lbs (w/touchscreen)
Product Carton Size and Weight: L:917.00 [36.10"] x W:211.00 [8.31"] x H:65.70 [25.87"] mm [inch]
Approx. 15.2kg / 33.4lbs
Factory Options: • Projected Capacitive Touch Screen (Multitouch, USB interface)
• AG Coated Glass
Accessories: • ET JGW STD-A1: 1 x ENIX Pro remote controller (RJ45 harness/encoder
Capabilities - Prepared for: None
Operating Temperature: -5.0°C / 23.0°F to +45.0°C / 113.0°F, Humidity up to 95%
Storage Temperature: -10.0°C / -2.2°F to +50.0°C / +122.0°F, Humidity up to 95%
IP Rating: Protection: IP65 front - IP22 Rest of unit
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: FCC, CE
Specifications last updated: July 1, 2025 @ 10:03
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
23 Apr 2025
Change/update of Conformal coating to Power Supplies

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

News Stories:
25 Jan 2023
Official Product Launch
