HD 27T22 MMD-U

Overview

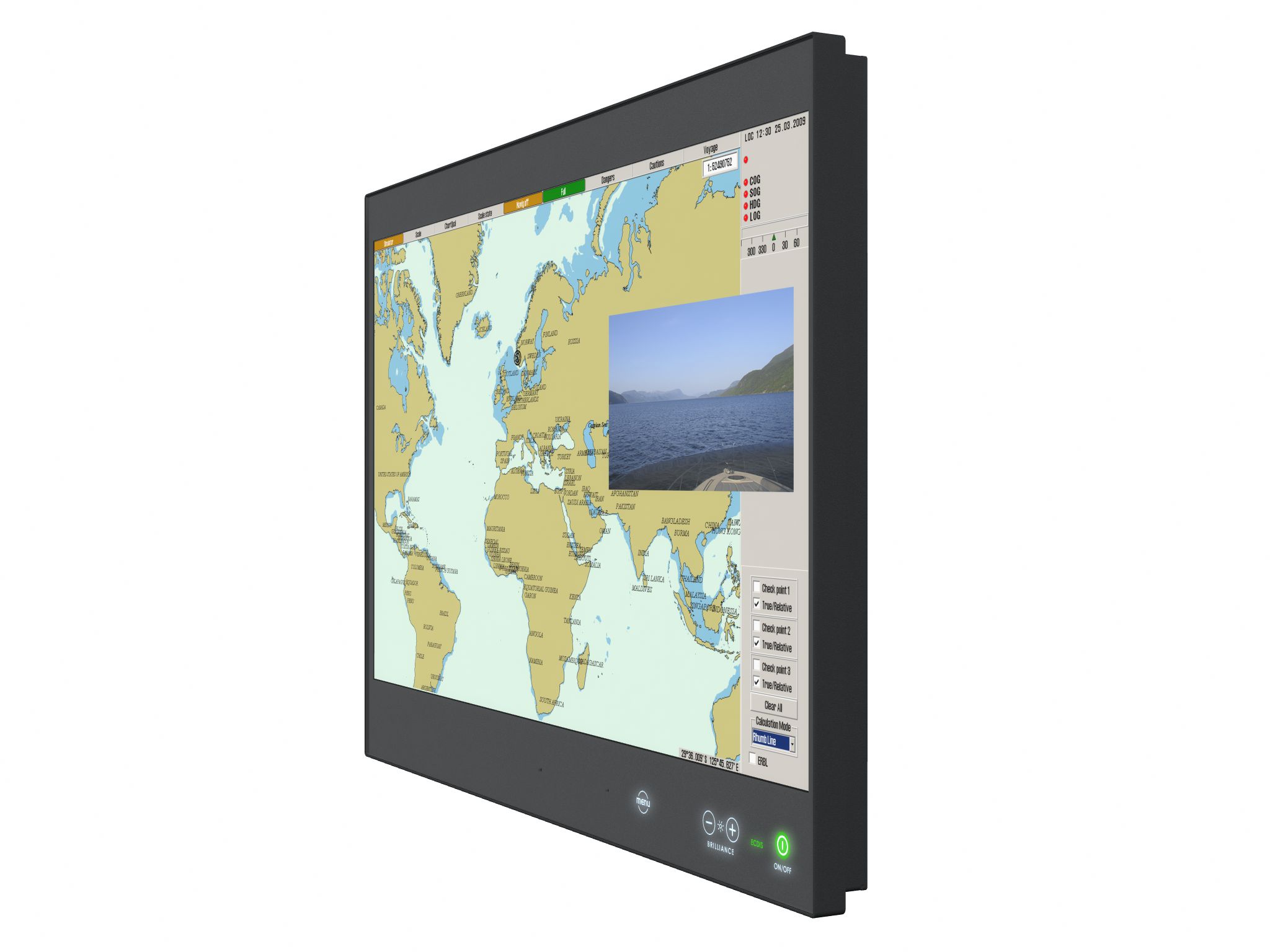

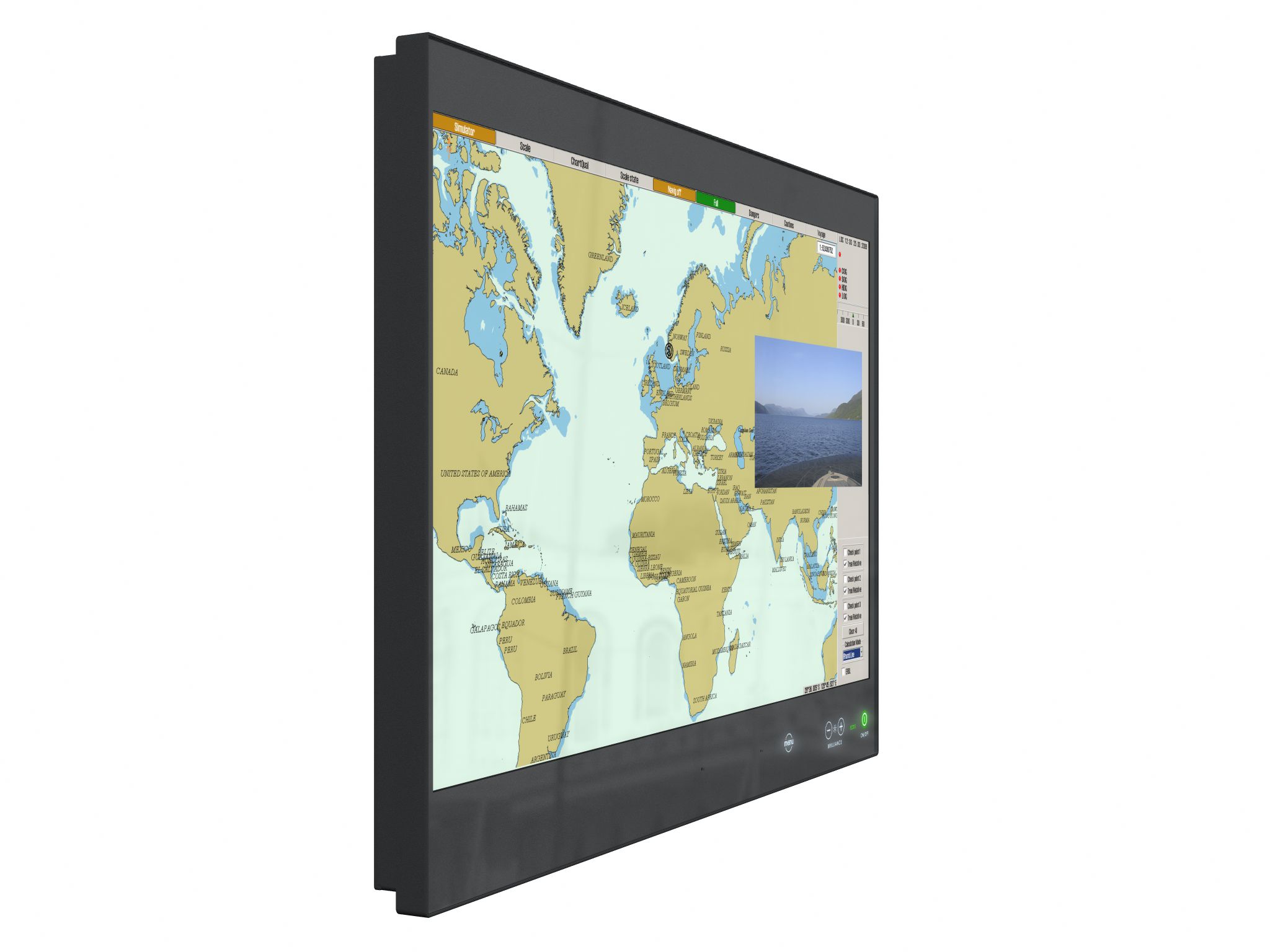

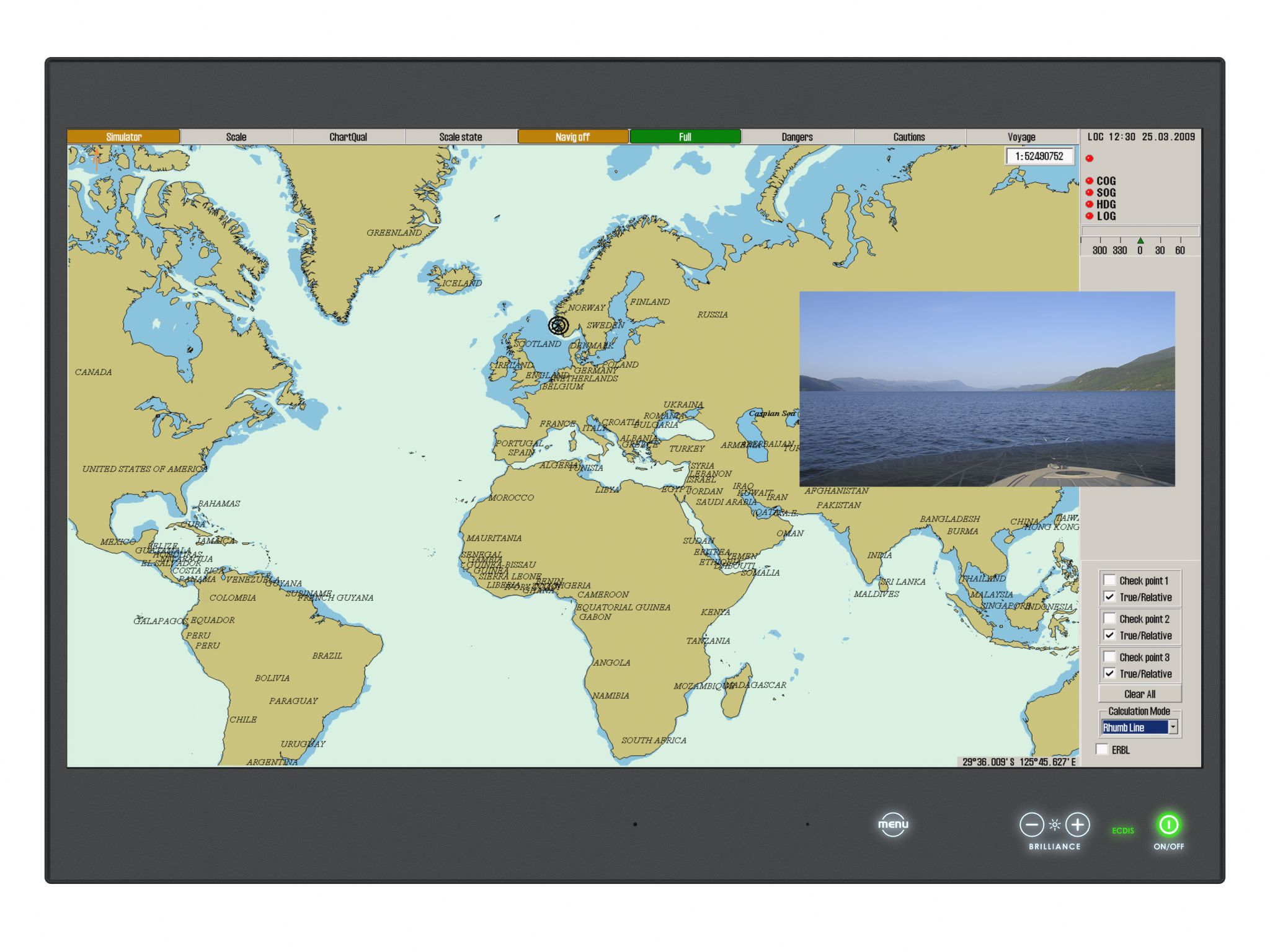

Monitor - Widescreen - LED - HATTELAND® Series X G2 - 27.0 inch - Slim Frame

HD 27T22 MMD-U

Series X Generation 2 (G2) Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications. This particular model features the physical dimensions of an 26 inch unit, but with a 27 TFT panel.

icon
Widescreen
icon
LED-backlit
Send Request
Description

Monitor - HATTELAND® Series X G2

The Series X Generation 2 (G2) monitor range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The multi-input MMD models provide a wide choice of monitor size and format for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility. Be it for ship navigation, automation or security, this range with all it’s possible options provides a robust and multipurpose platform from which to display and manage data and multiple camera or sensor videos.

Series X Generation 2 (G2) monitors feature Glass Display Control, LED Backlight Technology, full dimming and multipower as standard, and can also accomodate and combine a number of options such as optical bonding and ECDIS calibration. By factory standards the 27 inch unit is ECDIS Compliant.
Specifications
TFT Technology: LED Backlight Technology, Color Active-matrix, Widescreen, a-SI (amorphous silicon) Thin Film Transistor (TFT)
Viewable Size and Active Area: 27.0 inch - 597.6 [23.53"] mm (H) x 336.15 [13.23"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1920 x 1080 (FHD) - 0.31125 (H) x 0.31125 (V) mm
Aspect Ratio and Response Time: 16:9 -: 12 ms (typical) (on/off)
Light Intensity and Contrast Ratio: 300 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors: 89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1920 x 1080 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200
Composite Video Input(s): Composite (BNC)
Supported Video Signals: Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video
Product Features: Dimmable 0-100%, Multi-power AC&DC, PBP (Picture By Picture), PIP (Picture In Picture)
Power Specifications and Consumption: Multi-power 100-240V AC - 50/60Hz + 24VDC
75W (max)

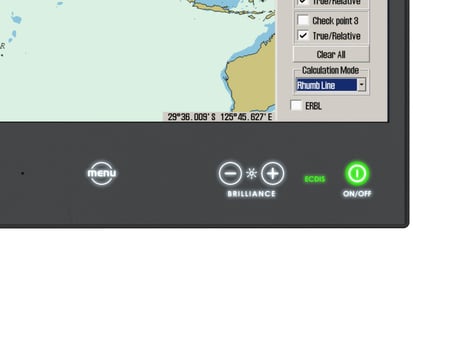

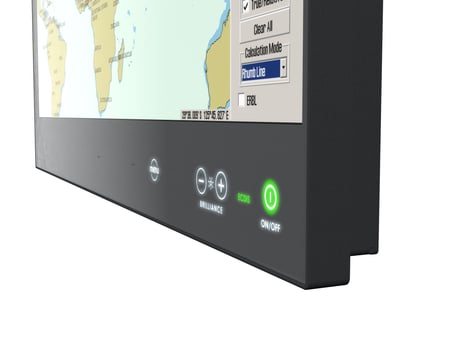

User Controls and Activity: Glass Display Control™ (GDC) IP66 with:
Power On/Off, On Screen Display Menu*, Brightness Control (-/+), Hotkeys (left/right), Mode Status Indicators (ECDIS, Service), Buzzer (through glass), Light Sensor (behind glass)
*OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode

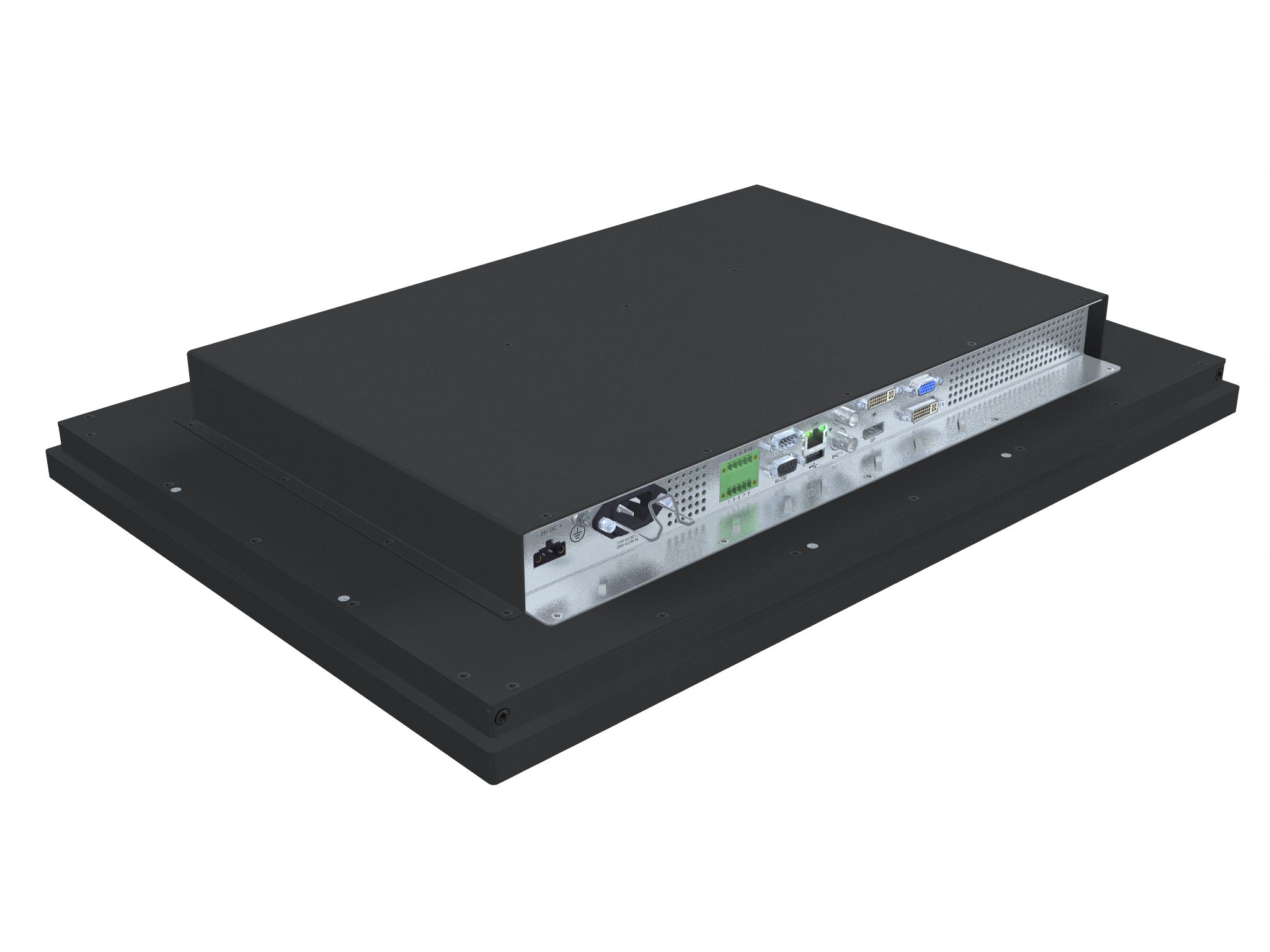

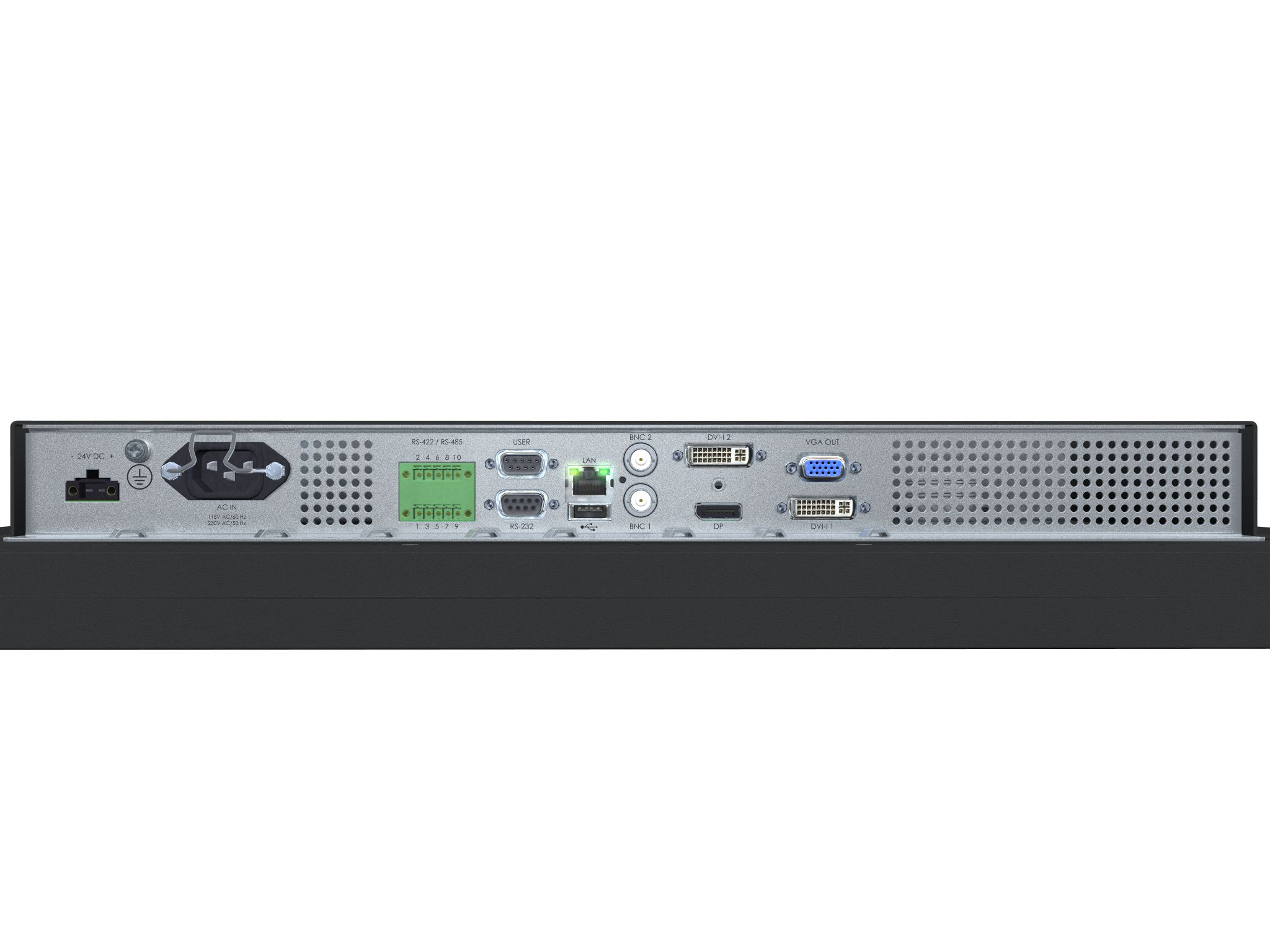

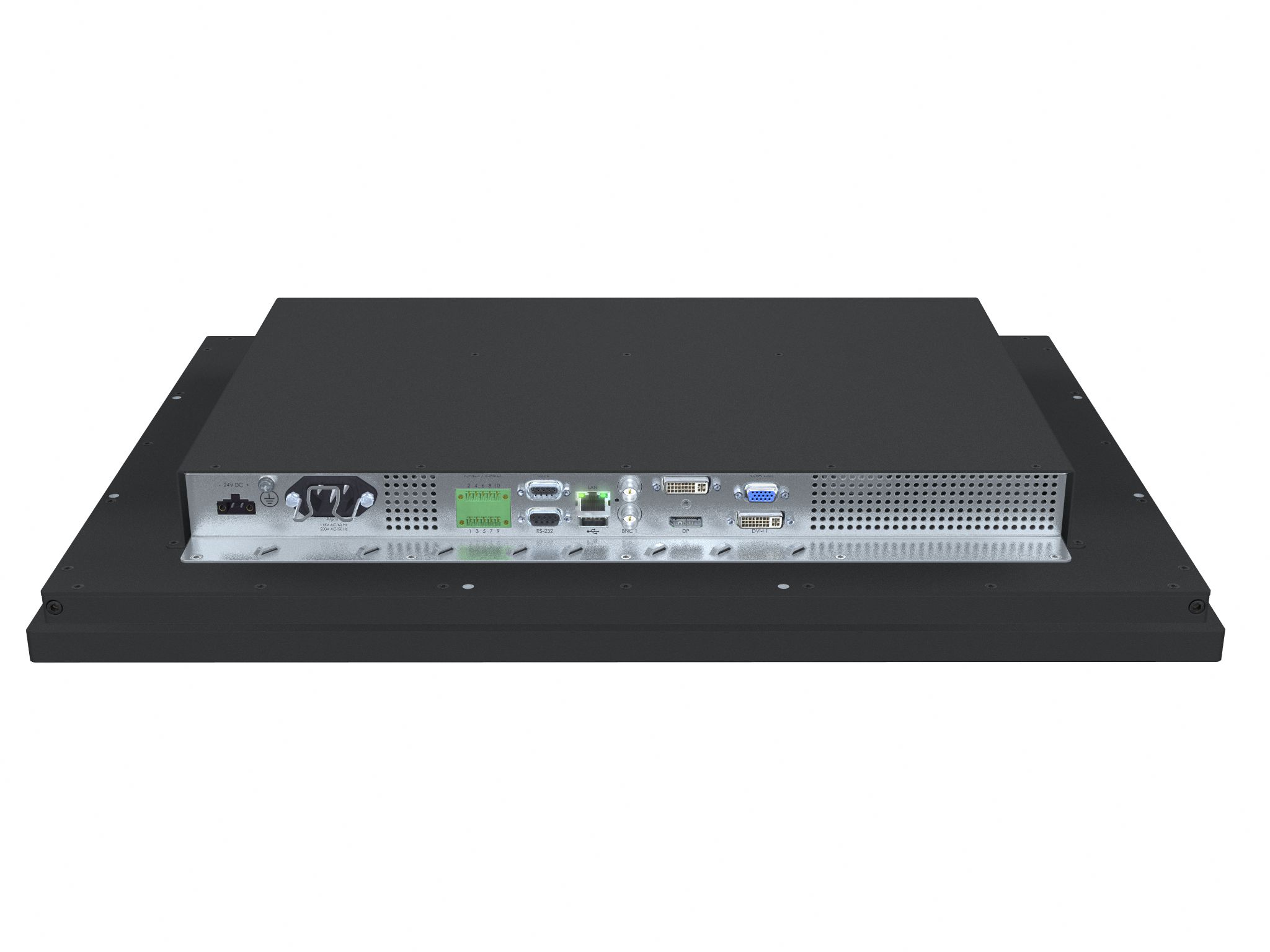

Connectors: • DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter)
• DP1.2 IN: 1 x 20p DisplayPort (female)
• Comp. Video IN: 2 x BNC Connector (female)
• SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
• SCOM+Touch: 1 x USB TYPE A Connector (female)
• SCOM Ethernet: 1 x RJ45 Connector
• SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer
• VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN
• Potmeter/User: 1 x 9p D-SUB (male)
(Potentiometer IN, +5VDC OUT, BRT +/- IN)
• AC Power IN: 1 x Std IEC Inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight: W:621.00 [24.45"] x H:435.00 [17.13"] x D:82.20 [3.25"] mm [inch]Approx. 15kg / 33lbs
Product Carton Size and Weight: L:765.00 [30.12"] x W:190.00 [7.48"] x H:615.00 [24.21"] mm [inch]

pprox.TBD
Factory Options: • Optical Bonding Technology
• Color Calibrated models (ECDIS)
• 1 x Additional Composite Video IN (BNC) Connector
Accessories: • HD CMB SX1-B1: 1 x Console Mount Kit. EN60945 Tested
• HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested
• HD VED SX2-J1: 1 x VESA Adapter (100/100&200/100mm). Not EN60945 Tested
• HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
• HD 26COV SX1-A1: 1 x UV Sun Cover
• JH 26TAP STD-A1: 1 x Frame Adapter for Series 1 Cutout (retrofit)
• HD 26TAP SX1-A1: 1 x Frame Adapter for JH 27T11 MMD Cutout(Retrofit)

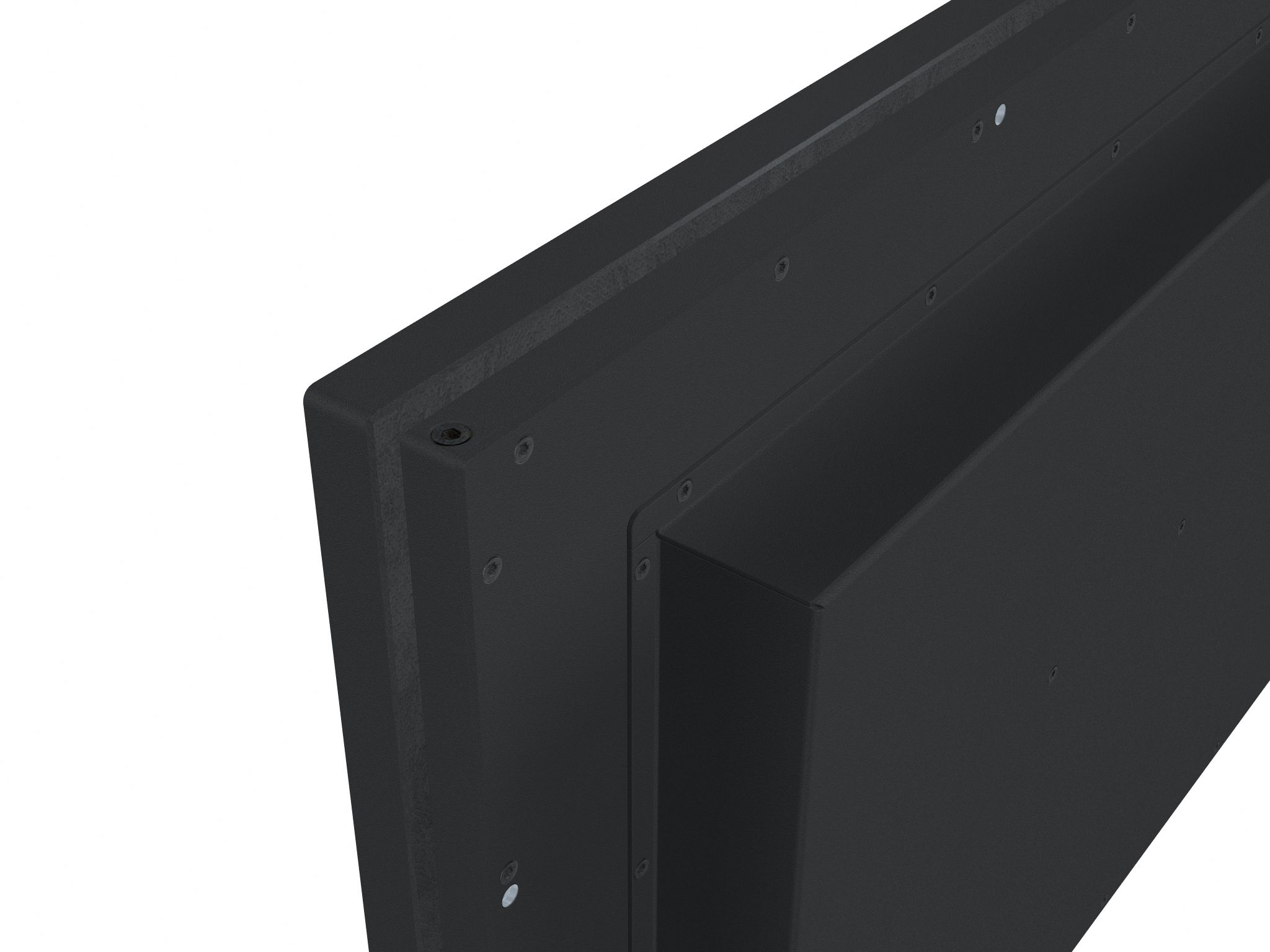

• P007178: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount
Capabilities - Prepared for: See factory options
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / +131.0°F, Humidity up to 95%
Storage Temperature: -30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance: Standard: 190.00 [74.80"] - Steering: 110.00 [43.31"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: May 5, 2025 @ 12:27
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
23 Apr 2025
Change/update of Conformal coating to Power Supplies

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

14 Oct 2024
GEV2/AVA NXP Firmware change

24 Nov 2023
GEV2 VS Firmware change

24 Nov 2023
GEV2/AVA NXP Firmware change

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
5 Mar 2024
Series X G1/G2, Series 1 G2 and HM 24T22 CMD - End of L...

News Stories:
20 Jun 2023
Product released to website
