Monitor - HATTELAND® Series X MVD

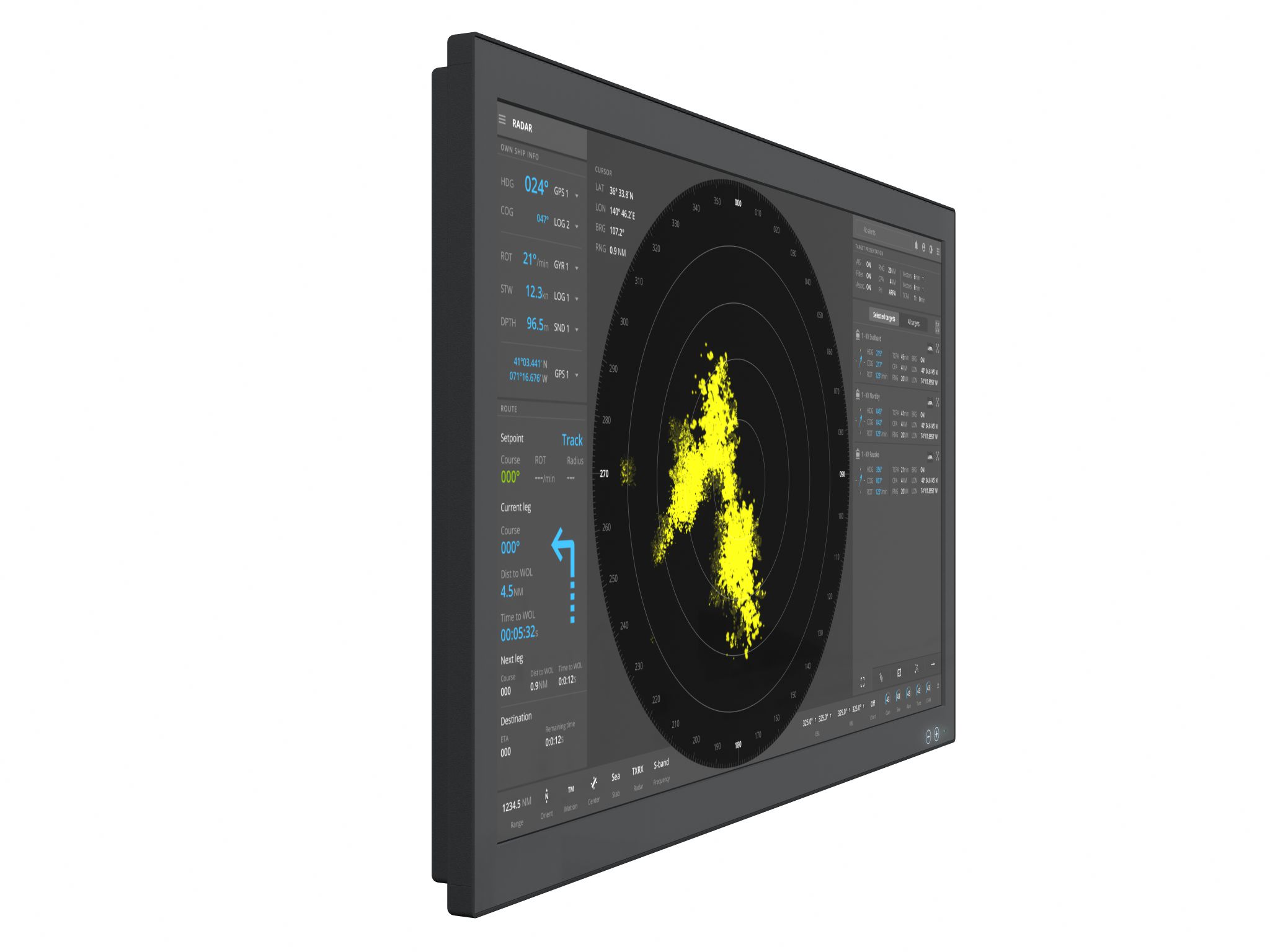

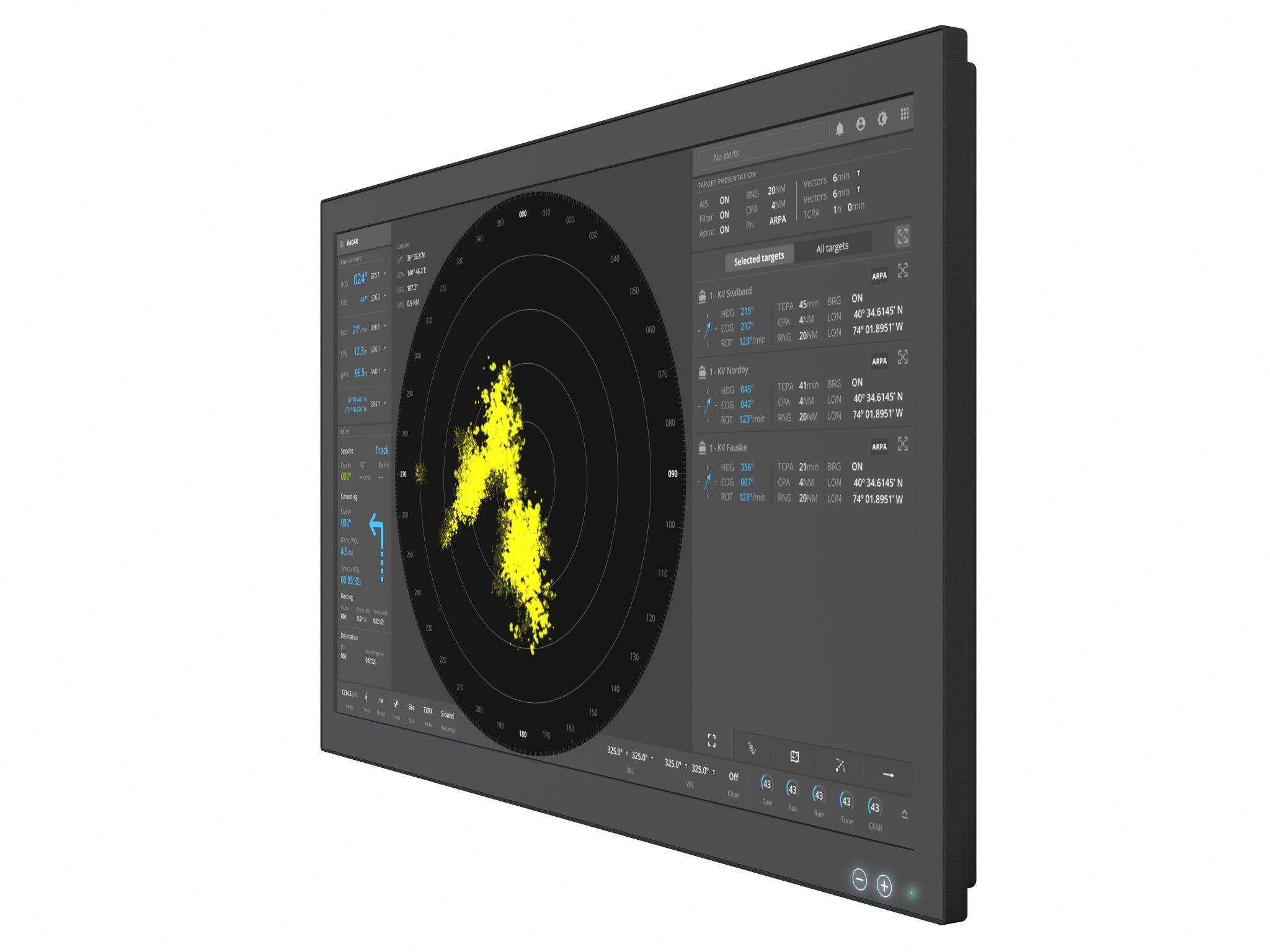

The 32 inch Series X MVD features 4K screen resolution and high-end panel technology, it provides unmatched viewing clarity in all light conditions. Its ultramodern approach represents the pinnacle of maritime monitor technology, making it the most advanced platform for the development of a new generation of sophisticated, function rich and user-friendly bridge technologies that demand only the best monitor solutions to ensure increased navigational safety and efficiency on the bridge.

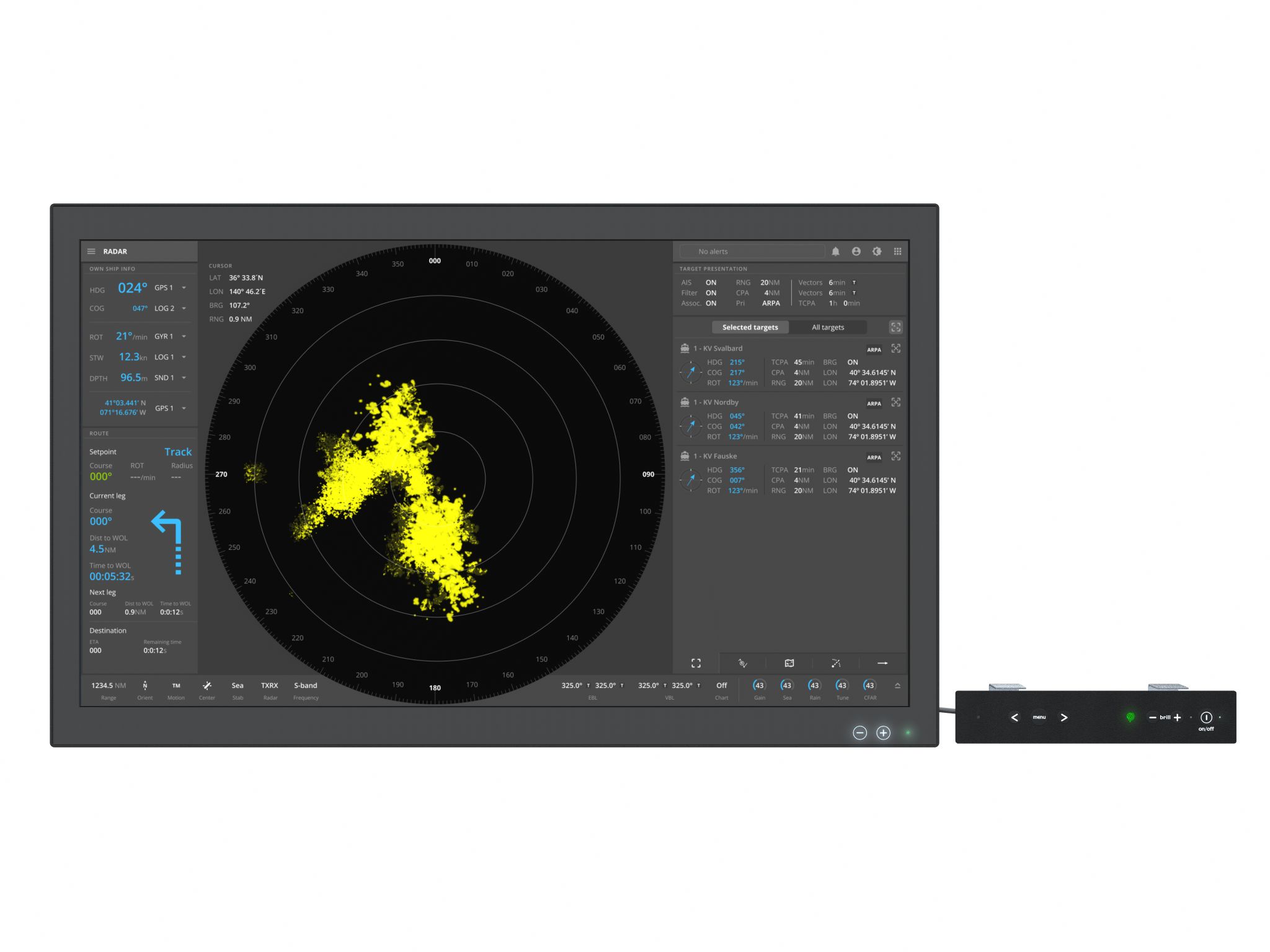

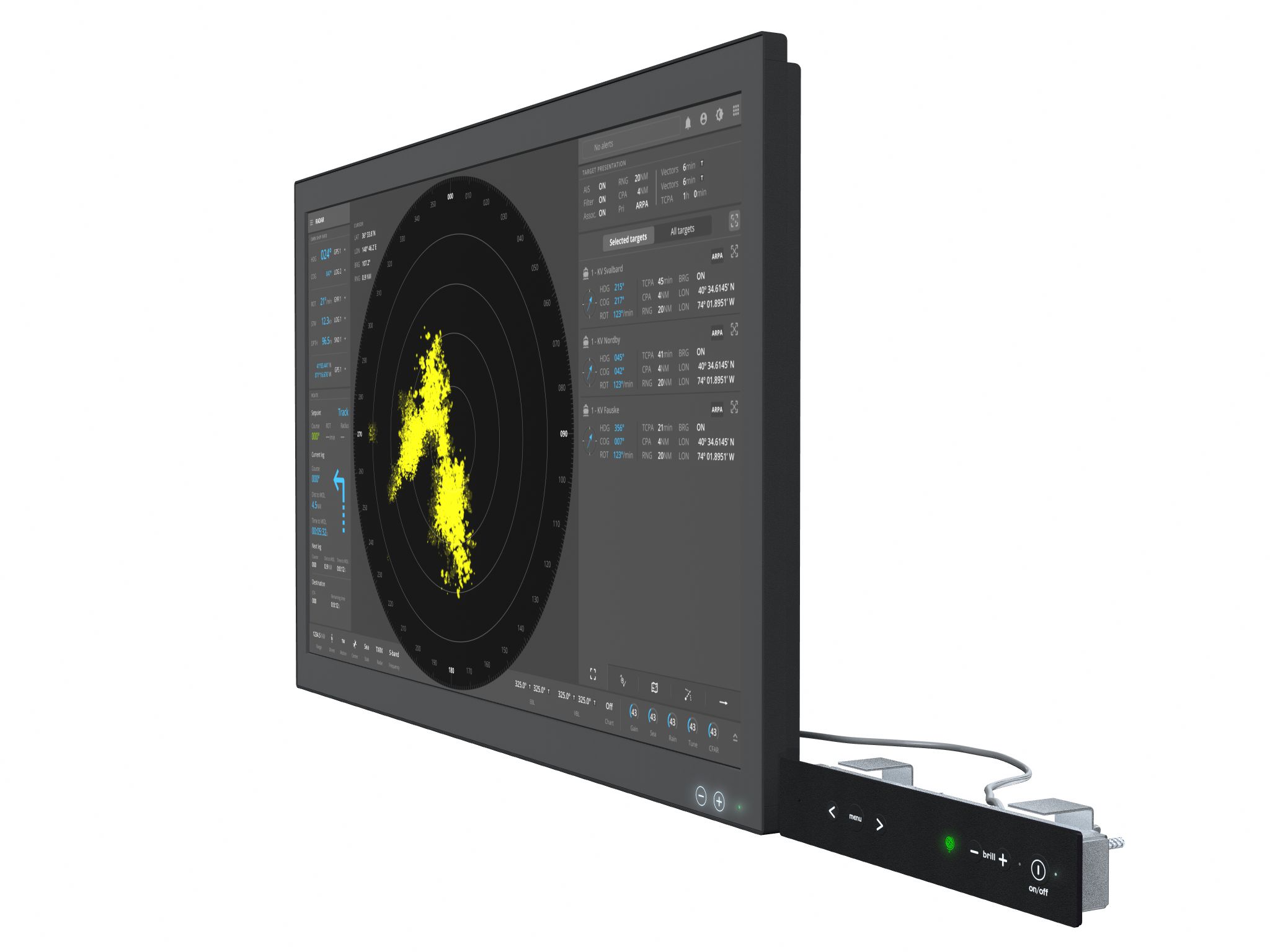

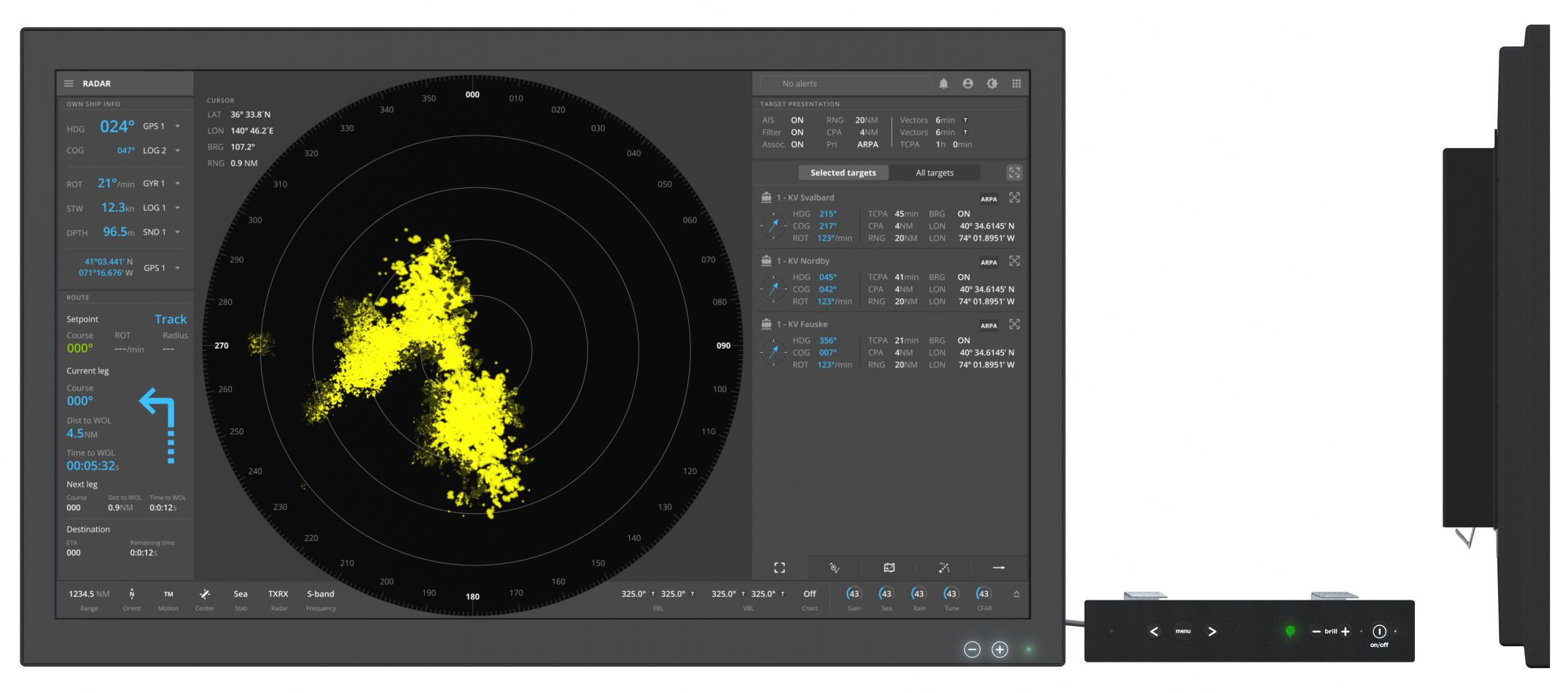

Approved for harsh maritime environments where reliability and long life time are key factors, the new 32 inch Series X MVD monitor is a robust, flexible and ergonomic solution, suitable for a wide range of bridge applications including ECDIS, radar, voyage planning, safety systems and tactical command & control platforms. Features include console or VESA mounting, an optional 40 point Multi-touch touch interface, optical bonding, multi-data input, built in On-Screen Display (OSD) and uniquely for a console mounted solution, an external Tactile button-control panel which can be mounted for operation of the OSD and other parameters, full dimming and the option to be supplied calibrated for ECDIS.

Typenumber (Long):	HD 32T40 MVD-MAx-Cxxx
TFT Technology:	LED Backlight Technology, Widescreen, RGB vertical stripe, TFT active-matrix liquid crystal panel, AHVA (Advanced Hyper Viewing Angles) LCD Technology
Viewable Size and Active Area:	32.0 inch - 708.48 [27.89"] (H) x 398.52 [15.69"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm
Aspect Ratio and Response Time:	16:9 - 12ms (typical) (G to G)
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz
Detectable Resolutions:	VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Full Dimming 0-100%, PIP (Picture In Picture), Multi-power AC&DC, External Tactile Display Controls (TDC), Console Mount Model
Power Specifications and Consumption:	Multi-power 115/230VAC - 50/60Hz + 24VDC TBDW (typ) - TBDW (max)

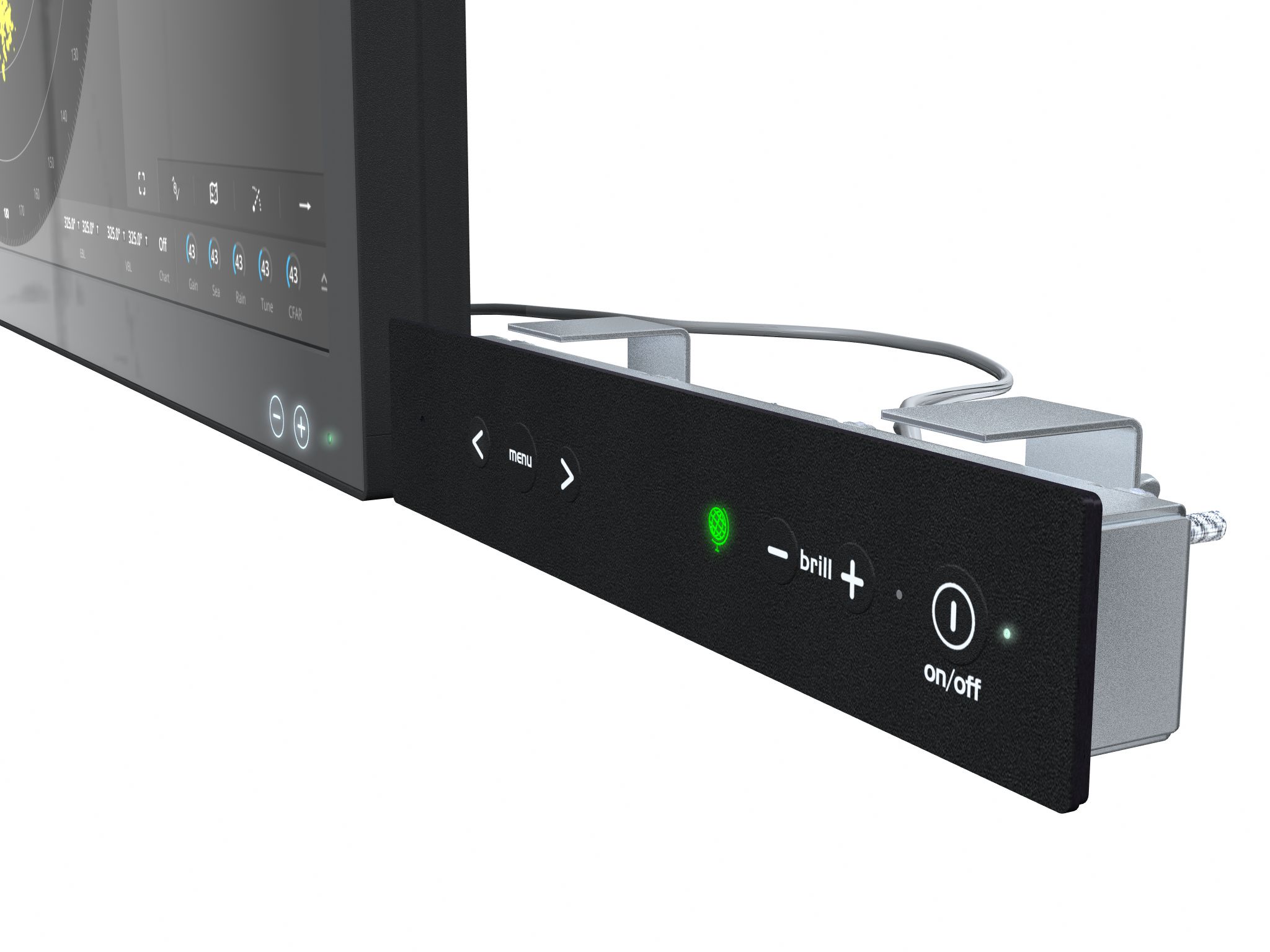

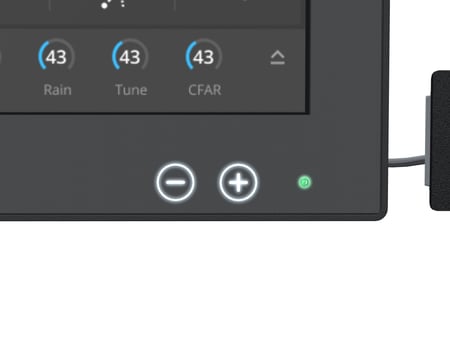

User Controls and Activity:	Button Display Control™ (BDC): • Brightness Control (-/+) • Power LED: Video signal=Green, No signal=Yellow, Power off=Orange Tactile Display Controls (TDC): • Power On/Off and On Screen Display Menu (OSD)* • Brightness Control (-/+) • Power LED: Video signal=Green, No signal=Yellow, Power off=Red • Hotkeys (left/right), Mode Status Indicators (ECDIS, Service) • Buzzer (not visible) (75-85dB), Light Sensor (not visible) *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode

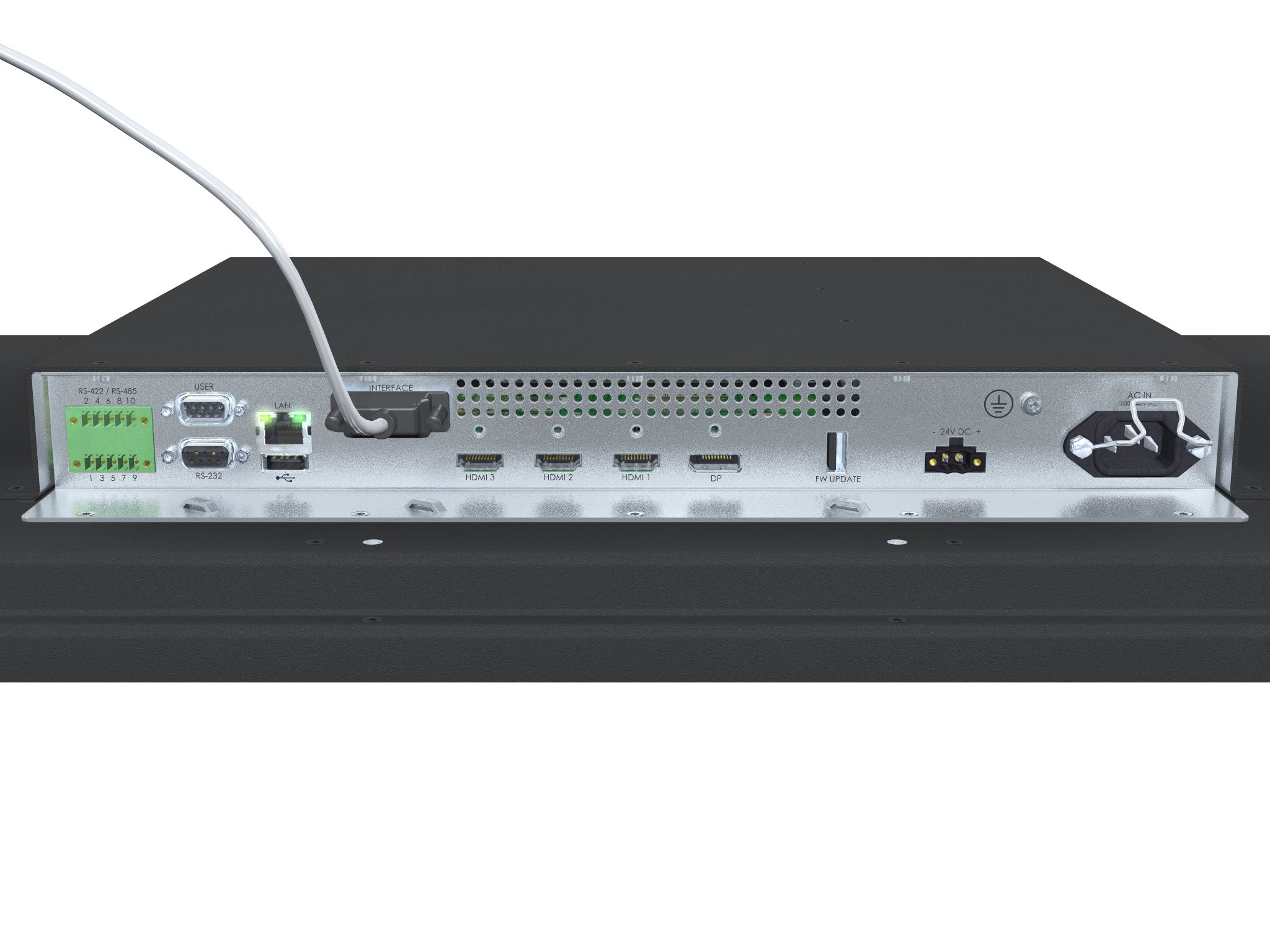

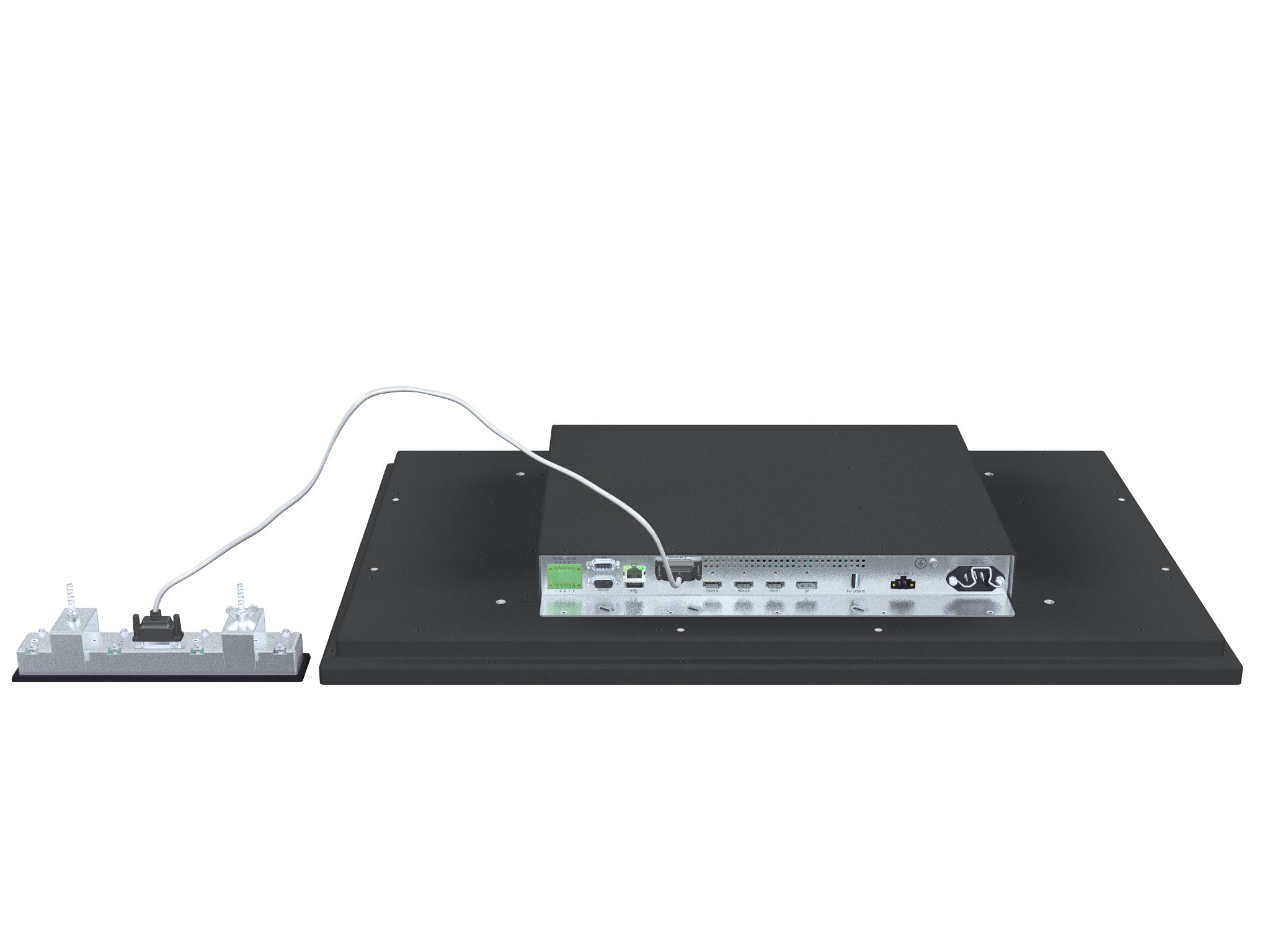

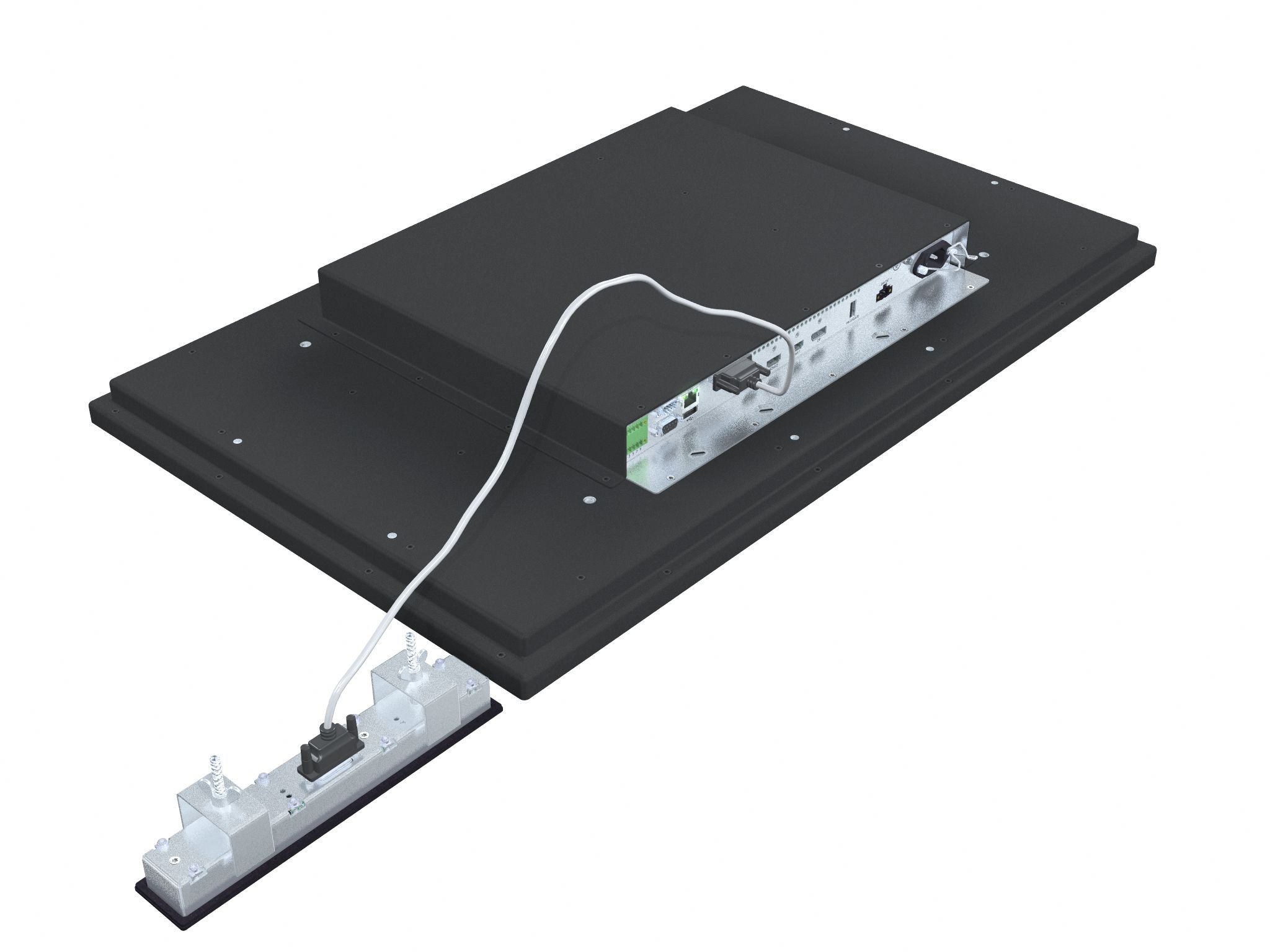

Connectors:	• HDMI 1.4 Input: 2 x 19p HDMI (female) - Max 3840x2160@30Hz • HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz, Note: Max Cable length: <3m • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated + Buzzer • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector for Remote Control • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • SW Interface: 1 x USB TYPE A (female) for Firmware Update • TDC Interface: 1 x 15p D-SUB (male) for HD TDCMVD KIT-A1 • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:760.00 [29.92"] x H:465.00 [18.13"] x D:83.50 [3.29"] mm [inch] Weight: Approx. 13.5kg / 29.7lbs
Product Carton Size and Weight:	L:TBD [TBD"] x W:TBD [TBD"] x H:TBD [TBD"] mm [inch] Approx weight: TBD
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB, Glove/Pen supported) • Optical Bonding Technology • Color Calibrated models (ECDIS)

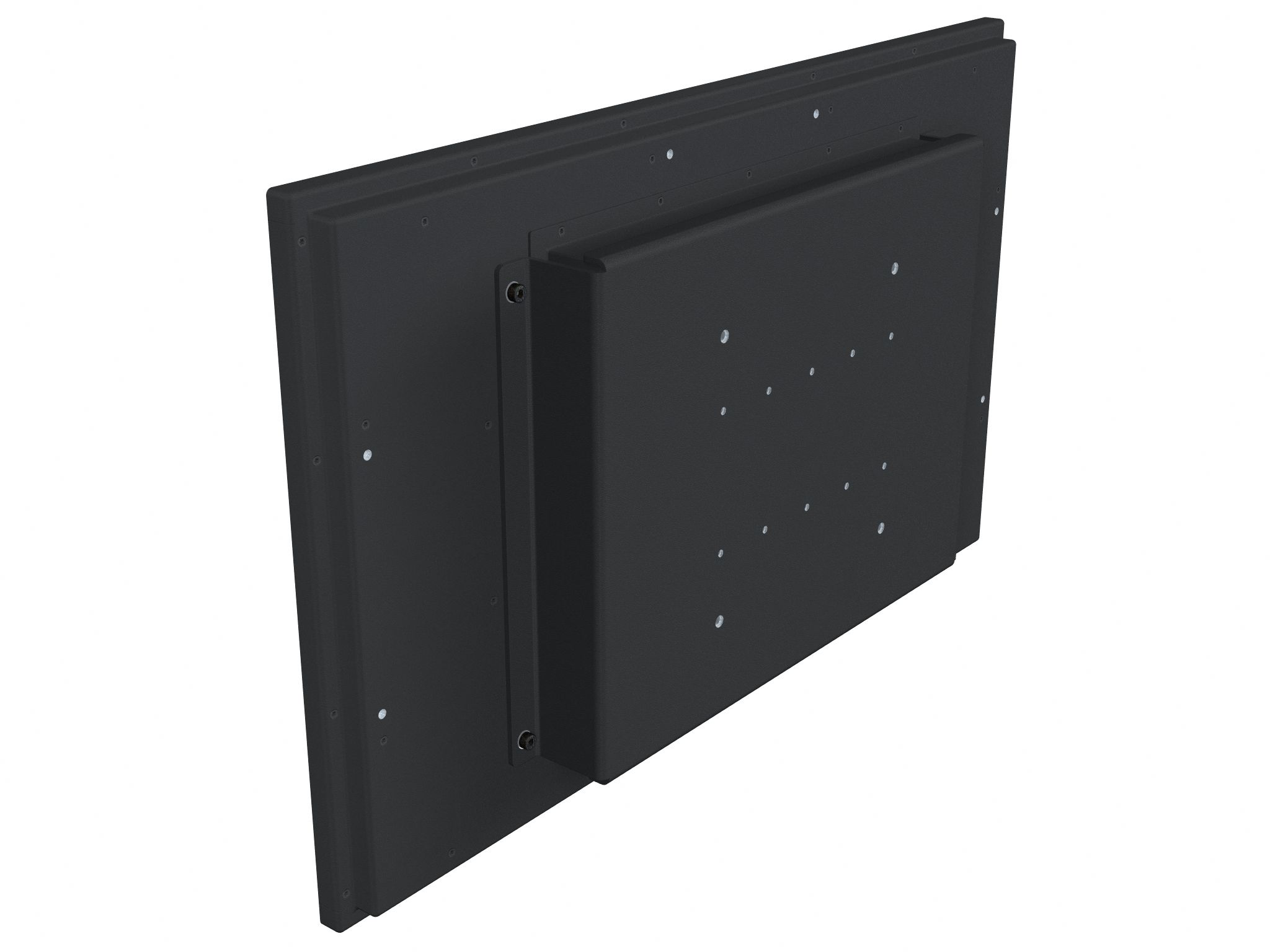

Accessories:	• HD TDCMVD KIT-A1: 1 x External Tactile Display Controls (TDC) • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • HD RAK STD-B1: 1 x 32" Retro adapter kit for console T22 to T40 • HD CMB SX2-J1: 1 x EN60945 Console Mounting Bracket Kit • HD VED STD-B1: 1 x 32T40 VESA Adapter, 100/100, 100/200, 200/200mm. Not EN60945 Tested • HD TMB STD-B1: 32T40 Table Mount Brackets, EN60945 Tested • P0xxxxx: 1 x HD 32T40 IP66 Console Gasket
Capabilities - Prepared for:	See factory options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 60.00 [23.62"] - Steering: 45.00 [17.72"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU RO MR - Mutual Recognition*, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society*, ClassNK - Nippon Kaiji Kyokai *=pending Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: August 6, 2025 @ 10:32
