Monitor - HATTELAND® Series X MVD

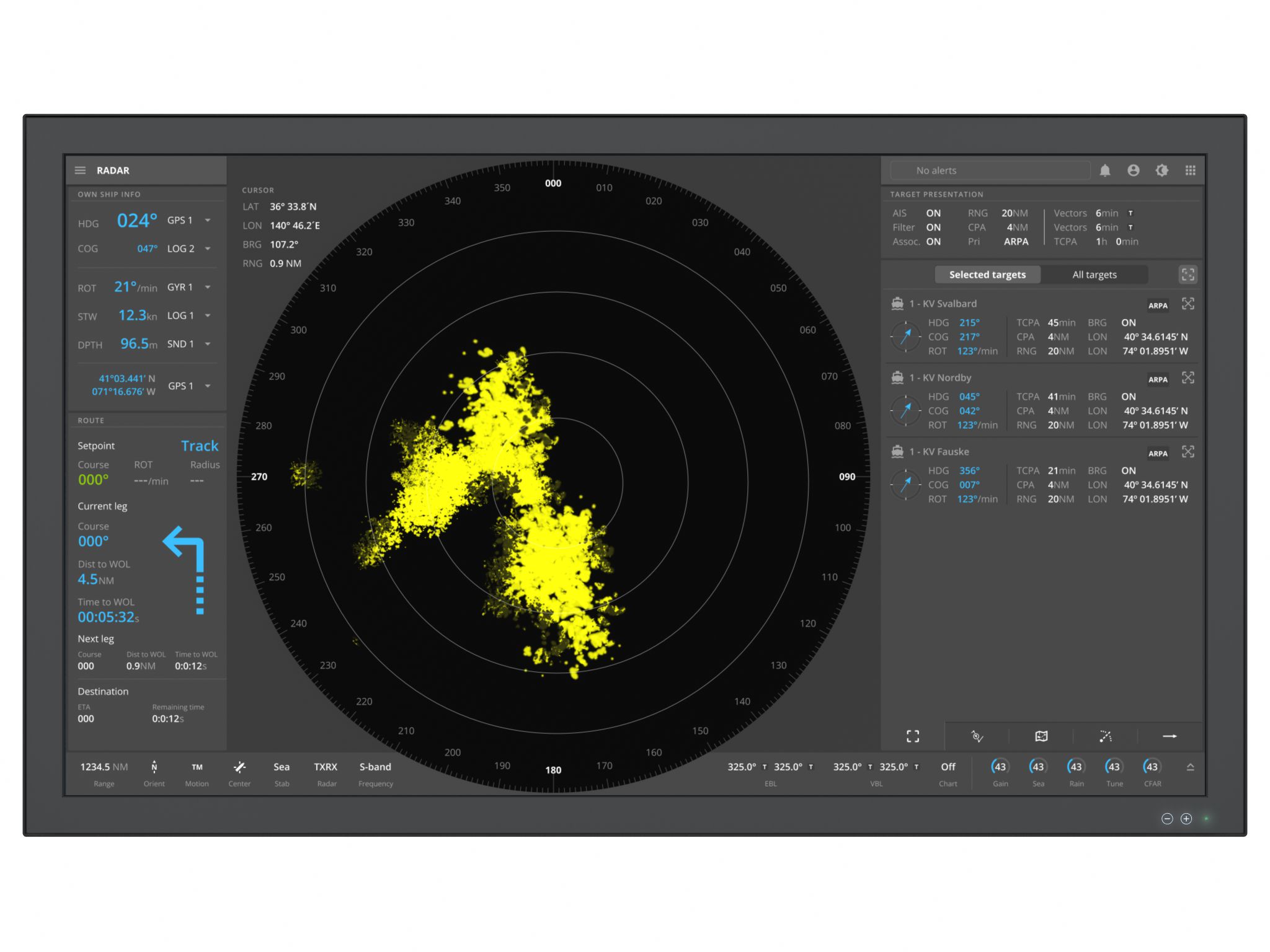

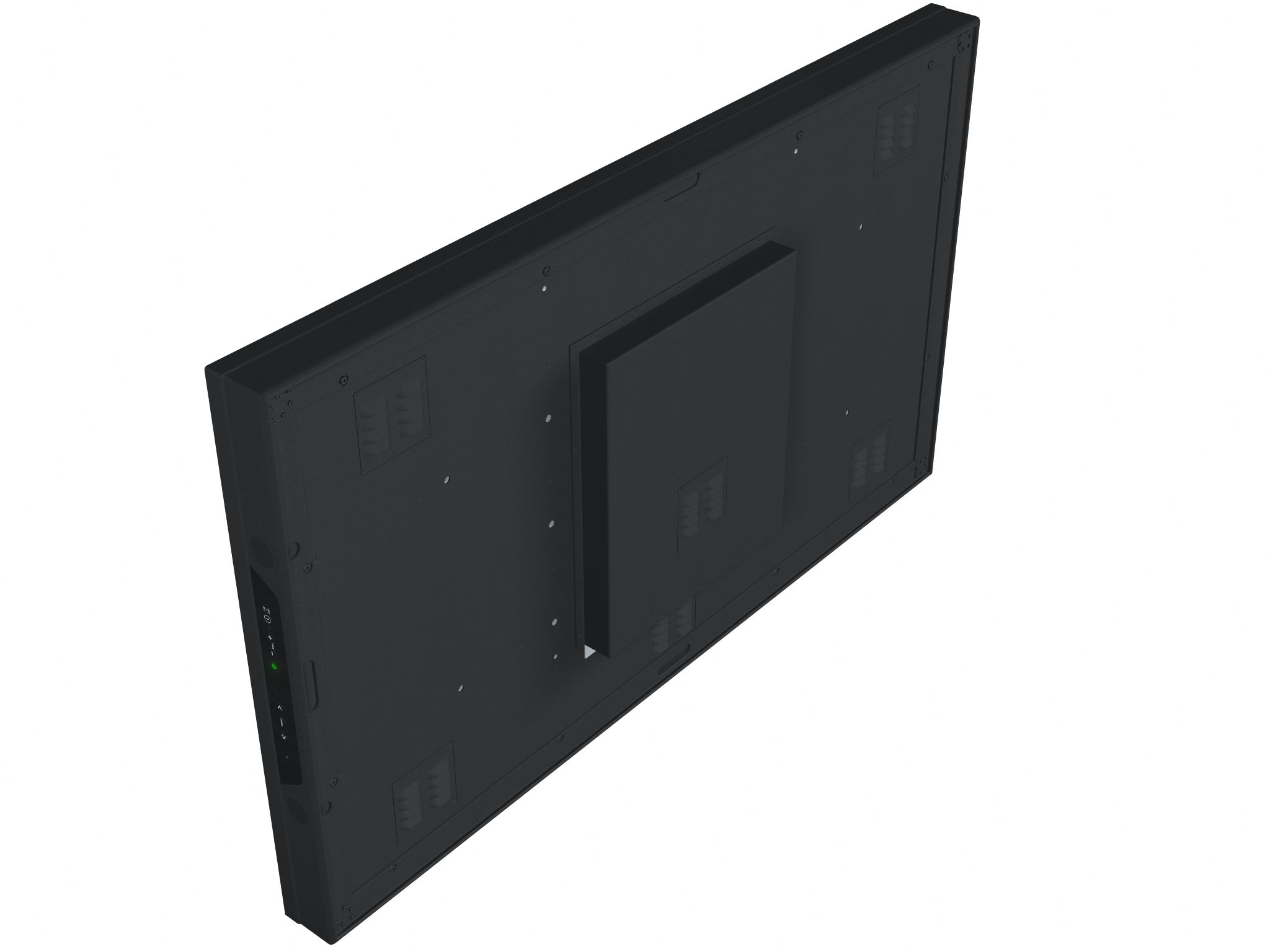

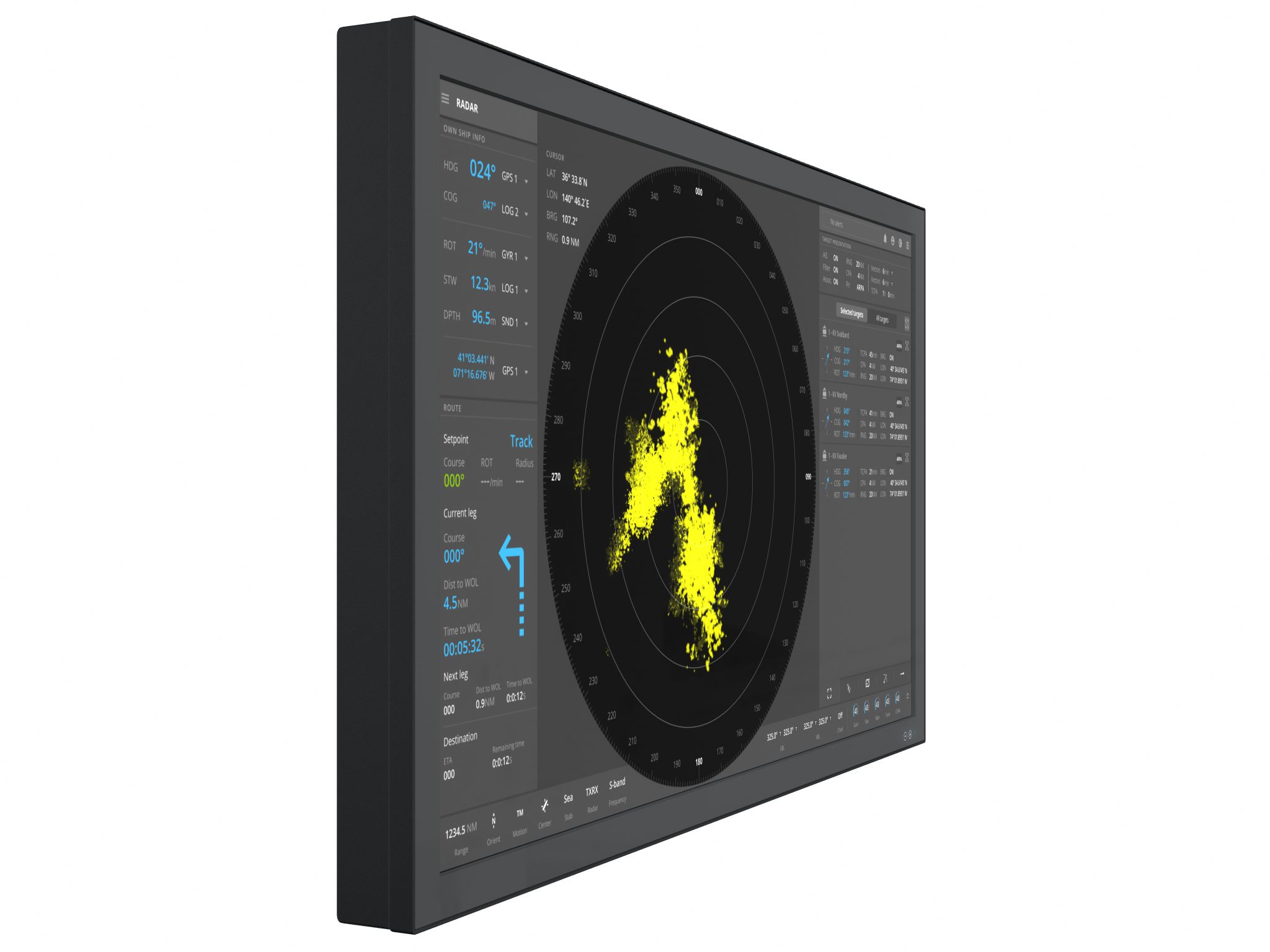

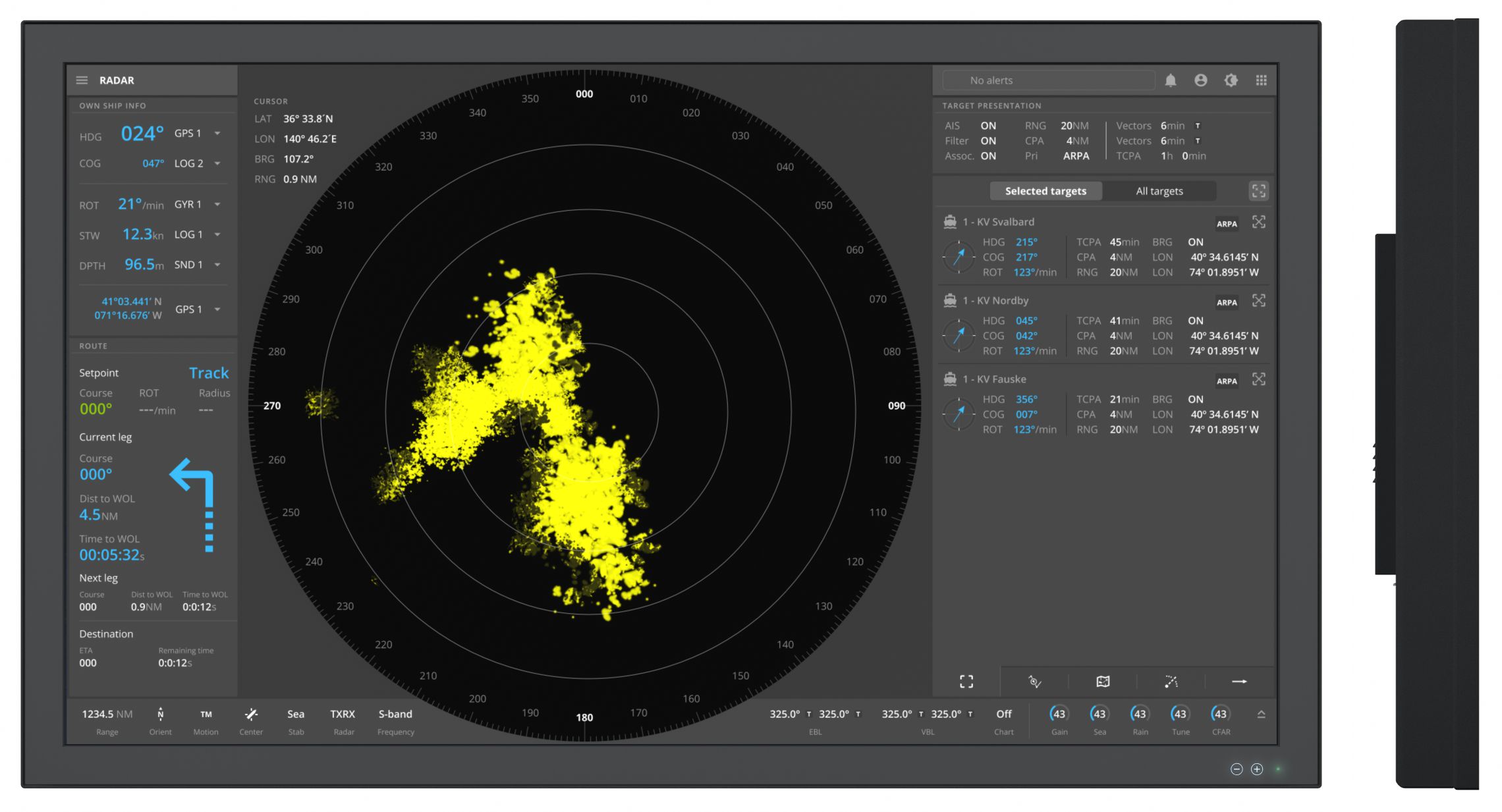

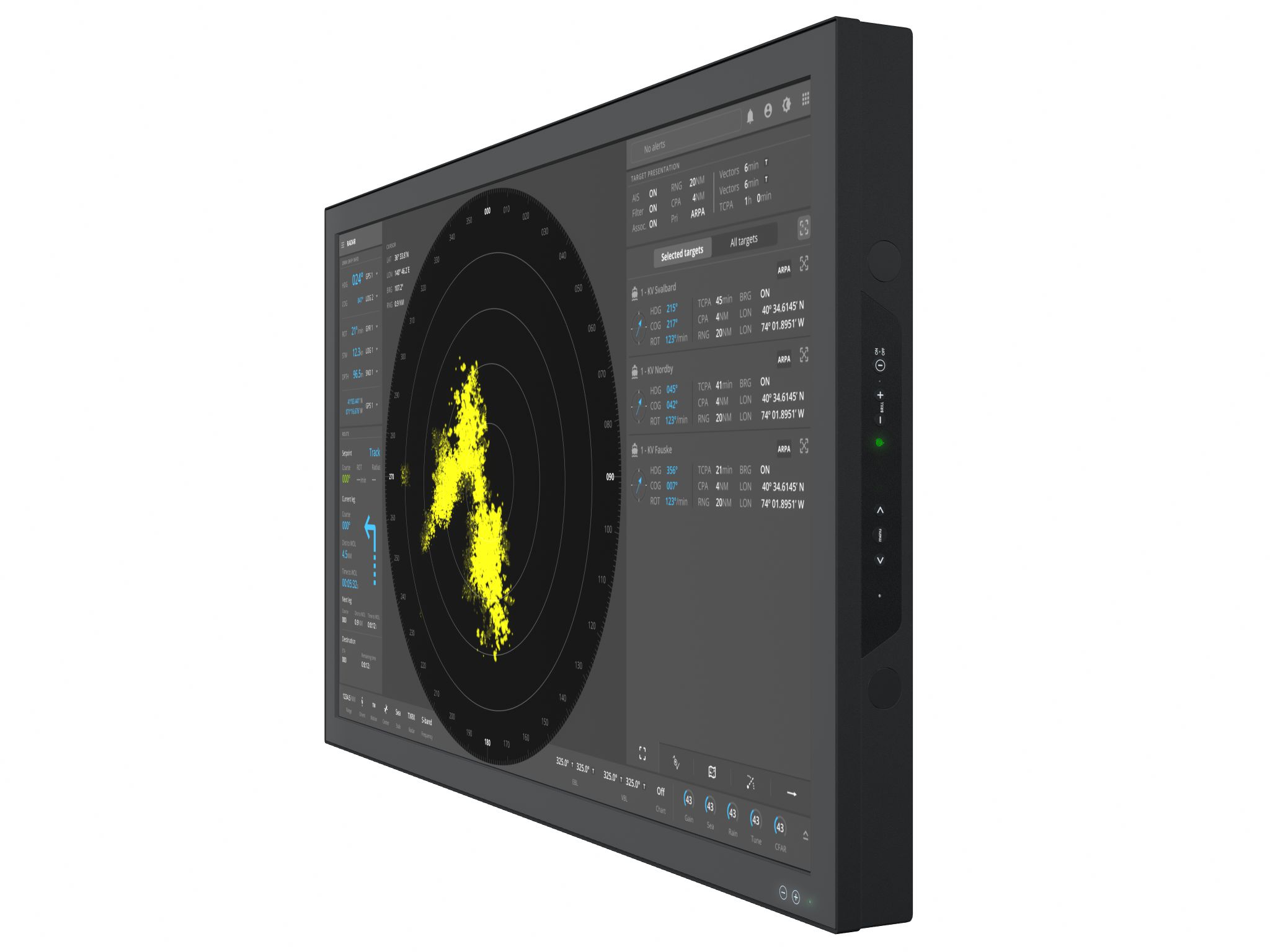

The 55 inch Series X MVD features 4K screen resolution and high-end panel technology, it provides unmatched viewing clarity in all light conditions. Its ultramodern approach represents the pinnacle of maritime Monitor technology, making it the most advanced platform for the development of a new generation of sophisticated, function rich and user-friendly bridge technologies that demand only the best Monitor solutions to ensure increased navigational safety and efficiency on the bridge.

Approved for harsh maritime environments where reliability and long lifetime are key factors, the new 55 inch Series X MVD Monitor is a robust, flexible and ergonomic solution, suitable for a wide range of bridge applications including ECDIS, radar, voyage planning, safety systems and tactical command & control platforms. Standard features include console, multi-data input, full dimming, built in On-Screen Monitor (OSD) and uniquely for a console mounted solution, an external Tactile button-control panel which can be mounted for operation of the OSD and other parameters. Factory options include Optical Bonding Technology, Multi-touch touch interface and ECDIS Calibrated models.

TFT Technology:	LED Backlight Technology, TFT active-matrix liquid crystal panel, Widescreen, RGB Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area:	55.0 inch - 1209.60 [47.62"] (H) x 680.40 [26.79"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm
Aspect Ratio and Response Time:	16:9 - 6.5ms (typical) (G to G)
Light Intensity and Contrast Ratio:	450 cd/m² (typ) - 4000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz
Detectable Resolutions:	VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Full Dimming 0-100%, PIP (Picture In Picture), Multi-power AC&DC, Button Display Control™ (BDC), Tactile Display Controls (TDC), Decorative Frame Model. Part of Floor Stand Model or Wall Mount Model.
Power Specifications and Consumption:	Multi-power 100-240V AC 50/60Hz + 24VDC 118W (typ) - 131W (max)

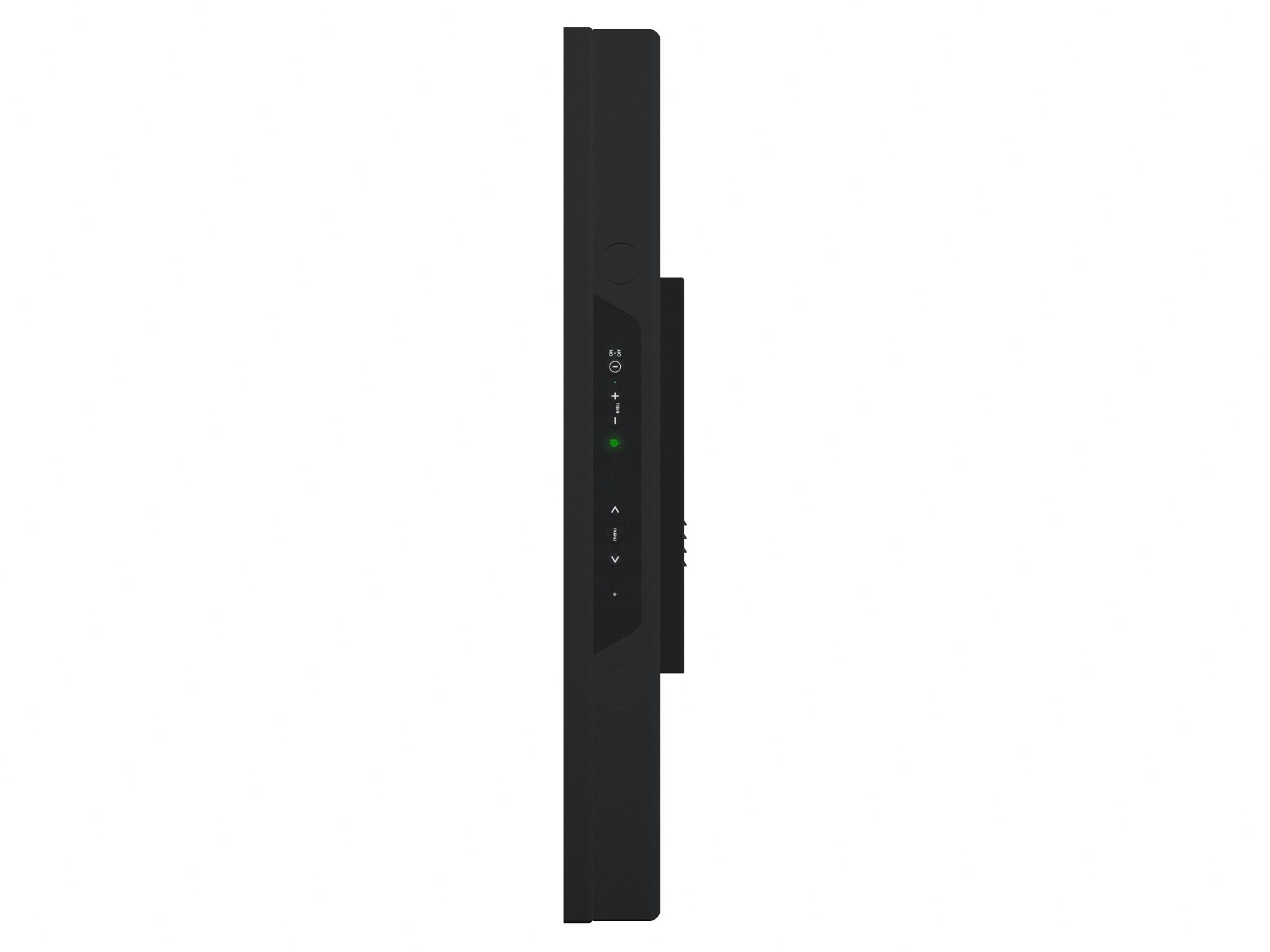

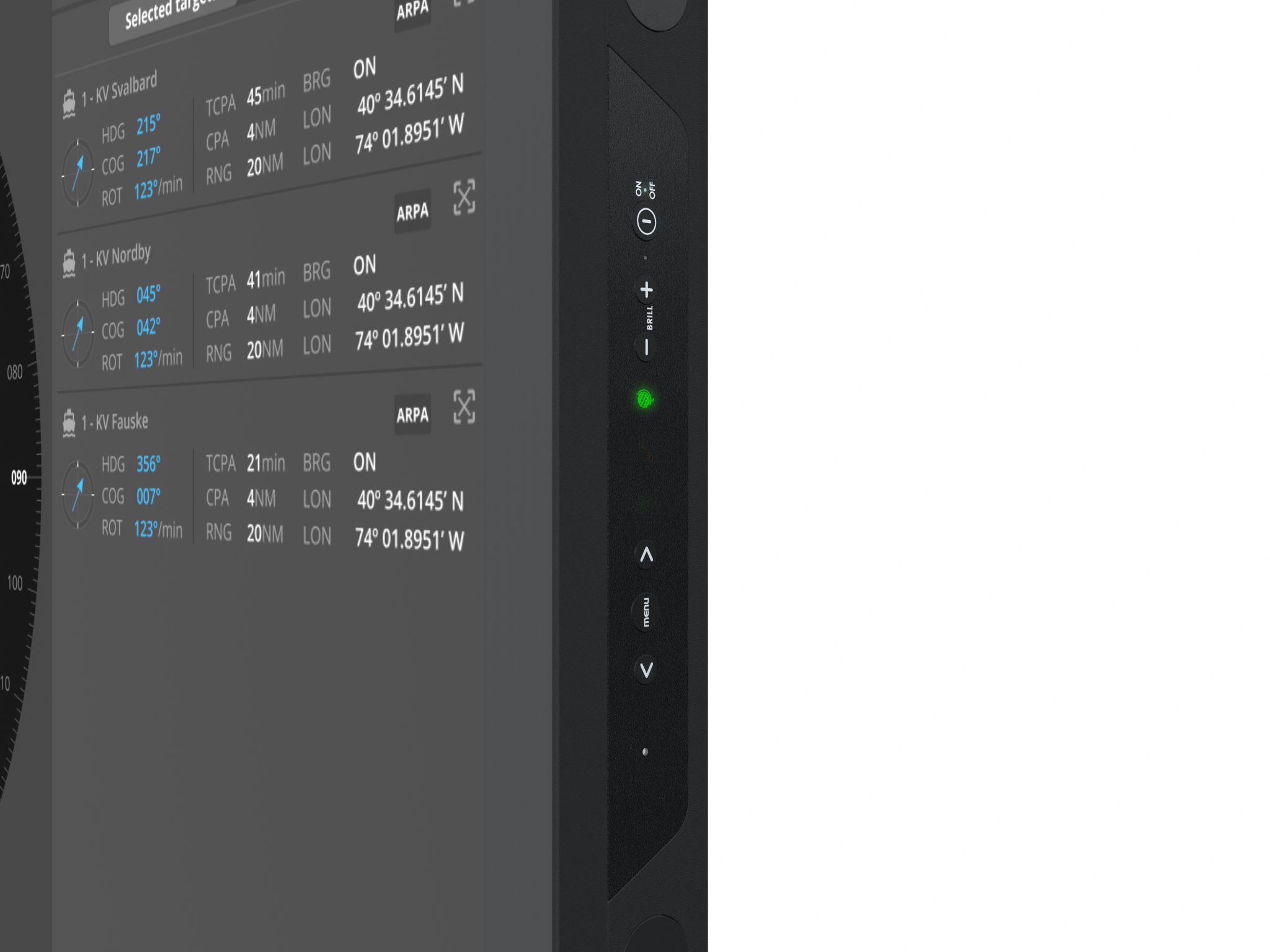

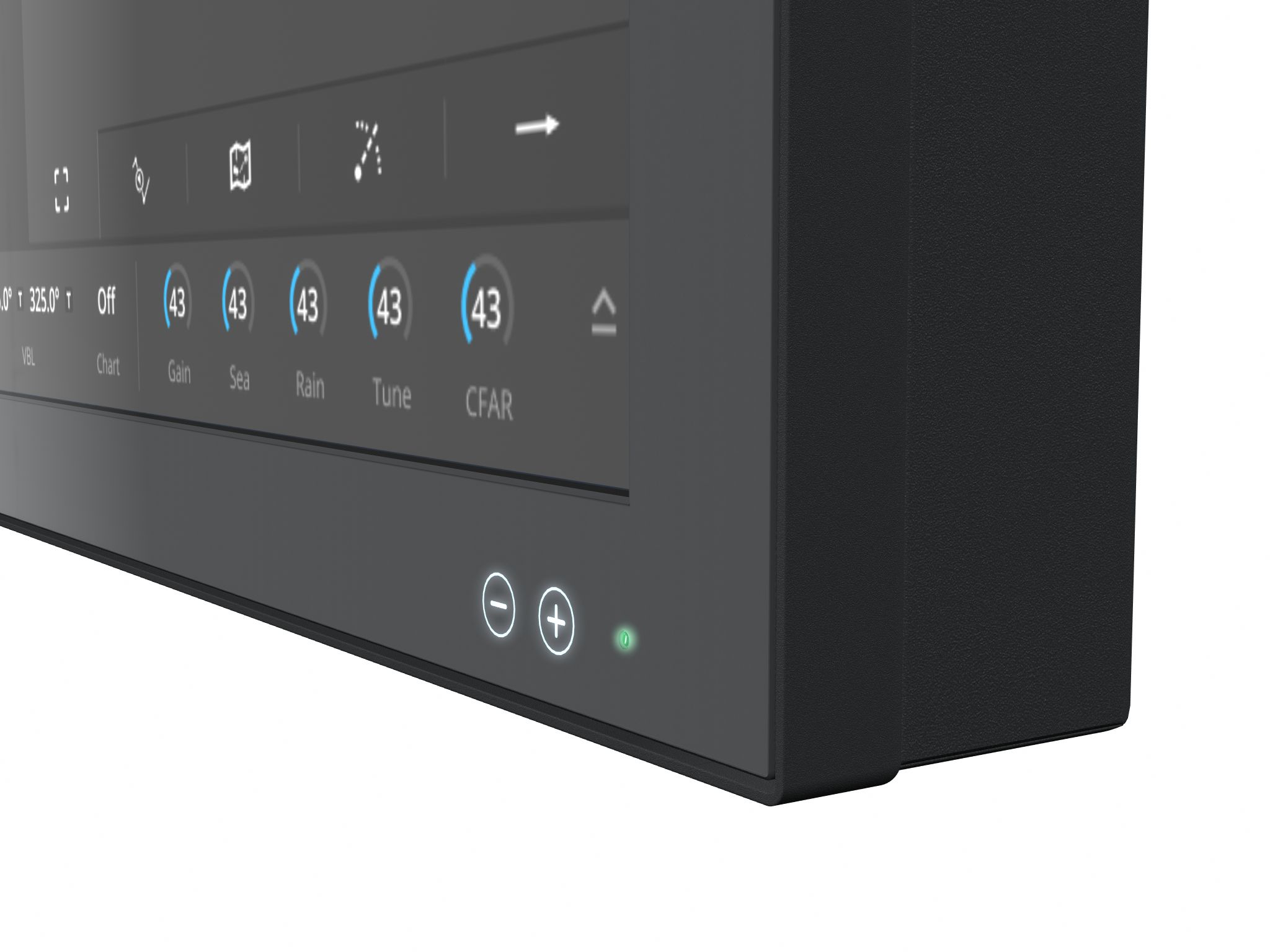

User Controls and Activity:	Button Display Control™ (BDC): • Brightness Control (-/+) • Power LED: Video signal=Green, No signal=Yellow, Power off=Orange Tactile Display Controls (TDC): • Power On/Off and On Screen Display Menu (OSD)* • Brightness Control (-/+) • Power LED: Video signal=Green, No signal=Yellow, Power off=Red • Hotkeys (left/right), Mode Status Indicators (ECDIS, Service) • Buzzer (not visible) (75-85dB), Light Sensor (not visible) *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode

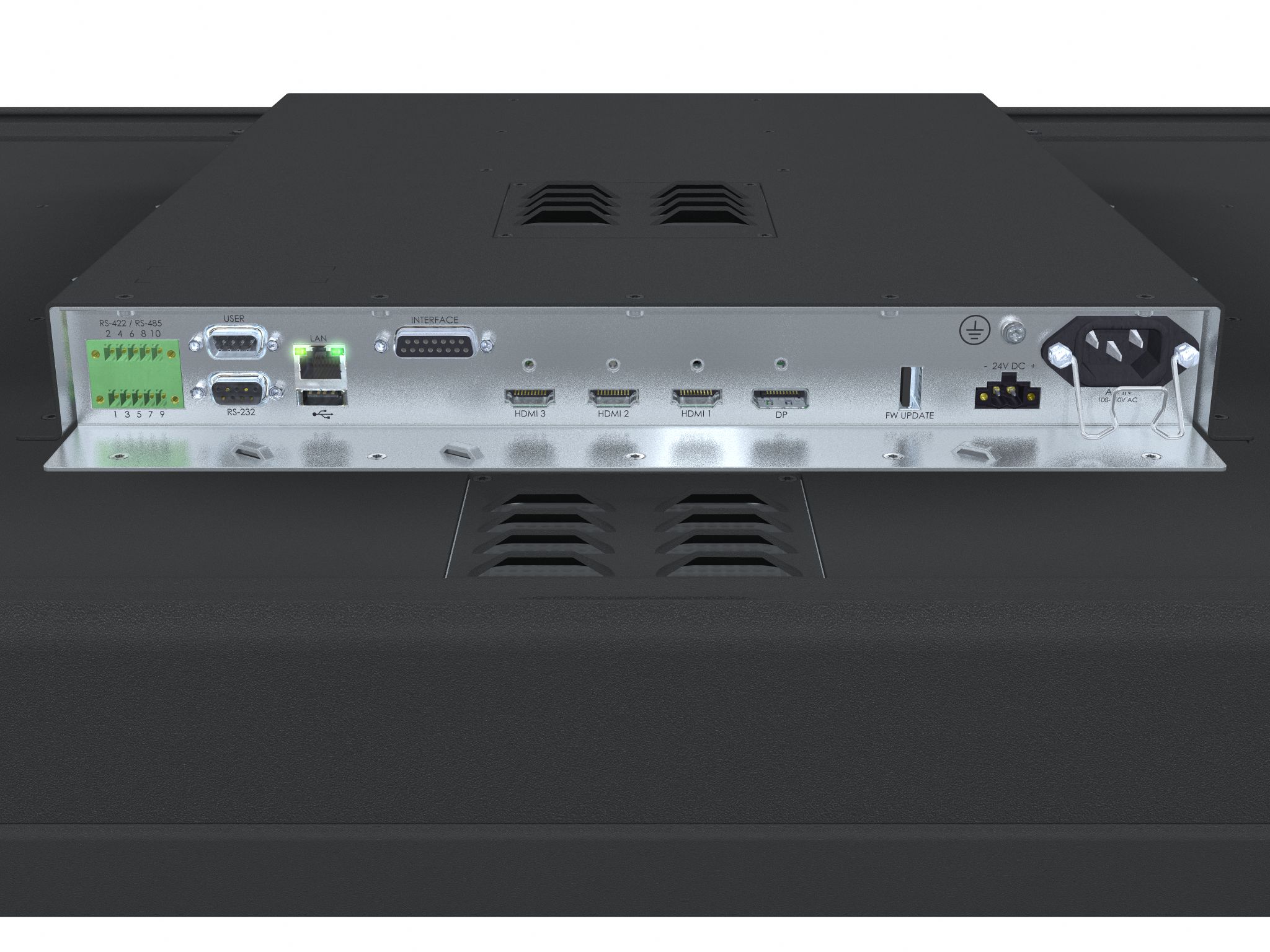

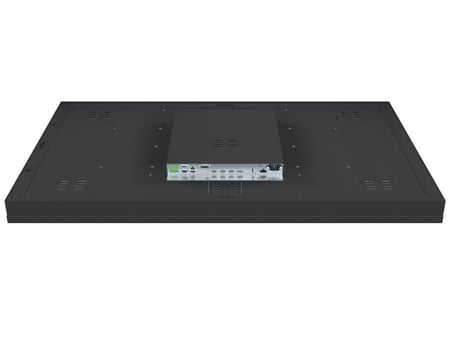

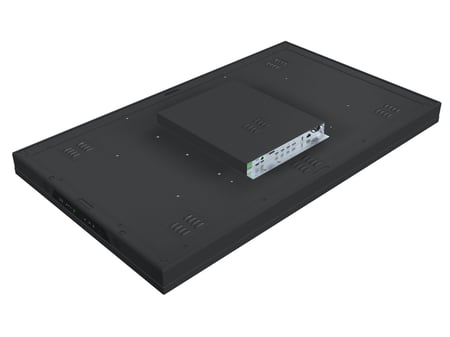

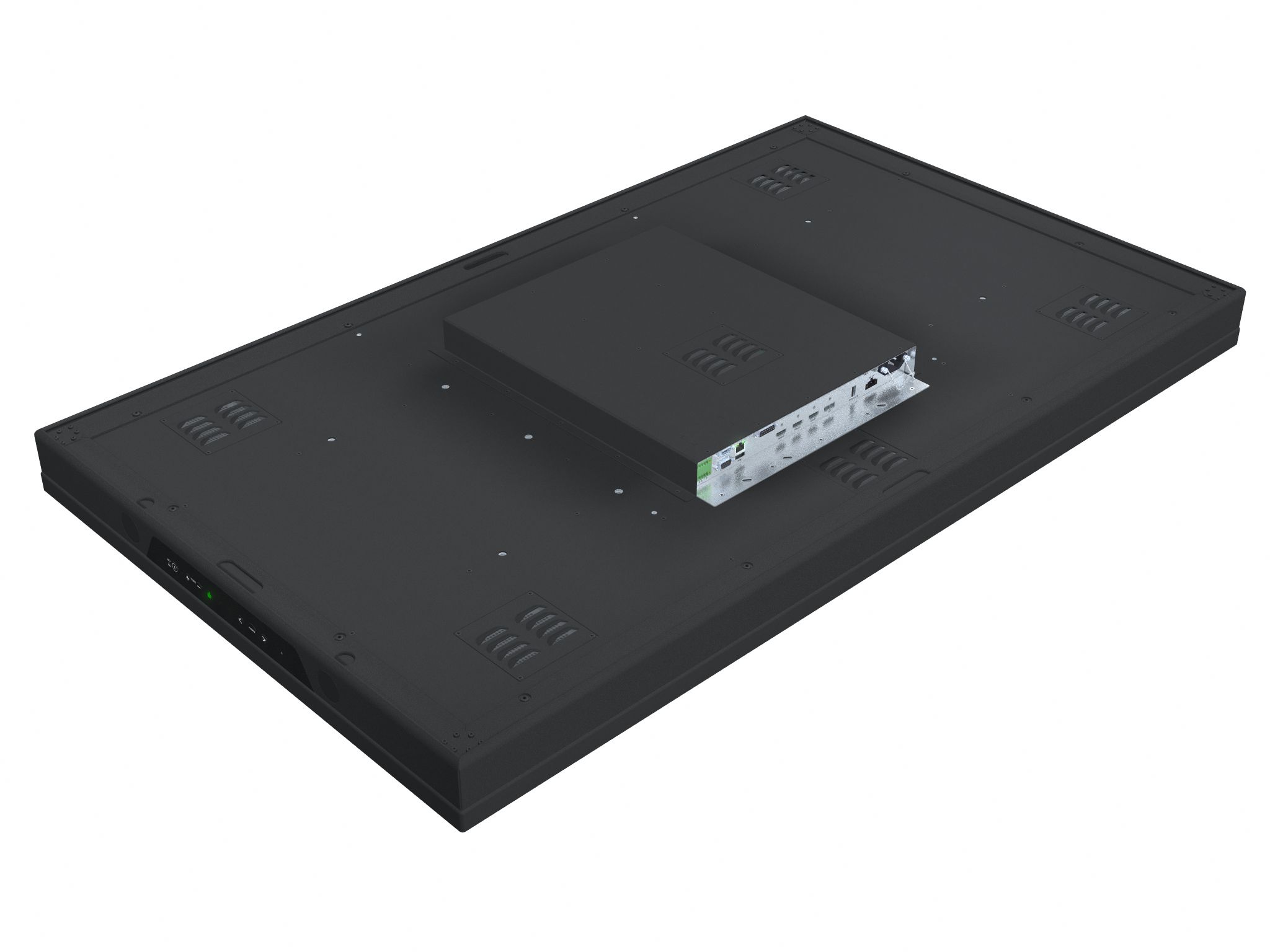

Connectors:	• HDMI 1.4 Input: 2 x 19p HDMI (female) - Max 3840x2160@30Hz • HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz, Note: Max Cable length: <3m • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated + Buzzer • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector for Remote Control • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • SW Interface: 1 x USB TYPE A (female) for Firmware Update • TDC Interface: 1 x 15p D-SUB (male) for HD TDCMVD KIT-A1 • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08

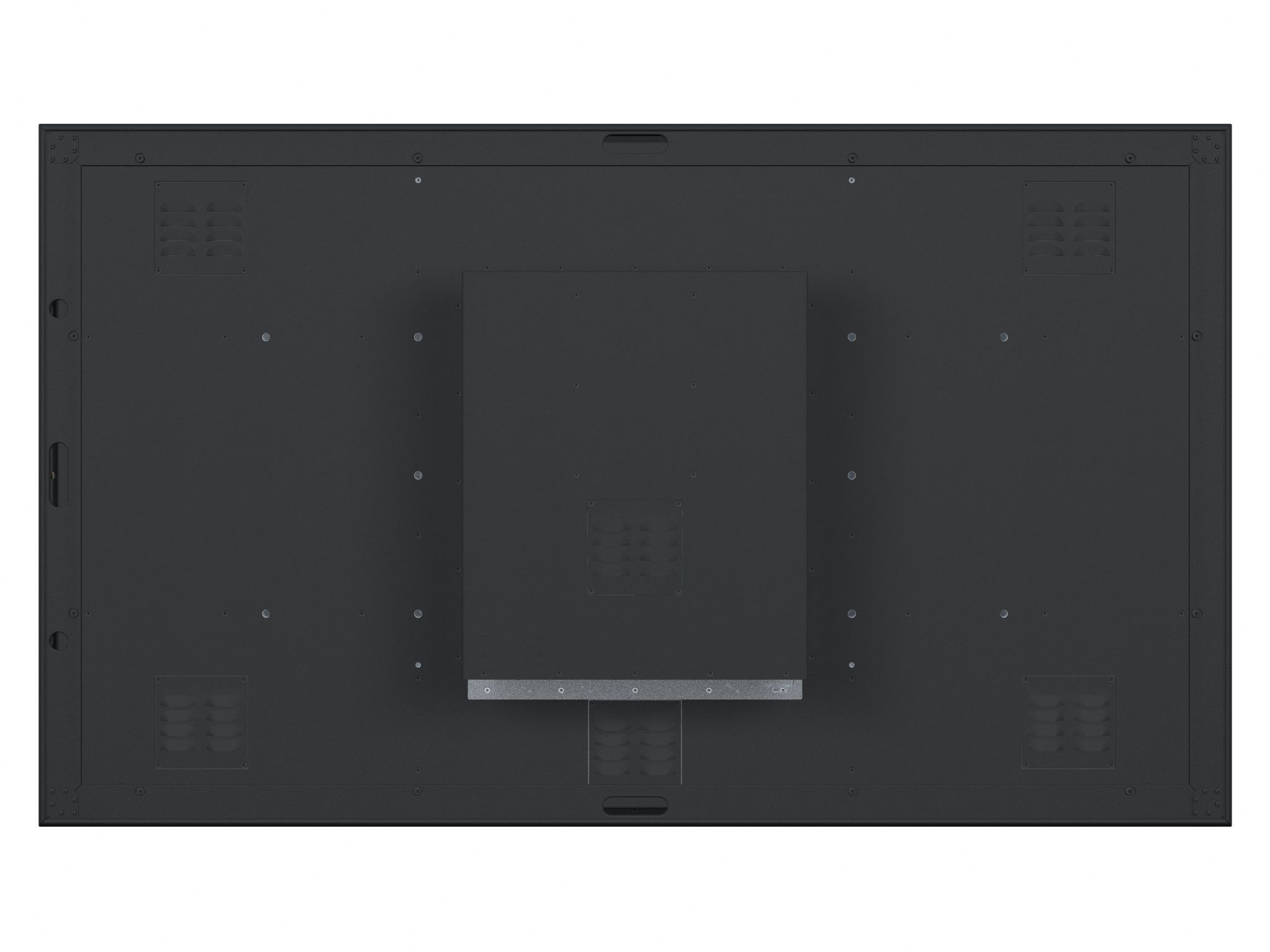

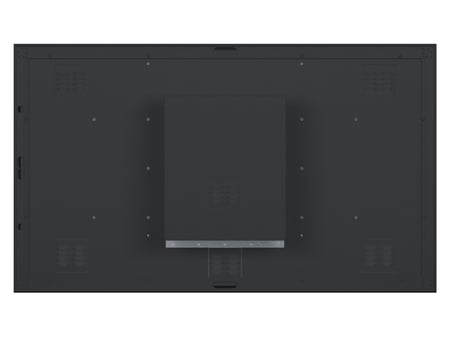

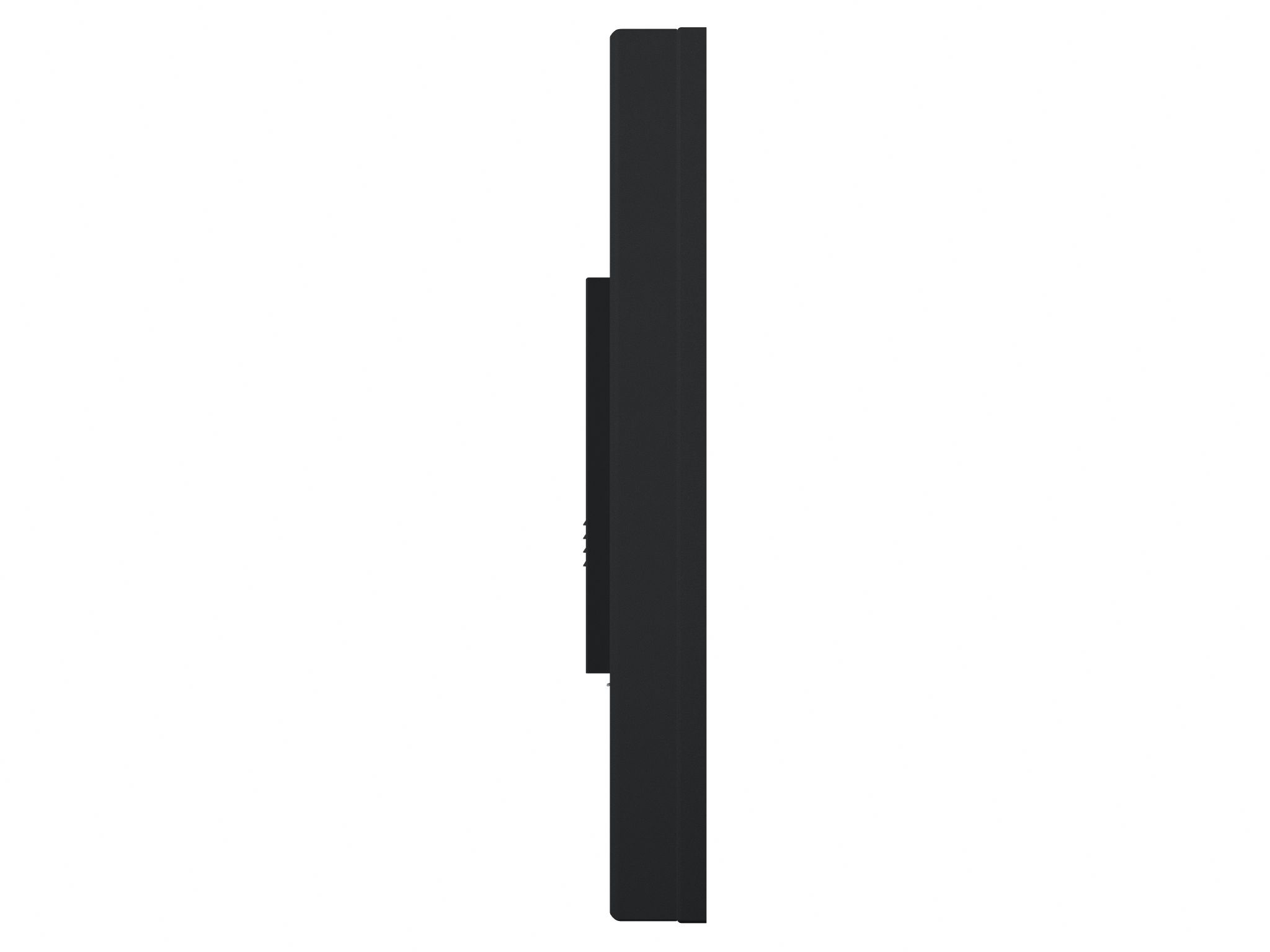

Product Dimensions and Weight:	• W:1292.60 [50.88"] x H:763.40 [30.05"] x D:121.60 [4.78"] mm [inch] • Weight: Approx. (53 kg +/- 0.5kg) / (116lbs +/- 1.1lbs) • Delivery includes an EPDM sealing gasket for IP66 console mount.
Product Carton Size and Weight:	• L:1466 [57.71"] x W:935 [36.81"] x H:179 [7.04"] mm [inch] • Approx weight: (86kg +/- 0.5kg) / (189.5lbs +/- 1.1lbs)
Factory Options:	• Optical Bonding Technology • Projected Capacitive Touch Screen (USB, Multitouch 10 fingers) • Color Calibrated models (ECDIS)
Accessories:	Regular accessories: • HD TDCMVD KIT-A1: 1 x External Tactile Display Controls (TDC) (Included) • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested Note: Depending on use, this model can be fitted with either: (See separate datasheet) • HD FSK-MVD-A1: 1 x Floor Stand Bracket Kit for 43 and 55 inch or • HD WMK-STD-A1: 1 x Wall Mount Bracket Kit for 43 and 55 inch
Capabilities - Prepared for:	Factory default: HD 55T40 MVD-MAx-Cxxx: 1 x 55 inch Monitor (Console version) + HD DCF STD-A1: 1 x Decorative Frame for 55 inch (factory mounted) + HD TDCMVD KIT-A1: 1 x External Tactile Display Controls (TDC) (Included) = HD 55T40 MVD-MAx-Dxxx (This datasheet)
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 240.00 [94.49"] - Steering: 200.00 [78.74"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU RO MR - Mutual Recognition by DNV, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping *=pending Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 5, 2025 @ 12:27
