HD 27T27 MMD

Overview

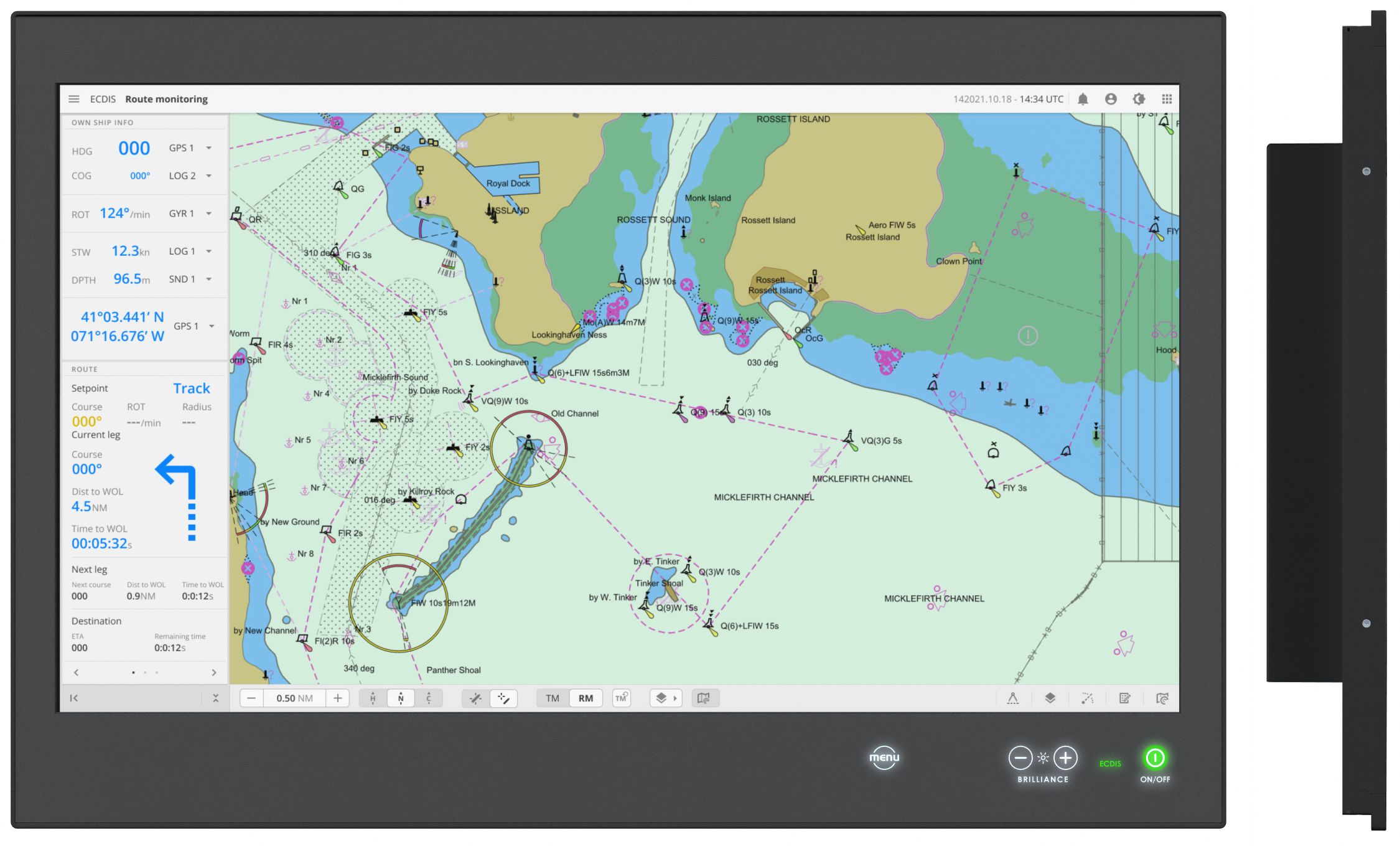

Monitor - Widescreen - LED - HATTELAND® Series X G3 - 27.0 inch

HD 27T27 MMD

Introducing the T27 series. Trusted since the turn of the century – now fit for the future.

T27 is a generational upgrade (G3) of one of our most enduring product ranges, Series X. While they’re still the same monitors ship crews around the world rely on, this upgrade introduces a few key improvements: upgraded connectivity and a new video scaler. We know the importance of longevity. The G3 futureproofs Series X and keeps them going for many more years.

icon
Widescreen
icon
LED-backlit
Send Request
Description

Monitor - HATTELAND® Series X G3

True to form
Easy installation remains a top priority for Hatteland Technology. All G3 units are made in accordance with our FormFit principle. It means they inherit their forerunners’ sizes and form factors, making retrofitting nice and easy.

Revitalized, but familiar
With its updated I/O interface and video scaler, the G3 brings a tried and tested concept into the future. Other than that, the product range will look and perform exactly like the one you are familiar with. The physical user interface, SCOM ports, and factory options are carried forward from the G3.

Full backwards compatibility
We are taking every care to ensure a smooth transition from G2 to G3. Choose between a wide range of adapter cables, and custom expansion options, for effortless integration with legacy systems.

Introducing new connectivity
With the G3, we’re introducing new I/O interfaces.
Specifications
TFT Technology: LED Backlight Technology, Color Active-matrix, Widescreen, a-SI (amorphous silicon) Thin Film Transistor (TFT)
Viewable Size and Active Area: 27.0 inch - 597.6 [23.53"] mm (H) x 336.15 [13.23"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1920 x 1080 (FHD) - 0.31125 (H) x 0.31125 (V) mm
Aspect Ratio and Response Time: 16:9 - 12 ms (typical) (on/off)
Light Intensity and Contrast Ratio: 350 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors: 89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1920 x 1080 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200
Composite Video Input(s): Not supported
Supported Video Signals: Not supported
Product Features: Dimmable 0-100%, Multi-power AC&DC
Power Specifications and Consumption: Multi-power 100-240V AC - 50/60Hz + 24VDC
Operating AC/DC: 28W (Typ) 39W (Max)

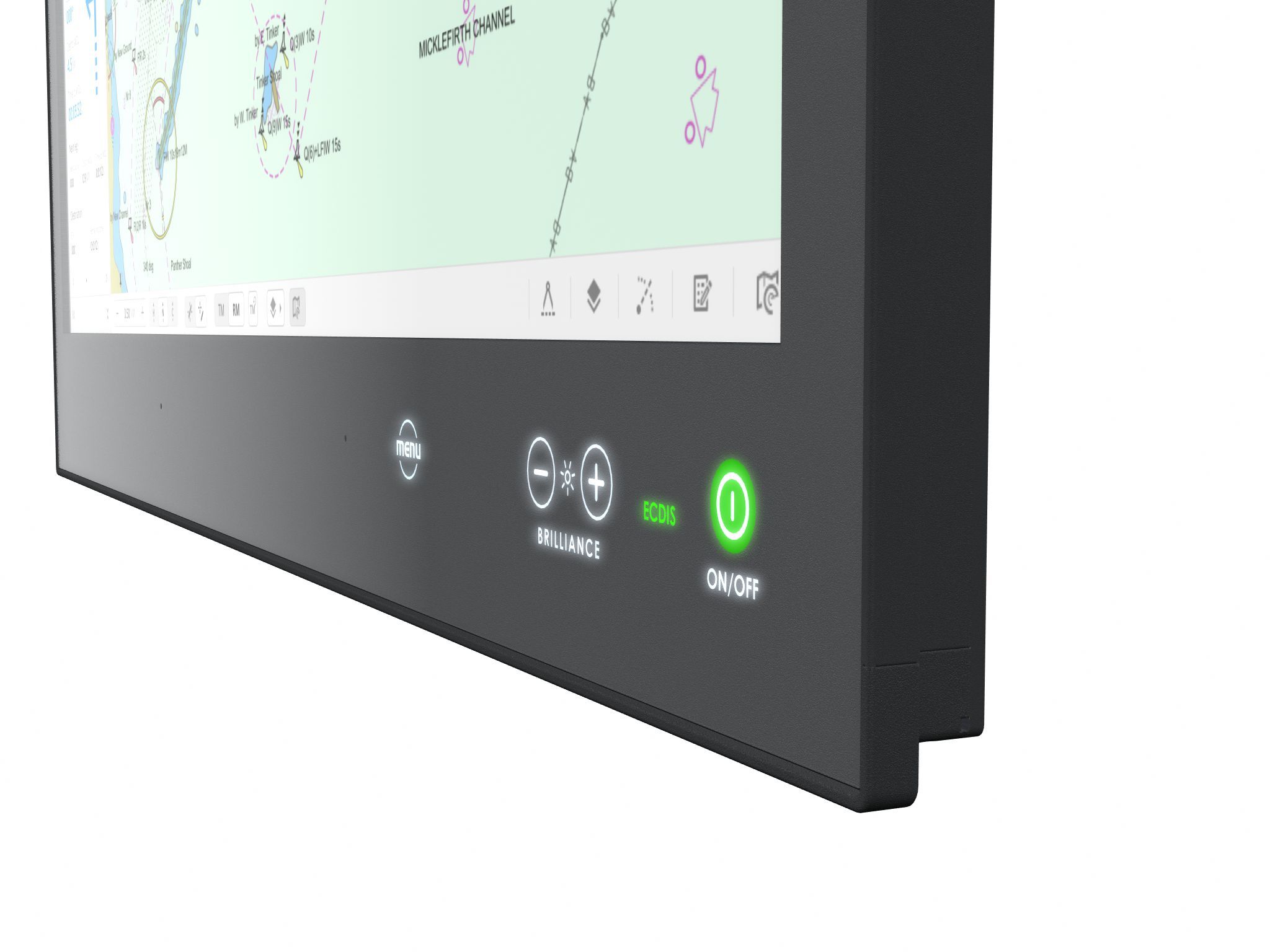

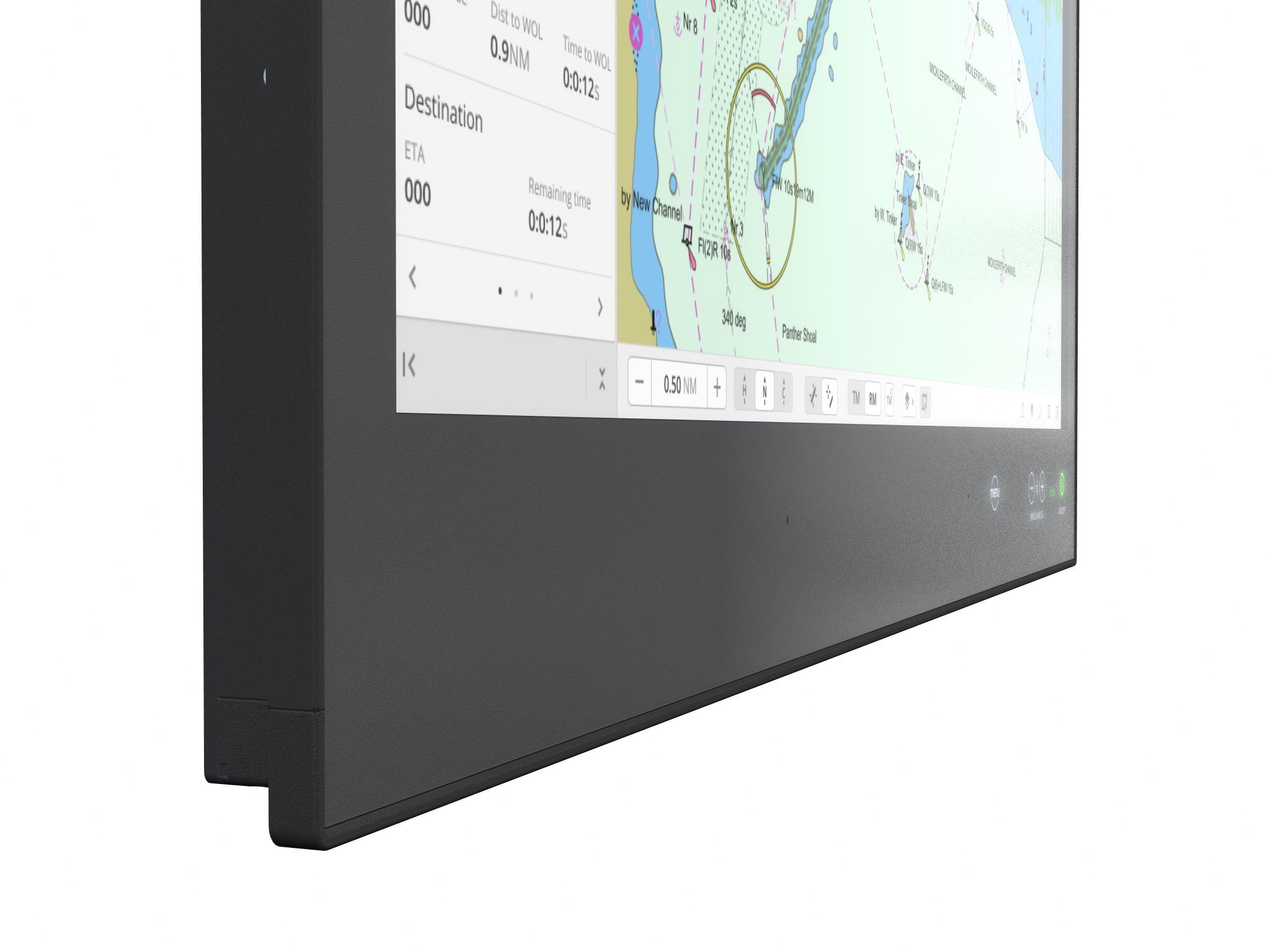

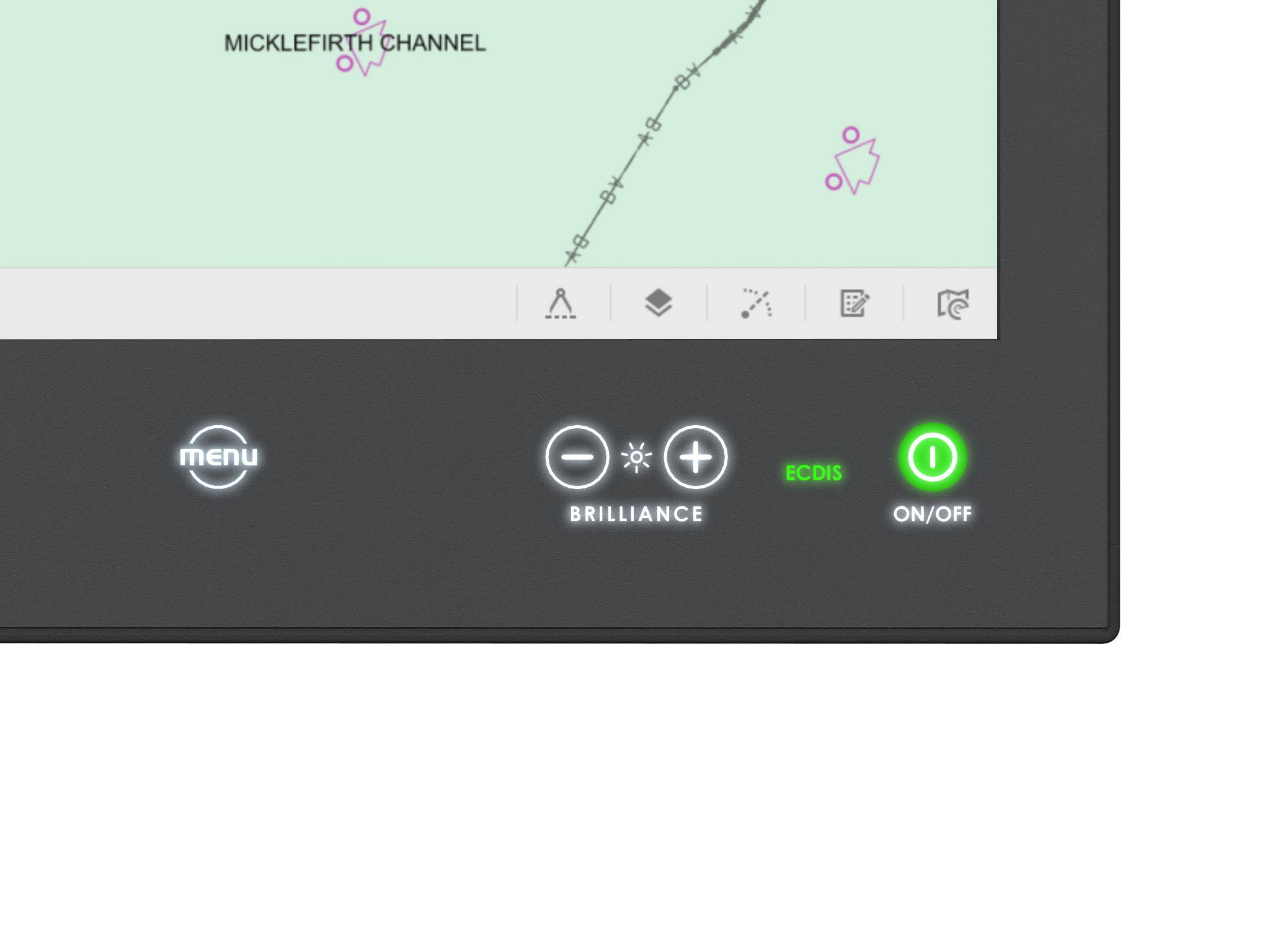

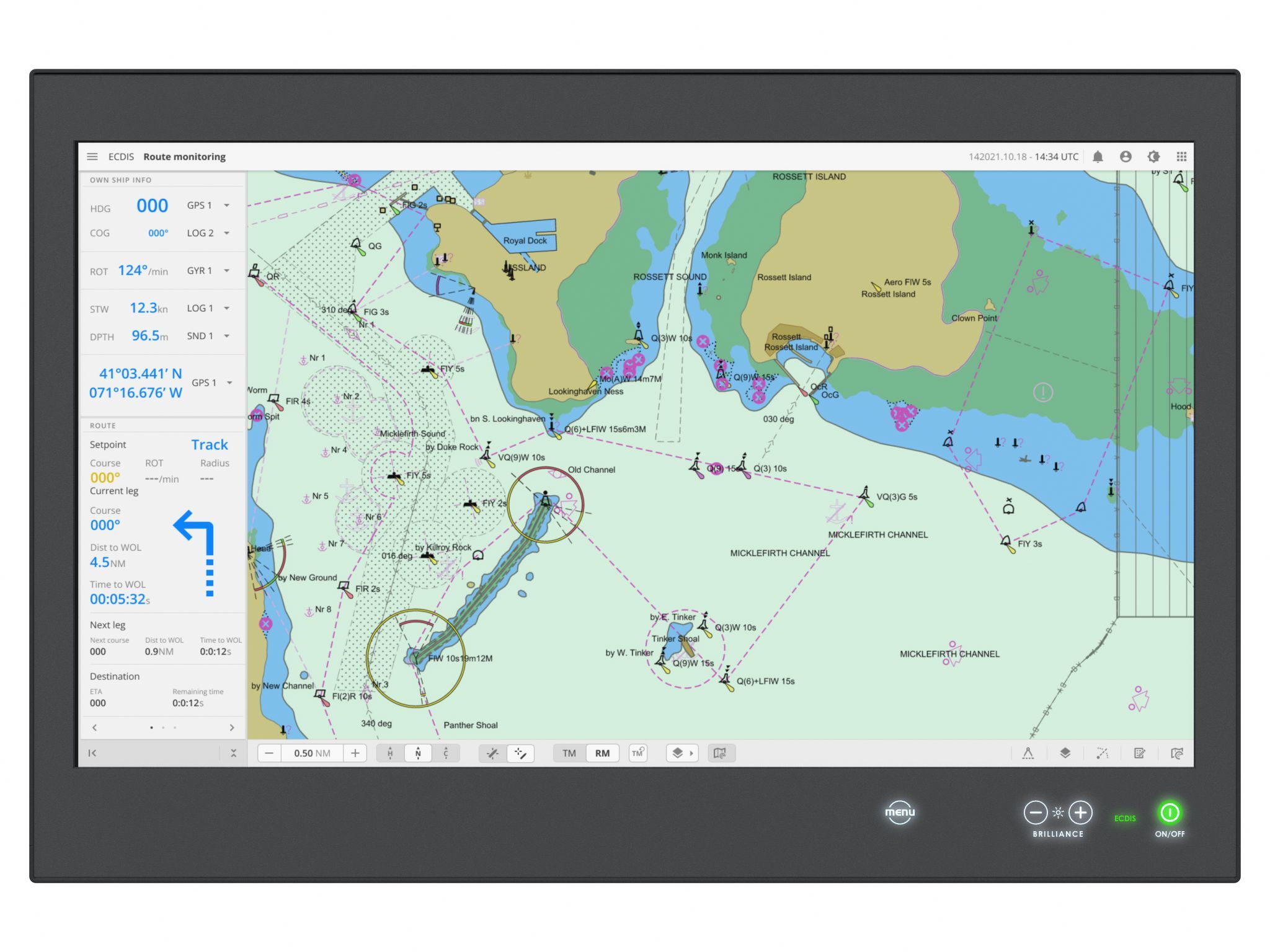

User Controls and Activity: Behind front bezel - Glass Display Control™ (GDC) IP66:
• Power On/Off and On Screen Display Menu (OSD)*
• Brightness Control (-/+)
• Hotkeys (left/right), Mode Status Indicators (ECDIS)
• Buzzer (through glass) (75-85dB), Light Sensor (behind glass)
*OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode

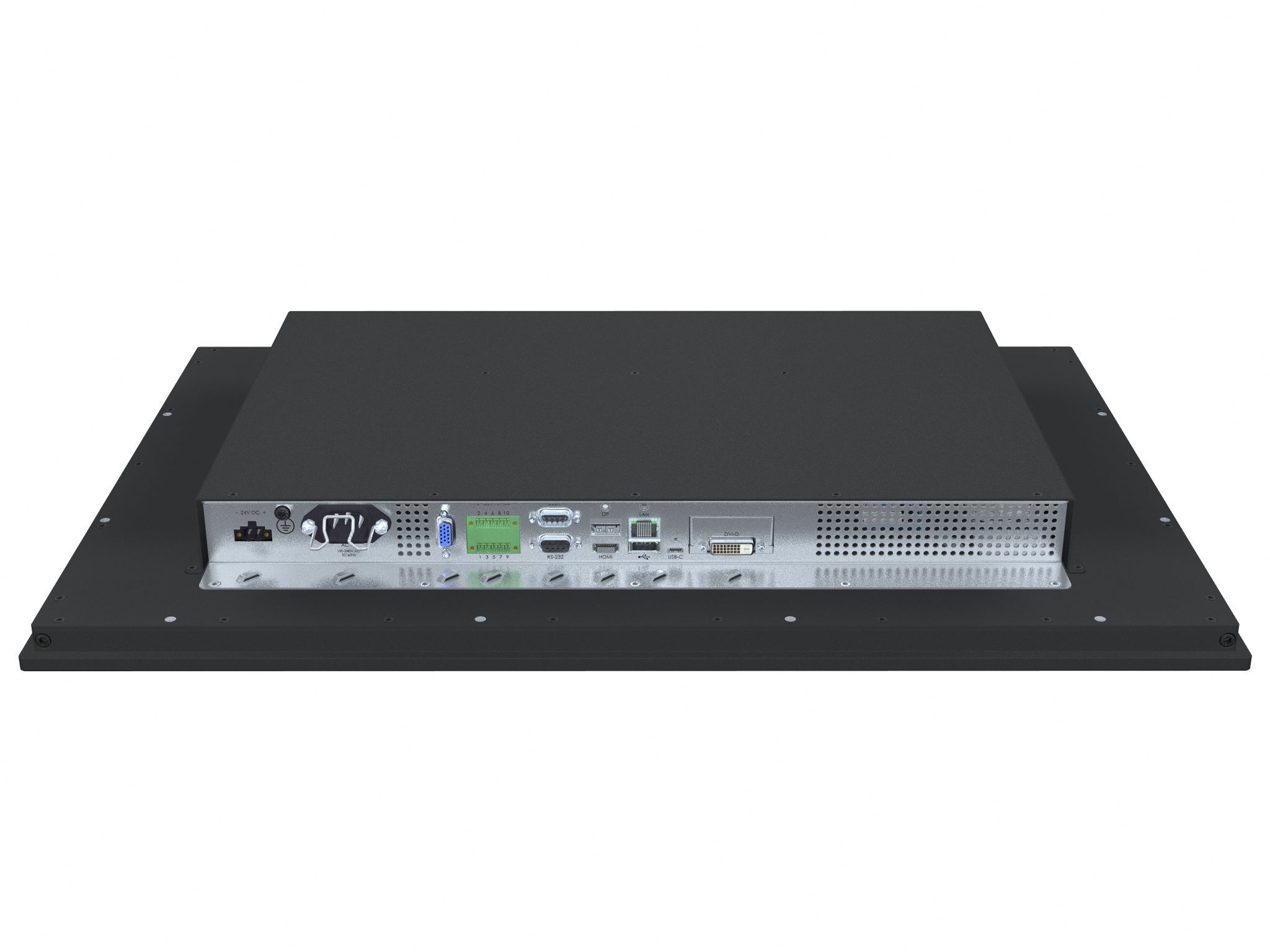

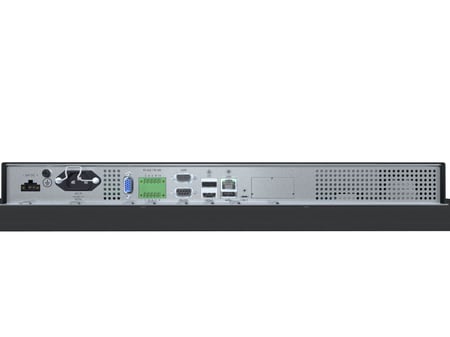

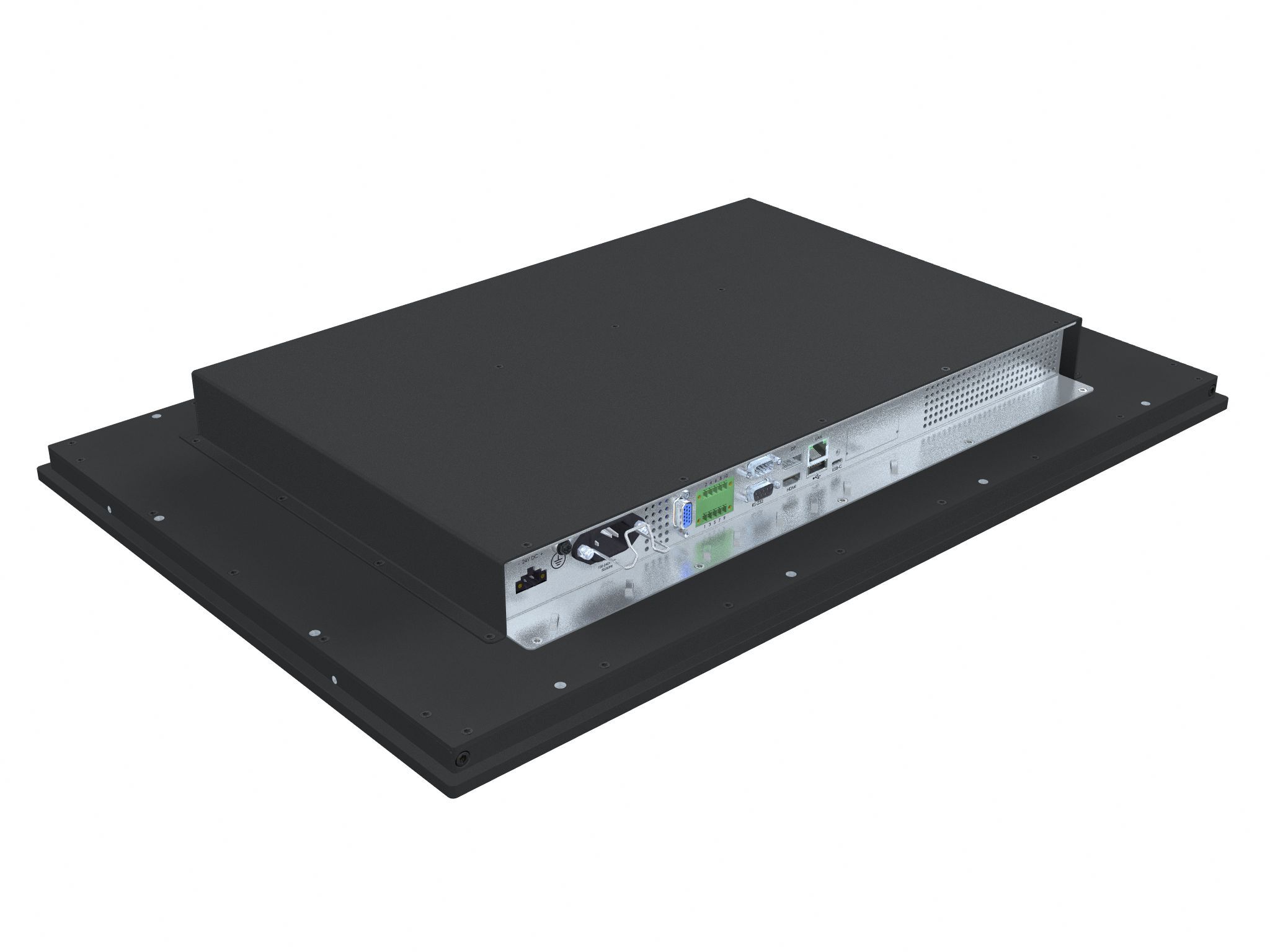

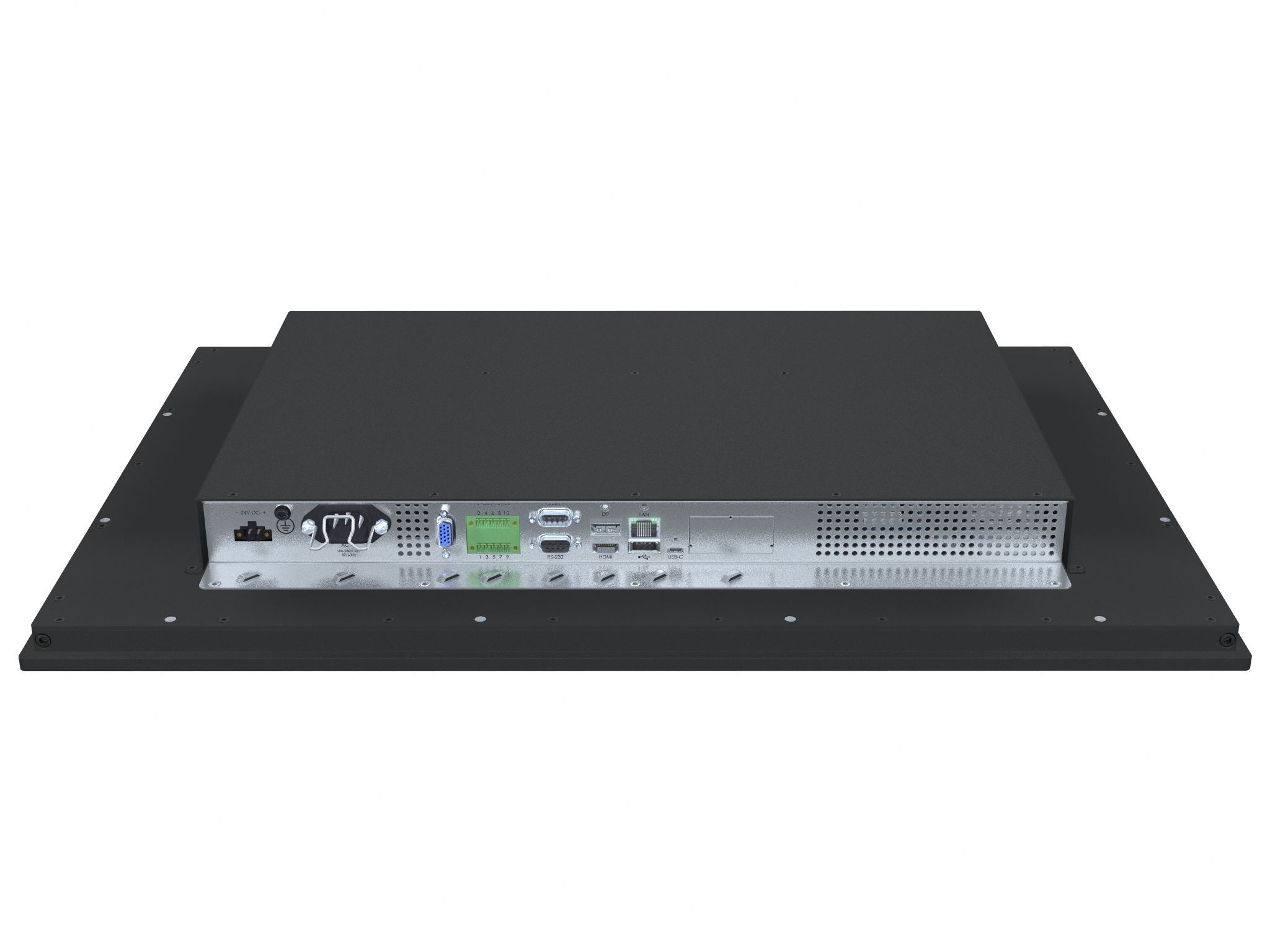

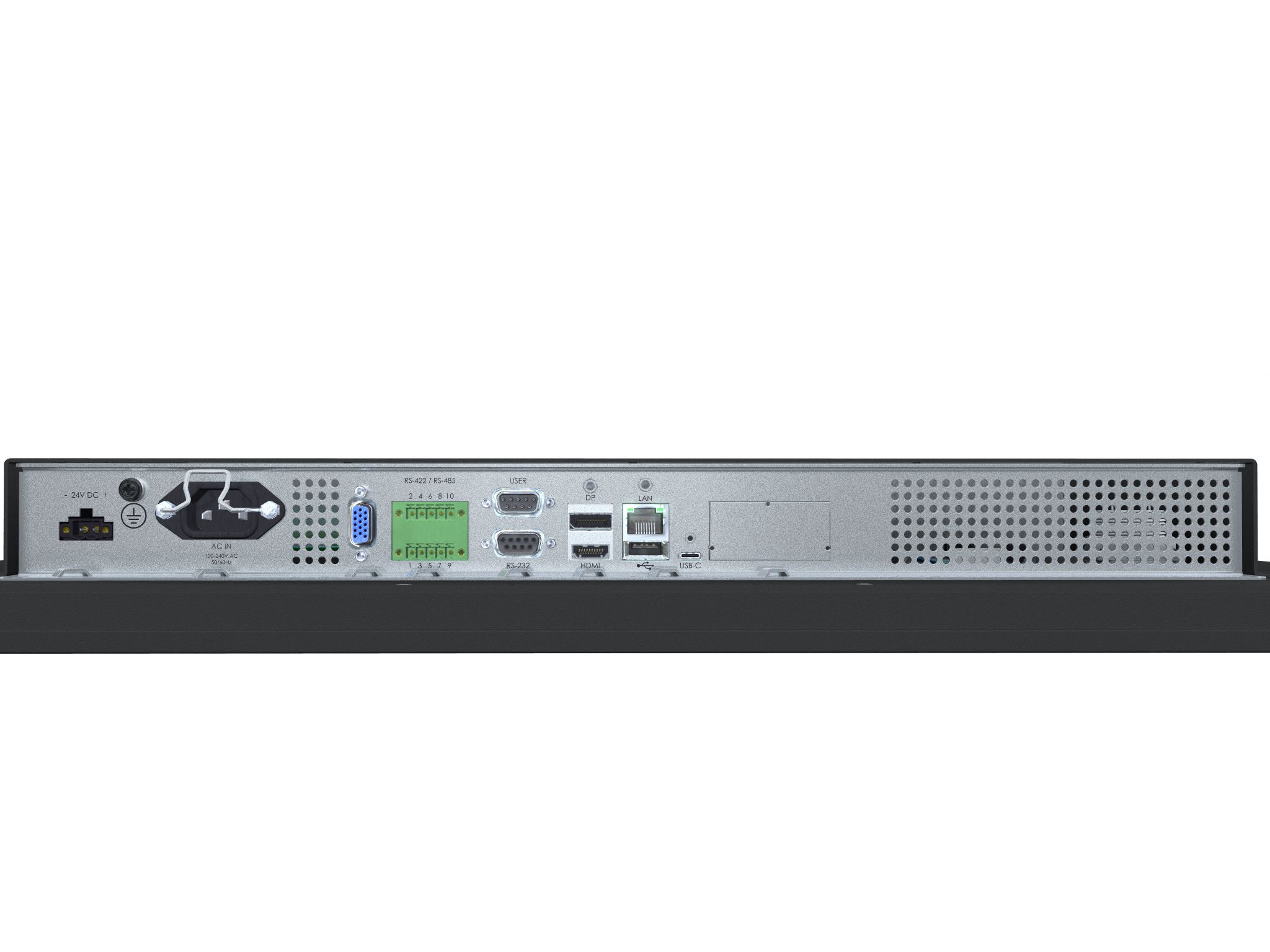

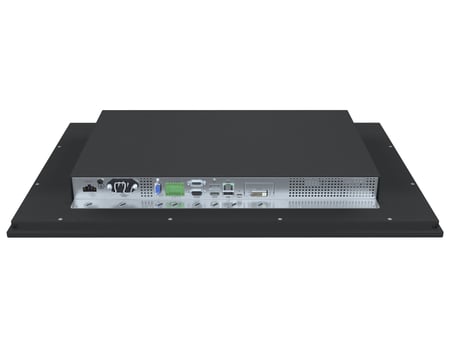

Connectors: • DP 1.4 IN: 1 x 20p DisplayPort (female)*
• HDMI 2.0 IN: 1 x 19p HDMI (female)*
• USB-C: 1 x USB-C Female with DP 1.2 IN and USB2.0 (SCOM, touch and uC Firmware Update)*
• VGA/RGB IN: 1 x 15p D-SUB (female)*
• SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
• SCOM Ethernet: 1 x RJ45 Connector
• SCOM RS-232: 1 x 9p D-SUB (female)
• VS Firmware Update: 1 x USB TYPE A Connector (female)
• Potmeter/User: 1 x 9p D-SUB (male) (Potentiometer IN, +5VDC OUT, BRT +/- IN)
• AC Power IN: 1 x Std IEC Inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08
Note: Max Cable length: <2m*

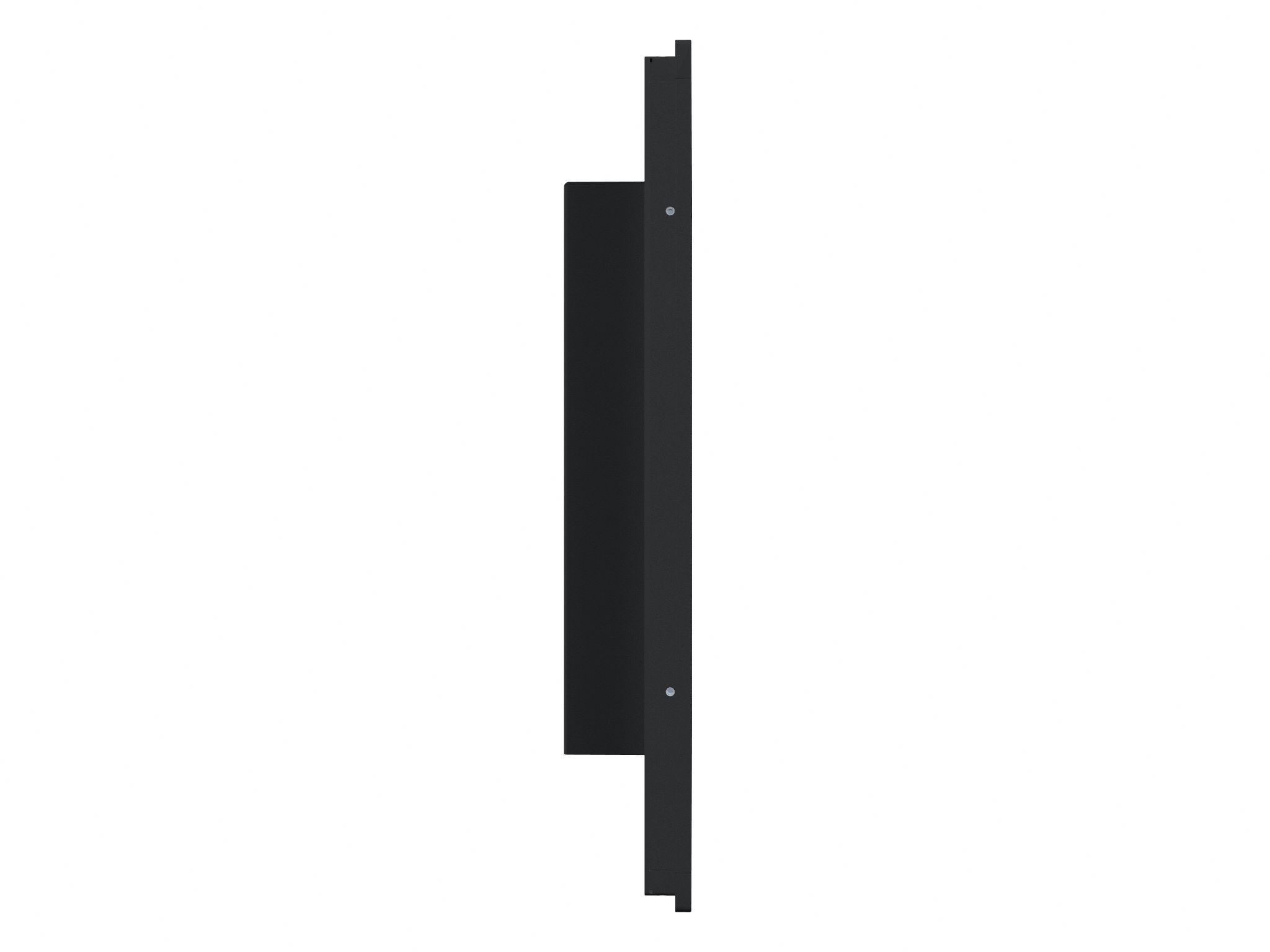

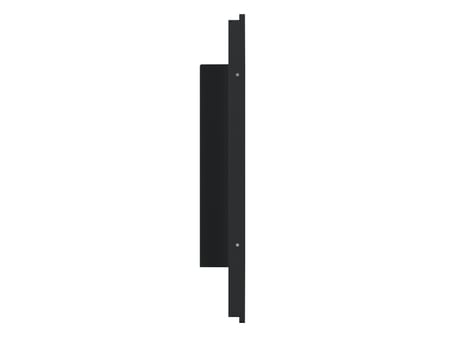

Product Dimensions and Weight: W:650.00 [25.59"] x H:437.00 [17.20"] x D:69.50 [2.74"] mm [inch]
Weight: Approx. 11kg / 24.2lbs
Product Carton Size and Weight: L:765.00 [30.12"] x W:190.00 [7.48"] x H:615.00 [24.21"] mm [inch]
Approx. 13.3kg / 29.3lbs
Factory Options: • Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove supported)
• Sunlight Readable / High Bright (includes Optical Bonding)
• Color Calibrated models (ECDIS)
• Optical Bonding Technology

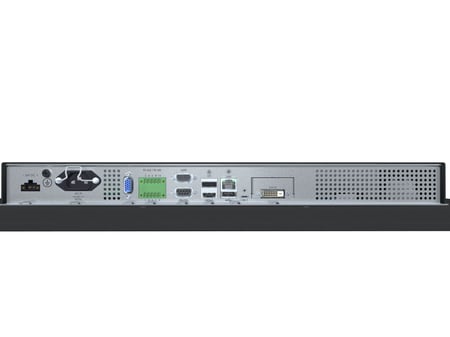

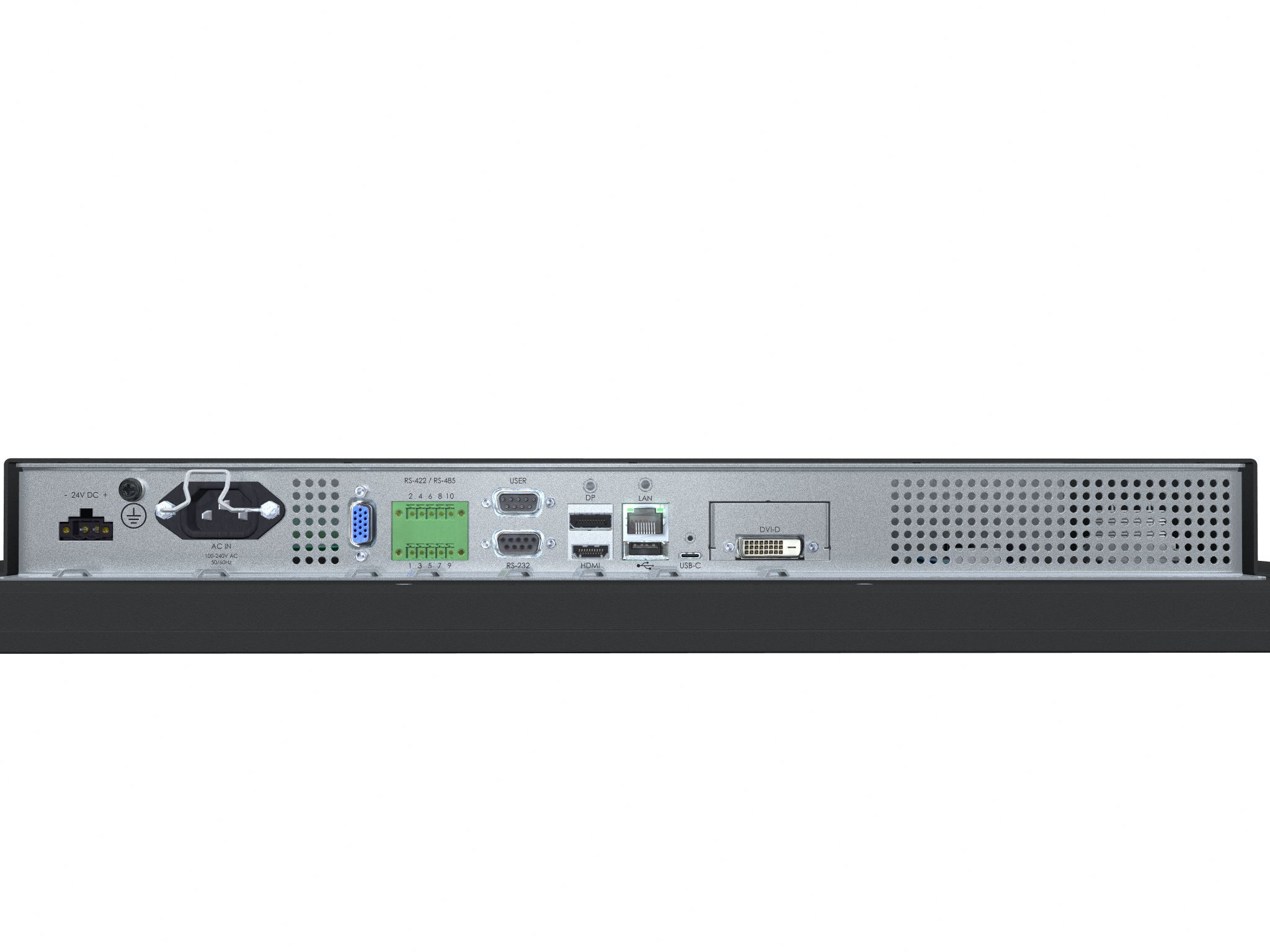

• Expansion board (DVI-D EXPcard 1xDVI IN)

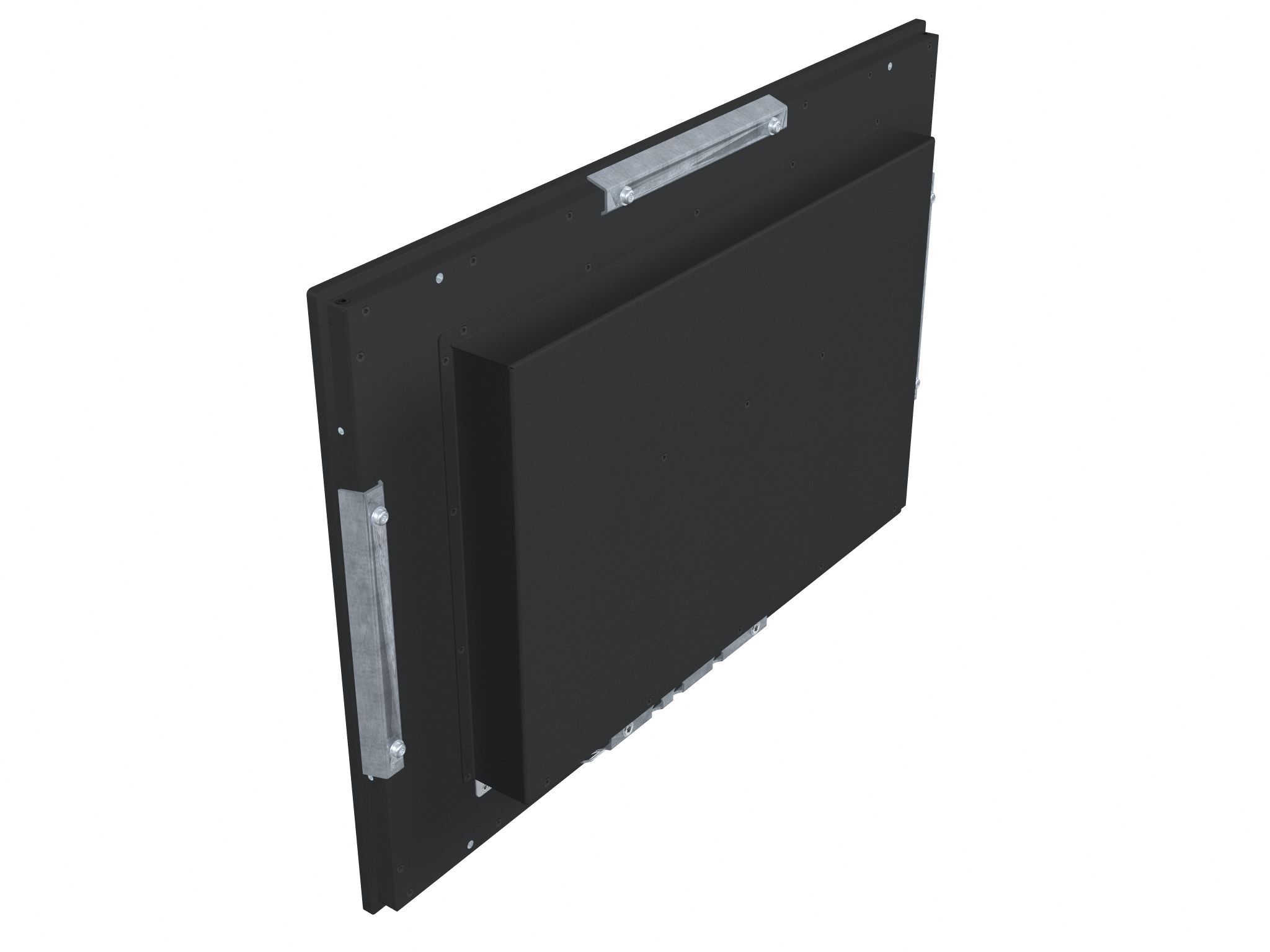

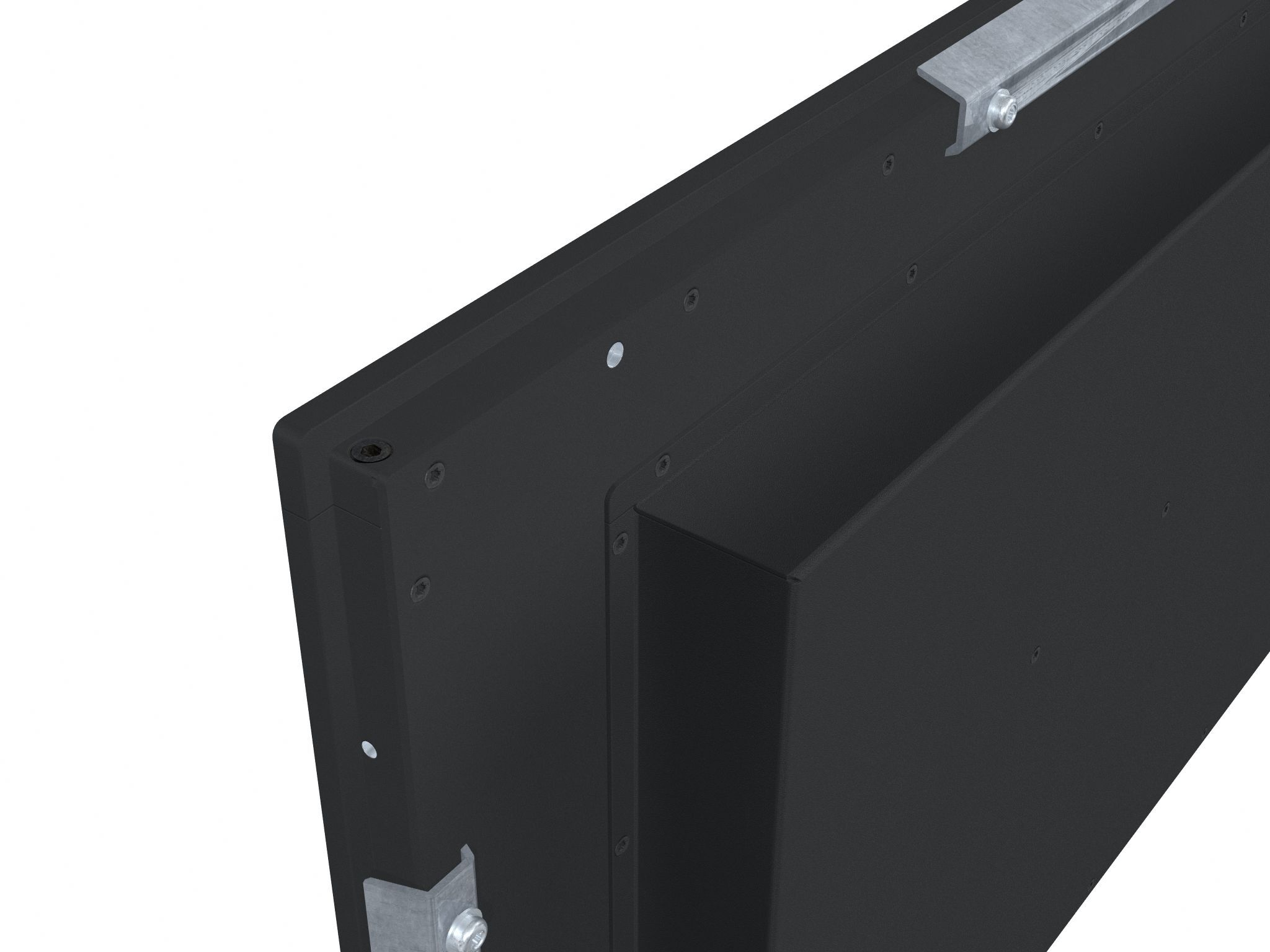

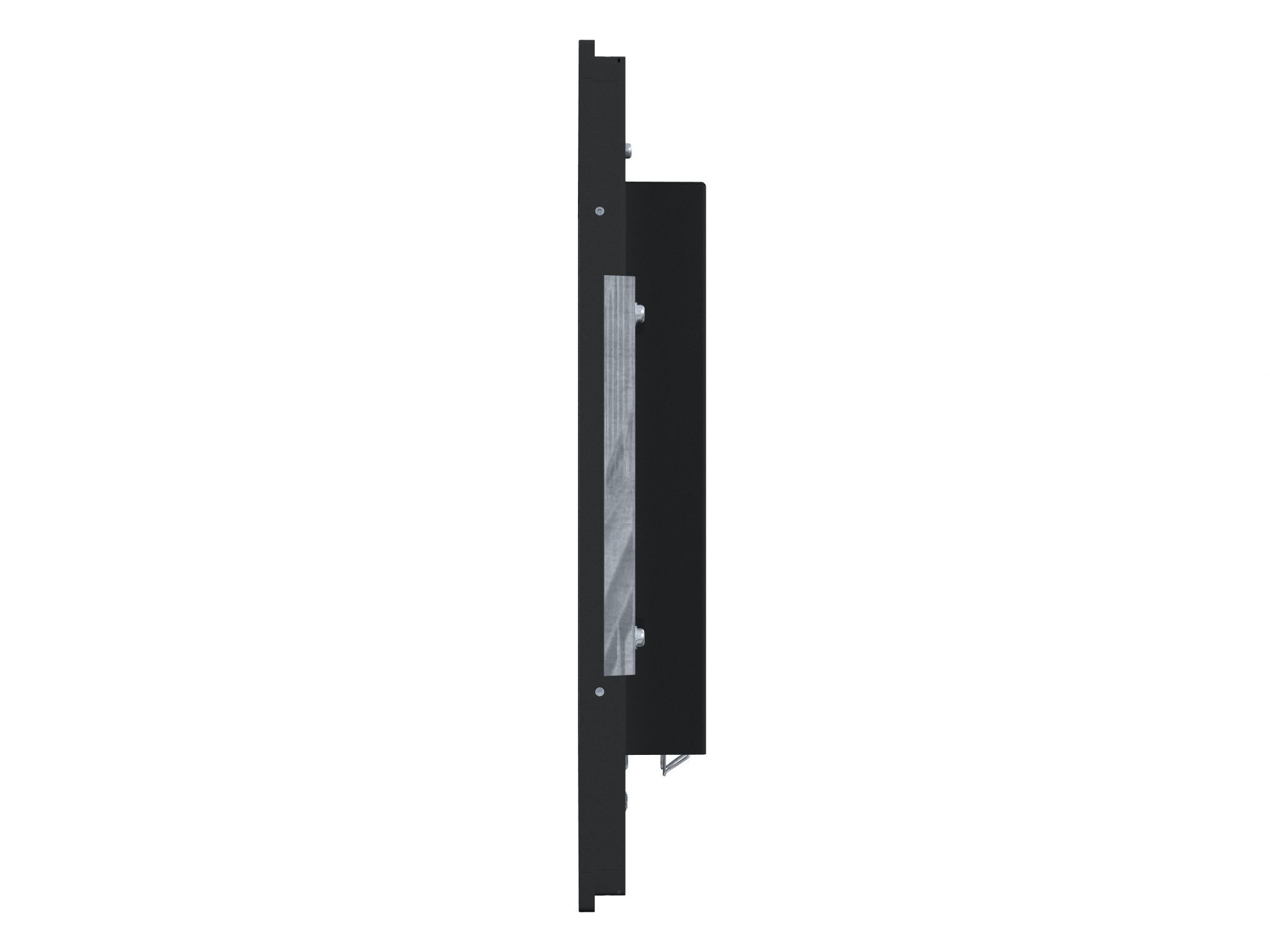

Accessories: • HD CMB SX2-E1: 1 x Console Mount Kit. EN60945 Tested

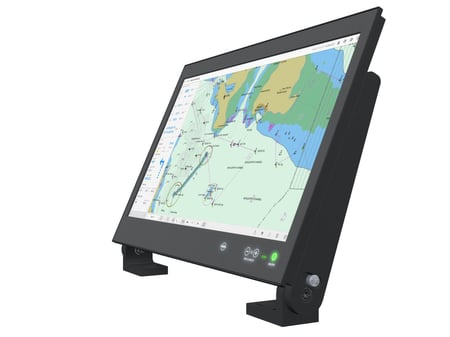

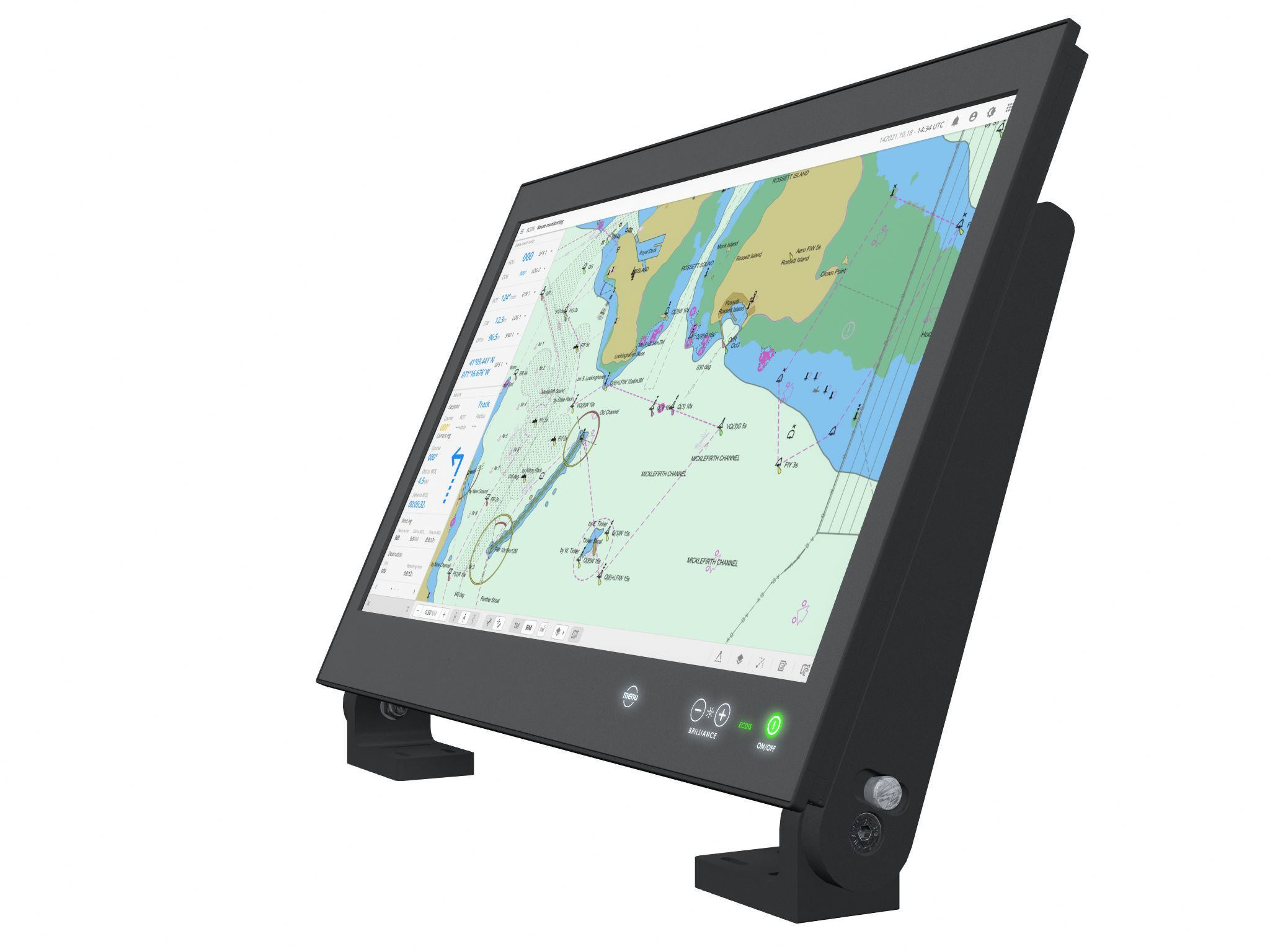

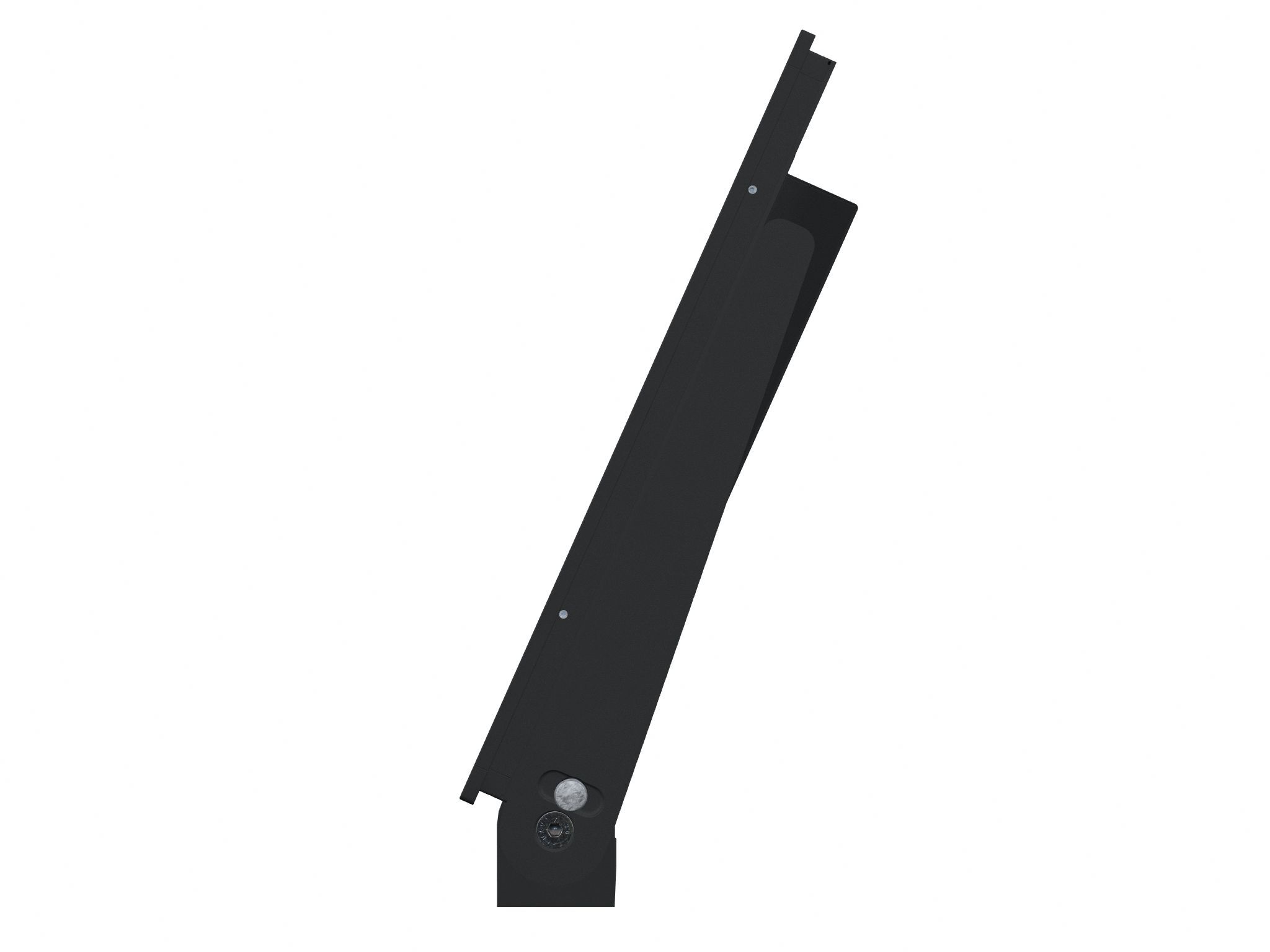

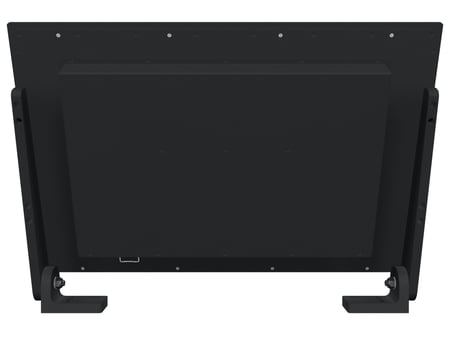

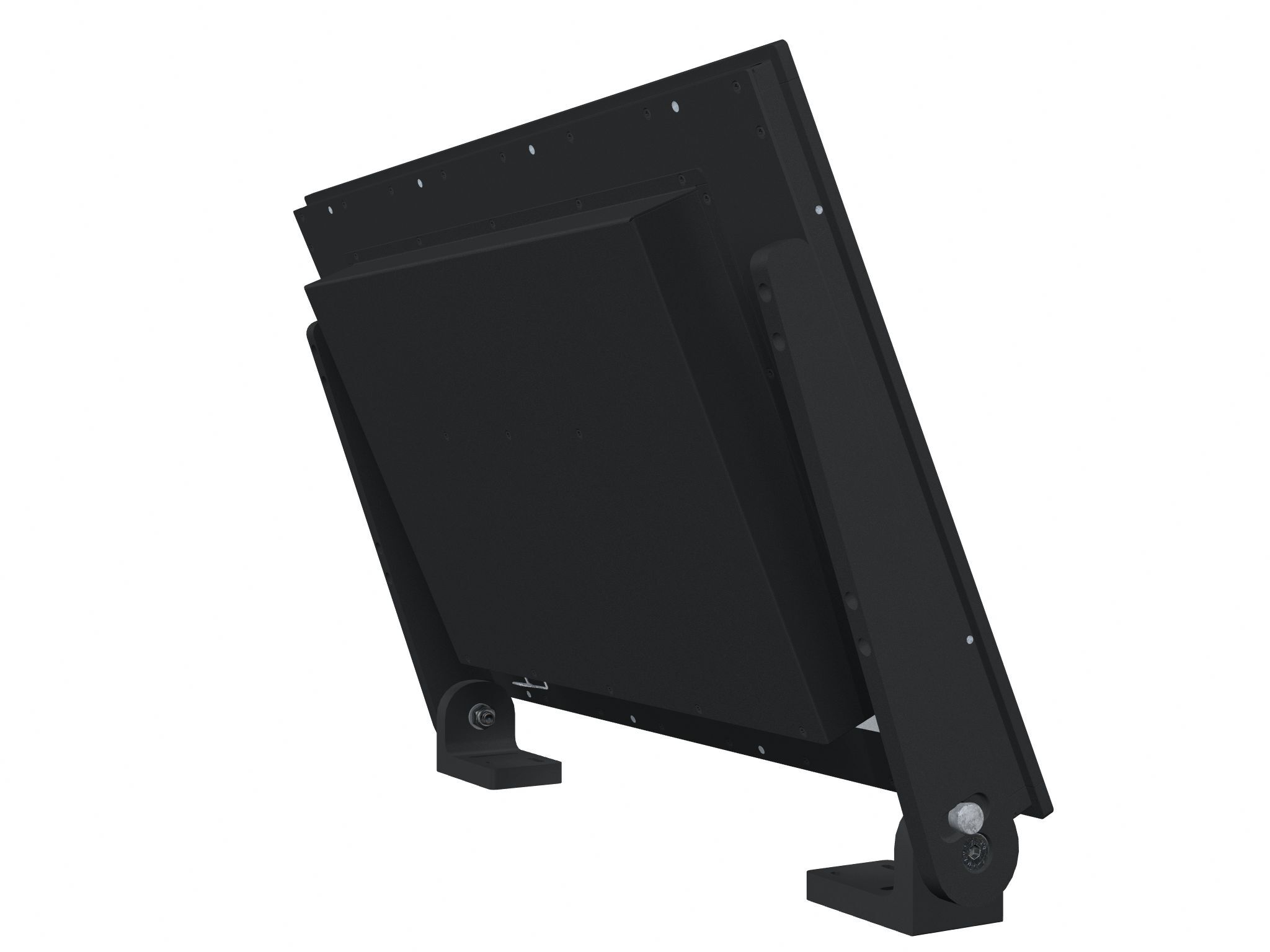

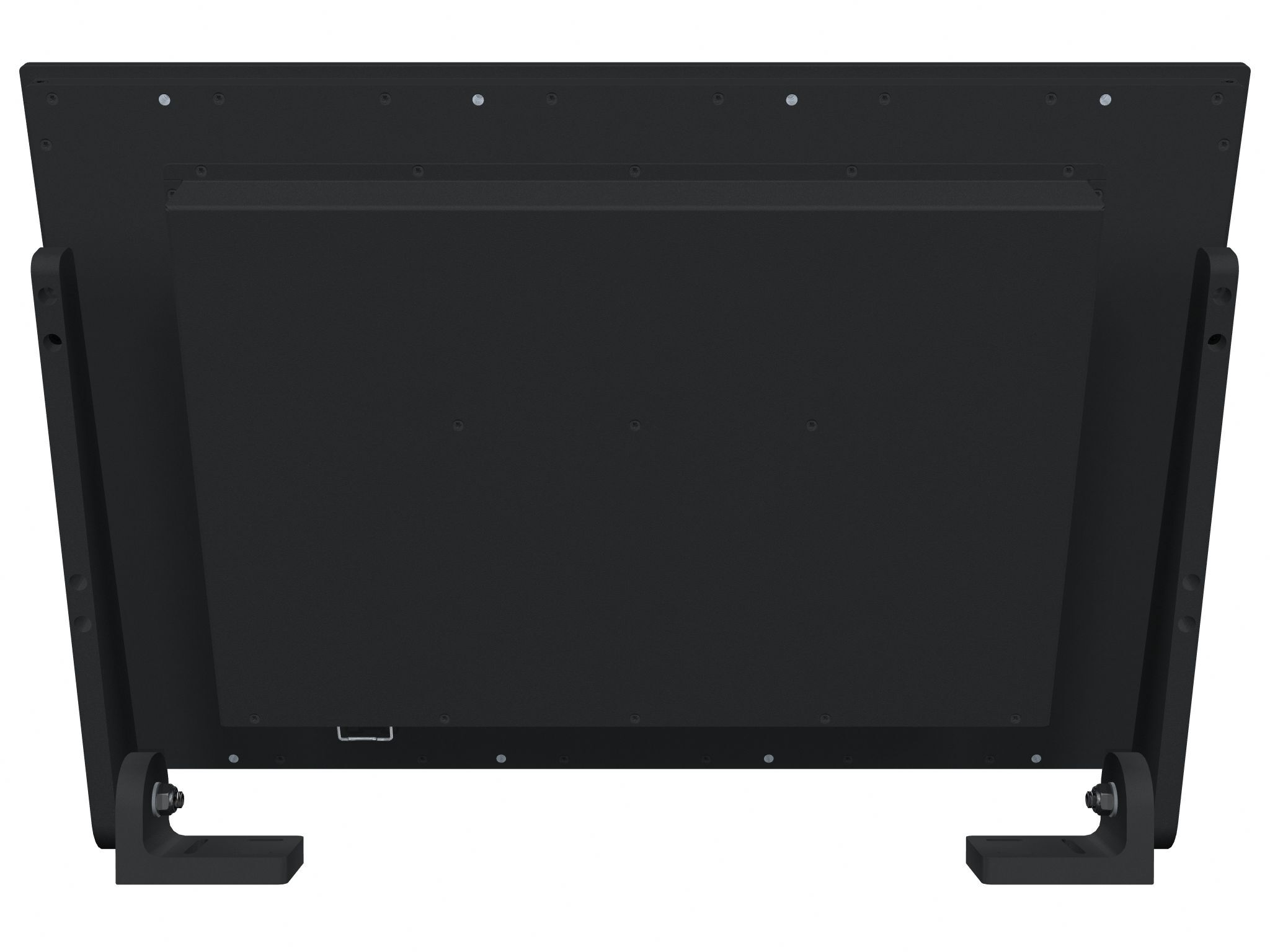

• HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested

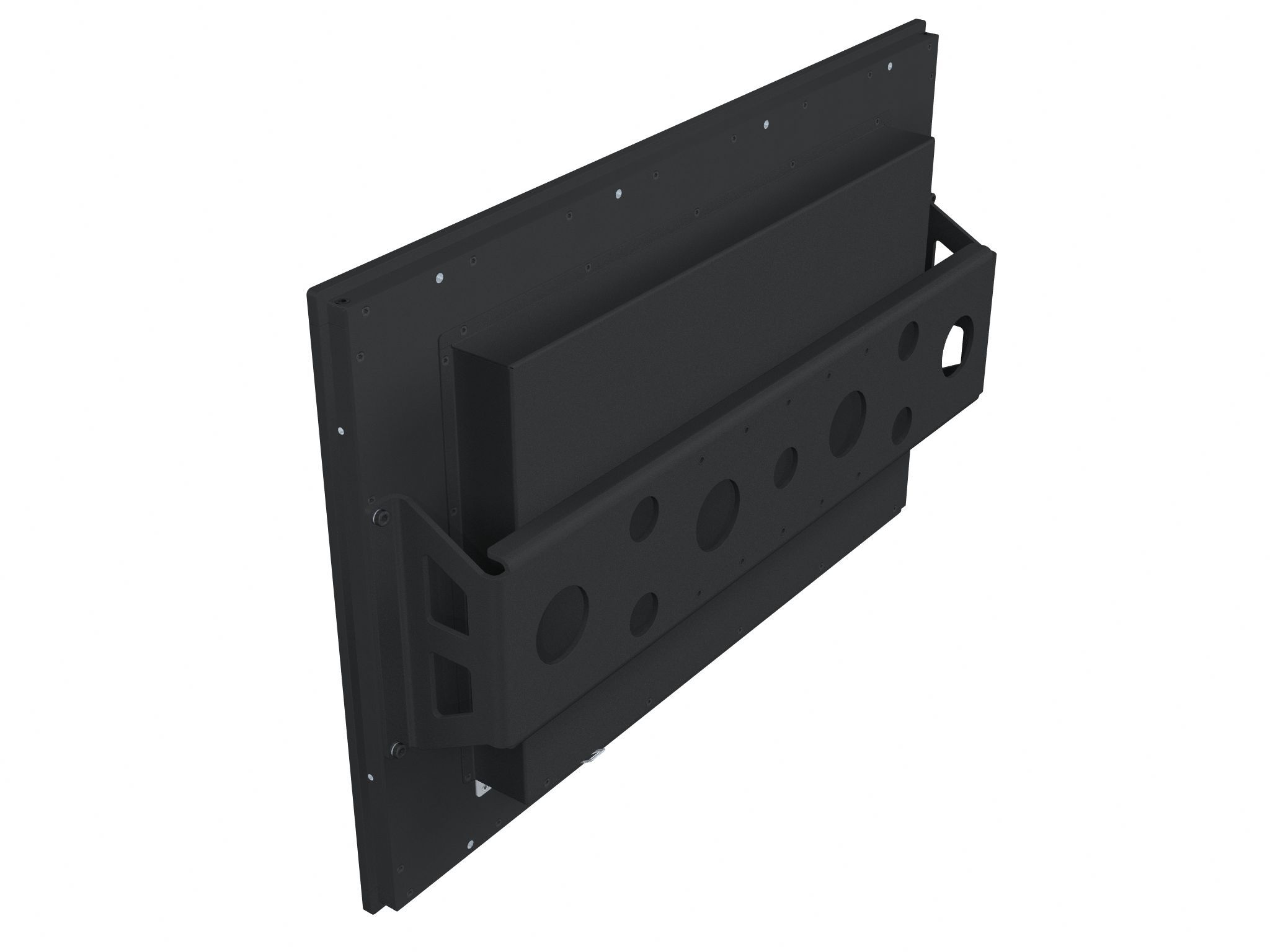

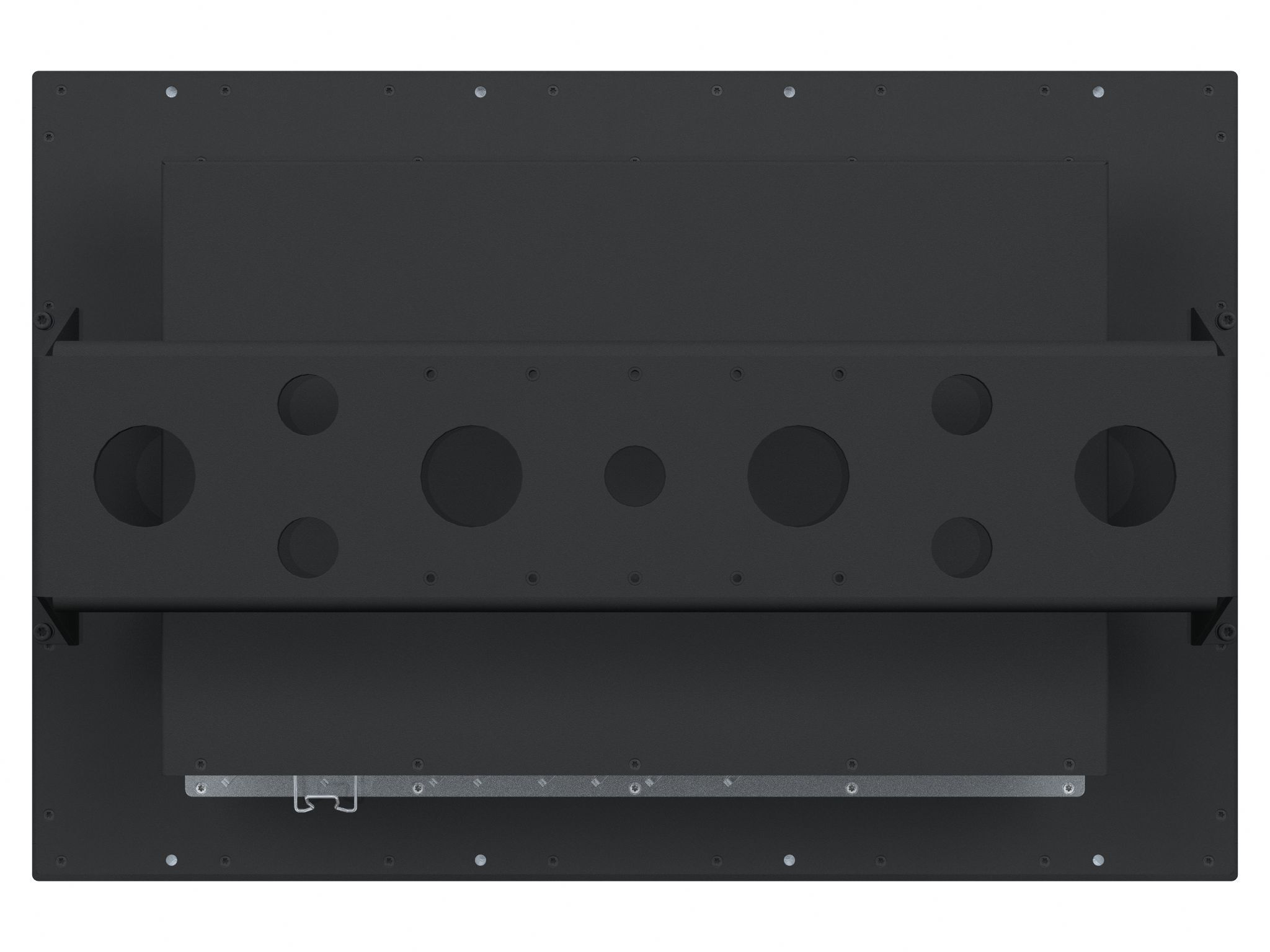

• HD VED SX2-K1: 1 x VESA Adapter (100/100&200/100mm) Not EN60945 Tested
• HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
• HD 27COV SX1-A1: 1 x UV Sun Cover

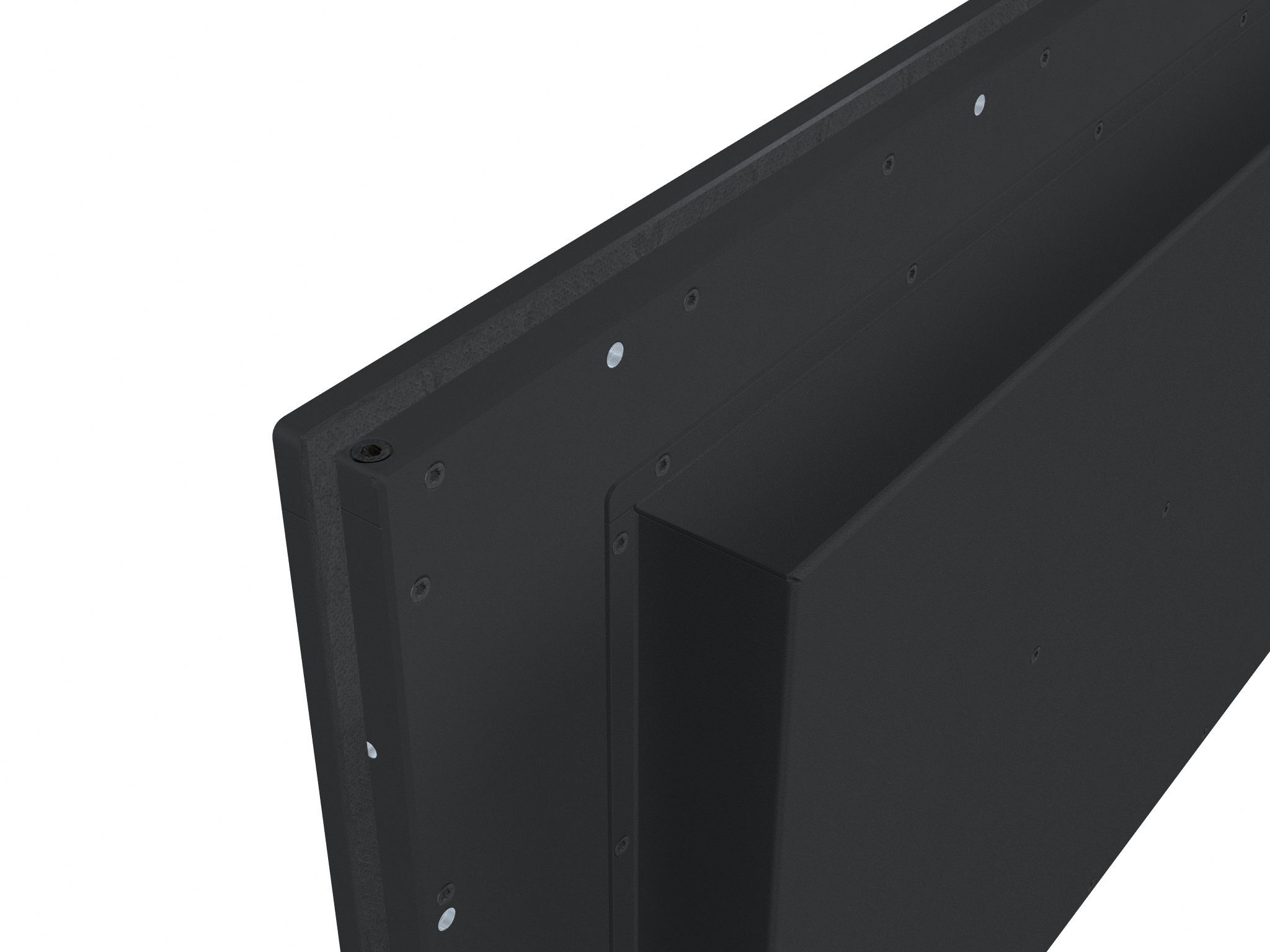

• P018743: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount
• HD CAK SX2-B1: 1 x Front Console Mounting/Adapter Kit
• HT DPUSB-2-USBC-A1: 1 x DP&USB2.0 (Male) to USB-C (Male) Adapter, 2m (not IP67)
• HT HDMIUSB-2-USBC-A1: 1 x HDMI&USB2.0 (Male) to USB-C (Male) Adapter, 2m (not IP67)
• HT DVI-2-HDMI-A1: 1 x DVI to HDMI Cable 2 meters
• HT DVI-2-HDMI-A2: 1 x DVI to HDMI Cable 5 meters
• HT DVI-2-HDMI-A3: 1 x DVI to HDMI adapter 0.2 meters
Capabilities - Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / +131.0°F, Humidity up to 95%
Storage Temperature: -30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance: Standard: 50.00 [19.69"] - Steering: 45.00 [17.72"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU RO MR - Mutual Recognition by DNV*, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society*, BV - Bureau Veritas, KR - Korean Register of Shipping*, ABS - American Bureau of Shipping
*=pending

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: May 8, 2025 @ 13:05
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
23 Apr 2025
Change/update of Conformal coating to Power Supplies

News Stories:
25 Mar 2024
Product released to website.

25 Mar 2024
Meet the T27

New product!
