HTB40K

Overview

Computer - Fanless - Short Depth Model - Ultra Compact

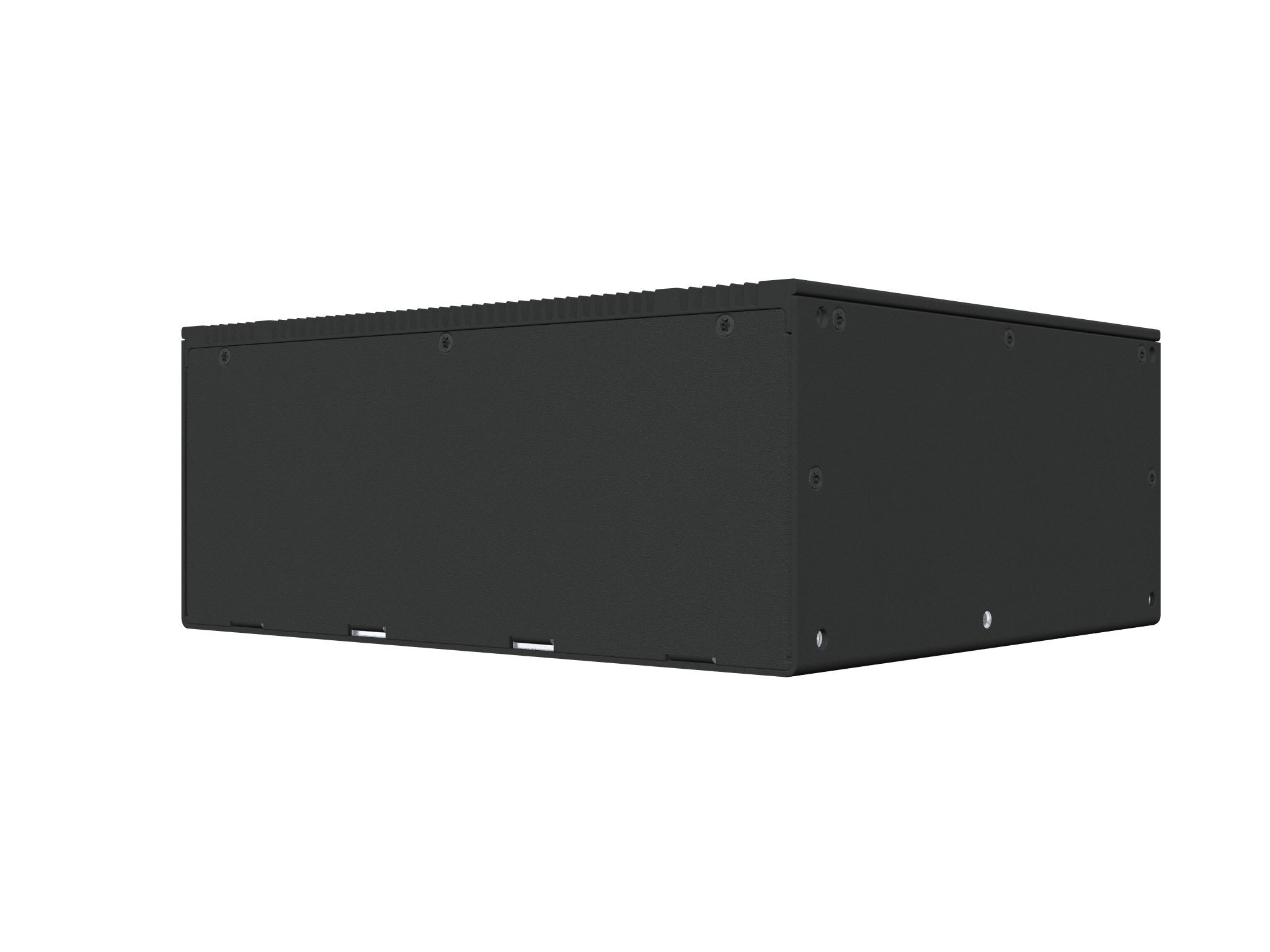

HTB40K

The HTB40 range is based on the latest Intel chipset and Alderlake processor platform, delivering even more power for maritime technology developers to design and build high-end vessel control and monitoring solutions that enable safer and more effecient maritime operations.

icon
Fanless
icon
Short Depth Model
icon
TPM 2.0
Send Request
Description

Computer - Ultra Compact

HTB40 computers are available in two new form factors, short depth and long depth, allowing for flexible installation options including 3U rack mounting in pairs. Using the same system architecture as our new, second generation Series X Panel Computers, the HTB40 range offers significant processing speed and graphical performance improvements, which when combined with multiple-drive solid state storage and silent, fanless operation, positioning it among the most advanced computing platforms for maritime applications.

HTB40 computers can be delivered with a choice of Intel® Core™ / Celeron® processors, up to i7. Graphical output is handled by 2 x Display Port 1.4a and 2x USB-C ALT mode. While standard interfaces include 4 x Ethernet Ports, 2 x USB-C, 6 x USB2.0 and 2 x USB3.2. The HTB40 platform also supports a wide range of interface modules such as CAN/NMEA COM/COM and DIO, ensuring it is ready off-the shelf for all maritime applications. In addition, HTB40 range of computers features a lightweight, fully enclosed aluminium chassis and comes with dual DC inputs.
Specifications
Installed Operating System Options: None or Standard OS/Customized image, review datasheet for list.
Storage Options: 1 x 2.5" SSD:
240GB (599TBW),480GB (945TBW),960GB (1750TBW), 1.9TB (8.8PBW).
Processor / CPU and FSB Speed Options: 1 x Intel® Core™ i7-1265UE (10 physical core / 12 thread), 3.5GHz / 4.7GHz @15W
or Intel® Core™ i5-1245UE (10 physical core / 12 thread), 3.3GHz / 4.4GHz @15W
or Intel® Core™ i3-1215UE (6 physical core / 8 thread), 3.3GHz / 4.4GHz @15W
or Intel® Core™ Celeron 7305E (5 physical core / 5 thread), 1.0 GHz @15W
Memory Options: 2 x SO-DIMM SLOT DDR5-4800, Dual Channel, Max 2x32GB
2 x 8GB (Standard), 2 x 16GB, 2 x 32GB (Max).
1 x 8 GB RAM (Intel Iris Graphics requires 2 x GBRAM).
System+Graphics Chipset / Connectors: System: Integrated in 12th Generation Intel® Core™ U-series processor
Graphics: Intel® Iris® Xe Graphics eligible (For i7,i5)
Graphics: Intel® UHD Graphics for 12th Gen Intel® (For i3, Celeron)
Supports: OpenGL 4.6, DirectX 12.1, OpenCL 3.0
Connectors: 2 x DP++ 1.4a + 2 x USB-C
4 independent displays (valid combinations: ref Intel datasheet)
Max Resolution / Max Hz: DP = 7680 x 4320 @ 60Hz Max
BIOS: ACPI support
PCI Slots / PCIe Slots: None
Media Drive(s): None
LPT / Parallel Port: None
Serial Port(s): None or Options:
1 or 2 x RS-232 COM Serial Ports DB9M, isolated
1 or 2 x RS-422/485 NMEA Isolated (PCA100293-1, 5-pin T. Block 3.81)
Ethernet Port(s): Ethernet #1: 1 x 10/100/1000Mbps, Realtek RTL8119I Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #2: 1 x 10/100/1000Mbps, Realtek 8119I Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #3: 1 x 10/100/1000Mbps, Intel® i226IT Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #4: 1 x 10/100/1000Mbps, Intel® i219V LAN, 1 x RJ-45, Teaming
USB Port(s): 6 x USB2.0 Type A (<5m) + 2 x USB3.2 Type A (<3m)
For signal output: 2 x USB-C
Keyboard and Mouse Ports: None
Audio Ports: None or via Factory Option 1 x VSD203134-1 (2W Amplified Audio out via DB9F)
Buzzer: None
Power Manager and Monitoring: ACPI S3/S4

PM2.0, Firmware Raid, Temperatures, voltages, Battery load status Alarm, cooling fan status*. Auto throttling control if CPU overheats
RTC: > 0.5s/day* (requires calibration)
Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
Battery: Normal operational conditions: life time >5 year, worst case
conditions(@70C, 24/7): life time >2 year
Power Specifications and Consumption: Dual DC Input 24VDC, 24V nom, Galvanic isolated, automatic switch between power source 2 x 2-pin Terminal Block 5.08

Power Consumption* - Operating: 52W TBD (typ)* - 75W (max)

at 25% load. Max Allowed External USB load = 10W.
Digital I/O Connectors: None or options:
PCA100297-1 (4 x Digital Input/Output isolated) module
HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module
Key Features: Short Depth Model, HDD-Free Solution possible with SSD, Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, Dual DC Power, Compact Form Factor, Includes Mounting Bracket, Flexibility of storage and support wide range of integrated interface modules, Firmware Raid
Product Dimensions and Weight: W:220.00 [8.66"] x H:88.90 [3.50"] x D:192.00 [7.56"] mm [inch]
2.5kg / 5.5lbs
Product Carton Size and Weight: L:405.00 [15.94"] x W:184.00 [7.24"] x H:373.00 [14.69"] mm [inch]
4.0 kg / 8.8lbs
User Controls / Activity: Power (or Reset=optional model) Button, Power LED, Activity LED SSD

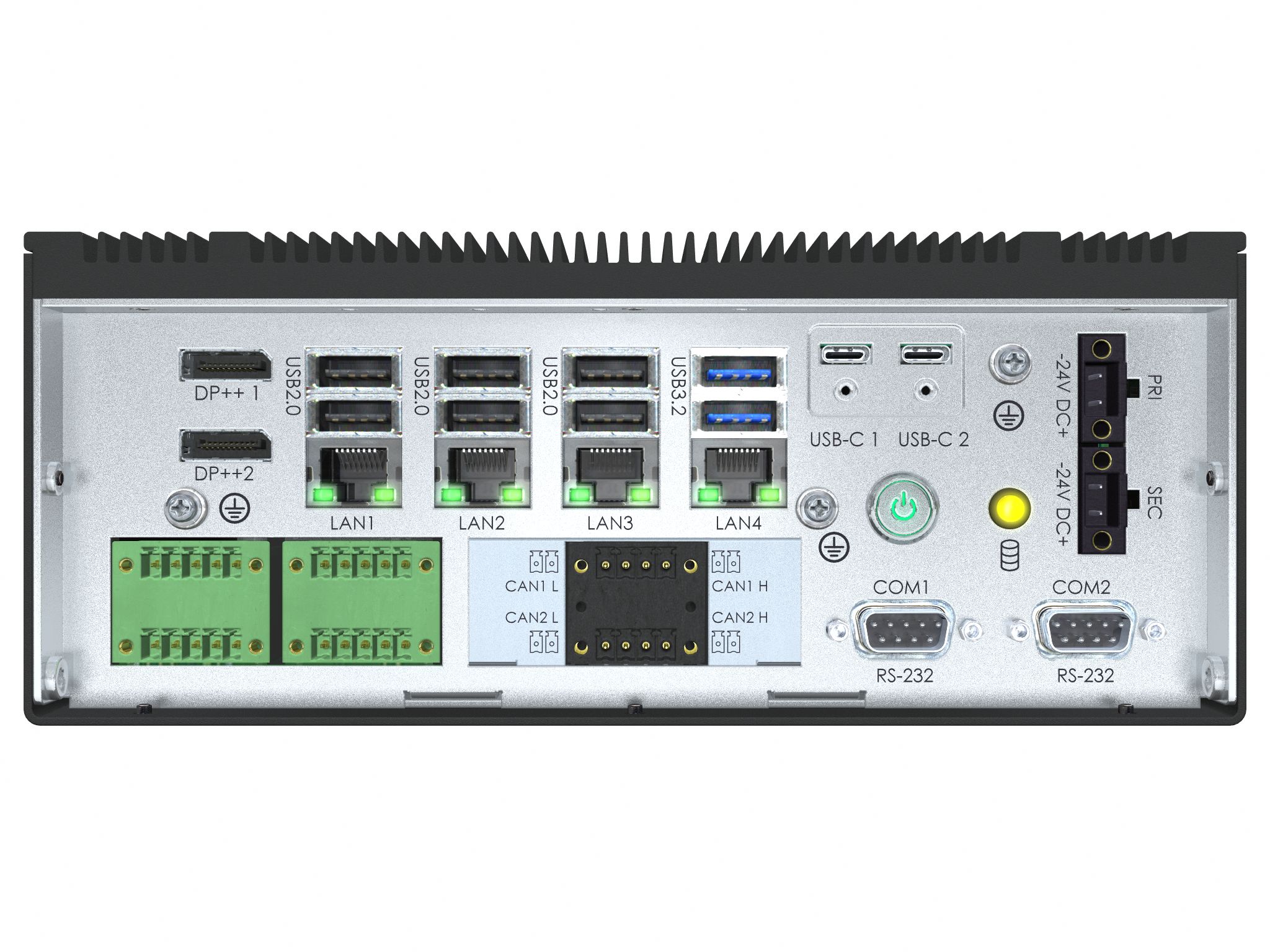

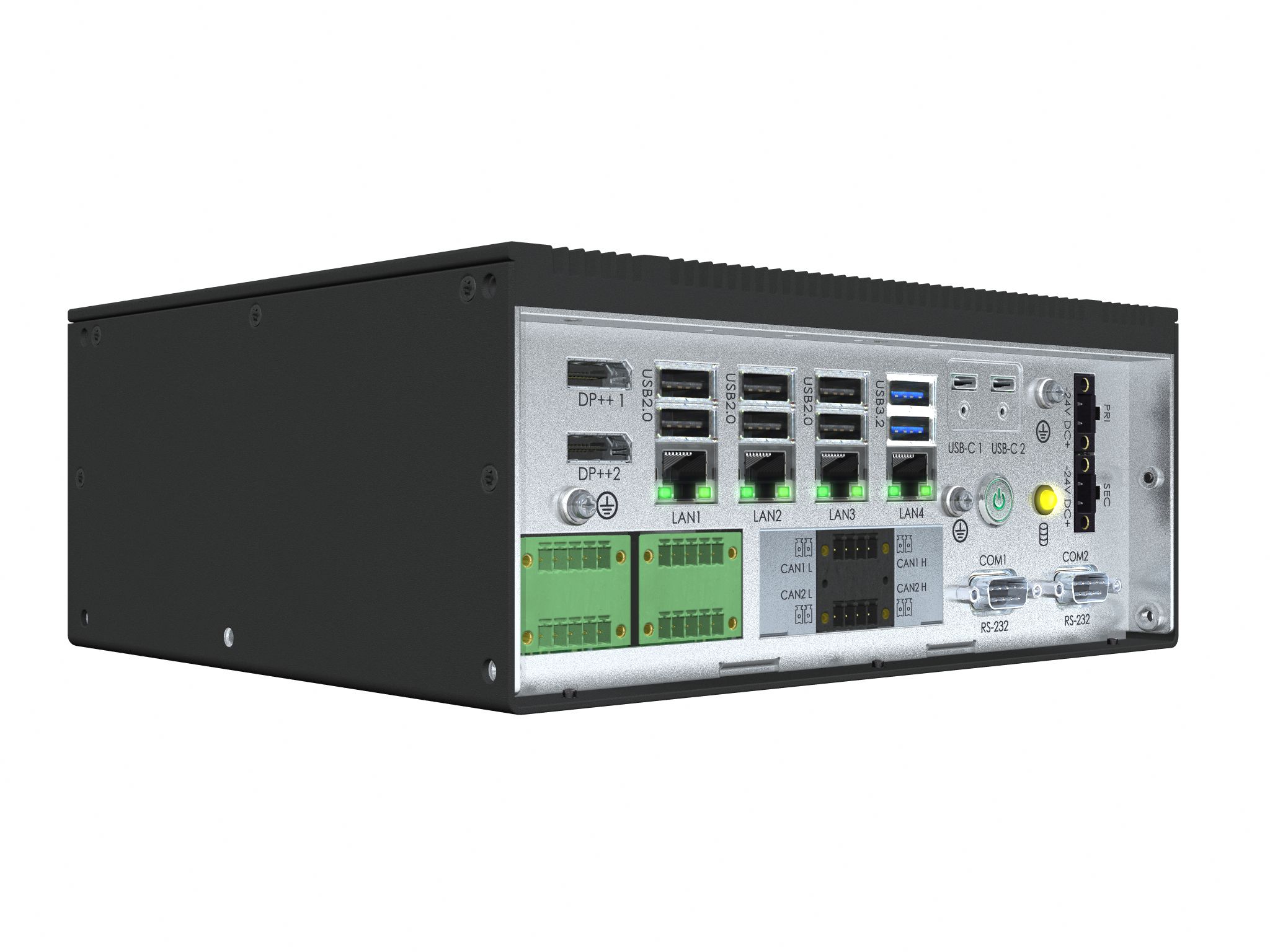

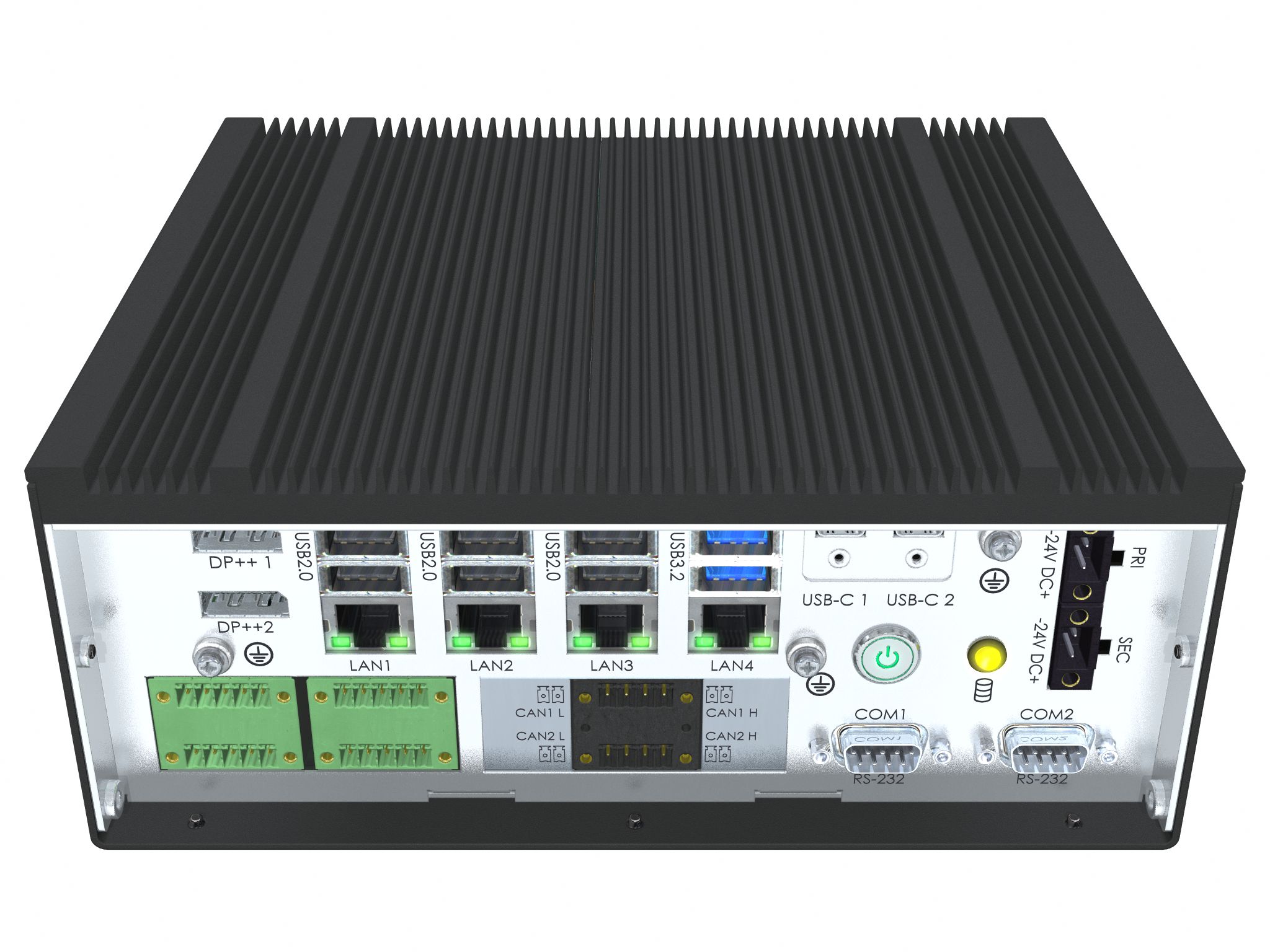

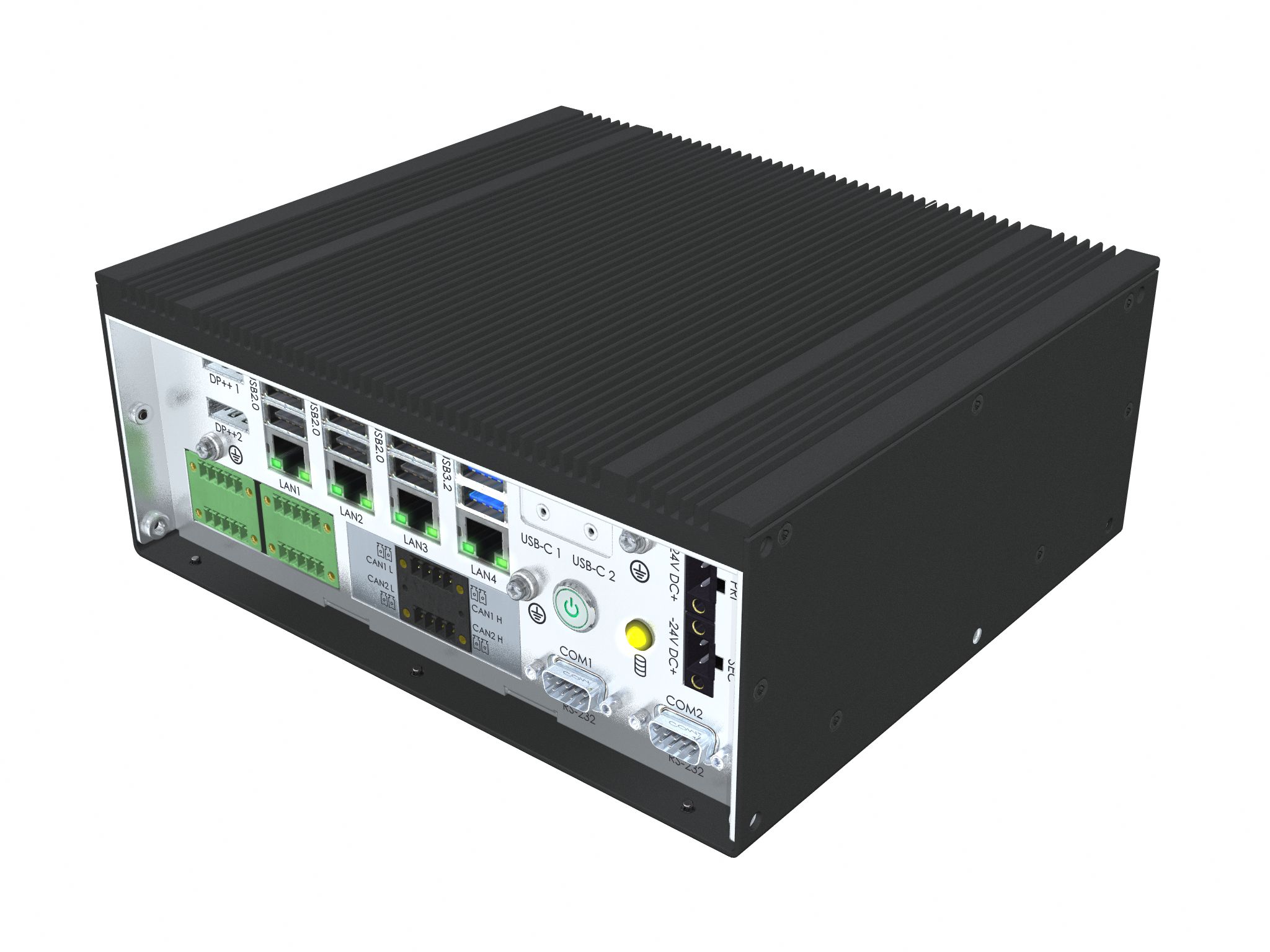

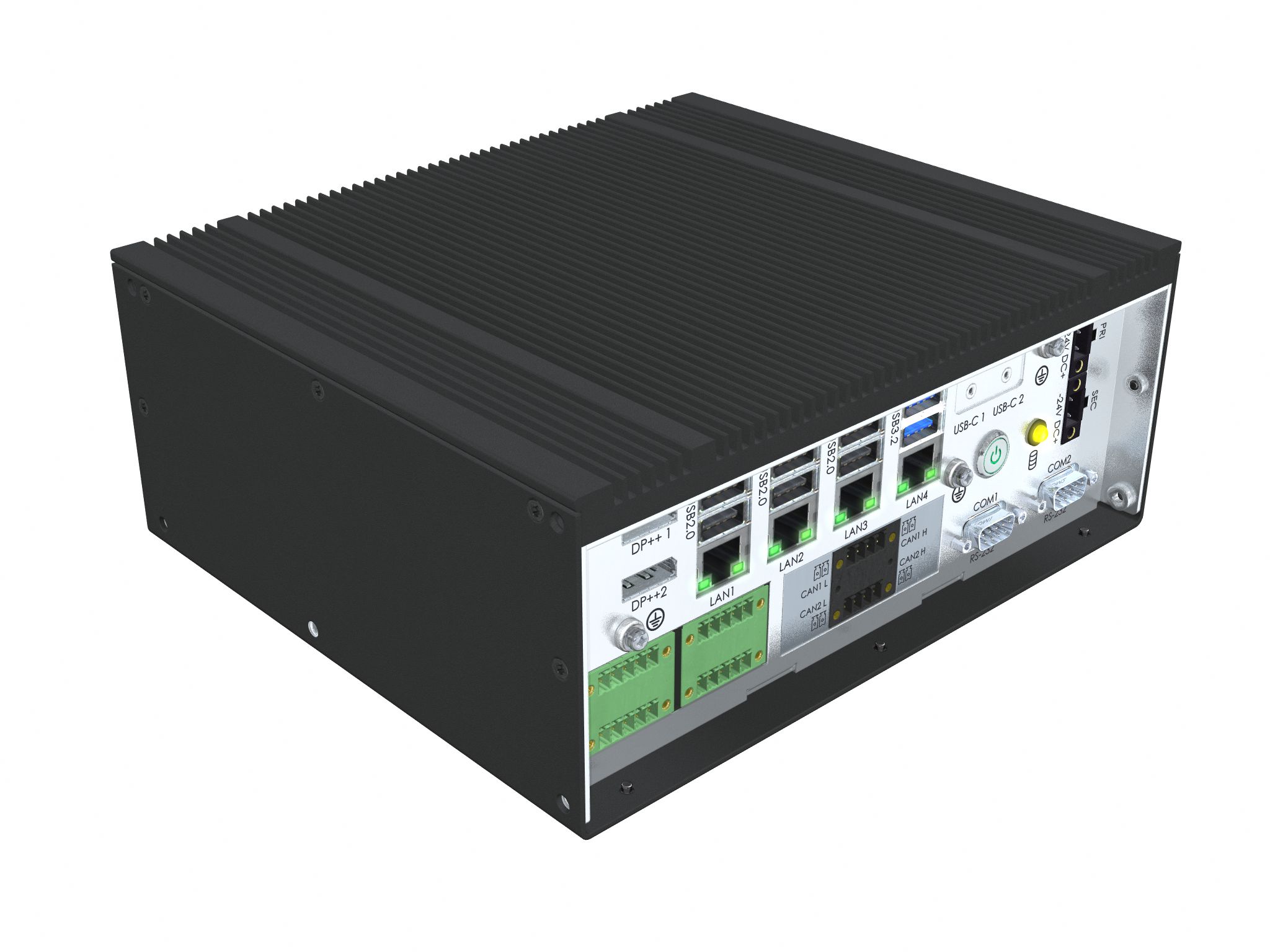

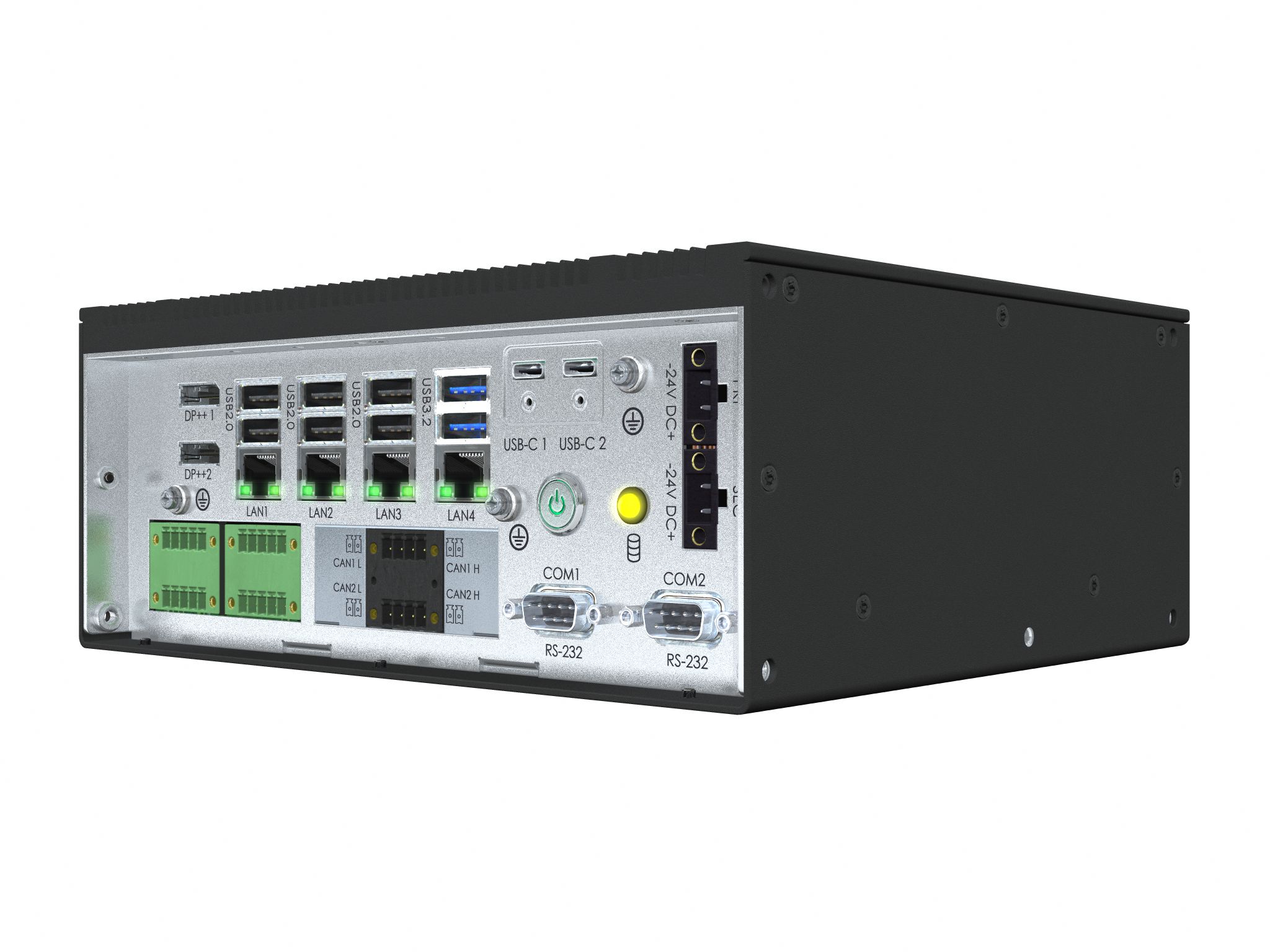

Factory Options: • 1 or 2 x PCA200828-1 (4 x COM RS-422/485 isolated NMEA 4 channel) module*
• 1 x HTA2020002-AD1033: CAN isolated, 2 channel module*
• 1 x HTA2020002-SLCAN: Socket CAN isolated, 2 channel module*
• 1 x PCA100297-1: (4 x Digital Input/Output isolated) module*
• 1 x PCA100298-1: (LAN 10/100Mbps, 2 ports (RJ45) module*
• 1 x VSD203134-1: (2W Amplified Audio out via DB9F)* - Pending EN60945
• 1, 2 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module*
• 1 x PCBAA21001: LAN 1Gbps, 2 x SFP module*
• 1 x PCA200827-1: 2 x RJ-45, PoE 12V 5,5A receiver module*
• 1 x PCA200898-1: NMEA Kit (4xRS422/RS485 isolated) SW Configurable Pending
• 1 x HT EPB STD-A5: Remote-ON/OFF KIT
• Recessed Power Button Option
• Recessed Reset Button Option
• Reset Button Option
• Variations of Storage Devices, RAM Memory and Operating System
* Contact us for possible combinations. Review separate datasheet for more info.
Accessories: • HT 00262 OPT-A1/B1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00263 OPT-A1/B1: 4 x RS-232 COM non-isolated, USB ext. module
• HT 00264 OPT-A1/B1: 1 x CAN isolated, 2 channel, USB ext. module [1]
• HT 00264 OPT-A2/B2: 1 x SLCAN isolated, 2 channel, USB ext. module [1]
• HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module
• HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
• HT 00277 OPT-B1: 2 x LAN 1Gbps, SFP, USB ext. module
• HT MBK STD-A2: 1 x Mounting Bracket Kit**
• HT RET STD-A1: 1 x Cable Retainer/Relief Kit**
• HT RMK STD-A1: 1 x 2U Rack Mount Kit RAL9011
• HT RMK STD-H1: 1 x 2U Rack Mount Kit w/Handles, RAL9011
• HT SRK STD-A2: 1 x 3U 19" Slide Rack Mount Kit (For 1 or 2 x HTB40)
• SF-41-20: 2 x 20" ball bearing sliding rail kit for 19" Rack*
• SF-41-26: 2 x 26" ball bearing sliding rail kit for 19" Rack*
• JH C01MF A-A: 1 x USB Cable 1m, Type A to Chassis mount receptacle
• HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os
• HT DPM2DVI-DF-A1: 1 x DP to DVI adapter
• SFP-1000Base-TX-C: SFP to 10/100/1000Base-T Copper Interface
• VSD203400-1: External Power Button Cable 2m
• VSD203400-2: External Power Button Cable 5m
• VSD203733-1: External Power Button Cable 4.6m (no power button included)
* Must be combined with HT SRK STD-A2
** Included with delivery
Capabilities / Prepared for: See factory options
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 30.00 [11.81"] - Steering: 10.00 [3.94"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002)*, IACS E10*, EN55024*, EN55022 Class A*, EU-RO-MR - Mutual Recognition*, CCS - China Classification Society*, ClassNK - Nippon Kaiji Kyokai*, ABS - American Bureau of Shipping*, BV - Bureau Veritas*

* = pending

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Specifications last updated: April 8, 2025 @ 07:50
