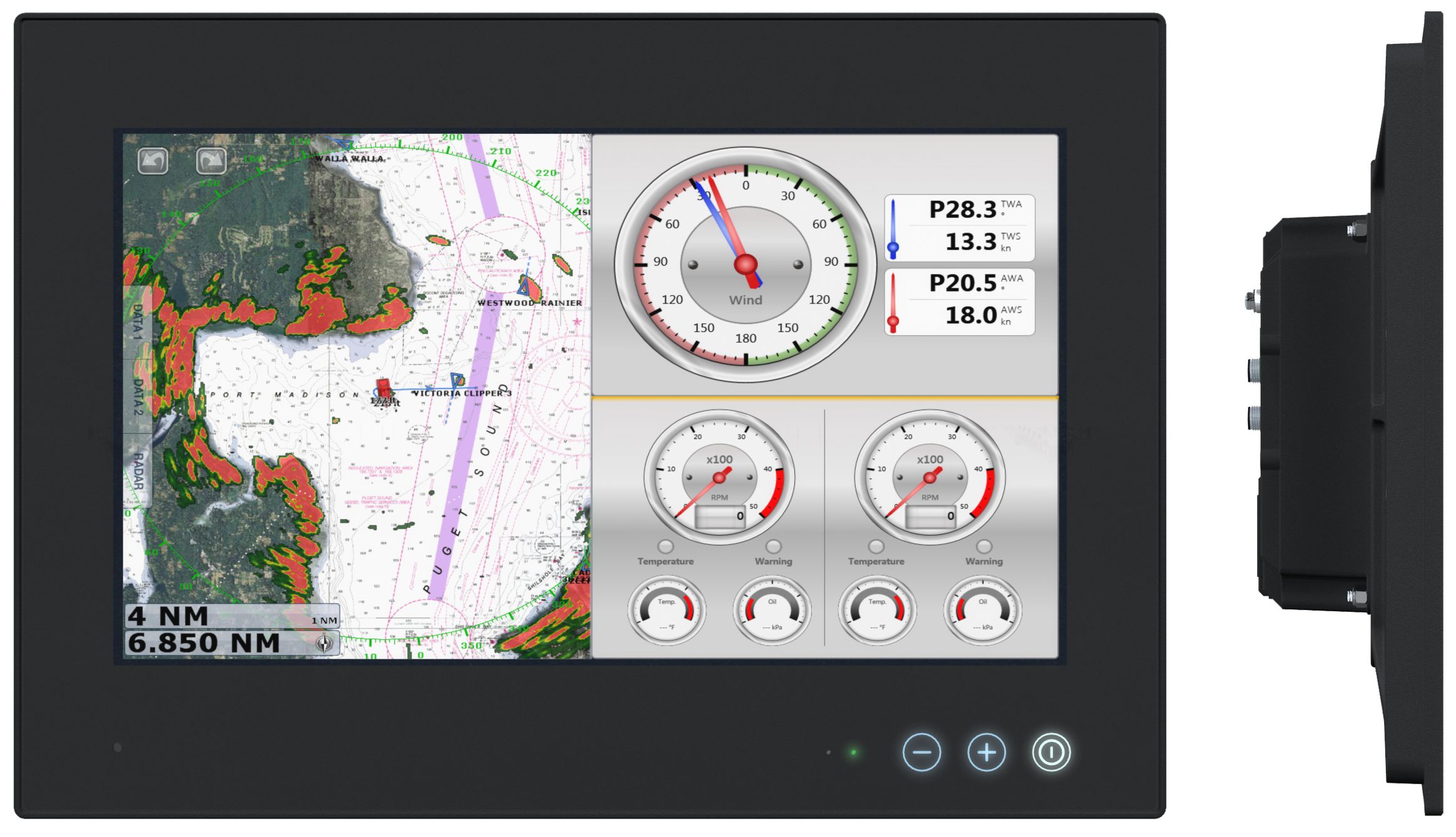

Panel Computer - Widescreen - LED - HATTELAND® Series X G2 - 13.3 inch - With HD IO-Board

HD 13T30 MMC-IO

Series X Small Panel Computers offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. The products offer a range of feature sets optimized for varying requirements and applications. Suitable for applications such as engine control systems, automation systems and more.

Widescreen

LED-backlit

TPM 2.0

Send Request

Description

Specifications

TFT Technology:	LED Backlight Technology, a-si TFT Active Matrix, Widescreen
Viewable Size and Active Area:	13.3 inch - 293.76 [11.57"] (H) x 165.24 [6.51"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.1529 (H) x 0.1529 (V) mm
Aspect Ratio and Response Time:	16:9 - 25ms (typ) (Tr+Tf)
Light Intensity and Contrast Ratio:	600 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 million (24bit)
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz
Detectable Resolutions:	N/A
Power Specifications and Consumption:	12-24VDC Nominal 30W (typ) - 50W (max)
Product Features:	MULTITOUCH (Projected Capacitive Technology), Compact Design, Solid State Fanless Construction, No Moving Parts, API Support, Embedded light sensor, Buzzer, SCOM, AG Coated Front Glass, USB Dust Covers (USBC-24), RJ45 Dust Covers (PJC-45), USB Cable, Support Bracket (HD KIT USB-A1), Console Mounting Bracket Kit, IP66 Mount Gasket (EPDM), for Flush/Console mount (P014441), model is 100% retrofit compatible with HD 13T21/22
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	1 x 32GB eMMC (Default), 128GB 1 x SSD m.2 SATA 240GB ->
CPU / Processor Options:	1 x Intel Atom® x5-E3930 Processor, 2M Cache, 1.30GHz / 1.80GHz
Memory Options:	1 x 2GB (DDR3L SO-DIMM, Single Channel) or 1 x 4GB, 8GB (DDR3L SO-DIMM, Dual Channel)
System Chipset / Graphics Chipset:	Intel® SOC / Intel® HD Graphics 500
BIOS / Buzzer:	AMI BIOS (supports ACPI)* / Buzzer according to EN60945 *Note: "Legacy Mode" option is not fully supported for System Chipset and Microsoft® Windows® 10.
Power Manager and Monitoring:	RTC (0.5s/day), Battery Alarm, TPM2.0, GPIO, WakeOnLan, Fast Boot, AT mode, USB Boot. WatchDog Timer: 256 segments, 0, 1, 2...255 sec/min)
User Controls and Activity:	Glass Display Control™ (GDC) IP66 with 3 x Configurable buttons, Status RGB LED, Buzzer (through glass), Light Sensor (behind glass)
Connectors:	• USB2.0 (<5m): 2 x USB Type A (4-pin) • USB3.0 (<3m): 2 x USB Type A (9-pin) • Ethernet GbLan: 2 x RJ45 • DC Power Input: 1 x 2-pin Terminal Block 5.08 • External Fan: 1 x 4-pin, 292254-4 connector (for optional fan) • CAN: 2 x 5-pin M12, NMEA2000, J1939, CANOpen Isolated • SCOM NMEA COM: 4 x RS422/RS485, NMEA183, Isolated • SCOM DIO: 1 x 5-pin T. Block 3.81, Isolated, Digital 2 x In + 2 x Out • COM: 1 x RS-232/RS-485/RS-422, DB9M, non-isolated
Product Dimensions and Weight:	W:355.00 [13.98"] x H:248.50 [9.78"] x D:78.30 [3.08"] mm [inch] 3.1kg / 6.8lbs
Product Carton Size and Weight:	L:445.00 [17.52"] x W:195.00 [7.68"] x H:355.00 [13.98"] mm [inch] 4.0kg / 8.8lbs
Factory Options:	• IP22 (EN60529) Model: HD 13T30 MMC 2xx-xxxPHx • Optical Bonding Technology • Variations of CPU, Storage, RAM/Memory and Operating System • ATEX C1D2 and UL certification
Accessories:	• HD CMB SX2-C1: 1 x Console Mount Kit. EN60945 Tested • HD TMB SX2-A3: 1 x Table/Ceiling Mount Bracket. Not EN60945 Tested • HD VED SX2-L2: 1 x VESA Adapter (75/75, 100/100). Not EN60945 Tested • HD FAN SX2-A1: 1 x 40x40cm. -20°C to +70°C. Max speed 7000 rpm +/- 15% • HD 13COV STD-A1: 1 x UV Sun Cover • P014441: 1 x IP66 Mount Gasket (EPDM), Flush/Console mount • JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module) • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module Please see user manual/datasheet/drawings for more information
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% -20.0°C / -4.0°F to 70.0°C / 158.0°F (HD FAN SX2-A1)
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 60.00 [23.62"] - Steering: 35.00 [13.78"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, BV - Bureau Veritas, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping Vibration: On engine 4grms Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 8, 2025 @ 12:39

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

10 Sep 2023
CAN FW Update

7 Aug 2023
Changes product marking - all products

23 Jun 2023
CAN FW Update

30 Jun 2022
SSD - Storage Devices, m.2 and 2.5''

23 Mar 2022
Series X HD 08T30 and HD 13T30 - Maritime Multi Compute...

2 Dec 2021
HD 13T30 MMC LCD module

19 Oct 2021
Series X MMD and MMC - Generation 2 - Chassis Update

21 Feb 2020
Improved boot sequence for 8, 13 inch (Series X) and 15...

3 Jan 2020
Microsoft® Windows® IoT update

10 May 2019
SSD - Storage Devices, m.2 and 2.5''

End of Life Notifications (EOL):

2 Sep 2019
Global Documentation and Driver DVD

News Stories:

8 Apr 2019
8 and 13 inch models added to website
