Computer - 3U Size - Server - Rackmount - 3U

HTS31x13-yyyyy-AC yyyyyyy

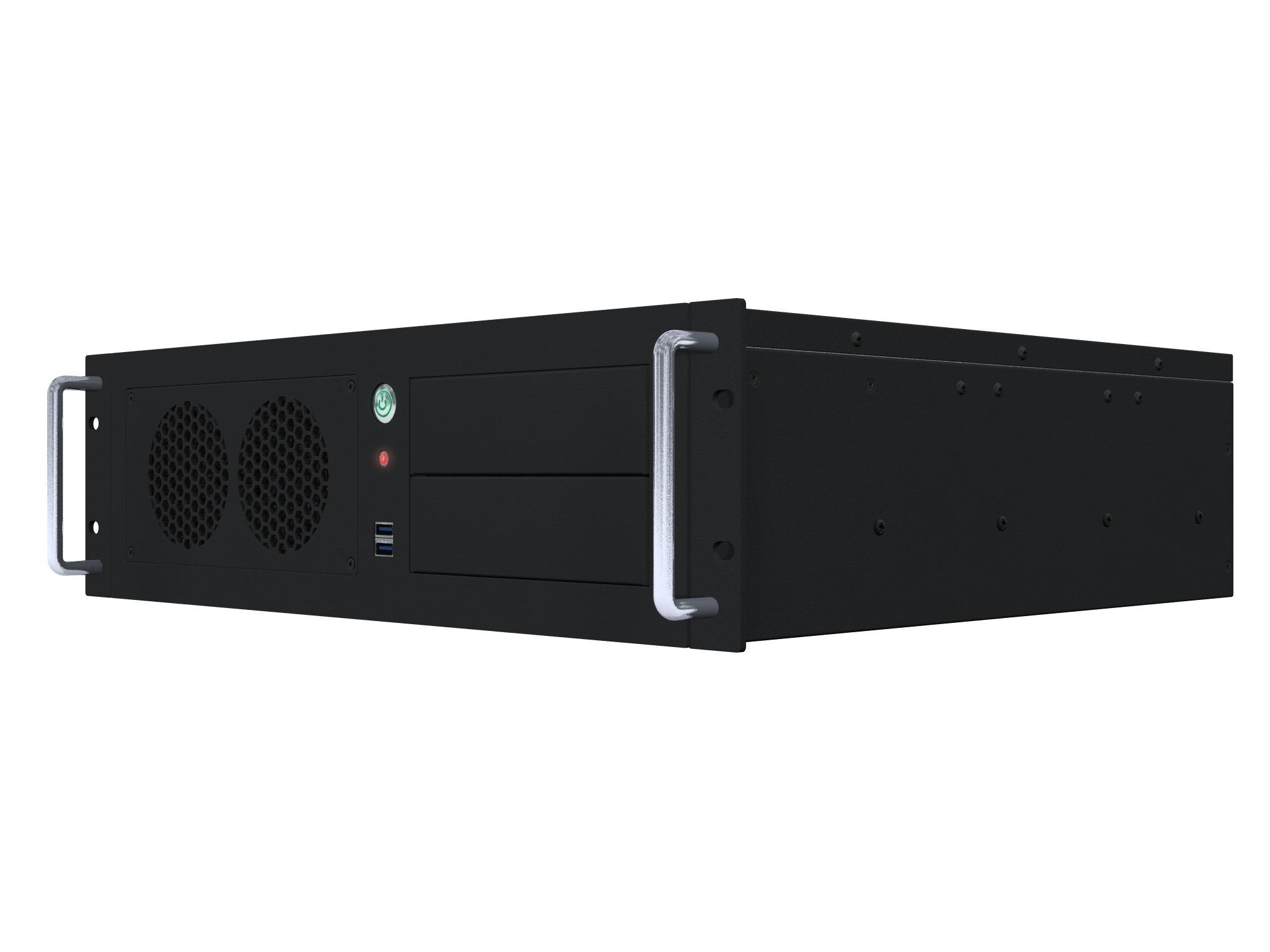

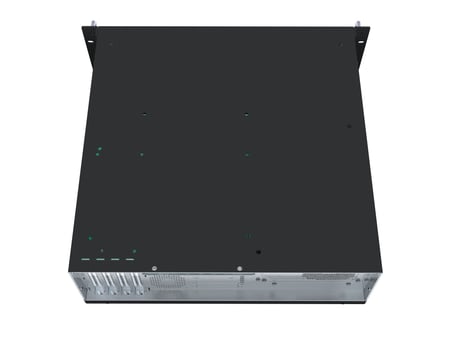

HTS31x13 is a robust 3U rackmount computer tailored for industrial and maritime environments. It delivers high-performance computing with a scalable processor, professional graphics, and versatile I/O, including USB, serial, 10GbE LAN, and PCIe Gen 5 expansion.

TPM 2.0

3U Size

Server

Send Request

Description

Specifications

Typenumber (Long):	HTS31x13-yyyyy-AC yyyyyyy
Installed Operating System Options:	None or Standard OS/Customized image, review datasheet for list.

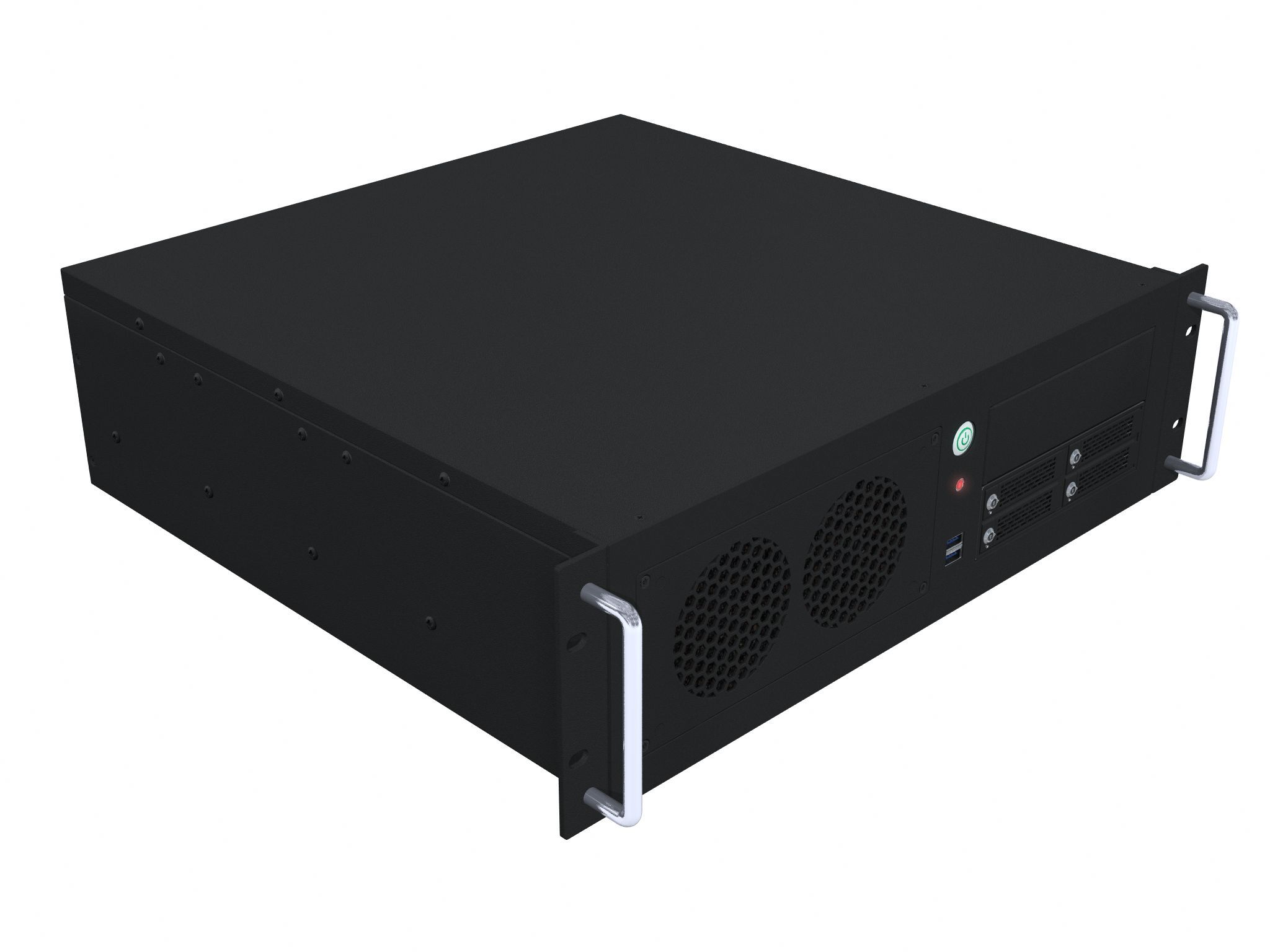

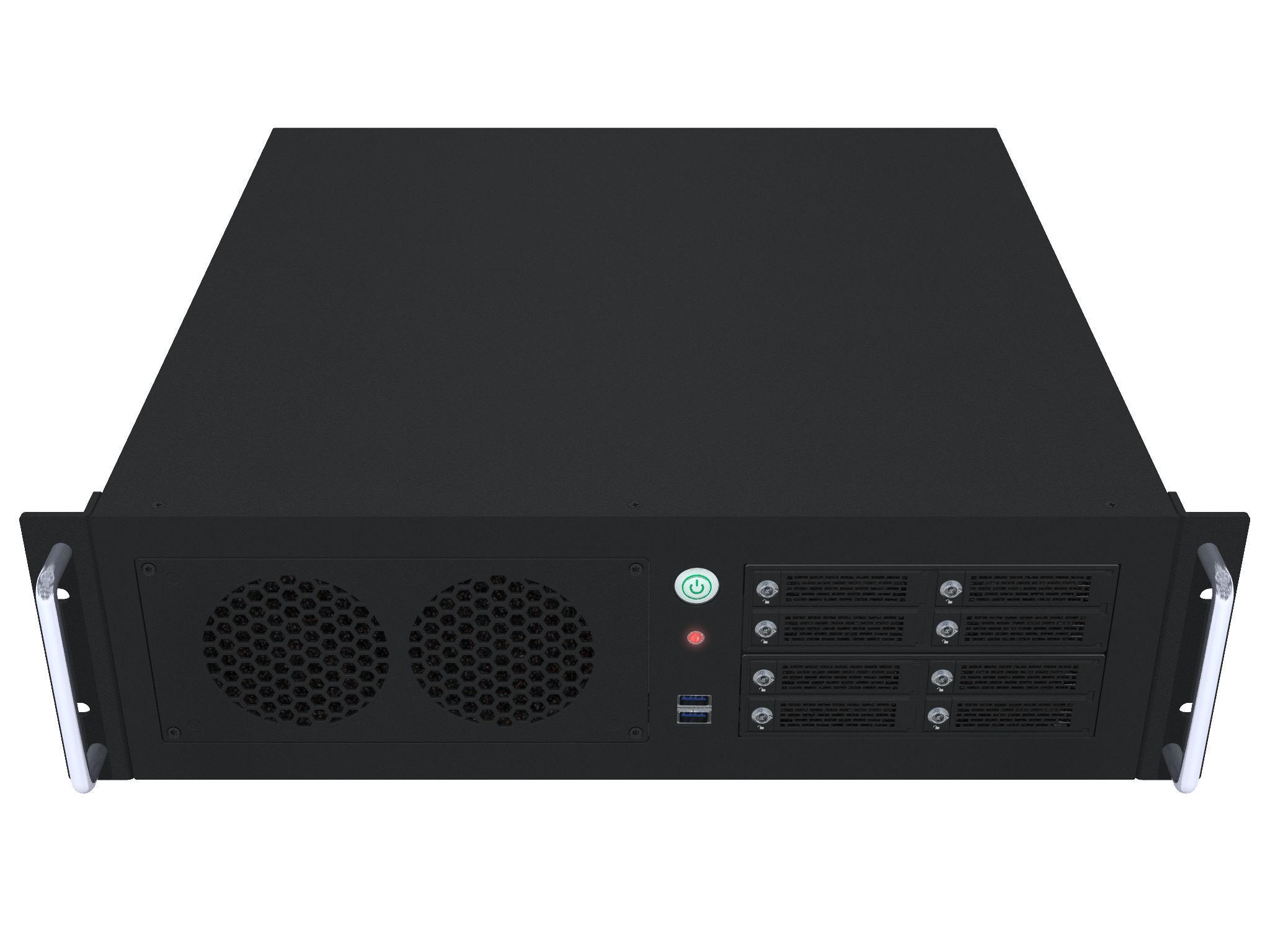

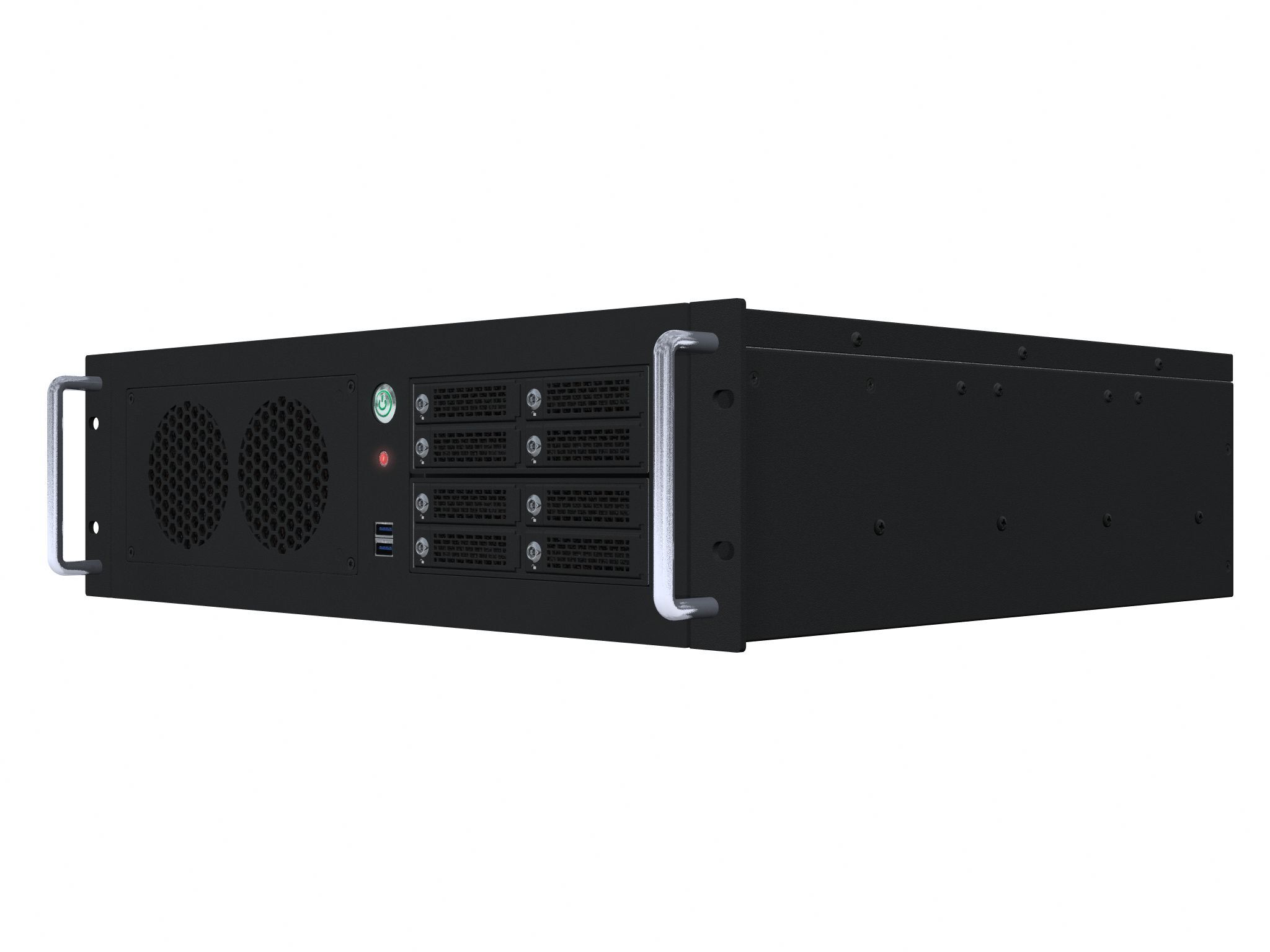

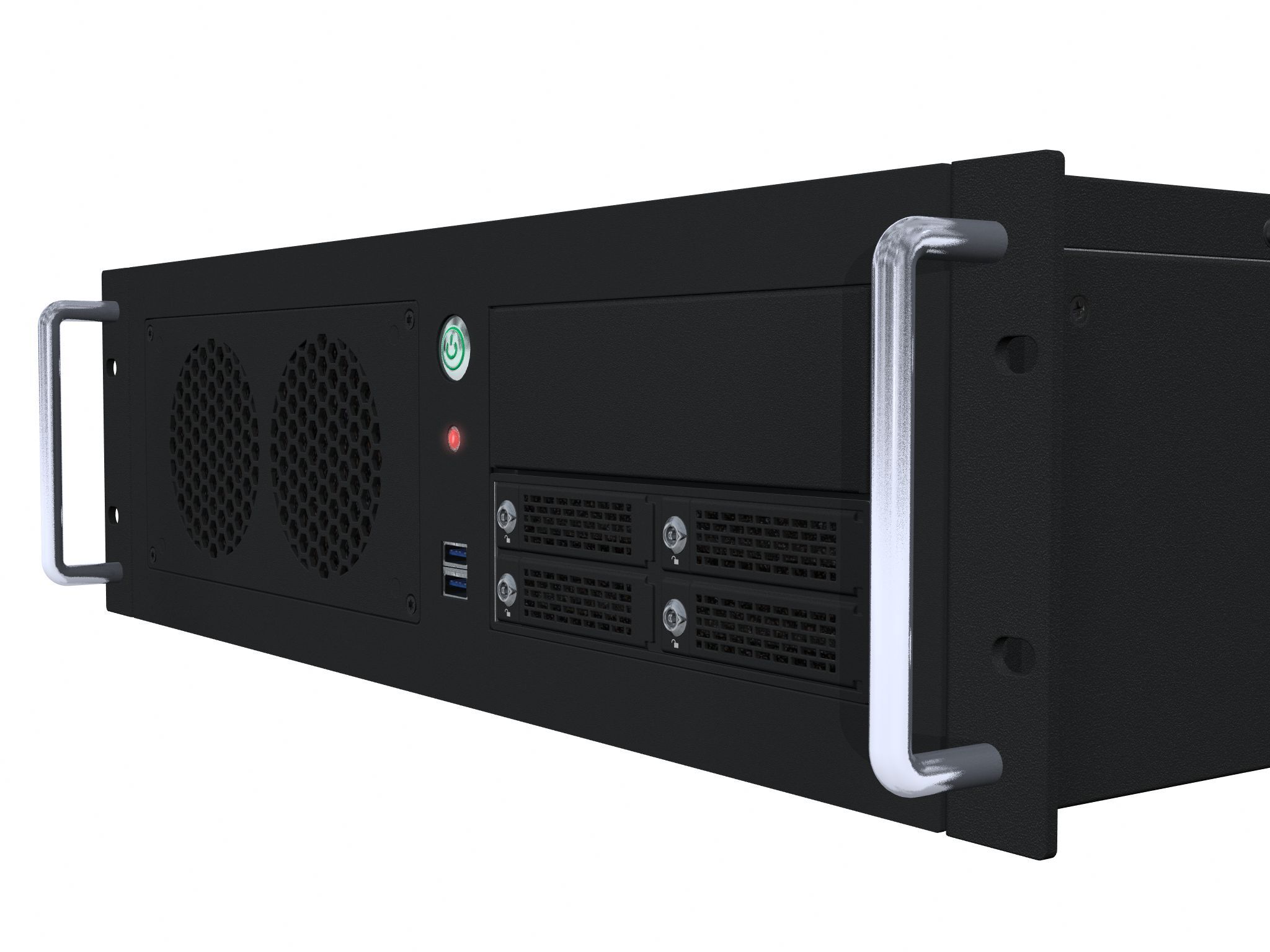

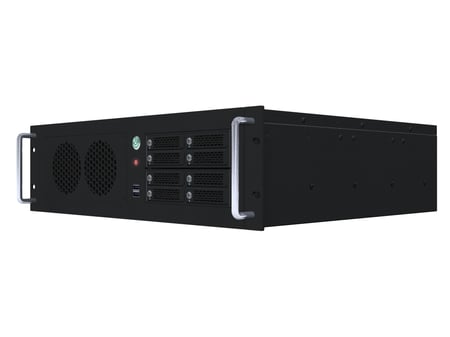

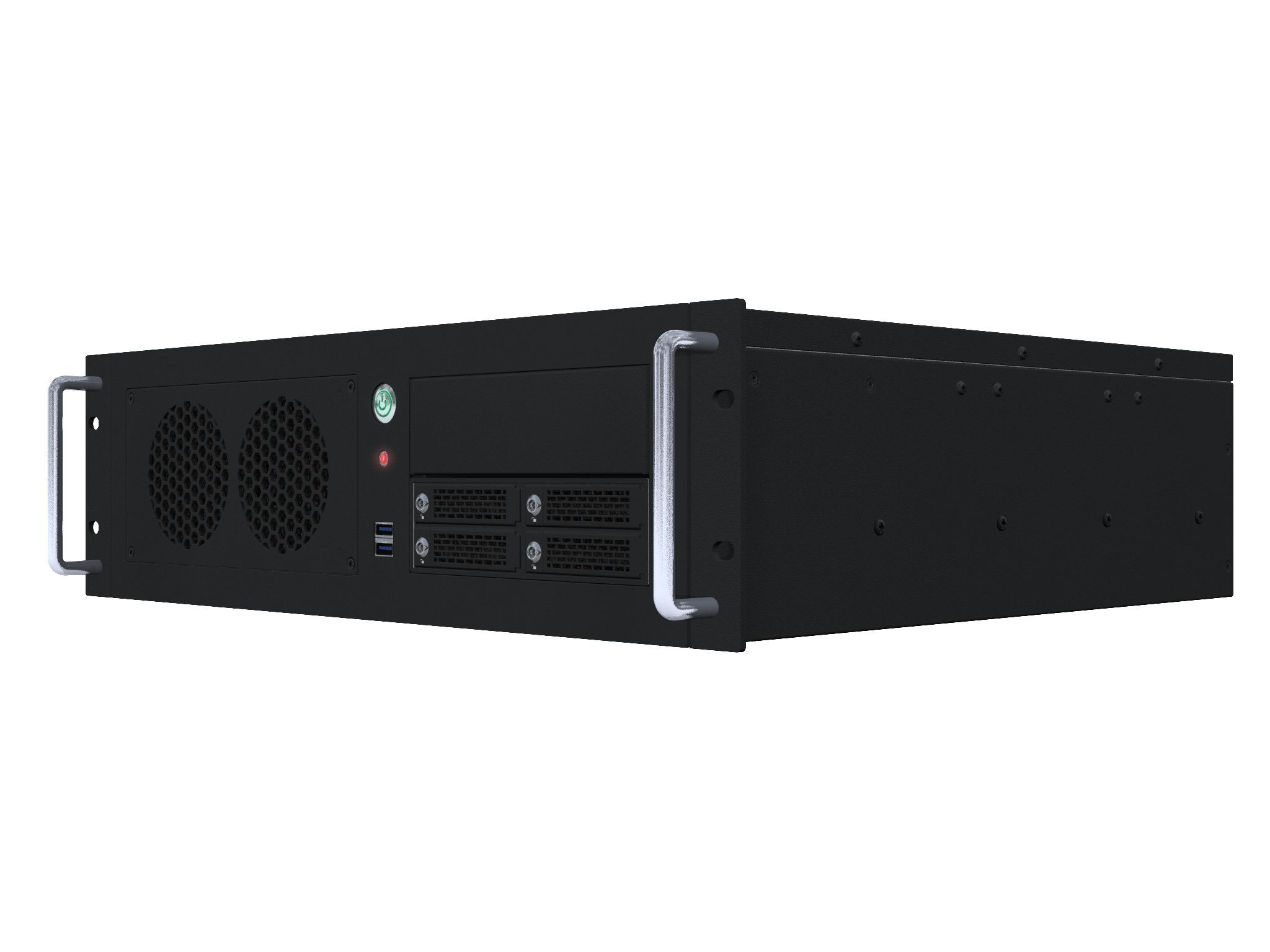

Storage Options:	Removable Front Tray options: 4 x 2.5" Front removable with SSD SATA3/SAS 2.5" devices, Solidigm SSD 24/7 Datacenter series or 4 x or 8 2.5" Front removable with SSD SATA3 MLC 2.5" devices, Solidigm SSD 24/7 Datacenter series
Processor / CPU and FSB Speed Options:	1 x Intel® Xeon® Gold 5520+ Processor* (Tested By Request) 28C/56T 2.20GHz - 4.00GHz, 52.5MB Cache, 205W TDP 1 x Intel® Xeon® Gold 6426Y Processor* 16C/32T 2.50GHz - 4.10GHz, 37.5MB Cache, 185W TDP 1 x Intel® Xeon® Gold 5515+ Processor* 08C/16T 3.20GHz - 4.10GHz, 22.5MB Cache, 165W TDP 1 x Intel® Xeon® Silver 4516Y+ Processor 24C/48T 2.20GHz - 3.70GHz, 45MB Cache, 185W TDP 1 x Intel® Xeon® Silver 4510 Processor 12C/24T 2.40GHz - 4.10GHz, 30MB Cache, 150W TDP 1 x Intel® Xeon® Silver 4410Y Processor*** 12C/24T 2.00GHz - 3.90GHz, 30MB Cache, 150W TDP * Max speed 4800 MT/s in 1DPC and 4400 MT/s in 2DPC (DPC= DIMM Per Channel) Max speed 4400 MT/s for 1DPC and 2DPC * Max speed 4000 MT/s for 1DPC and 2DPC
Memory Options:	DDR5 RDIMM, 288-pin 1.1V-4800MHz Registred ECC, 16 & 32GB memory modules, 8 slots available, Max 256GB
System+Graphics Chipset / Connectors:	Intel® C741 Aspeed AST2600 BMC 1 x VGA
Max Resolution / Max Hz:	2048 x 1536
BIOS:	AMI UEFI
PCI Slots / PCIe Slots:	1 x PCIe 5.0 x8 1 x PCIe 5.0 x16 1 x PCIe 5.0 x16 2 x M.2 PCIe 4.0 (M-Key 2280/22110) 4 x PCIe 5.0 x4 MCIO connector

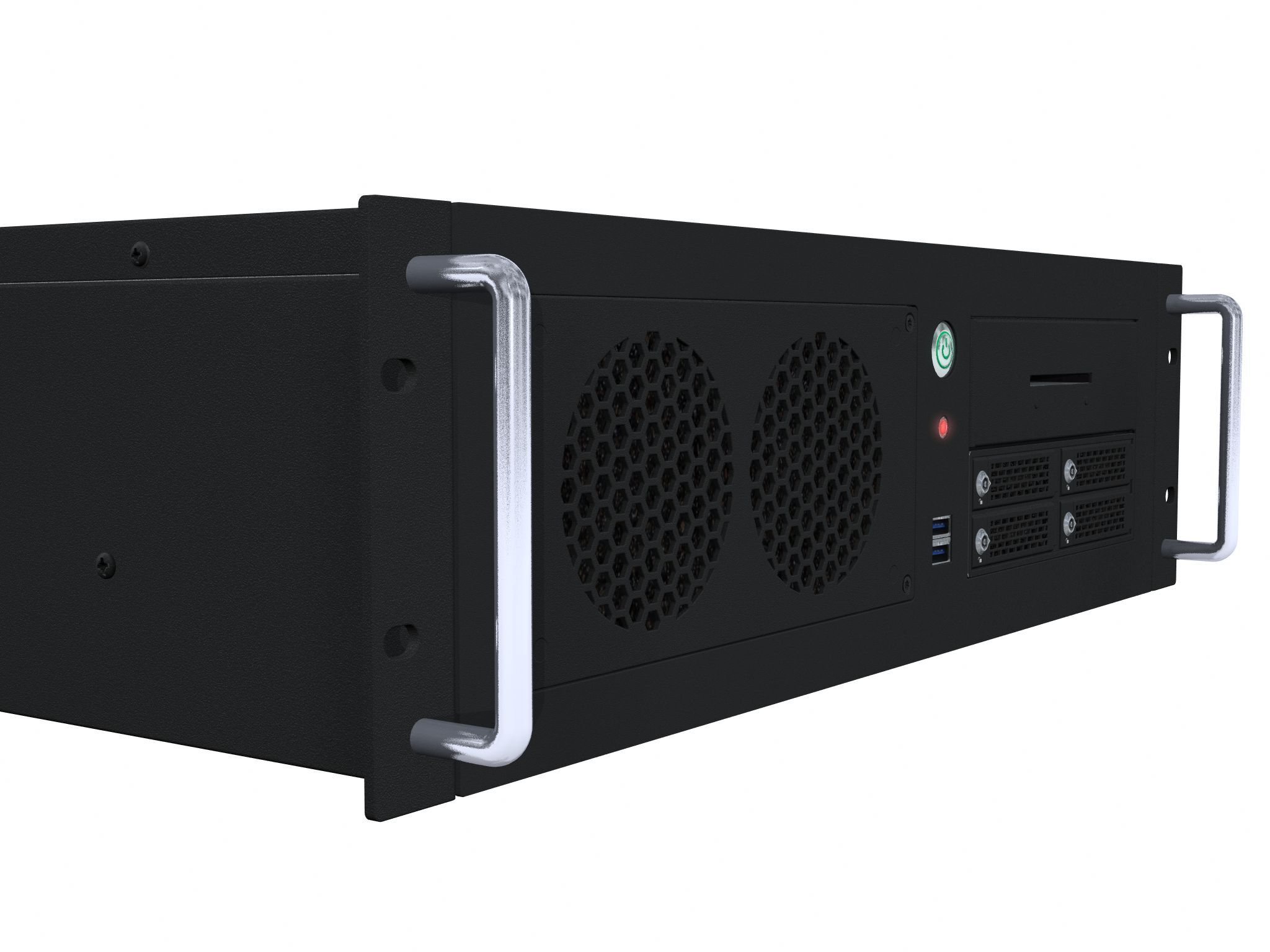

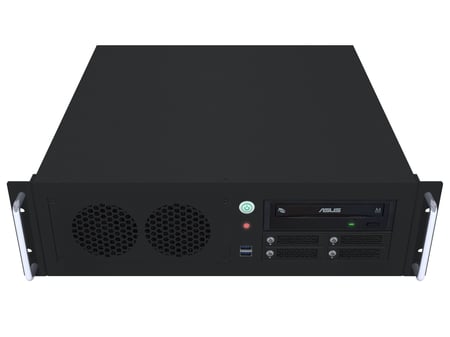

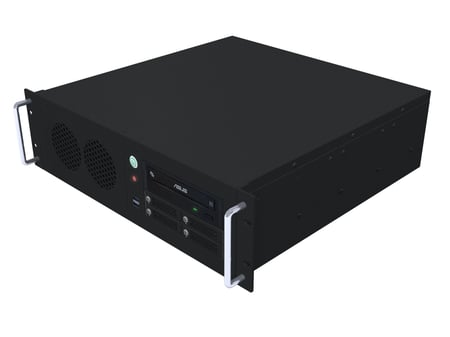

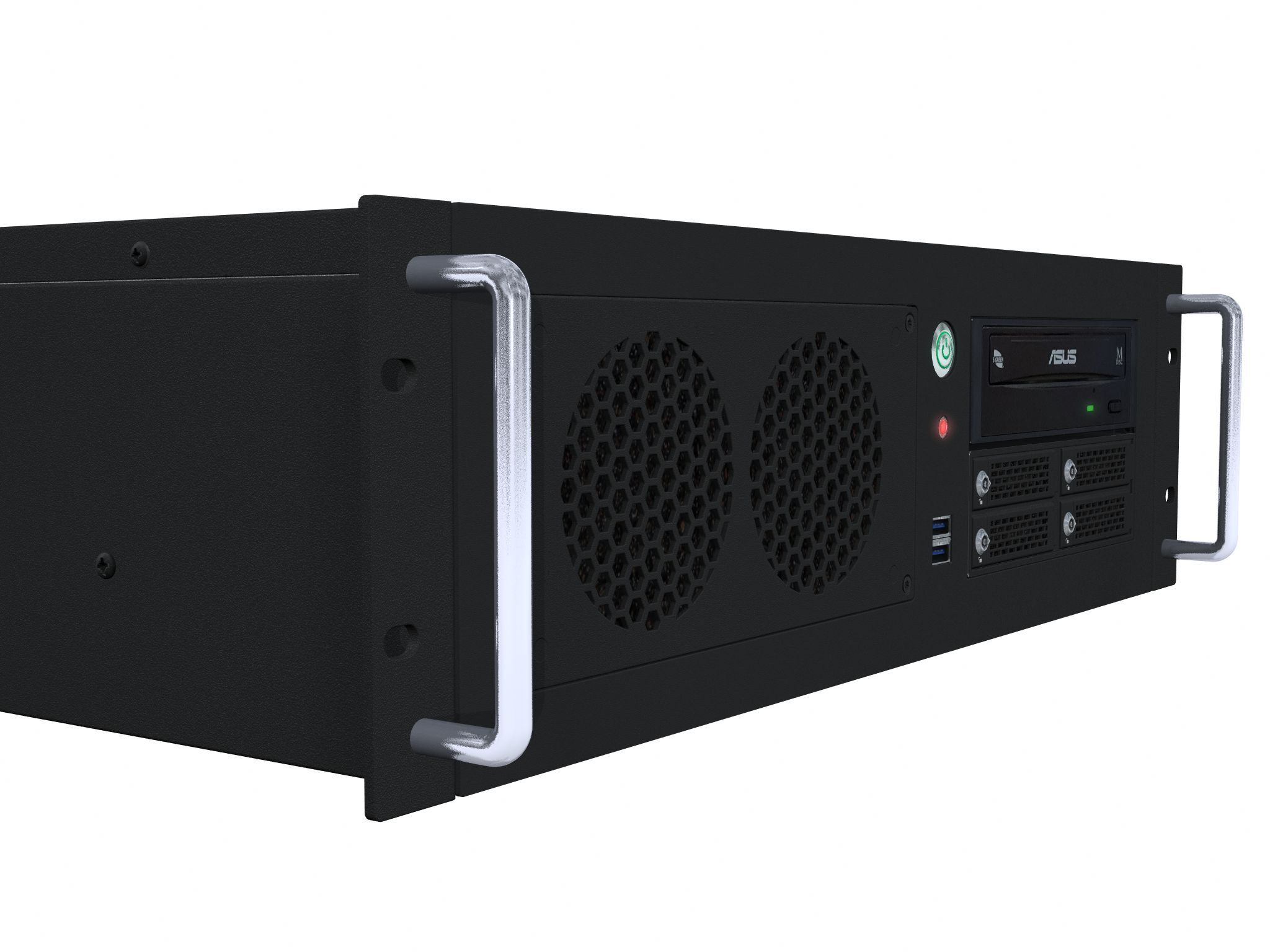

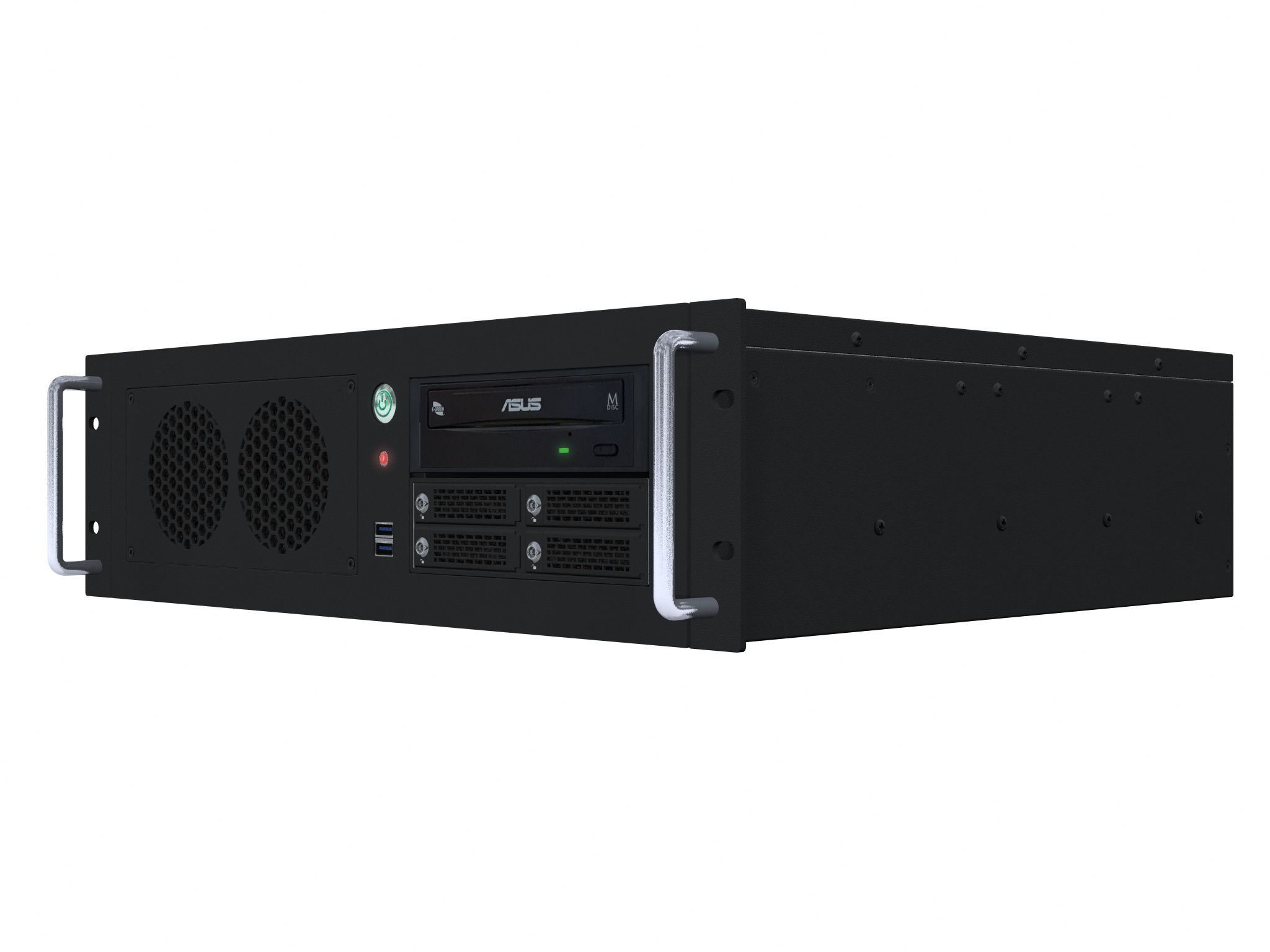

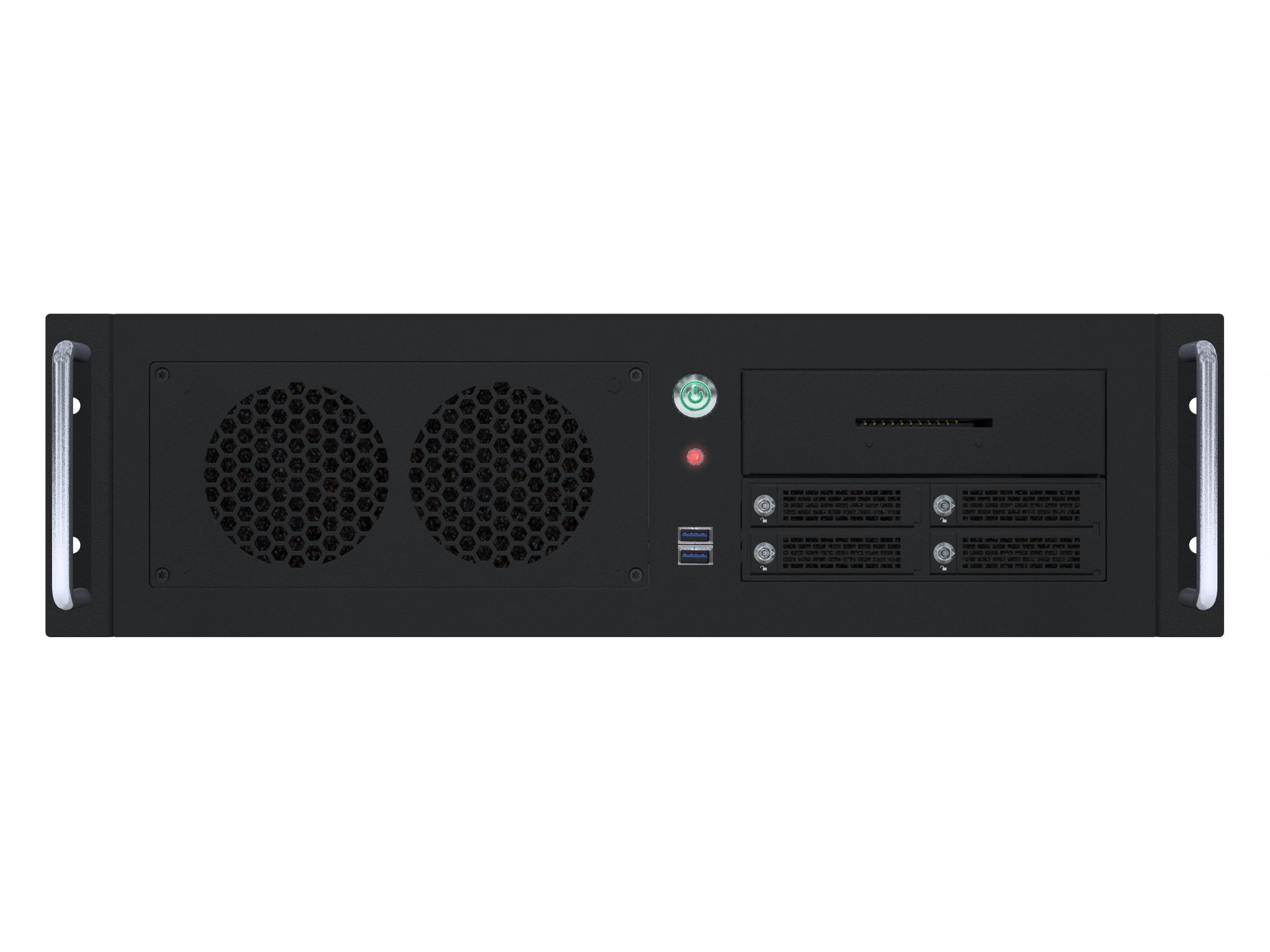

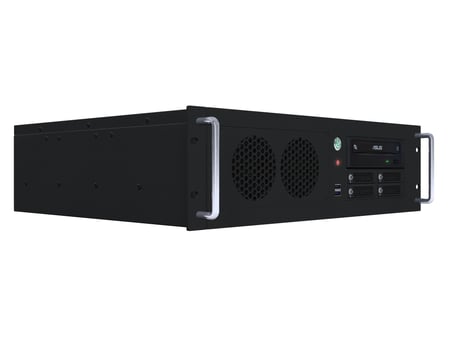

Media Drive(s):	None or via factory options: 1 x CST-US777AK9563: Smart card reader 1 x 90DD01Y0-B20010: DVD-RW/CD-RW
LPT / Parallel Port:	None

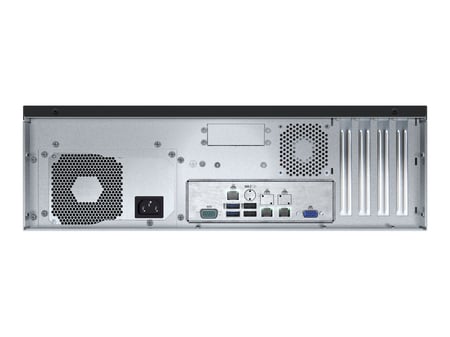

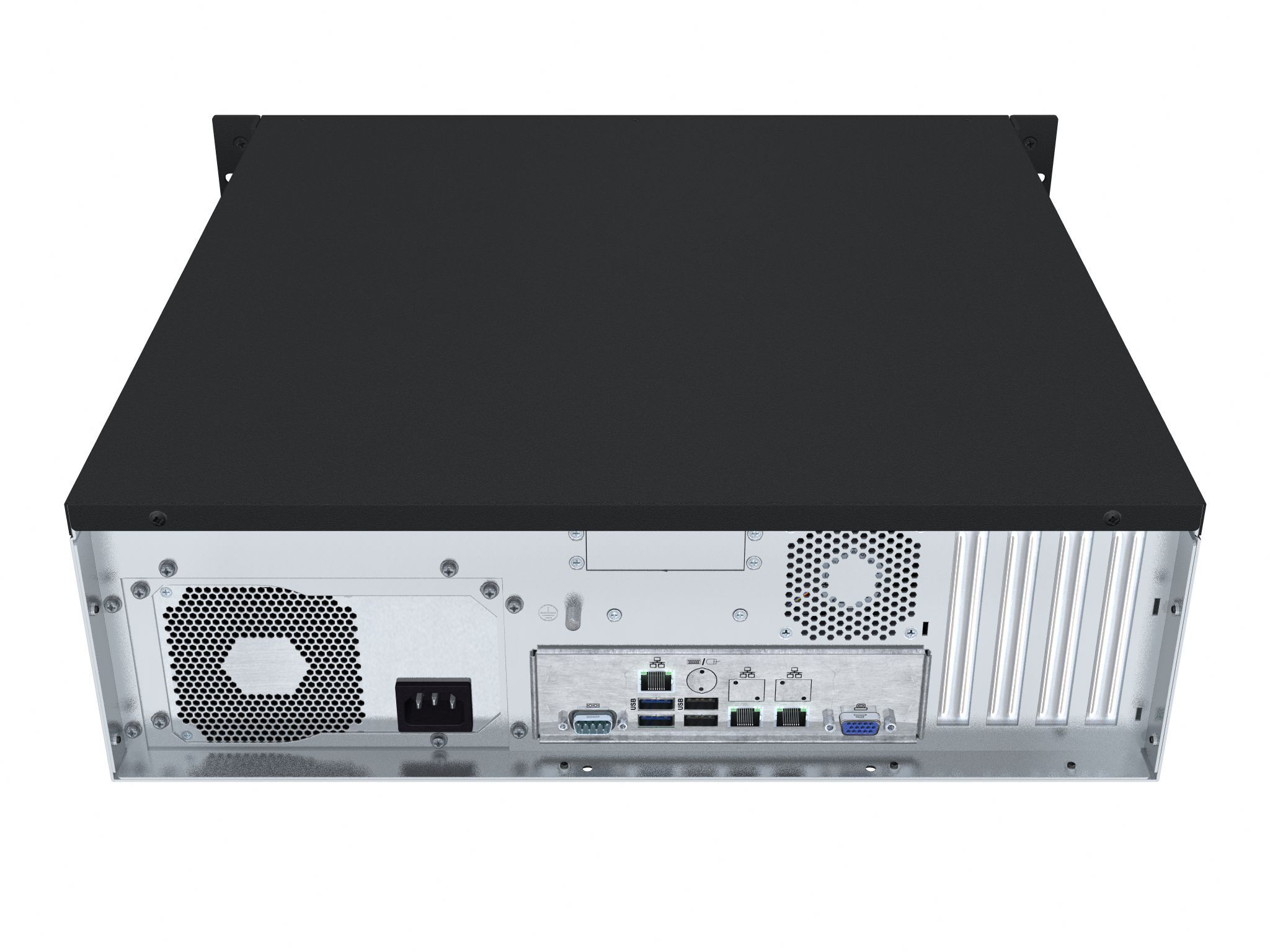

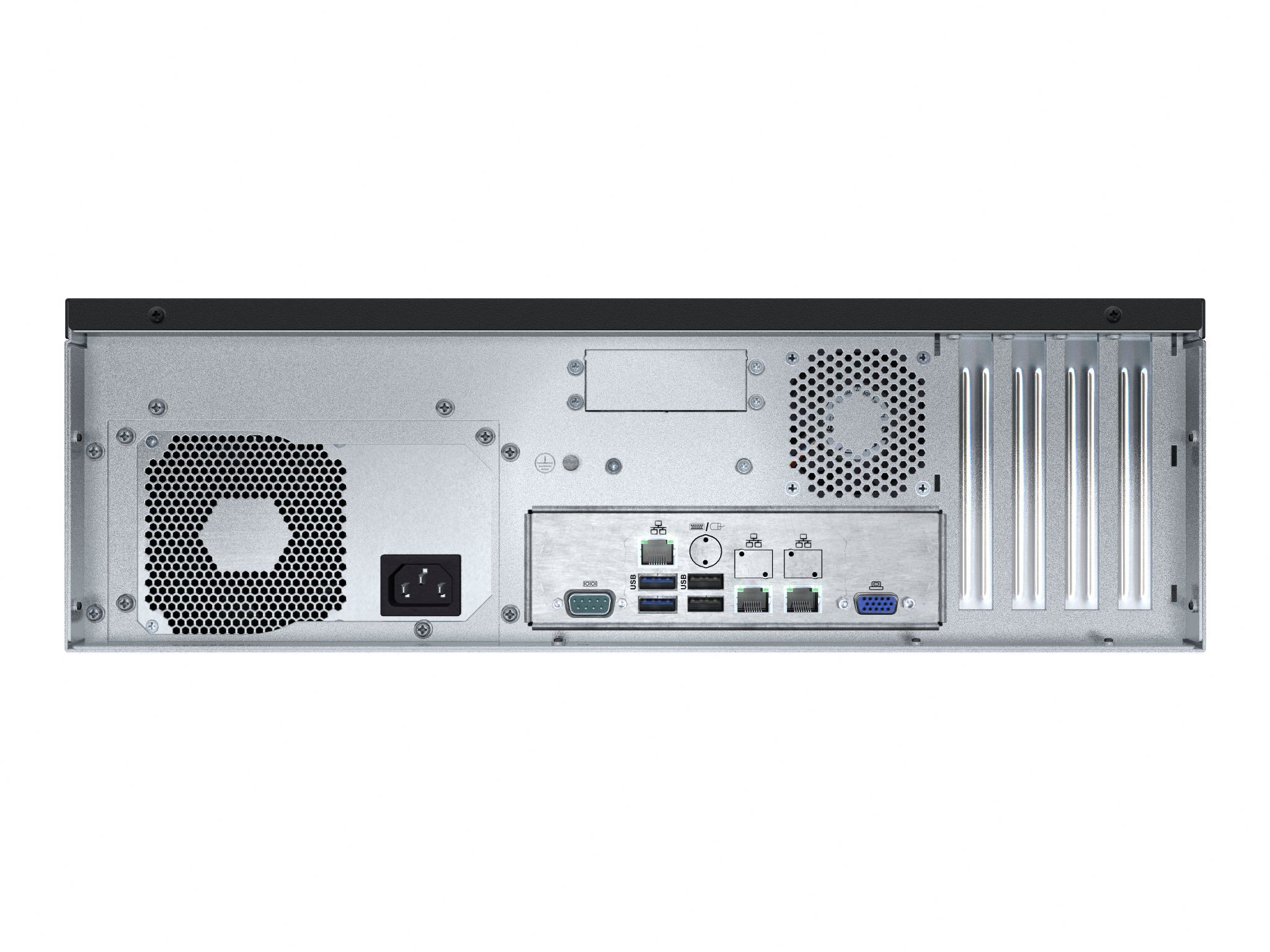

Serial Port(s):	1 x RS-232 (1 x rear I/O), DB9M
Ethernet Port(s):	2 x 10 GBase-T (Intel® X550) - RJ45
USB Port(s):	2 x USB2.0 (<5m) ports (rear): 2 x USB Type A 2 x USB3.2 (<3m) ports (rear): 2 x USB Type A 2 x USB3.2 (<3m) ports (front): 2 x USB Type A
Keyboard and Mouse Ports (PS/2):	None
Audio Ports:	None, available as factory option PCA200904-1 (2.0 channel, Line in, Line out)
Buzzer:	None
Power Manager and Monitoring:	ACPI, Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min 1 x IPMI: ASPEED AST2600 BMC (R7-45)
Power Specifications and Consumption:	1 x Std IEC inlet: 115-230V AC 50-60Hz (700W Autorange) 875W (max)
Digital I/O Connectors:	None

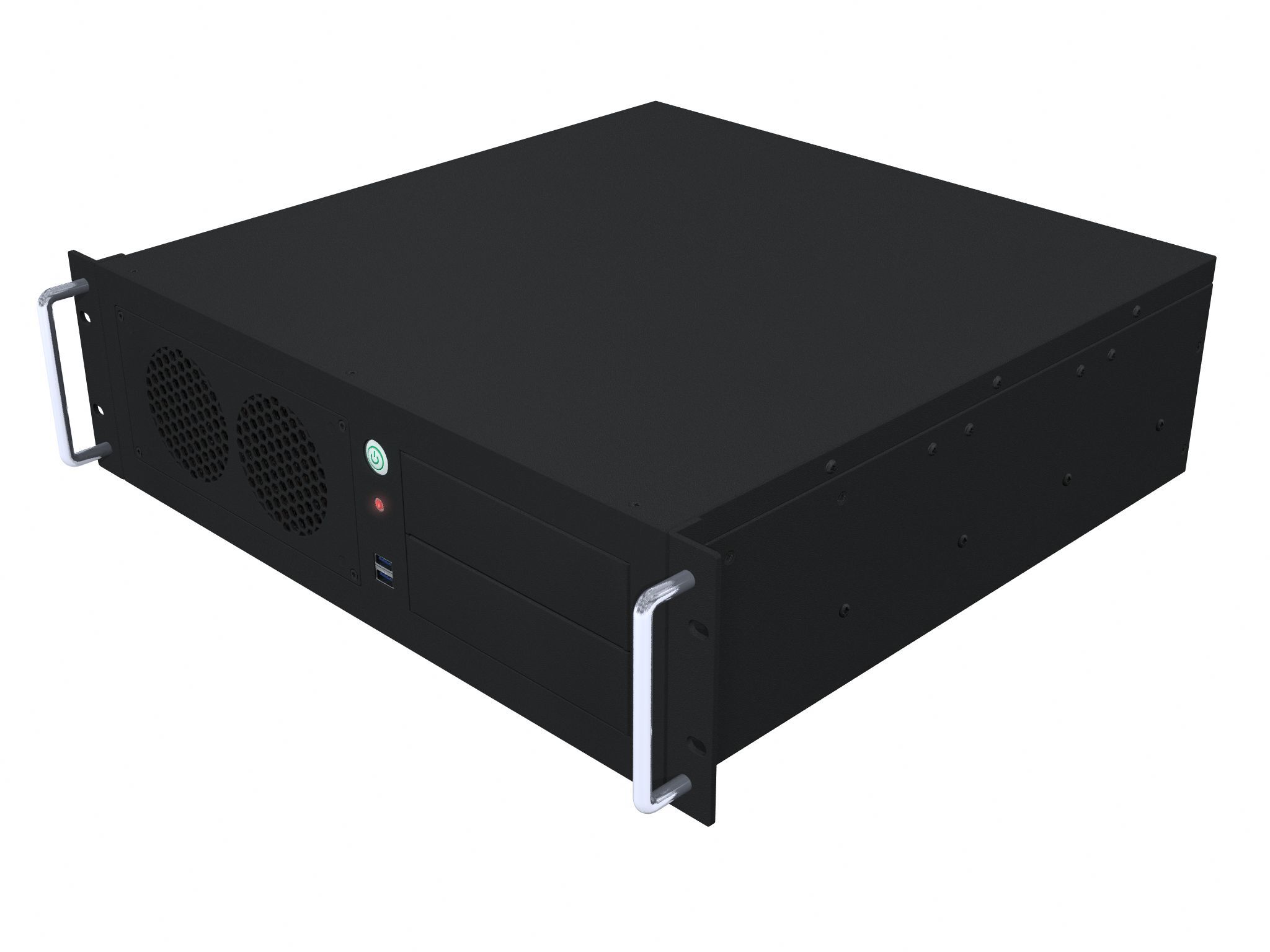

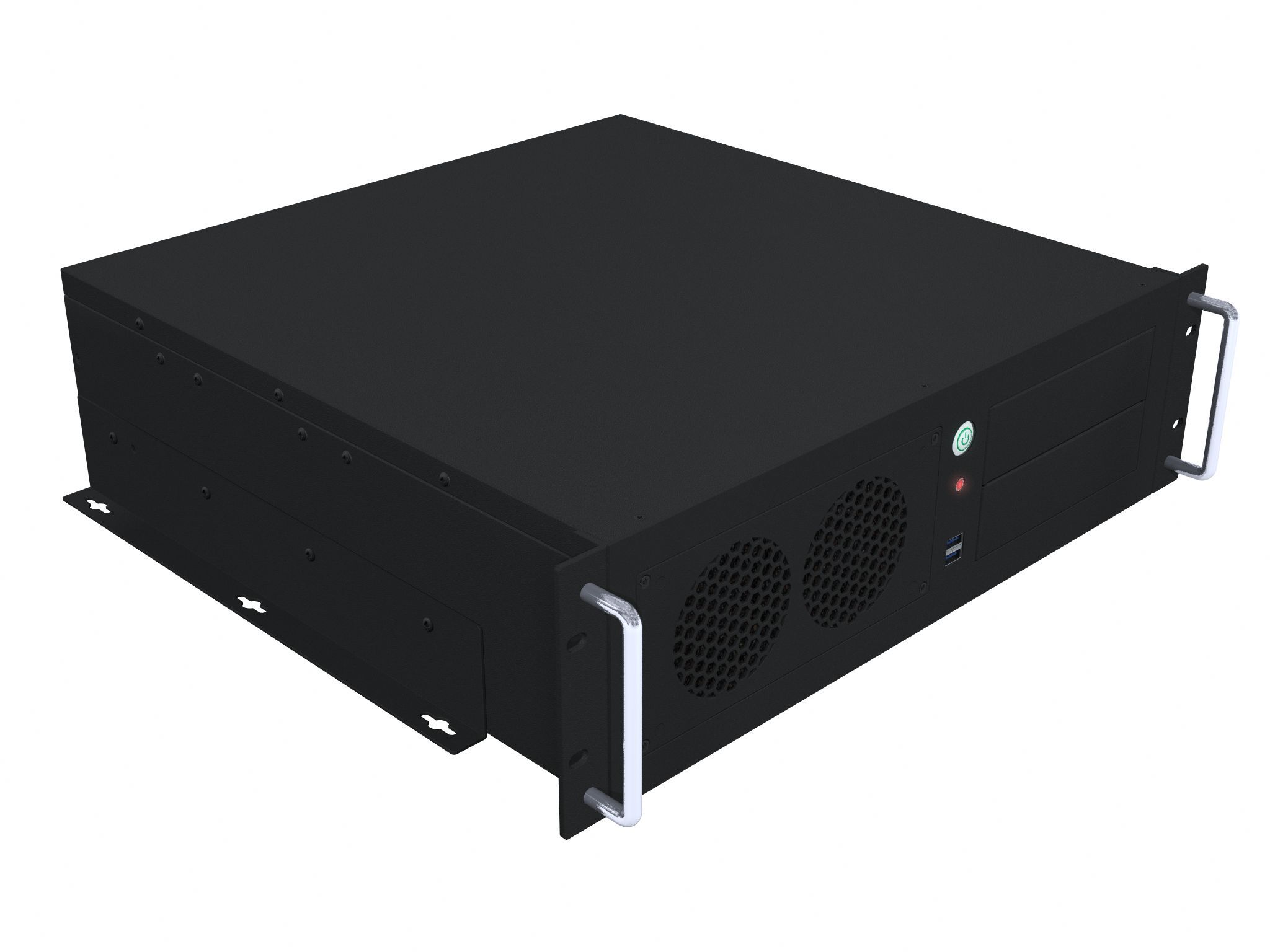

Key Features:	Supermicro X13SEI-TF, Industrial long-life Server board, Black (EP0301-4040627) Heavy-duty steel 3U Rackmount chassis with handles, 2 x Internal Cooling fans in front (80x80mm), Easy Removable Front Air Filter (spare part accessory available), TPM 2.0 (Default) - P/N: AOM-9670V-O, Firmware RAID
Product Dimensions and Weight:	W:465.70 [18.31"] x H:132.50 [5.22"] x D:436.00 [17.17"] mm [inch] Approx. 13kg / 28lbs 3U Rack size in height.
Product Carton Size and Weight:	L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch] 15.0kg / 33.0lbs

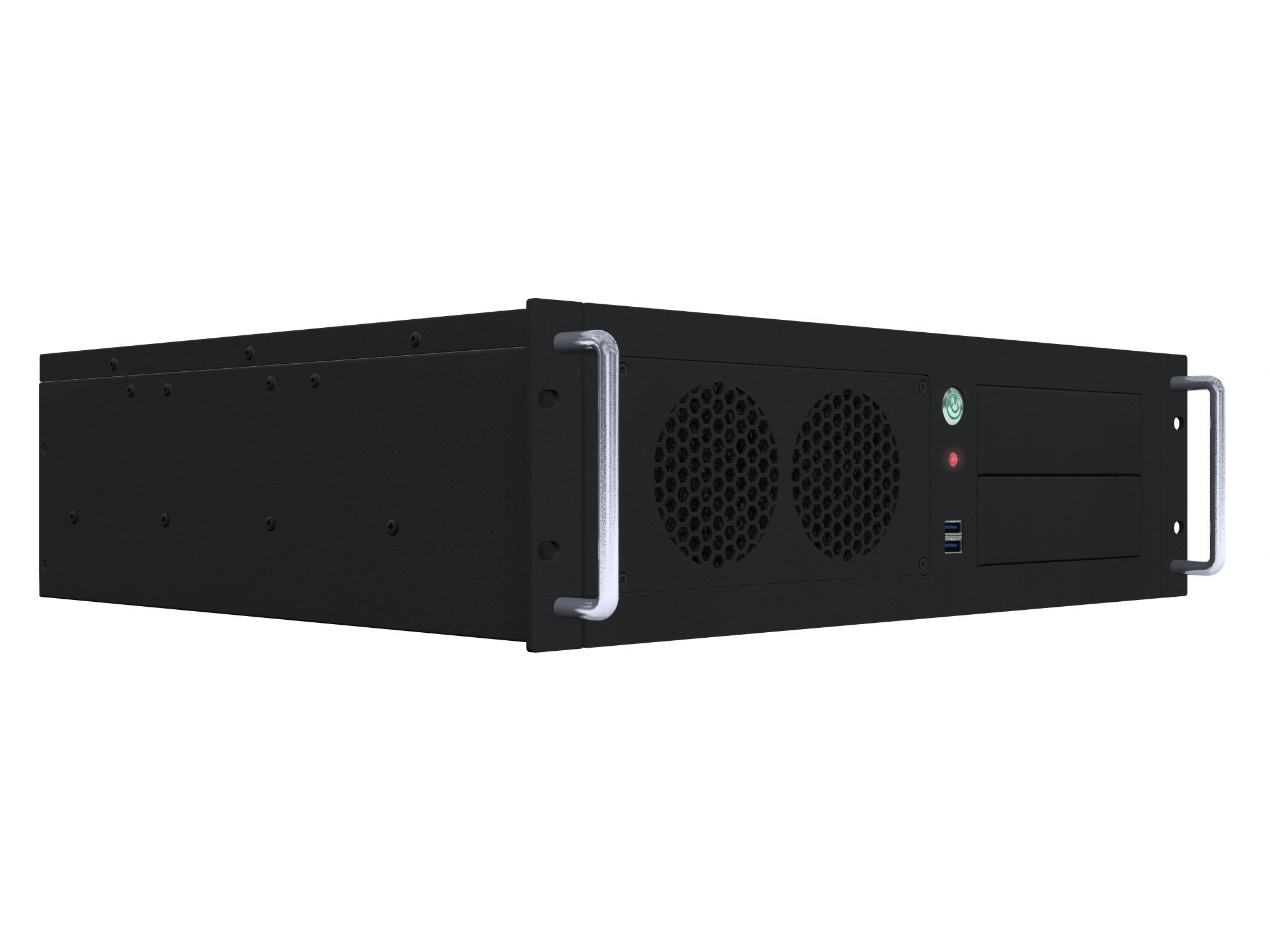

User Controls / Activity:	Front: Power Button, Power LED, Activity LEDs SSD
Factory Options:	• PNY NVIDIA A1000: PCIe 4.0 x8, 4x mini DP, 8GB GDDR6 • PNY NVIDIA A2000: PCIe 4.0 x16, 4x mini DP, 12 GB GDDR6 with ECC • PNY NVIDIA 2000 ADA: PCIe 4.0 x8, 4x mini DP, 16GB GDDR6 with ECC • PNY NVIDIA 4000 ADA: PCIe 4.0 x16, 4x DP, 20GB GDDR6 with ECC • PNY NVIDIA 5000 ADA: PCIe 4.0 x16, 4x DP, 32GB GDDR6 with ECC • X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45 • I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45 • X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+ • X710DA4 / X710DA4BLK: Intel® Fiber Network Adapter (10GbE), 4 x SFP+ • CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485) • HT RAID KIT-A1 : 8 Ports SATA/SAS Gen 4.0 RAID Adapter with Cache Backup. • AOC-S3808L-L8IR-O : 8 port SAS PCIe Gen 4.0 Internal RAID Adapter (RAID 1 and 10) • AOC-S30808L-L8iT: 8 ports SAS PCIE Gen 4.0 Internal Host Bus Adapter • PCA200828-2: COM RS-422/485 isolated module, NMEA 4 channel • PCA200904-1: Audio Module supports 2.0 channel, Line in, Line out (Pending)
Accessories:	• HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mounting kit for 19" Rack • HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mounting kit for 19" Rack • HT MBK STD-G1: 1 x Mounting Bracket Kit for HTS31yyy and HTS41yyy - L-Shaped • E10GSFPSR: 1 x Intel® Ethernet SFP+ Sr Optics • E10GSFPSRX: 1 x Intel® Ethernet SFP+ Sr(x) Optics • E10GSFPLR: 1 x Intel® Ethernet SFP+ LR Optics • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB external module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB external module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB external module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB external module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB external module • DP adapter for Nvidia Graphics Card: QSP-MINIDP/DPV3
Capabilities / Prepared for:	See factory options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 90.00 [35.43"] - Steering: 55.00 [21.65"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping, CCS - China Classification Society, KR - Korean Register, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai, LRS - Lloyd's Register of Shipping** * = Pending ** = By Request Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

Specifications last updated: February 25, 2026 @ 11:40
