PRODUCT DETAILS

✕

✕
Marine & Offshore  /  Computer /  Rackmount  /  HTS41x13

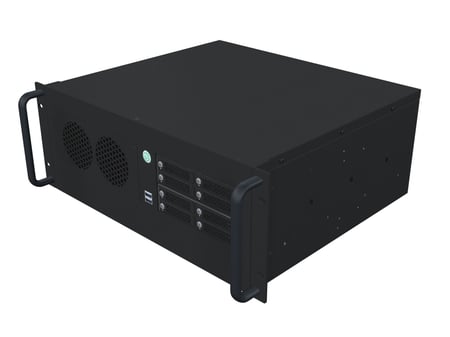

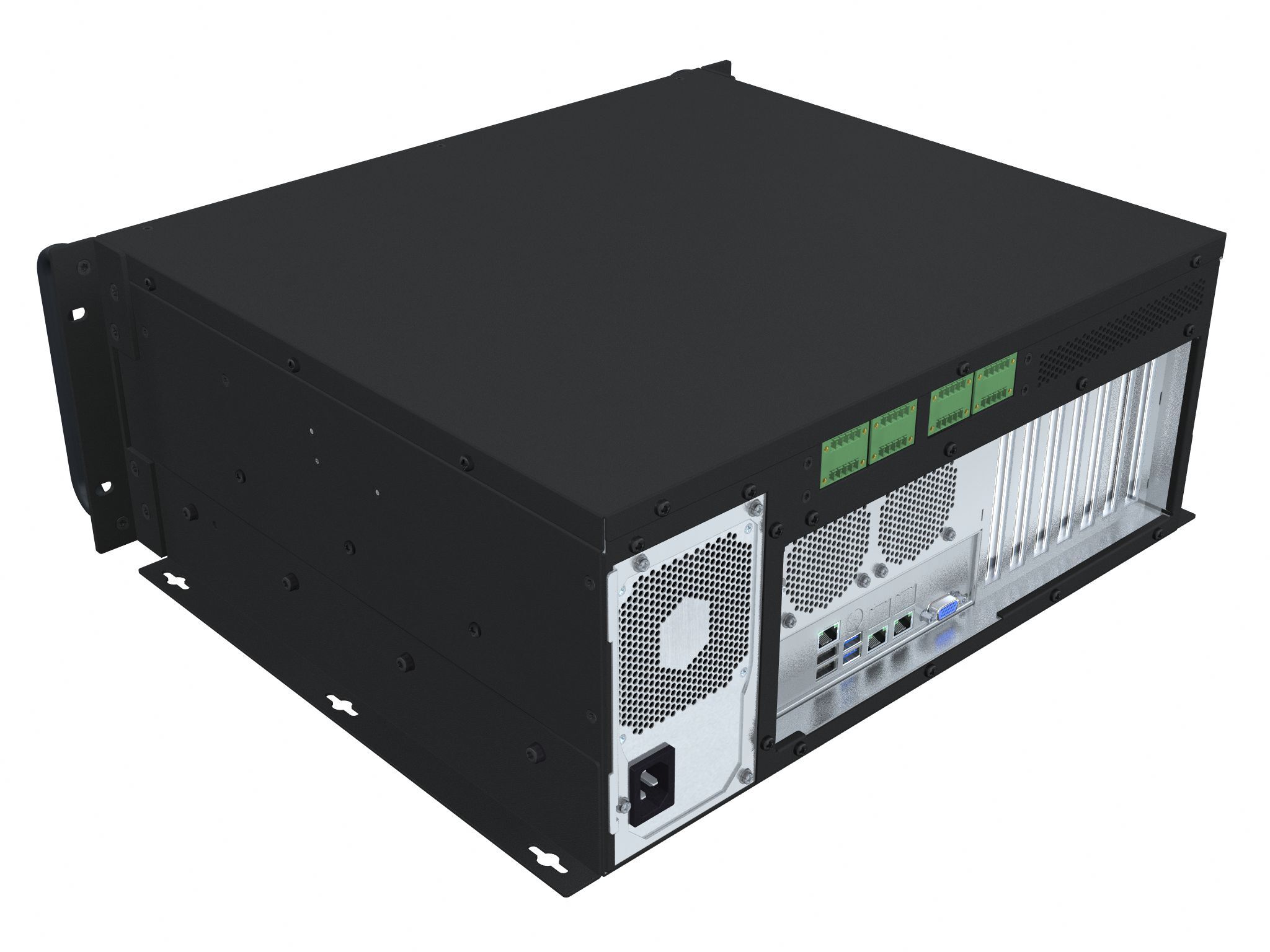

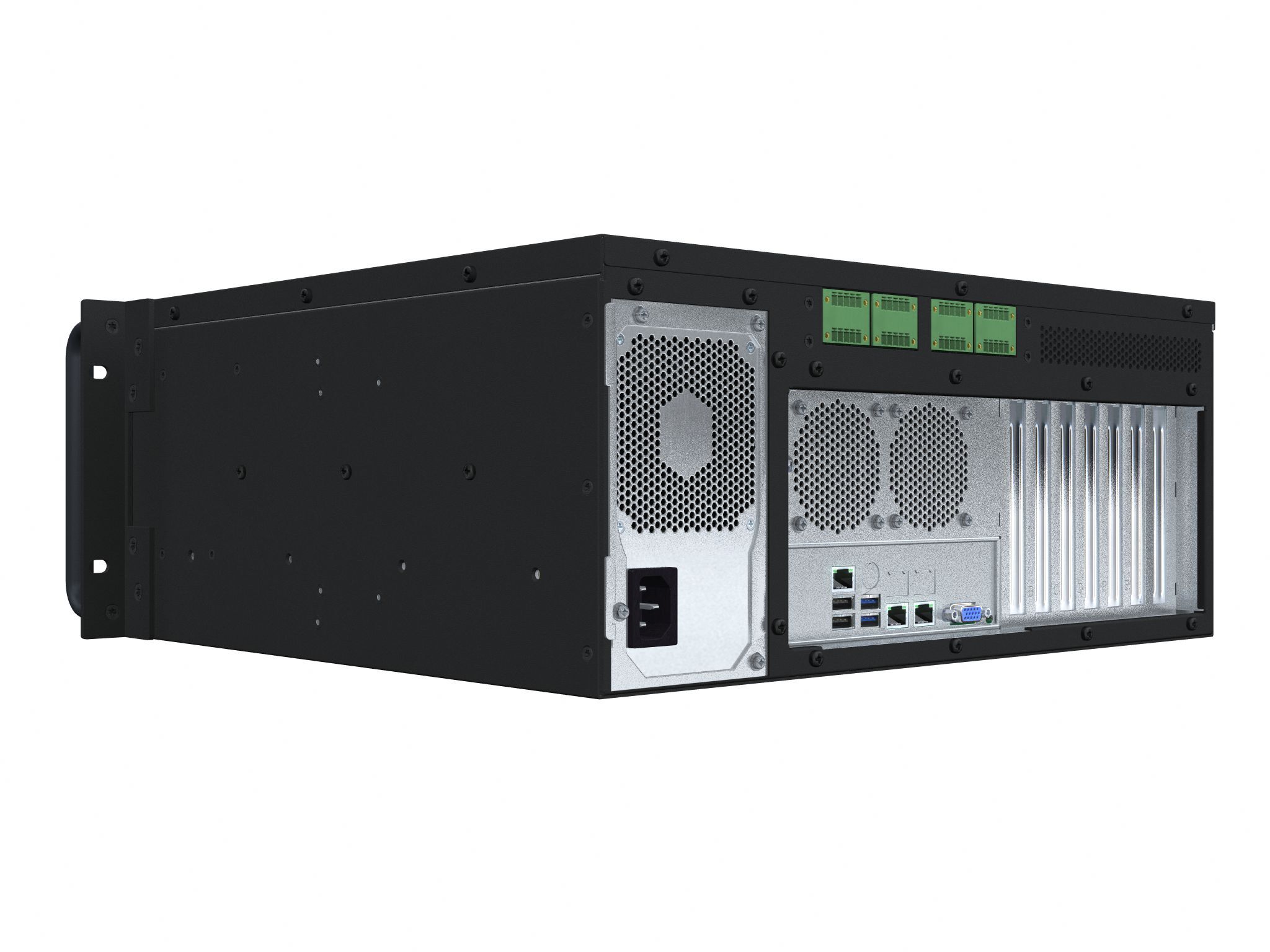

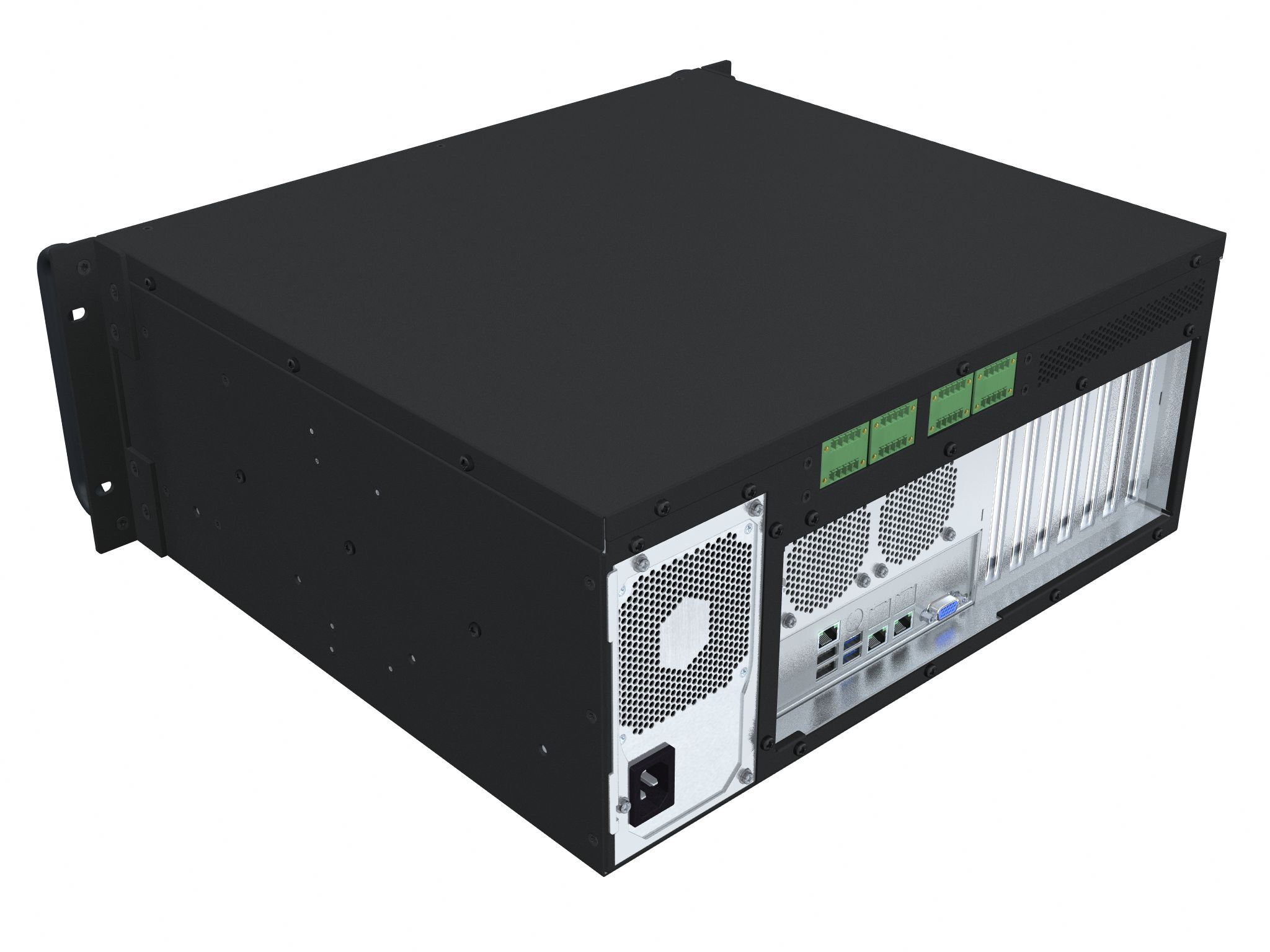

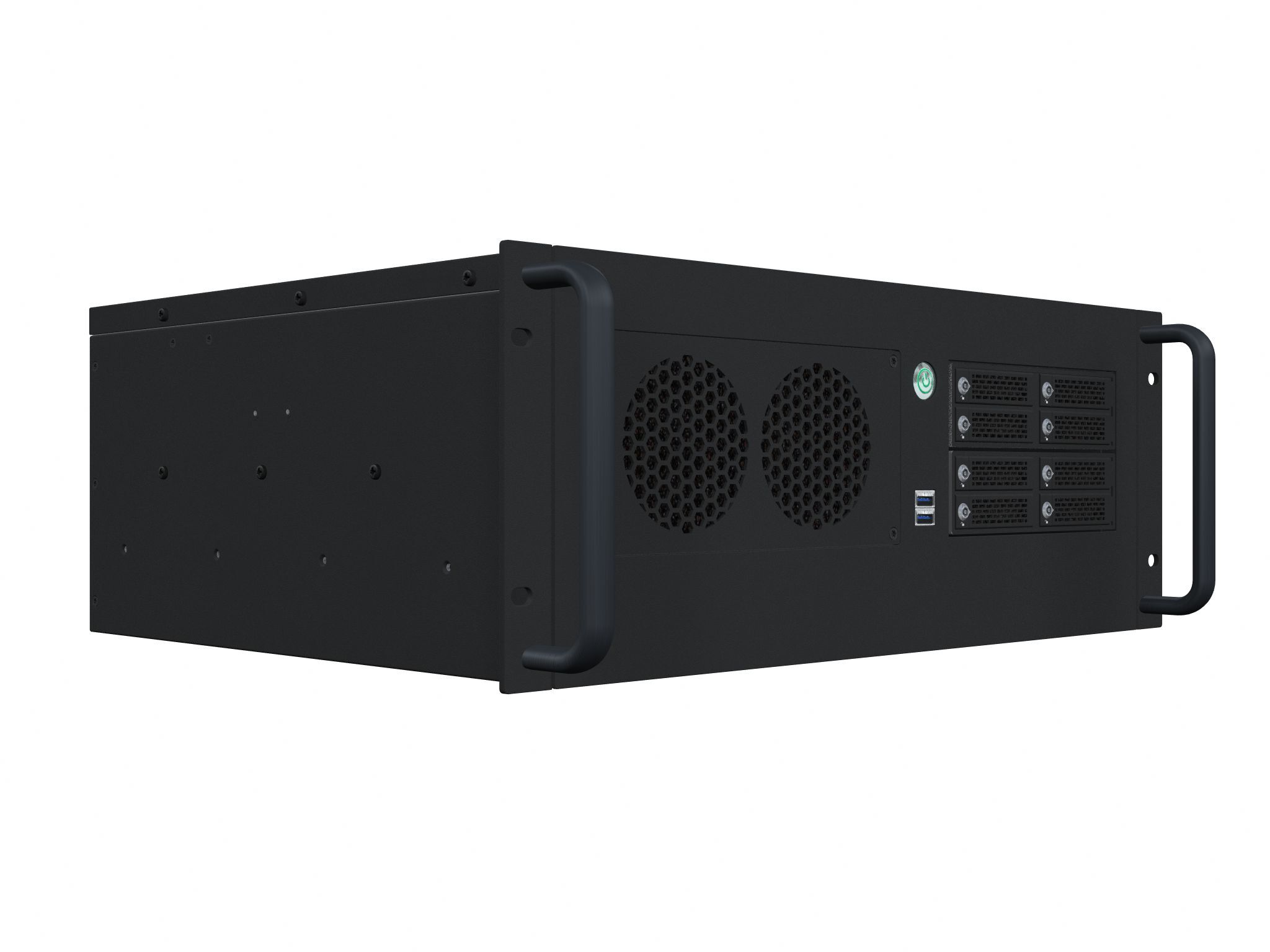

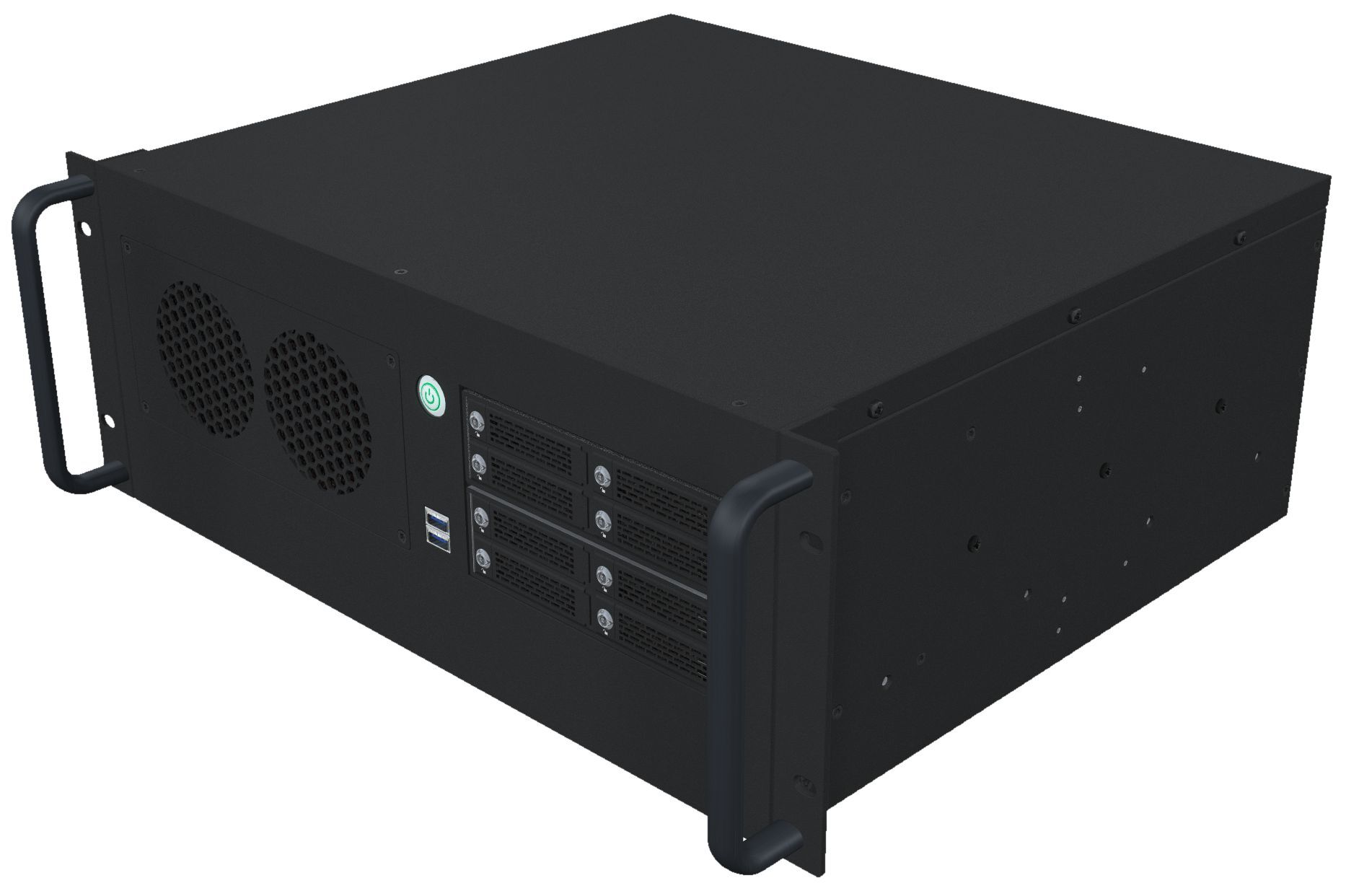

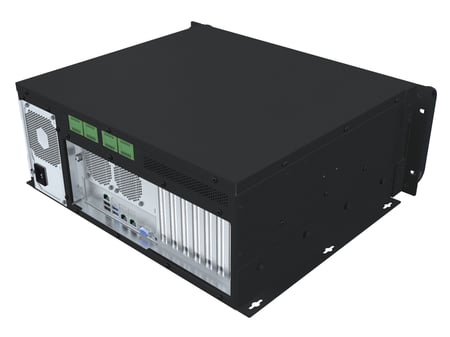

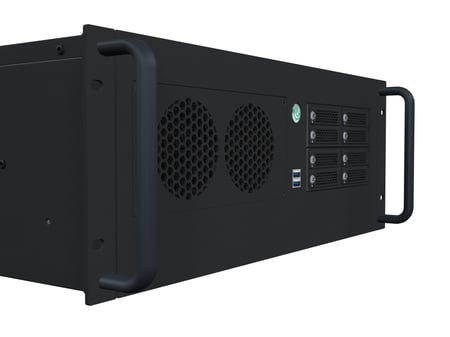

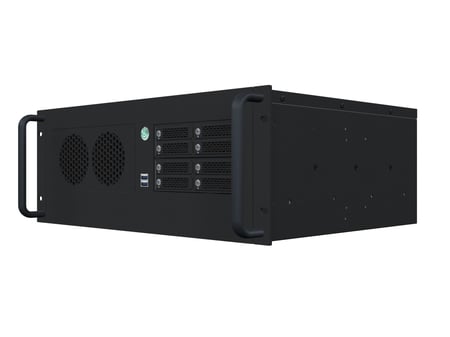

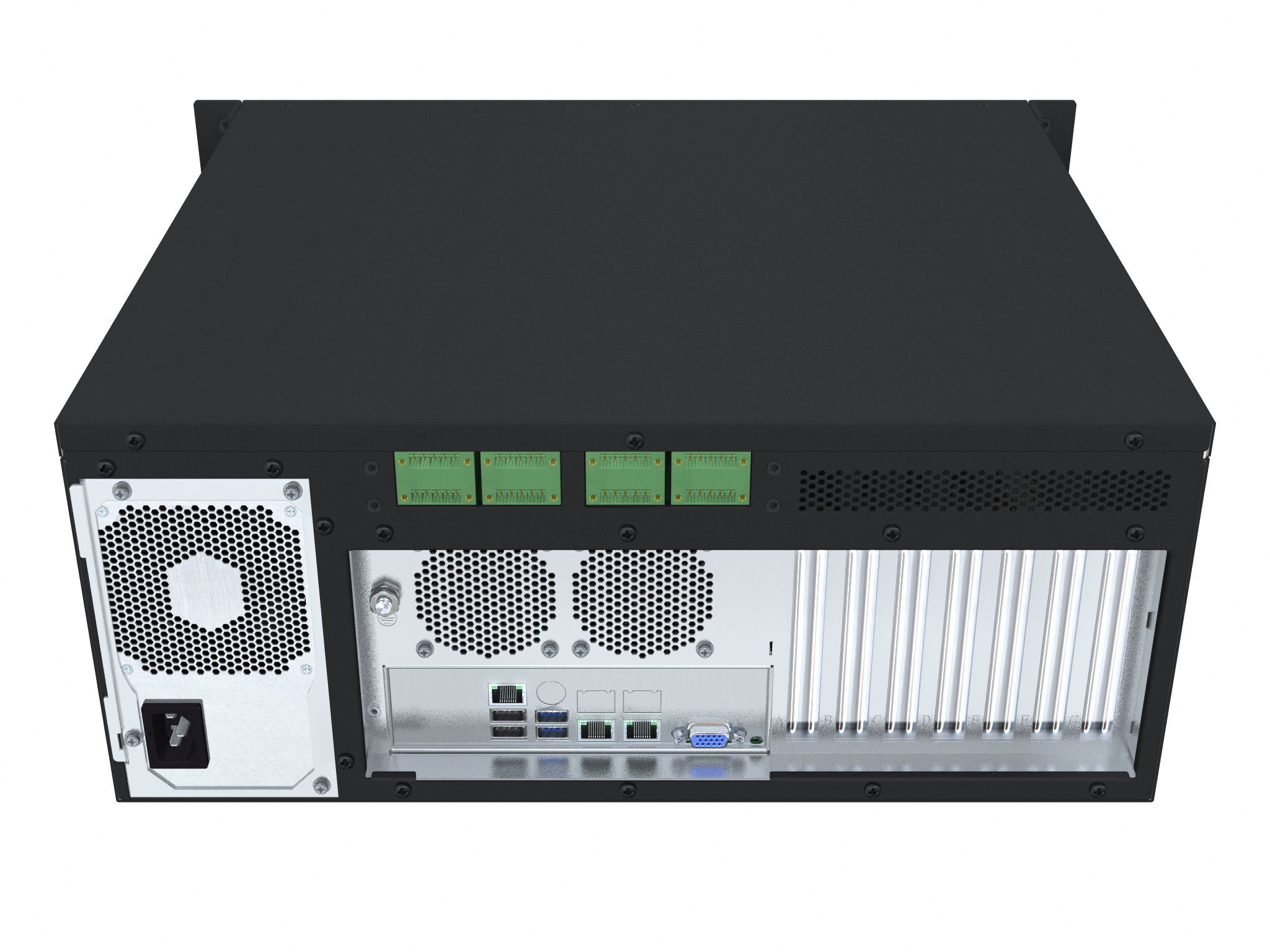

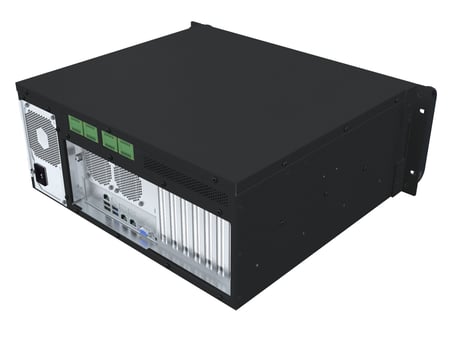

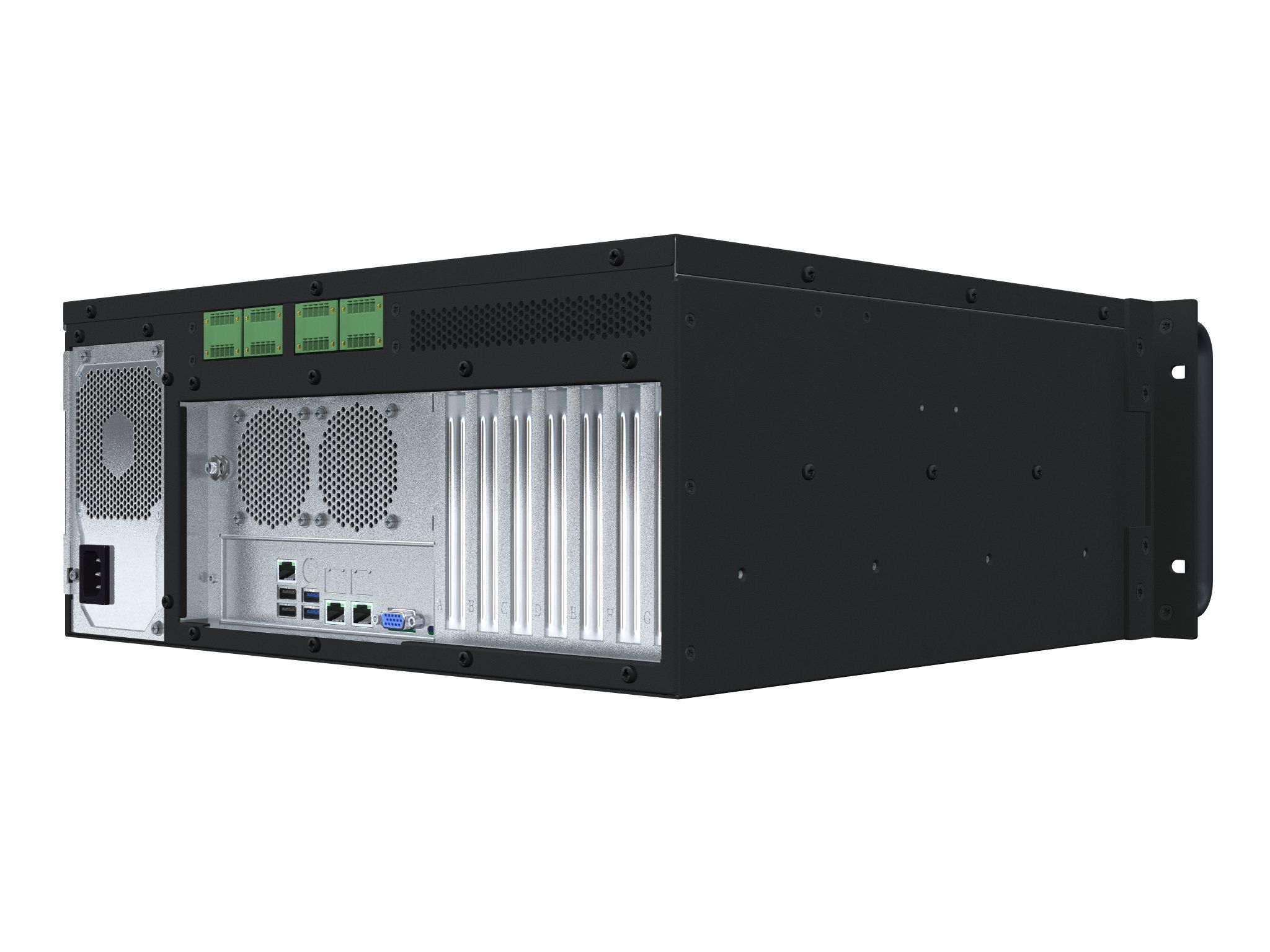

HTS41x13

Overview

Computer - 4U Size - Server - Rackmount - 4U

HTS41x13-yyyyy-AC yyyyyyy

The HTS41x13 4U series industrial & marine certified 19 rack servers are designed with latest Xeon architecture. A huge variety of I/O such as NMEA 0183 ports, serial interface, USB, Gigabit Ethernet ports, PCIe slots for extensions, High end Nvidia graphics, will fulfill a wide range of industrial and maritime applications.

icon
TPM 2.0
icon
4U Size
icon
Server
Send Request
Description

Computer - Rackmount

Supports up to 10 x 2.5 SSD storage devices, Rugged and ready for most critical and harsh installations. Short depth of chassis makes this system perfect for installations where the available space is limited.

- High Performance Intel® C741 Chipset - Intel® Xeon Gold/Silver available
- Rugged SHORT chassis
- 19 inch rack 4U and table mount
- Wide range of approved options for: Professional Nvidia Graphics Cards, Network*, COM Ports (RS422/485/232,CAN)
- Digital I/O
- Storage
- Flexible design
- Fully IEC 60945/IACS E10 tested, DNVGL-CG-0339
*10GbE Network functionality is also available onboard or as an additional PCIe 3.0 x16 card with either SFP+ or RJ-45 connectivity.
Specifications
Typenumber (Long): HTS41x13-yyyyy-AC yyyyyyy
Installed Operating System Options: None or Standard OS/Customized image, review datasheet for list.
Storage Options: Removable Front Tray options:
4 x 2.5" Front removable with SSD SATA3/SAS 2.5" devices, Solidigm SSD 24/7 Datacenter series
or
4 x or 8 2.5" Front removable with SSD SATA3 MLC 2.5" devices, Solidigm SSD 24/7 Datacenter series
Processor / CPU and FSB Speed Options: 1 x Intel® Xeon® Gold 5520+ Processor* (Tested By Request) 28C/56T 2.20GHz - 4.00GHz, 52.5MB Cache, 205W TDP
1 x Intel® Xeon® Gold 6426Y Processor* 16C/32T 2.50GHz - 4.10GHz, 37.5MB Cache, 185W TDP
1 x Intel® Xeon® Gold 5515+ Processor* 08C/16T 3.20GHz - 4.10GHz, 22.5MB Cache, 165W TDP
1 x Intel® Xeon® Silver 4516Y+ Processor** 24C/48T 2.20GHz - 3.70GHz, 45MB Cache, 185W TDP
1 x Intel® Xeon® Silver 4510 Processor** 12C/24T 2.40GHz - 4.10GHz, 30MB Cache, 150W TDP
1 x Intel® Xeon® Silver 4410Y Processor*** 12C/24T 2.00GHz - 3.90GHz, 30MB Cache, 150W TDP
* Max speed 4800 MT/s in 1DPC and 4400 MT/s in 2DPC (DPC= DIMM Per Channel)
** Max speed 4400 MT/s for 1DPC and 2DPC
*** Max speed 4000 MT/s for 1DPC and 2DPC
Memory Options: DDR5 RDIMM, 288-pin 1.1V-4800MHz Registred ECC, 16 & 32GB memory modules, 8 slots available, Max 256GB
System+Graphics Chipset / Connectors: Intel® C741
Aspeed AST2600 BMC
1 x VGA
Max Resolution / Max Hz: 2048 x 1536
BIOS: AMI UEFI
PCI Slots / PCIe Slots: 2 x PCIe 5.0 x16
3 x PCIe 5.0 x8
Media Drive(s): None or via factory options:
1 x CST-US777AK9563: Smart card reader
1 x 90DD01Y0-B20010: DVD-RW/CD-RW
LPT / Parallel Port: None
Serial Port(s): None, available through factory option CP-114EL-I ELEK KIT

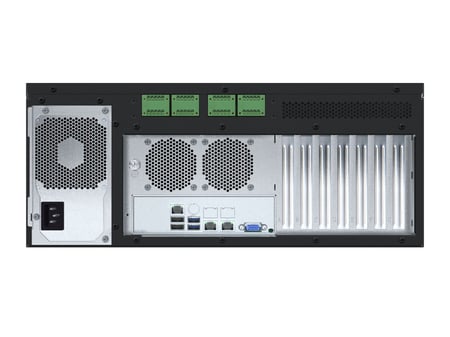

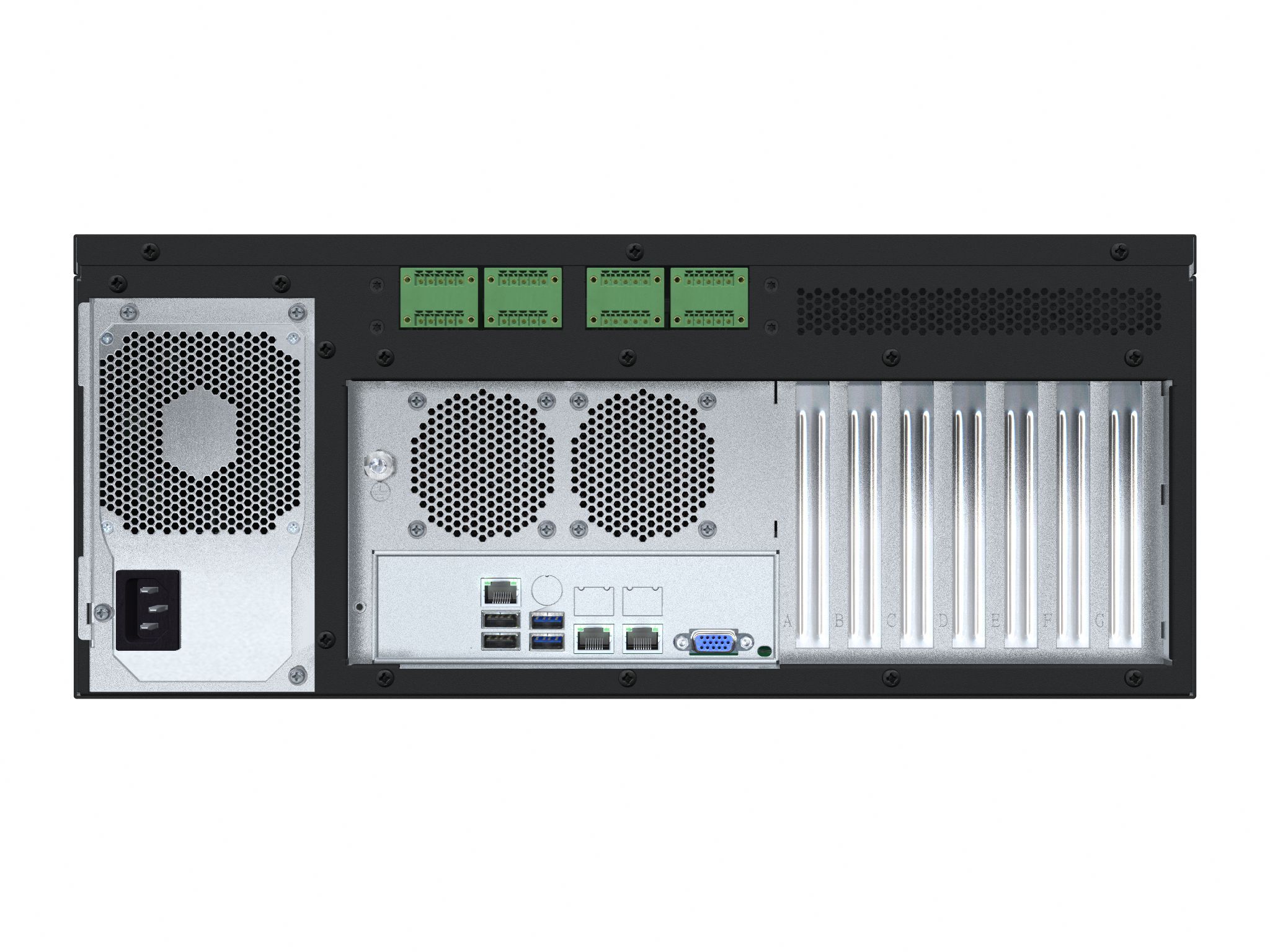

Ethernet Port(s): 2 x 10 GBase-T (Intel® X550) - RJ45
USB Port(s): 2 x USB2.0 (<5m) ports (rear): 2 x USB Type A
2 x USB3.2 (<3m) ports (rear): 2 x USB Type A
2 x USB3.2 (<3m) ports (front): 2 x USB Type A
Keyboard and Mouse Ports (PS/2): None
Audio Ports: None, available as factory option PCA200904-1 (2.0 channel, Line in, Line out)
Buzzer: None
Power Manager and Monitoring: ACPI, Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
1 x IPMI: ASPEED AST2600 BMC (R7-45)
Power Specifications and Consumption: 1 x Std IEC inlet: 100-240V AC 50-60Hz (700W Autorange)
875W (max)

Optional Power Supply:
1 x Std IEC inlet: 100-240V AC 50-60Hz: 1200W - Autorange + external filter HD XPF STD-A1
1500W (max)
Digital I/O Connectors: None
Key Features: Supermicro X13SEI-TF, Industrial long-life Server board, Black (EP0301-4040627) Heavy-duty steel 4U Rackmount chassis with handles, 2 x Internal Cooling fans in front (80x80mm), Easy Removable Front Air Filter (spare part accessory available), TPM 2.0 (Default) - P/N: AOM-9670V-O, Firmware RAID
Product Dimensions and Weight: W:479.60 [18.88''] x H:177.00 [6.97"] x D:383.00 [15.08''] mm [inch] (w/handles)
Approx 14.5 kg / 31.9lbs
4U Rack size in height.
Product Carton Size and Weight: L:610.00 [24.02"] x W:570.00 [22.44" x H:360.00 [14.17"] mm [inch]
15.0kg / 33.0lbs

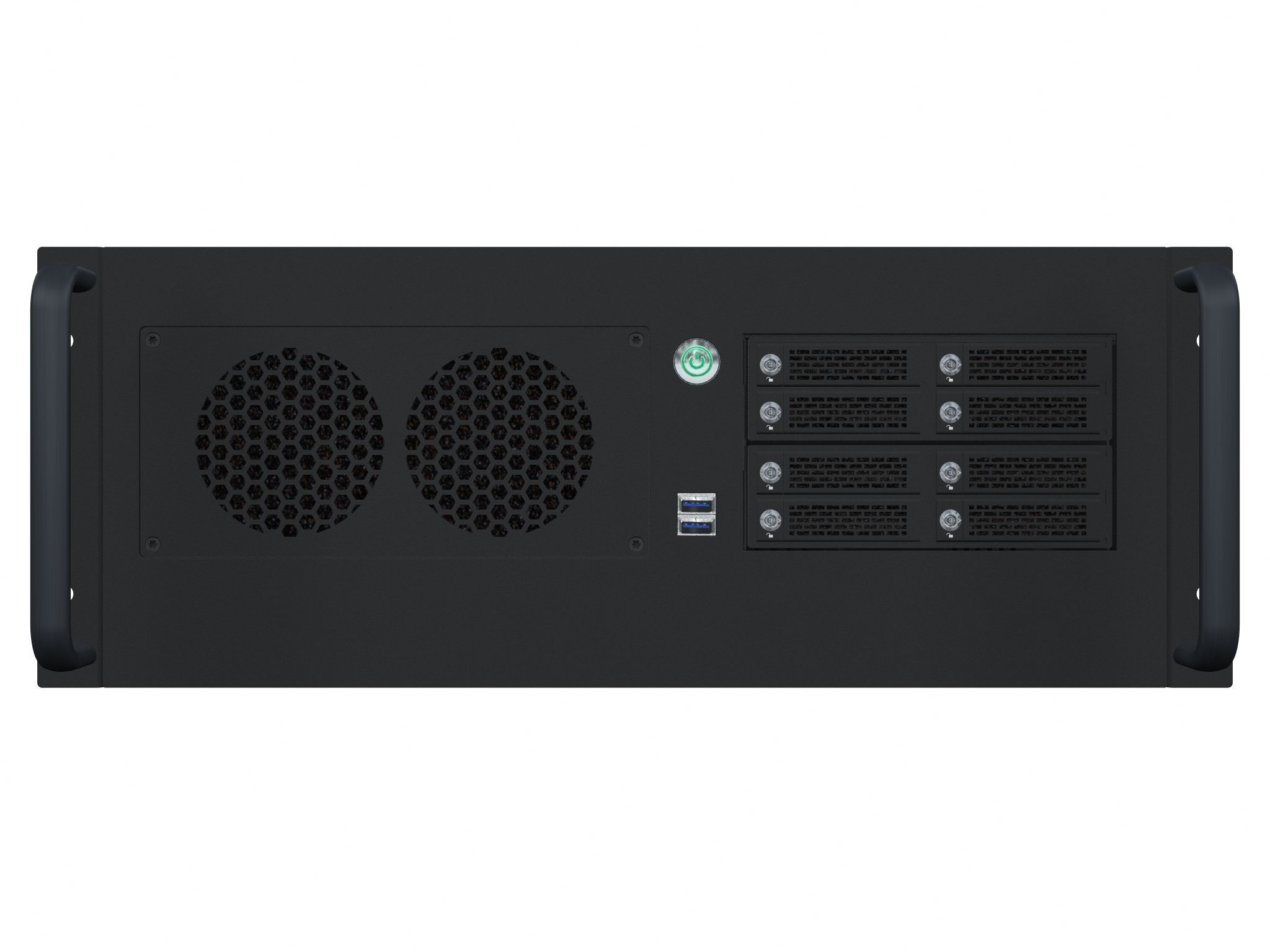

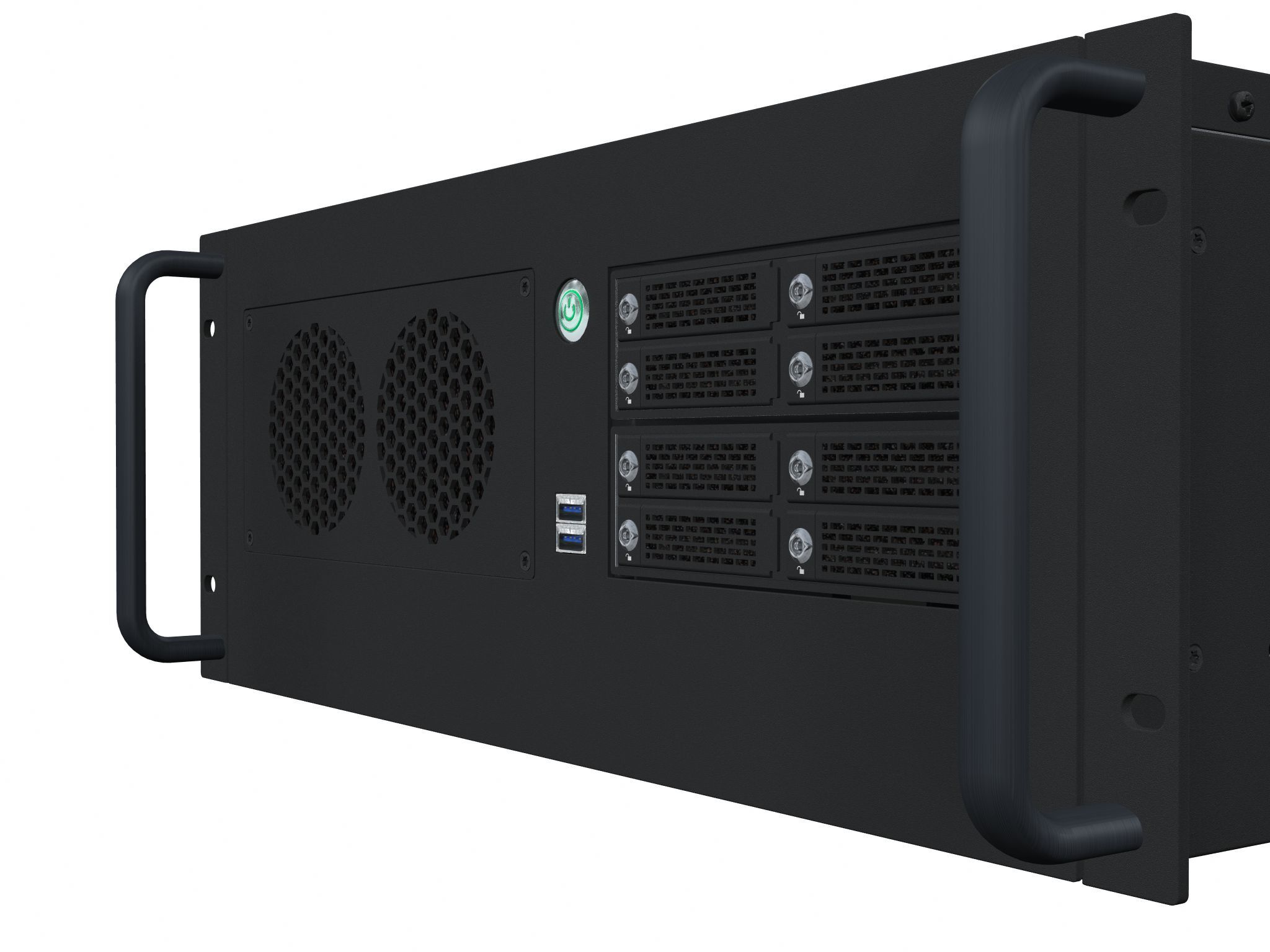

User Controls / Activity: Front: Power Button, Power LED, Activity LEDs SSD
Factory Options: • NVIDIA RTX A400 PCIe 4.0 x8, 4x mini DP1.4a, 4GB GDDR6
• NVIDIA RTX A1000 PCIe 4.0 x8, 4x mini DP 1.4a, 8GB GDDR6
• NVIDIA RTX 2000 Ada Generation: PCIe 4.0 x16, 4x DP 1.4a, 16GB GDDR6 with ECC
• PNY NVIDIA 4000 ADA: PCIe 4.0 x16, 4x DP, 20GB GDDR6 with ECC
• PNY NVIDIA 5000 ADA: PCIe 4.0 x16, 4x DP, 32GB GDDR6 with ECC
• X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45
• I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45
• X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+
• X710DA4 / X710DA4BLK: Intel® Fiber Network Adapter (10GbE), 4 x SFP+
• CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485)
• HT RAID KIT-A1 : 8 Ports SATA/SAS Gen 4.0 RAID Adapter with Cache Backup.
• AOC-S3808L-L8IR-O : 8 port SAS PCIe Gen 4.0 Internal RAID Adapter (RAID 1 and 10)
• AOC-S30808L-L8iT: 8 ports SAS PCIE Gen 4.0 Internal Host Bus Adapter
• PCA200828-2: COM RS-422/485 isolated module, NMEA 4 channel
• PCA200898-1: COM RS-422/485 isolated Generation 3 - Configurable, NMEA 4 channel
• PCA200904-1: Audio Module supports 2.0 channel, Line in, Line out (Pending)
Accessories: • HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mounting kit for 19" Rack
• HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mounting kit for 19" Rack

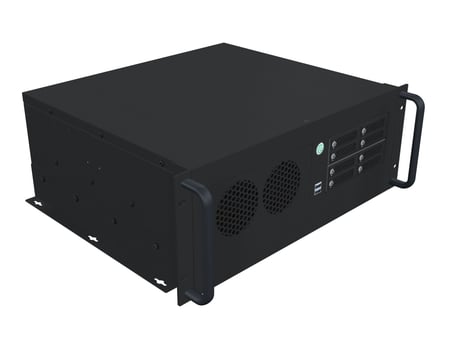

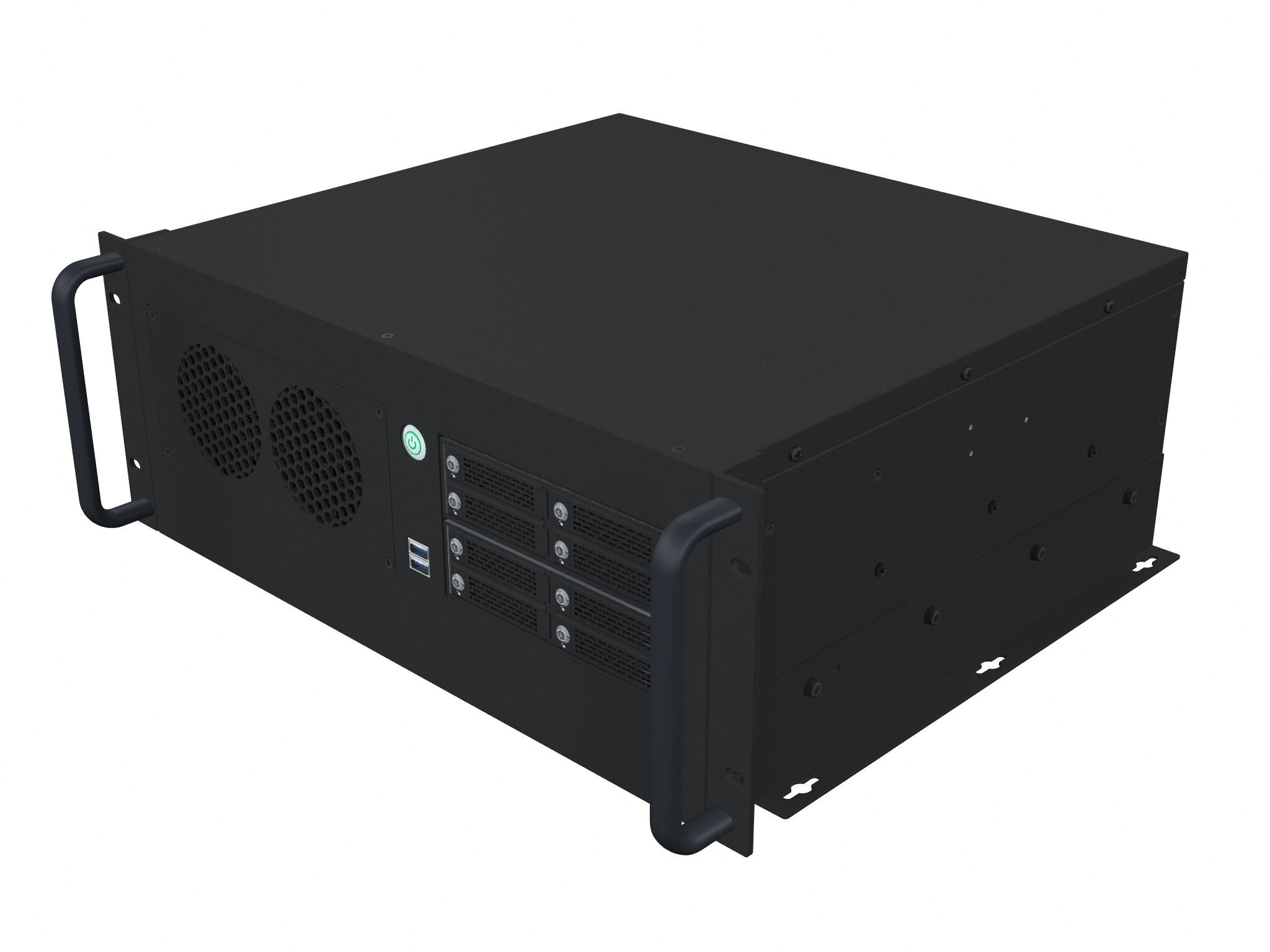

• HT MBK STD-G1: 1 x Mounting Bracket Kit for HTS31yyy and HTS41yyy - L-Shaped
• E10GSFPSR: 1 x Intel® Ethernet SFP+ Sr Optics
• E10GSFPSRX: 1 x Intel® Ethernet SFP+ Sr(x) Optics
• E10GSFPLR: 1 x Intel® Ethernet SFP+ LR Optics
• HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB external module
• HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB external module
• HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB external module
• HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
• HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB external module
• DP adapter for Nvidia Graphics Card: QSP-MINIDP/DPV3
Capabilities / Prepared for: See factory options
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 300.00 [118.11"] - Steering: 180.00 [70.87"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping**, CCS - China Classification Society**, KR - Korean Register**, BV - Bureau Veritas*, ClassNK - Nippon Kaiji Kyokai**, LRS - Lloyd's Register of Shipping**

* = Pending
** = By Request

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Specifications last updated: February 25, 2026 @ 11:40
