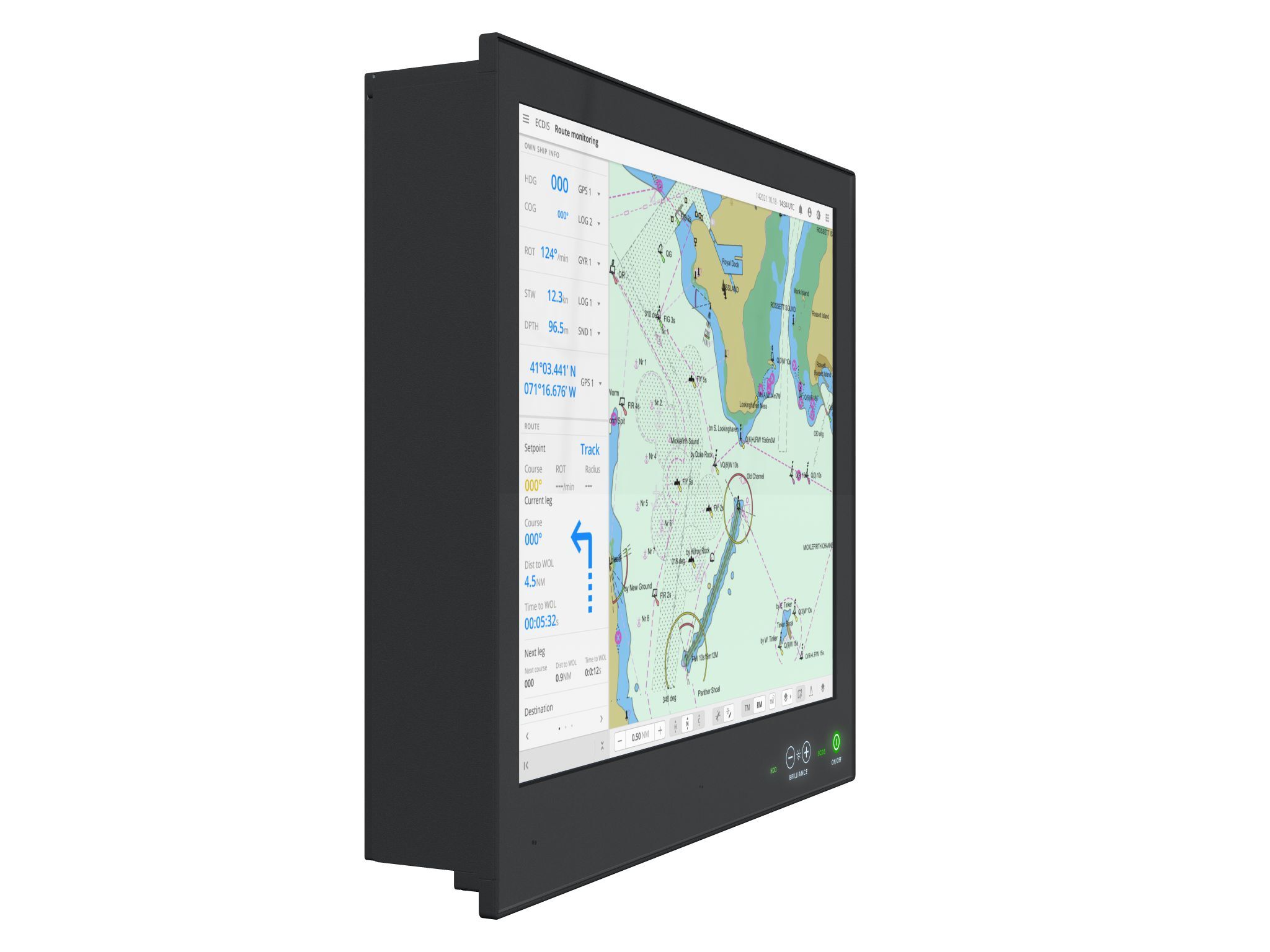

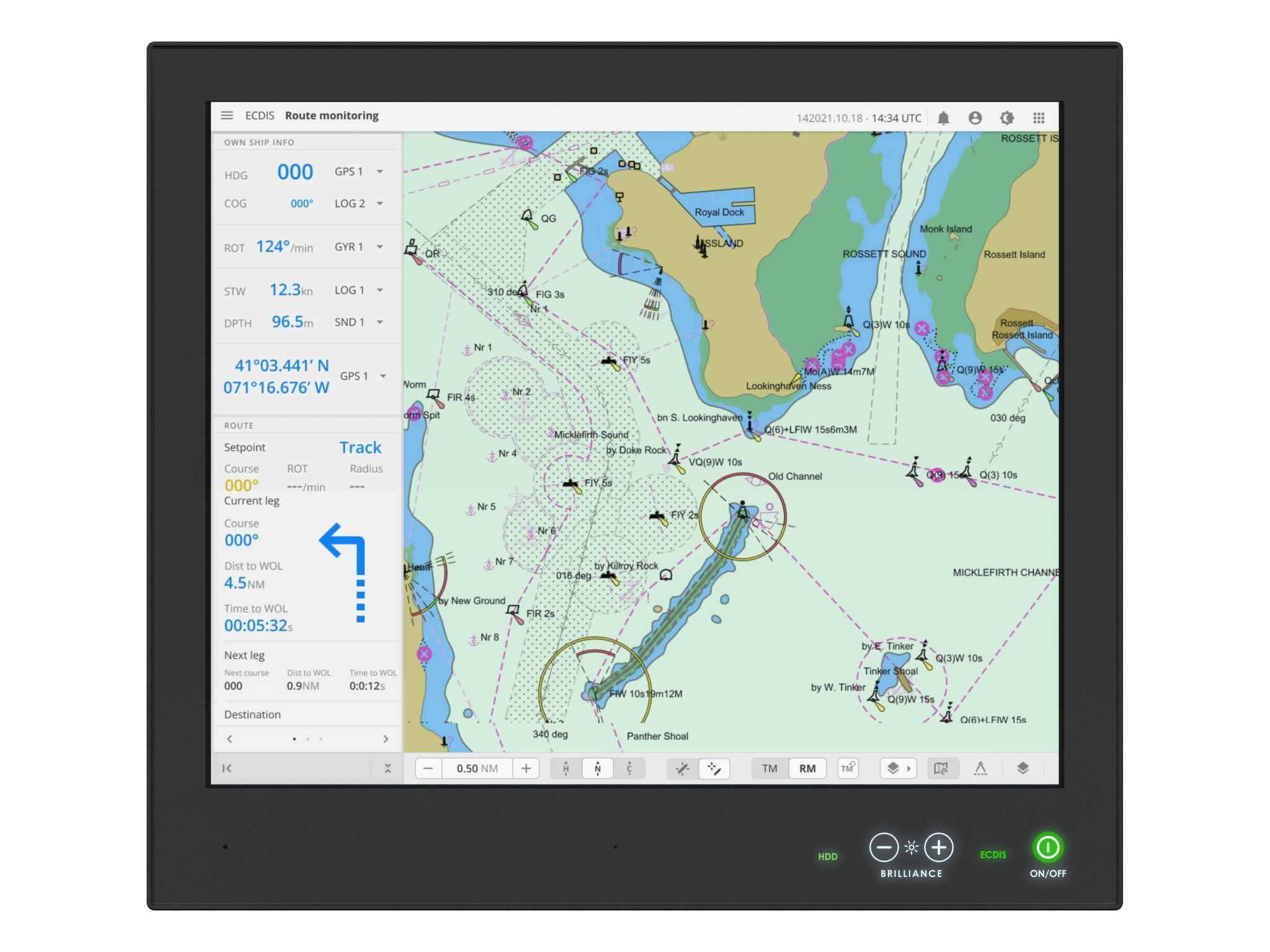

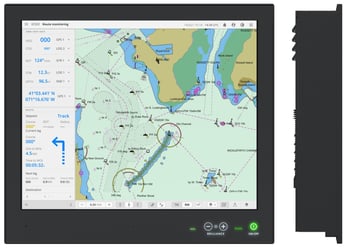

HD 19T27 MyC-yyy-yyyyyy
|
LED Backlight Technology, Color Active Matrix, a-SI (amorphous silicon) Thin Film Transistor (TFT), Anti-Reflective coating (AR)
|
19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
|
1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
|
5:4 - 35ms (typical, "black" to "white")
|
350 cd/m² (typical) - 1500:1 (typical)
|
> 85 deg. (typical) (Up/Down/Left/Right) - 16.7 million
|
1280 x 1024 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
|
DP++ Out Max Res.: 7680 x 4320 @ 60Hz Max
|
Multipower: 100-240V AC - 50/60Hz + 24VDC
Power Consumption[1]: Operating AC/DC: TBDW (typ) - 156W (max)
[1] You may connect either AC power or DC power or both. In case both sources are connected, power will be sourced from the AC
input. If AC input is lost, there will be a uninterrupted switch-over to DC input.
|
Dimmable 0-100%, Buzzer, Multi-power AC & DC, TPM2.0, Firmware Raid, LAN Wakeup, USB Boot and Wakeup
|
None or Standard OS/Customized image, review datasheet for list.
|
Storage #1: 1 x M.2 Socket 3, Key M, 2280 w/ NVMe support. 240GB, 0.5 TB - 1 TB - 2 TB
Storage #2: 2 x 2.5" SSD SATA via Removable Tray 240GB, 0.5 TB - 1 TB - 2 TB
|
1 x Intel® Celeron® G6900TE, 2.4GHz, 4MB Cache
or 1 x Intel® Quad Core™ i5-13500TE, 1.4/4.5GHz, 24MB Cache
or 1 x Intel® Quad Core™ i7-13700TE, 1.3/4.9GHz, 30MB Cache
CPU Fan Cooler/Heatsink: Rear external air flow. FAN speed temp. controlled
|
Memory DDR5-4800, dual channels (ECC support on request) - 8GB, 16GB, 32GB or 64GB
|
System Chipset: Intel® R680E
Graphics chipsets:
Intel® UHD Graphics 710 for Intel® Celeron® G6900TE CPU
Intel® UHD Graphics 730 for Intel® Quad Core™ i5-13500TE CPU
Intel® UHD Graphics 770 for Intel® Quad Core™ i7-13700TE CPU
|
EFI, ACPI Support. Preconfigured by factory / Onboard Buzzer (according to IEC60945/IACS-E10)
No Onboard PC-Beeper
|
AT, ACPI (S3/S4) - Temperature, Fan and voltages status
256 Segments, 0, 1, 2...255 sec/min
|

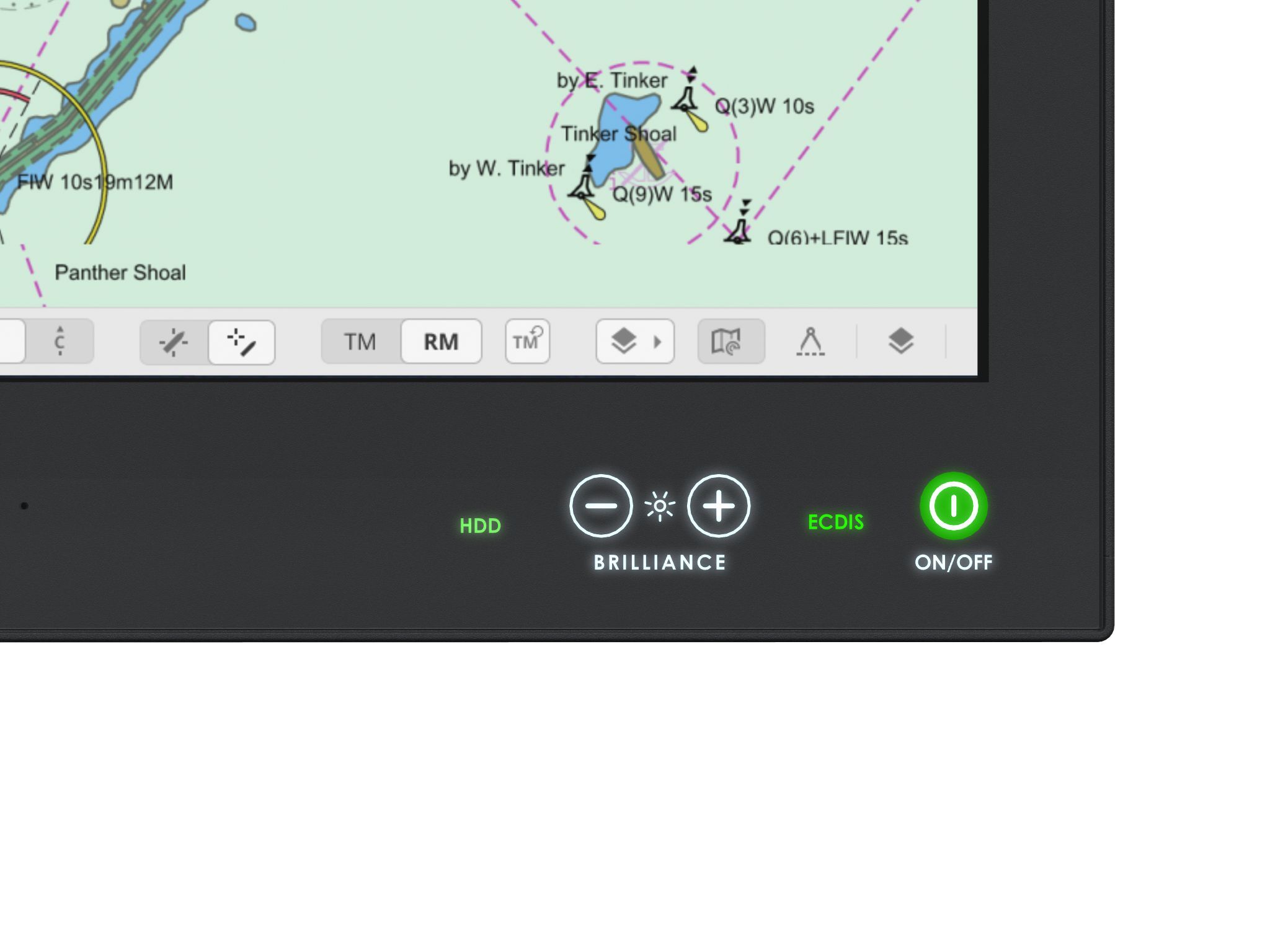

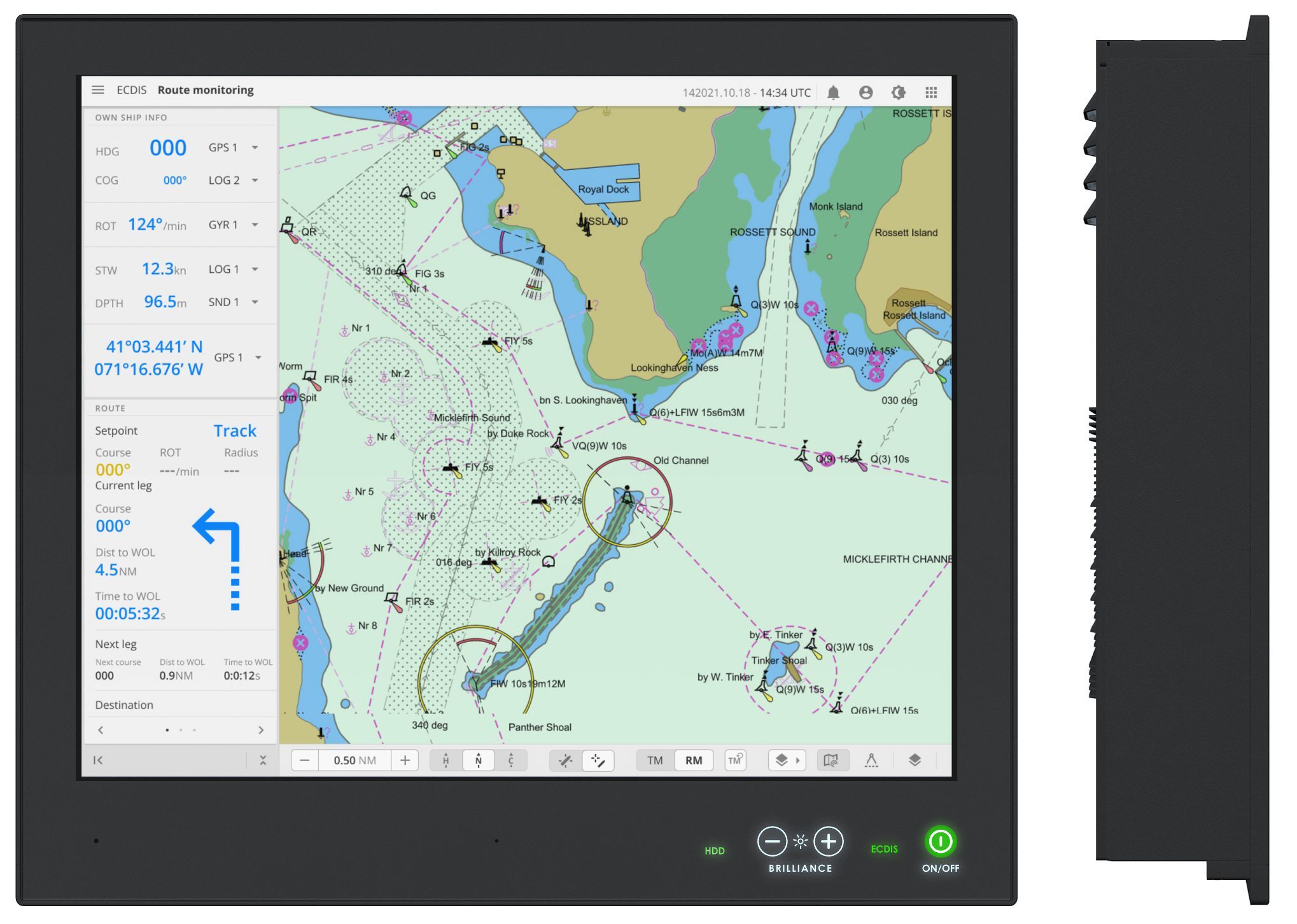

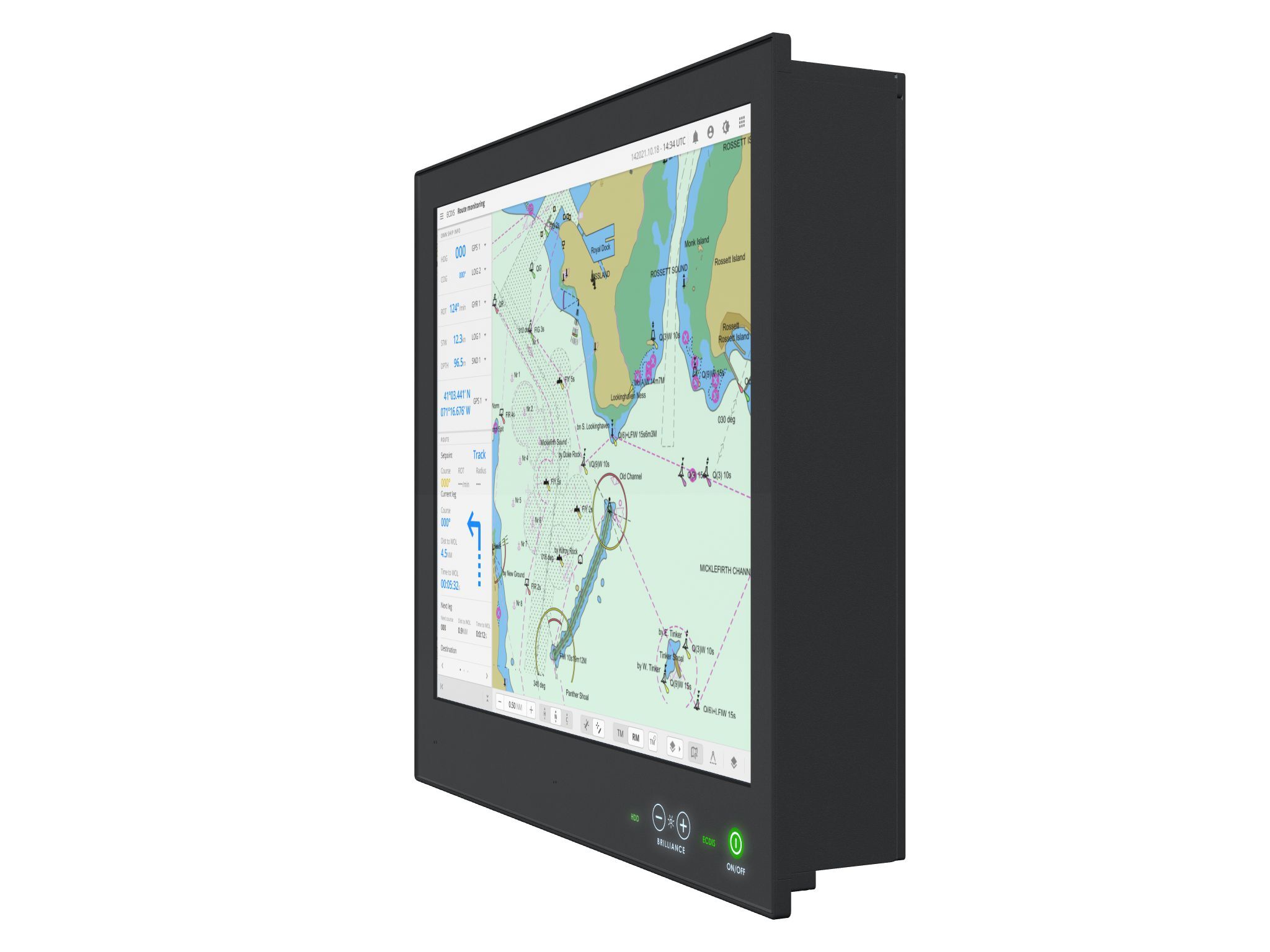

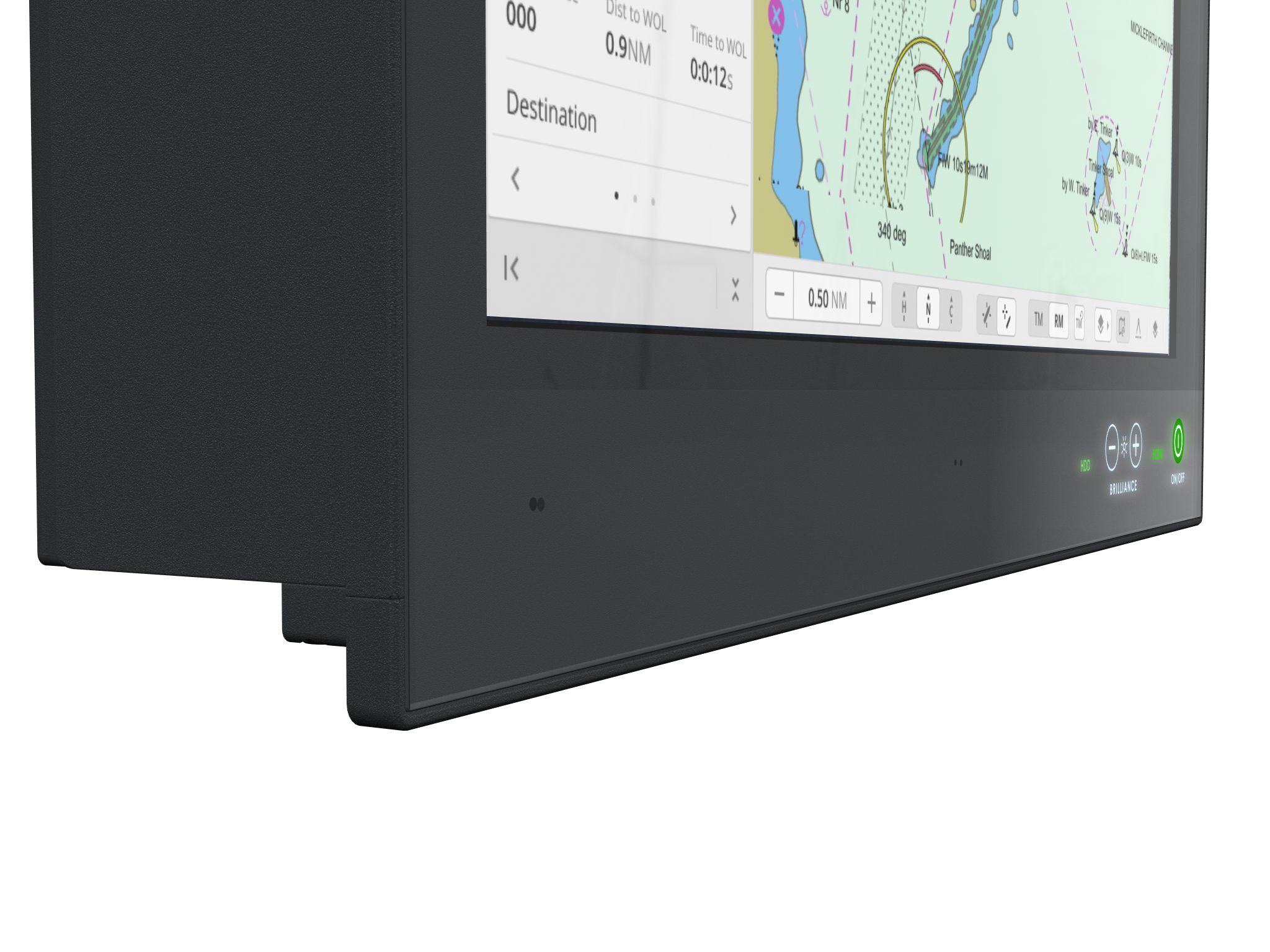

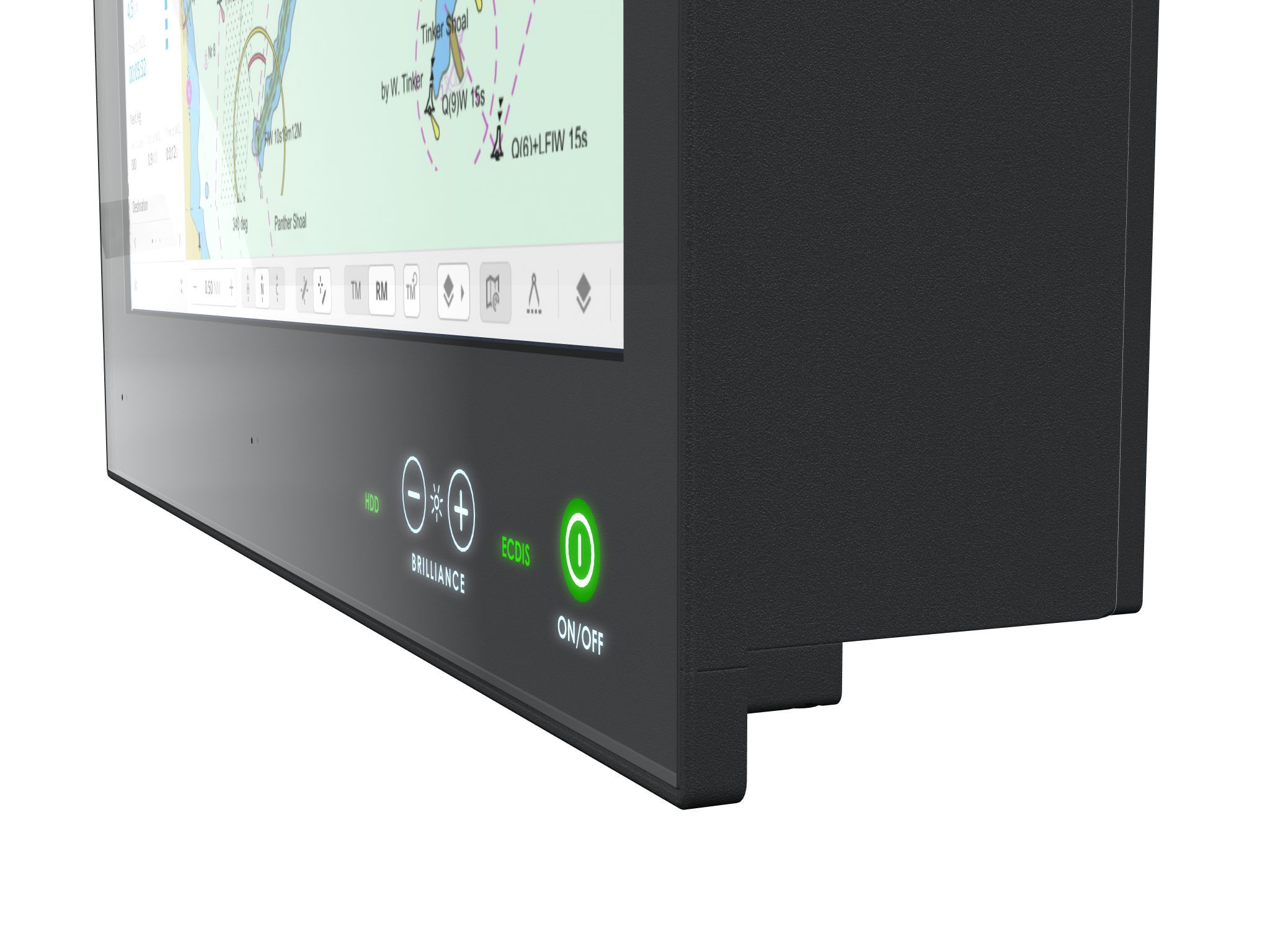

Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Power LED, HDD/SSD LED, Mode Status Indicator (Service), Buzzer (through glass) (75-85dB), Light Sensor (behind glass)
|

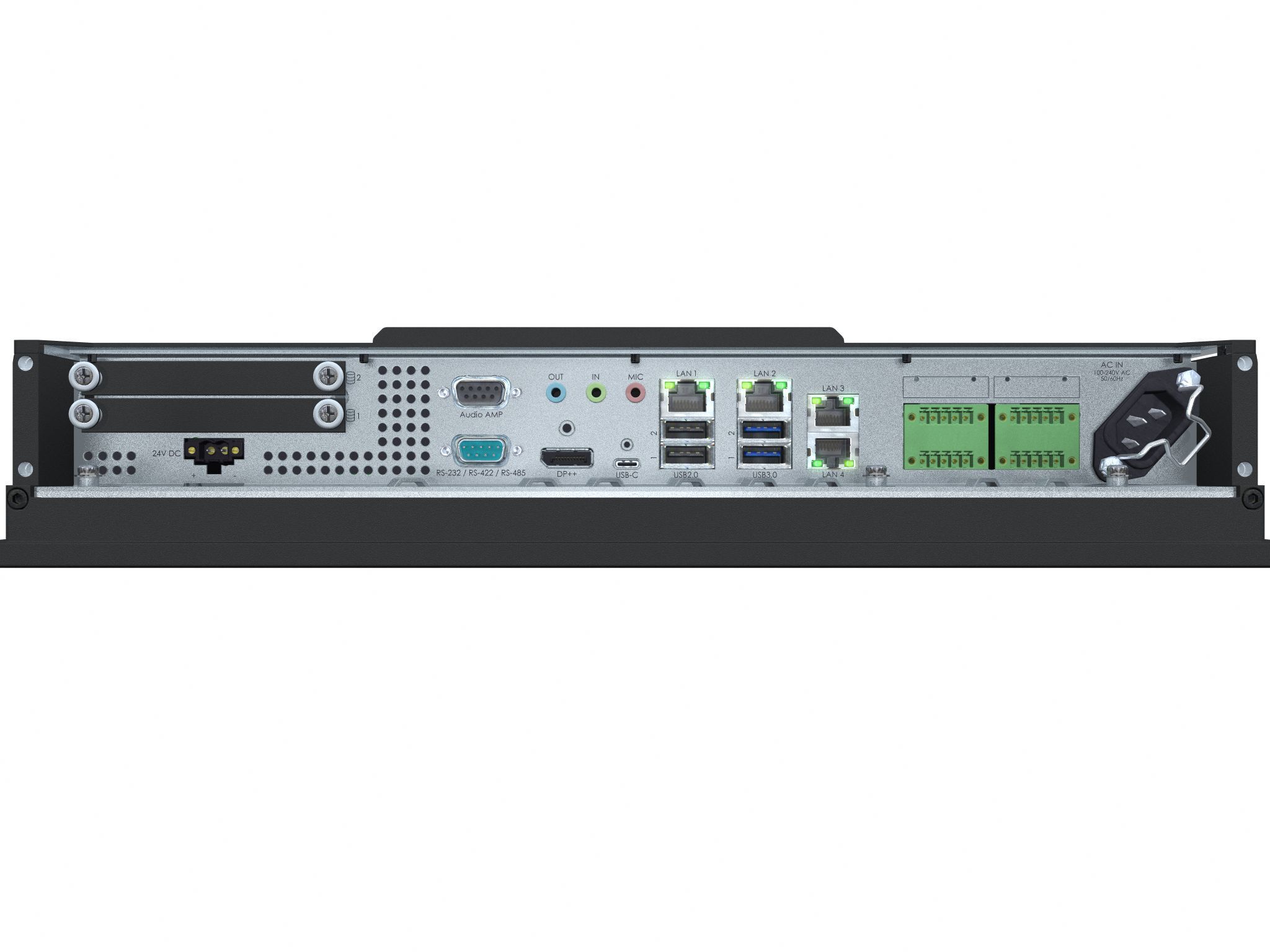

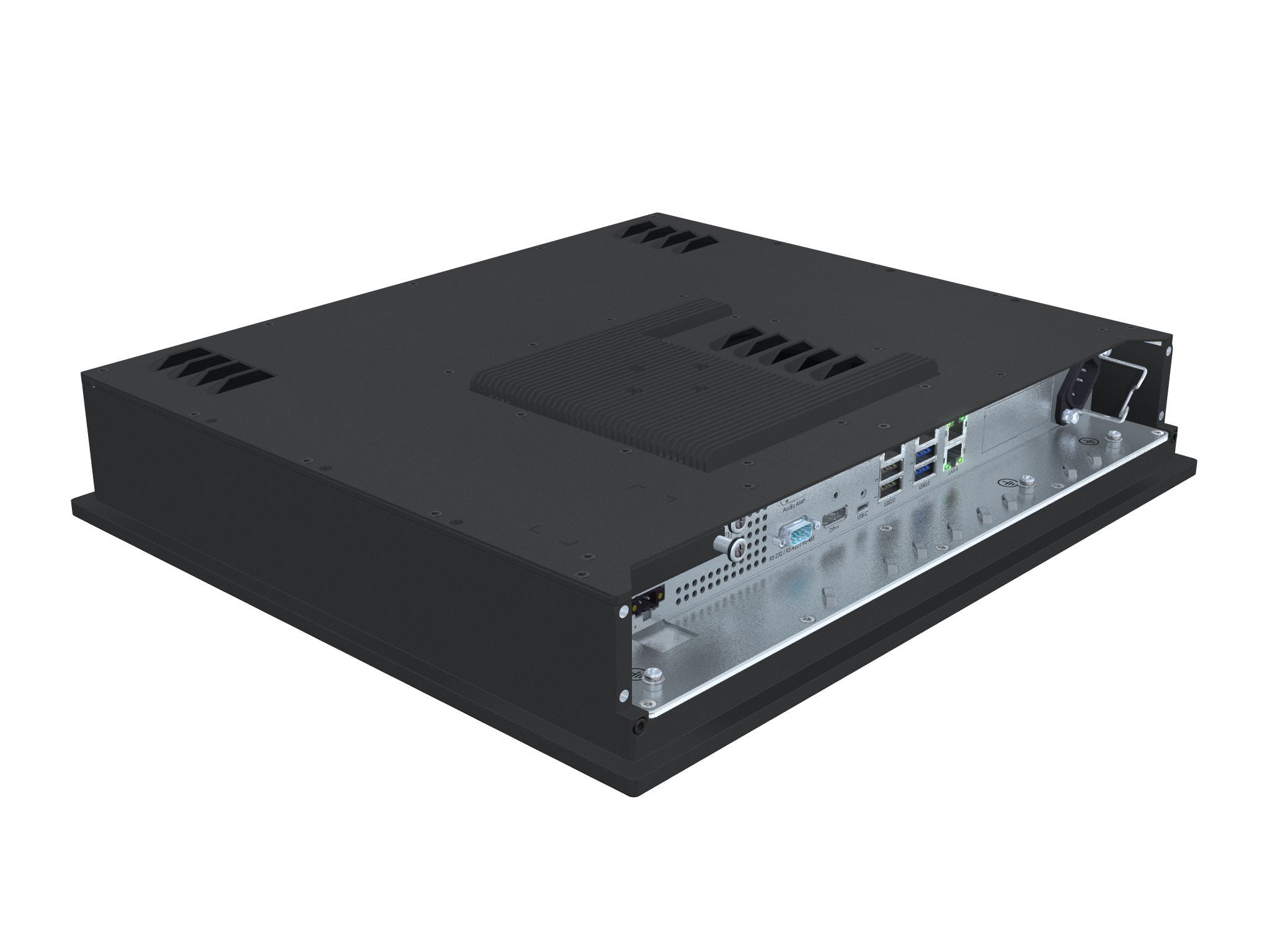

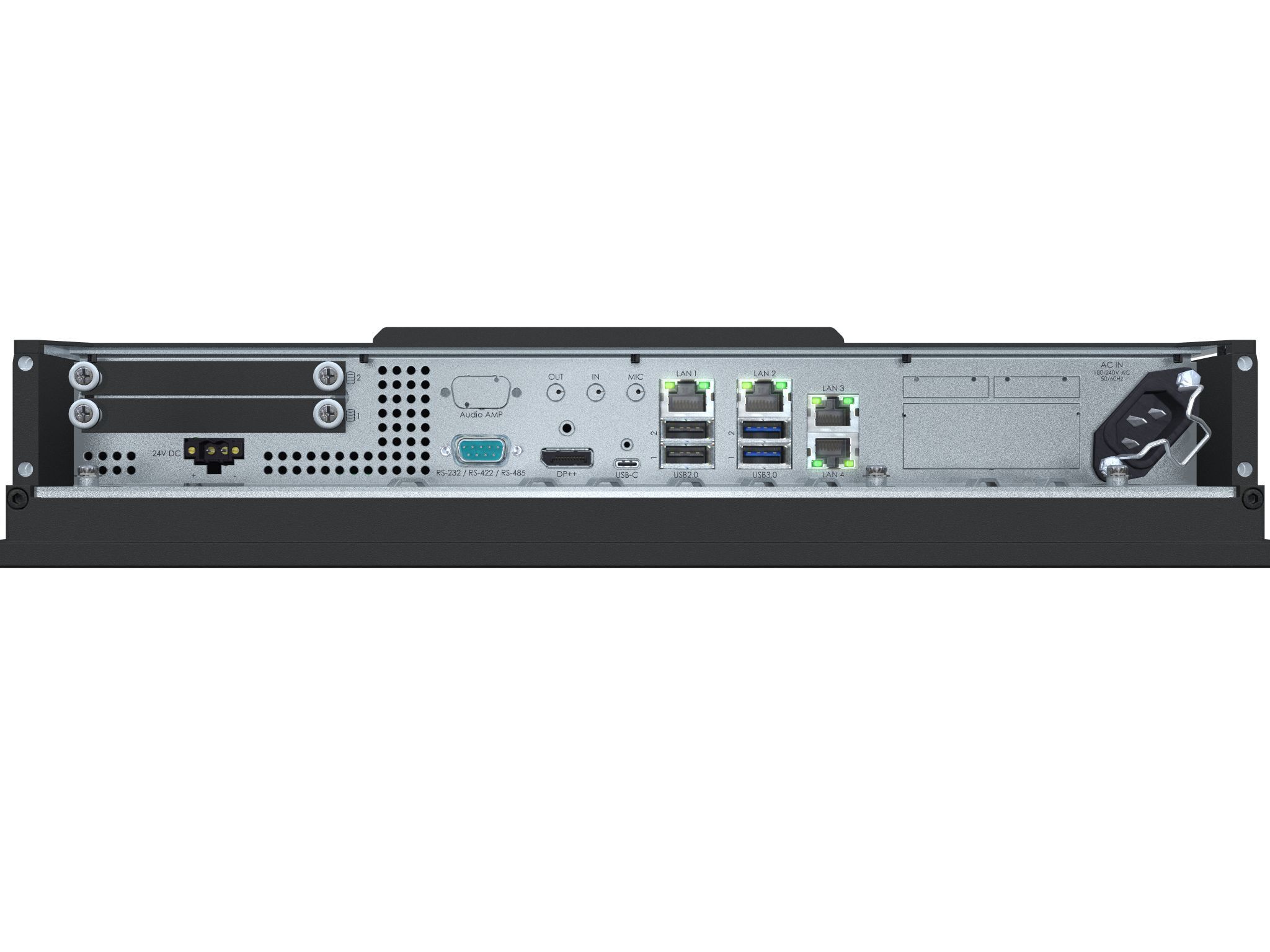

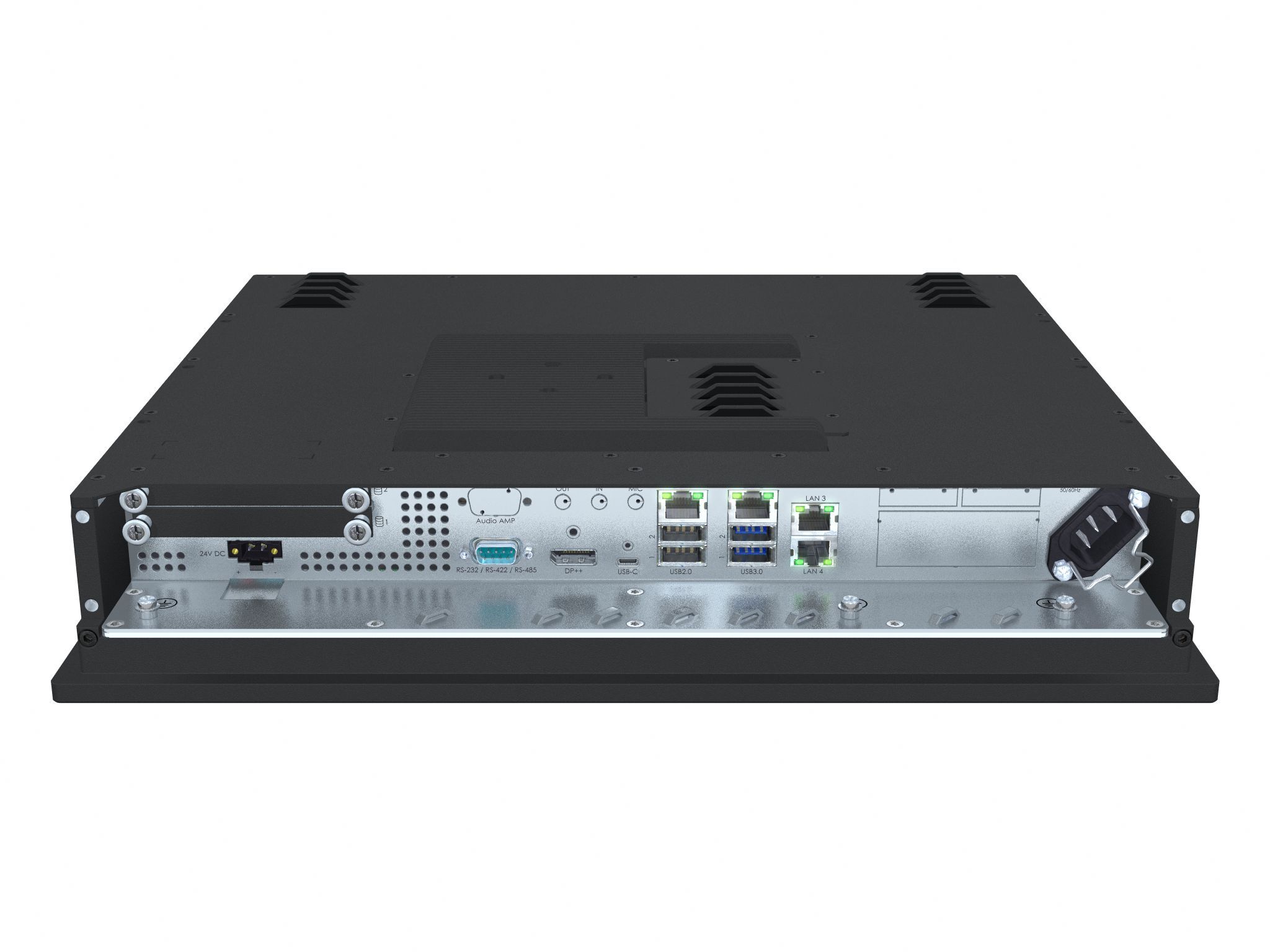

• Ethernet GBLan: 4 x RJ-45
• COM RS-232 & 422/485: 1 x DB9M non-isolated (Change RS mode in BIOS)
• COM RS-232 (Internal): 1 x Internal Virtual COM (Software controlled)
• USB2.0[3]: 2 x USB Type A (4-pin)
• USB3.2[2]: 2 x USB Type A (9-pin)
• DP++ 1.2 OUT[2]: 1 x DisplayPort Female (Dual-Mode DP++)
• HDMI[2]: 1 x 19p HDMI (female)
• USB-C[1]: 1 x USB-C DisplayPort and USB signal (DP and USB )
• AC/DC Power IN: 1 x Std IEC inlet 1 x 2-pin Terminal Block 5.08
• If SSD Trays option: 2 x 2.5” Sized Tray/Bay (Factory option)
[1] Recommended max cable length 2m
[2] Recommended max cable length 3m
[3] Recommended max cable length 5m
|

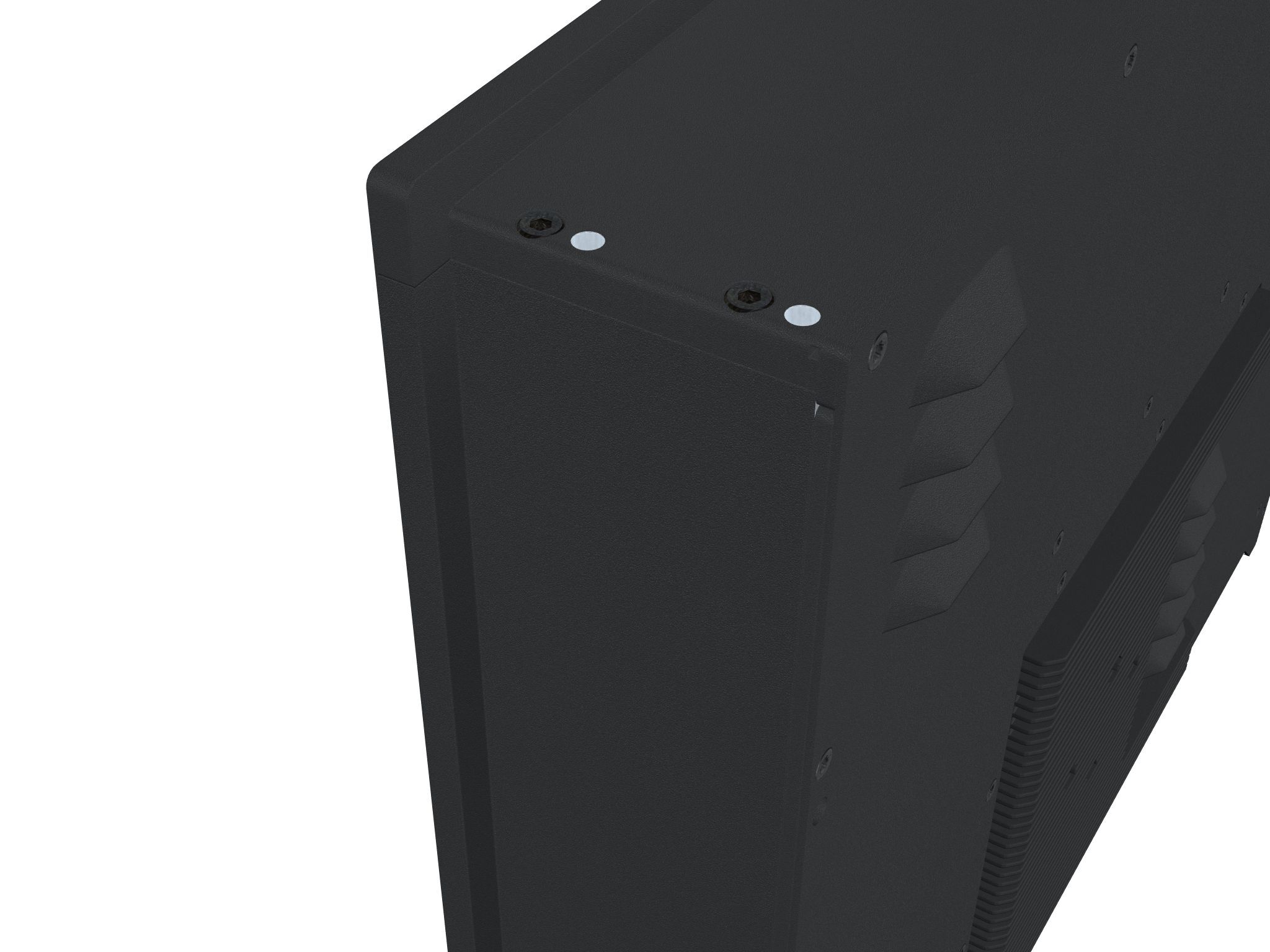

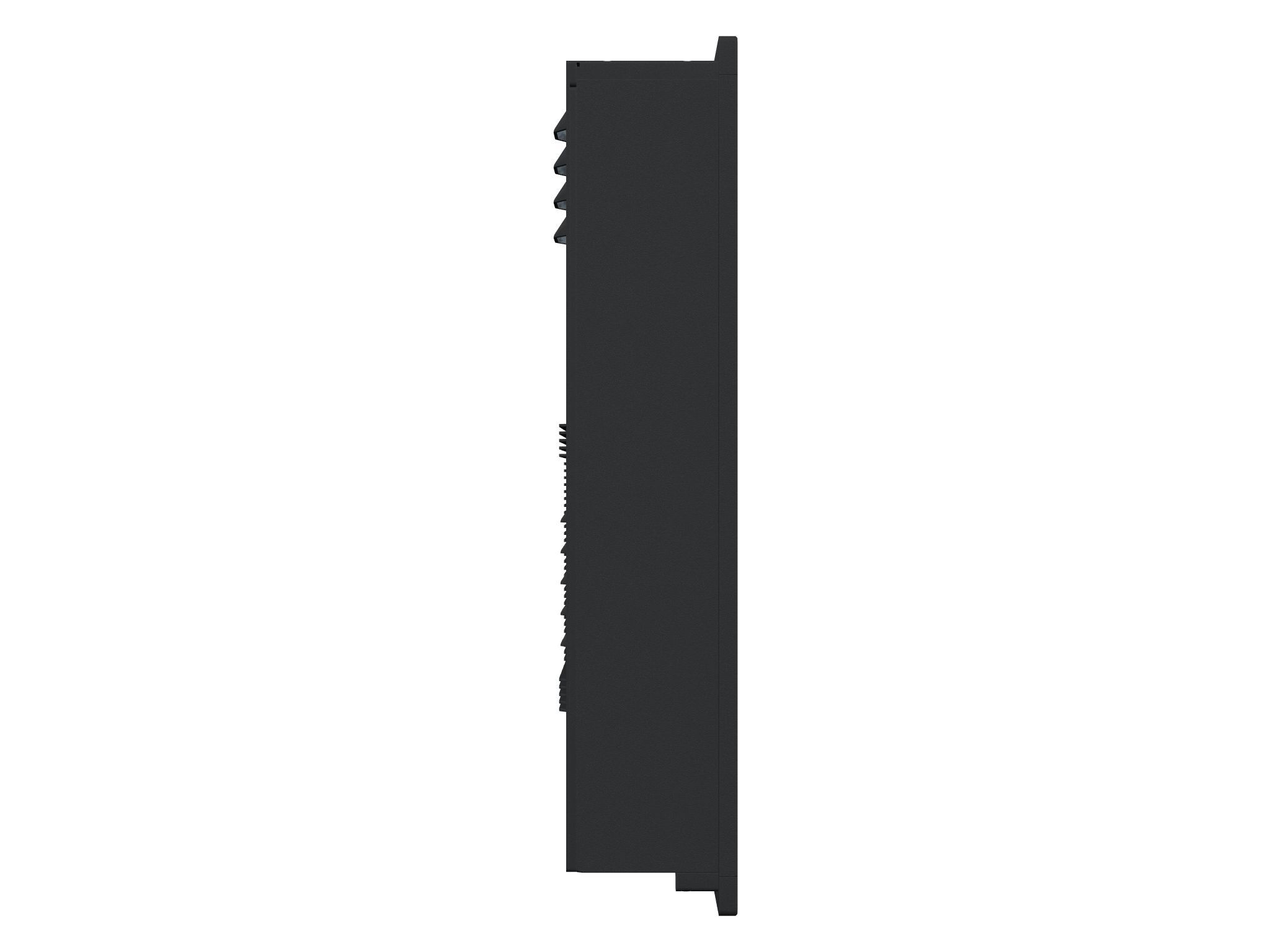

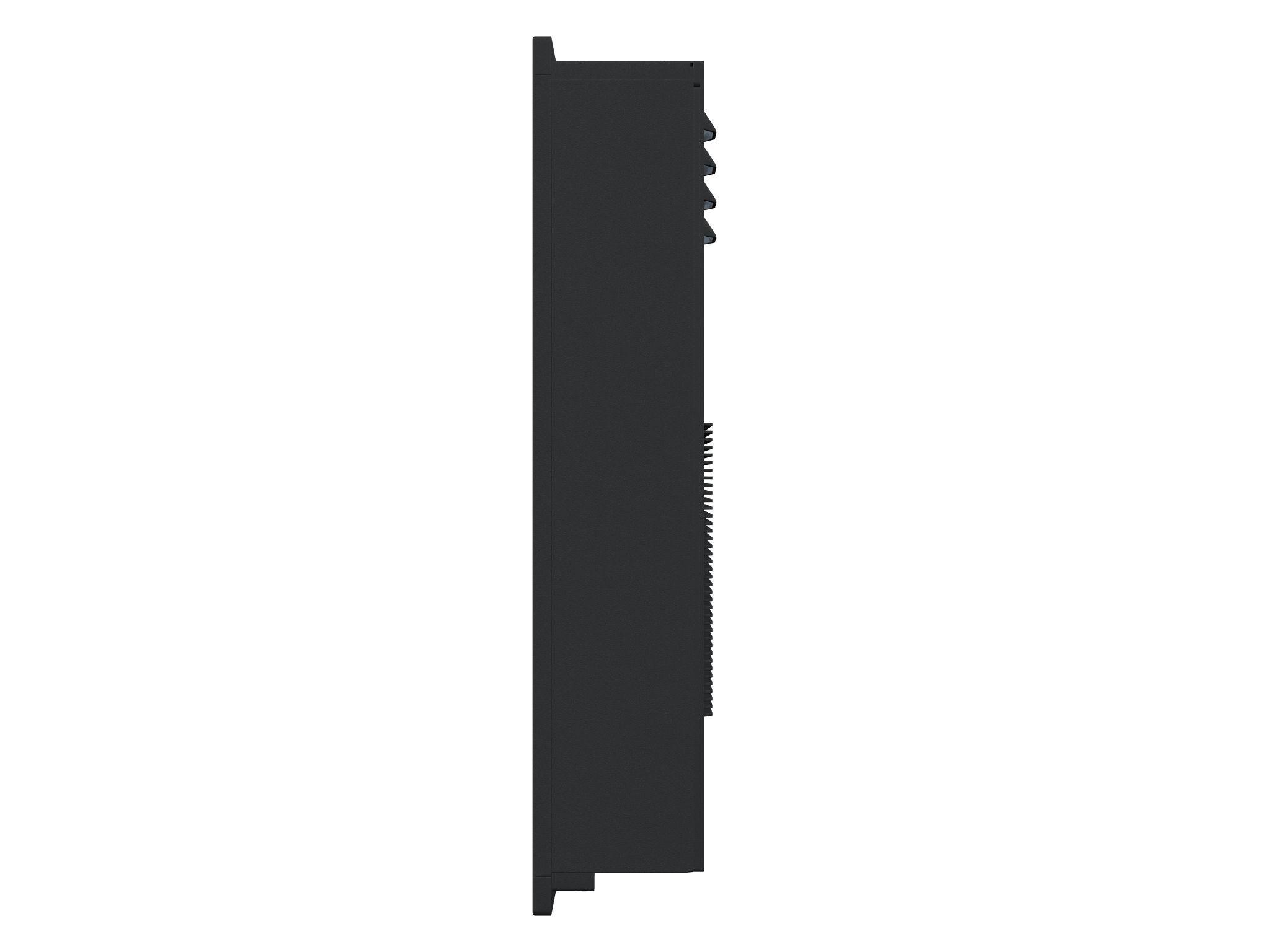

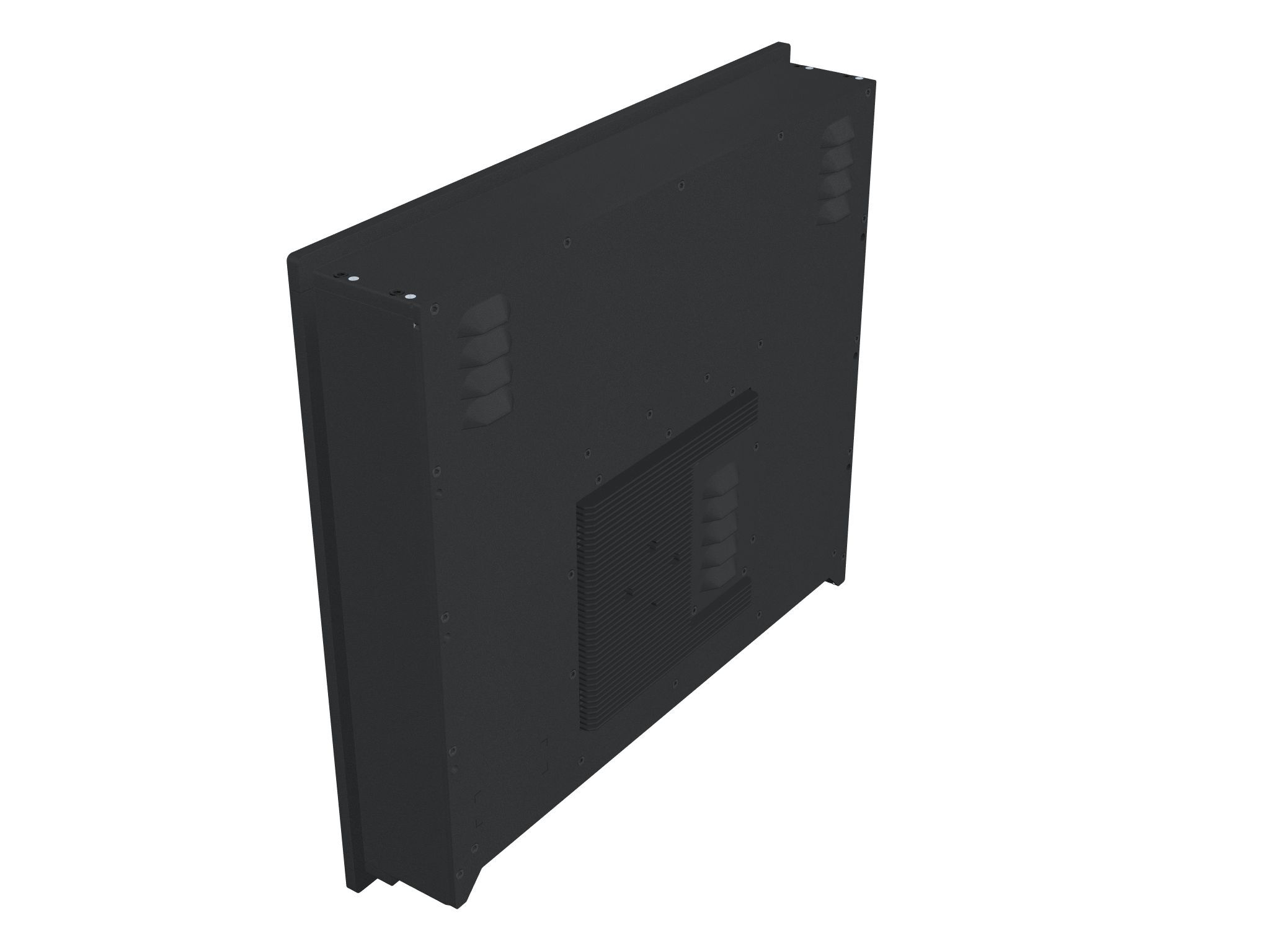

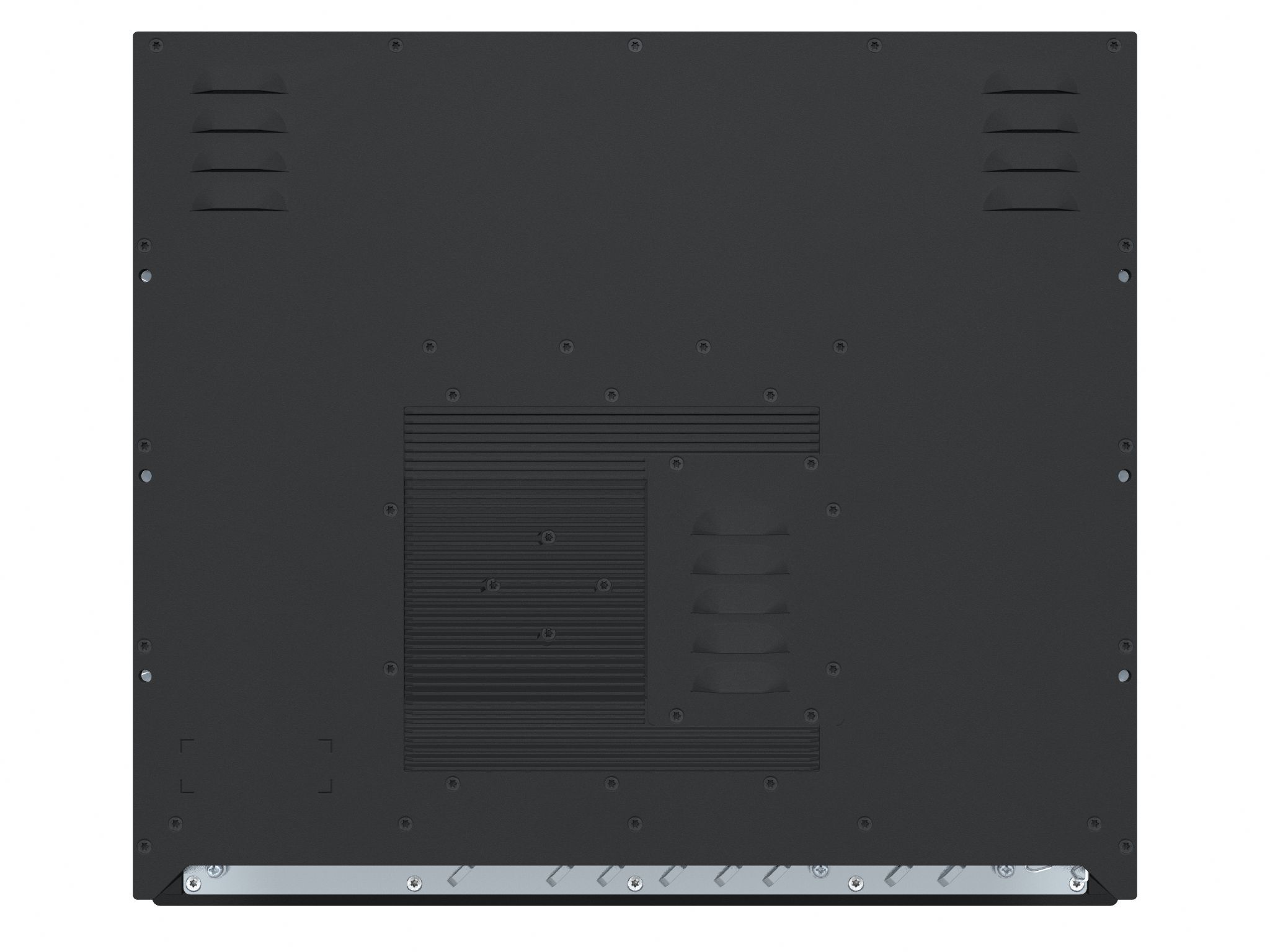

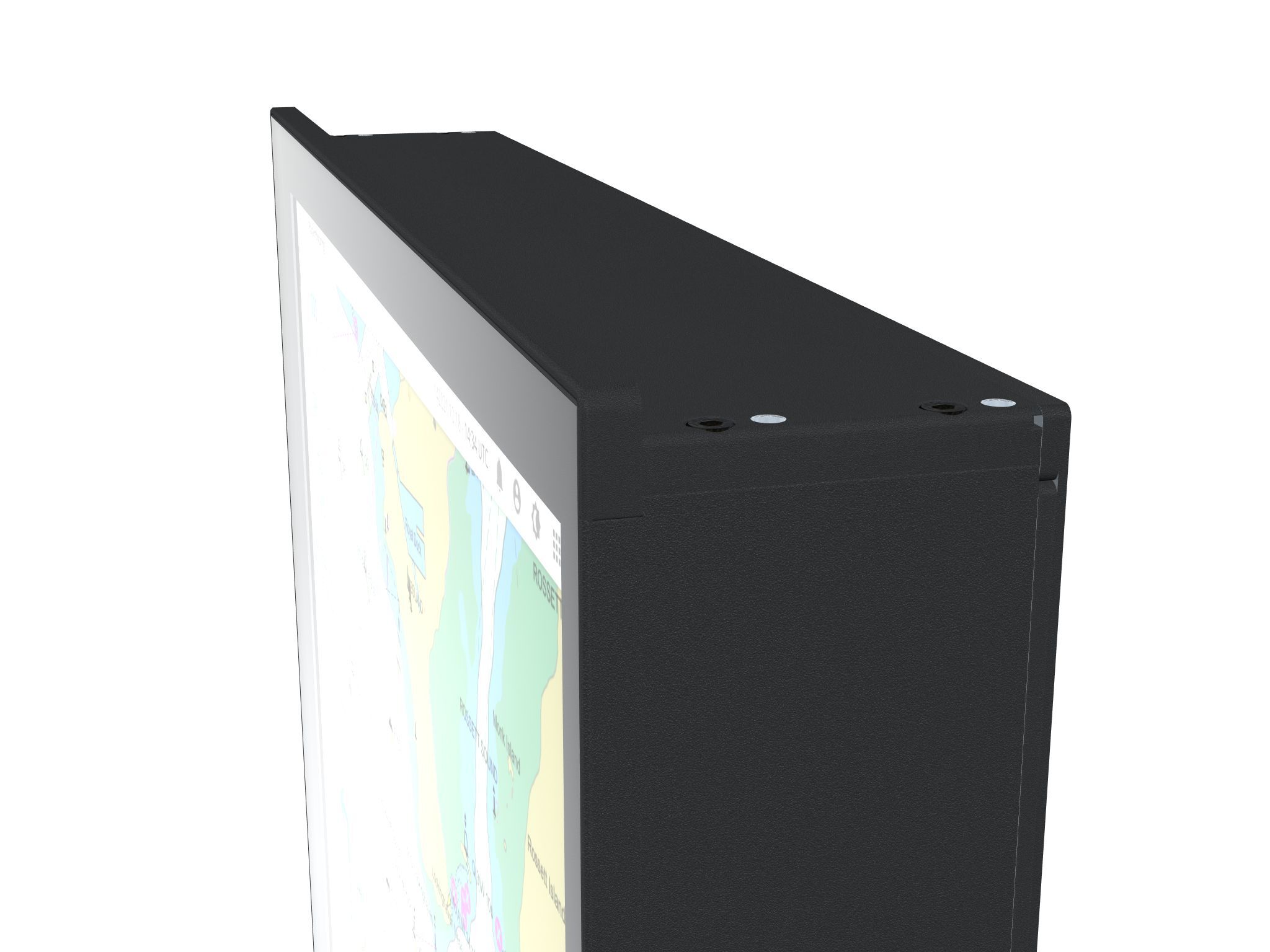

W:429.00 [16.89''] x H:382.00 [15.04''] x D:83.00 [3.27''] mm [inch]
Weight: 8.5 kg / 18.7lbs
|
L:530.00 [20.87''] x W:200.00 [7.87''] x H:540.00 [21.26''] mm [inch]
Approx. 10.0kg / 22.0lbs
|
• Projected Capacitive Touch Screen: Multitouch
• Optical Bonding Technology
• Color Calibrated models: ECDIS
• Storage: Model with 2 x physical 2.5'' removable Disk Bay/Tray
• Variations: SSD Storage, RAM Memory, Operating System, CPU
• 1 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel
• 1 x HTA2020002-AD1033: CAN isolated 2 channel
• 1 x HTA2020002-SLCAN: CAN isolated 2 channel, socketCAN
• 1 x PCA100297-1: Isolated Digital IO module, 4 x Output/4 x Input
• 1 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module
• 1 x PCBAA21001: LAN 1Gbps, 2 x SFP module
• 1 x PCA200827-1: 2 x RJ-45, PoE 12V 5.5A receiver module
• 1 x VSD203592-1: 1 x Isolated RS-232, DB9M connector
• 1 x HT EPB STD-A2: External/Remote ON/OFF power button
• 1 x VSD101121-1: 2W Amplified Audio out via 1xDB9F+3x3.5mm Jack
|
• JH C01MF A-A: USB cable Type A plug-> Chassis Mount Type A receptacle 1m

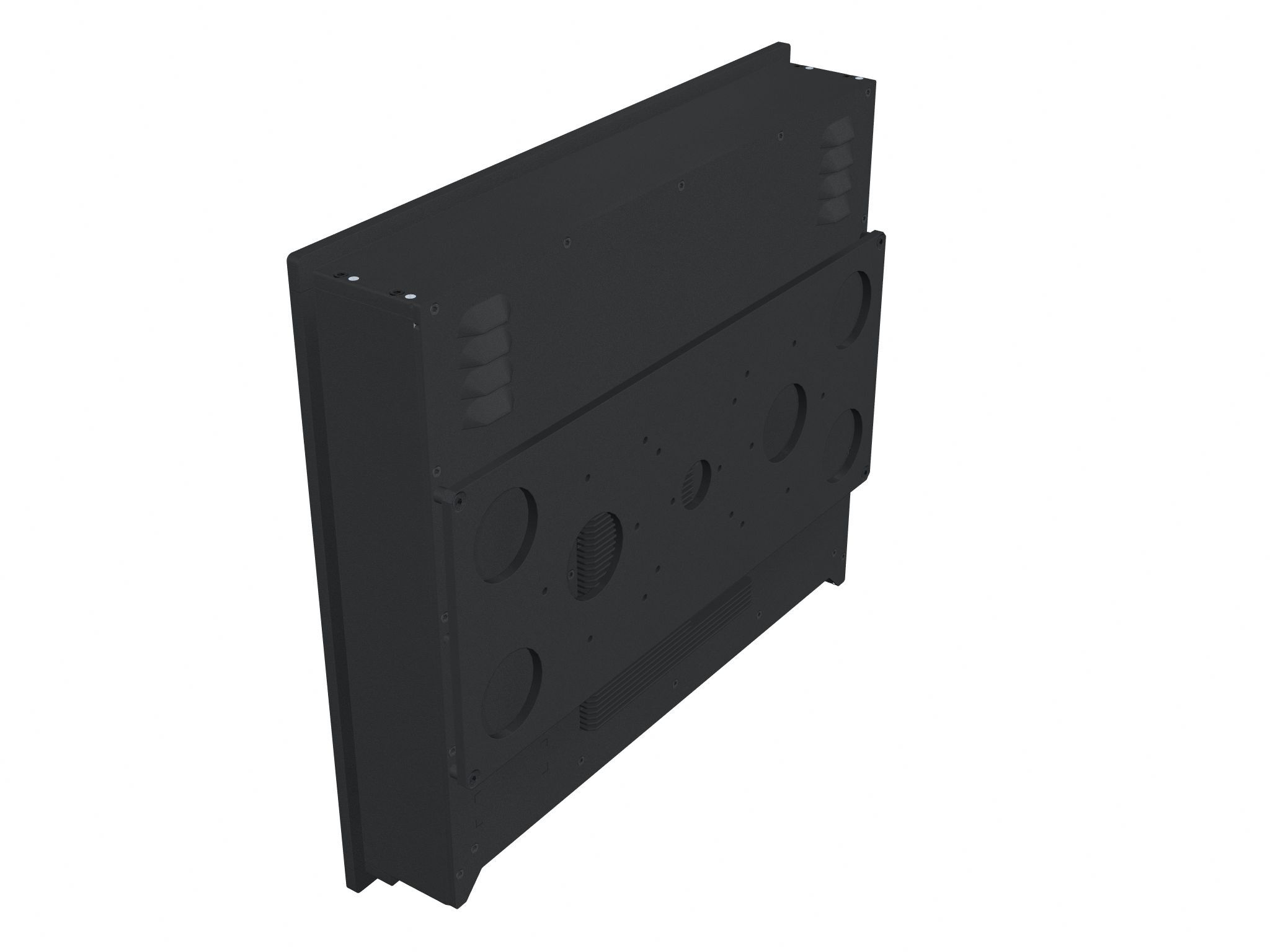

• HD VED SX2-C1: 19" Series X G2 VESA Adapter, Ral 9011, 75/75mm, 100/100mm, 200/100mm(recommended), Not EN60945 Tested

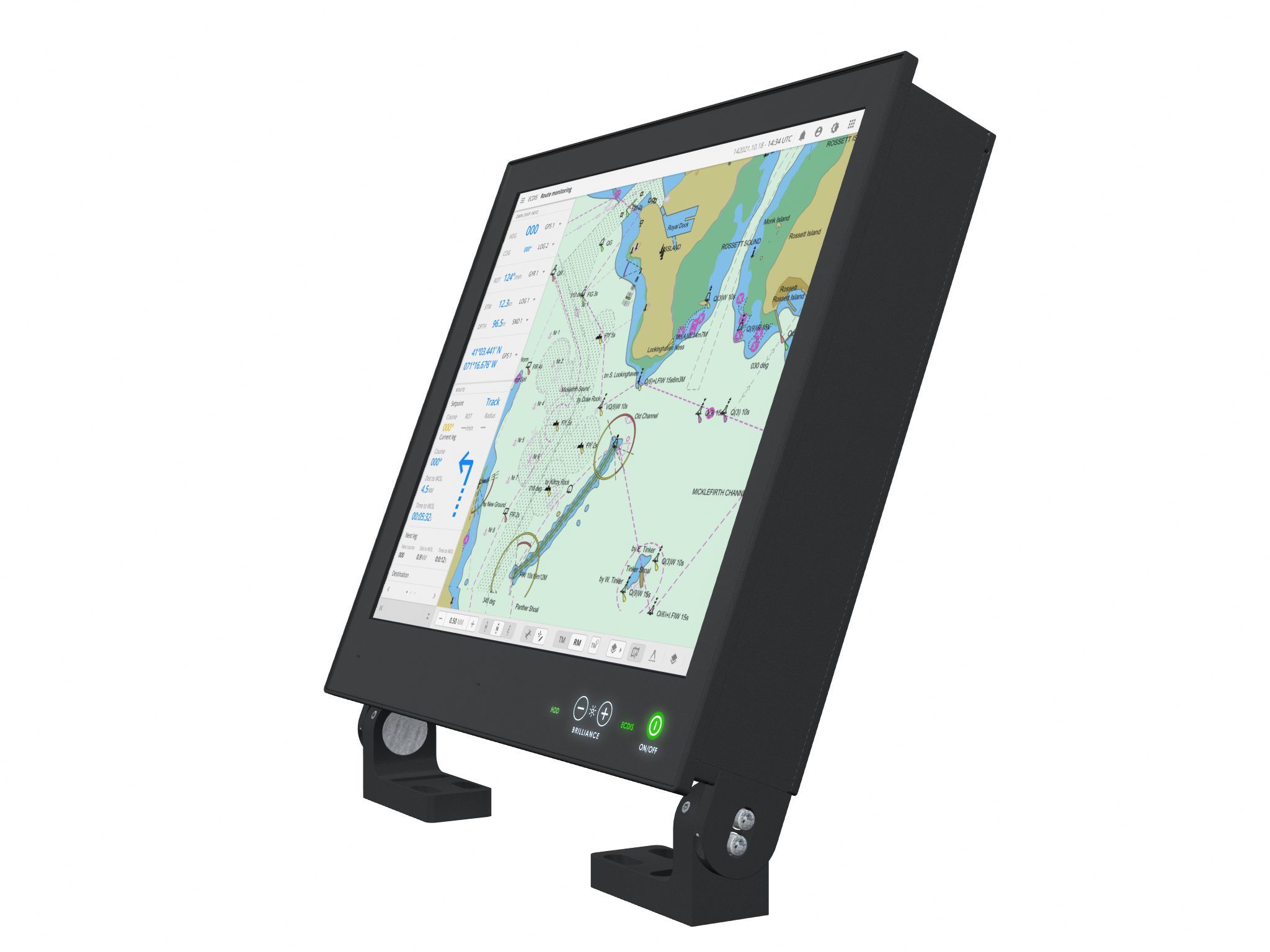

• HD TMB SX2-A1: 15-17-19" Series X G2 Table Mount Brackets, Ral 9011
• HD CMB SX2-N1: HD 19T22 MMC Series X G2 Console Mount Kit
• JH 19TAP STD-C1: Adapter 19inch Series1 -> 19inch Series X
• HD 19TAP SX2-C2: Adapter 19inch Series X MMD/MMC T22 -> 19inch Series 2 Console
• HD 19COV SX1-A1: 19.0" UV Sun Front Cover, Series X G1/G2
• P007131-1: Gasket chassis-console HD 19T2x, EPDM cellegummi, S-4215
• HT 00262 OPT-A1/B1: Extern 4x RS422/RS485 isolated, USB
• HT 00264 OPT-A1/B1: Extern 2x CAN isolated, USB API:SAE J2534
• HT 00264 OPT-A2/B2: Extern 2x CAN isolated, USB API:SLCAN
• HT 00273 OPT-A1/B1: Extern DIO isolated, USB
• HT 00277 OPT-B1: LAN SFP 1U module (based on PCBAA21001 Rev02) incl. SFP-1000Base-TX-C + SFP-1000BaseLX-RGD-C
• HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os
• VSD100779-1: External audio cable, DB9 Male to open leads mono 1 meter
• HD 000TR SX2-A2: Removable Tray 2.5" with 4 x M3x4mm Phillips Countersunk Screws
• HD xxxyy SX1-z1[1]: 1 x Removable Front Tray 2.5" w/Storage Device
[1] Where yyy=Size of device. zz=GB,TB. w=S (SSD) - Choose Device from table.
|
See Factory Options
|
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
|
-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
|
Protection: IP66 front - IP20 rear (EN60529). IP22=option
|
Standard: TBD - Steering: TBD cm [inch]
|
IEC 60945 4th (EN 60945:2002)[1], IACS E10[1], KR - Korean Register of Shipping[1], ABS American Bureau of Shipping[1], DNV (EU RO MR) Det Norske Veritas (EU RO MR)[1], BV Bureau Veritas[1], CCS - China Classification Society[1], ClassNK Nippon Kaiji Kyokai[1]
[1] Pending
Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
|
