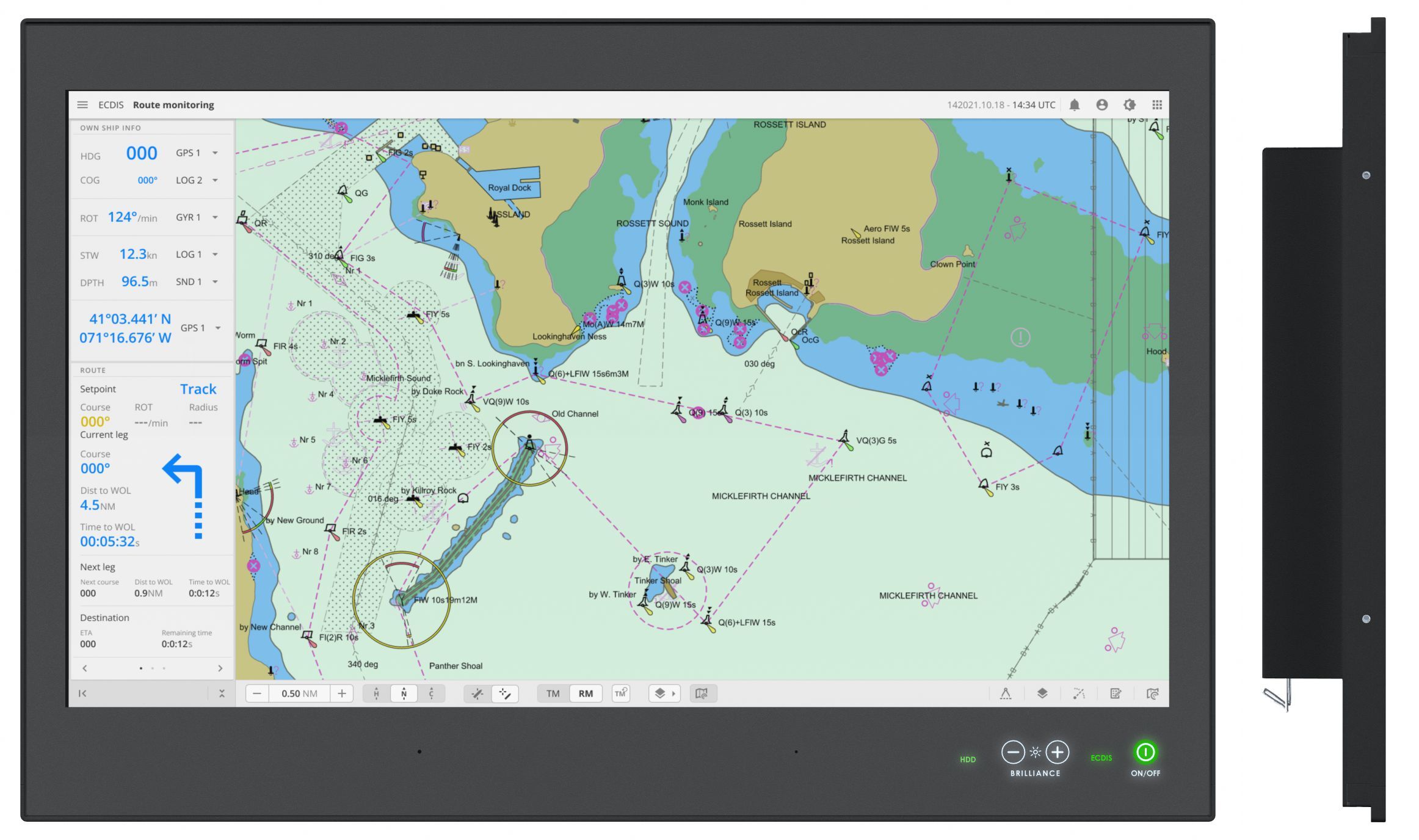

HD 27T27 MyC-yyy-yyyyyy
|
LED Backlight Technology, Color Active Matrix, a-SI (amorphous silicon) Thin Film Transistor (TFT), Anti-Reflective coating (AR)
|
27.0 inch - 597.6 [23.53"] (H) x 336.15 [13.23"] (V) mm [inch]
|
1920 x 1080 (FHD) - 0.31125 (H) x 0.31125 (V) mm
|
16:9 - 12ms (typical on/off)
|
300 cd/m² (typical) - 3000:1 (typical)
|
+/- 89 deg. (typical) (Up/Down/Left/Right) - 16.7 million
|
1920 x 1080 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
|
DP++ Out Max Res.: 7680 x 4320 @ 60Hz Max
|
Multipower: 100-240V AC - 50/60Hz + 24VDC
Power Consumption[1]: Operating AC/DC: TBDW (typ) - 156W (max)
[1] You may connect either AC power or DC power or both. In case both sources are connected, power will be sourced from the AC
input. If AC input is lost, there will be a uninterrupted switch-over to DC input.
|
Dimmable 0-100%, Buzzer, Multi-power AC & DC, TPM2.0, Firmware Raid, LAN Wakeup, USB Boot and Wakeup
|
None or Standard OS/Customized image, review datasheet for list.
|
Storage #1: 1 x M.2 Socket 3, Key M, 2280 w/ NVMe support. 240GB, 0.5 TB - 1 TB - 2 TB
Storage #2: 2 x 2.5" SSD SATA via Removable Tray 240GB, 0.5 TB - 1 TB - 2 TB
|
1 x Intel® Celeron® G6900TE, 2.4GHz, 4MB Cache
or 1 x Intel® Quad Core™ i5-13500TE, 1.4/4.5GHz, 24MB Cache
or 1 x Intel® Quad Core™ i7-13700TE, 1.3/4.9GHz, 30MB Cache
CPU Fan Cooler/Heatsink: Rear external air flow. FAN speed temp. controlled
|
Memory DDR5-4800, dual channels (ECC support on request) - 8GB, 16GB, 32GB or 64GB
|
System Chipset: Intel® R680E
Graphics chipsets:
Intel® UHD Graphics 710 for Intel® Celeron® G6900TE CPU
Intel® UHD Graphics 730 for Intel® Quad Core™ i5-13500TE CPU
Intel® UHD Graphics 770 for Intel® Quad Core™ i7-13700TE CPU
|
EFI, ACPI Support. Preconfigured by factory / Onboard Buzzer (according to IEC60945/IACS-E10)
No Onboard PC-Beeper
|
AT, ACPI (S3/S4) - Temperature, Fan and voltages status
256 Segments, 0, 1, 2...255 sec/min
|

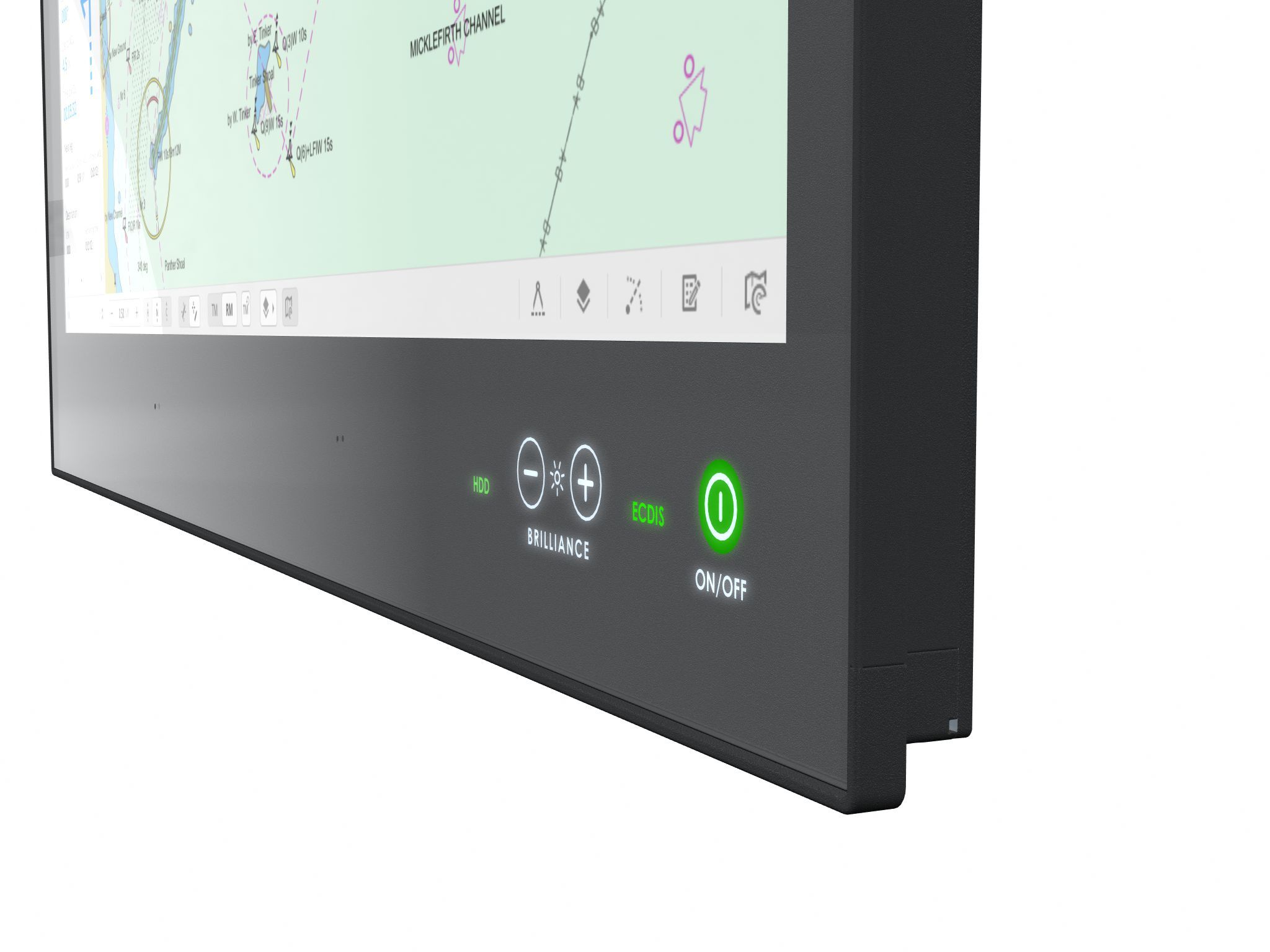

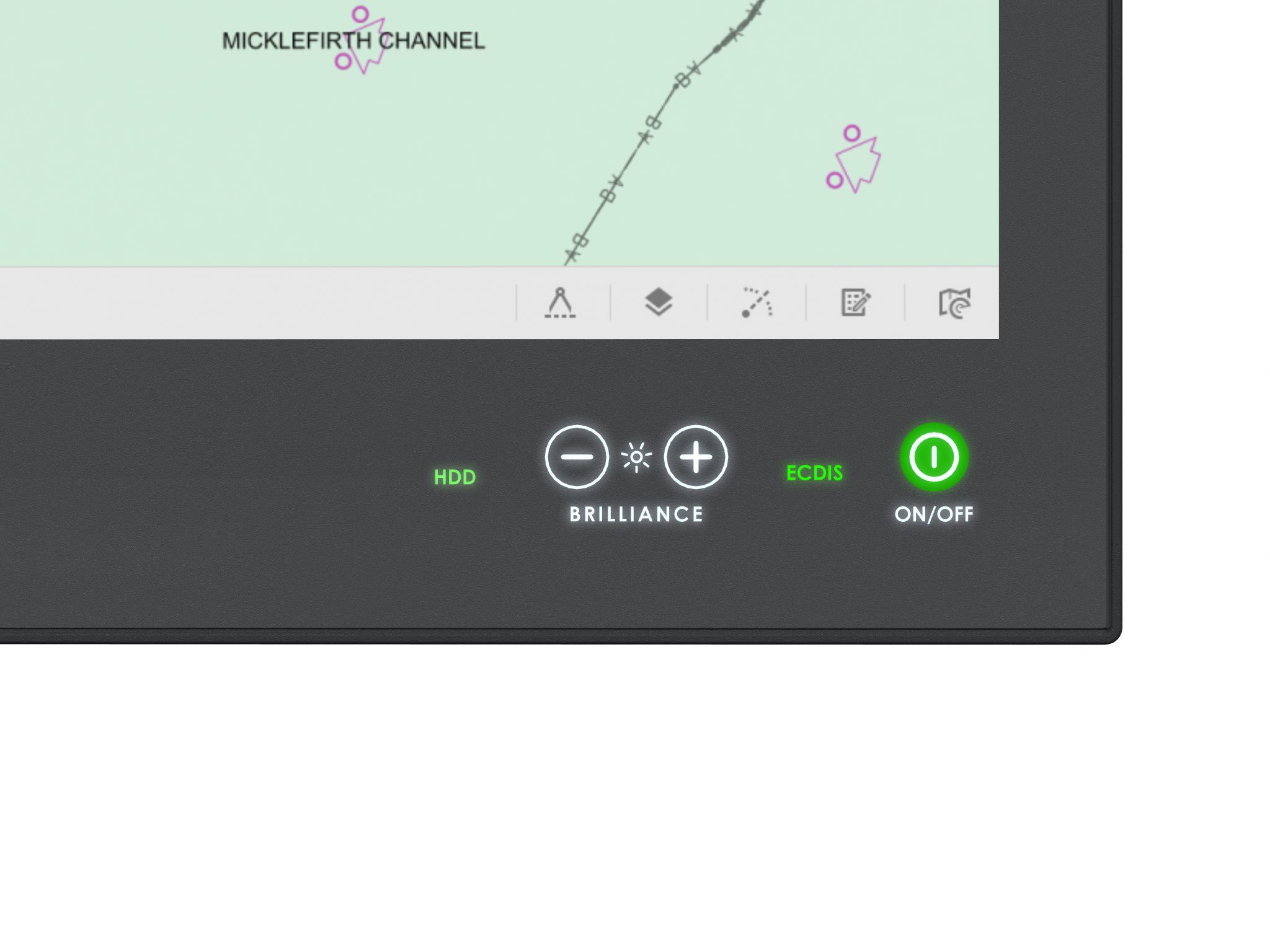

Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Power LED, HDD/SSD LED, Mode Status Indicator (Service), Buzzer (through glass) (75-85dB), Light Sensor (behind glass)
|

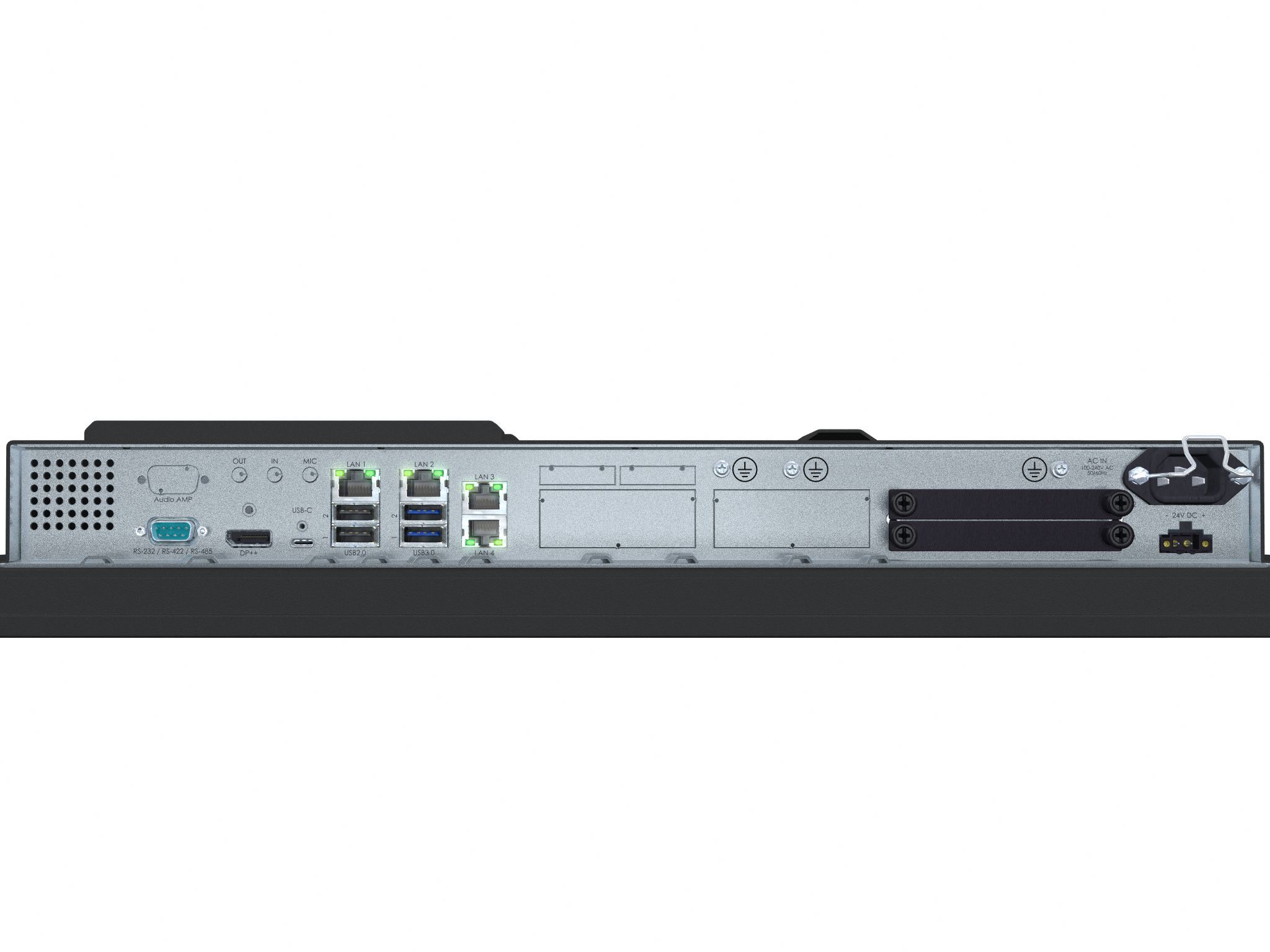

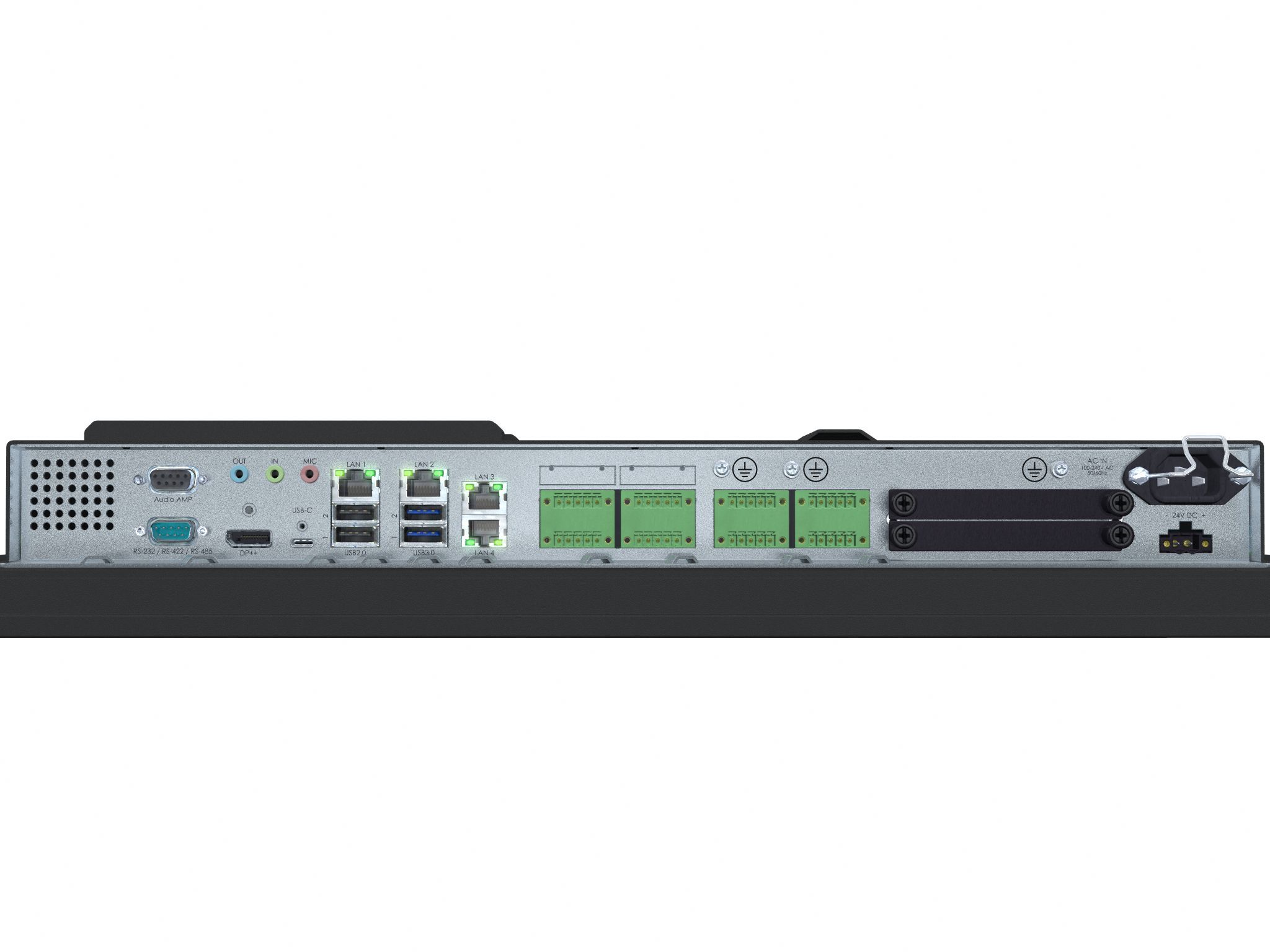

• Ethernet GBLan: 4 x RJ-45
• COM RS-232 & 422/485: 1 x DB9M non-isolated (Change RS mode in BIOS)
• COM RS-232 (Internal): 1 x Internal Virtual COM (Software controlled)
• USB2.0[3]: 2 x USB Type A (4-pin)
• USB3.2[2]: 2 x USB Type A (9-pin)
• DP++ 1.2 OUT[2]: 1 x DisplayPort Female (Dual-Mode DP++)
• HDMI[2]: 1 x 19p HDMI (female)
• USB-C[1]: 1 x USB-C DisplayPort and USB signal (DP and USB )
• AC/DC Power IN: 1 x Std IEC inlet 1 x 2-pin Terminal Block 5.08
• If SSD Trays option: 2 x 2.5” Sized Tray/Bay (Factory option)
[1] Recommended max cable length 2m
[2] Recommended max cable length 3m
[3] Recommended max cable length 5m
|
W:650.00 [25.59''] x H:437.00 [17.20''] x D:73.00 [2.87''] mm [inch]
Weight 12.1kg / 26.6lbs
|
L:765.00 [30.12''] x W:190.00 [7.48''] x H:615.00 [24.21''] mm [inch]
Approx. 13.9kg / 30.6lbs
|
• Projected Capacitive Touch Screen: Multitouch
• Optical Bonding Technology
• Color Calibrated models: ECDIS
• Storage: Model with 2 x physical 2.5'' removable Disk Bay/Tray
• Variations: SSD Storage, RAM Memory, Operating System, CPU

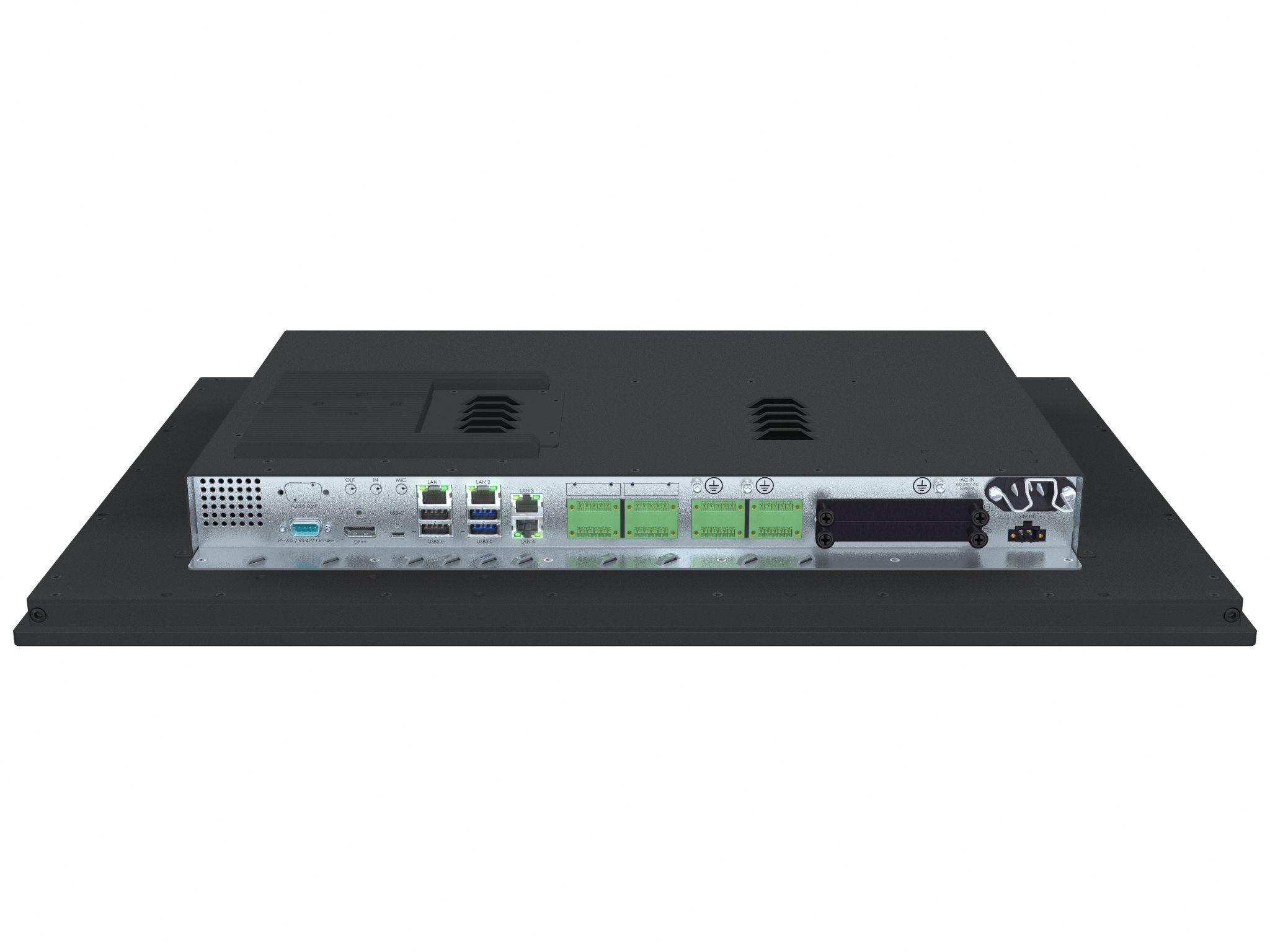

• 1 or 2 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel
• 1 x HTA2020002-AD1033: CAN isolated 2 channel
• 1 x HTA2020002-SLCAN: CAN isolated 2 channel, socketCAN
• 1 or 2 x PCA100297-1: Isolated Digital IO module, 4 x Output/4 x Input
• 1 or 2 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module
• 1 or 2 x PCBAA21001: LAN 1Gbps, 2 x SFP module
• 1 x PCA200827-1: 2 x RJ-45, PoE 12V 5.5A receiver module
• 1 x VSD203592-1: 1 x Isolated RS-232, DB9M connector
• 1 x HT EPB STD-A2: External/Remote ON/OFF power button
• 1 x VSD101121-1: 2W Amplified Audio out via 1xDB9F+3x3.5mm Jack
|
• JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle

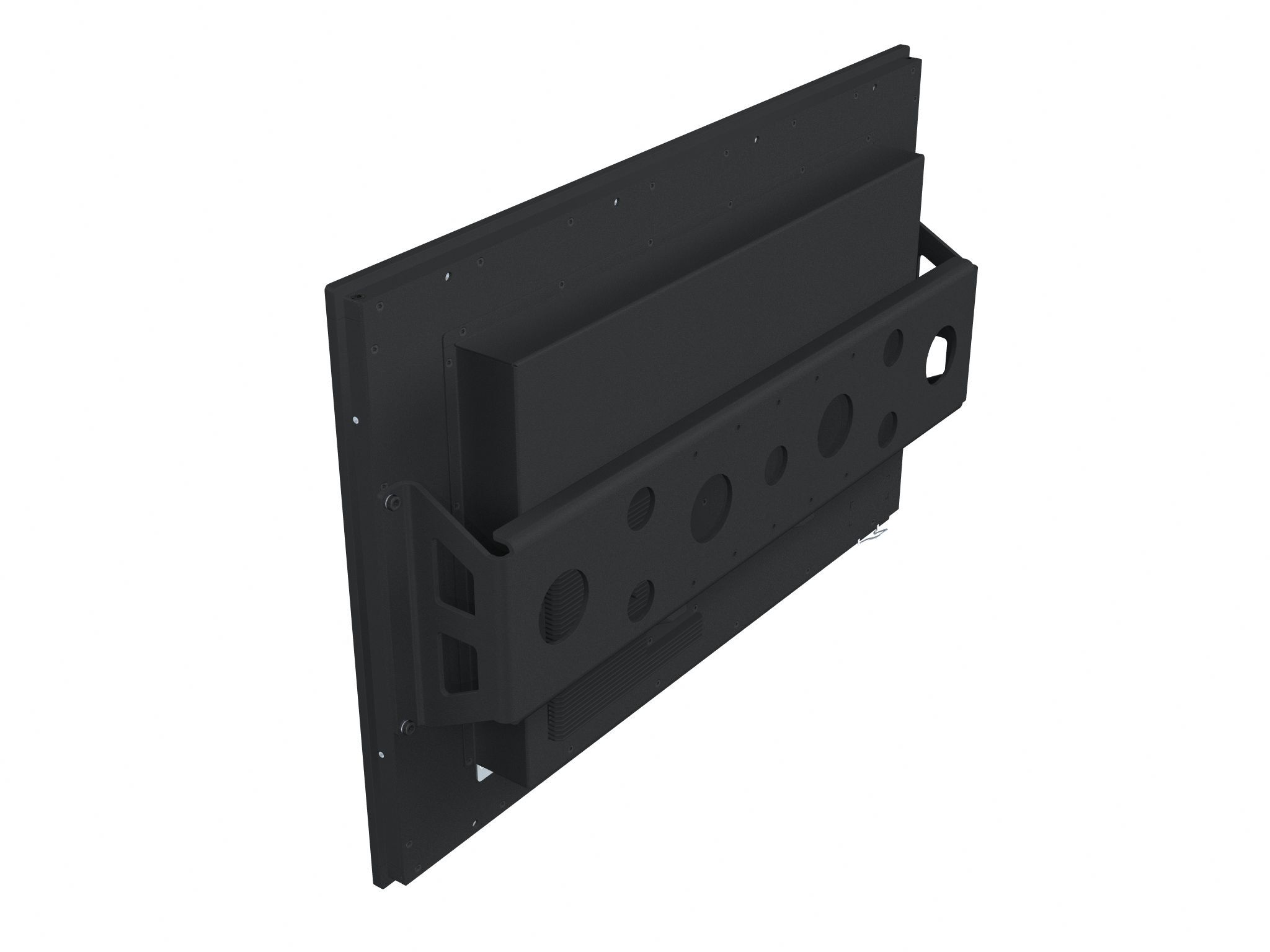

• HD VED SX2-K1: 1 x VESA Adapter (100/100 & 200/100mm) Not EN60945 Tested

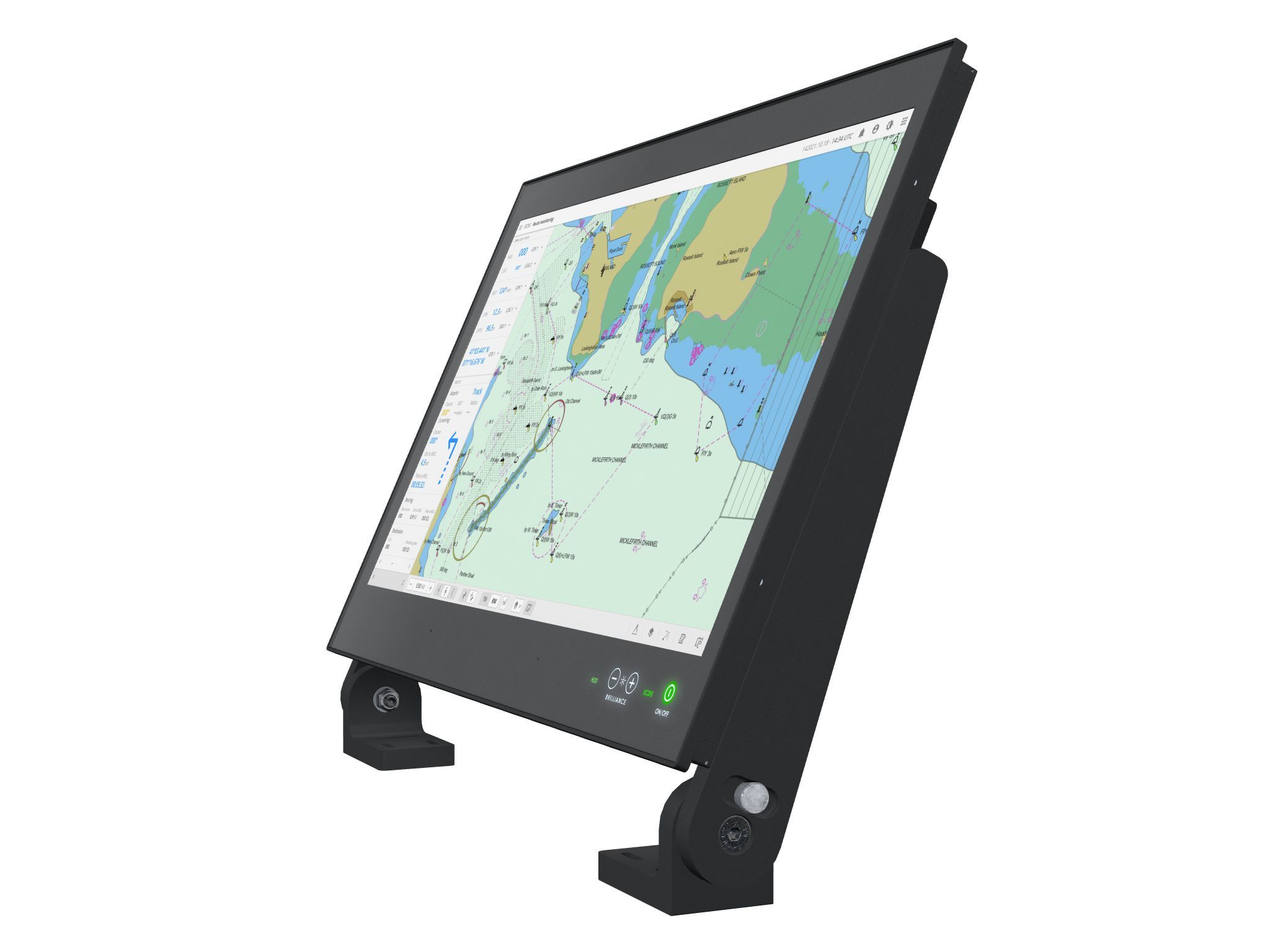

• HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested
• HD CMB SX2-E1: 1 x Console Mount Kit. EN60945 Tested
• HD 27COV SX1-A1: 1 x UV Sun Cover
• P018743: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount
• HD CAK SX2-B1: 1 x Front Console Mounting/Adapter Kit
• HT 00262 OPT-A1/B1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00264 OPT-A1/B1 1 x CAN isolated, 2 channel, USB ext. module
• HT 00264 OPT-A2/B2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
• HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module
• HT 00277 OPT-B1: LAN SFP 1U module (based on PCBAA21001 Rev02) incl. SFP-1000Base-TX-C + SFP-1000BaseLX-RGD-C
• HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os
• VSD100779-1: External audio cable, DB9 Male to open leads mono 1 meter
• HD 000TR SX2-A2: 1 x Removable Front Tray 2.5" Empty
• HD xxxyy SX1-z1[1]: 1 x Removable Front Tray 2.5" w/Storage Device
[1] Where yyy=Size of device. zz=GB,TB. w=S (SSD) - Choose Device from table.
|
See Factory Options
|
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
|
-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
|
Protection: IP66 front - IP20 rear (EN60529). IP22=option
|
Standard: TBD - Steering: TBD cm [inch]
|
IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition by DNV, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, KR - Korean Register
|
