IN-HOSE TECHNOLOGIES

Color calibration for ECDIS

The symbol shows three sizes of screens and a

All units verified



We calibrate and verify every single one. No exceptions.

The icon shows a computer chip with a down-arrow, indicating that color values are stored in the monitor's flash memory.

Color tables stored in monitor's flash memory



For effortless integration with the ECDIS computer.

This symbol shows a gear and a color diagram to illustrate how Hatteland Technology uses a proprietary method for color calibration.

Proprietary method



We've made color calibration an integrated part of our manufacturing.

This icon depicts a commercial ship seen from the front. It is used to underline the 35+ years of maritime experience of Hatteland Technology.

35+ years of maritime experience



Everything we do is rooted in end-user insights.


"Through color calibration, you ensure all colors defined in an ECDIS are correctly displayed on the surface of the LCD."

- Mr. Jakub Kwiatkowski, Head of R&D


The importance of color precision

The colors on nautical charts are of vital importance to navigators. Colors make elements distinguishable and carry information about depths, direction lights, submerged pipelines, and many other safety-critical factors.



With electronic chart tables increasingly replacing paper charts, it's crucial they present colors accurately. If not, navigators run the risk of misreading the chart due to deviations across lighting conditions.
A nautical chart with a brass divider resting on top of it. The chart is in colors.
{source_type=oembed, supported_oembed_types=[video, link]}

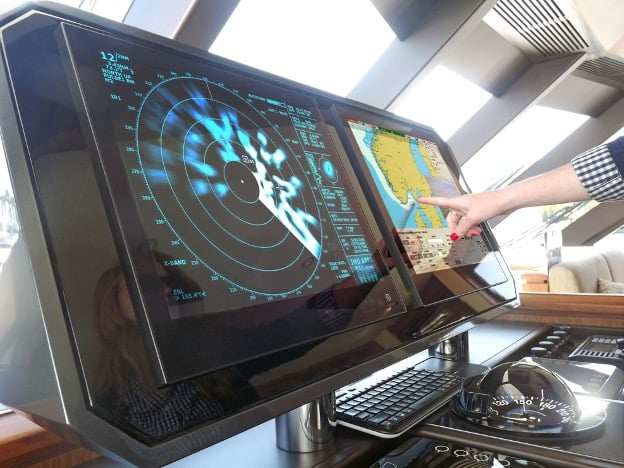

The picture shows the bridge on a boat, with two monitors visible. The closest one is a radar plotter, to its right is an electronic nautical chart.
{source_type=oembed, embed_html=, supported_oembed_types=[video, link]}

Why color calibrate?



  • Color precision is vital to navigators’ understanding of the surroundings.

  • It is a prerequiste for ECDIS monitors (IHO).

  • Color-calibrated displays offer optimal readability at all times, during the day, at dusk, and at night.

  • Mariners commonly swap between paper charts and ECDIS monitors.

An integrated part of our production process

Hatteland Technology has developed a tried and tested process for color calibration. It meets all the requirements for type approval, and is one of the most convenient installation-/configuration processes on the market.



Our production line is equipped with the full range of facilities to both calibrate and verify our monitors in preparation for ECDIS integration.


The image shows part of the color calibration setup at Hatteland Technology's production facilities.
{source_type=oembed, supported_oembed_types=[video, link]}
The picture shows a Hatteland Technology employee. She is turned sideways, holding a stack of papers and a pen. She is smiling.
Two workers, wearing black Hatteland Technology shirts, are discussing something. One of them rests his hand on a monitor. There are lots of wires and technical parts around them.
A hand is operating the touch screen of an electronic chart table from Hatteland Technology. A map is visible, with the ocean surrounding a green island.
A staff member at Hatteland Technology is sitting down in front a computer. She is smiling. Wears glasses.
A worker at Hatteland Technology is sitting down in front of a computer. He is holding something in his hands, and is facing the camera. He has short hair and a beard.
The image shows instruments used for color calibration at Hatteland Technology's production facility.

Your technology partner

Having manufactured maritime monitors for several decades, color calibration for ECDIS is second nature to Hatteland Technology.

At our HQ in Aksdal, a team of seasoned professionals ensure the first-rate performance you expect from a Hatteland Technology device.

The image shows a diagram which visualizes RGB values used for color calibration.
{source_type=oembed, embed_html=, supported_oembed_types=[video, link]}

We verify every single unit

One might assume two identically manufactured monitors will present colors equivalently, but that is not the case. No two displays behave exactly the same out of the box — even if they’re of the same batch.



To address these deviations, Hatteland Technology calibrates and verifies every single unit. We ship all our ECDIS monitors with unique color-correction values embedded, so that the ECDIS computer can call on a reliable reference when presenting color-sensitive information.

Explore our other in-house services

Opical_bonding_white

Optical bonding

Optical bonding reduces display glare in bright environments. It is considered a must-have by many professional users.

Learn more
EMC

Type approvals and testing

Using in-house and third-party facilities, we test and certify your hardware for all kinds of environments.

Learn more

Want to learn more?

In this article, we discuss color calibration, the associated IHO standard, and what to look for in a supplier.

Go to the article
