Level up your bridge and make the
most of your data.

We’re thrilled to present the system integrator’s new best friend. The T40 line of maritime monitors accommodates ECDIS, IBS, Automation, CCTV, and much more – and it does so in style.



The image depicts all the available configurations of the T40 maritime monitors by Hatteland Technology. From the left: Console mount, Wall mount, Floor mount, and as a Chart table. Alle the monitors are shown displaying a radar image. Colors are dark grey, blue, black and yellow.

The icon illustrates a slim frame, a key characteristic of the Hatteland Technology T40 line of maritime monitors.

SLIM

The icon illustrates a ship, because the Hatteland Technology T40 line of maritime monitors are IEC 60945 approved.

IEC 60945

The icon shows a monitor detached from its base. This illustrates the modular concept of the Hatteland Technology T40 line of maritime monitors.

MODULAR

Featuring our slimmest
frame to date.

The T40 frame is pinched down to a minimum, which saves space and guarantees your bridge a sleek appearance.

The 2nd generation also weighs considerably less. We were able to trim 24 kilograms (53 pounds) off the 55-inch — a reduction of 35 percent.

Improved. Approved.

Who says ruggedized means bulky?

The T40 family joins our long line of IEC 60945-approved monitors, having completed the rigorous testing required for all safety-critical applications such as navigation and radar.

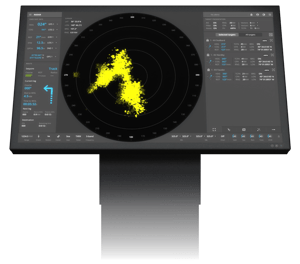

Introducing the modular
chart table

With the T40 we’re introducing a modular design concept. We think you’ll love it.



Installation gets easier than ever, and servicing becomes a breeze. Furthermore, the base unit supports both the 43 inch and the 55 inch, in case you want to make a switch.

The ultimate flex

Planning your next route? Or keeping an eye on the radar?


Mount the T40 on the new and improved base units and enjoy a fully adjustable monitor.

Reimagine the bridge with Multi-Vision Displays

See what 4K monitors can do for your bridge

Which one is best suited for you?

A small picture of the Hatteland Technology HD 32T40 MVD.
32 inch
A small picture of the Hatteland Technology HD 43T40 MVD.
43 inch
A small picture of the Hatteland Technology HD 55T40 MVD.
55 inch
Mounting options Mounting options Mounting options
Console, VESA Console, Chart table, Floor stand, Wall mount Console, Chart table, Floor stand, Wall mount
Display
Resolution
UHD, 4K (3840 x 2160)
Resolution
UHD, 4K (3840 x 2160)
Resolution
UHD, 4K (3840 x 2160)
Display technology
High-quality TFT, LED backlight
Display technology
High-quality TFT, LED backlight
Display technology
High-quality TFT, LED backlight
Response time
12 ms (typical) (G to G)
Response time
8 ms (typical) (G to G)
Response time
6.5 ms (typical) (G to G)
Contrast ratio
1000:1 (typical)
Contrast ratio
3000:1 (typical)
Contrast ratio
4000:1 (typical)
Light intensity
350 cd/m2 (typical)
Light intensity
500 cd/m2 (typical)
Light intensity
450 cd/m2 (typical)
Size and Weight
Width
760 mm / 29.92 inches
Width
1004.7 mm / 39.55 in
Width
1292.6 mm / 50.88 in
Height
465 mm / 18.31 in
Height
598 mm / 23.54 in
Height
763.4 mm / 30 in
Depth
83.5 mm/ 3.28 in
Depth
108 mm / 4.25 in
Depth
121.6 mm / 4.78 in
Weight
13.52 kg / 29.80 lbs
Weight
25.40 kg / 56.00 lbs
Weight
45.50 kg / 100.31 lbs
Factory Options
Projected Capacitive Touch Screen
(USB, Multitouch 10 fingers)
Projected Capacitive Touch Screen
(USB, Multitouch 10 fingers)
Projected Capacitive Touch Screen
(USB, Multitouch 10 fingers)
Optical bonding Optical bonding Optical bonding
Color calibration (ECDIS) Color calibration (ECDIS) Color calibration (ECDIS)
Accessories
Console Mounting Bracket Kit (EN60945) Console Mounting Bracket Kit (EN60945) Console Mounting Bracket Kit (EN60945)
VESA adapter -  -
External remote control External remote control External remote control
Mount gasket for flush/console mount (IP66) Mount gasket for flush/console mount (IP66) Mount gasket for flush/console mount (IP66)
External tactile display controls External tactile display controls External tactile display controls
Retro adapter kit for console T22 to T40 Retro adapter kit for console T22 to T40 -
Certifications and Type approvals
ABS - American Bureau of Shipping   ABS - American Bureau of Shipping ABS - American Bureau of Shipping
BV - Bureau Veritas BV - Bureau Veritas BV - Bureau Veritas
CCS - China Classification Society CCS - China Classification Society CCS - China Classification Society
ClassNK - Nippon Kaiji Kyokai ClassNK - Nippon Kaiji Kyokai ClassNK - Nippon Kaiji Kyokai
EU RO MR - Mutual Recognition by DNV EU RO MR - Mutual Recognition by DNV EU RO MR - Mutual Recognition by DNV
IACS E10   IACS E10   IACS E10
IEC 60945 4th (EN 60945:2002) IEC 60945 4th (EN 60945:2002) IEC 60945 4th (EN 60945:2002)
 - KR - Korean Register of Shipping KR - Korean Register of Shipping
 - LRS - Lloyd’s Register of Shipping LRS - Lloyd’s Register of Shipping
Datasheet

HD 32T40 MVD
Download

HD 43T40 MVD
Download

HD 55T40 MVD
Download
