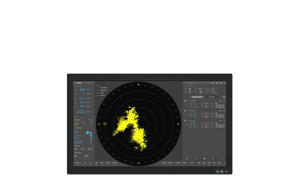

32 inch
|

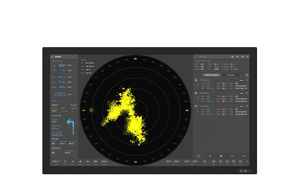

43 inch
|

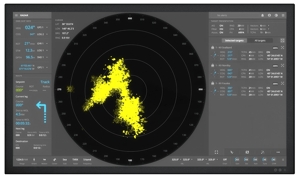

55 inch
|
Mounting options |
Mounting options |
Mounting options |
Console, VESA |

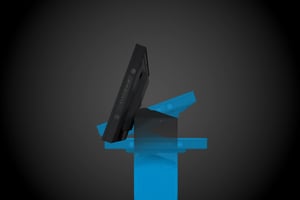

Console, Chart table, Floor stand, Wall mount |
Console, Chart table, Floor stand, Wall mount |
Display
|
Resolution UHD, 4K (3840 x 2160) |
Resolution UHD, 4K (3840 x 2160) |
Resolution UHD, 4K (3840 x 2160) |
Display technology High-quality TFT, LED backlight |
Display technology High-quality TFT, LED backlight |
Display technology High-quality TFT, LED backlight |
Response time 12 ms (typical) (G to G) |
Response time 8 ms (typical) (G to G) |
Response time 6.5 ms (typical) (G to G) |
Contrast ratio 1000:1 (typical) |
Contrast ratio 3000:1 (typical) |
Contrast ratio 4000:1 (typical) |
Light intensity 350 cd/m2 (typical) |
Light intensity 500 cd/m2 (typical) |
Light intensity 450 cd/m2 (typical) |
Size and Weight
|
Width 760 mm / 29.92 inches |
Width 1004.7 mm / 39.55 in |
Width 1292.6 mm / 50.88 in |
Height 465 mm / 18.31 in |
Height 598 mm / 23.54 in |
Height 763.4 mm / 30 in |
Depth 83.5 mm/ 3.28 in |
Depth 108 mm / 4.25 in |
Depth 121.6 mm / 4.78 in |
Weight 13.52 kg / 29.80 lbs |
Weight 25.40 kg / 56.00 lbs |
Weight 45.50 kg / 100.31 lbs |
Factory Options
|
Projected Capacitive Touch Screen (USB, Multitouch 10 fingers) |
Projected Capacitive Touch Screen (USB, Multitouch 10 fingers) |
Projected Capacitive Touch Screen (USB, Multitouch 10 fingers) |
Optical bonding |
Optical bonding |
Optical bonding |
Color calibration (ECDIS) |
Color calibration (ECDIS) |
Color calibration (ECDIS) |
Accessories
|
Console Mounting Bracket Kit (EN60945) |
Console Mounting Bracket Kit (EN60945) |
Console Mounting Bracket Kit (EN60945) |
VESA adapter |
- |
- |
External remote control |
External remote control |
External remote control |
Mount gasket for flush/console mount (IP66) |
Mount gasket for flush/console mount (IP66) |
Mount gasket for flush/console mount (IP66) |
External tactile display controls |
External tactile display controls |
External tactile display controls |
Retro adapter kit for console T22 to T40 |
Retro adapter kit for console T22 to T40 |
- |
Certifications and Type approvals
|
ABS - American Bureau of Shipping |
ABS - American Bureau of Shipping |
ABS - American Bureau of Shipping |
BV - Bureau Veritas |
BV - Bureau Veritas |
BV - Bureau Veritas |
CCS - China Classification Society |
CCS - China Classification Society |
CCS - China Classification Society |
ClassNK - Nippon Kaiji Kyokai |
ClassNK - Nippon Kaiji Kyokai |
ClassNK - Nippon Kaiji Kyokai |
EU RO MR - Mutual Recognition by DNV |
EU RO MR - Mutual Recognition by DNV |
EU RO MR - Mutual Recognition by DNV |
IACS E10 |
IACS E10 |
IACS E10 |
IEC 60945 4th (EN 60945:2002) |
IEC 60945 4th (EN 60945:2002) |
IEC 60945 4th (EN 60945:2002) |
- |
KR - Korean Register of Shipping |
KR - Korean Register of Shipping |
- |
LRS - Lloyd’s Register of Shipping |
LRS - Lloyd’s Register of Shipping |
- |
RINA - Registro Italiano Navale |
RINA - Registro Italiano Navale |
Datasheet |
|
|
For datasheets and additional information, explore the T40 product range here: |
