The following model(s) have reached the End Of Life phase. All type numbers and variations will have form fit replacement options.
 |
 |

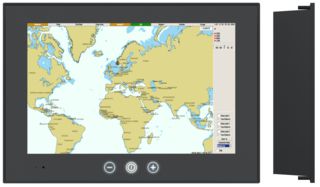

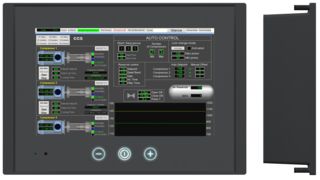

| HD 08T21 STD xxx-xxxx | HD 13T21 STD xxx-xxxx |
| OLD TYPE NUMBER STRUCTURE: HD 08T21 STD xxx-xxxx HD 13T21 STD xxx-xxxx |
NEW TYPE NUMBER STRUCTURE: HD 08T30 SCM-xxx-xxxx HD 13T30 SCM xxx-xxxx |
LAST TIME BUY - CURRENT MODEL(S):
1 February 2023. HD 08T21 STD Limited available quantity, please contact your Sales Representative.
AVAILABILITY - MASS PRODUCTION ALTERNATIVE/NEW MODEL(S):
1 April 2023.
HD 08T30 SCM-IA1-FOGG:
8.0" SCM Bonded USBC-PDSink Black GDC Buzzer PCTouch/AG
HD 08T30 SCM-IA1-VOGG:
8.0" SCM Bonded USBC-PDSink Black IP67 GDC Buzzer PCTouch/AG
HD 08T30 SCM-JA1-FOGG:
8.0" SCM Bonded USBC-PDSink + DC Black GDC Buzzer PCTouch/AG
HD 08T30 SCM-JA1-VOGG:
8.0" SCM Bonded USBC-PDSink + 12-24VDC Black IP67 GDC Buzzer PCTouch/AG
HD 13T30 SCM-IA1-FOGG:
13.3" SCM Bonded USBC-PDSink Black GDC Buzzer PCTouch/AG
HD 13T30 SCM-IA1-VOGG:
13.3" SCM Bonded USBC-PDSink Black IP67 GDC Buzzer PCTouch/AG
HD 13T30 SCM-JA1-FOGG:
13.3" SCM Bonded USBC-PDSink + DC Black GDC Buzzer PCTouch/AG
HD 13T30 SCM-JA1-VOGG:
13.3" SCM Bonded USBC-PDSink + 12-24VDC Black IP67 GDC Buzzer PCTouch/AG
AVAILABILITY - SAMPLE NEW MODEL(S):
1 January 2023. Please contact your Sales Representative for allocation of sample/test units.
TECHNICAL HIGHLIGHTS - NEW MODEL(S):
- Single cable operation, USB-C, carrying DP, USB and power in one cable.
- Daisy chain support (MST), up to 4 monitors.
- 16:9 resolution, HD 08T30 (HD), HD 13T30 (FHD).
- IP67 option, whole unit.
- SCOM and DDC/CI for monitor remote control.
Review "Single Cable Monitor (SCM)" datasheets in links below.
Adapters:
In the case the SCM monitor shall be connected to signal source without USB-C connector or have USB-C connector without support for DisplayPort (DP) the following adapters can be used:
Note: In the case adapter shall be sourced from 3d party, make sure that the selected adapter converts from DP/HDMI to USB-C, do not mix with common adapters which convert from USB-C to HDMI/DP.
- USB2.0 is used for Touch Screen, SCOM and other USB devices connected to the monitor.
DP/USB2.0 to USB-C adapter:
HT DPUSB-2-USBC-A1
1 x DP and USB2.0 (Female) to USB-C (male) Adapter, 2m.
HDMI/USB2.0 to USB-C adapter:
HT HDMIUSB-2-USBC-A1
1 x HDMI and USB2.0 (Female) to USB-C (male) Adapter, 2m.
TESTING / TYPE APPROVAL - NEW MODEL(S):
All models tested and approved accordning IEC60945 and IACS-E10, Test completed, Certification process initiated.
For further enquiries regarding this End of Life Notification, please contact your Sales Representative at Hatteland Technology AS.
| Implemented by: ____________________________________________________ Frode Grindheim VP Products Hatteland Technology AS |
Read and Understood by: _______________________________________ (Your name and Company) |
