THREE SIZES (15"–21.3")

THE DIGITAL BRIDGE

Top of the charts.

Since their introduction at the turn of the century, Series 1 monitors have been our hands down bestsellers.

Mariners trust them with onboard tasks as diverse as navigation, automation, safety monitoring, CCTV and more. That is in part testament to their versatility, in part to their stubborn reliability.

With the upgraded generation (G3) now available, the go-to monitor for selective mariners and system integrators around the globe is ready to go for many more years.

Browse Series 1 models

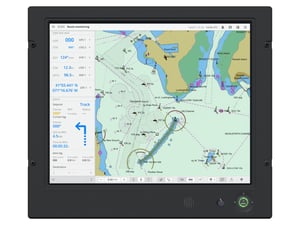

This image depicts a HATTELAND® 19-inch Series 1 marine monitor, made by Hatteland Technology. It displays a nautical chart.

CERTIFICATIONS AND TYPE APPROVALS

The best for the worst.

However bad things get out there, know that we've put Series 1 through worse.

Rigorous testing, hefty certification processes, and decades of critical evaluation ensures that these monitors are surefire bets for your safety-critical applications.

Don't believe us? Feel free to check their papers. Or better yet, ask a sailor.

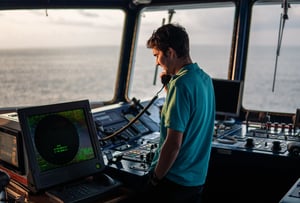

A marine navigational officer is standing in front of a HATTELAND® Series 1 monitor, while he is reporting by VHF. He is on a ship's bridge. You can see the ocean in the background, through the windows.

CONNECTIVITY

Your compatible companion.

When we label a monitor MMD – Multi Marine Display – it is for good reason. Series 1 monitors are designed to work seamlessly with any conceivable onboard application, using any input source.

The recent T27 upgrade, which among other features introduced an optional DVI input, ensures that the latest generation of Series 1 stays compatible for years to come.

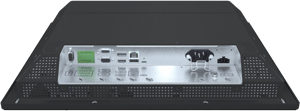

This image shows the inputs and outputs on a HATTELAND® Series 1 monitor, of the latest generation. This marine monitor offers upgraded connectivity, including an optional DVI input.

Ståle_thumbnail_SeriesX27

Presenting upgraded connectivity (T27)
for Series 1 and Series X.

Product Manager Ståle Stokkeland fills you in on the latest updates to the Series 1 and Series X monitors.

COMPARISON

Which one is best suited for you?

Compare the different models and find the right Series 1 monitor for your needs.

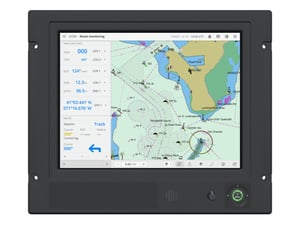

jh15t27mmd-xrx__fro

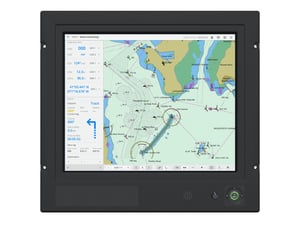

jh19t27mmd-xrx__fro

jh19t27mmd-xrx__slim_fro

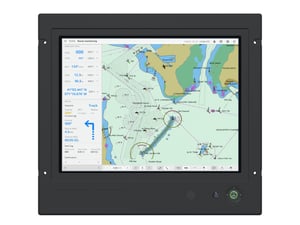

jh21t27mmd-xrx__fro

15"
JH 15T27 MMD

19"
JH 19T27 MMD

19"
JH 19T27 MMD-S
Slim Frame

21.3"
JH 21T27 MMD

Display

Resolution

XGA, (1024 x 768)

SXGA, (1280 x 1024)

SXGA, (1280 x 1024)

UXGA, (1600 x 1200)

Display technology

TFT, LED backlight

TFT, LED backlight

TFT, LED backlight

TFT, LED backlight

Response time

35ms (typical)

35ms (typical)

35ms (typical)

20 ms (typical)

Light intensity

400 cd/m² (typ)

350 cd/m² (typ)

350 cd/m² (typ)

500 cd/m² (typ)

Contrast ratio

1500:1 (typ)

1500:1 (typ)

1500:1 (typ)

1800:1 (typ)

Size and Weight

Width

412 mm / 16.22 inches

483 mm / 19.02 inches

460 mm / 18.11 inches

534 mm / 21.02 inches

Height

345 mm / 13.58 inches

444 mm / 17.48 inches

400 mm / 15.75 inches

481 mm / 18.94 inches

Depth

73.28 mm / 2.89 inches

82 mm / 3.23 inches

82 mm / 3.23 inches

87 mm / 3.43 inches

Weight

5.5 kg / 12.1 lbs

8 kg / 18 lbs

7 kg / 15.4 lbs

12 kg / 26.45 lbs

Datasheet

Download

JH 19T27 MMD-S (Slim)
