Performance meets aesthetics.
HATTELAND® SERIES X
TYPE APPROVED
GLASS DISPLAY CONTROL™
HIGH-BRIGHT DISPLAY (optional)
FIVE SIZES (15"–27")
THE DIGITAL BRIDGE
Navigate in style.

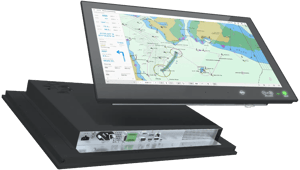

The next time someone says industrial fitness rules out beauty, show them the HATTELAND® Series X range of monitors.
These units – type approved, full dimming – embody everything we've learnt through more than 40 years of making marine monitors. Add to that their sleek frames and glass-finish touch panels, and you'll find Series X makes for pleasant viewing in every sense.
CERTIFICATIONS AND TYPE APPROVALS
Marine(r) approved.
We make sure to satisfy all the relevant classification societies. But the true test is whether the mariner approves of what we do.
Since their introduction in 2011, thousands of vessels across all categories have been equipped with Series X monitors. Now in its third generation (T27), it remains one of our most sought-after product series.
CONNECTIVITY
We know the ins and outs of shipping.

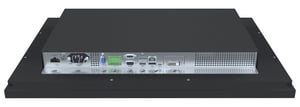

Reflecting the technological diversity in vessels, Series X monitors are designed to accomodate a wide range of input sources and power scenarios.
And we keep them up to date. The latest generation offers a range of inputs including USB-C, DisplayPort (DP), HDMI, VGA, Serial signals, Ethernet, and Multi-power AC/DC.
The Series X range
From 15" to 27"
COMPARISON
Which one is best suited for you?
Compare the different models and find the perfect Series X monitor for your needs.
15"

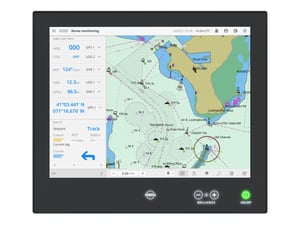

HD 15T27 MMD
HD 15T27 MMD

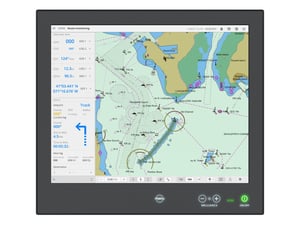

17"
HD 17T27 MMD
HD 17T27 MMD
19"
HD 19T27 MMD
HD 19T27 MMD

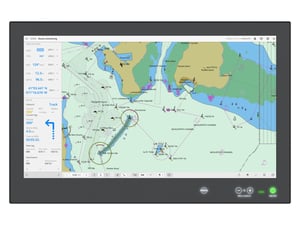

24"
HD 24T27 MMD
HD 24T27 MMD

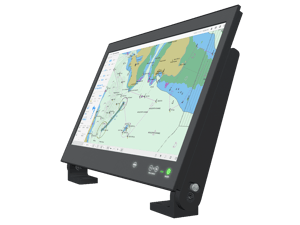

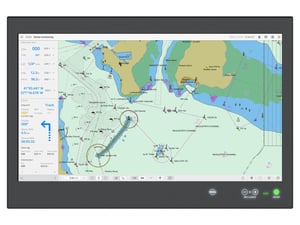

27"
HD 27T27 MMD
Regular or Slim Frame
HD 27T27 MMD
Regular or Slim Frame
Display
Resolution
XGA, (1024 x 768)
SXGA, (1280 x 1024)
SXGA, (1280 x 1024)
FHD, (1920 x 1080)
FHD, (1920 x 1080)
Display technology
TFT, LED backlight
TFT, LED backlight
TFT, LED backlight
TFT, LED backlight
TFT, LED backlight
Response time
35ms (typical)
30ms (typical)
20ms (typical)
25 ms (typical)
12 ms (typical)
Light intensity
400 cd/m² (typ)
350 cd/m² (typ)
350 cd/m² (typ)
300 cd/m² (typ)
300 cd/m² (typ) (Regular)
350 cd/m² (typ) (Slim)
350 cd/m² (typ) (Slim)
Contrast ratio
1500:1 (typ)
800:1 (typ)
800:1 (typ)
3000:1 (typ)
3000:1 (typ) (Regular)
3000:1 (typ) (Slim)
3000:1 (typ) (Slim)
Size and Weight
Width
356 mm / 14.02 inches
390 mm / 15.35 inches
429 mm / 16.89 inches
593 mm / 23.35 inches
621 mm / 24.45 inches (Regular)
650 mm / 25.59 inches (Slim)
650 mm / 25.59 inches (Slim)
Height
307 mm / 12.09 inches
351 mm / 13.82 inches
382 mm / 15.04 inches
384 mm / 15.12 inches
435 mm / 17.13 inches (Regular)
437 mm / 17.20 inches (Slim)
437 mm / 17.20 inches (Slim)
Depth
71.50 mm / 2.81 inches
71.50 mm / 2.81 inches
71.50 mm / 2.81 inches
70 mm / 2.76 inches
82.50 mm / 3.25 inches (Regular)
69.50 mm / 2.74 inches (Slim)
69.50 mm / 2.74 inches (Slim)
Weight
5 kg / 11 lbs
6.5 kg / 14.3 lbs
10.5 kg / 23.1 lbs
9.1 kg / 20.0 lbs
11 kg / 24.2 lbs (Regular)
11 kg / 24.2 lbs (Slim)
11 kg / 24.2 lbs (Slim)
Datasheet
Download
