PRODUCT DETAILS

✕

✕
 Naval & Defense  / Computer  / MIL Qualified  / HM C01

HM C01

Overview

Computer - High End - MIL Qualified

HM C01

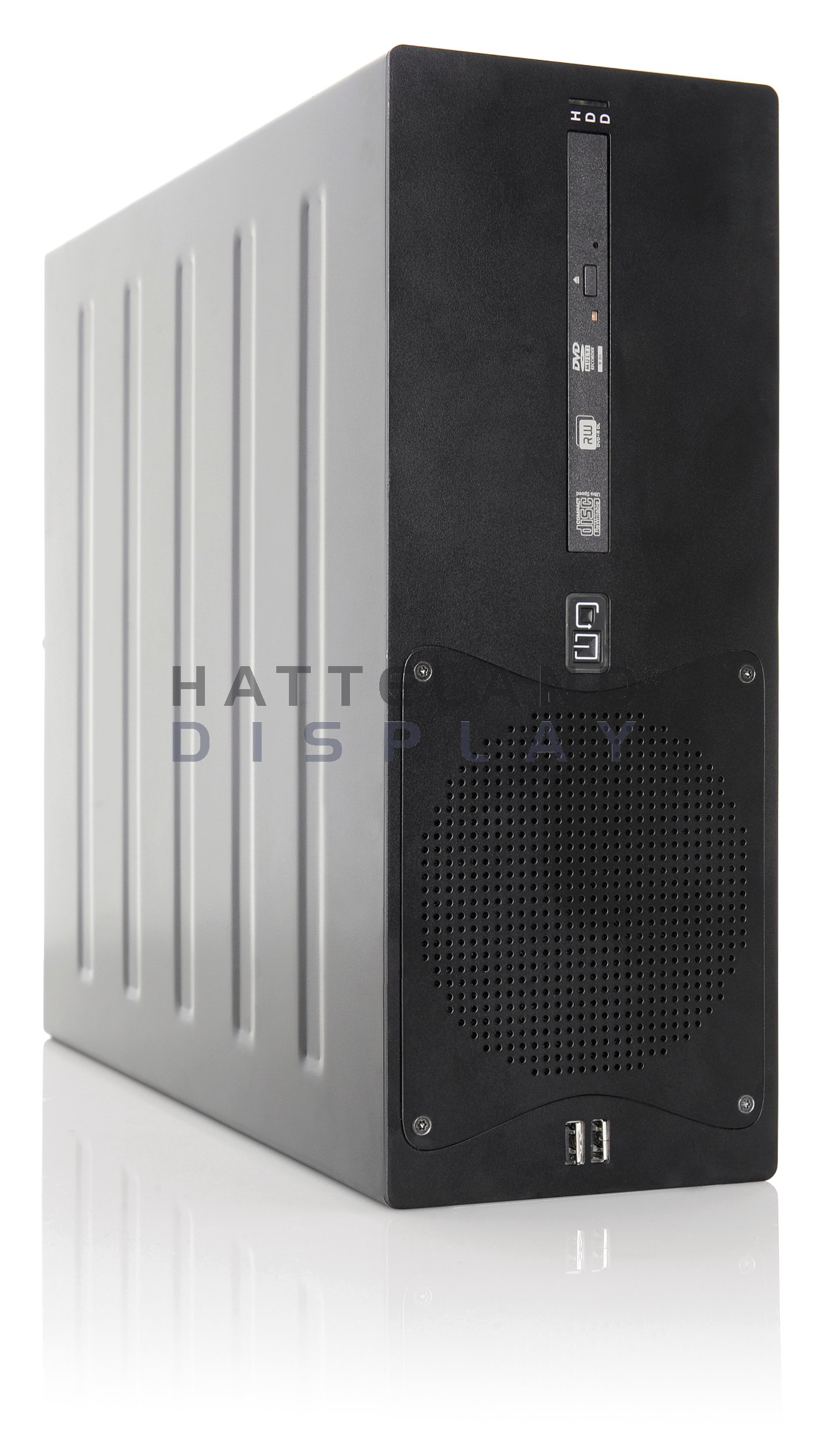

The HM C01 is a compact naval computer with extreme performance and most computer functions built into a form factor that can be placed virtually anywhere. The HM C01 computer is designed for 24/7 operation and fulfill naval MIL test qualifications.

icon
High End
Send Request
Description

Computer - MIL Qualified

The computer have a unique mechanical design, intelligent thermal management system and can be equipped with a rich selection of options.

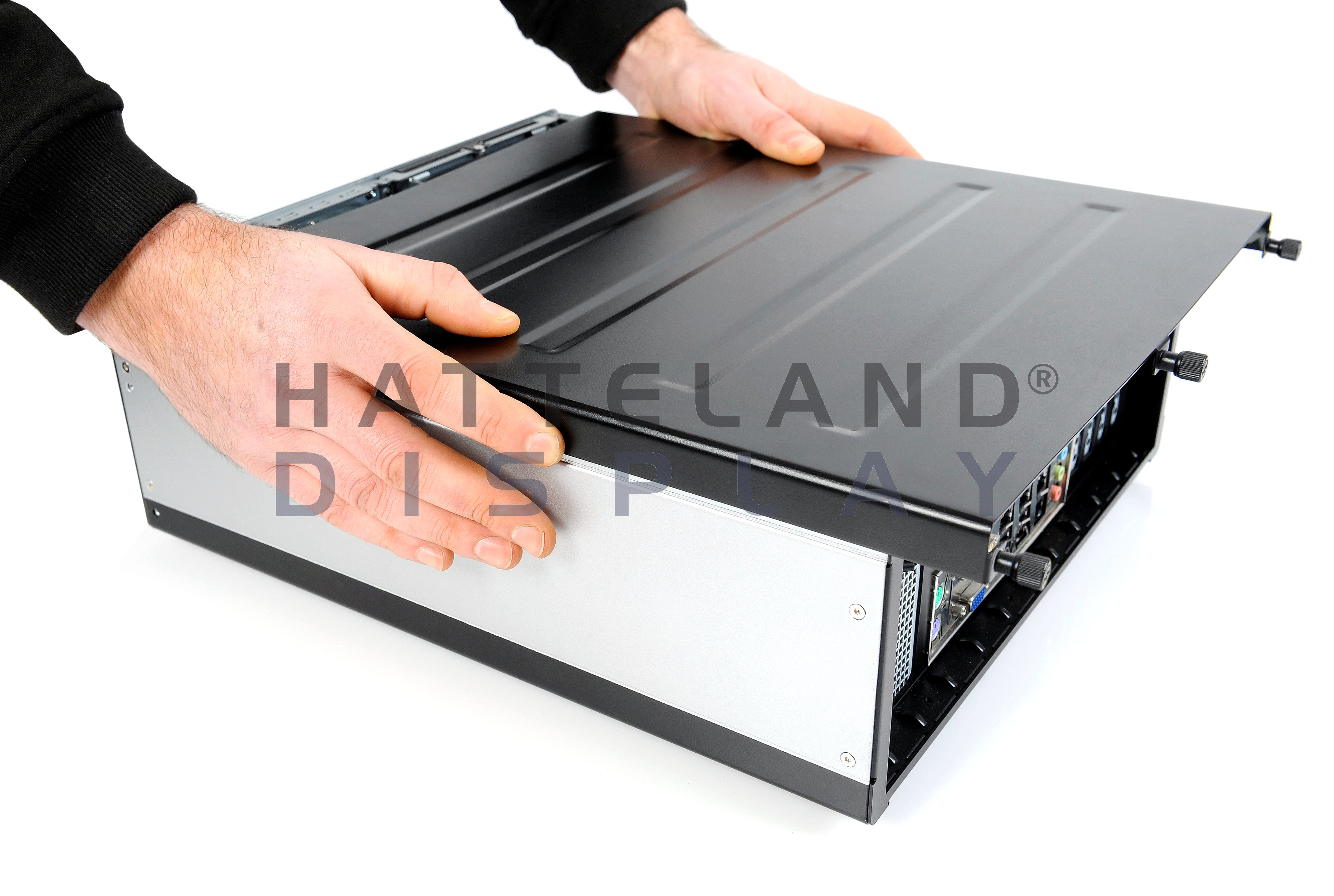

The models are service friendly which makes it easy to replace the Hard Disk media, power supply, memory, media drives, PCI cards, fan and air filter. Either AC or DC power input.
Specifications
Typenumber (Long): HM C01 STx-xxxx
Installed Operating System Options: None or Microsoft® Windows® Embedded Enterprise
(32bit: XP Pro / Win Server 2003 / Win 7 Pro / Win Server 2008)
Storage Options: 2 x 250GB 2.5" SATA Automotive HDD, 5400RPM, 8MB Buffer
Processor / CPU and FSB Speed Options: 1 x Intel® Core™2 Duo E8400, 3.0GHz, 1333MHz FSB, 6MB L2
Memory Options: 4 x 1GB Dual Channel DDR2 800/667MHz, SDRAM, 240-pin DIMM
System+Graphics Chipset / Connectors: Intel® Q35, ICH9DO / Intel® GMA 3100 integrated with

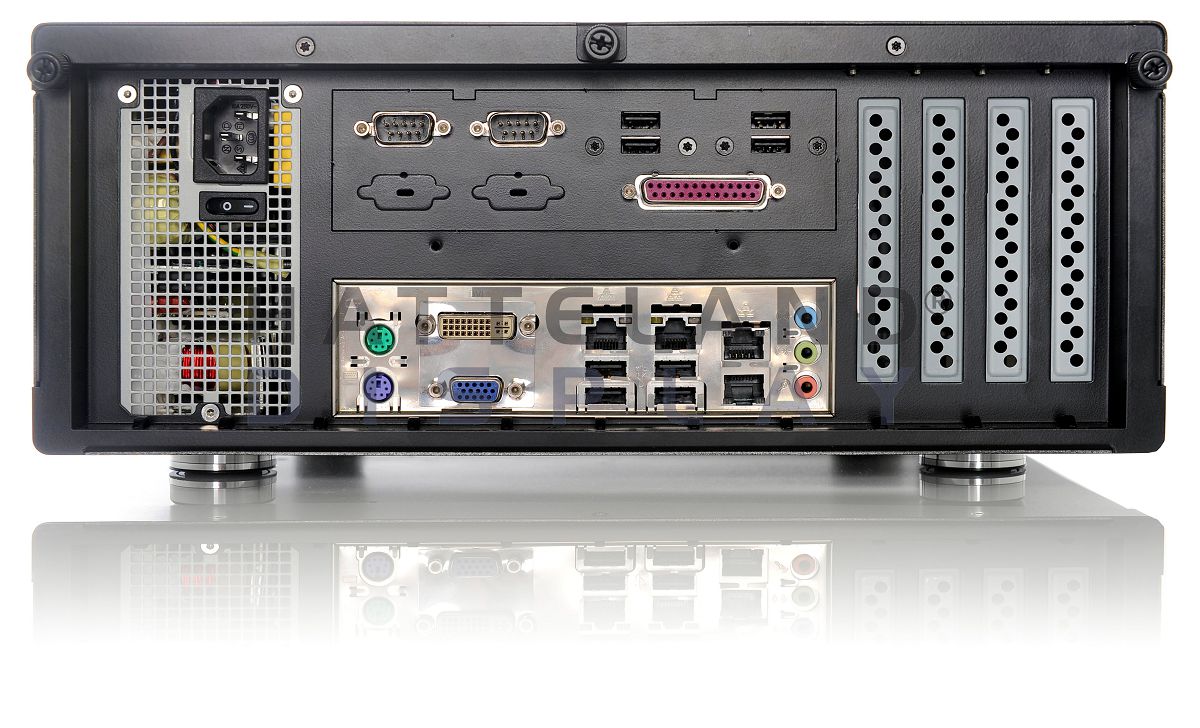

1 x HD DB15F (female) VGA OUT and 1 x 29P (female) DVI-I
Max Resolution / Max Hz: 2048 x 1536 / 75Hz
BIOS: Award. On-board BIOS Speaker.
PCI Slots / PCIe Slots: 2 x PCI2.3, 3V/5V Interface + 1 x PCIe x16 (add2) + 1 x PCIe x1
All slots are Full Height&Full Length profile
Media Drive(s): 1 x DVD-RW/CD-RW Dual Recorder/Player
LPT / Parallel Port: 1 x DB25F Bi-Directional Centronics with ECP/EPP mode
Serial Port(s): 2 x DB9M RS-232
Ethernet Port(s): 2 x RJ45 10/100/1000Mbps - Intel® 82566DM, Intel® AMT
2 x RJ45 10/100/1000Mbps - Realtek RTL 8168C(P)8111C
USB Port(s): 8 x USB2.0/1.1 Type A (rear) + 2 x USB2.0/1.1 Type A (front)
Keyboard and Mouse Ports: 1 x PS/2 Keyboard + 1 x PS/2 Mouse
Audio Ports: 3 x 3.5mm Jacks (LINE IN/LINE OUT/MIC IN) or option (+1 x DB9F)
Realtek ALC888 7.1 channel, HD Audio
Buzzer: None
Power Manager and Monitoring: ACPI - Temperature, voltage, cooling fans with auto throttle.
Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step
Power Specifications and Consumption: 115/230VAC - 50/60Hz (330W) or 24VDC (220W)
If AC Power IN: 1 x Std IEC inlet
If DC Power IN: 1 x 2p DSUB (male) Amphenol FCC17
Operating 70W (typ)
Digital I/O Connectors: None
Key Features: High Performance, Replaceable Air Filter in front, Service friendly, AC or DC power input, Includes mounting brackets
Product Dimensions and Weight: W:345.00 [13.58"] x H:133.00 [5.24"] x D:390.00 [15.35"] mm [inch]
3U Rack size in height. Approx 10kg / 22lbs
Product Carton Size and Weight: L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch]
2.0kg / 48.4lbs
User Controls / Activity: On/Off Push Button, Reset Button, Power LED / HDD LED
Factory Options: None
Accessories: • HT 00225 OPT-A1: 2 x 26" ball bearing rail/mount kit for 19" Rack
• HT 00224 OPT-A1: 2 x 20" ball bearing rail/mount kit for 19" Rack
• HT 00229 OPT-A1: 1 x Mounting Bracket PCI Kit HT C01
• HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit (for HT 00224/00225
• JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle
• HT 00226 OPT-A1: 2 x Bracket, 4mm SECC+Zinc Plating, RAL9011
• HT 00235 OPT-A1: 2W Amplified Audio out via 1 x DB9F
• HT 00300 MSOS: OS options -> www.hatteland-display.com/os
Capabilities / Prepared for: • Up to 8GB DDR2 800/667MHz SDRAM, 240-pin DIMM
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
DNV Temperature Class B 70.0°C / 158.0°F for 2 hours
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 150.00 [59.06"] - Steering: 95.00 [35.63"] cm [inch]
Type Approval, Testing and Certificates: MIL-STD-167-1 Vibration, MIL-STD-810F Shock 50G 30ms, IEC 60945 4th (EN 60945:2002), EN61162, IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition
EMI Testing: MIL-STD-461E Naval Limits, CE 101, CE 102, RE 101, RE 102 (AC: front ok, rear deviate 5dB@190MHz), CS 101, CS 114, CS 116, RS 101, RS 103, IEC 60945 4th (EN 60945:2002)
Specifications last updated: August 15, 2025 @ 13:51
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
15 Dec 2015
HM C01 - Rugged Naval Computer

News Stories:
21 Feb 2011
Hatteland Display introduce a rugged maritime and

24 Sep 2009
The Awarded HT C01 Computer Is ''Going Naval''
