PRODUCT DETAILS

✕

✕
 Naval & Defense  / Computer  / MIL Qualified  / HM C02

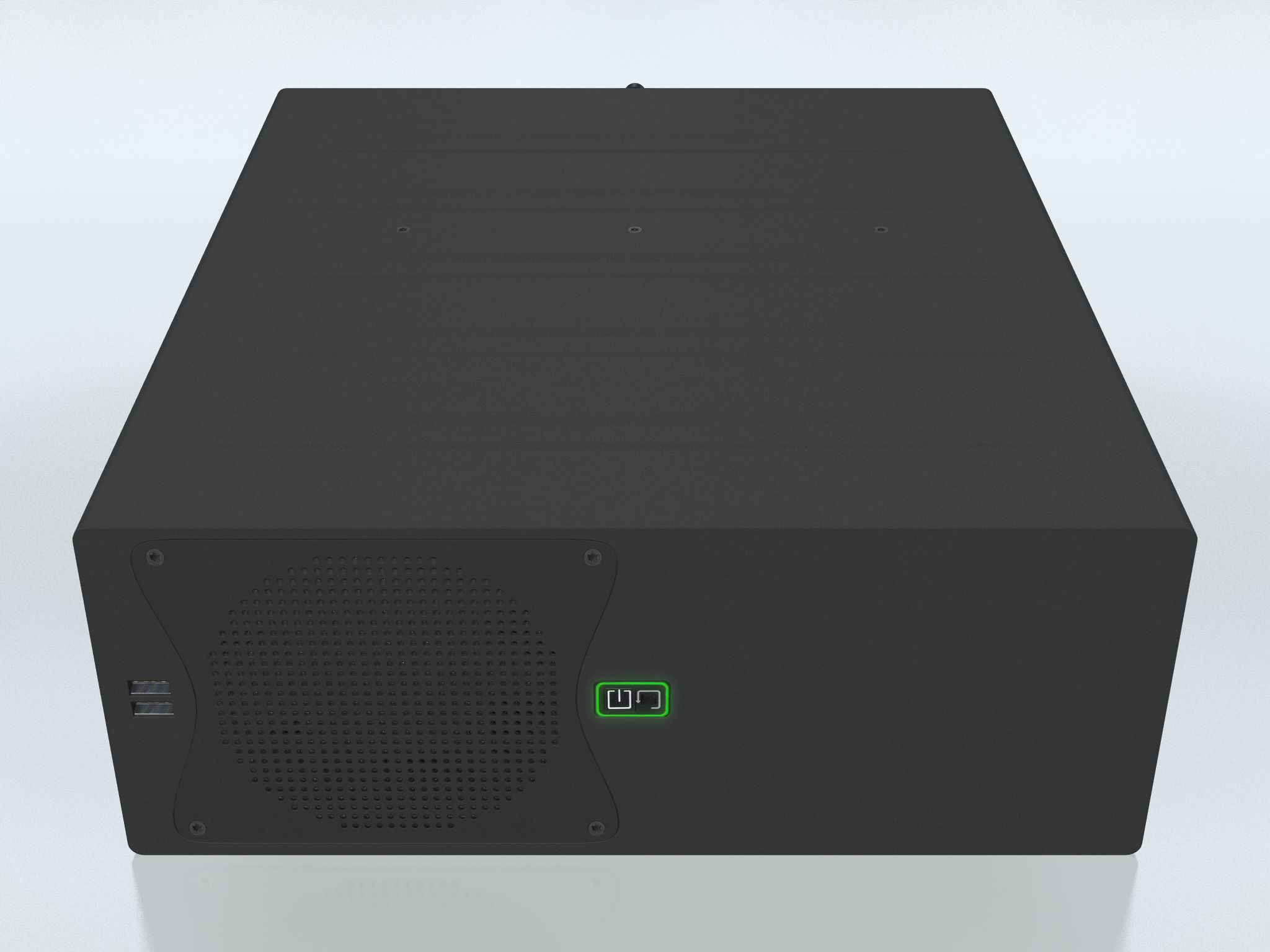

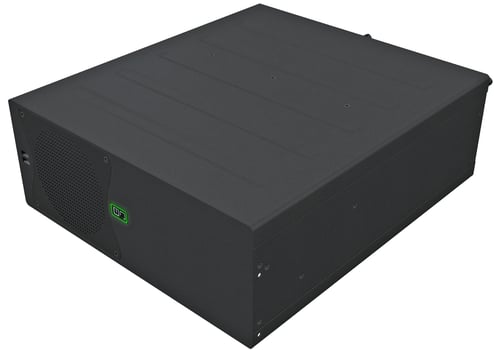

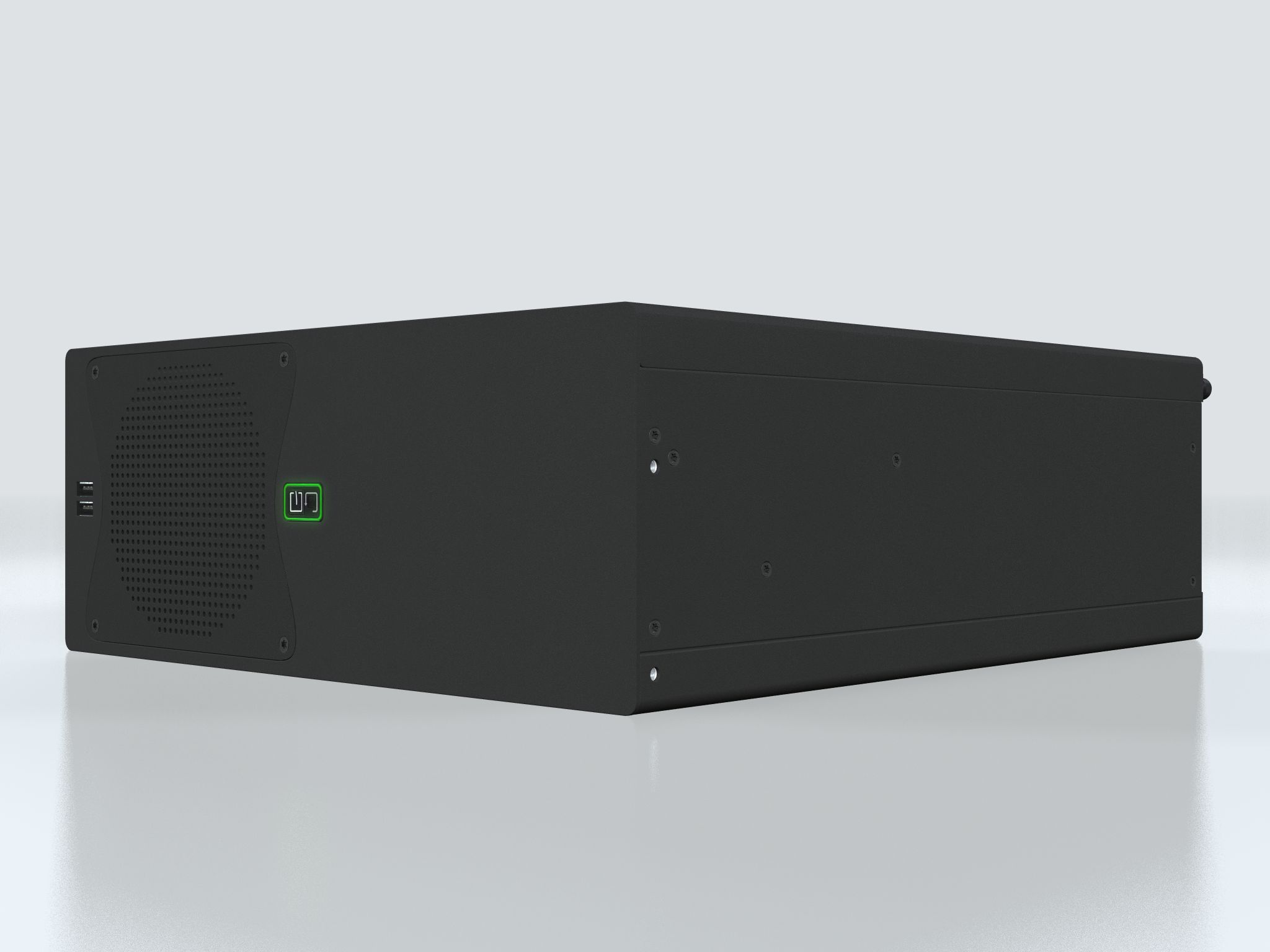

HM C02

Overview

Computer - High End - MIL Qualified

HM C02

The HM C02 model is the successor to the best in class and highly successful HM C01 computer. The new model incorporates latest processor technologies and enhanced feature sets. A compact naval computer with extreme performance and most computer functions built into a form factor that can be placed virtually anywhere.

icon
High End
icon
EN60945
icon
MIL-STD 167
icon
MIL-STD 810
icon
MIL-STD 461
icon
50G Shock
Send Request
Description

Computer - MIL Qualified

The HM C02 computer is designed for 24/7 operation and fulfil naval MIL test qualifications. The computer has a rigid mechanical structure with no rotating drives and temperature control FANs for optimal performance and life expectance.

This solution provides the most competitive in type approved rugged PC computing to system integrator applications, while retaining a high level of feature sets and connectivity capability. It includes high-end Intel® i7 CPU, 16GB of industrial RAM, 2 x 240GB SSD, 4 x PCIe/PCI slots, 1 x RS232 + RS422/485, 6 x USB, 4 x GBLAN ports and 2 x DVI + 1 DisplayPort (DP1.2++) with support for 3 active/simultaneous monitors.

In addition it features Multi-power (AC and DC power input built in) ensuring that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.
Specifications
Typenumber (Long): HM C02HK STC-x6U-M010
Installed Operating System Options: None or Standard OS/Customized image, review datasheet for list.
Storage Options: 2 x 2.5" 240GB (219TBW) SSD SATA installed internally
Processor / CPU and FSB Speed Options: 1 x Intel® Core™ i7-4770S, Quad Core 3.1/3.9GHz, 8MB Cache
Memory Options: 2 x 8GB (Dual Ch. 204-pin DDR3 1600 SODIMM), Total 16GB installed
System+Graphics Chipset / Connectors: Intel® Q87 / Intel® HD 4600 Graphics integrated, DirectX Support 11.2/12, Shader Model 5.0, OpenCL 1.2, OpenGL Support 4.3 / 4.5/linux), Graphics Video Max Memory 2GB
1 x 29P (female) DVI-I + 1 x 24P (female) DVI-D and 1 x DP1.2++ (DisplayPort)
Max Resolution / Max Hz: Max 2560 x 1600 @ 60Hz for DVI-I/VGA, DVI-D
Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS: AMI BIOS. On-board BIOS Speaker.
PCI Slots / PCIe Slots: 1 x PCI2.3, 3V/5V Interface, 1 x PCIe x16 + 1 x PCIe x4 + 1 x PCIe x1
All slots are Full Height&Full Length profile
Media Drive(s): None
LPT / Parallel Port: None
Serial Port(s): 1 x DB9M RS-232 + 1 x DB9M RS-422/RS-485
Ethernet Port(s): 2 x RJ45 10/100/1000Mbps - Intel® I217/I210 w/ Intel® Teaming
2 x RJ45 10/100/1000Mbps - Realtek 8111E
USB Port(s): 2 x USB2.0 (<5m) ports in front + 2 x USB3.0 (<3m) ports in rear
1 x USB2.0 (<5m) + 1 x USB1.1 (<10m) / USB2.0 (<5m) ports in rear
Keyboard and Mouse Ports: None
Audio Ports: Via Factory Default option: VS100897-1 (PCI Bracket)
1 x 1 x DB9F (2W Amplified)
+ 3 x 3.5mm Jacks (LINE IN/LINE OUT/MIC IN)
Realtek ALC892-CG HD Audio, 5.1 channel
Buzzer: None
Power Manager and Monitoring: ACPI - Temperature, voltage, cooling fans with auto throttle.
Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step
Power Specifications and Consumption: 115/230VAC - 50/60Hz + 24VDC / Operating 50W (Typ) - 65W (Max)
AC Power IN: 1 x Std IEC inlet
DC Power IN: 1 x 2-pin Terminal Block 5.08
AC: 115VAC@50/60Hz, 230VAC@50/60Hz, range & duration according to IEC60945 (92VAC - 276VAC, 45Hz - 66Hz).
DC: 24VDC nom., range & duration according to IEC60945 (18-32VDC).
Digital I/O Connectors: None
Key Features: High Performance, Multi-power, Easy Removable Front Air Filter, Internal Cooling fan in front (120x120mm), Service friendly, Includes mounting brackets
Product Dimensions and Weight: W:345.00 [13.58"] x H:133.00 [5.24"] x D:390.00 [15.35"] mm [inch]
3U Rack size in height. Approx 8.0kg / 17.6lbs
Product Carton Size and Weight: L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch]
Approx 11.0kg / 24.2lbs
User Controls / Activity: Front: Power On/Off Push Button, Reset Button, Power/SSD LED
Factory Options: None
Accessories: Note for all accessories: Contact Sales for MIL Test Compliance
• HT 00225 OPT-A1: 2 x 26" ball bearing rail&mounting kit, 19" Rack
• HT 00224 OPT-A1: 2 x 20" ball bearing rail&mounting kit, 19" Rack
• HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit(for HT 00224/00225)
• HT 00226 OPT-A1: 2 x Mounting Bracket, 4mm SECC+Zinc Plating
• JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle
• H733S30Q20-SP000-0: 1 x Replacement Front Air Filter w/4 screws
• HT 00275 OPT-A1: 1 x PCI Mount Kit EN60945, Low Profile (LP)*
• HT 00229 OPT-A1: 1 x PCI Mount Kit,Half Height to Full Height
• HT 00300 MSOS: OS options -> www.hatteland-display.com/os
*Any length of PCI Card supported.
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
DNV Temperature Class B 70.0°C / 158.0°F for 16 hours
Storage Temperature: -30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 140.00 [55.12"] - Steering: 90.00 [35.43"] cm [inch]
Type Approval, Testing and Certificates: MIL-STD-167-1A Vibration, MIL-STD-810F&G Shock 30G 11ms, MIL-STD-810F&G Shock 50G 11ms, MIL-STD-810F&G Shock 50G 30ms, EMI Testing: MIL-STD-461E and 461F Naval Limits, CE 101 (AC only), CE 102, RE 101, RE 102*, CS 101, CS 114, CS 116, RS 101, RS 103, IEC 60945 4th (EN 60945:2002), EN61162, IACS E10, EU-RO-MR - Mutual Recognition by DNV, ClassNK - Nippon Kaiji Kyokai

MTBF: 20177 hours.

** Exception: 3 x 3.5mm Jack (Line-Out, Line-In, Mic-In), complies to RE102 when 3 x 3.5mm Jack disconnected.
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Specifications last updated: August 15, 2025 @ 13:51
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
2 Sep 2019
Global Documentation and Driver DVD

28 Jun 2019
HM C02HK - Compact Rugged Naval Computer

News Stories:
15 Dec 2015
Rugged Naval Computer HM C02 introduced

Obsolete
loading
arrow-left
arrow-right

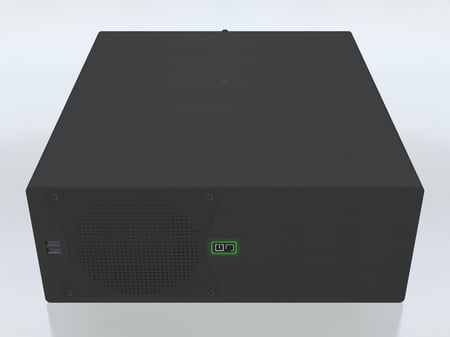

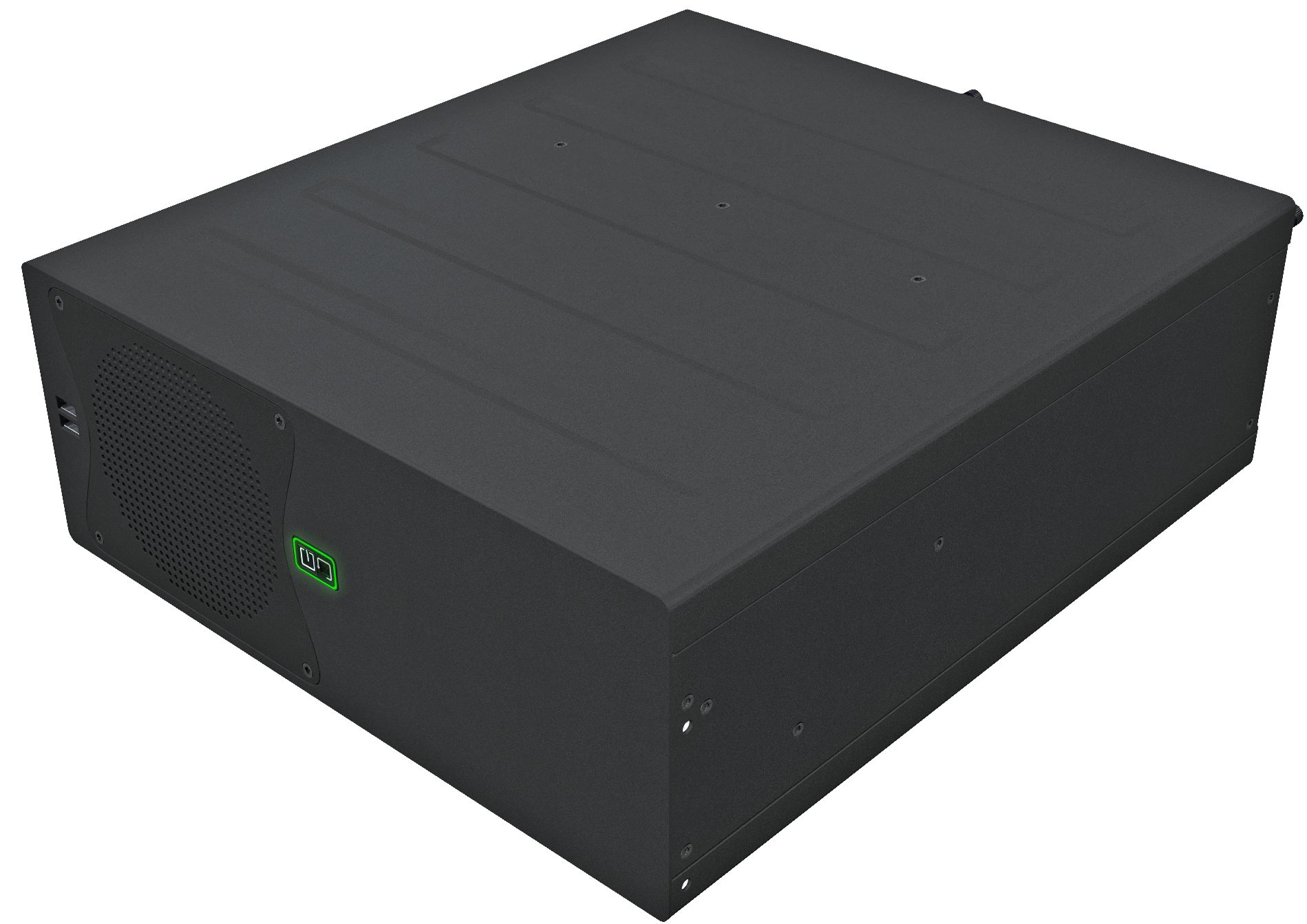

HM C02
