Computer - Entry Level - Compact

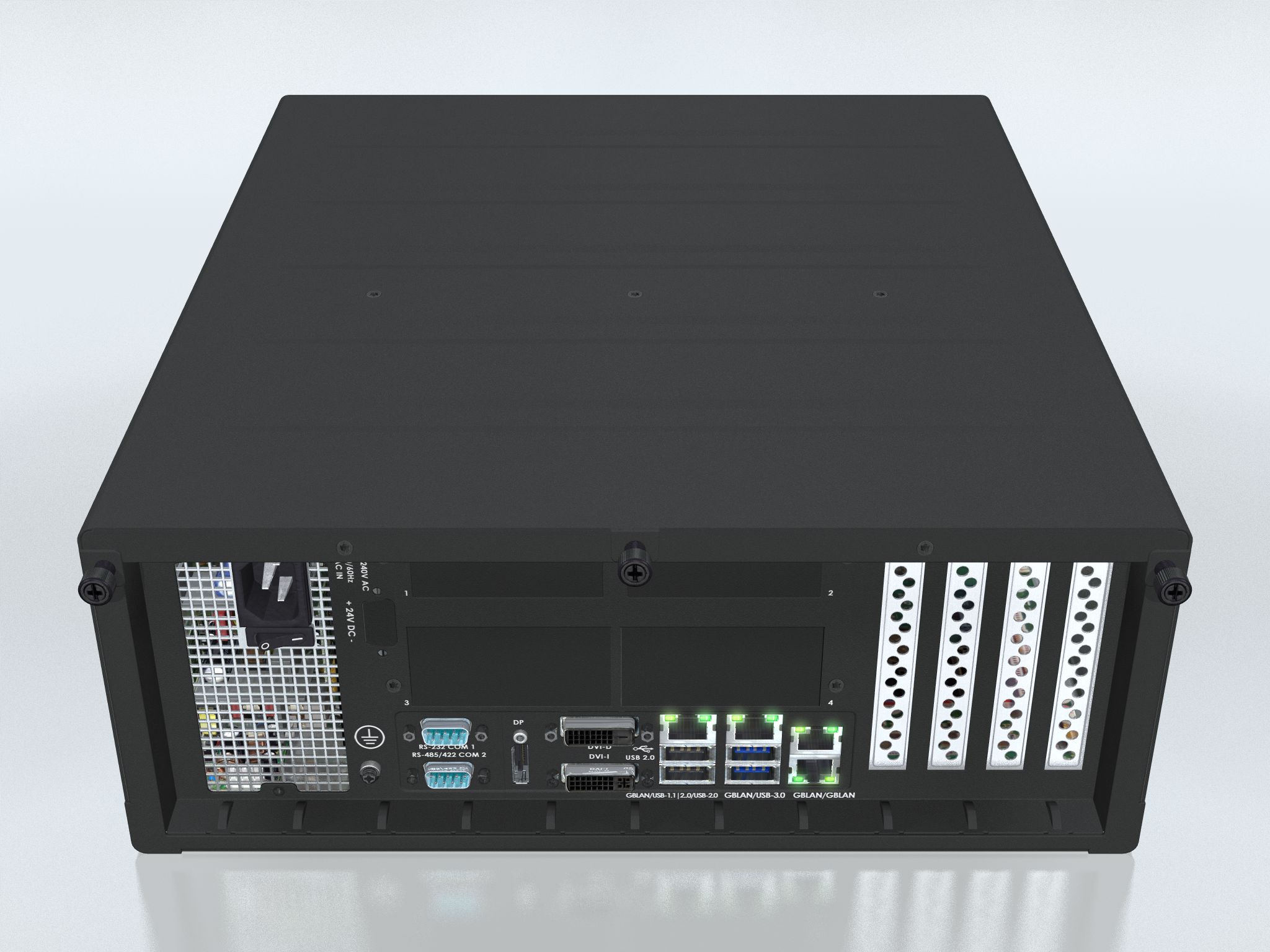

HT C02HI

The HT C02HI model is the successor to the best in class and highly successful HT C01 computer. The new model incorporates latest processor technologies and enhanced feature sets, thus providing greater versatility for high-end maritime system applications.

Entry Level

Send Request

Description

Specifications

Typenumber (Long):	HT C02HI STC-xxx-xxxx
Installed Operating System Options:	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	2 x internal 2.5" devices possible. Option: 1 or 2 can be installed of: 2.5" SSD SATA: (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW)) 2.5" HDD SATA 1TB
Processor / CPU and FSB Speed Options:	1 x Intel® Core™ i3-4330, Dual Core 3.5GHz, 4MB Cache
Memory Options:	2 x 2GB, 4GB, 8GB (Dual Ch. 204-pin DDR3 1600 SODIMM) Max 16GB RAM possible
System+Graphics Chipset / Connectors:	Intel® Q87 / Intel® HD 4600 Graphics integrated, DirectX Support 11.2/12, Shader Model 5.0, OpenCL 1.2, OpenGL Support 4.3 / 4.5/linux), Graphics Video Max Memory 2GB. 1 x 29P (female) DVI-I + 1 x 24P (female) DVI-D and 1 x DP1.2++ (DisplayPort)
Max Resolution / Max Hz:	Max 1920 x 1200 @ 60Hz for DVI-I/VGA/DVI-D Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS:	AMI BIOS. On-board BIOS Speaker.

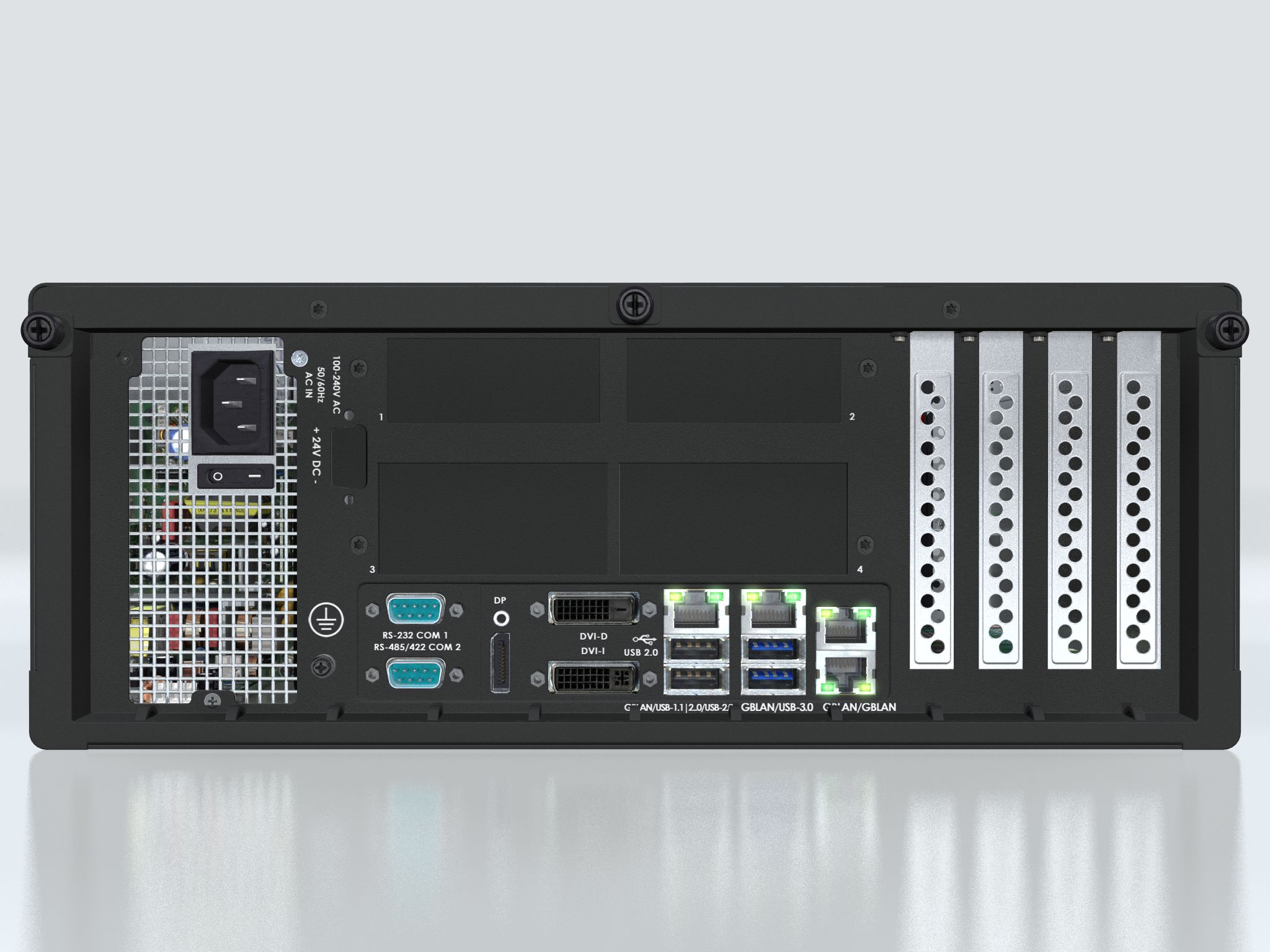

PCI Slots / PCIe Slots:	1 x PCI2.3, 3V/5V Interface, 1 x PCIe x16 + 1 x PCIe x4 + 1 x PCIe x1 All slots are Full Height&Full Length profile
Media Drive(s):	None
LPT / Parallel Port:	None

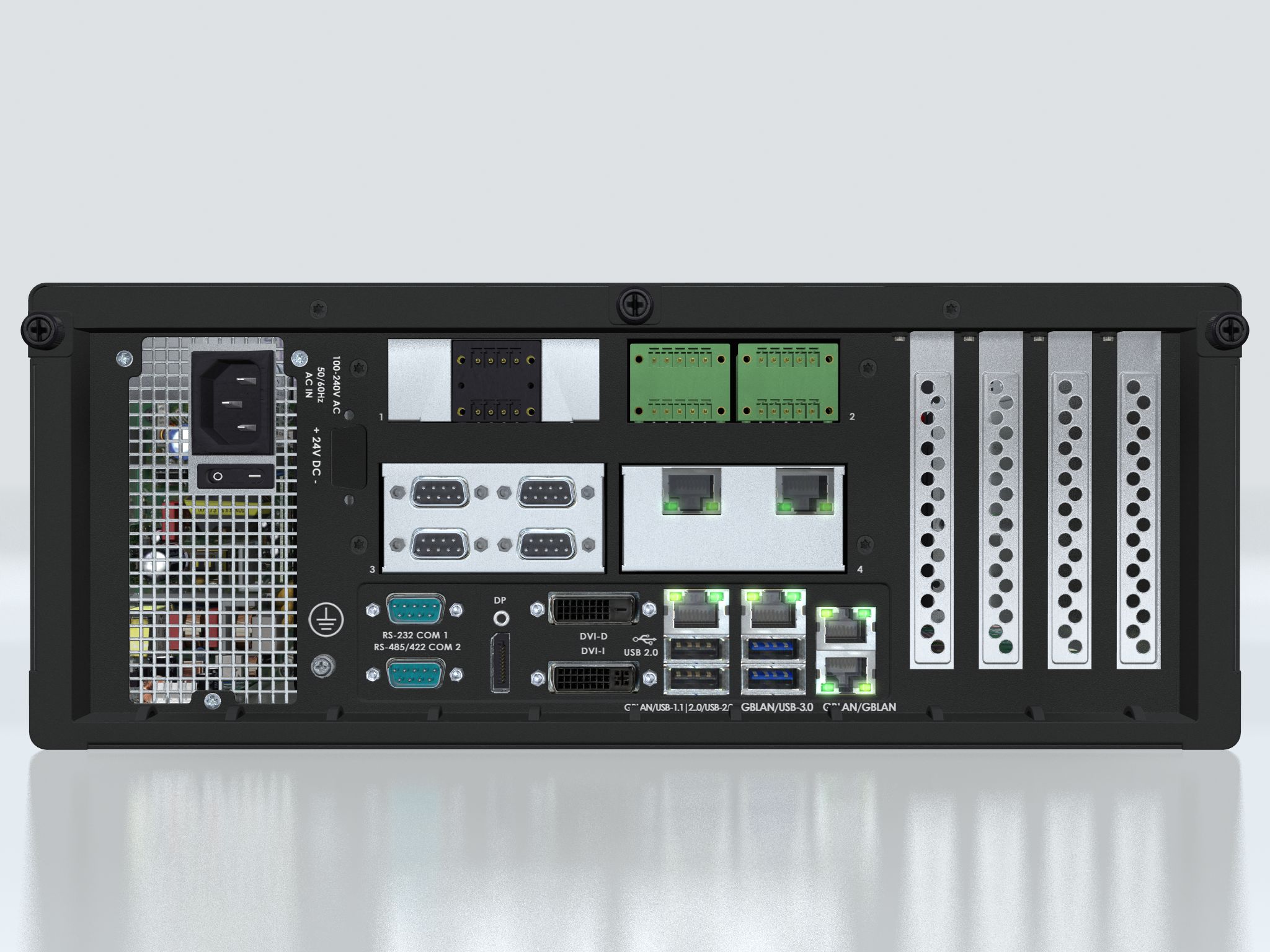

Serial Port(s):	1 x DB9M RS-232 + 1 x DB9M RS-422/RS-485
Ethernet Port(s):	2 x RJ45 10/100/1000Mbps - Intel® I217/I210 w/ Intel® Teaming 2 x RJ45 10/100/1000Mbps - Realtek 8111E
USB Port(s):	2 x USB2.0 (<5m) ports in front + 2 x USB3.0 (<3m) ports in rear 1 x USB2.0 (<5m) + 1 x USB1.1 (<10m) / USB2.0 (<5m) ports in rear
Keyboard and Mouse Ports:	None or option: VSD100896-1: 2 x PS/2 5pin mini (Keyboard + Mouse inputs)**
Audio Ports:	None or option: 1 x VSD100897-1: Audio 2W Amplified (1xDB9F+3x3.5mm Jack) Line-in,Line-Out,Mic
Buzzer:	None
Power Manager and Monitoring:	ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step
Power Specifications and Consumption:	100-240V AC - 50/60Hz (PSU MAX AC 412W) or 24VDC (PSU MAX DC 275W) Operating 70W (typ) If AC Power IN: 1 x Std IEC inlet If DC Power IN: 1 x 2p DSUB (male) Amphenol FCC17
Digital I/O Connectors:	None or option: 1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
Key Features:	High Performance, Easy Removable Front Air Filter, Internal Cooling fan in front (120x120mm),Service friendly,Includes mounting brackets
Product Dimensions and Weight:	W:345.00 [13.58"] x H:133.00 [5.24"] x D:390.00 [15.35"] mm [inch] 3U Rack size in height. Approx 8kg / 17.6lbs
Product Carton Size and Weight:	L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch] 1kg / 24lbs

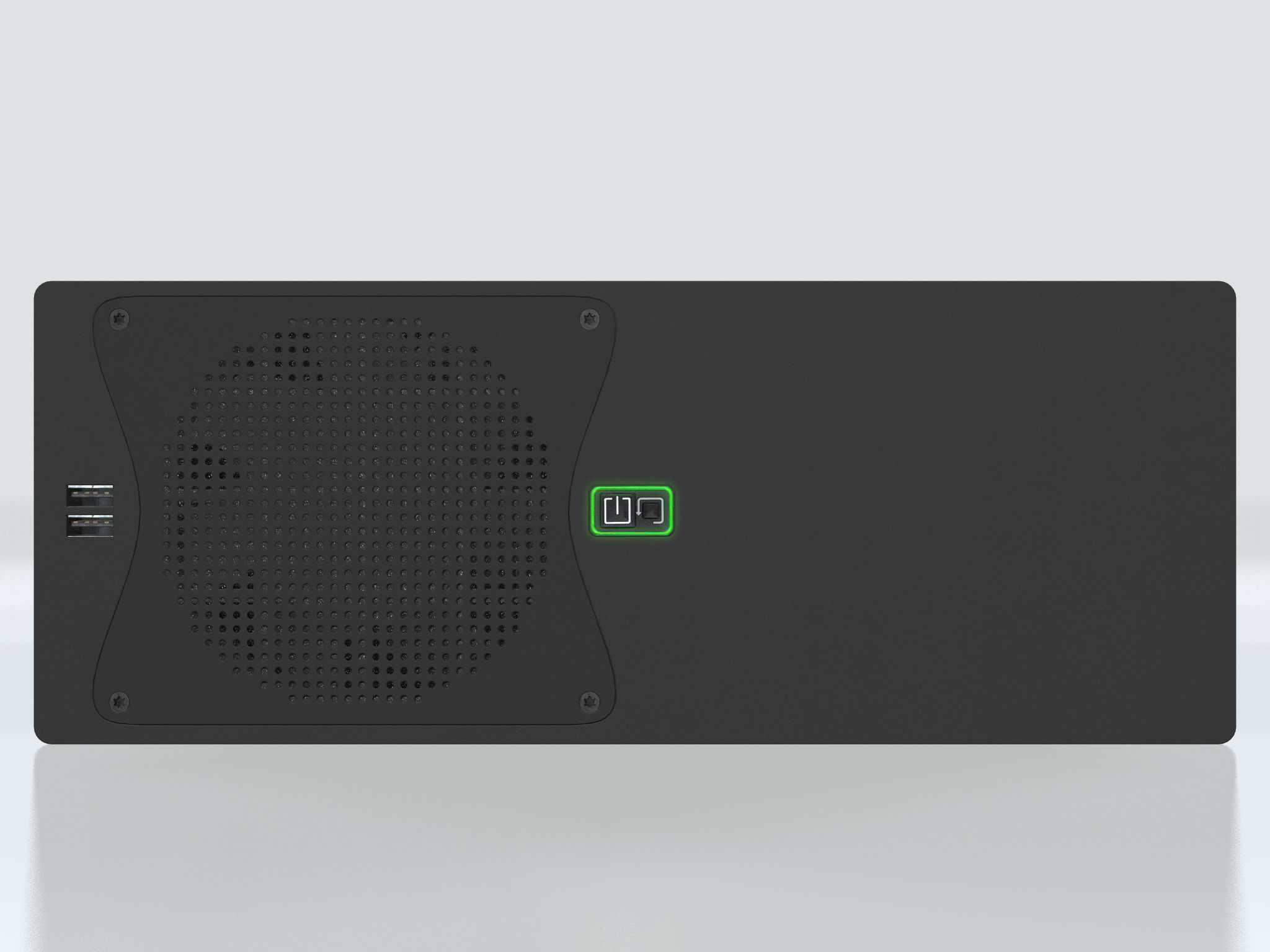

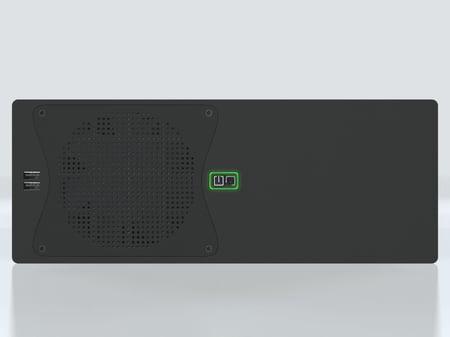

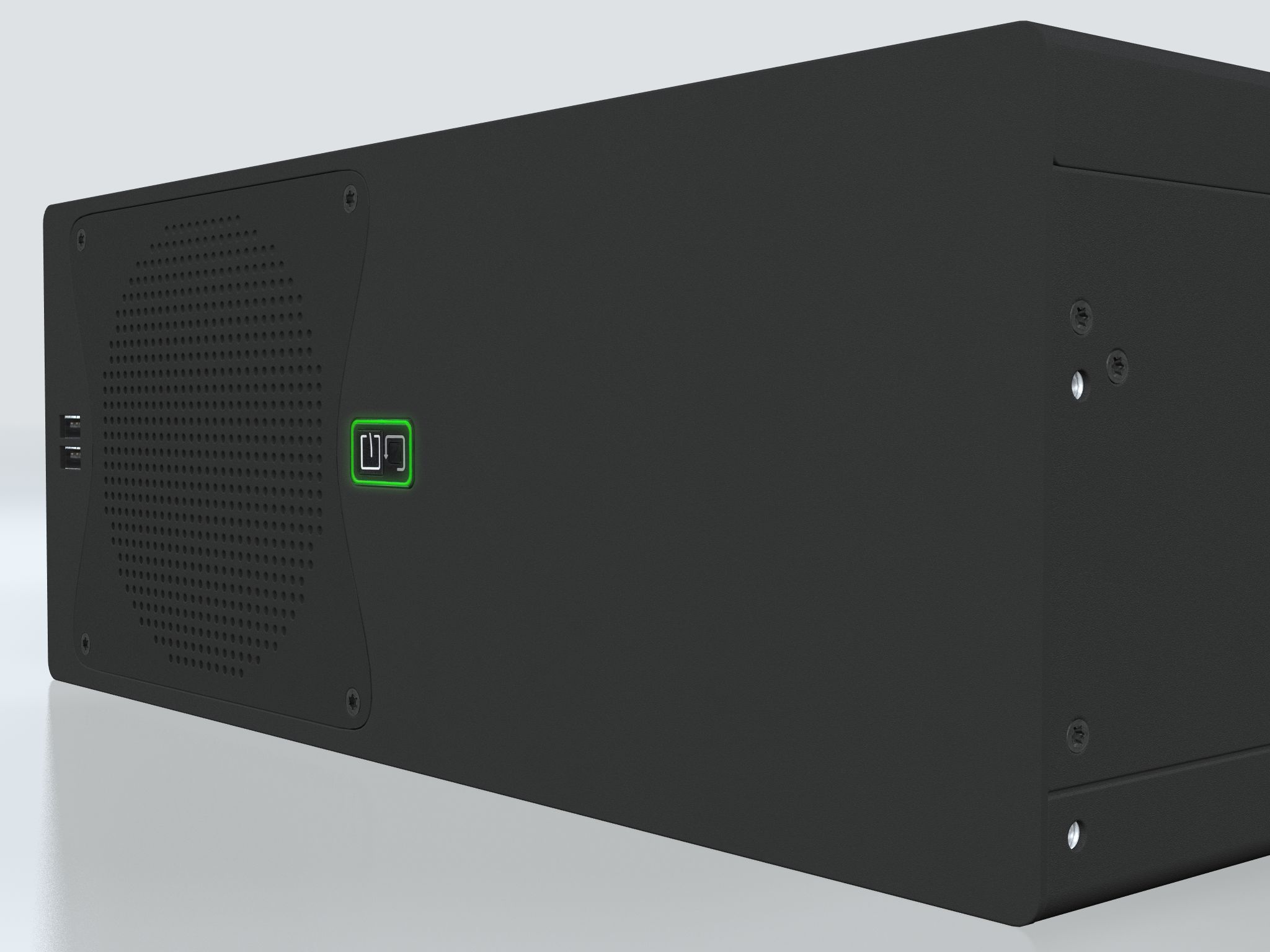

User Controls / Activity:	Front: Power On/Off Push Button,Reset Button,Power/HDD LED
Factory Options:	• M9140-E512LAF: Matrox®9140 LP, PCIe x16, 4xDVI-I, 512MB • C680-E4GBF: Matrox®C680 FH/HL, PCIe x16, 6xDP, 4GB • CP114EL-I: COMCard,PCIe,1xDB44F/4xDB9M isolat.,RS232/422/485 • VSD100897-1: Audio 2W Amp. 1xDB9F+3x3.5mm Jack • i350F2BLK: Intel® Server Adp. I350-F2,FiberLAN (2xLC Fiber Optic) • i350F4BLK: Intel® Server Adp. I350-F4,FiberLAN (4xLC Fiber Optic) • PCA100294-1: COM un-isolated RS-232 via DB9M, 4 channel) • PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) • PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT • HTA2020002-AD1033: CAN isolated, 2 channel • PCA200828-1: COM RS-422/485 isolated NMEA 4 channel • VSD100896-1: 2 x PS/2 5pin mini (Keyboard + Mouse inputs) • VSD100898-1: Additional USB ports: 2 x USB3.0+2 x USB2.0) • SX-118A: 1 x Parallel Port LPT,DB25F,Bi-Dir. ECP/EPP,PCIe x1 card • PCA100309-1: Dual Isolated RS-232 (RS232-2i), 2xDB9 module • Variations of Storage, RAM Memory and Operating System For all Factory Mounted Options Combinations, review User Manual.
Accessories:	• HT 00225 OPT-A1: 2 x 26" ball bearing rail&mounting kit, 19" Rack • HT 00224 OPT-A1: 2 x 20" ball bearing rail&mounting kit, 19" Rack • HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit(for HT 00224/00225) • HT 00226 OPT-A1: 2 x Mounting Bracket, 4mm SECC+Zinc Plating • JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle • HT 00300 MSOS: OS options -> www.hatteland-display.com/os • H733S30Q20-SP000-0: 1 x Replacement Front Air Filter w/4 screws • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HT 00275 OPT-A1: 1 x PCI Mount Kit EN60945, Low Profile (LP)* • HT 00229 OPT-A1: 1 x PCI Mount Kit,Half Height to Full Height* • Delock 62638: 1 x miniDP to DP adapter for C680-E2GBF *Any length of PCI Card supported.
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 140.00 [55.12"] - Steering: 90.00 [35.43"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

Specifications last updated: July 9, 2025 @ 12:38
