PRODUCT DETAILS

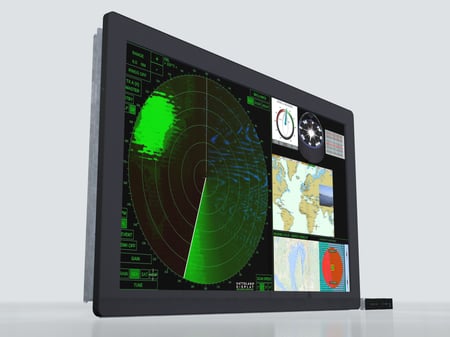

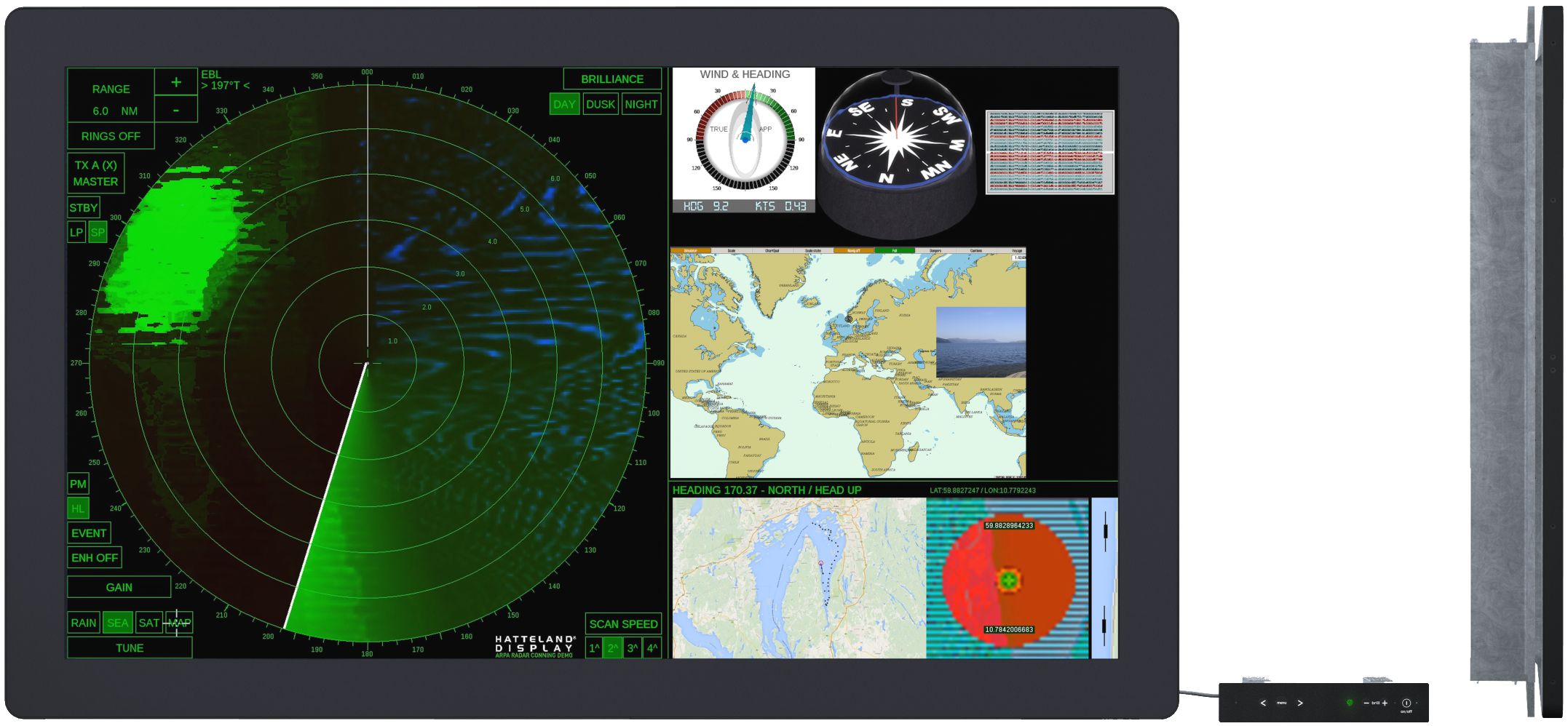

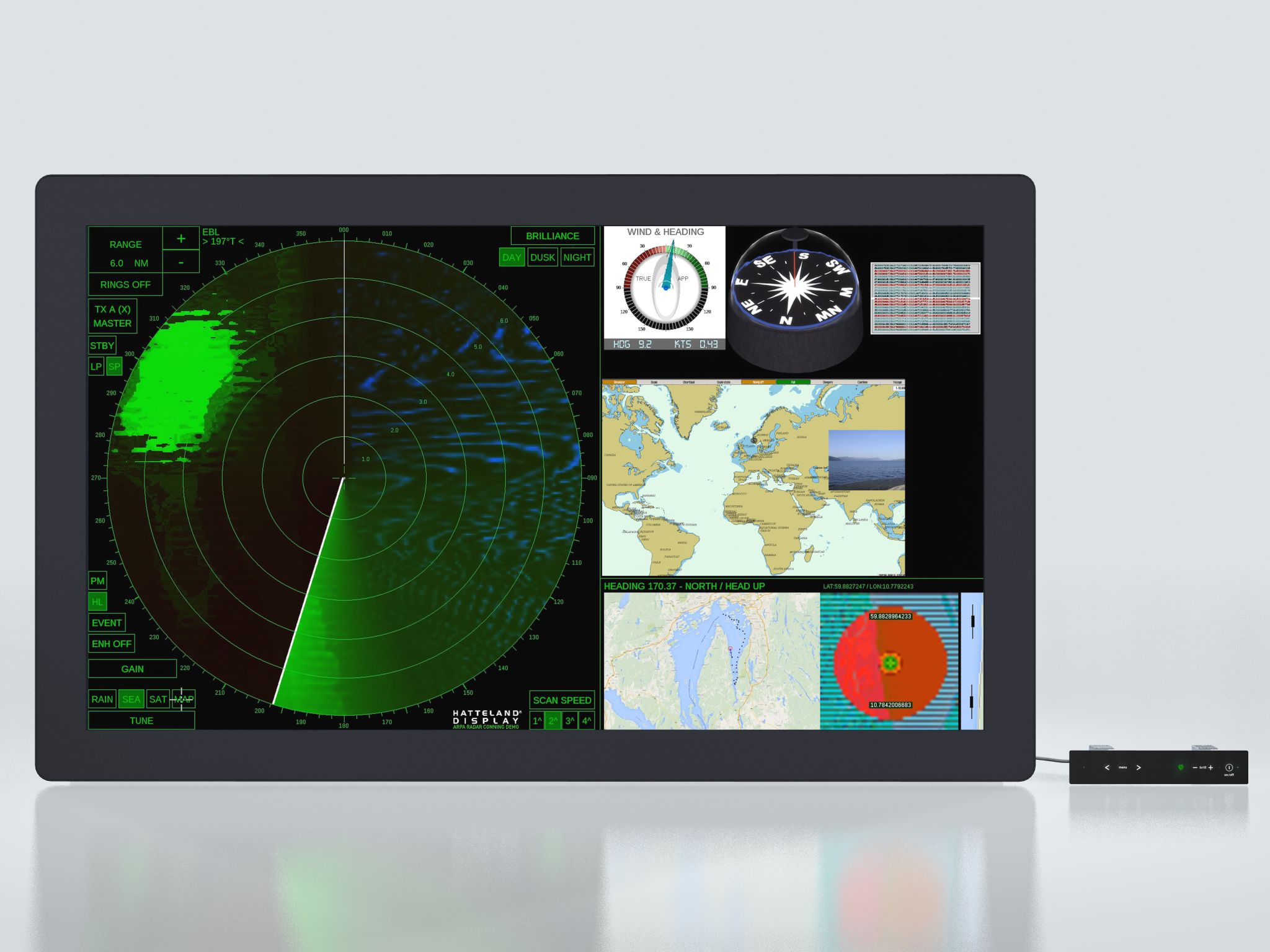

HD 55T22 MVD-C
Monitor - Widescreen - 4K UHD - LED - Console Model - Optical Bonding - HATTELAND® Series X MVD - 55.0 inch
HD 55T22 MVD-C
The Series X Multi Vision Display (MVD) range of products provides large 4K resolution monitor solutions to maritime IBS, Automation and Command Control system integrators. The cutting edge high definition LED monitor technology used, with its high quality brightness and contrast, enables the presentation of large amounts of data onto one screen instead of multiple monitors.
Widescreen
High-res
LED-backlit
Console Model
Optical Bonding

Monitor - HATTELAND® Series X MVD
Using the pinnacle of new maritime monitor technology from Hatteland Technology, previously only available for wall-mounting or configured as an innovative chart & planning table, the new Series X 55 inch Ultra High Definition console mounted MVD is designed to enable quick and easy integration in any IBS design.The system will become a key component of future-focused smart ship technology, playing a critical role in improving operational safety and efficiency at sea. In addition to acting as a multi-data monitor for bridge systems, Hatteland Technology has designed the new Series X 55 inch Ultra High Definition console mounted MVD as a flexible solution, suitable for a wide range of applications including ECDIS, radar and voyage planning systems. Hardware features include Touch Screen operation, multi-data input, built in On-Screen Display (OSD) and uniquely for a console mounted solution, an external Tactile button-control panel which can be mounted separately, for operation of the OSD and other parameters. It also features optical bonding for strength and safety as standard, and ECDIS callibration as option.
Typenumber (Long): |
HD 55T22 MVD-MAx-COTx |
TFT Technology: |
LED Backlight Technology, TFT active-matrix liquid crystal panel, Widescreen, RGB Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology |
Viewable Size and Active Area: |
55.0 inch - 1209.60 [47.62"] (H) x 680.40 [26.79"] (V) mm [inch] |
Native Resolution and Pixel Pitch: |
3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm |
Aspect Ratio and Response Time: |
16:9 - 6.5ms (typical) (G to G) |
Light Intensity and Contrast Ratio: |
450 cd/m² (typ) - 4000:1 (typ) |
View Angle and Max Colors: |
89 deg. (up/down/left/right) - 16.7 million |
Optimal Resolution and Hz: |
3840 x 2160 @ 60 Hz |
Detectable Resolutions: |
VGA (640 x 350) to UHD (3840 x 2160) |
Composite Video Input(s): |
None |
Supported Video Signals: |
None |
Product Features: |
Full Dimming 0-100%, Multi-power AC&DC, Optical Bonding Technology, PIP (Picture In Picture), Console Mount Model, External Tactile Display Controls (TDC) |
Power Specifications and Consumption: |
Multi-power 100-240V AC 50/60Hz + 24VDC Operating AC/DC: 145W (typ) - 312W (max) |
User Controls and Activity: |

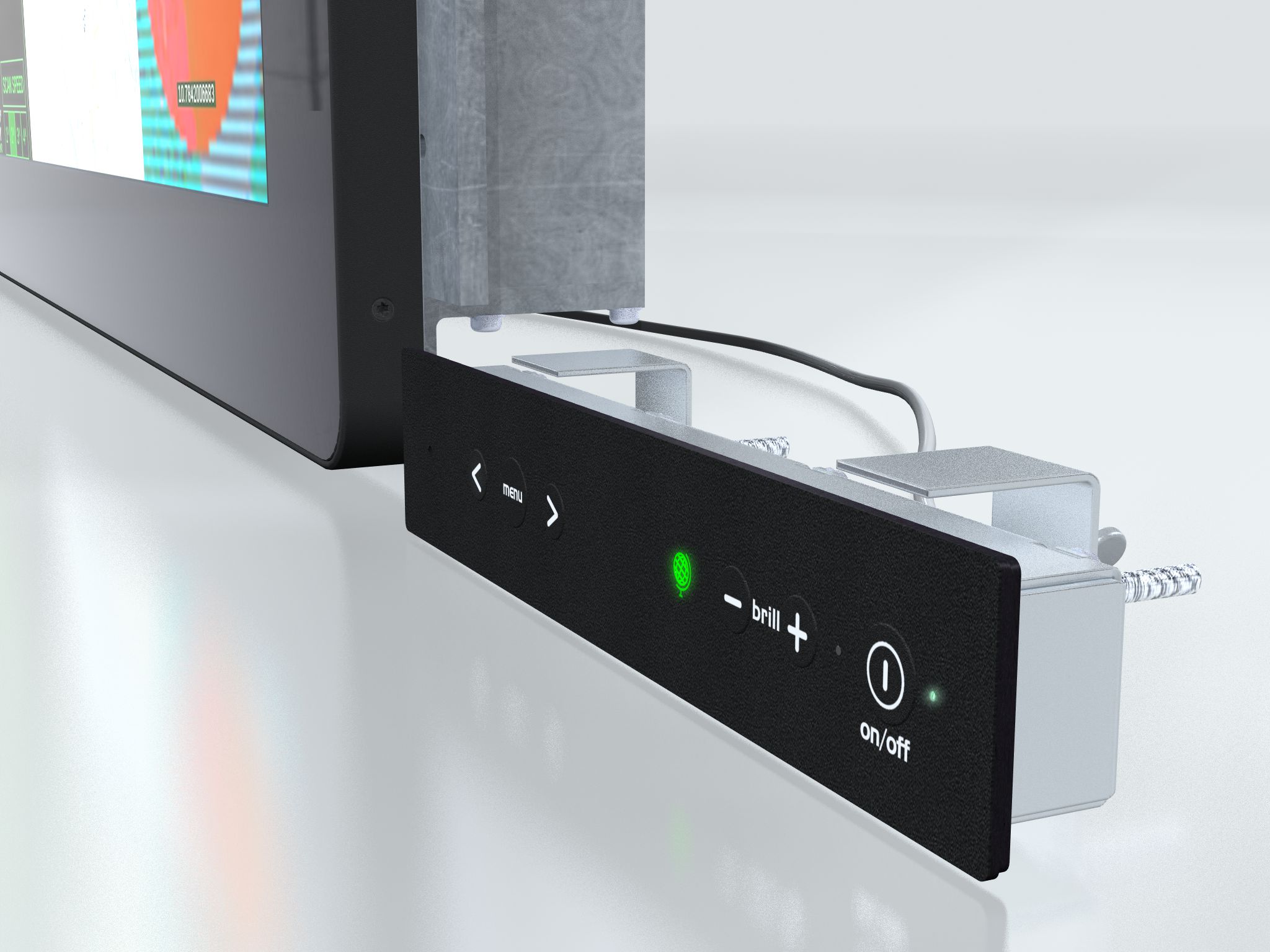

Tactile Display Controls (TDC): Power On/Off Button, Power LED, On Screen Display Menu Button*, Brightness Control (-/+) buttons, Hotkeys (left/right) buttons, ECDIS Indicator, Buzzer, Light Sensor *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode |

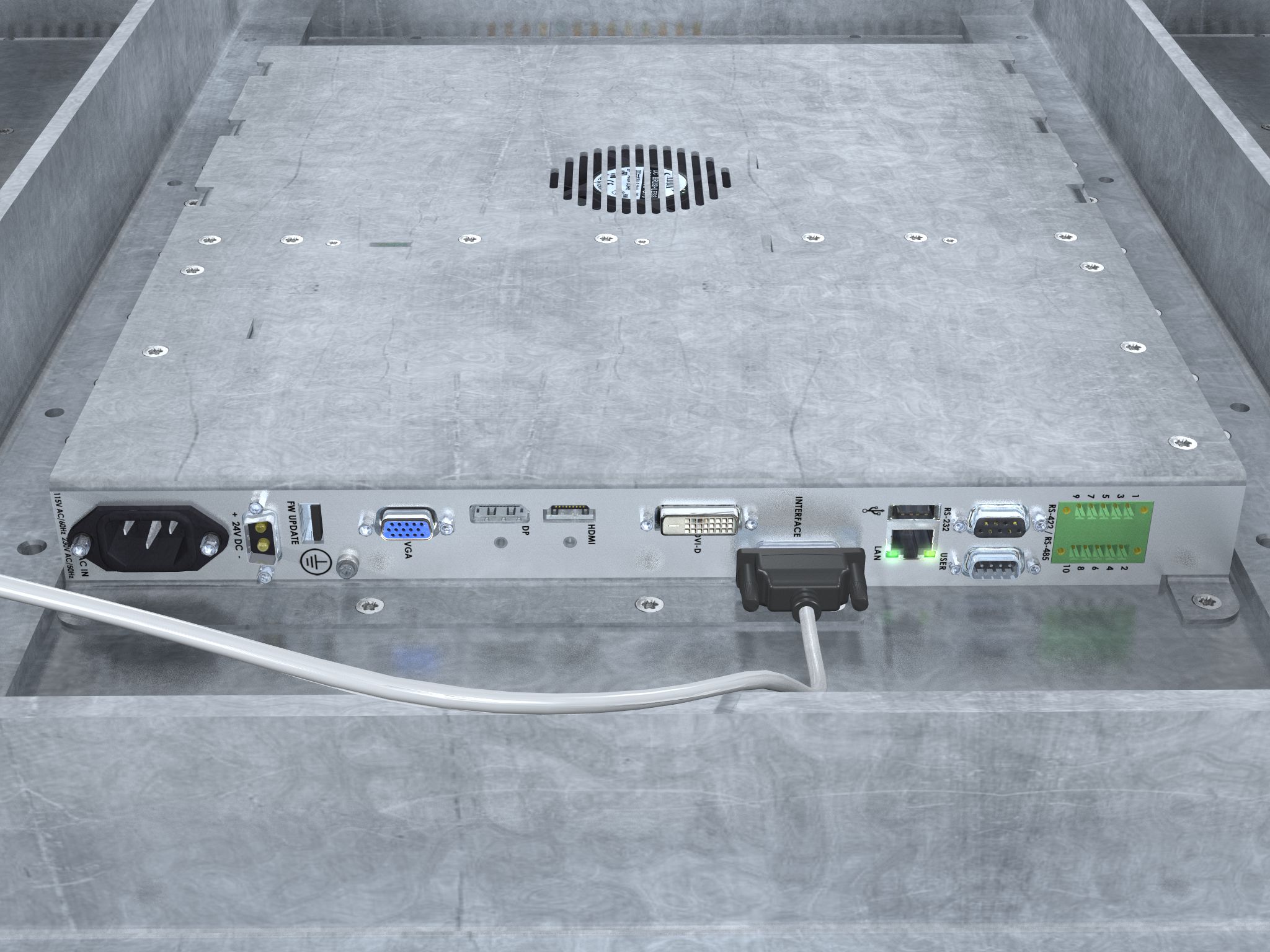

Connectors: |

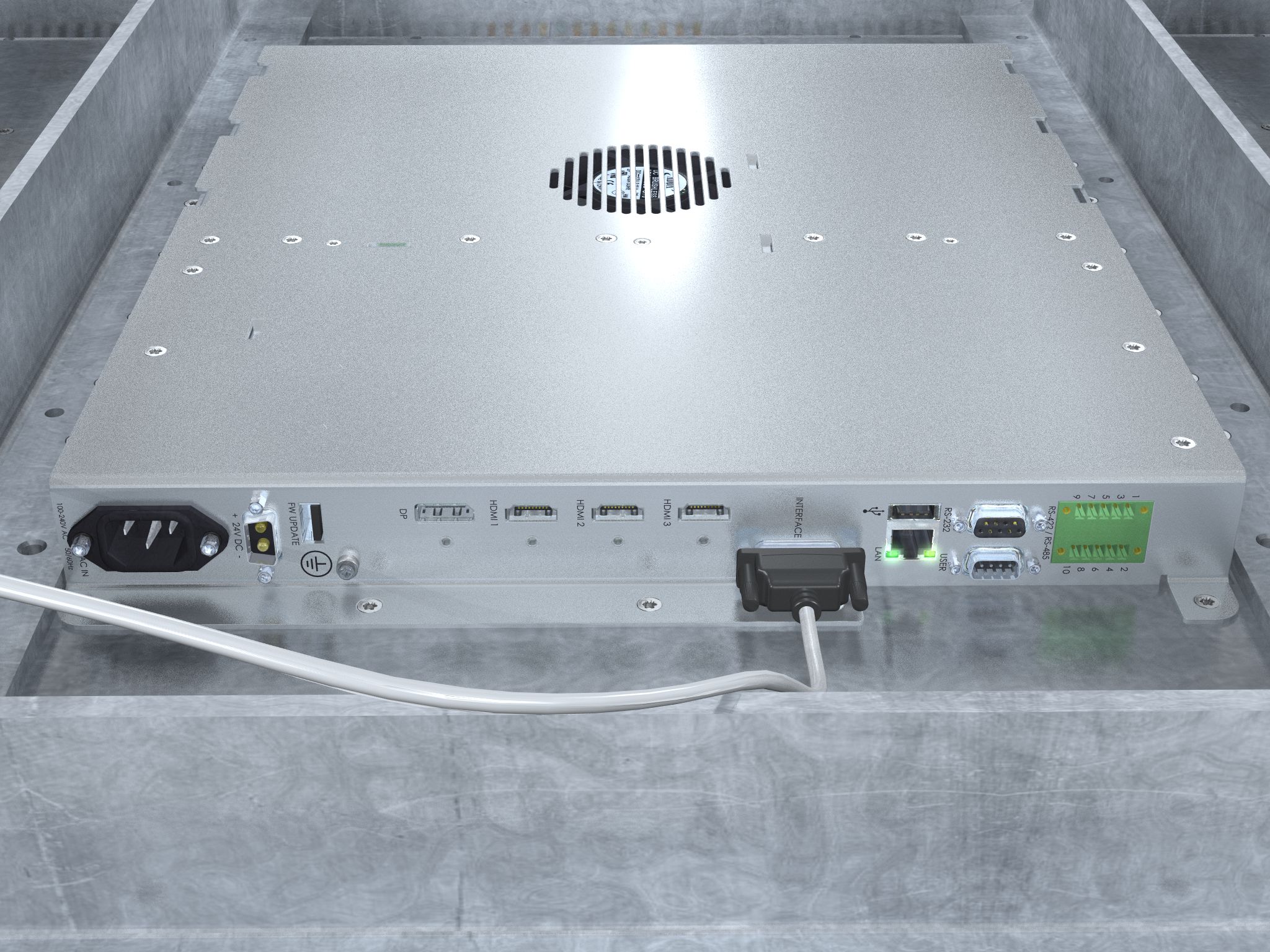

• HDMI 1.4 Input: 2 x 19p HDMI (female) - Max 3840x2160@30Hz • HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer • SCOM Ethernet*: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • SW Interface: 1 x USB TYPE A (female) for Firmware Update • GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm. • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2p D-SUB Connector (male) - Amphenol FCC17 |
Product Dimensions and Weight: |
W:1346.83 [53.02"] x H:817.63 [32.19"] x D:99.00 [3.90"] mm [inch] Approx. 70.0 kg / 154.0lbs |
Product Carton Size and Weight: |
L:1520 [59.84"] x W:990 [38.98"] mm x H:326 [12.83"] mm [inch] 105.0kg / 231.0lbs |
Factory Options: |
• Projected Capacitive Touch Screen (Multitouch,USB,Glove/Pen support) • Color Calibrated models (ECDIS) |
Accessories: |

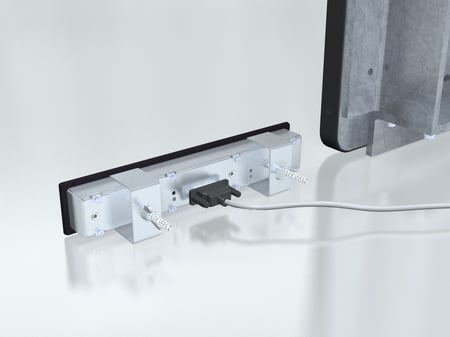

• HD TDCMVD KIT-A1: 1 x External Tactile Display Controls (TDC)* • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested *Included with delivery |
Capabilities - Prepared for: |
• Tactor (Rotation Angle Value, X/Y Position, 1 x Button) supported Model • Active Stylus Pen Supported Model |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95% |
IP Rating: |
Protection: IP66 front - IP22 rear (EN60529) |
Compass Safe Distance: |
Standard: 500.00 [196.85"] - Steering: 230.00 [90.55"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, KR - Korean Register, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m |
Specifications last updated: July 1, 2025 @ 10:03 |
