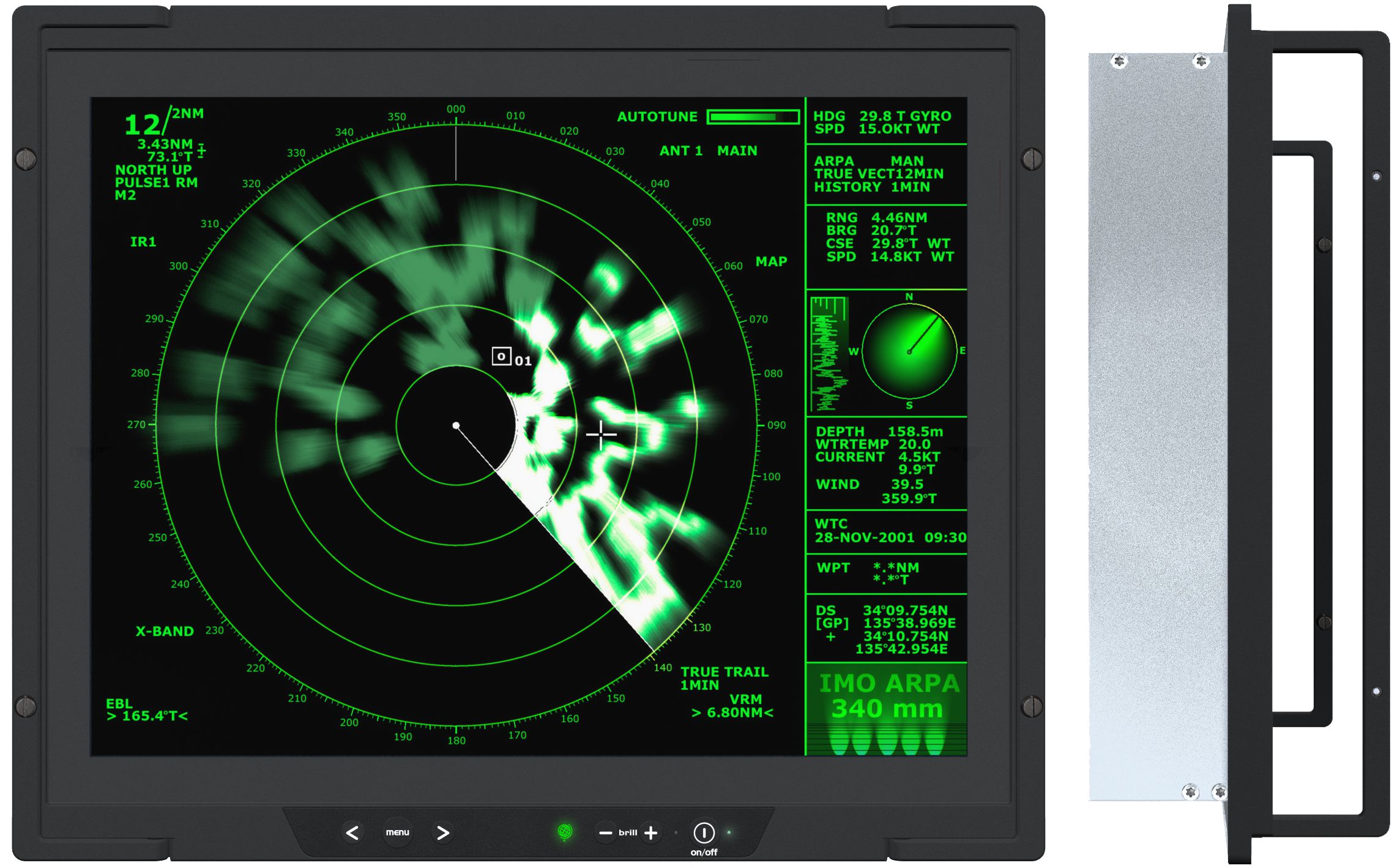

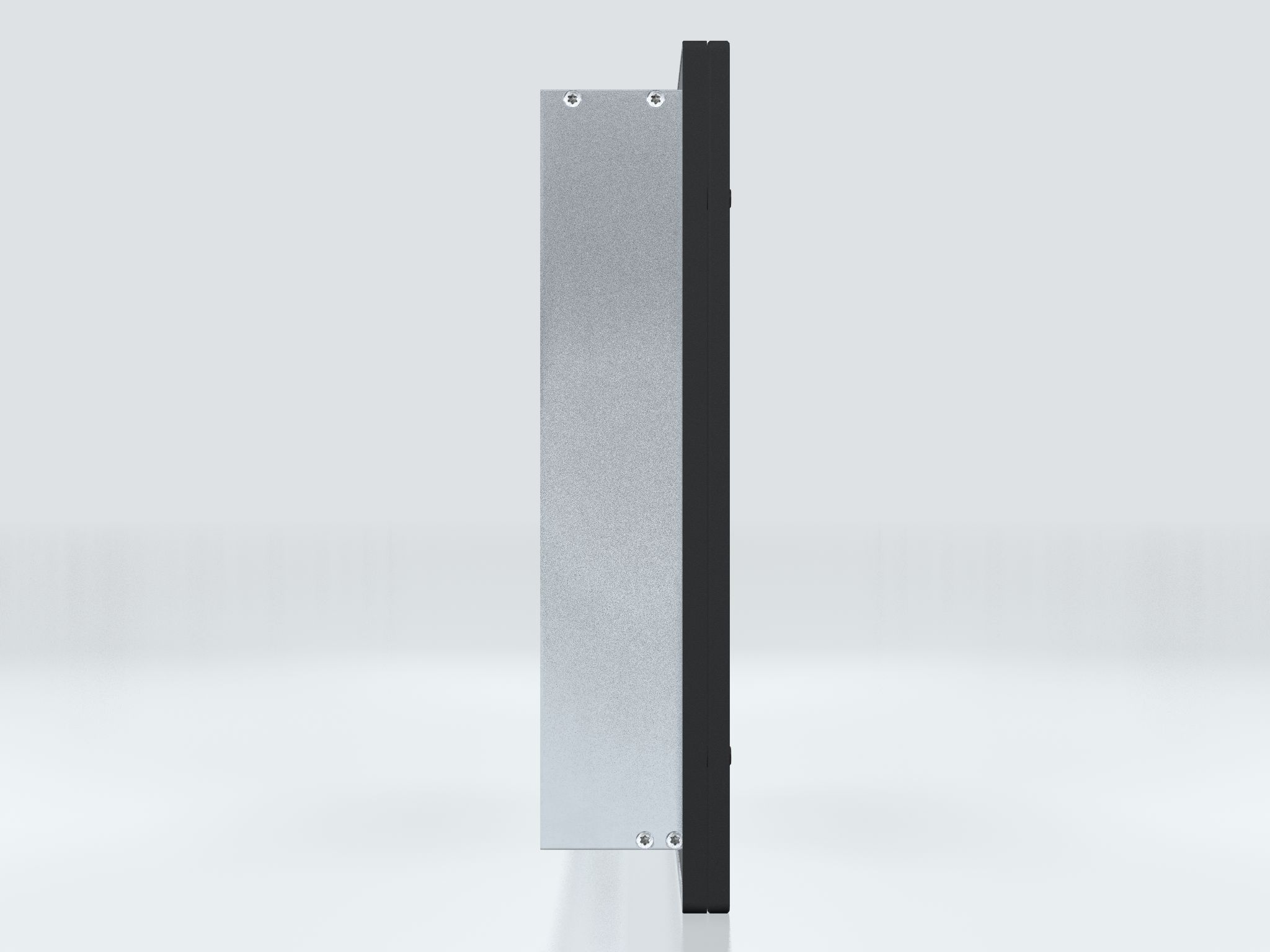

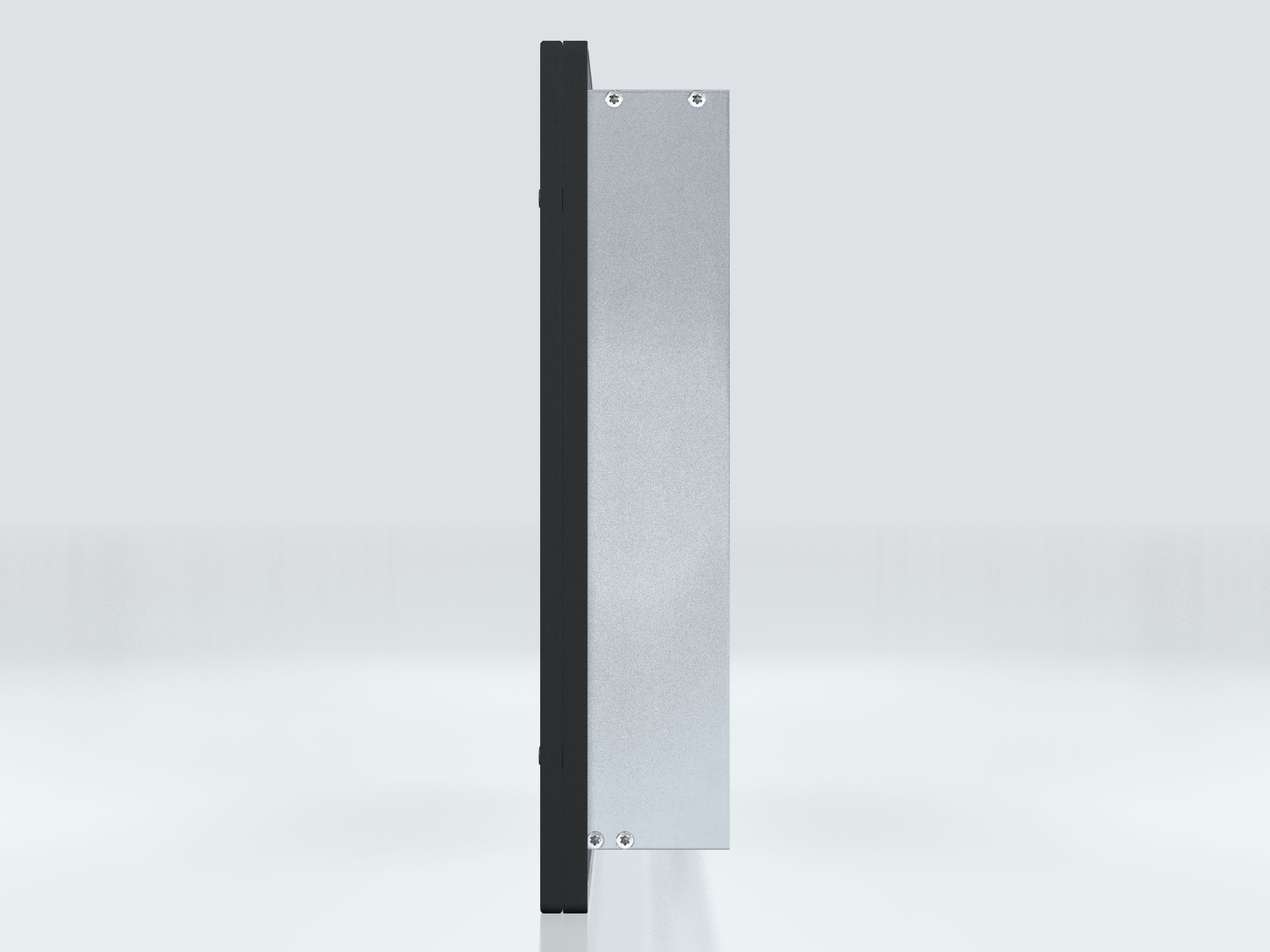

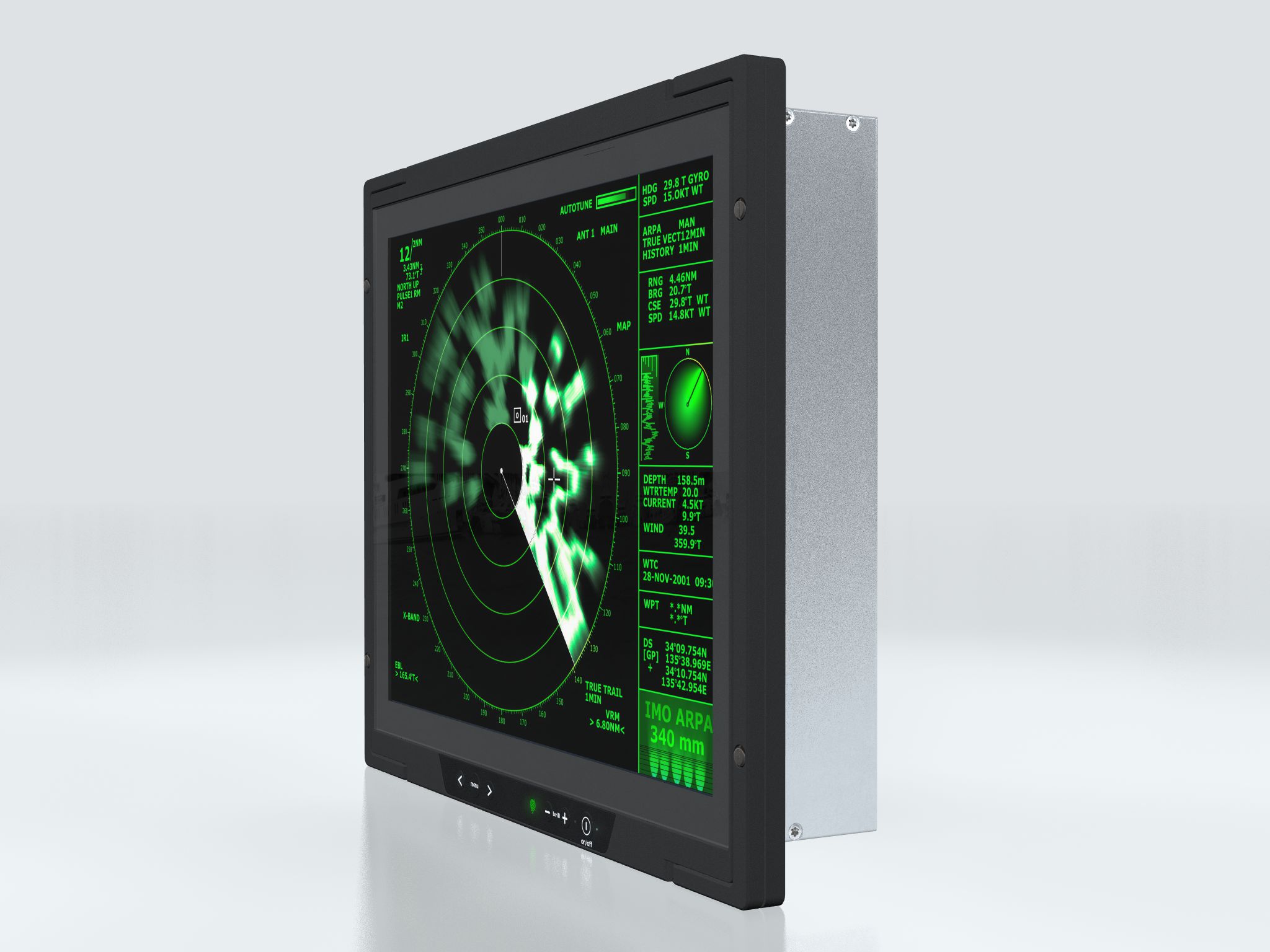

Monitor - LED - MIL Qualified - 20.1 inch - Xtreme Rugged Marine

HM 20T22 XRD-MAx-3OVx

Hatteland Technology's Xtreme rugged Military range of monitors (XRD) are designed to provide high-quality UXGA resolution video and graphics performance into modern military/naval platforms. Designed for console-mount installations as well as fully adaptive 19 inch rack mounting allows the product to be used in any environment and configuration.

LED-backlit

EN60945

MIL-STD 167

MIL-STD 901D

MIL-STD 810

MIL-STD 461

Send Request

Description

Specifications

TFT Technology:	LED Backlight Technology, TFT (Thin Film Transistor) Active Matrix, RGB Vertical Stripe, Optical Bonding Technology
Viewable Size and Active Area:	20.1 inch - 408.00 [16.06"] (H) x 306.00 [12.05"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm
Aspect Ratio and Response Time:	4:3 - 30ms (typ)
Light Intensity and Contrast Ratio:	300 cd/m² (typ) - 1400:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1600 x 1200 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Front Bonded, Qualified for shock, vibration & EMI, Fully adjustable backlight (0-100%), PIP (Picture-in-Picture), Serial Communication (SCOM) Interface, Toughened Glass, Suitable for C4i, navigation and automation, Fixed Foldable Handles, EMI gasket (AMS-3195) for console mounting (P020507), Replaces previous HM 20T07 NMD models.
Power Specifications and Consumption:	Multi-power 115-230VAC - 50/60Hz + 24VDC 40W (typ) - 156W (max) Inrush Current: 50A for VAC/VDC, Max. @ 25.0°C / 77.0°F
User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm), Power On/Off button, On Screen Display control (OSD) button, Up/Down OSD Navigation / Hotkey buttons, +/- Brightness Control Buttons, ECDIS Button OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI-D Input: 1 x 24p DVI (female) • VGA Input: 1 x 15p HD D-SUB (female) • HDMI 2.0 Input: 1 x 19p HDMI (female) • DP 1.2 Input: 1 x 20p DisplayPort (female) • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • FW Update: 1 x USB TYPE A (female) for Firmware Update • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:482.00 [18.98"] x H:399.00 [15.71"] x D:87.00 [3.43"] mm [inch] Weight: Approx. 11.9kg / 26.2lbs
Product Carton Size and Weight:	L:635.00 [25.00"] x W:185.00 [7.28"] x H:645.00 [25.39"] mm [inch] Approx. 16kg / 35lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support) • Color Calibrated models (ECDIS) on request
Accessories:	None
Capabilities - Prepared for:	N/A
Operating Temperature:	AC: -15.0°C / 5.0°F to 55.0°C / 131.0°F (MIL-STD 810F&G) DC: -15.0°C / 5.0°F to 55.0°C / 131.0°F (MIL-STD 810F&G) Humidity up to 95% at 55.0°C / 131.0°F (IEC 60945 4th)
Storage Temperature:	Dry Heat: 70.0°C / 158.0°F (MIL-STD 810F&G) Cold: -40.0°C / -40.0°F (MIL-STD 810F&G) Humidity up to 95% at 55.0°C / 131.0°F (IEC 60945 4th)
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 70.00 [27.56"] - Steering: 35.00 [13.78"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, MIL-STD 461F&G, MIL-S-901D Class I (hard-mounted) Grade A, Shock, EU RO MR - Mutual Recognition, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society, BV - Bureau Veritas, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping Environmental Performance: Shock: 30g & 50g/11ms, 50g/30ms (MIL-STD 810F&G) Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D) Rain (drip proof): MIL-STD-810F&G - Console mounted Salt Fog: MIL-STD-810F&G Vibration Testing: MIL-STD-167-1A EMI Testing: MIL-STD 461F&G, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103 Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 8, 2025 @ 13:05
