Monitor - MIL Qualified

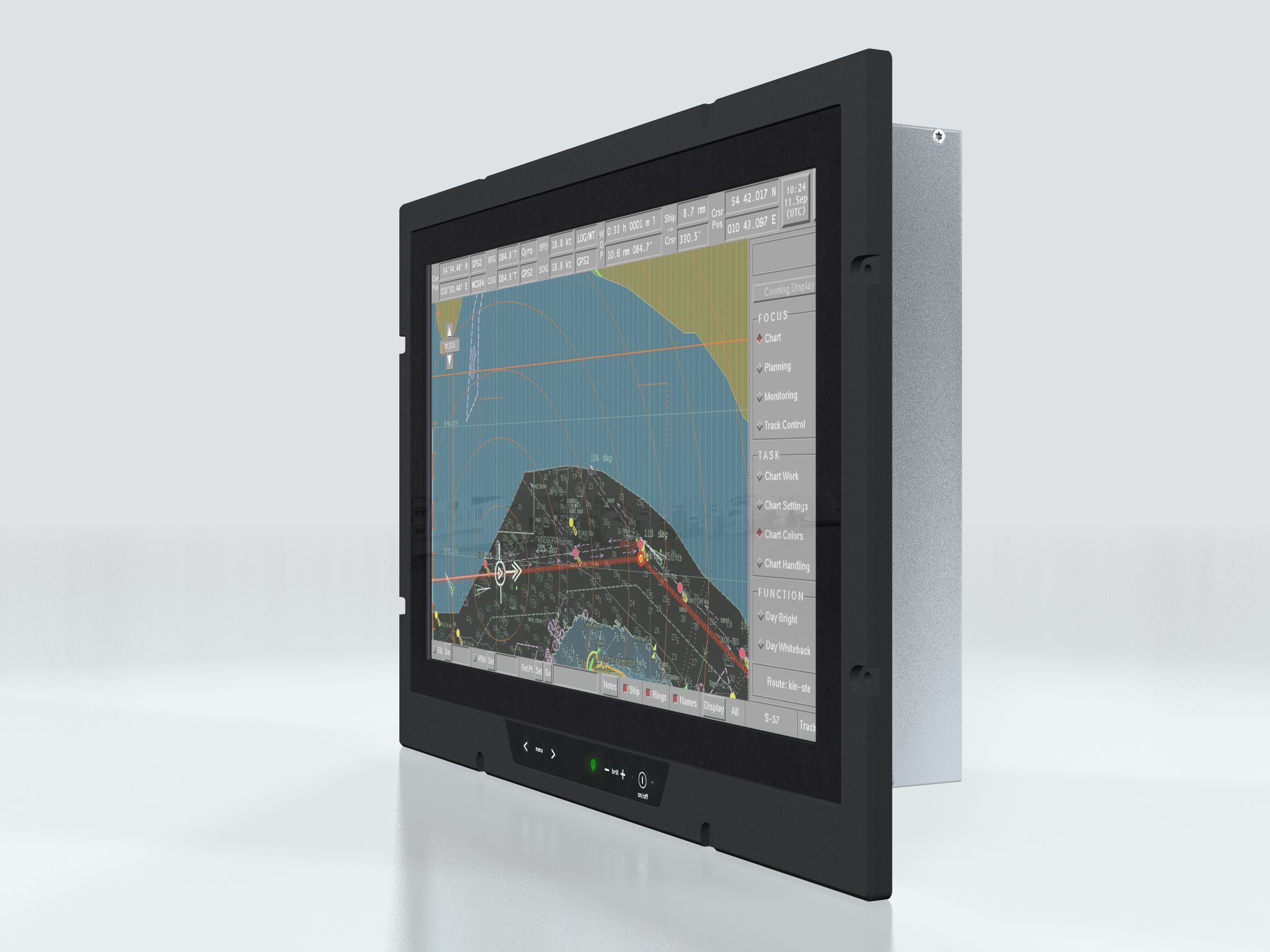

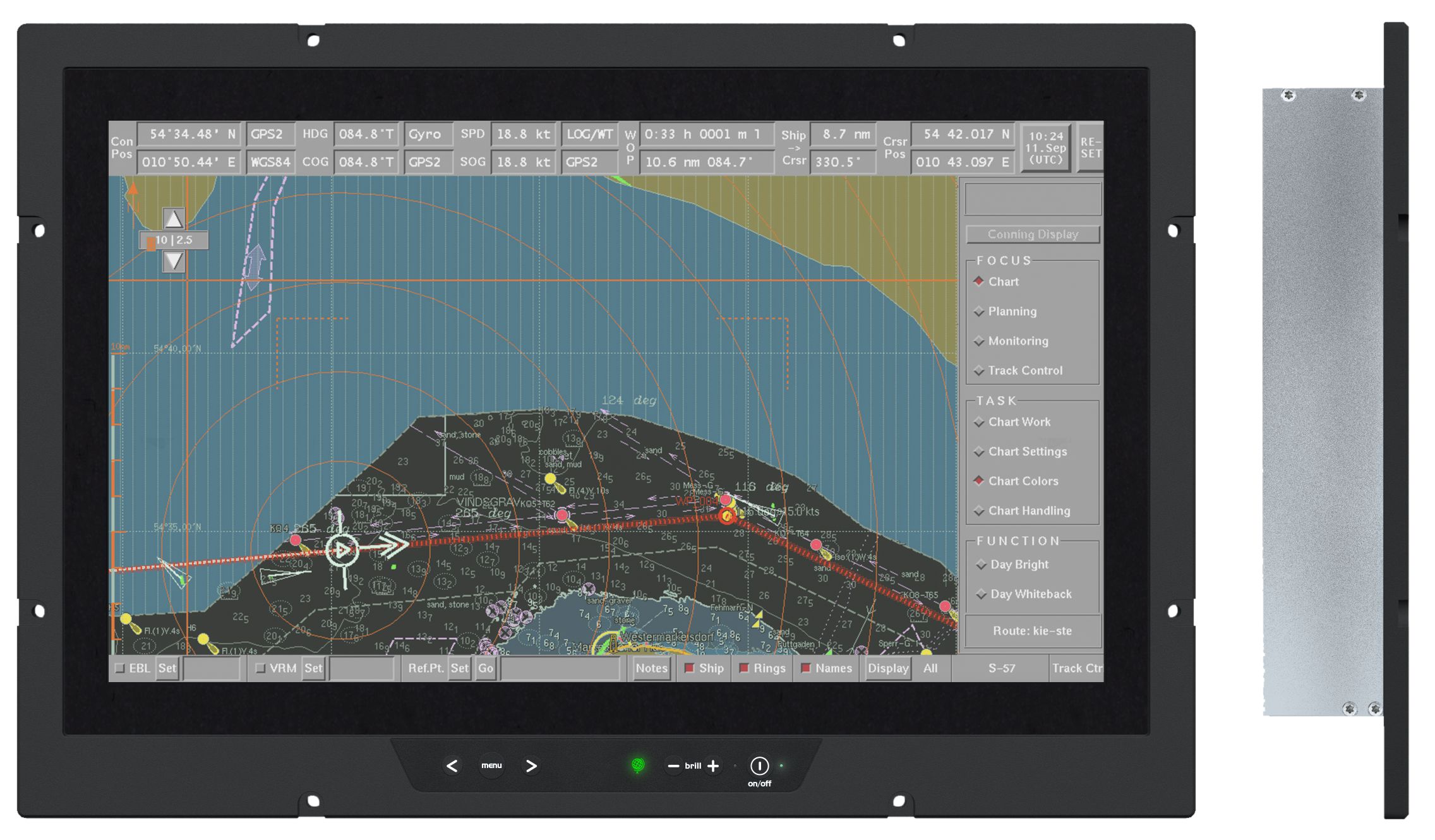

The XRD meets the requirements of 50g shock eliminating the need for shock isolation in the rack or console, as well as MIL-STD-167-1A, MIL-STD-461F&G, and MIL-STD-810F&G. By combining the superior FHD/WUXGA LCD picture quality with Optical Bonding technology with its new, shock resistant chassis Hatteland Technology has raised the standard for affordable rugged monitors.

The clarity and enhanced color and image quality produced by our proprietary Optical Bonding technology makes the XRD ideal for information-intensive applications. With our fully-adjustable backlight system (0-100%), the XRD is suitable for round-the-clock use, day or night.

The cutting edge high definition LED monitor technology used, with its high quality brightness and contrast, in combination with aspect ratio of 16:9/16:10 enables the presentation of large amounts of data onto one screen. Flexible I/O options supporting both analog and digital inputs, AC and DC power (Multipower) connection, and a touchscreen (option), makes the XRD a perfect choice for the versatile demands of modern military/naval system designs. Models with removable handles are also available. By factory standards the 24 inch unit is ECDIS Compliant.

Typenumber (Long):	HM 24T22 XRD-MAx-xOVx
TFT Technology:	LED Backlight Technology, Optical Bonding Technology, TFT active-matrix liquid crystal panel, RGB vertical stripe, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area:	24.0 inch - 531.36 [20.92"] (H) x 298.89 [11.77"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.276 (H) x 0.276 (V) mm
Aspect Ratio and Response Time:	16:9 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	300 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz Synchronisation: • Digital separate Synchronizations • Composite synchronization • Synchronization on green • Auto detects VGA -> WUXGA, interlaced and non interlaced Synchronization Range: • Horizontal: 31.44 kHz to 133.31 kHz • Vertical: 30 Hz to 70 Hz
Detectable Resolutions:	Auto detects VGA -> WUXGA, interlaced and non interlaced
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Anti-Reflective Coating (AR), Toughened Glass, P022367 - EMI/EMC gasket for console mounting, Optical bonding mesh glass, Fully adjustable backlight (0-100%), PIP (Picture-in-Picture), Serial Communication (SCOM) Interface, Suitable for C4i, navigation and automation, Removable Front Handles (selected models)
Power Specifications and Consumption:	Multi-power Supply 100-240V AC - 50/60Hz + 24V DC MIL-STD-1399 (SECTION 300) Type 1 (115V AC) Section 5.3.7, Current waveform (emission) test: - AH03: 17.57% - AH05: 7.05% • Operating Standard: 156W (max) • Inrush Current: 50A Max. (@ 25°C)
User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: • Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm) • Power On/Off button, On Screen Display control (OSD)* Menu button • Up/Down OSD Navigation / Hotkey buttons • +/- Brightness Control Buttons *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI-D Input: 1 x 24p DVI (female) • VGA Input: 1 x 15p HD D-SUB (female) • HDMI 2.0 Input: 1 x 19p HDMI (female) • DP 1.2 Input: 1 x 20p DisplayPort (female) • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • SCOM+Touch: 1 x USB TYPE A Connector (female) • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • FW Update: 1 x USB TYPE A (female) for Firmware Update • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08

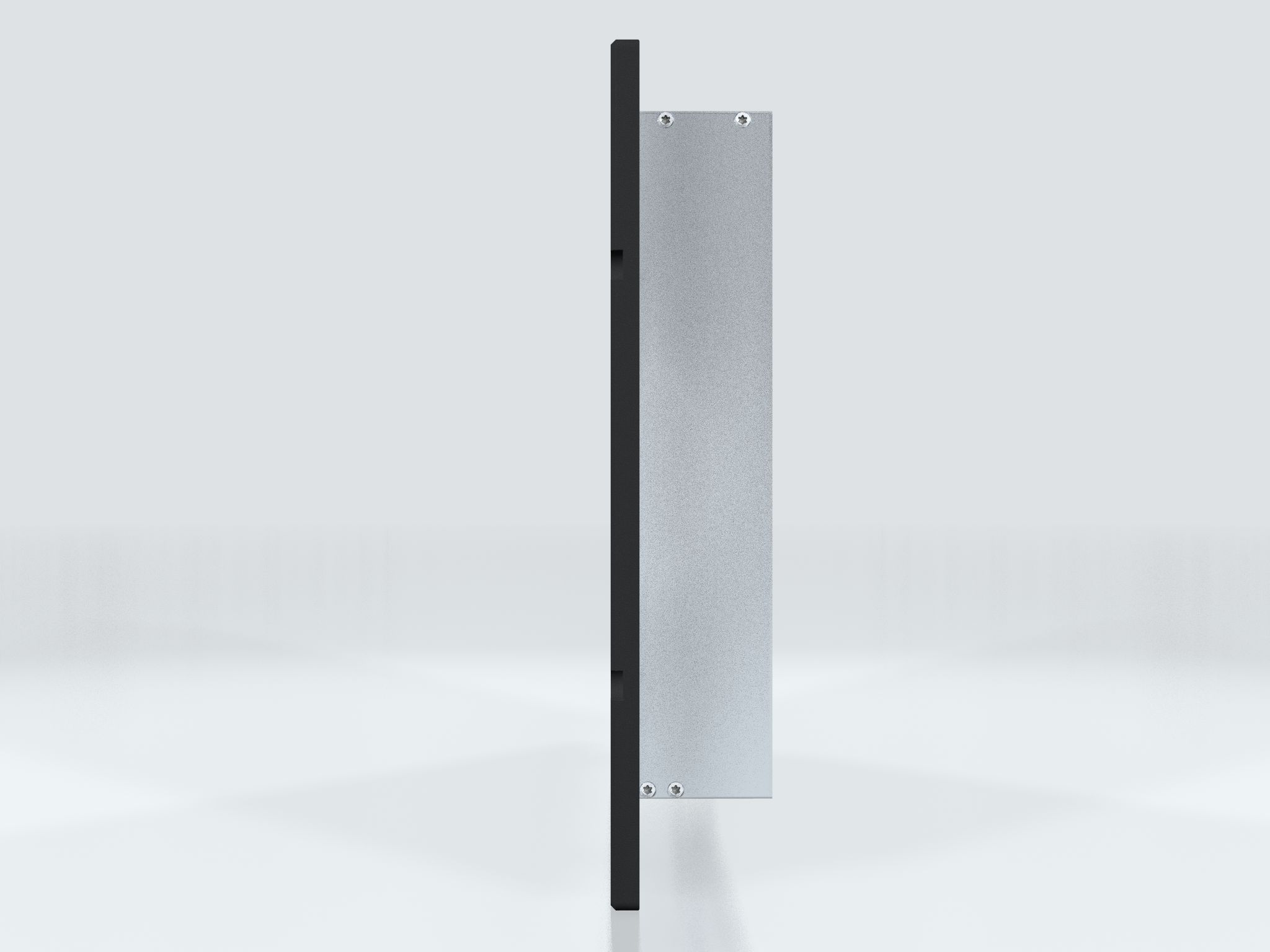

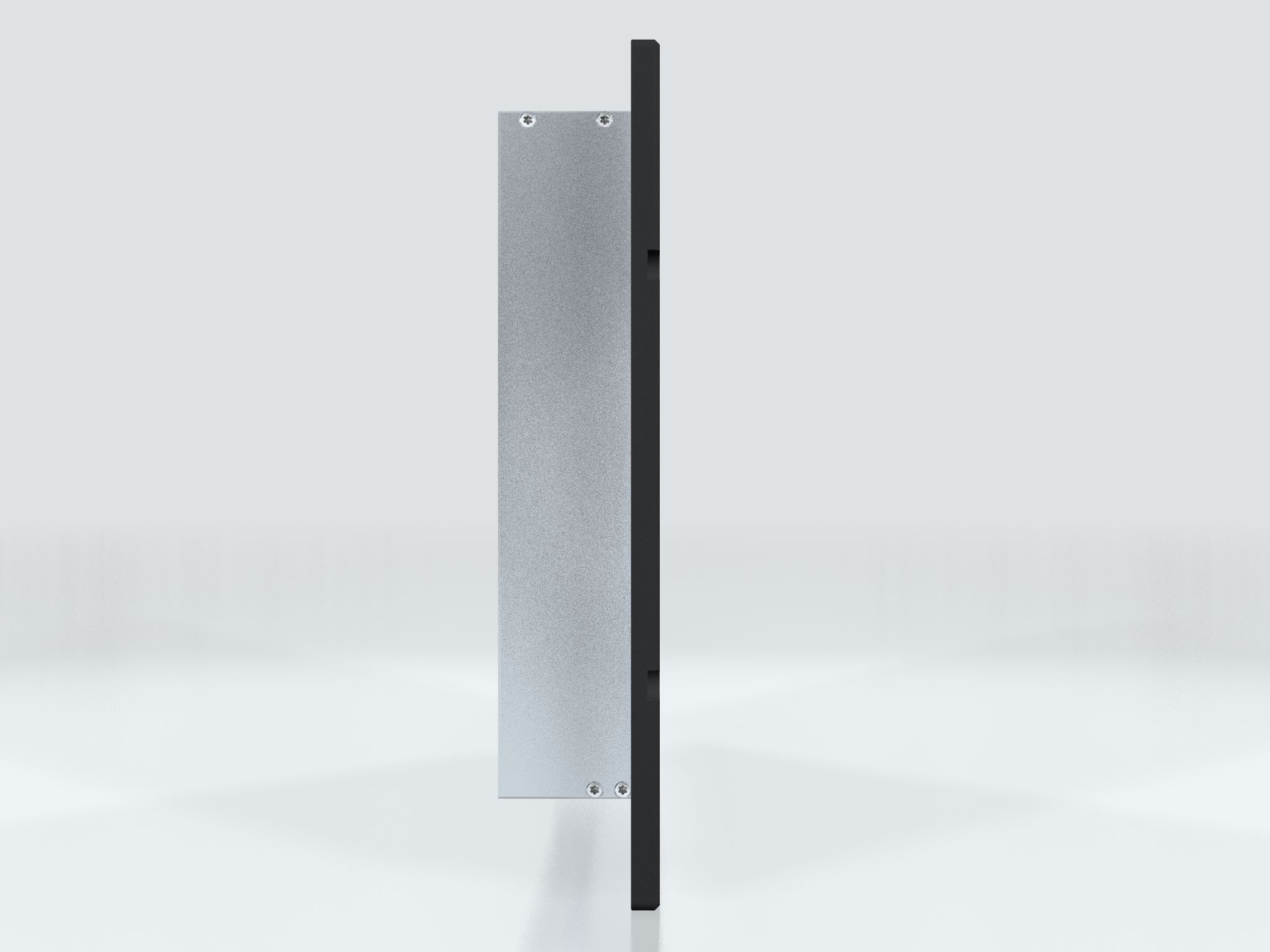

Product Dimensions and Weight:	Without Handles: • W:630.00 [24.80] x H:425.00 [16.73] x D:95.00 [3.74] mm [inch] With Handles: • W:630.00 [24.80] x H:425.00 [16.73] x D:146.00 [5.75] mm [inch] • Weight: Approx. 12.0 kg / 26.4lbs
Product Carton Size and Weight:	L:640.00 [25.20] x W:195.00 [7.68] x H:690.00 [27.17] mm [inch] - 0.09 cbm Weight: Approx. 13.0 kg / 28.6lbs.
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove supported) • Color Calibrated model (ECDIS) • Night Vision model (NVIS)
Accessories:	None
Capabilities - Prepared for:	N/A
Operating Temperature:	AC: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810F&G) DC: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810F&G) Humidity up to 95% at +55.0°C / 131.0°F (IEC 60945 4th)
Storage Temperature:	Dry Heat: +70.0°C / 158.0°F (MIL-STD 810F&G) Cold: -40.0°C / -40.0°F (MIL-STD 810F&G) Humidity up to 95% at +55.0°C / 131.0°F (IEC 60945 4th)
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 95.00 [37.40"] - Steering: 70.00 [27.56"] cm [inch]
Type Approval, Testing and Certificates:	MIL-STD 461F&G*, MIL-STD 810F&G*, MIL-STD-167-1A*, MIL-S-901D Class II (hard-mounted) Grade B Shock*, MIL-STD-1399 (SECTION 300), IEC 60945 4th (EN 60945:2002), IACS E10, ABS - American Bureau of Shipping, EU RO MR - Mutual Recognition, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society, BV - Bureau Veritas, KR - Korean Register, LRS - Lloyd's Register of Shipping *=Designed to meet Environmental Performance: Shock: 50g/11ms, 50g/30ms (MIL-STD 810F&G) Grade B: Class II (hard-mounted) (MIL-S-901D) Rain (drip proof): MIL-STD-810F&G - Console mounted Salt Fog: MIL-STD-810F&G Vibration Testing: MIL-STD-167-1A EMI Testing: MIL-STD 461F&G, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103 Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: August 18, 2025 @ 08:00
