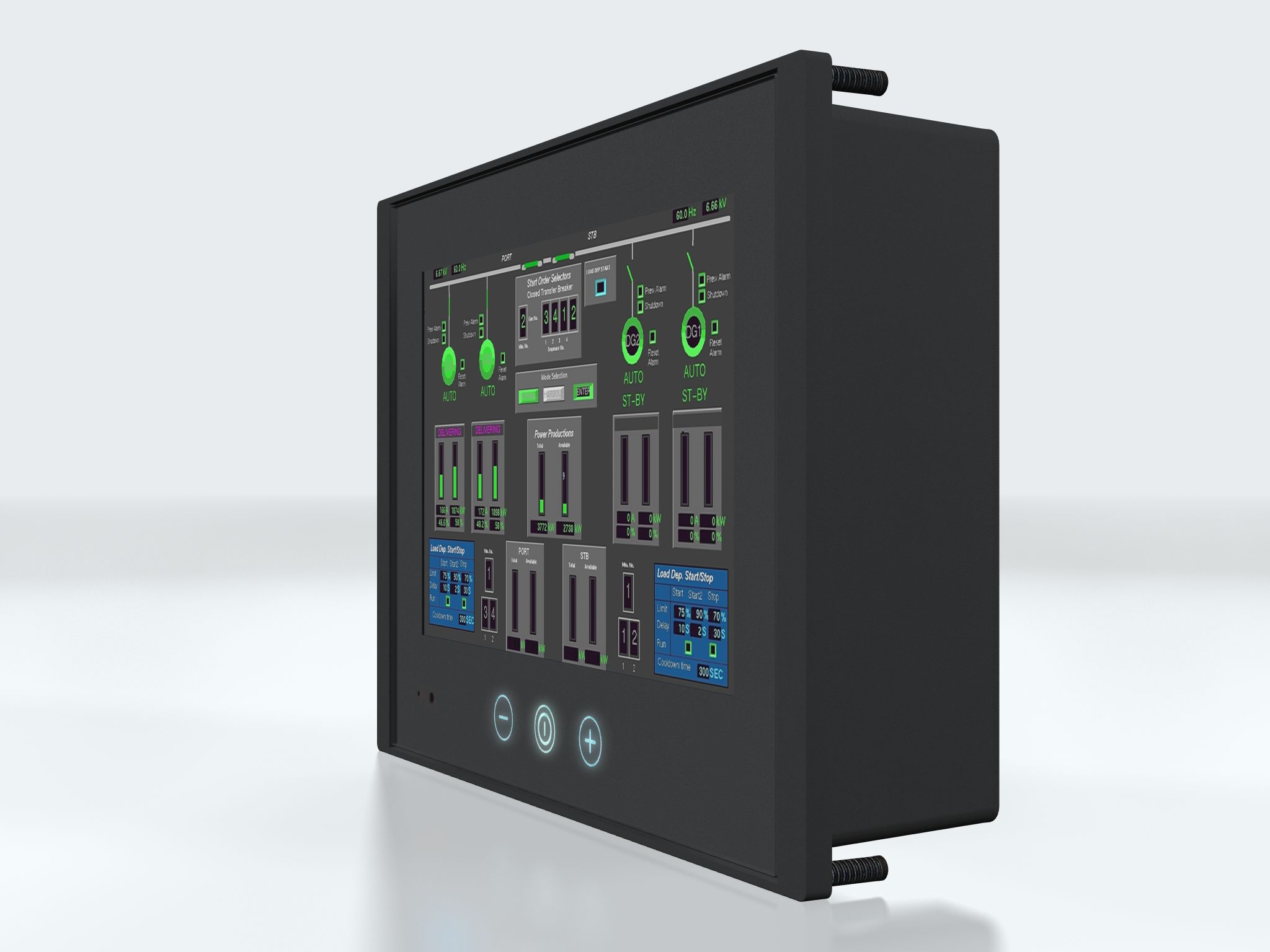

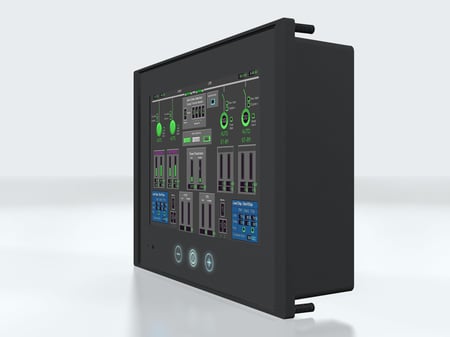

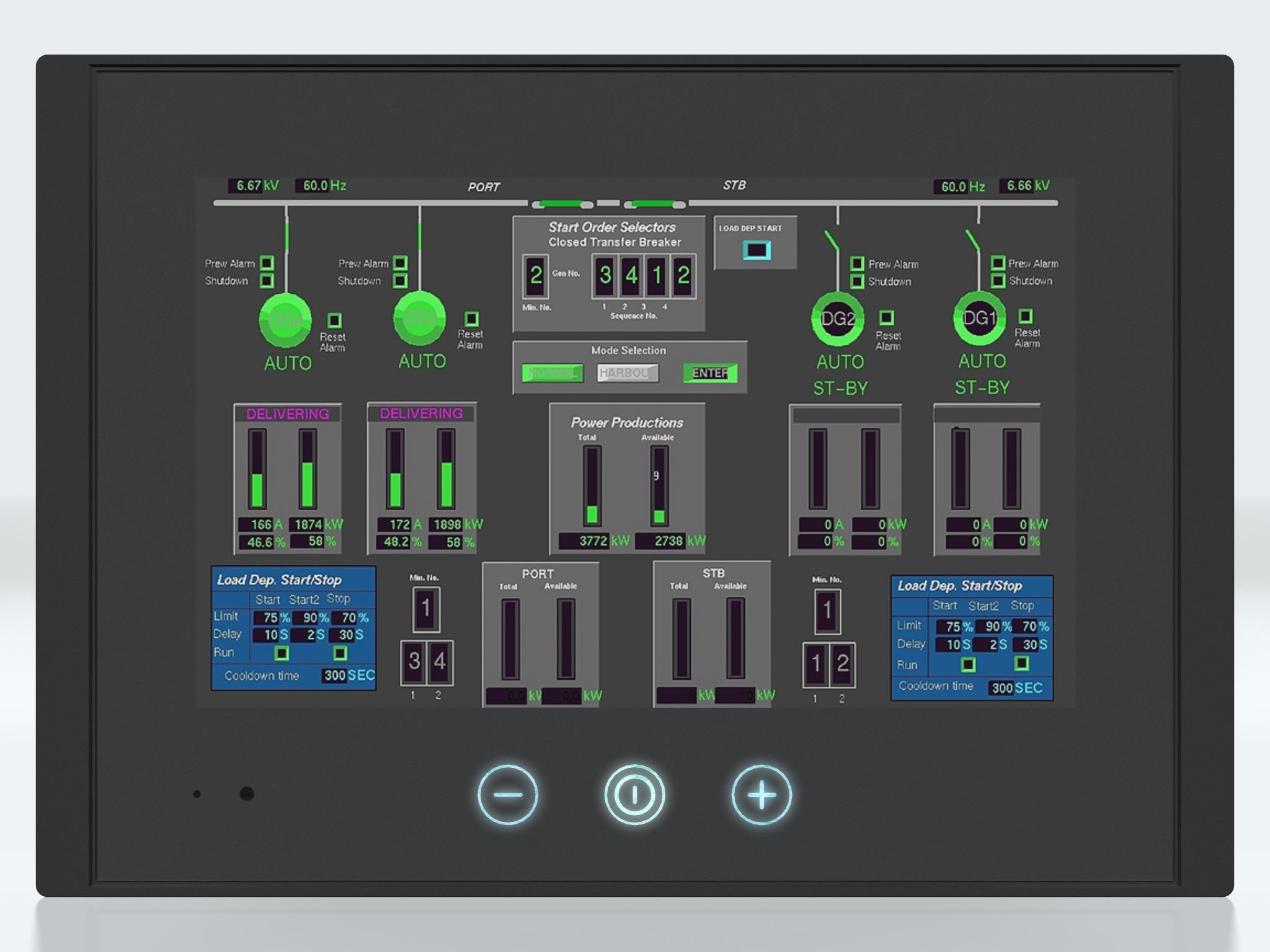

Panel Computer - Widescreen - LED - HATTELAND® Series X G1 - 8.0 inch

HD 08T21 MMC

Series X Panel Computers offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

Widescreen

LED-backlit

Send Request

Description

Specifications

TFT Technology:	LED Backlight Technology, a-si TFT Active Matrix, Widescreen
Viewable Size and Active Area:	8.0 inch - 173.40 [6.83"] (H) x 104.40 [4.11"] (V) mm [inch]
Native Resolution and Pixel Pitch:	800 x 480 (WVGA) - 0.2168 (H) x 0.2168 (V) mm
Aspect Ratio and Response Time:	5:3 - 5/11ms (typ) (Tr/Tf)
Light Intensity and Contrast Ratio:	600 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors:	70 deg. (up/down) , 60 deg. (left/right) - 262000
Optimal Resolution and Hz:	800 x 480 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 480
Power Specifications and Consumption:	2 x 24VDC, Galvanic Isolated, Automatic Switch <> sources 24W (typ) - 72W (max)
Product Features:	MULTITOUCH (Projected Capacitive Technology), Compact Design, Dimmable 0-100%, Buzzer, Dual 24VDC Input
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	1 x 2.5" Half Slim SSD SATA (Multi Level), 32GB or 60GB
CPU / Processor Options:	1 x Intel® Atom™ N450, 1.66GHz, 512KB L2 Cache
Memory Options:	1 x 1GB, 2GB (DDR2 667MHz SO-DIMM)
System Chipset / Graphics Chipset:	Intel® NM10, ICH8M / Intel® GMA 3150
BIOS / Buzzer:	AMIBIOS / Buzzer according to EN60945
Power Manager and Monitoring:	ACPI - Temperature, voltages and cooling fan status

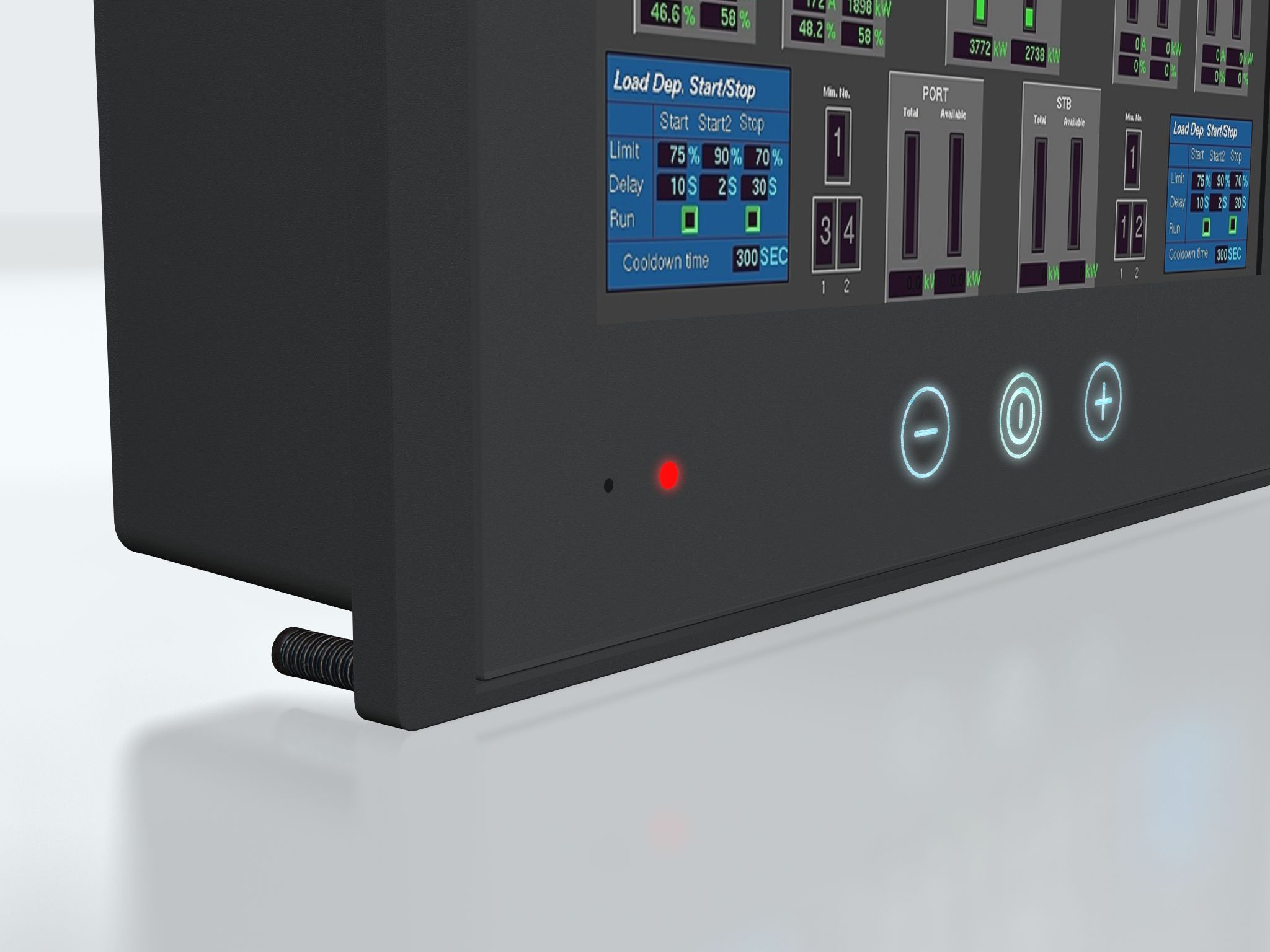

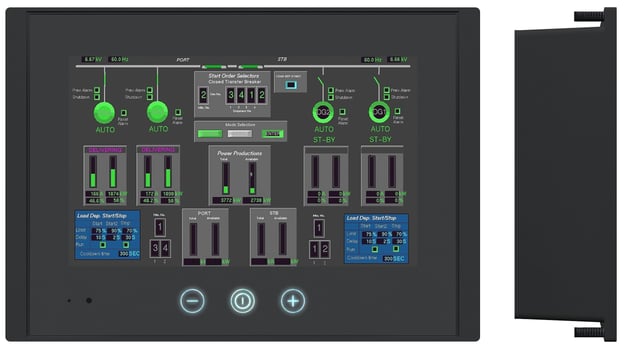

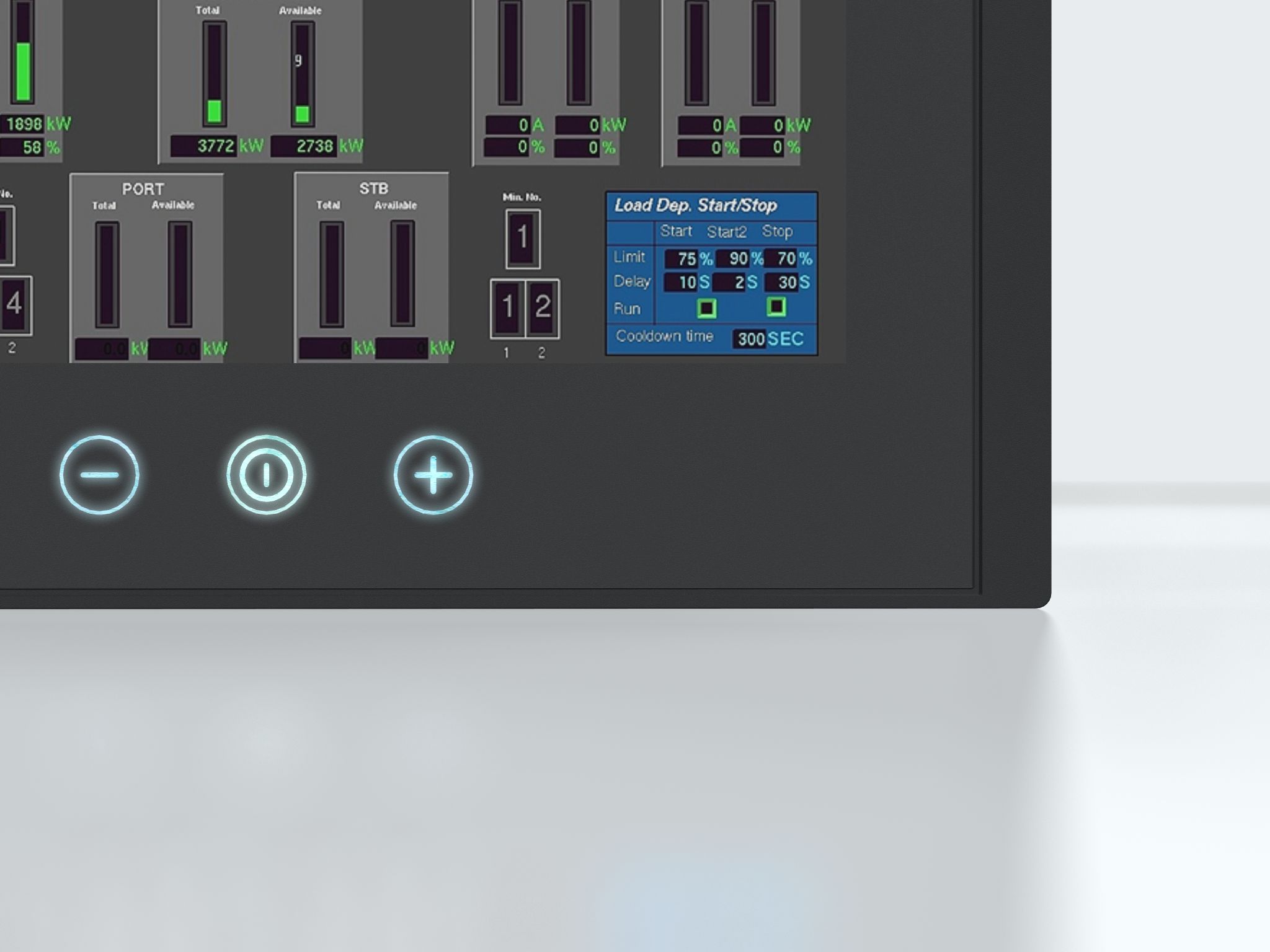

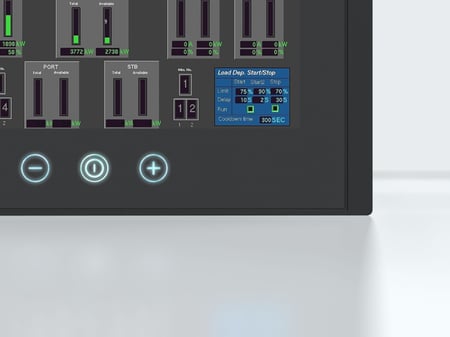

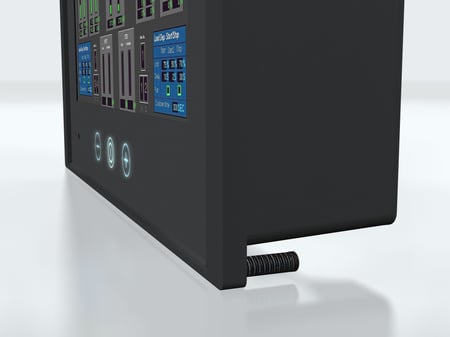

User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Light Sensor (behind glass), Programmable Alarm LED, Buzzer (through glass)

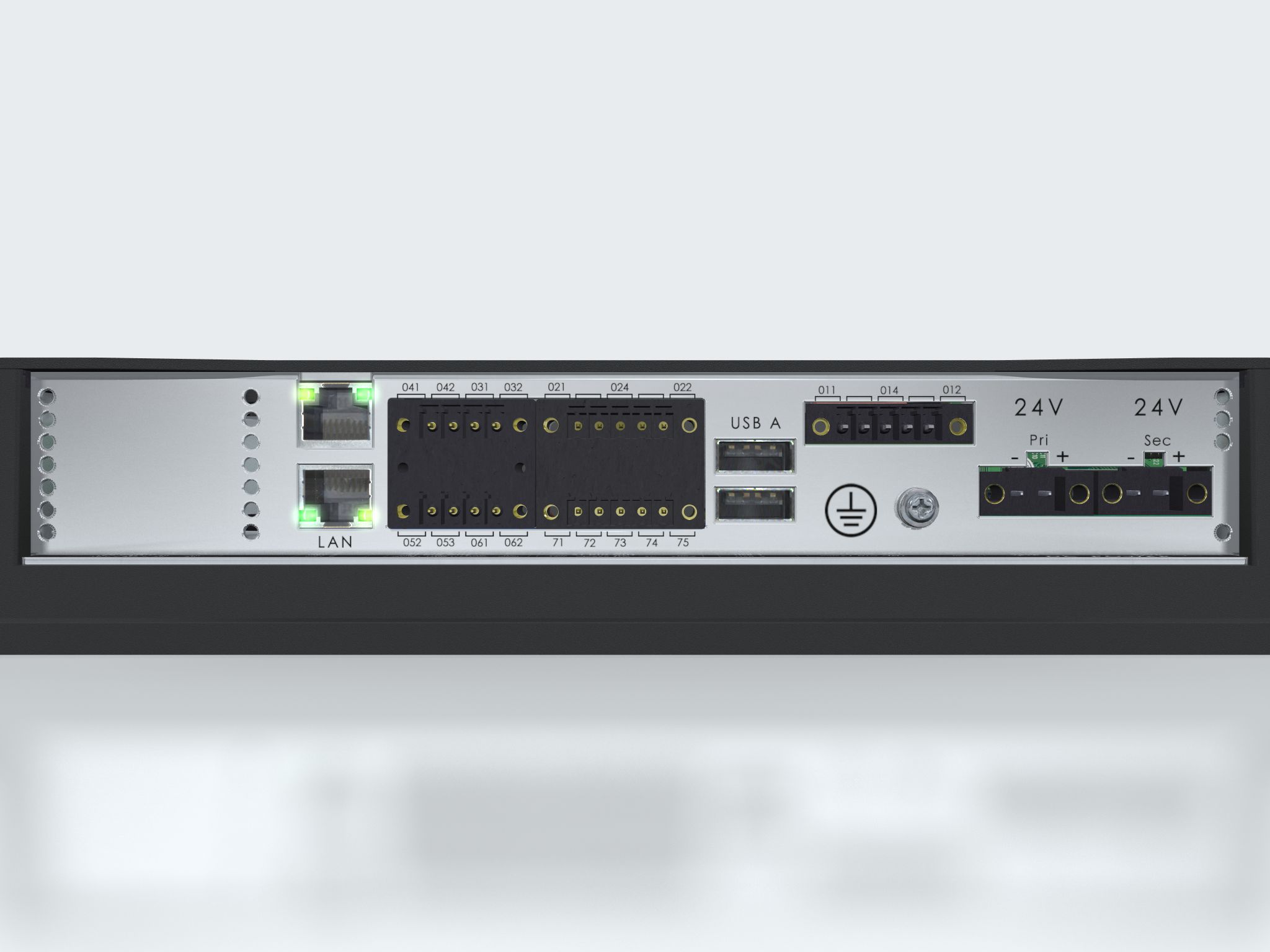

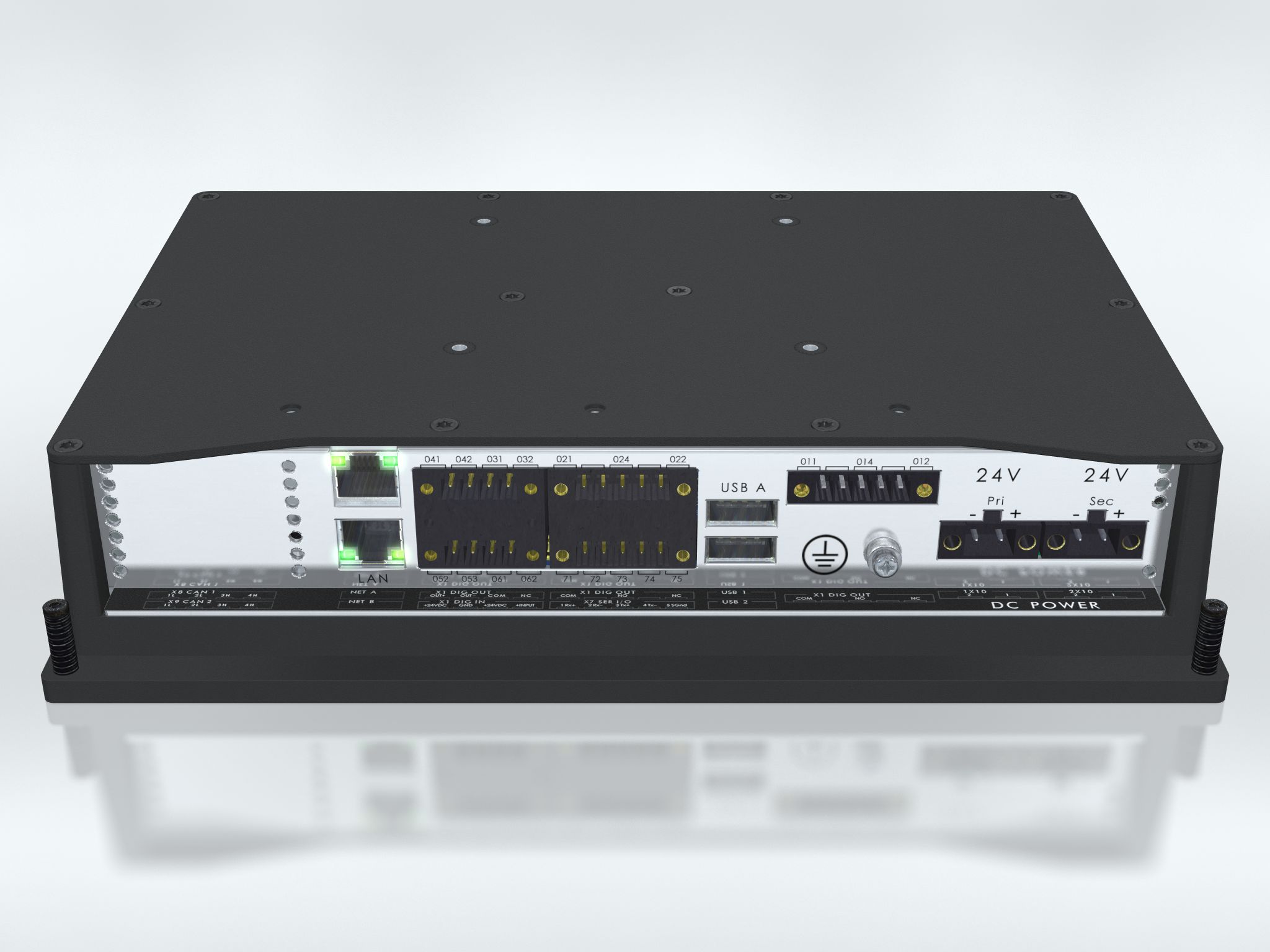

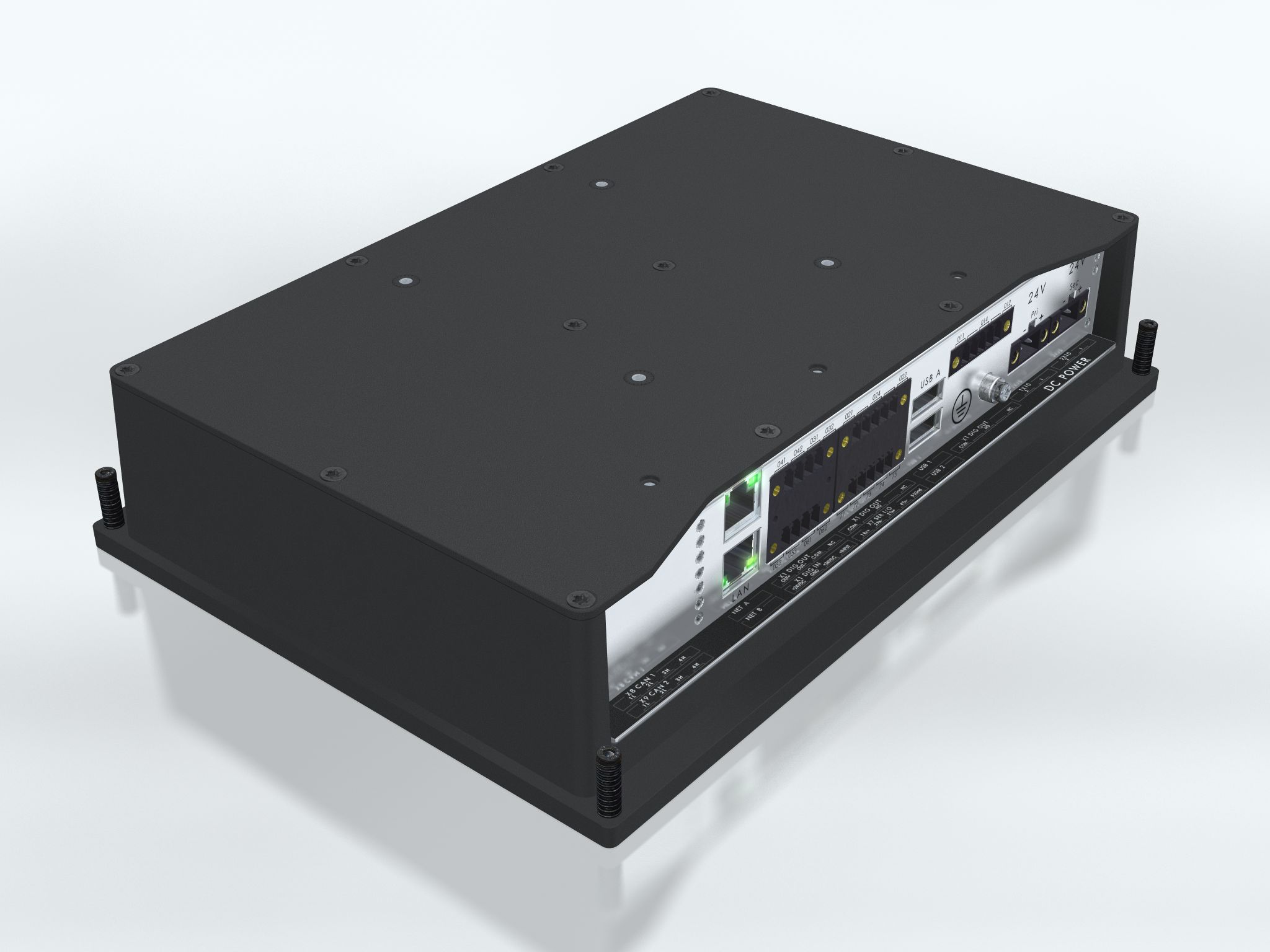

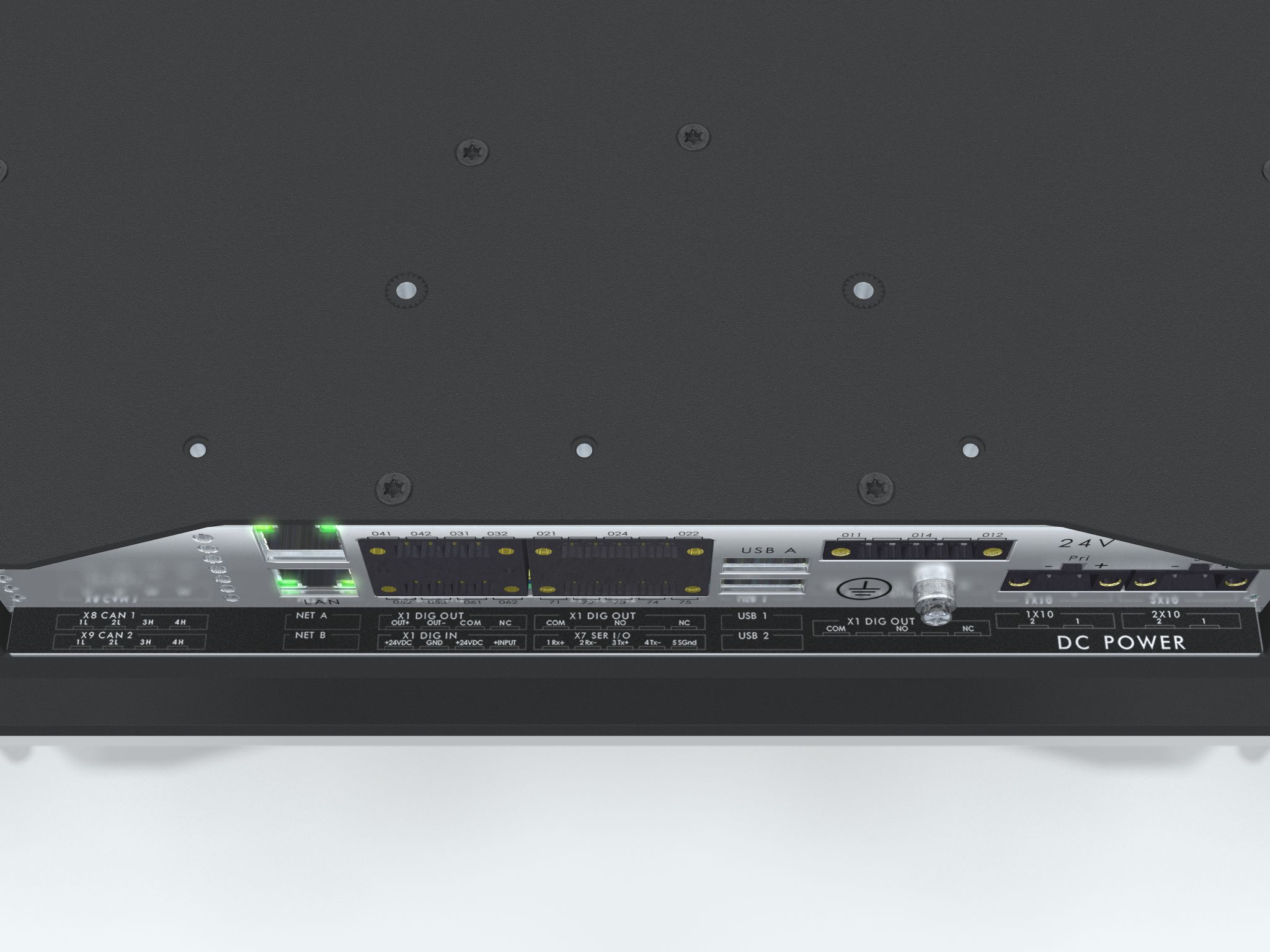

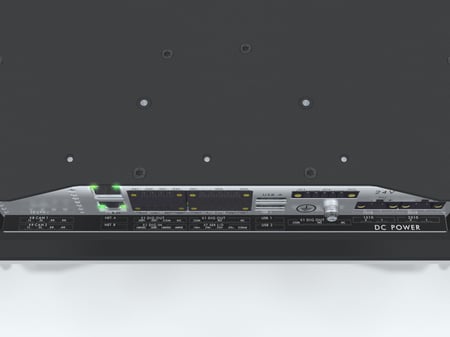

Connectors:	• Ethernet GBLAN 10/100/1000Mbps: 2 x RJ45 • USB2.0 (<5m): 2 x Type A • Solid State Relay (NO) (cur. protection): 1 x 4-pin Term. Block 3.81* • Digital Input (isolated/protected): 1 x 4-pin Terminal Block 3.81 • COM (isolated RS-422/485): 1 x 5-pin Terminal Block 3.81 • Safety Signal Relay (NO/NC): 1 x 5-pin Terminal Block 3.81 • Primary Power 24VDC: 1 x 2-pin Terminal Block 5.08 • Secondary Power 24VDC: 1 x 2-pin Terminal Block 5.08 *(IEC 60950 Compliant, 48VDC)

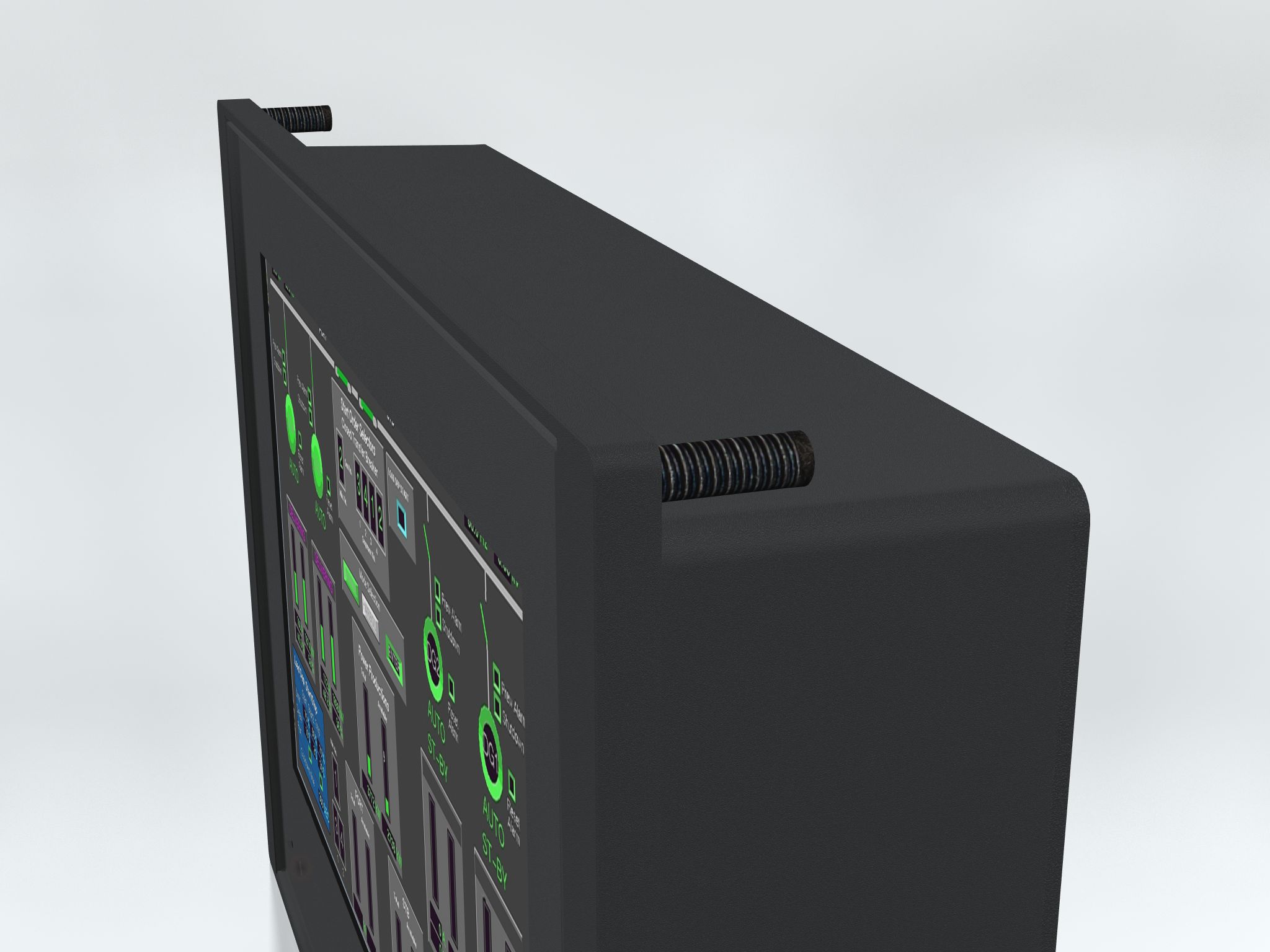

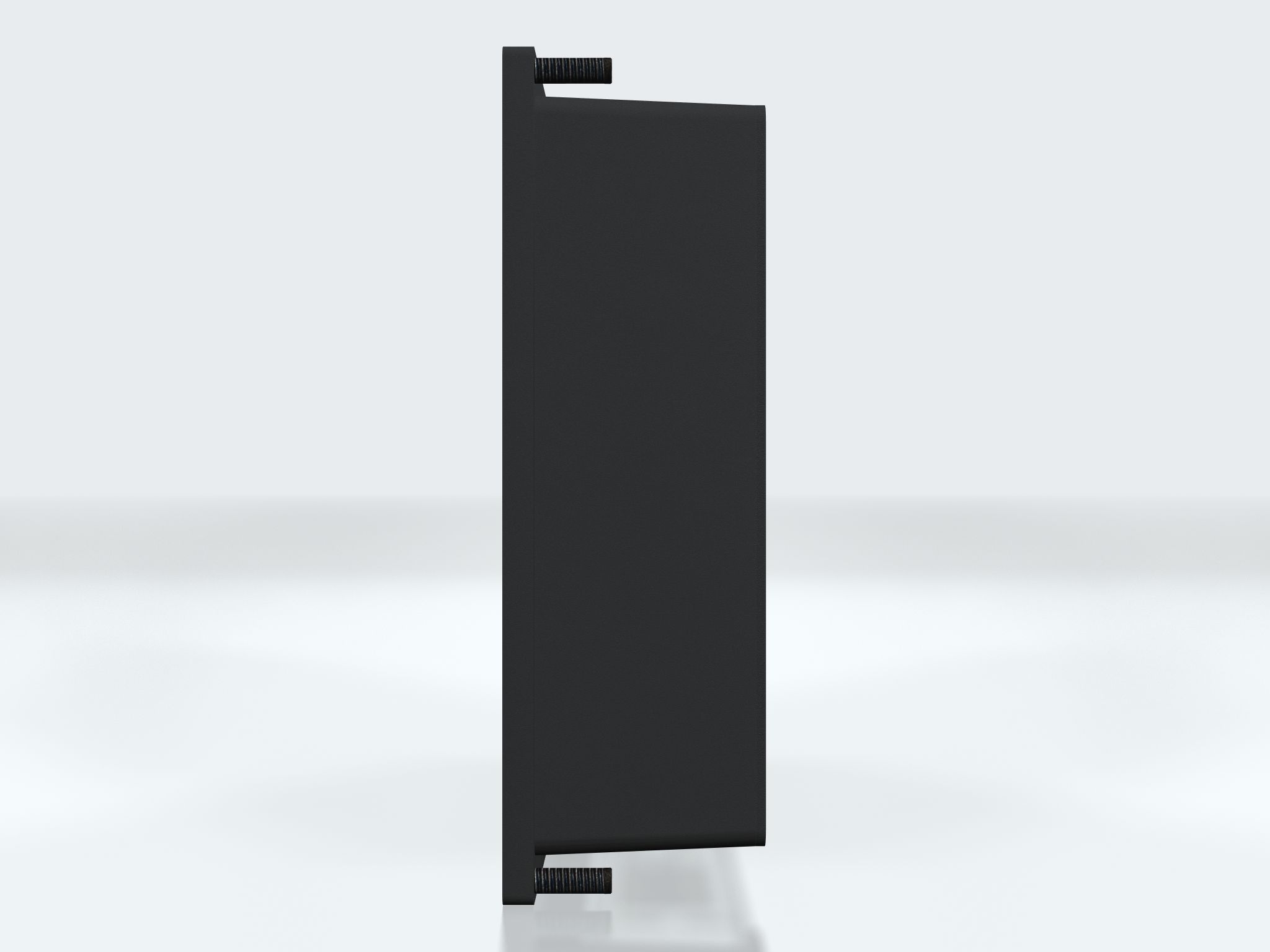

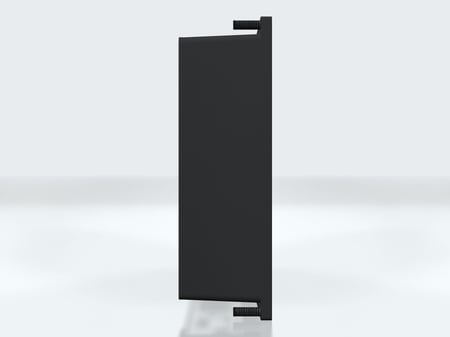

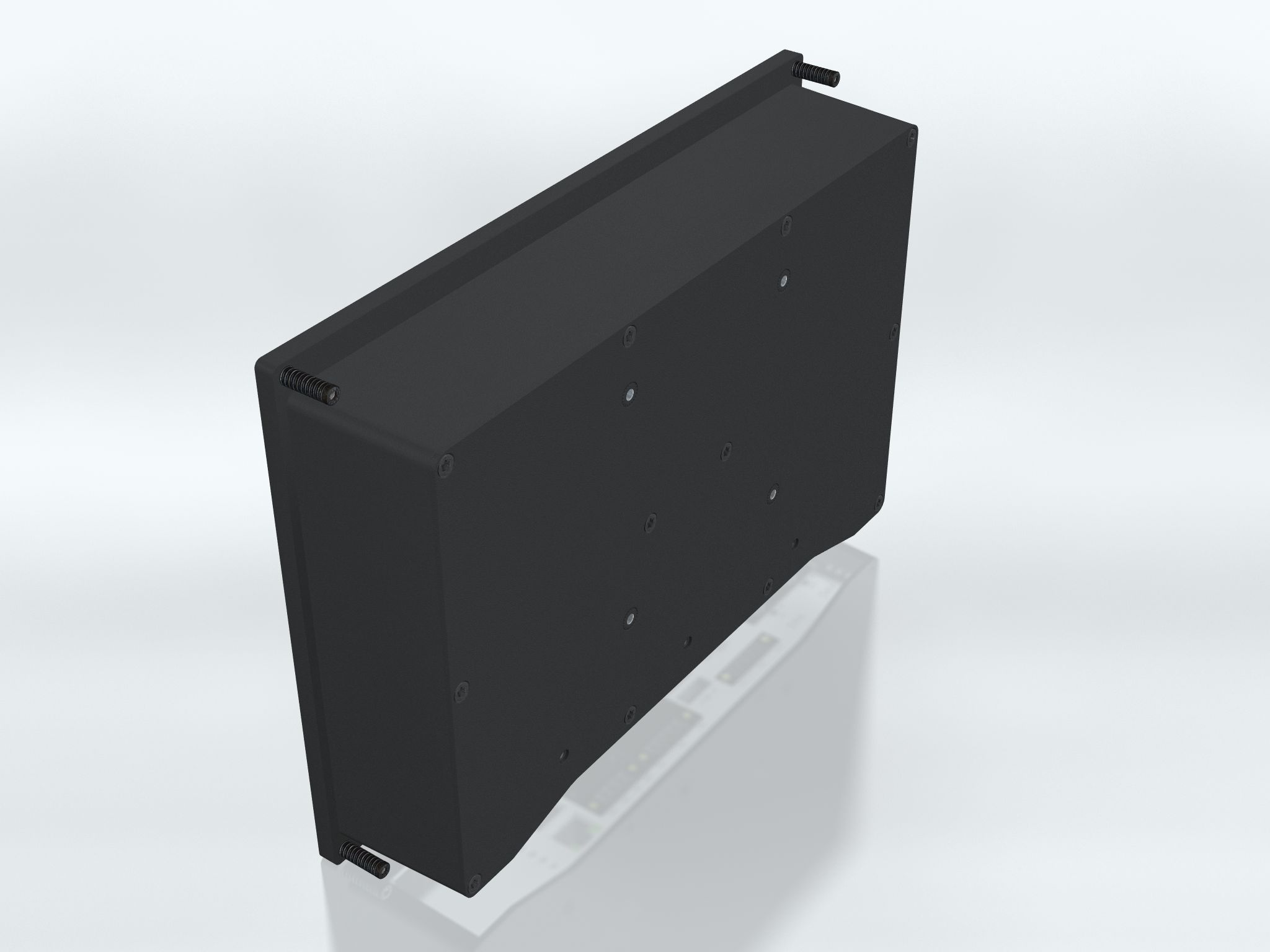

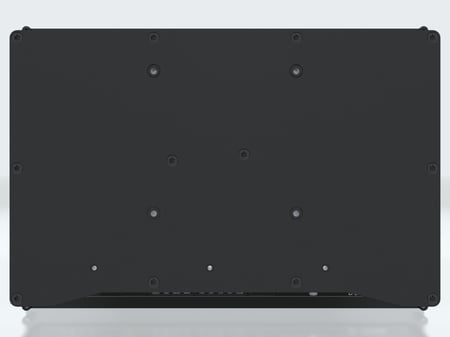

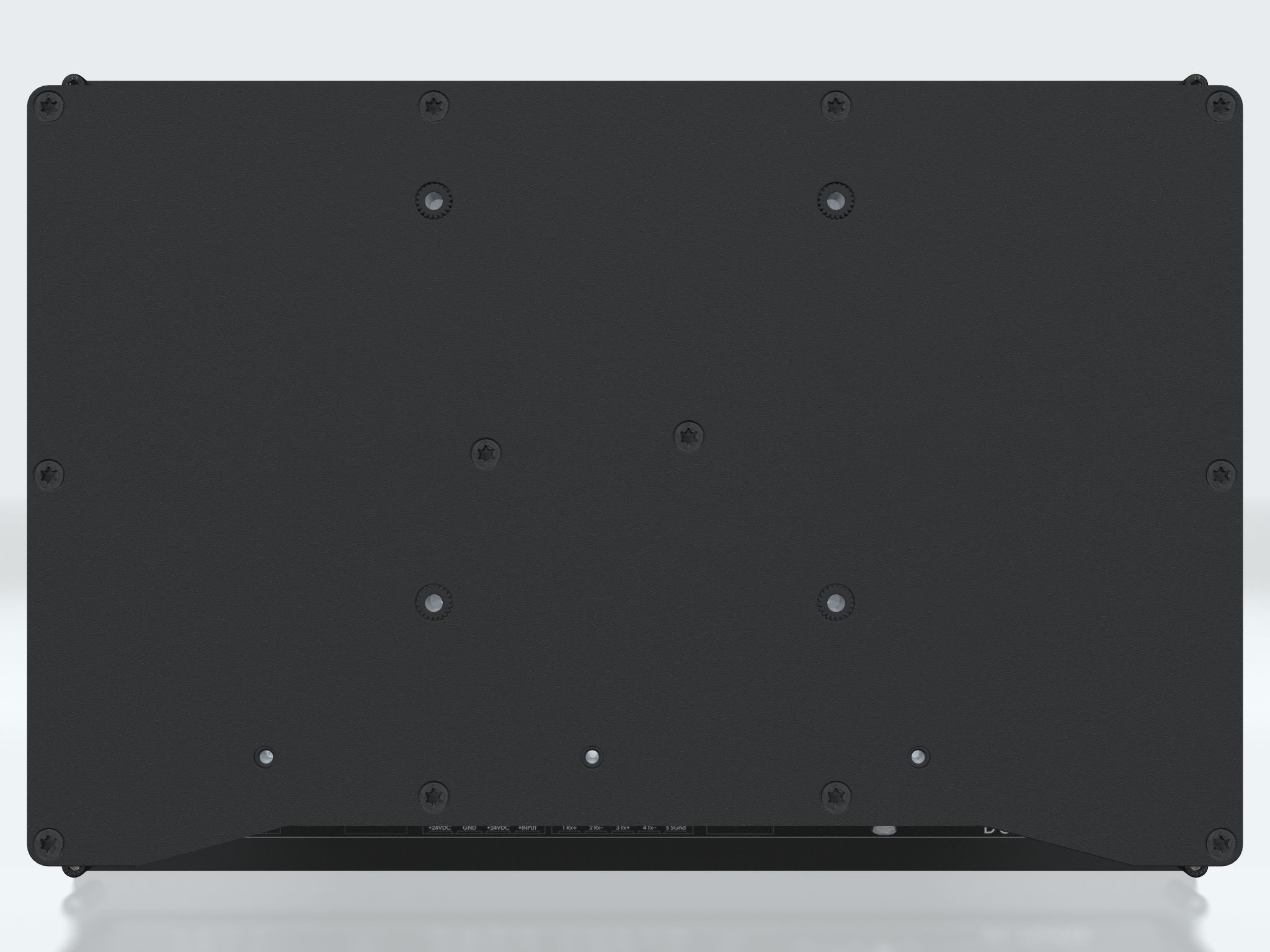

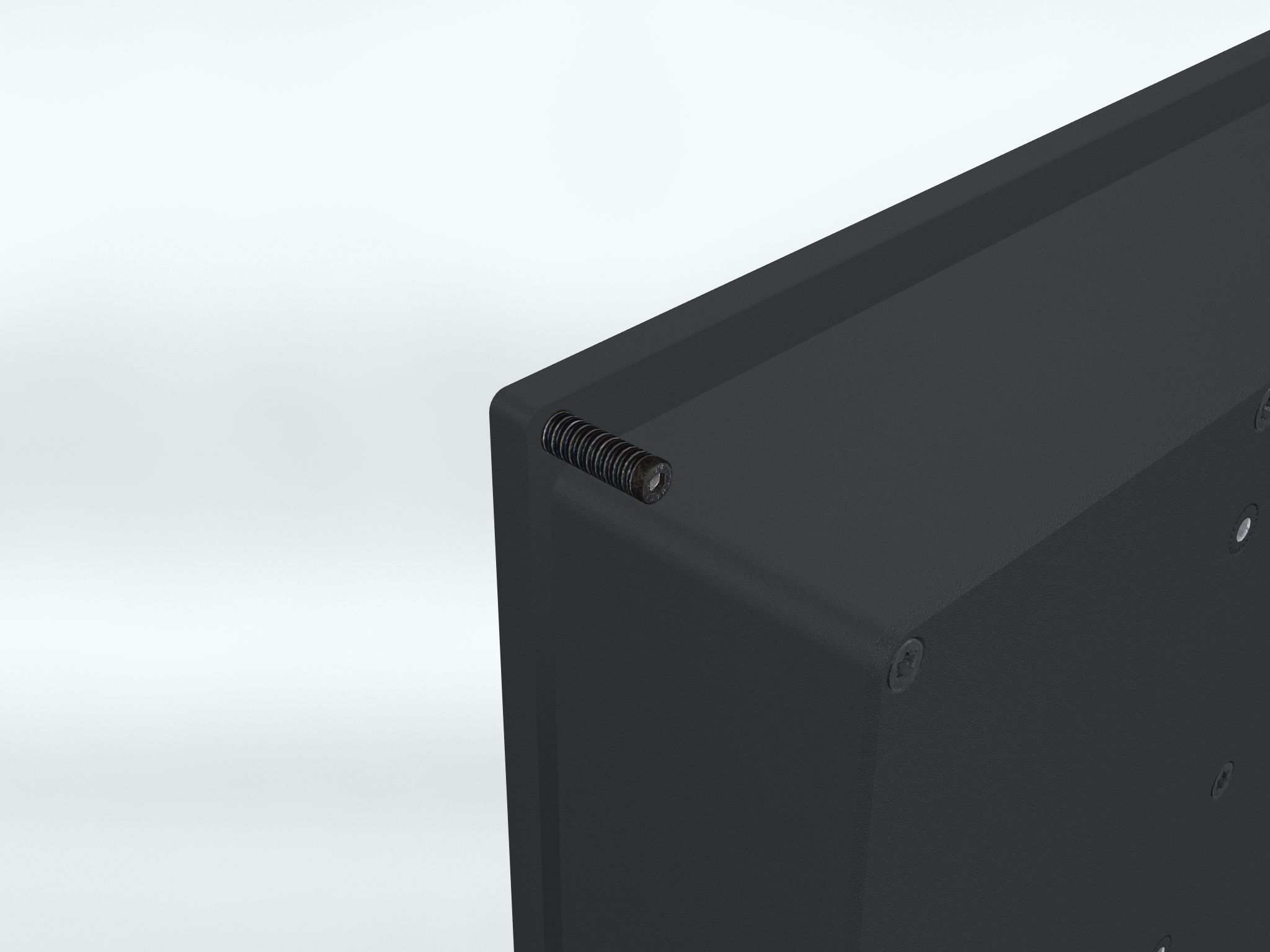

Product Dimensions and Weight:	W:236.00 [9.29"] x H:166.00 [6.54"] x D:51.00 [2.01"] mm [inch] 4 x M4 VESA mounting 75x75mm, Max 8mm deep Built-in Console mounting 4 x M5x15mm screws. 1.9kg / 4.2lbs
Product Carton Size and Weight:	L:320.00 [12.60"] x W:180.00 [7.09"] x H:320.00 [12.60"] mm [inch] 3.2kg / 7.0lbs
Factory Options:	• Optical Bonding Technology • Variations of SSD Storage, RAM Memory, Operating System
Accessories:	• HD WBK SX1-A1: 1 x Wallmount Box, not EN60945 Tested • JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module) • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00300 MSOS: OS options -> www.hatteland-display.com/os
Capabilities / Prepared for:	• 1 x VGA ouput, for addtional / external display (15P connector) • 2 x CAN isolated module (2 x 4-pin Terminal Block 3.81, 2 channel) • 1 x Mechanical Relay (NO/NC) (1 x 5-pin Terminal Block 3.81) Note: Contact us for possible combinations
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 45.00 [17.72"] - Steering: 25.00 [9.84"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: April 30, 2025 @ 08:01
