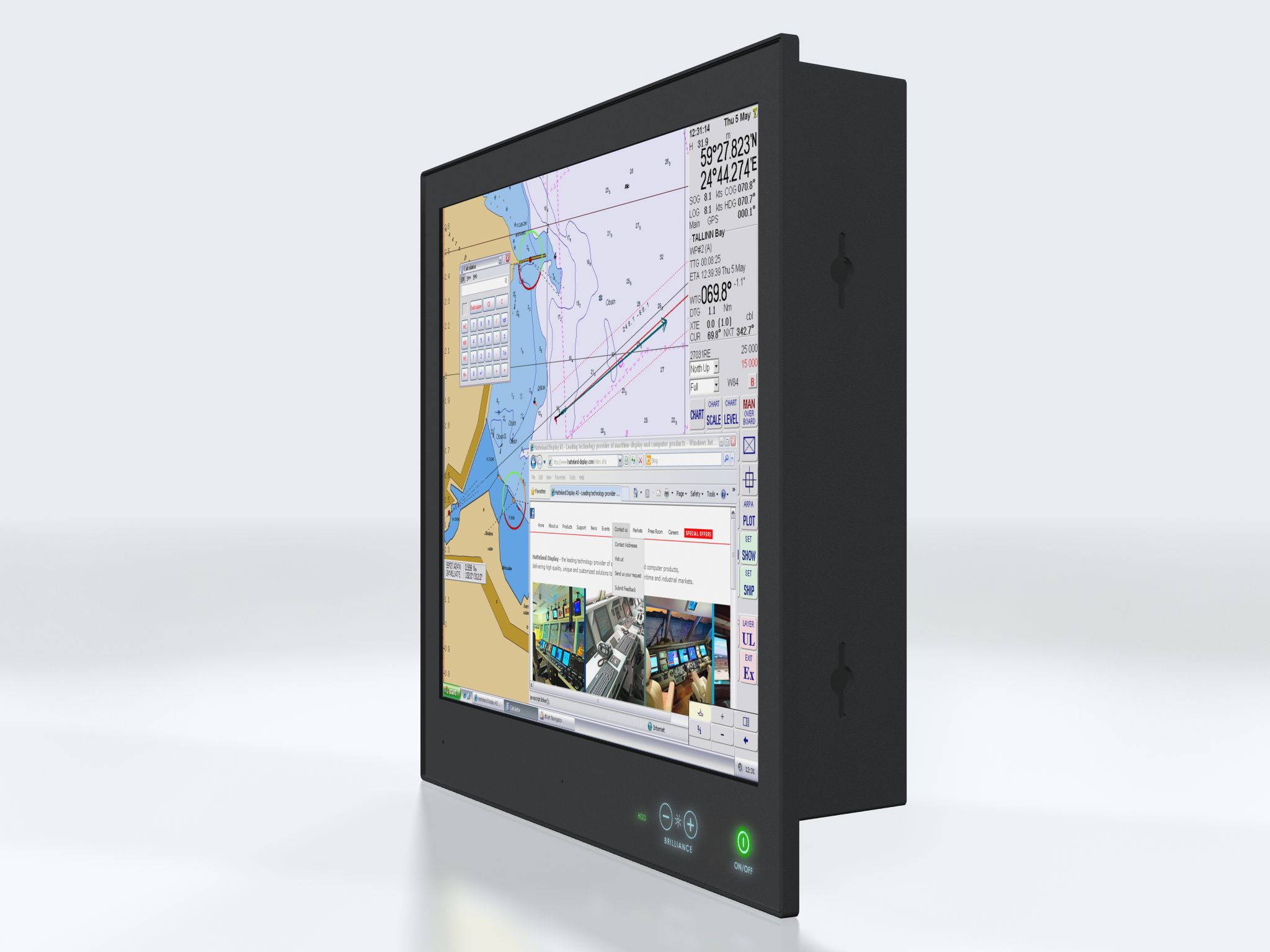

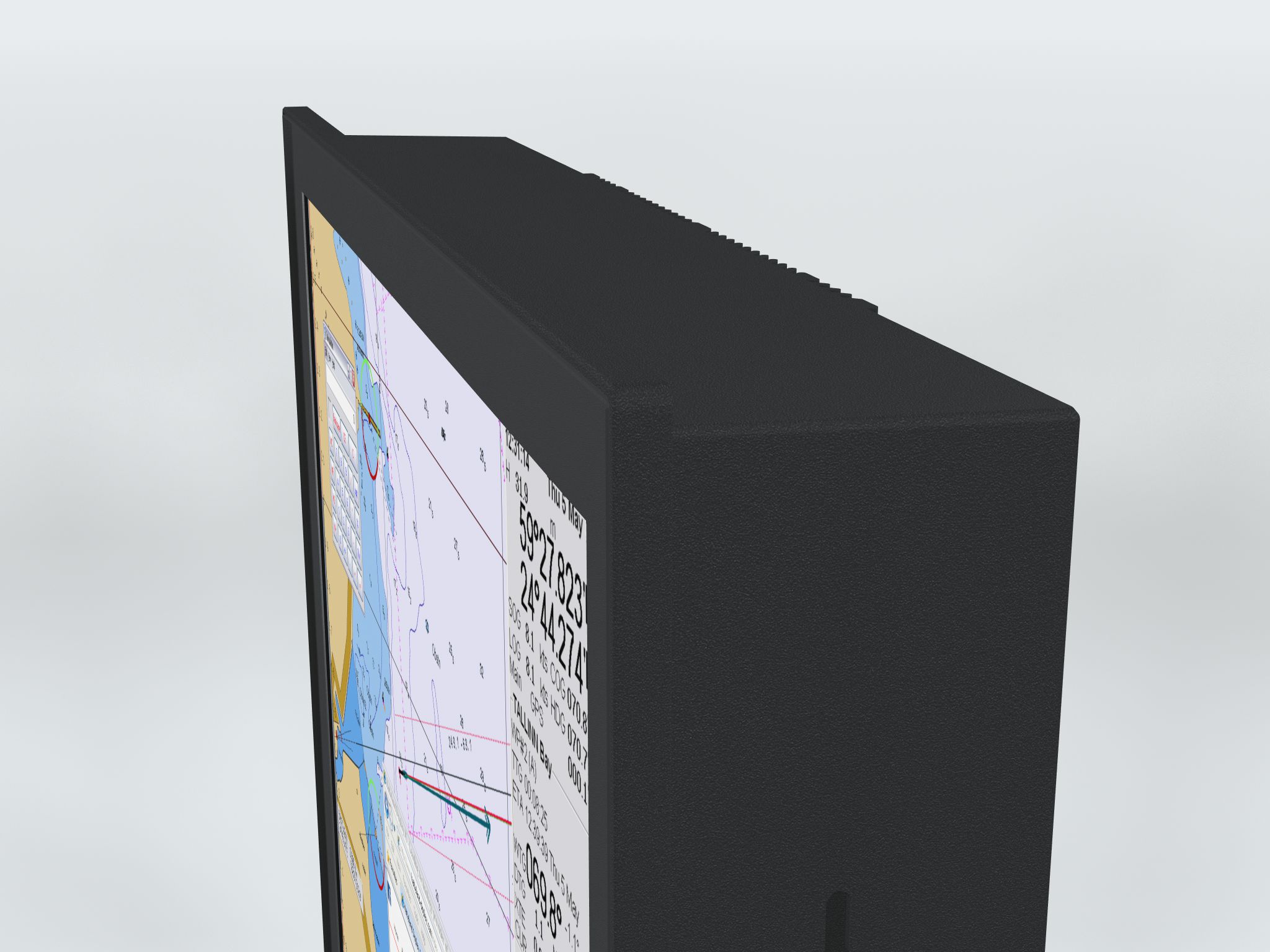

Panel Computer - HATTELAND® Series X G1

The Series X Panel Computer range is a flexible all in one monitor & PC solution, designed and type approved for the professional marine segment, where reliability and long life time are key prerequisites for the industry. The product range combines state of the art monitor and computer technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The high performance MMC Panel Computer models provide a wide choice of monitor size and format, along with various processor and storage options. The compact, all-in-one MMC solution is the ideal one for all ship navigation or automation installations. This range with all it's versitility and capability provides a robust and cost effective platform from which to run multiple applications and display and manage data.

Series X Panel Computer feature Glass Display Contro™, LED Backlight Technology, full dimming and multipower all as standard. In addition there are options such as HDD or SSD storage mediums, Multiple interface configurations and several OS options. The product range can also accomodate and combine multi-touch screen, optical bonding, sunlight readability (High Bright) and ECDIS calibration. By factory standards the 19 inch unit is ECDIS Compliant.

TFT Technology:	LED Backlight Technology, TFT Active-matrix, MVA (Multi-domain Vertical Alignment) Technology
Viewable Size and Active Area:	19.0 inch - 376.32 [14.82"] (H) x 301.06 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time:	5:4 - 35ms (typ)
Light Intensity and Contrast Ratio:	Standard: 350 cd/m² (typ) - 1500:1 (typ) High Bright: 1000 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	Standard: 85 deg. (up/down/left/right) - 16.7 million High Bright: 89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	DVI: From 640 x 480 to 1920 x 1200 @ 60 Hz VGA: From 640 x 480 to 2048 x 1536 @ 75 Hz
Power Specifications and Consumption:	Multi-power 100-240V AC 50/60Hz + 24VDC 49W (typ)* - 156W (max) - *Max Backlight, Idle CPU, Windows® 7
Product Features:	Dimmable 0-100%, Buzzer, Multi-power AC & DC, GPIO, LAN Wakeup, USB Boot&Wakeup, High Bright models includes an EPDM sealing gasket for IP66 console mount, Firmware Raid
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	2 x 2.5" Internal. Option: 1 or 2 can be installed of: 2.5" SSD SATA (Multi Level): (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW)) 2.5" HDD* SATA - 1TB *Combination buzzer and spinning hard disk (HDD) is not possible.
CPU / Processor Options:	1 x Intel® Core™ i7-620LE, 2.0GHz, 4MB Cache, FSB 1066MHz or 1 x Intel® Core™ i5-520E, 2.40GHz, FSB 800/1066MHz, 3MB Cache or 1 x Intel® Celeron® P4505, 1.86GHz, 2MB Cache, FSB 800MHz
Memory Options:	1 x 2GB, 4GB (Single Ch. 204-pin DDR3 1066/800MHz SO-DIMM)
System Chipset / Graphics Chipset:	Intel® BD82QM57 Intel® Arrandale IGD supports DVMT 5.0, Supports Direct3D 10.1, OpenGL 2.1, OpenGL ES2.0 (Linux)
BIOS / Buzzer:	UEFI AMIBIOS / Buzzer: 3500Hz
Power Manager and Monitoring:	ACPI S3/S4 - Temperature and voltages status 256 Segments, 0, 1, 2...255 sec/min

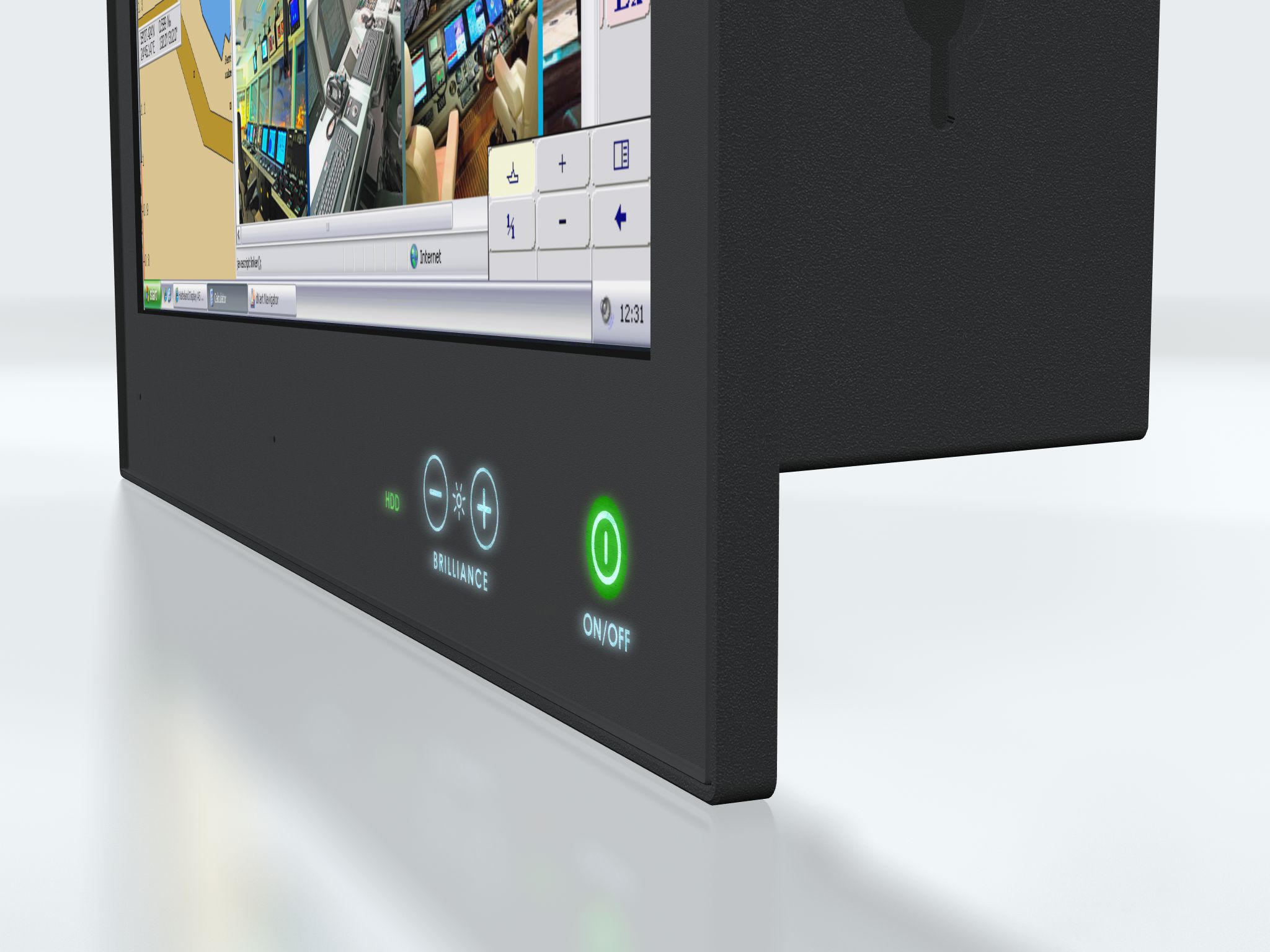

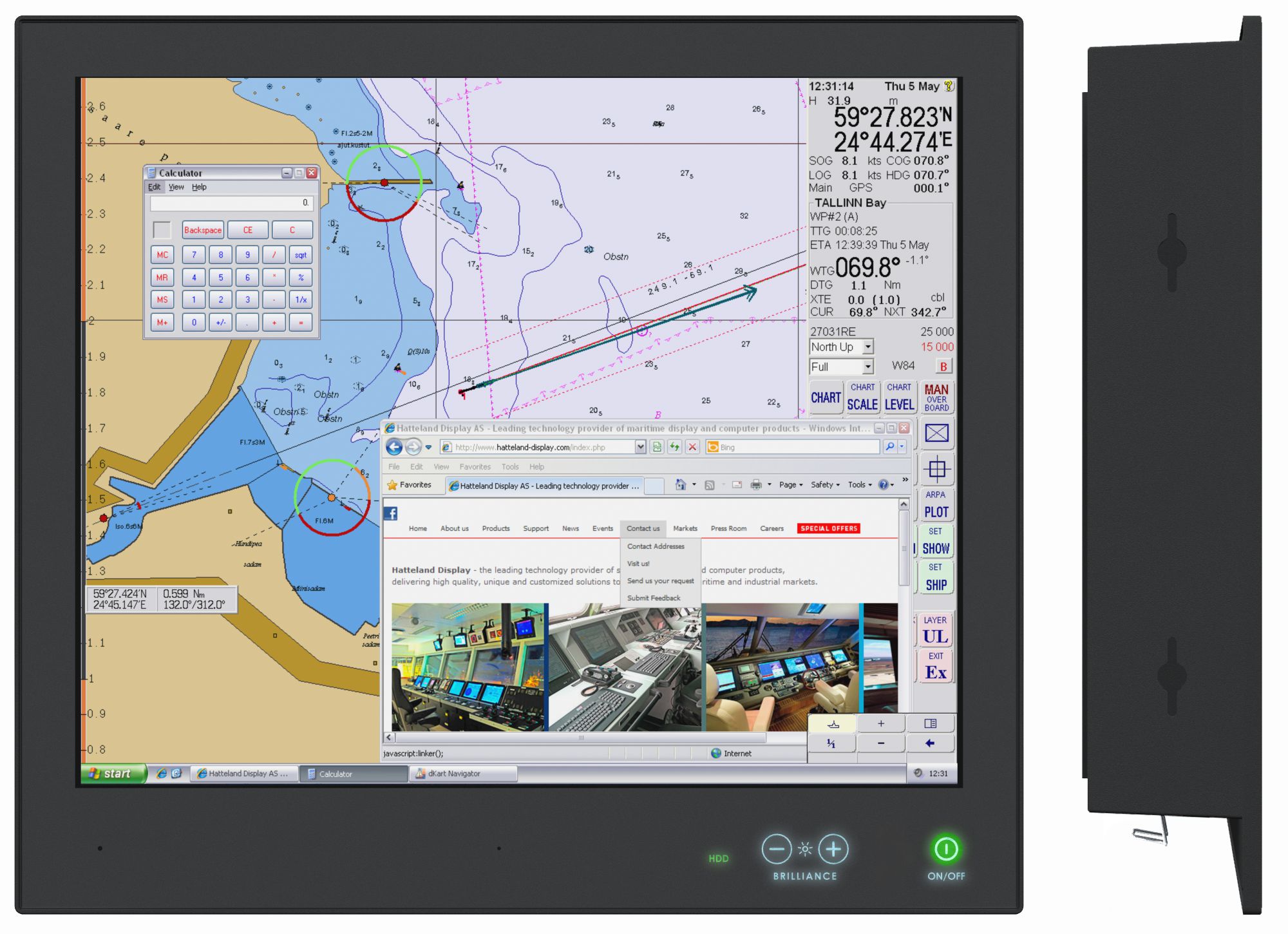

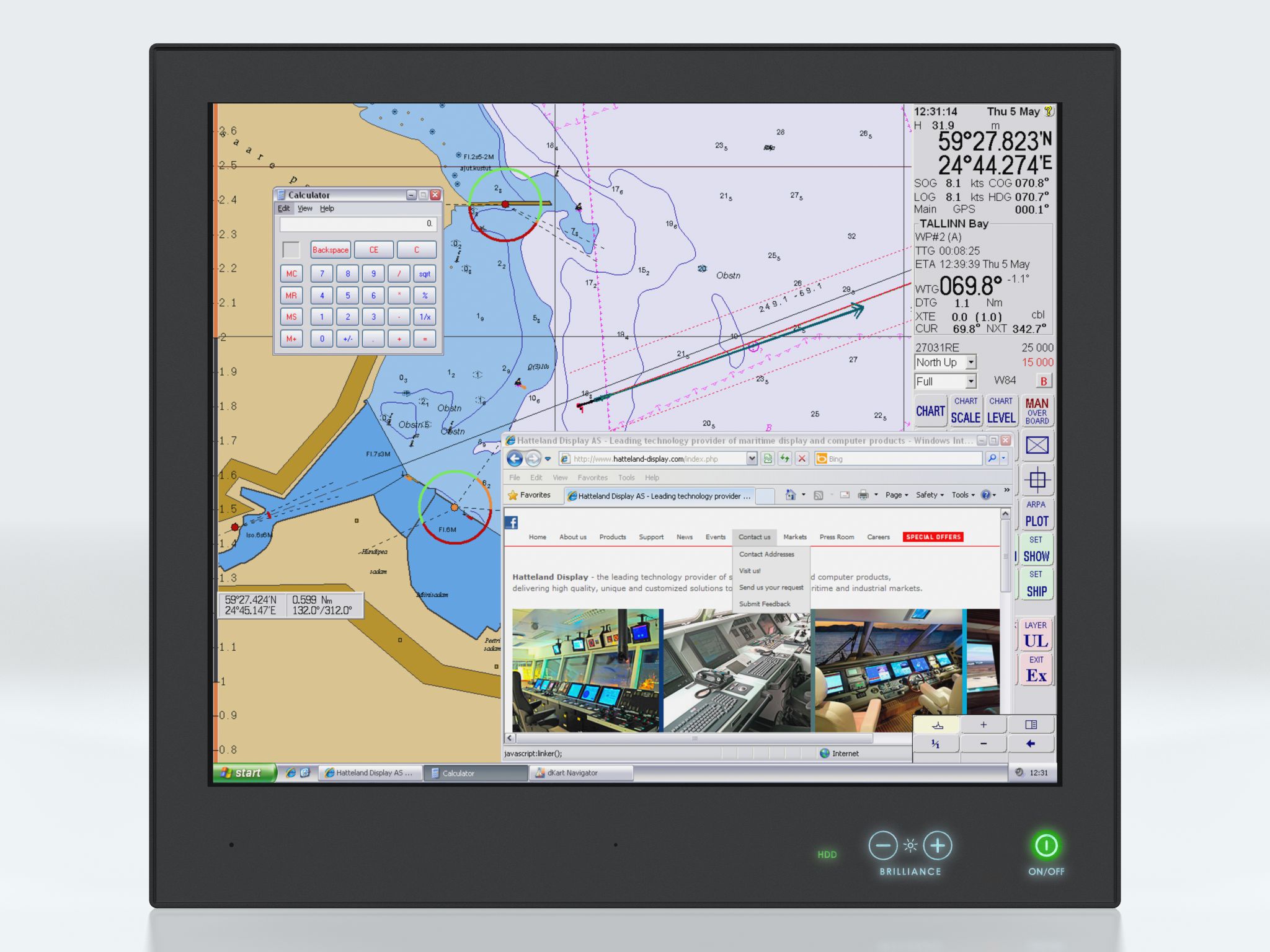

User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Power LED, HDD/SSD LED, Buzzer (through glass), Mode Status Indicator (ECDIS, Service), Light Sensor (behind glass)

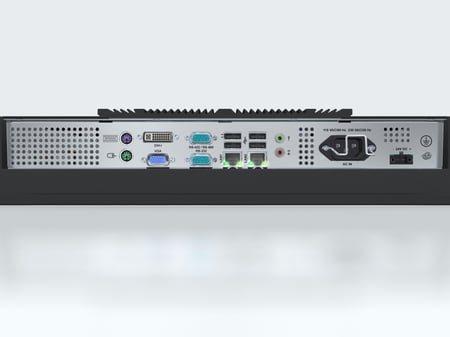

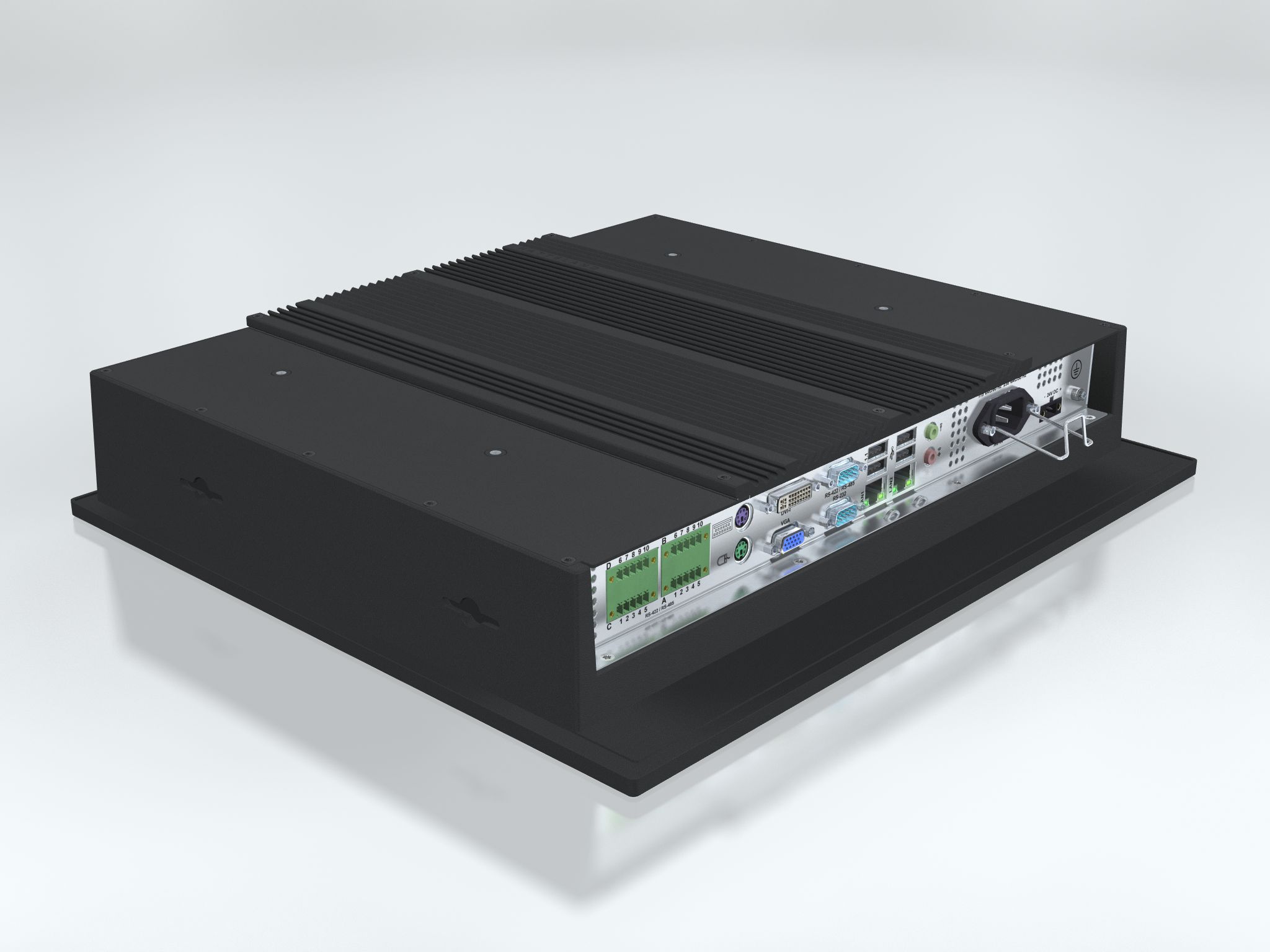

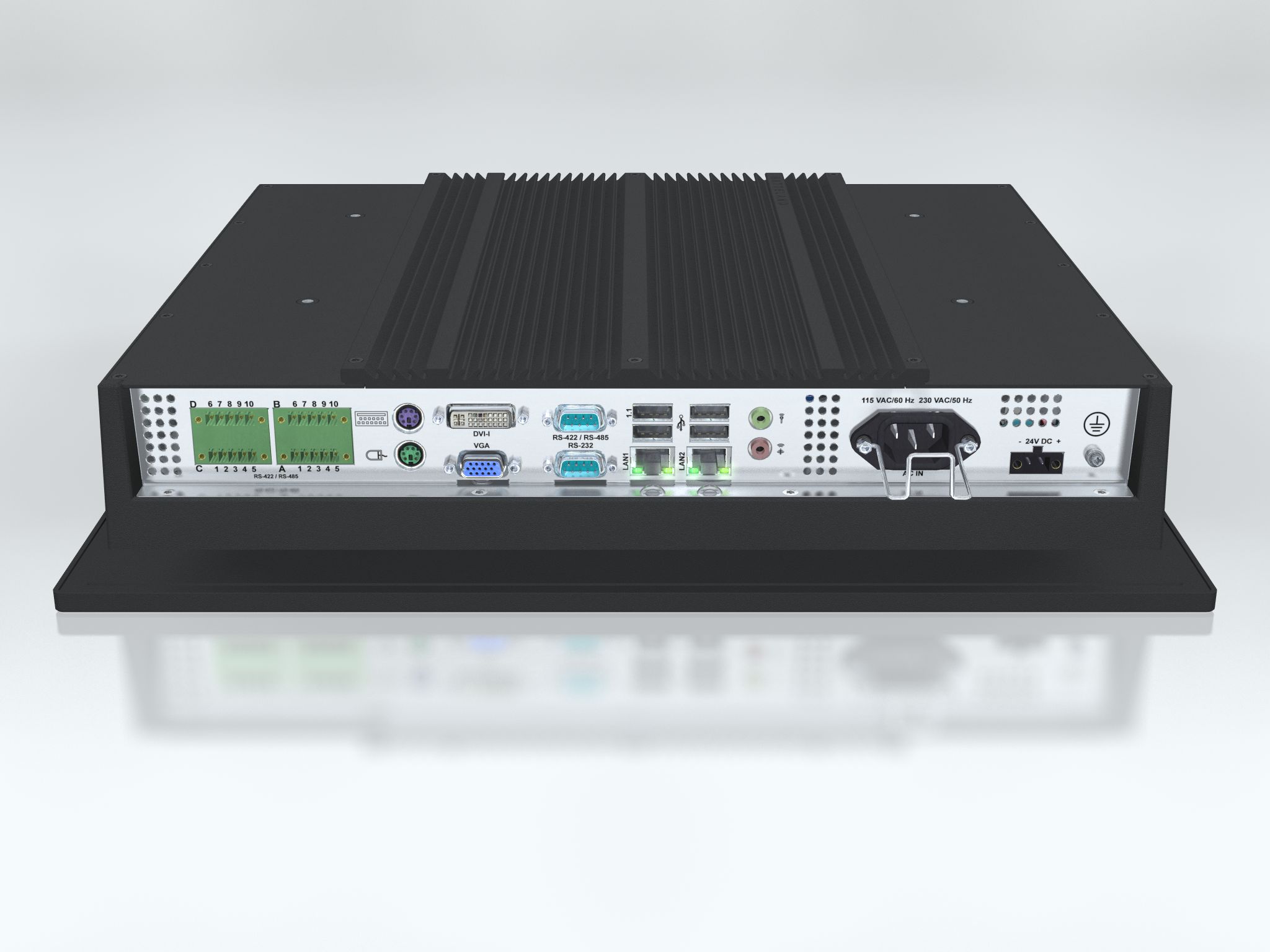

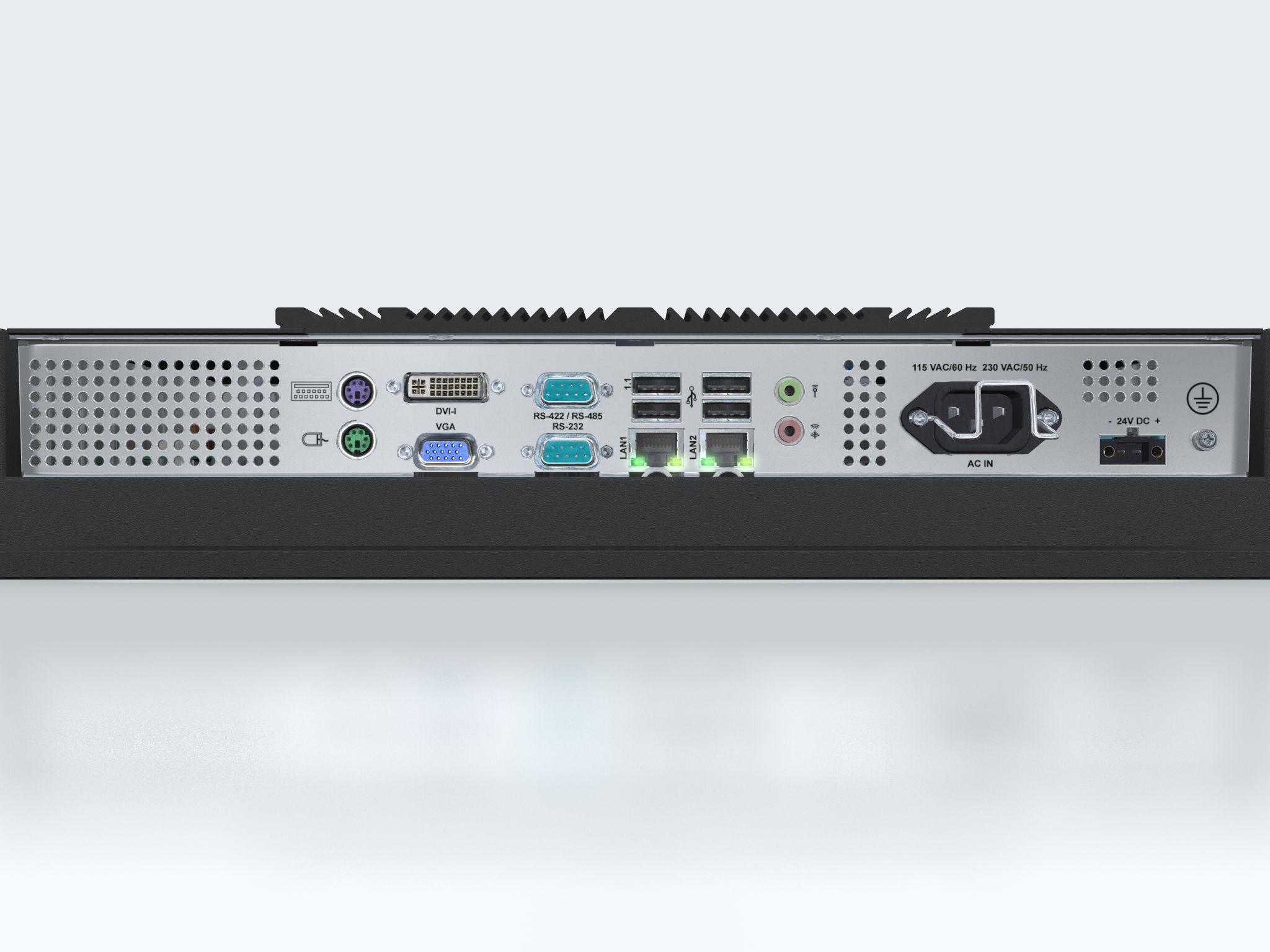

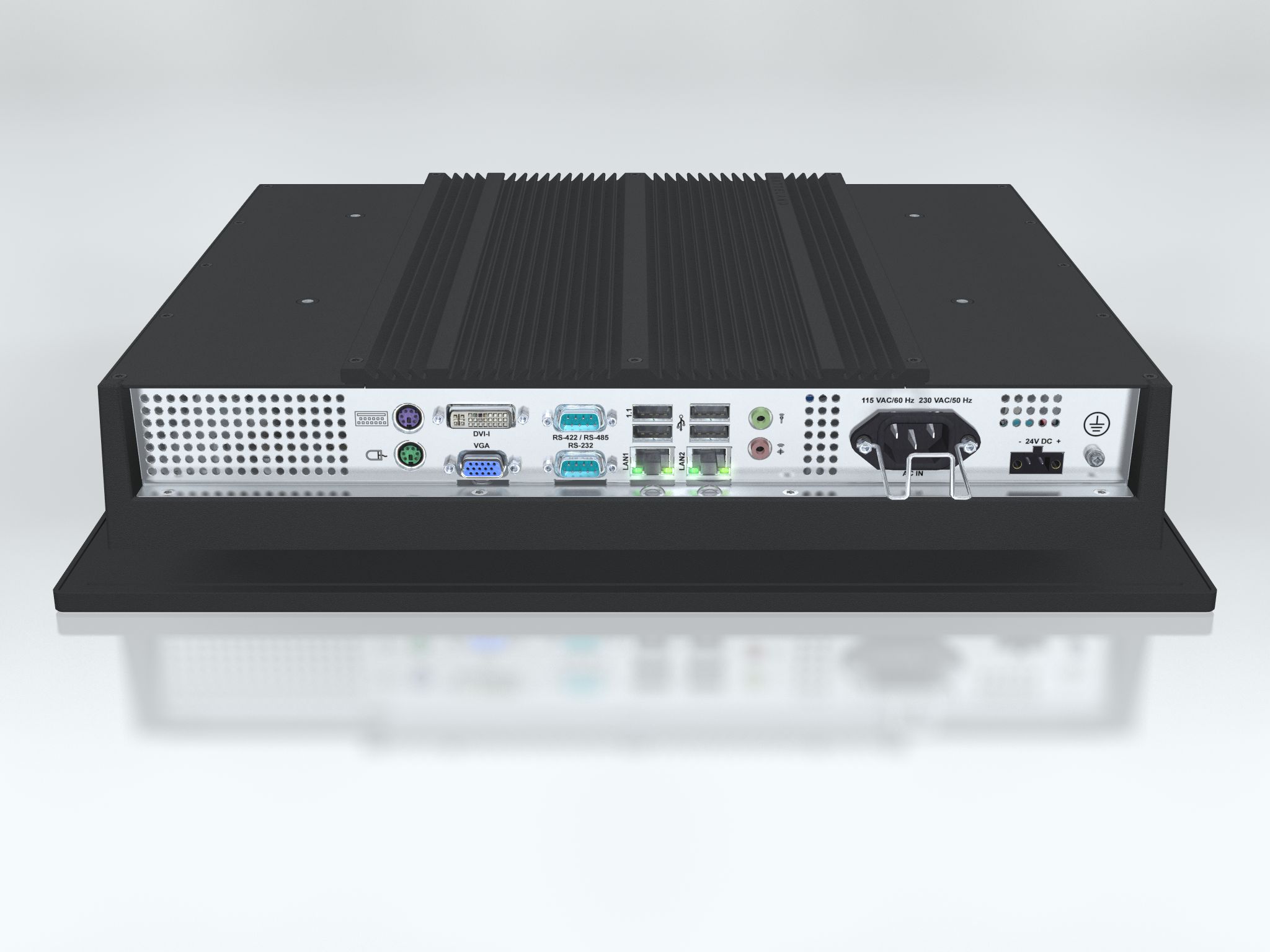

Connectors:	• Ethernet GBLAN 10/100/1000Mbps: 2 x RJ45 • Keyboard and Mouse: 1 x PS/2 (purple) + 1 x PS/2 (green) • COM RS-232: 1 x DB9M non-isolated • COM RS-422/485: 1 x DB9M non-isolated • VCOM RS-232: 1 x Internal Virtual COM (Software controlled) • USB1.1 (<10m): 1 x USB Type A • USB2.0 (<5m): 3 x USB Type A • DVI / VGA OUT: 1 x 29P DVI-I or as VGA with adapter • VGA OUT: 1 x 15P HD D-SUB • AC Power: 1 x Std. IEC inlet • DC Power: 1 x 2-pin Terminal Block 5.08 • Line Out+Mic In: 1 x 3.5mm mini jack + 1 x 3.5mm mini jack* *Realtek ALC892 Chipset

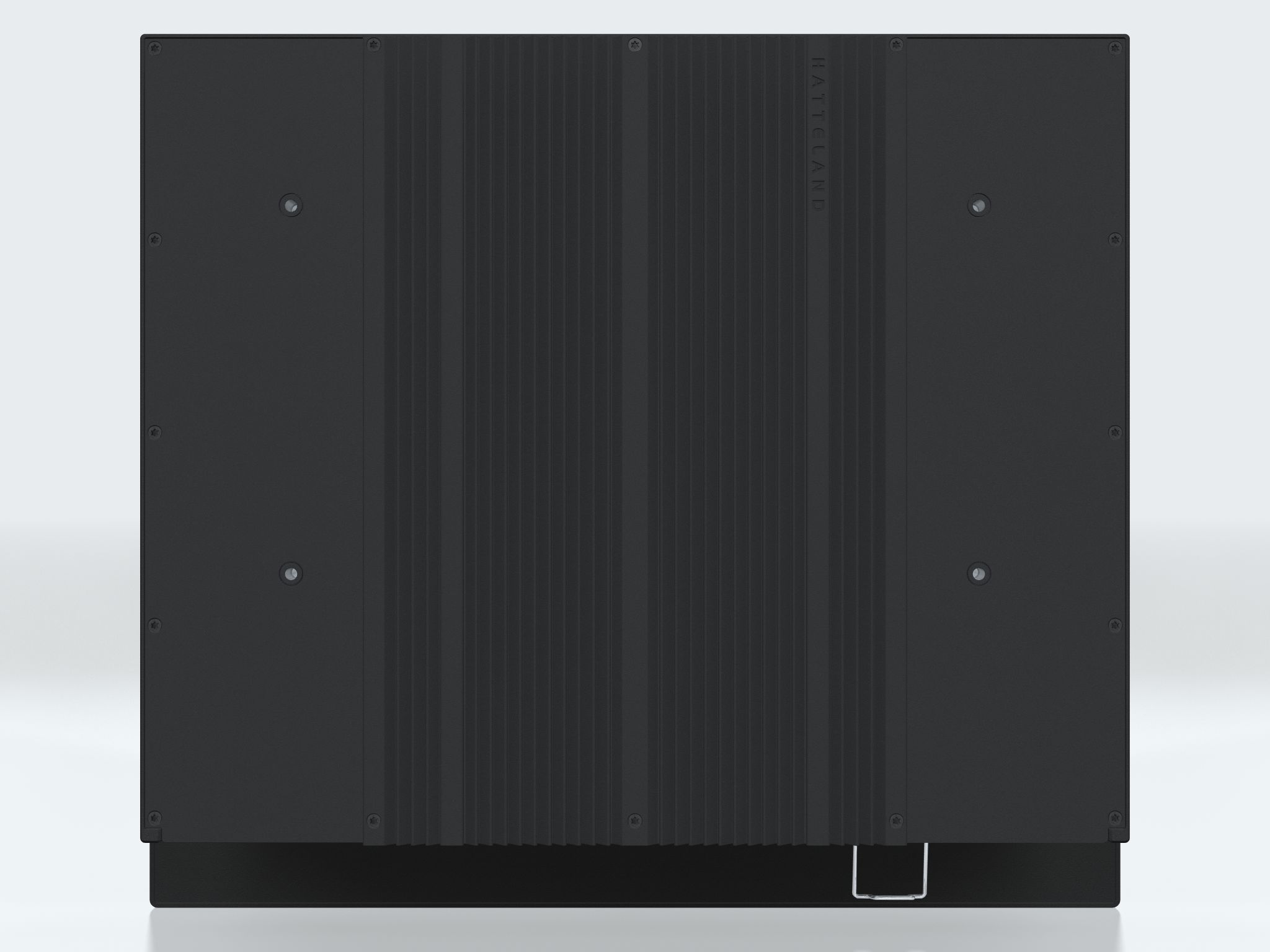

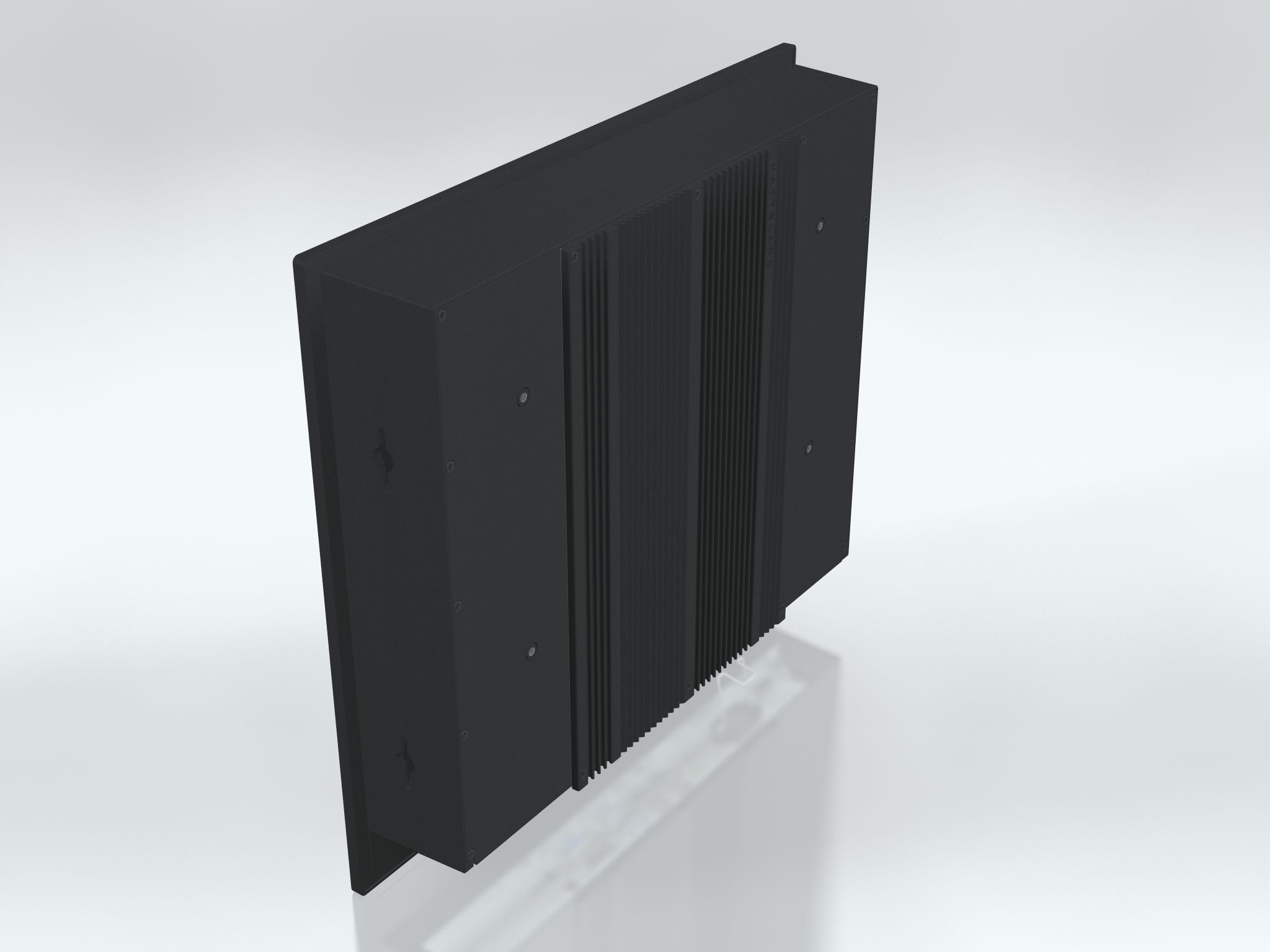

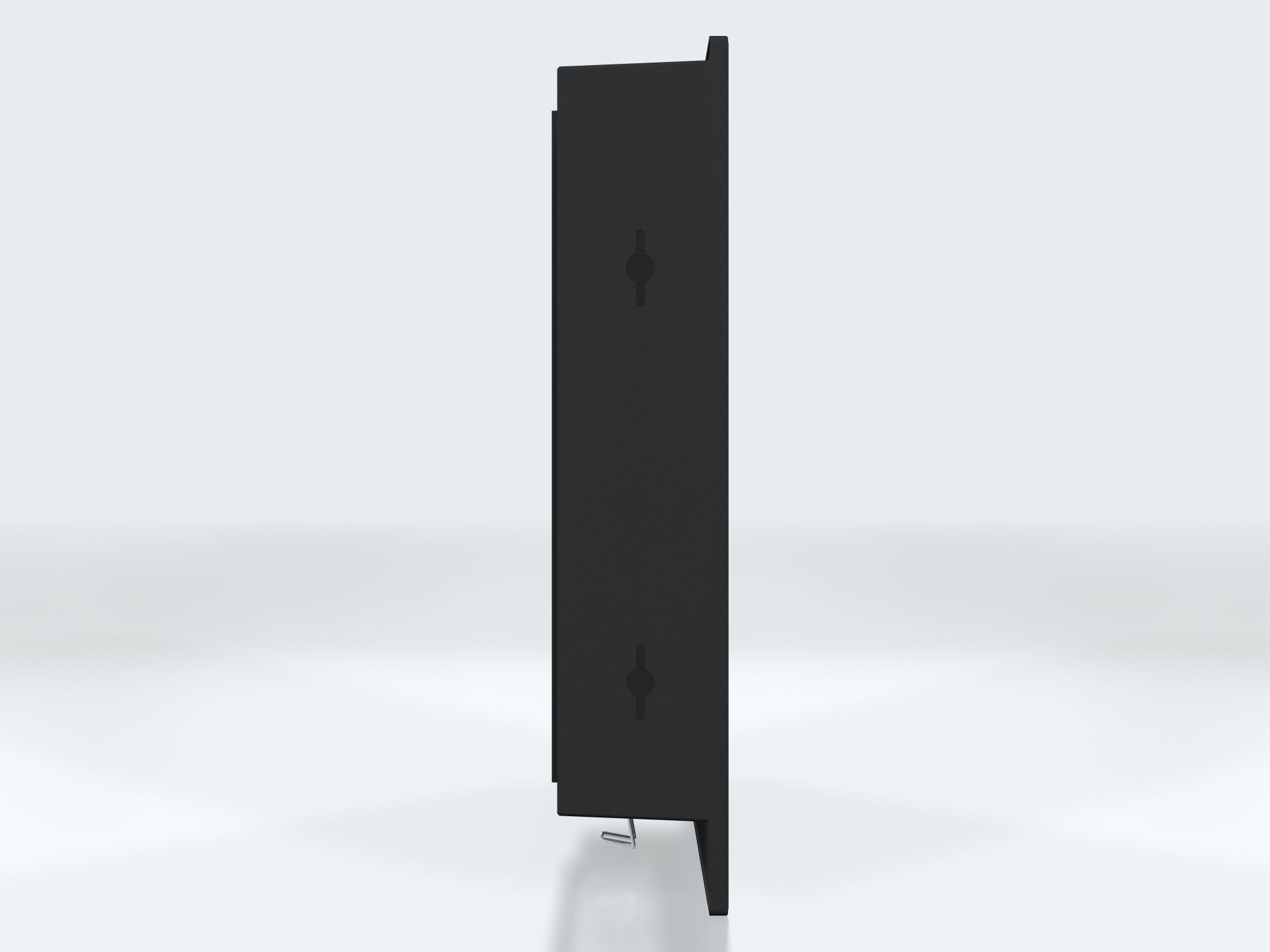

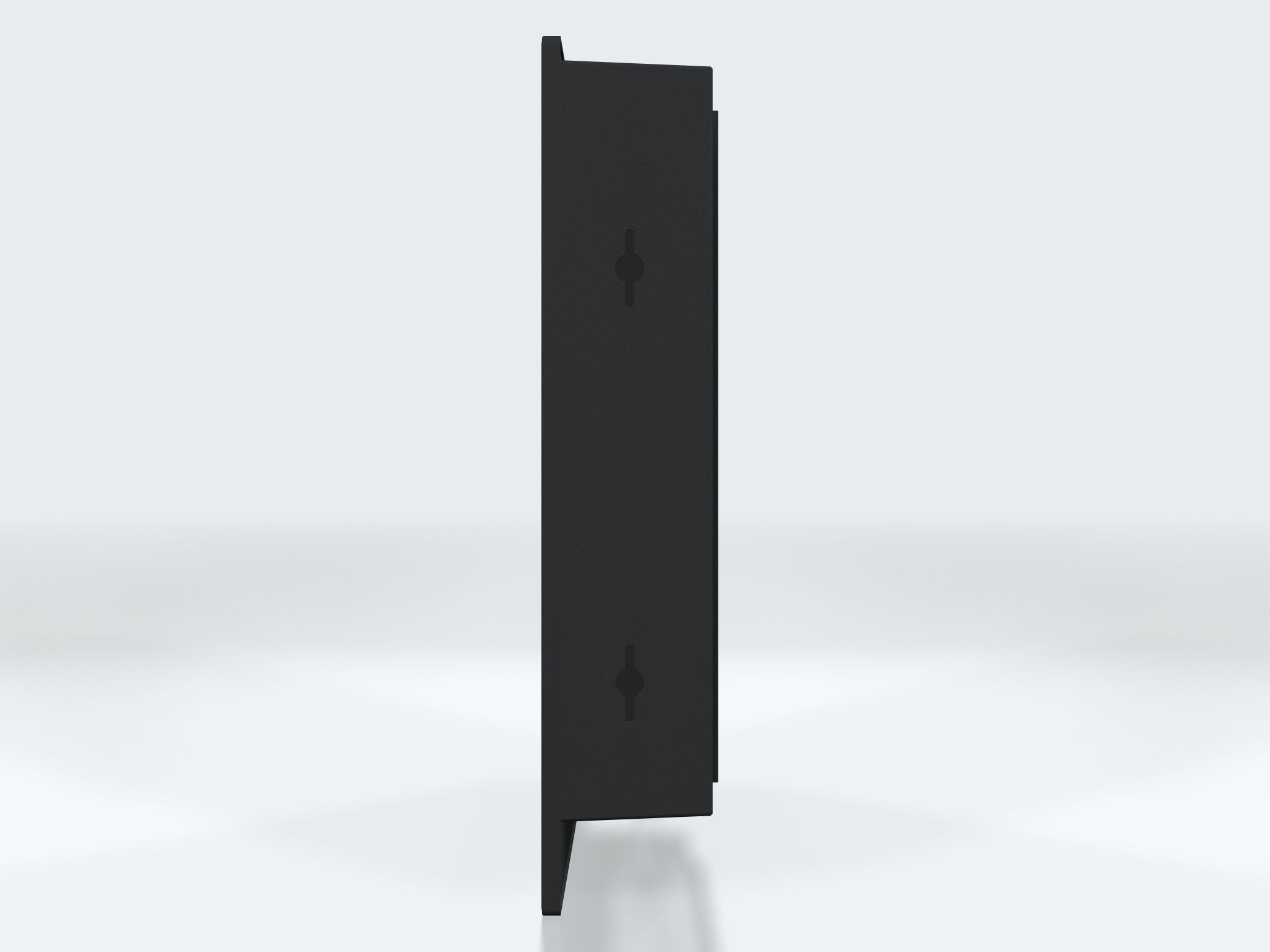

Product Dimensions and Weight:	W:429.00 [16.89"] x H:382.00 [15.04"] x D:80.90 [3.19"] mm [inch] 4 x M6 VESA mounting 280x150mm, Max 12mm deep. 8.6kg / 18.9lbs
Product Carton Size and Weight:	L:530.00 [20.87"] x W:200.00 [7.87"] x H:540.00 [21.26"] mm [inch] 10.4kg / 22.9lbs

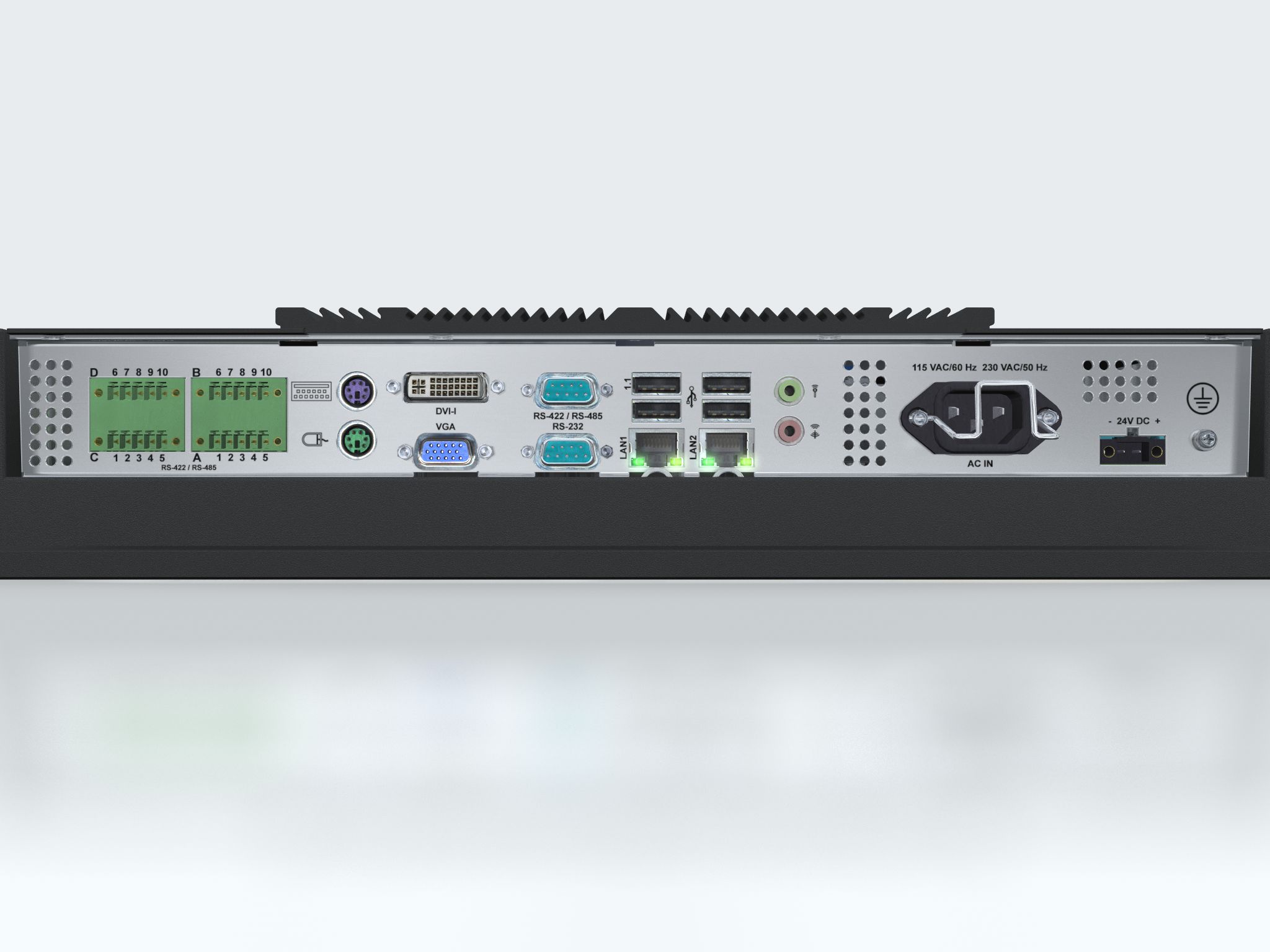

Factory Options:	• Optical Bonding Technology • Projected Capacitive Touch Screen (Multitouch, USB interface) • Sunlight Readable / High Bright (includes Optical Bonding) model • Color Calibrated Models (ECDIS) • Variations of SSD/HDD Storage, RAM Memory, Operating System • 1 x PCA200828-1 (4xCOM RS-422/485 isolated NMEA 4 channel)* • 1 x HTA2020002-AD1033 (1 or 2 x CAN isolated 2ch. or 4ch.)* • 1 x HTA2020002-SLCAN (1 or 2 x CAN isolated 2 or 4 ch., socketCAN)* • 1 x HT 00235 OPT-A1 (2W Amplified Audio out via DB9F) • 1 x PCA100297-1 (Isolated Digital IO module, 4xOutput/4xInput)* • 1 x PCA100298-1 (LAN 10/100Mbps, 2 ports (RJ45)* *Only 1 module can be installed
Accessories:	• HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • HD TMB SX1-B1: 1 x Table Mount Bracket. EN60945 Tested* • HD 19COV SX1-A1: 1 x UV Sun Cover • P007131-1: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount • JH 19TAP STD-C1: 1 x Frame Adp. (19" Series 1 to Series X) retrofit • HD 19TAP SX1-C2: 1 x Frame Adp. (19" Series X to Series 2) retrofit • JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HT 00300 MSOS: OS options -> www.hatteland-display.com/os *Can not be combined with HDD, use SSD only.
Capabilities / Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 70.00 [27.56"] - Steering: 45.00 [17.72"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, IP66, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 8, 2025 @ 12:39
