JH 15T17 MMC

Overview

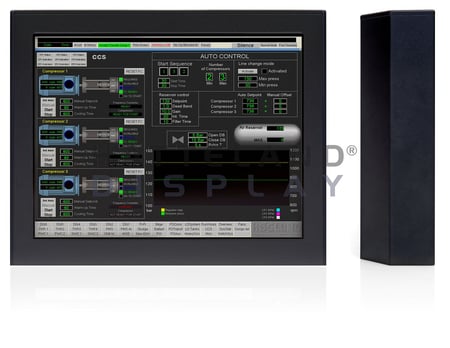

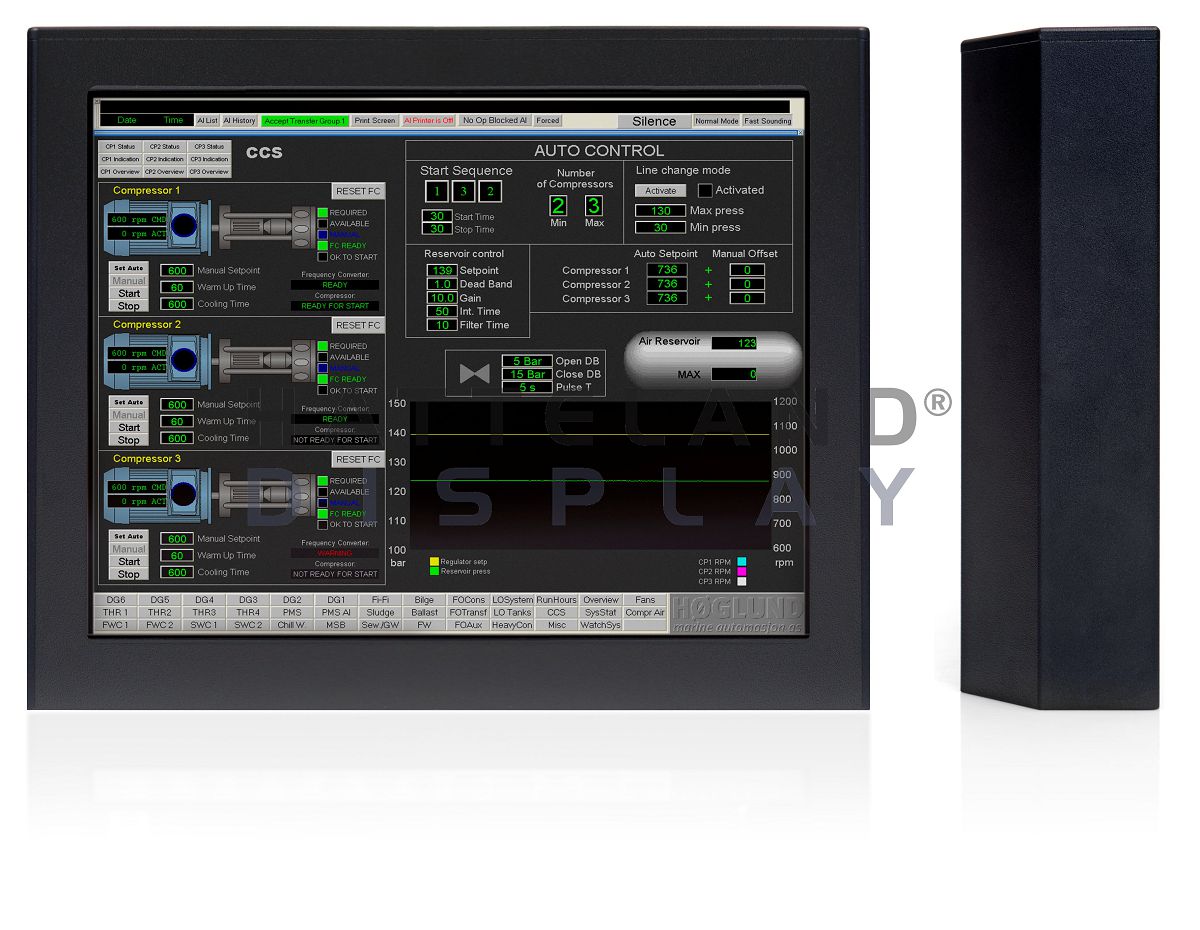

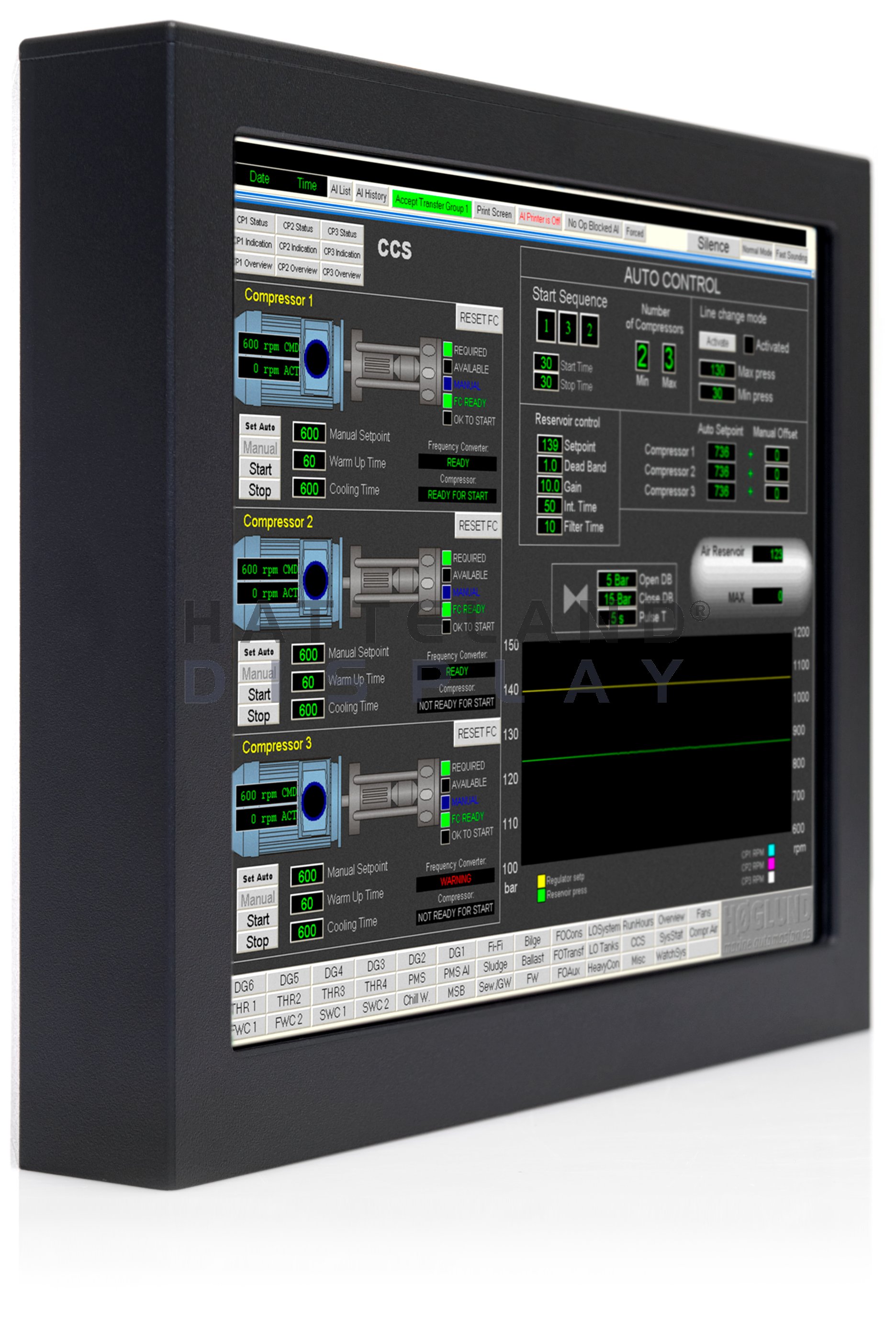

Panel Computer - CCFL - Slim Frame - HATTELAND® Series 1 G1 - 15.0 inch

JH 15T17 MMC  (HW00)

Series 1 panel computers offer the ultimate in convenience for systems integrators and boat builders. This is backed up by the inherent qualities of Series 1 monitors and the flexibility of the powerful integrated computer. Series 1 panel computers are a single flexible solution, designed only for the marine environment and built to last.

icon
CCFL-backlit
icon
Slim Frame
Send Request
Description

Panel Computer - HATTELAND® Series 1 G1 (HW00)

The Multi-power (AC and DC power input) ensures that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.

The computer itself is specified to ensure that it is capable of running all marine applications, from chart software to engine monitoring and automation applications. It has power to spare too, so software developers can be sure that Hatteland Display Series 1 panel computers can handle the latest applications being designed for bridge and engine room systems in addition to other, more custom uses.

Further, all models and variations are offered with Optical Bonding Technology that mitigates screen misting. Brightness is adjustable from 0 to 100% (via software only).
Specifications
TFT Technology: Color Active Matrix TFT/LCD, a-Si TFT Active Matrix, Optical Bonding Technology
Viewable Size and Active Area: 15.0 inch - 304.10 [11.97"] (H) x 228.10 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25ms (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 85 deg. (Up/Down/Left/Right) - 16.7 million
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: DVI: From 640 x 480 to 2048 x 1536 @ 85 Hz
VGA: From 640 x 480 to 1600 x 1200 @ 85 Hz
Power Specifications and Consumption: Multi-power 115/230VAC - 50/60Hz + 24VDC
With Core™2: 50W (typ) - 100W Max
Product Features: Dimmable 0-100%, Buzzer, Multi-power AC & DC, GPIO, LAN Wakeup, USB Boot&Wakeup
Installed Operating System (OS): None or Microsoft® Windows® Embedded Enterprise
(XP Professional ENG w/SP2c, 32bit)
Storage Options: 1 x 40GB, 80GB, 120GB or 300GB SSD (SATA 2.5")
CPU / Processor Options: Intel® Core™2 Duo L7400 - 1.5GHz, 4MB Cache, 667MHz FSB
or Intel® Celeron® M ULV 423 - 1.06GHz, 1MB Cache, 533MHz FSB
(Intel® Core™2 needs additional internal fan)
Memory Options: 2 x 1GB 667MHz DDR2 Non-ECC CL5 DIMM
System Chipset / Graphics Chipset: Intel® 82945GME / Intel® 945GME Integrated
BIOS / Buzzer: Award BIOS (supports ACPI) / Buzzer: 3500Hz
Power Manager and Monitoring: ACPI - Temperature, voltage and fan monitoring
User Controls and Activity: Power ON/OFF function via BIOS / power cable connected.
API: Internal SCOM interface, COM3 to control internal display
features

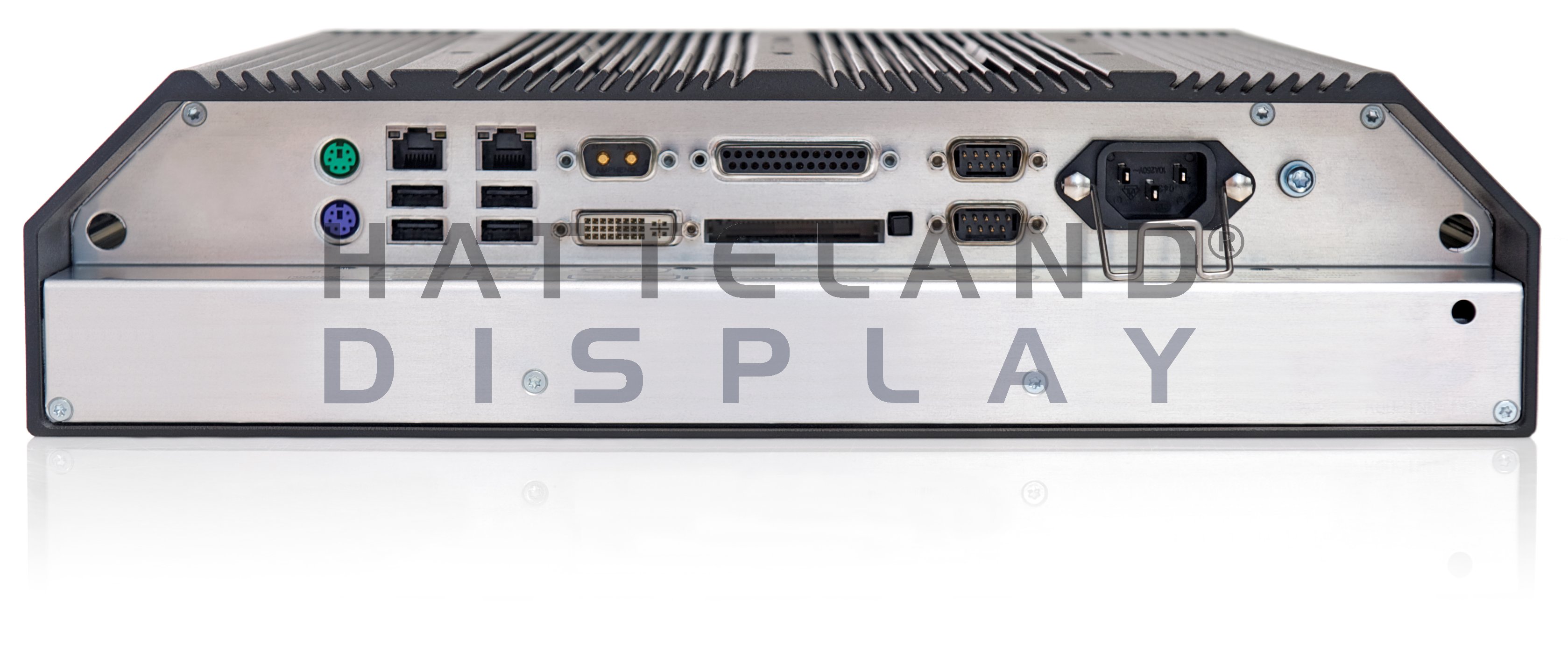

Connectors: • Ethernet GBLAN 10/100/1000Mbps: 2 x RJ45
• Keyboard: 1 x PS/2
• Mouse: 1 x PS/2
• COM: 2 x DB9 (RS-232/422/485, opto-isolated)
• LPT/Parallel: 1 x DB25 Bi-Directional/ECP/EPP
• USB 2.0: 4 x Std. USB Type A
• DVI/VGA OUT: 1 x 29P DVI-I or as VGA with adapter
• Compact Flash: 1 x Type 1&II Compatible
• AC Power IN: 1 x Std. IEC inlet
• DC Power IN: 1 x 2P DSUB (male) Amphenol FCC17
Product Dimensions and Weight: W:361.00 [14.21"] x H:289.00 [11.38"] x D:87.00 [3.43"] mm [inch]
Approx 8kg / 18lbs
Product Carton Size and Weight: L:530.00 [20.87"] x W:460.00 [18.11"] x H:200.00 [7.87"] mm [inch]
10.0kg / 22.0lbs
Factory Options: • Capacitive Touchscreen
• Up to 4GB of memory
Accessories: USB Cable 1m (Type A to Chassis mount receptacle)
Capabilities / Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP66 rear (EN60529)
Compass Safe Distance: Standard: 75.00 [29.53"] - Steering: 45.00 [17.72"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd*, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register*, BV - Bureau Veritas*, *=pending

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: May 8, 2025 @ 12:39
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

30 Dec 2011
LCD upgrade for 15 inch

1 Nov 2011
New Solid State Disk (SSD) - qualified in our products

20 Dec 2010
Printed User Manual and Driver CD/DVD

8 Jan 2010
CF update

News Stories:
25 Jun 2010
Hatteland Display expands its range of products

End of Life Notifications (EOL):
17 Oct 2005
Windows® 2000 retirement
