HT 202P4

Overview

Computer - 2U Size - Rackmount - 2U

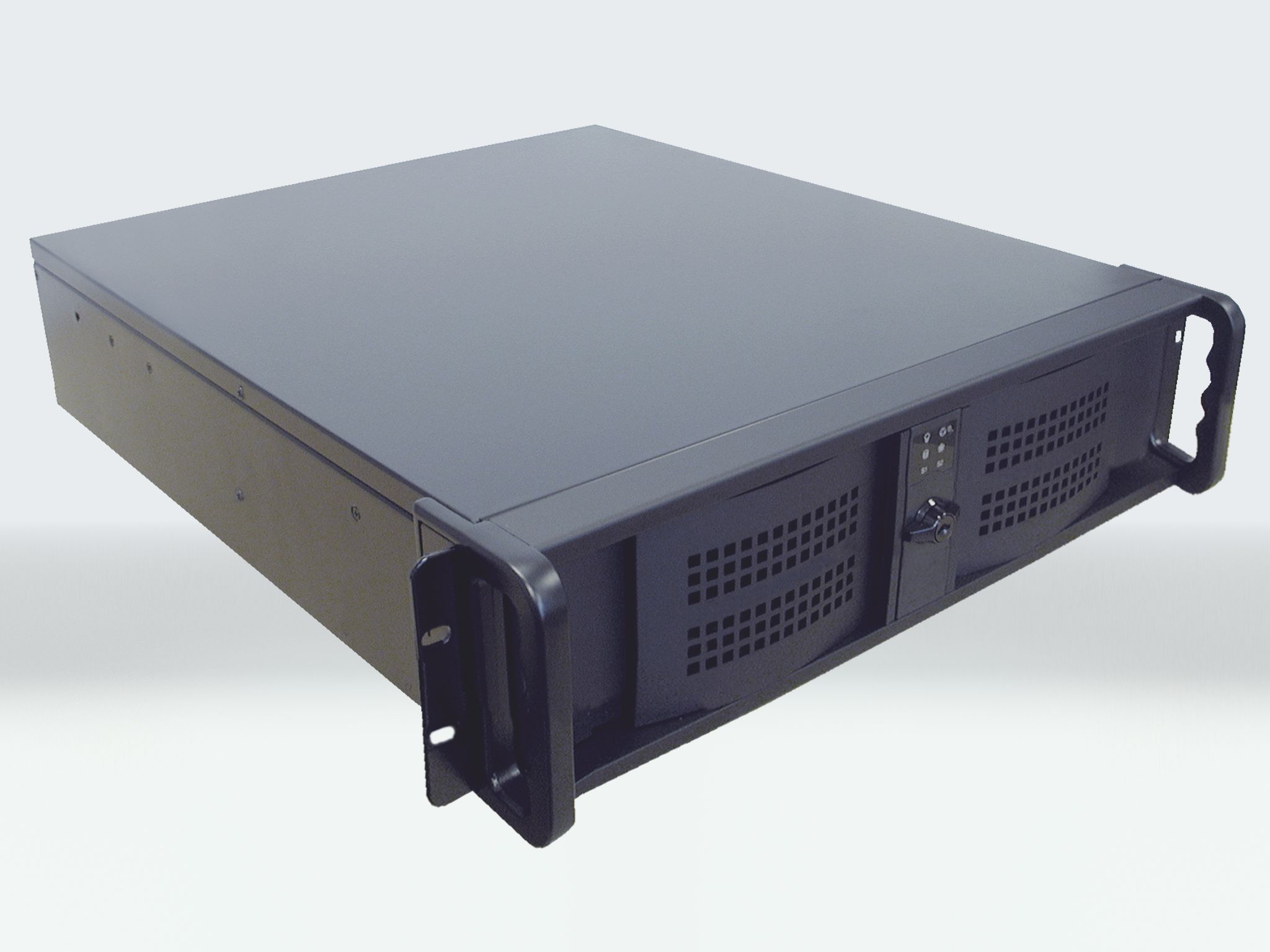

HT 202P4

Get first-class performance across a broad range of applications with HT 202P4 STD Maritime Rack Computer. Ideal for use in industrial and maritime environments where performance and reliability is important. Leading edge technology makes these computers the smart choice for all heavy applications. Features a preheating circuit that will be automatically activated if temperature reaches 0 °C or lower.

icon
2U Size
Send Request
Description

Computer - Rackmount

Brief Specifications:
• Intel® Pentium®4 - 3.0GHz (Socket 478)
• Intel® Extreme Graphics (Up to 2048 x 1536, up to 120 Hz)
• 256MB RAM
• 40GB 3,5 HDD
• CD-R/W (52x/32x/52x)
• 1,44MB 3,5” FDD SLIM
• 10/100Mbps Base-T Fast Ethernet with Wake-On-LAN
• 2 x RS-232 Serial Ports
• 1 Parallel port
• Standard PS/2 keyboard and mouse.
• Dimensions 427 (W) x 88 (H) x 480 (D) mm
• 2U Rackmount Chassis
• Power supply 115/230V - 300W
Specifications
Typenumber (Long): HT 202P4 STD-A1
Installed Operating System Options: None, please specify when ordering
Storage Options: 1 x 40GB 3.5" IDE HDD, 7200 RPM, 2MB Buffer
Processor / CPU and FSB Speed Options: 1 x Intel® Pentium® 4 3.0GHz / Socket 478 / 533MHz FSB / 512KB Cache
Memory Options: 2 x 184 Pin DIMM Sockets, 256MB (PC2100/PC2700 (DDR266/333) DDR SDRAM)
System+Graphics Chipset / Connectors: Intel® 845GE + ICH4 / On-board Intel® 82845GE Extreme Graphics - Up to 2048 x 1536 - Up to 32-Bit colors - Up to 120 Hz
1 x DB15F
Max Resolution / Max Hz: 2048 x 1536 / 120Hz
BIOS: Award BIOS 2MBit Flash
Speaker On-board with connector for external speaker option
PCI Slots / PCIe Slots: 2 x PCI2.2 Slots 32-bit, 3V and 5V Interface, Full Length Profile
Media Drive(s): CD-DRIVE: 1 x 52x/32x/52x CD-R/W
FDD Controller: 2 x 1.44 MB or 2.88 MB (One port)
LPT / Parallel Port: 1 x DB25F Bi-Directional Centronics with EPP/ECP mode
Serial Port(s): 2 x RS-232 16C550 Compatible, DB9M
Ethernet Port(s): 1 x 10/100Mbps Realtek 8100B Base-T PCI Fast Ethernet with Wake-On-Lan - RJ-45
USB Port(s): 6 x USB 2.0 Typr A (4 in back, 2 in front)
Keyboard and Mouse Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
Audio Ports: AC-97 2.2 compliant, 6 channel, 5.1 speaker with LINE IN, LINE OUT, MIC IN - 3 x JACKS
Buzzer: None
Power Manager and Monitoring: APM Ver 1.2 and ACPI 1.0a, Power supply, fan and temperature supervision
Power Specifications and Consumption: 115VAC/60Hz or 230VAC/50Hz (300W) - STD IEC
Operating: TBD(TYP) - TBD (MAX)
Digital I/O Connectors: None
Key Features: 2U Rackmount Chassis, Black Heavy-duty steel chassis with handles, Removable air filter, Dual lockable latch doors
Product Dimensions and Weight: W:427.00 [16.81"] x H:88.00 [3.46"] x D:480.00 [18.90"] mm [inch]
Approx 10kg / 22lbs
Product Carton Size and Weight: N/A
User Controls / Activity: Power On/Off Push Button, Power LED, HDD LED
Factory Options: • Dual Head Graphics Card, AGP 4X, 32MB Video Memory, S-Video&Composite TV-OUT - 1 x DB15F
• Memory upgradeable to max 2GB
• 8 Channel RS-232 Serial Card - 8 x DB9M
• 1 Channel 10/100Mbps Network Card - 1 x RJ-45
• More available on request
Accessories: None
Capabilities / Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 225.00 [88.58"] - Steering: 160.00 [62.99"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th), DNV - Det Norske Veritas, GL - Germanischer Lloyd, ClassNK - Nippon Kaiji Kyokai, IACS E10, BV - Bureau Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping
Specifications last updated: June 30, 2025 @ 12:45
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

News Stories:
23 Apr 2004
HT 202P4 and HT 403P4 now Type Approved

24 Jan 2004
MARITIME COMPUTER SOLUTIONS

End of Life Notifications (EOL):
6 Apr 2004
HT 202P4 & HT 403P4 models and variations (rack compute...
