HT 403XE

Overview

Computer - 4U Size - Server - Rackmount - 4U

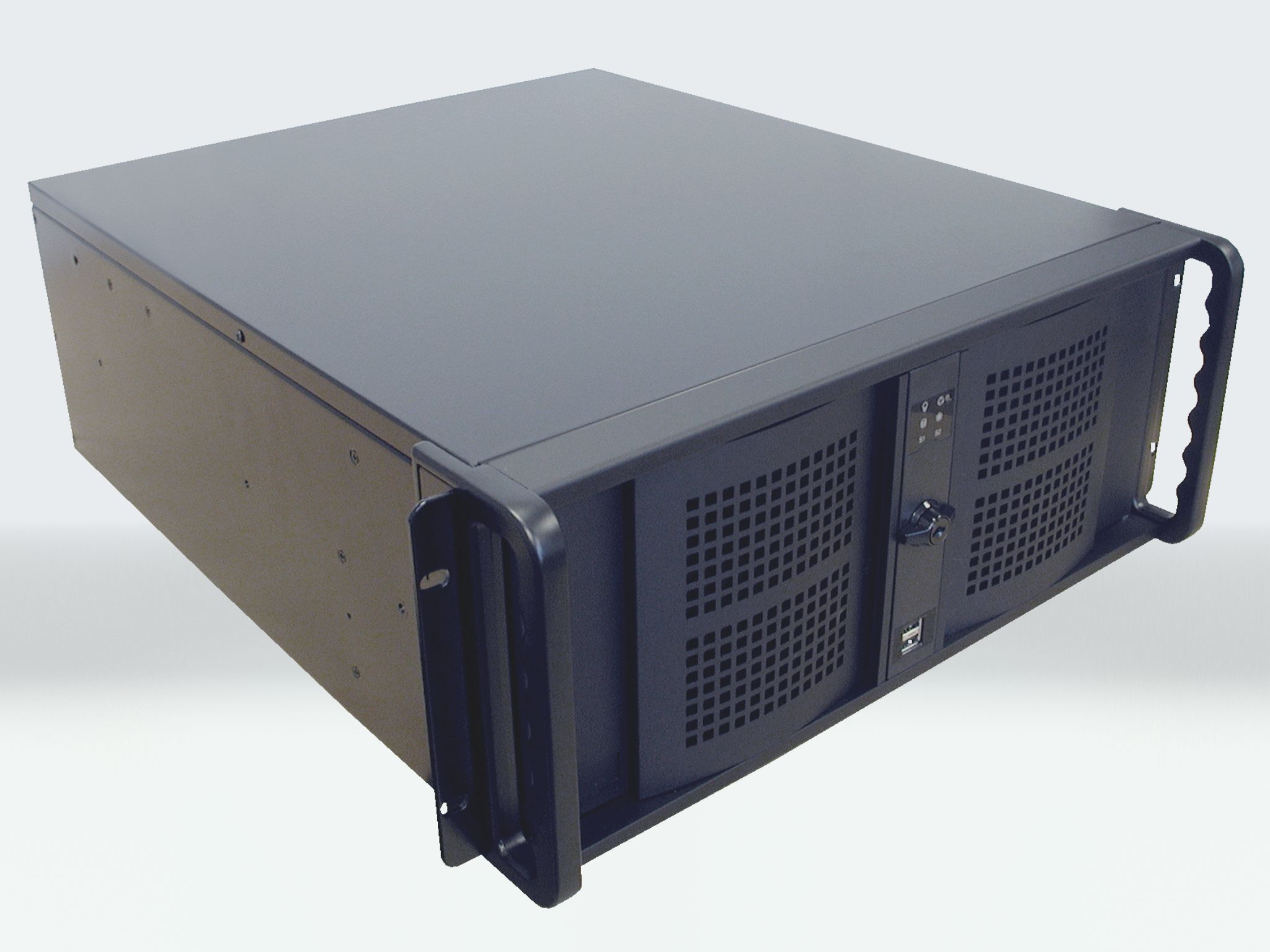

HT 403XE

Get first-class performance across a broad range of applications with HT 403XE STD Industrial Rack Computer. Ideal for use in industrial and maritime environments where performance is important. Leading edge technology makes these computers the smart choice for all heavy applications. Features a preheating circuit that will be automatically activated if temperature reaches 0°C or lower.

icon
4U Size
icon
Server
Send Request
Description

Computer - Rackmount

Brief Specifications:
• Dual Intel Xeon - 2.4GHz (Socket 604)
• Dual Head Graphics Card, AGP4X, 32MB
• 512MB RAM
• 200GB, 7200RPM IDE Harddisk
• CD-R/W (52x/24x/52x)
• 1,44MB FDD
• 10/100/1000Mbps Base-T Fast Ethernet with Wake-On-LAN
• 2 x RS-232 Serial Ports
• 1 x Parallel port
• Standard PS/2 keyboard and mouse.
• Dimensions 427 (W) x 176 (H) 480 (D) mm
• 4U Rackmount Chassis
• Power supply 110/230V - 400W
Specifications
Typenumber (Long): HT 403XE STD-Ax
Installed Operating System Options: None, please specify when ordering
Storage Options: 200GB 3.5" HDD, 7200 RPM, ATA/133 8MB Buffer
2 x EIDE Ports, ATA100, Ultra DMA100 (Includes PIO Mode 4)
Processor / CPU and FSB Speed Options: Dual Intel® Xeon® Processor 2.4GHz / Socket 604 / 533MHz FSB / 512KB cache
Memory Options: 6 x 184 Pin DIMM Sockets, 512MB Interleaved (Dual Channel DDR266/200 Registered ECC)
System+Graphics Chipset / Connectors: Intel® E7505 MCH + ICH4 / 1 x AGP Pro 4x/8x 1.5V, Dual Head Graphics Card, AGP4X, 32MB - Up to 2048x1536 - Up to 32Bit colors - Up to 130Hz
1 x DB15F
Max Resolution / Max Hz: 2048 x 1536 / 130Hz
BIOS: Phoenix BIOS 4MB Flash
On-board speaker
PCI Slots / PCIe Slots: 1 x PCI-X 64-bit/133MHz, 2 x PCI-X 64-bit/100MHz, 2 x PCI 32-bit/33MHz slots
Media Drive(s): CD-DRIVE: 1 x 52x/24x/52x CD-R/W
FDD Controller: 1 x 1.44 MB/2.88 MB
LPT / Parallel Port: 1 x DB25F Bi-Directional Centronics with EPP/ECP mode
Serial Port(s): 2 x RS-232 Fast UART 16550A Compatible, DB9M
Ethernet Port(s): 1 x 10/100/1000Mbps Intel 82545EM GigaBit with Wake-On-Lan - RJ-45
USB Port(s): 6 x USB 2.0 Type A (4 in back, 2 in front)
Keyboard and Mouse Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
Audio Ports: Integrated AC'97, 6 Channel, 5.1 speaker with LINE IN, LINE OUT, MIC IN - 3 x JACKS
Buzzer: None
Power Manager and Monitoring: APM Ver 1.2 and ACPI 1.0a, CPU/Chassis, fan and temperature supervision
Power Specifications and Consumption: 110VAC/60Hz or 230VAC/50Hz (400W Auto Ranging) - STD IEC
Operating: TBD(TYP) - TBD (MAX)
Digital I/O Connectors: None
Key Features: 4U Rackmount Chassis, Black heavy-duty steel chassis with handles, Removable air filter, Dual lockable latch doors
Product Dimensions and Weight: W:427.00 [16.81"] x H:176.00 [6.93"] x D:480.00 [18.90"] mm [inch]
Approx 12kg / 26.4lbs
Product Carton Size and Weight: N/A
User Controls / Activity: Power On/Off Push Button, Power LED, HDD LED
Factory Options: • Dual Intel® Xeon® Processor upgradable to 3.2GHz
• Memory upgradeable to max 4GB
• 3.5"' Removable IDE harddisk with 60GB, 5400 RPM, ATA/100 Harddisk
• 8 Channel Optoisolated RS-232/422/485 Serial Card 8 x DB9M
• 4 Channel 10/100Mbps Network Card 4 x RJ-45
• 1 Channel Profibus-DP & Serial Port RS-232/422/485 Network Card 1 x DP&DB9M
• 1 Channel Fiber Fast Network Card 1 x ST
• Video-In Card (S-Video&Composite)
• More available on request
Accessories: None
Capabilities / Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: N/A
Specifications last updated: July 9, 2025 @ 12:38
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
13 Sep 2006
Product Obsolete

News Stories:
29 Jan 2004
Maritime Computer Solutions

18 Jul 2003
Maritime PC Solutions, ITC
