HT X945R

Overview

Computer - 4U Size - Server - Rackmount - 4U

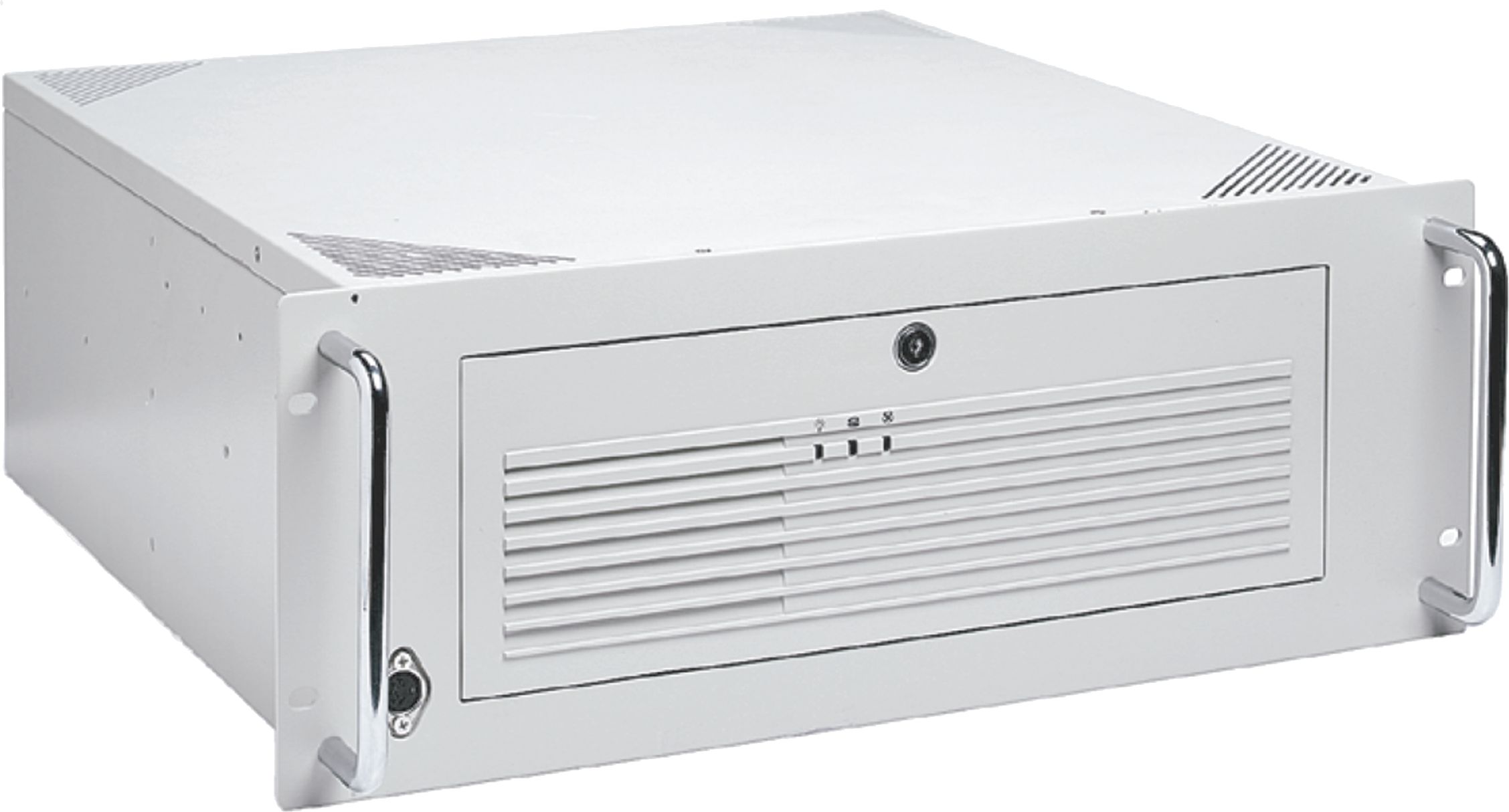

HT X945R

Get first-class performance across a broad range of applications with HT X945R STD Industrial Rack Computer. One of the most powerful 19-inch servers available in the market. Ideal for use in industrial and maritime environments where performance is important. Leading edge technology makes these computers the smart choice for all heavy applications. It is certificated for use in rugged maritime environments.

icon
4U Size
icon
Server
Send Request
Description

Computer - Rackmount

Brief Specifications:
• Intel Xeon - 2.4GHz (Socket 603)
• Matrox G450 AGP DualHead, 32mb
• 512MB RAM
• 40GB 3,5” HDD
• CD-ROM SLIM (24x)
• 1,44MB 3,5” FDD SLIM
• 10/100Base-T Fast Ethernet with Wake-On-LAN
• 1 x RS-232 Serial Ports
• 1 Parallel port
• Standard PS/2 mini DIN connector and pin header for keyboard and mouse.
• Dimensions 430 (W) x 178 (H) 450 (D) mm
• 230V 400W Auto ranging Power supply
Specifications
Typenumber (Long): HT X945R STD-xx
Installed Operating System Options: None, please specify when ordering
Storage Options: 40GB 3.5" HDD, 5400 RPM, 2MB Buffer
2 x EIDE Ports, ATA100, Ultra DMA33/66/100 (Includes PIO Mode)
Processor / CPU and FSB Speed Options: Intel® Xeon® Processor 2.4GHz / Socket 603 / 400MHz FSB / 512KB cache
Memory Options: 4 x 184 Pin DIMM Sockets, 512MB (PC800 Dual Channel RamBus RDRAM)
System+Graphics Chipset / Connectors: Intel® 860 / 1 x AGP Pro 4x 1.5V, Matrox G450 AGP DualHead, 32MB - Up to 2048 x 1536 - Up to 32-Bit colors - Up to 130 Hz
Max Resolution / Max Hz: 2048 x 1536 / 130Hz
BIOS: Award BIOS 512KB Flash
PCI Slots / PCIe Slots: 4 x PCI2.2 Slots 32-bit + 2 x PCI2.2 Slots 64-bit, Full Length Profile
Media Drive(s): CD-DRIVE: 1 x 24x CD-R
FDD Controller: 1 x 1.44 MB or 2.88 MB
LPT / Parallel Port: 1 x DB25F Bi-Directional Centronics with EPP/ECP mode
Serial Port(s): 1 x RS-232 Fast UART 16C550 Compatible, DB9M
Ethernet Port(s): 1 x 10/100Mbps Intel 82559 Base-T PCI Fast Ethernet with Wake-On-Lan - RJ-45
USB Port(s): 4 x USB 2.0 Type A
Keyboard and Mouse Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
Audio Ports: Integrated AC'97, 6 Channel, 5.1 speaker with LINE IN, LINE OUT, MIC IN - 3 x JACKS
Buzzer: None
Power Manager and Monitoring: APM Ver 1.2 and ACPI 1.0a, Power supply, fan and temperature supervision
Power Specifications and Consumption: 115VAC/60Hz or 230VAC/50Hz (400W Auto Ranging) - STD IEC
Operating: TBD(TYP) - TBD (MAX)
Digital I/O Connectors: None
Key Features: 4U Rackmount Chassis with handles
Product Dimensions and Weight: W:430.00 [16.93"] x H:178.00 [8.01"] x D:450.00 [17.72"] mm [inch]
Approx 17.5kg / 38.5lbs
Product Carton Size and Weight: N/A
User Controls / Activity: Power On/Off Push Button, Power LED, HDD LED
Factory Options: • Dual Xeon Processors
• Pinnacle Studio PCTV PRO PCI (TV-Out)
• ProfiBus PCI Card (Siemens)
• Memory upgradeable to max 2GB
• 3.5" Harddisk with any amount of GB
• CD Burner CD-R/RW
• More available on request
Accessories: None
Capabilities / Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: EN60945 3rd (IEC945 3rd), EN50081-2, EN61000-6-2, DNV, Standard for Certification No. 2.4
Specifications last updated: July 9, 2025 @ 12:38
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
11 Nov 2005
Product Obsolete
