JH 15T03 STD

Overview

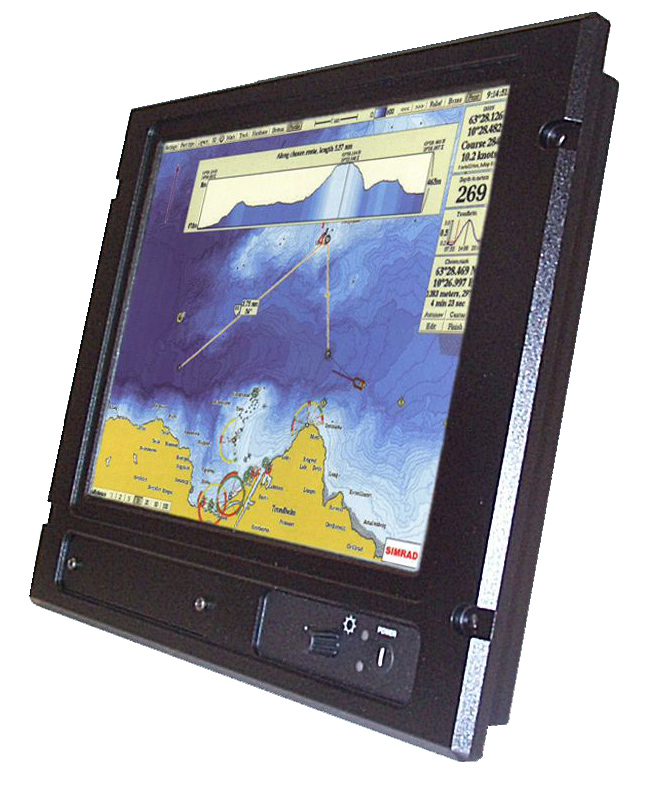

Monitor - CCFL - HATTELAND® Series 0 - 15.0 inch

JH 15T03 STD

The color display described in this Data Sheet is an industrialized version of a high quality Fujitsu TFT based display with MVA technology. (This is a lighter model based on JH15T03 MMD) It allows you to display professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 0

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. Brightness is adjustable from 0 to 100%.
Specifications
Typenumber (Long): JH 15T03 STD
TFT Technology: Thin Film Transistor (TFT), MVA Technology
Viewable Size and Active Area: 15.0 inch - 304.1 [11.97"] (H) x 228.1 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1024 x 768 (SXGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time: 4:3 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors: 80 deg. (up/down/left/right) - 262144 (6-bit color)
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz

Sync Signal:
• Separate synchronisation only
• Auto detects VGA -> XGA, non interlaced
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm

Synchronisation Range:
• Horizontal: 31,5 kHz to 48,3 kHz
• Vertical: 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption: Power Supply Options:
• 115VAC/60Hz or 230VAC/50Hz: Model JH 15T03 STD-A1
• 12-24 VDC: Model JH 15T03 STD-A2

Power Consumption:
• Operating: 40 W (max)
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• 2 x hotkeys
• Mode Status LED

Behind hatch:
• On Screen Display control (OSD/OSM)
Connectors: • RGB (PC) signal: 15pin mini D-SUB (female - Input)
• AC Power signal: Std IEC Inlet Model JH 15T03 STD-A1
• DC Power signal: Screw terminal Model JH 15T03 STD-A2
Product Dimensions and Weight: 412 (W) x 345 (H) x 58 (D) mm - 16.22" (W) x 13.58" (H) x 2.28" (D)
Weight: 7 kg (approx w/bracket)
Product Carton Size and Weight: N/A
Factory Options: • AC or DC model

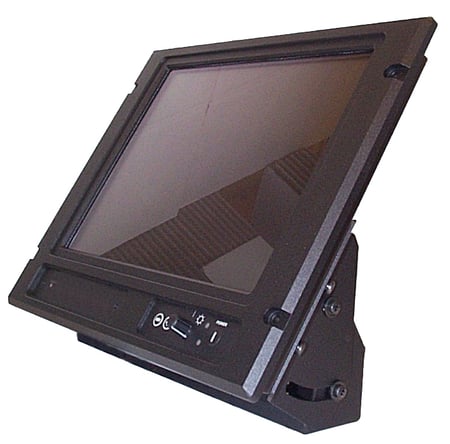

Accessories: • JH 15TBR = Bracket

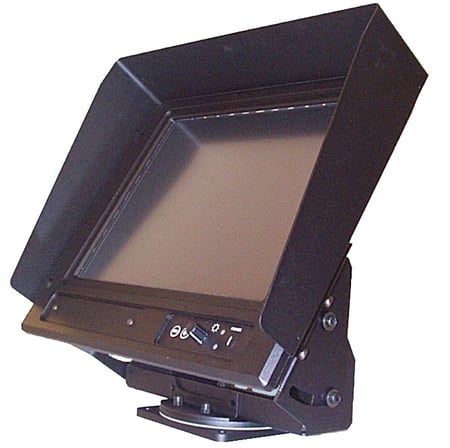

• JH 15TRO = Rotary Bracket

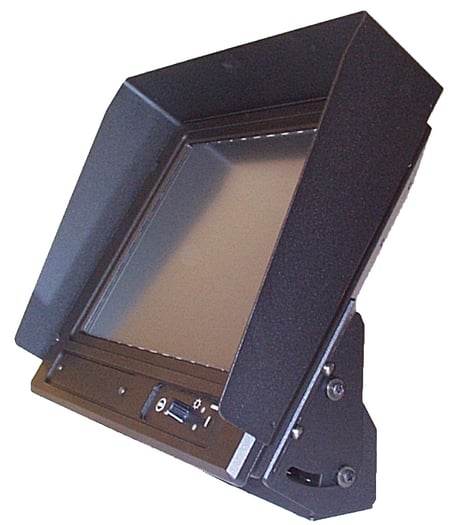

• JH 15TSV = Sun Visor
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to +50.0°C / 122.0°F
Humidity 20% to 85% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to +60.0°C / 140.0°F
Humidity 5% to 85% (non condensing)
IP Rating: EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: EN60945 3rd (IEC945 3rd), BV - Bureau Veritas, LRS - Lloyd's Register of Shipping, GL - Germanischer Lloyd, DNV - Det Norske Veritas, EN60529 (IP66), ClassNK - Nippon Kaiji Kyokai
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
26 May 2005
Product Obsolete
