 Marine & Offshore  / Panel Computer  / HATTELAND® Series 0  / JH 10T01 MMC

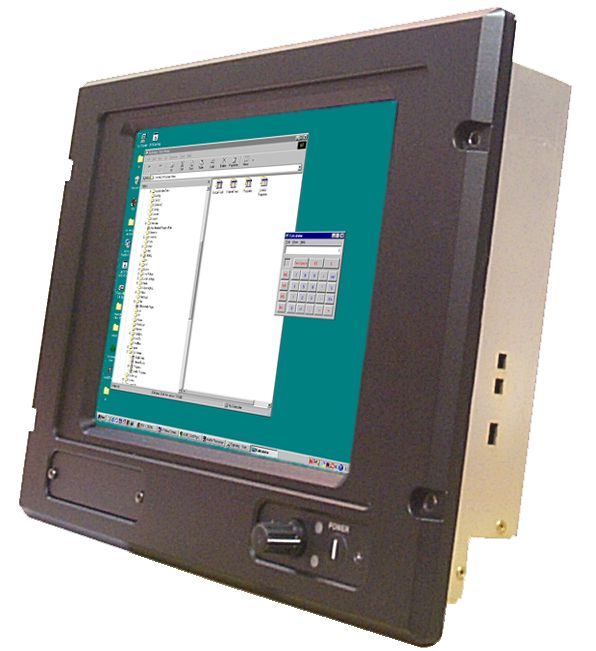

JH 10T01 MMC

Overview

Panel Computer - CCFL - HATTELAND® Series 0 - 10.4 inch

JH 10T01 MMC

The Maritime Multi Computer is based on a all-in-one-true multimedia processor-based single board computer. This unit is equipped with a 233MHz Cyrix processor, and accepts up to 256 Mb RAM. Solid State Disk solutions are available, and can be customized.

icon
CCFL-backlit
Send Request
Description

Panel Computer - HATTELAND® Series 0

The color display allows you to display professional applications with clearity and enhanced color and image quality. Brightness is adjustable from 0 - 100%. This unit is designed to work well in environments up to 55 degrees Celsius.
Specifications
Typenumber (Long): JH 10T01 MMC
TFT Technology: Active Matrix, Thin Film Transistor (TFT), RGB vertical stripe
Viewable Size and Active Area: 10.4 inch - 211.2 [8.31"] (H) x 158.4 [6.24"] (V) mm [inch]
Native Resolution and Pixel Pitch: 640 x 480 (VGA) - 0.33 (H) x 0.33 (V) mm
Aspect Ratio and Response Time: 4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio: 305 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors: 70 deg. (left/right), 40 deg. (up/down) (typ) - 16.7 million
Optimal Resolution and Hz: 1024 x 768 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions: 640 x 480 @ 60 Hz
• Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm
Power Specifications and Consumption: 24 VDC
50 W (max)
Product Features: Dimmable 0-100%, On-board support for AC97 audio
Installed Operating System (OS): None
Storage Options: 1 x 10 GB internal HDD (standard)
or 1 x Compact Flash (optonal)
CPU / Processor Options: 1 x Cyrix NS-GX1-233 Mhz
Memory Options: Max 256MB (SO-DIMM)
System Chipset / Graphics Chipset: Cyrix CX5530(A) / NS CX5530(A) with 4MB on chip, local-bus
BIOS / Buzzer: Award 256 KB Flash BIOS / Buzzer: None
Power Manager and Monitoring: N/A
User Controls and Activity: On front bezel:
• Power On/Off (push button)
• Brightness Control
• Power LED

Behind hatch:
• PS/2 Mouse or Keyboard connector
Connectors: • Ethernet LAN 10/100mbps: 1 x RJ45 (Realtek RTL8139)
• Keyboard: 1 x PS/2 + 1 x PS/2 connector behind hatch in front (service keyboard)
• Mouse: 1 x PS/2
• COM 1: 1 x DB9, RS232
• COM 2: 1 x DB9, RS232/422/485
• LPT/Parallel: 1 x DB25 SPP/EPP/ECP
• USB: 2 x Std. USB Type A
• VGA OUT: 1 x DB15
• Compact Flash: 1 x Type 1&II Compatible
• Floppy: 1 x DB37, 1.4 MB HD - External
• DC Power IN: 1 x DC Screw terminal
Product Dimensions and Weight: 339 (W), 256 (H), 82 (D) mm
4.2 kg (approx)
Product Carton Size and Weight: N/A
Factory Options: • Resistive Touchscreen
• Internal PC/104 Interface
• Up to 256MB of memory
Accessories: • JH 10TSV = Sun visor
Capabilities / Prepared for: None
Operating Temperature: -20.0°C / -4.0°F to +55.0°C / 131.0°F
+70 deg. C non functional)
Humidity 30% to 90% (non condensing)
Storage Temperature: -20.0°C / -4.0°F to 70.0°C / 158.0°F
Humidity 10% to 90% (non condensing)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: N/A
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

End of Life Notifications (EOL):
13 Dec 2006
10 inch Maritime Multi Computer JH 10T01 MMC models and...

News Stories:
9 Oct 2006
New product: 10,4 Inch Panel Computer

Obsolete
