Computer - Compact - 4-Bay

HTC03 AC

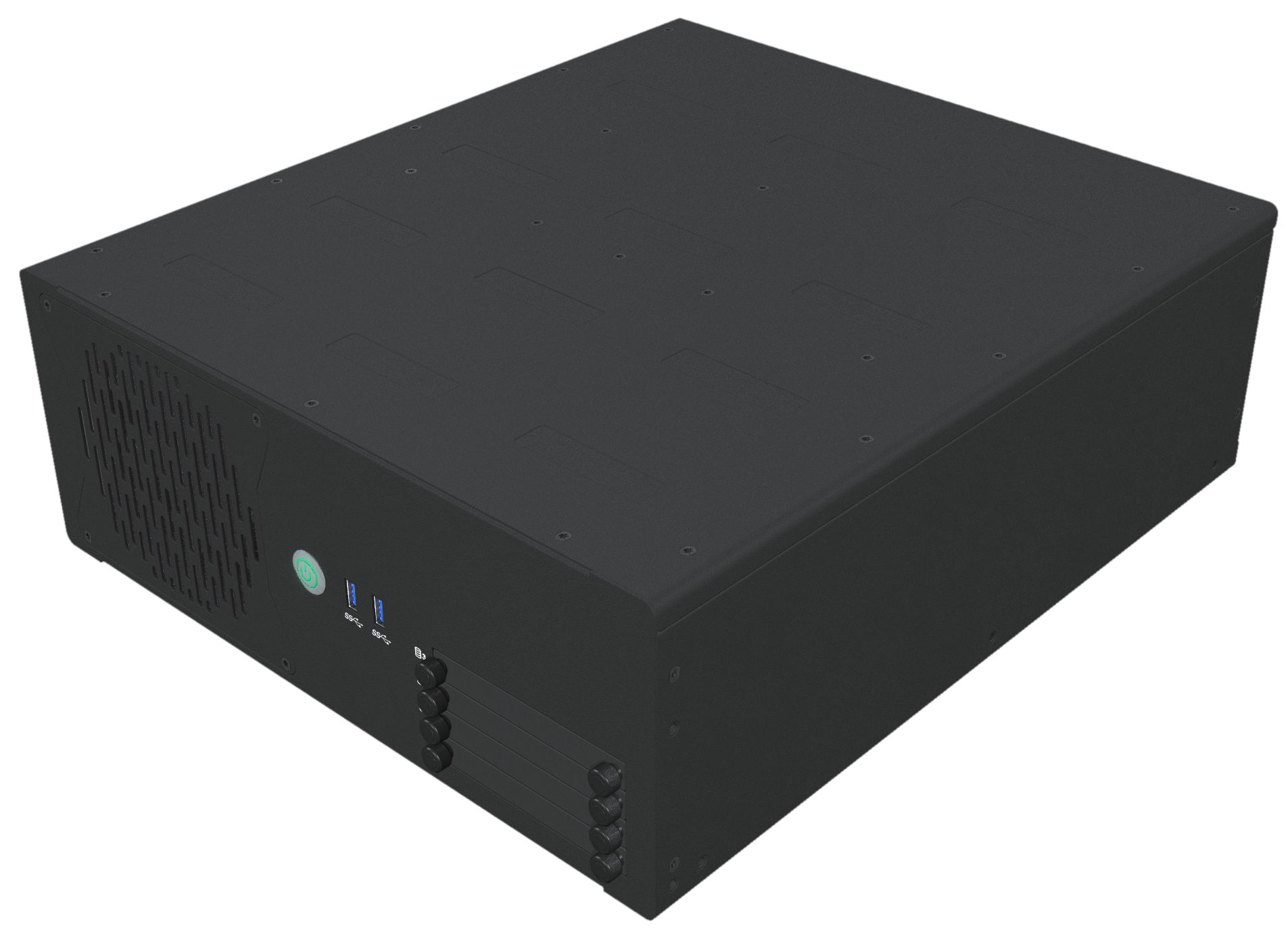

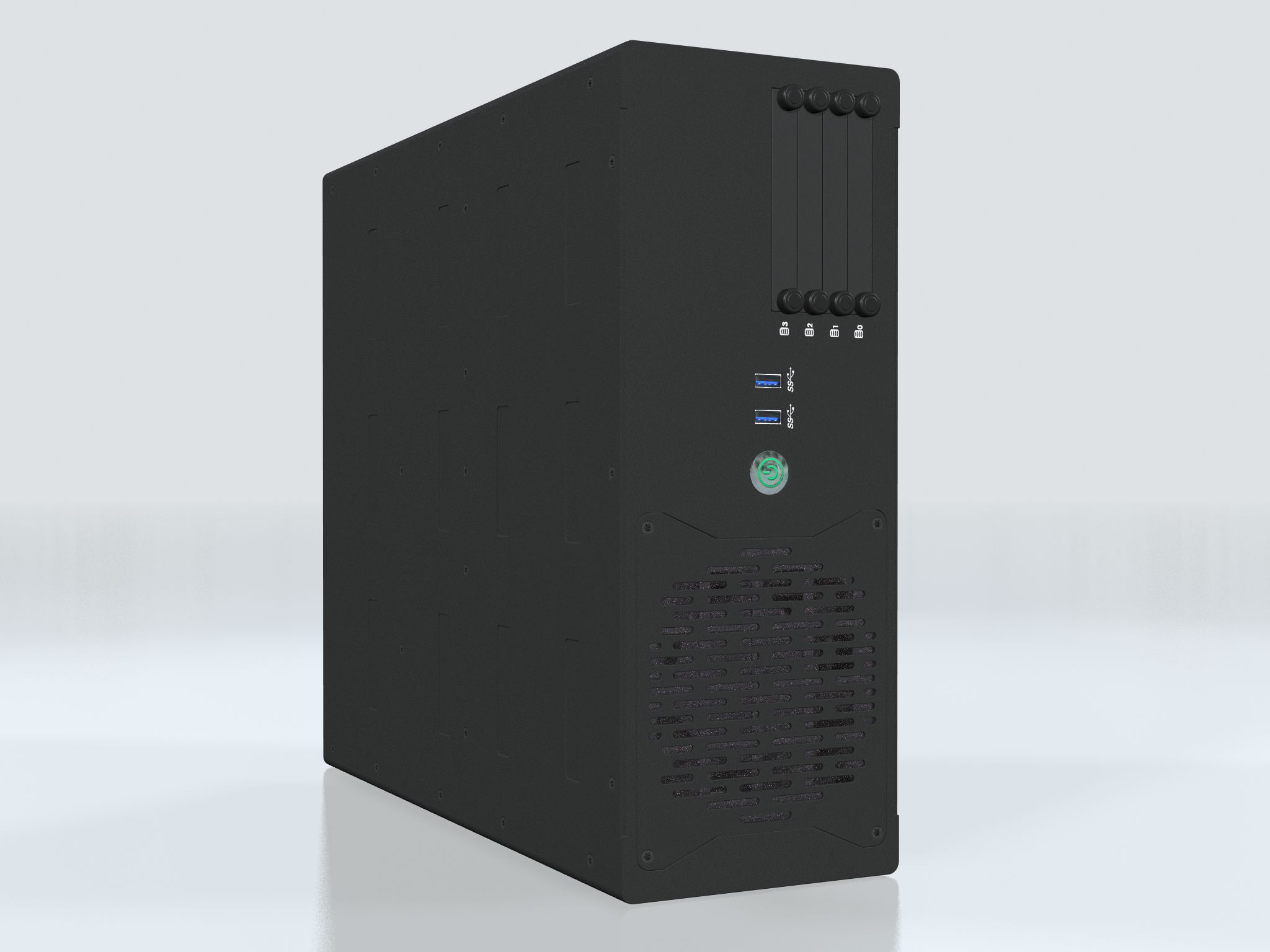

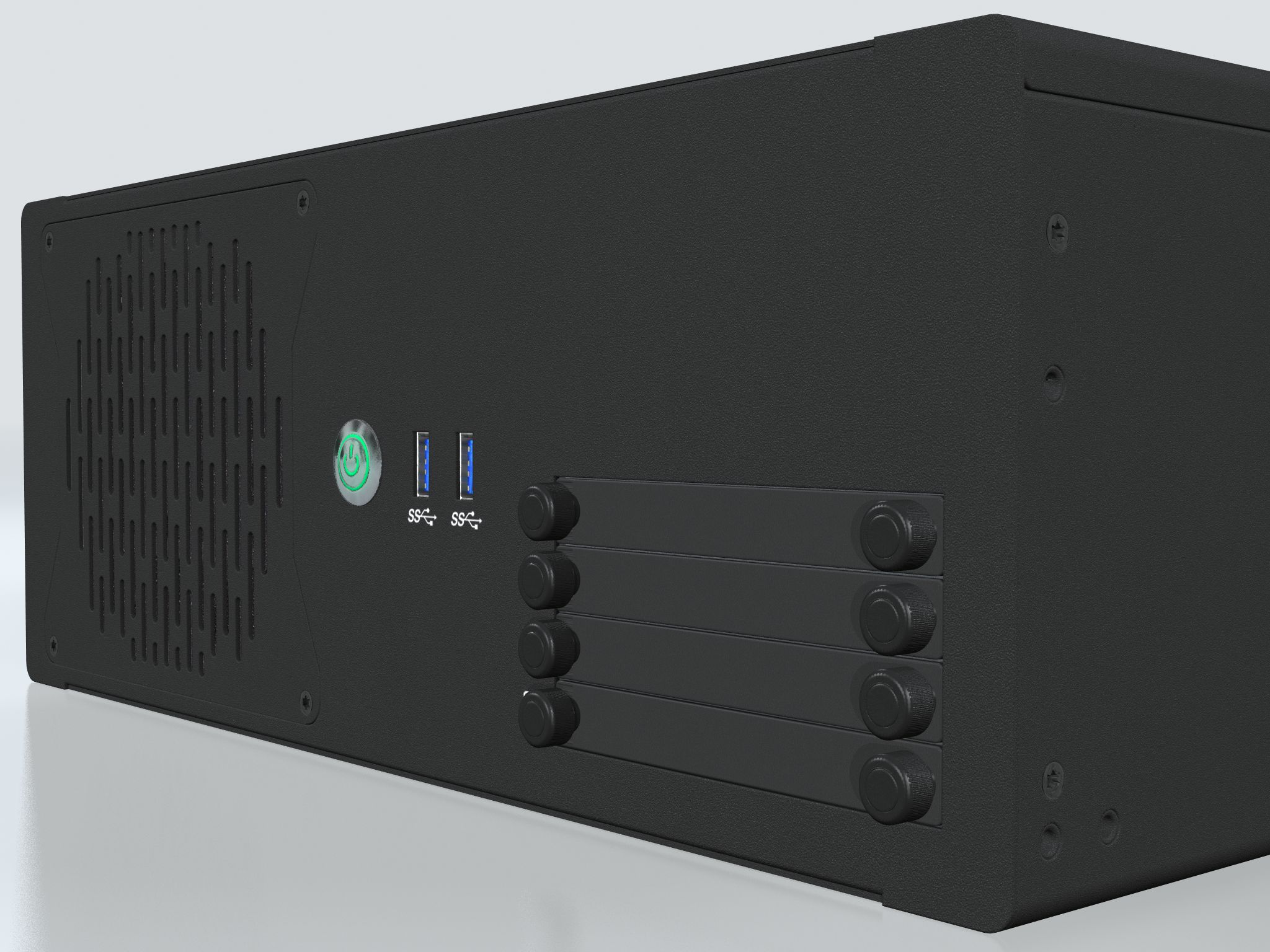

The HTC03 model is the successor to the best in class and highly successful HT C02 computer. The new model incorporates latest processor technologies and enhanced feature sets, thus providing greater versatility for high-end maritime system applications. This HTC03 model features 4 removable bay/trays in front. A model with 2 removeable bays/trays is also available.

IoT Enabled

TPM 2.0

Send Request

Description

Specifications

Installed Operating System Options:	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	2 or 4 x 2.5" Removable Front Trays with options of: - 2.5"/M.2 SSD SATA 3.0 (6GB/s) 240GB (0.9PBW),480GB (1.2PBW),960GB (3.4PBW), 1.9TB (7.1PBW) M.2 Storage (PCIe options): 1 x M.2 2280 M-key (one SATA + NVMEx4) 1 x M.2 2230 E-Key (PCIe + USB for WiFi)
Processor / CPU and FSB Speed Options:	1 x Intel® Core™ i3-9100E, 4-Core 3.10GHz - 3.70GHz, 6MB Cache or 1 x Intel® Core™ i5-9500E, 6-Core 3.00GHz - 4.20GHz, 9MB Cache or 1 x Intel® Core™ i7-9700E, 8-Core 2.60GHz - 4.40GHz, 12MB Cache
Memory Options:	1 x 8GB (single channel, DDR4) installed. Max 64GB RAM possible, Single or Dual Channel available Options: Single Channel: 1 x 8GB (2400MHz) Dual Channel: 2 x 8GB (2400MHz), 2 x 16GB (2400MHz), 2 x 32GB (2666MHz).
System+Graphics Chipset / Connectors:	Intel® Q370 / Intel® UHD 630, DirectX Support 12.0, Shader Model 6.4, OpenCL 2.1, OpenGL Support 4.5/linux, Vulkan 1.1.97 1 x USB-C + 2 x DisplayPort 1.2 (2 x Display clone + 1 extended)
Max Resolution / Max Hz:	Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS:	UEFI, ACPI support
PCI Slots / PCIe Slots:	1 x PCIe 3.0 x16 (reserved for additional Graphics Card, see options) 1 x PCIe 3.0 x4 (x8 socket) 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1 All slots are Full Height&Full Length profile
Media Drive(s):	None
LPT / Parallel Port:	None or option: SX-118A: 1 x Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP, PCIe x1 card
Serial Port(s):	1 x DB9M, RS-232/RS-422/RS-485 un-isolated Baud Rate: Max 115.2Kbps
Ethernet Port(s):	2 x RJ-45, LAN 10/100/1000Mbps,Intel®,Support for Intel® Teaming 2 x RJ-45, LAN 10/100/1000Mbps (non intel)
USB Port(s):	2 x USB 3.1 Type A (<3m) ports in front 4 x USB 3.1 Type A (<3m) ports in rear 1 x USB-C (DisplayPort - Power Distrubution enabled, 60W) in rear
Keyboard and Mouse Ports:	None
Audio Ports:	Realtek HD Audio supports 2.0 channel, Mic. in, Line out (2x3.5mm Jack) + Audio 2W Amplified with Line-in, Line-Out, Mic via 1 x DB9F
Buzzer:	None
Power Manager and Monitoring:	ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step
Power Specifications and Consumption:	100-240V AC - 50/60Hz Operating 70W (typ) - 240W (max) AC Power IN: 1 x Std IEC inlet
Digital I/O Connectors:	None or option: 1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
Key Features:	High Performance, Easy Removable Front Air Filter, Internal Cooling fan in front (120x120mm), Service friendly, Includes mounting brackets, LAN Wakeup, USB Boot, Trusted Platform Module 2.0 (TPM2.0), Intel® Management Engine. True power on after power fail, Firmware Raid
Product Dimensions and Weight:	W:345.00 [13.58"] x H:133.00 [5.24"] x D:392.30 [15.44"] mm [inch] 3U Rack size in height. Approx 9kg / 19.8lbs
Product Carton Size and Weight:	L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch] pprox. 12kg / 26.4lbs
User Controls / Activity:	Front: Power/Reset/Power LED Combined Function
Factory Options:	• PNY NVIDIA T400 4GB PCIe 3.0 x16, LP, 3x mDP • CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485) • PNY NVIDIA T1000 8GB PCIe x16, 4x mDP 1.4 • PNY NVIDIA RTX A2000 12GB: PCIe 4.0 x16, 4 x mDP 1.4, 12GB GDDR6 • X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45 • I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45 • X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+ (Pending) • X710DA4 / X710DA4BLK: Intel® Fiber Network Adapter (10GbE), 4 x SFP+ (Pending) • PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT module* • PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) module* • PCA100309-1: Dual Isolated RS-232, 2xDB9 module* • PCA200828-1: COM RS-422/485 isolated NMEA 4 ch.,5-pin T. Block 3.81 • SX-118A: Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP, PCIe x1 card • HTA2020002-SLCAN: Socket CAN isolated, 2 channel module* • HTA2020002-AD1033: CAN isolated, 2 channel module* • VSDxxxxxx-x: Additional USB ports. *For all Factory Mounted Options Combinations, review User Manual.
Accessories:	• HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail&mounting kit for 19" Rack • HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail&mounting kit for 19" Rack • HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit(compatible with HT00224/00225) • HT 00226 OPT-A1: 2 x Mounting Bracket, 4mm SECC+Zinc Plating, RAL9011 • JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle • HT 00275 OPT-A1: 1 x PCI Mount Kit EN60945, Low Profile (LP, any len.) • H733S30Q20-SP000-0: 1 x Replacement Front Air Filter w/4 screws • HT MBK STD-C1: Mounting Bracket Kit HTC03/HTC04 - L-Shaped • HD 000TR SX2-A3: 1 x Removable Tray 2.5" w/4xM3x4mm Phillips Countersunk Screws • HT RET STD-A3: 1 x Cable/Retainer Kit • 895-0492: USB-C cable, 2m • USB-C to DP Adapter PENDING • VSDDPVGA340 / HT DPM2VGAF-A1: 1 x DP to VGA adapter • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • RC3473 / HT DPM2DVI-DF-A1: 1 x DP to DVI adapter • DVI-D adapter for NVIDIA Graphics Card: QSP-MINIDP/DVIV2 • DP adapter for NVIDIA Graphics Card: QSP-MINIDP/DPV3 • HDMI adapter for NVIDIA Graphics Card: QSP-MINIDP/HDMIV2 • VGA adapter for NVIDIA Graphics Card: QSP-MINIDP/VGA • HT 00300 MSOS: OS options -> www.hattelandtechnology.com/os • HD xxxyy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device*
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 260.00 [10.24"] - Steering: 170.00 [6.69"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

Specifications last updated: April 8, 2025 @ 07:50

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

7 Jan 2025
Graphic card NVIDIA T400 4GB and T1000 8GB used in Hatt...

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

10 Sep 2023
CAN FW Update

7 Aug 2023
Changes product marking - all products

23 Jun 2023
CAN FW Update

30 Jun 2022
SSD - Storage Devices, m.2 and 2.5''

5 Nov 2021
Graphic Cards (factory options) used in Hatteland Techn...

2 Nov 2021
Intel® Ethernet Network Adapter used in Hatteland Techn...

20 Oct 2021
Default adapter kit removed from standard delivery

24 Aug 2021
BIOS update HTC03 and HT20370

News Stories:

21 Apr 2021
Official Product Launch

14 Jan 2021
Preliminary product released to website
