Computer - Fanless - Compact - 4-Bay - Industrial Marine

HT20370

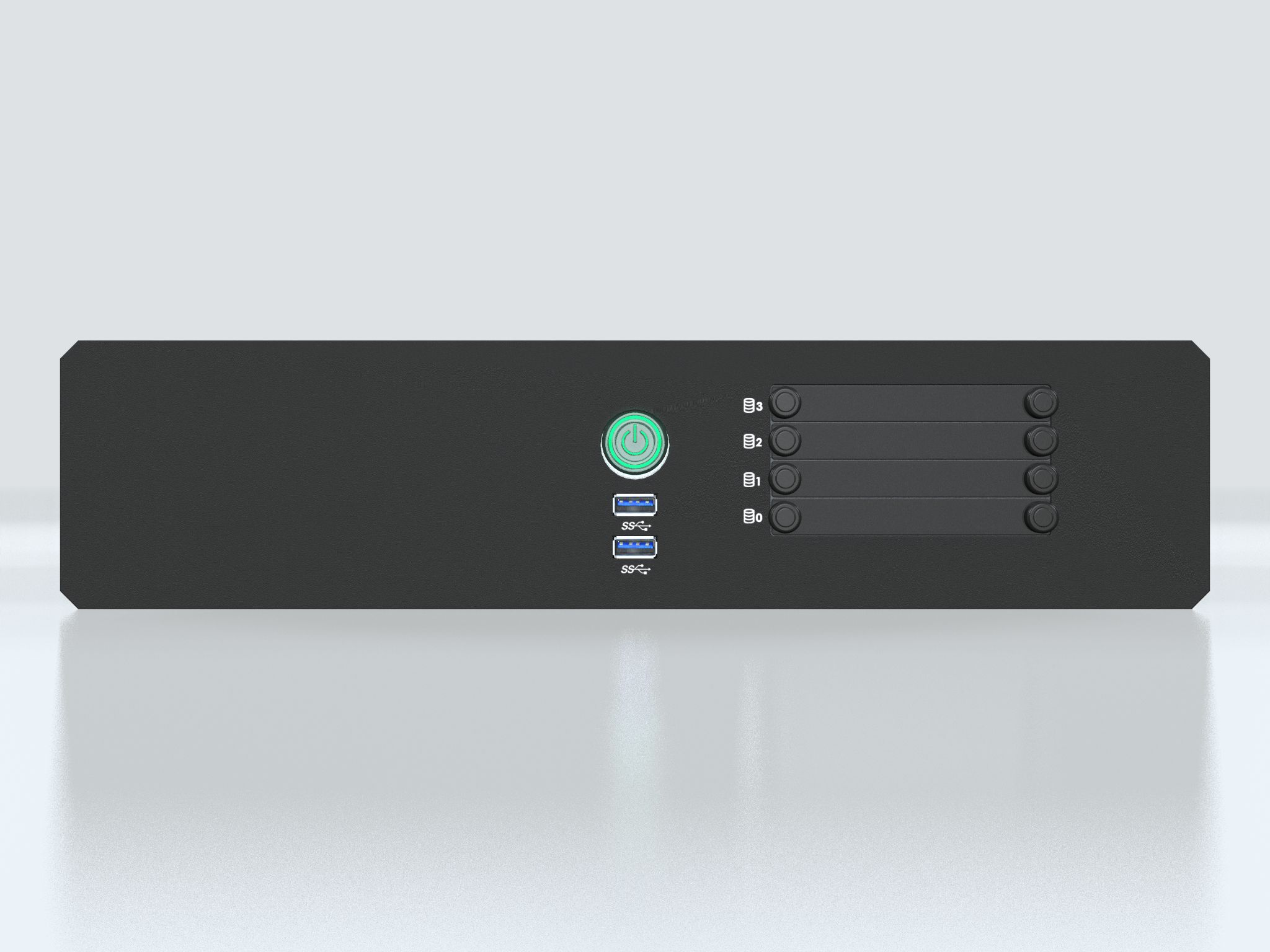

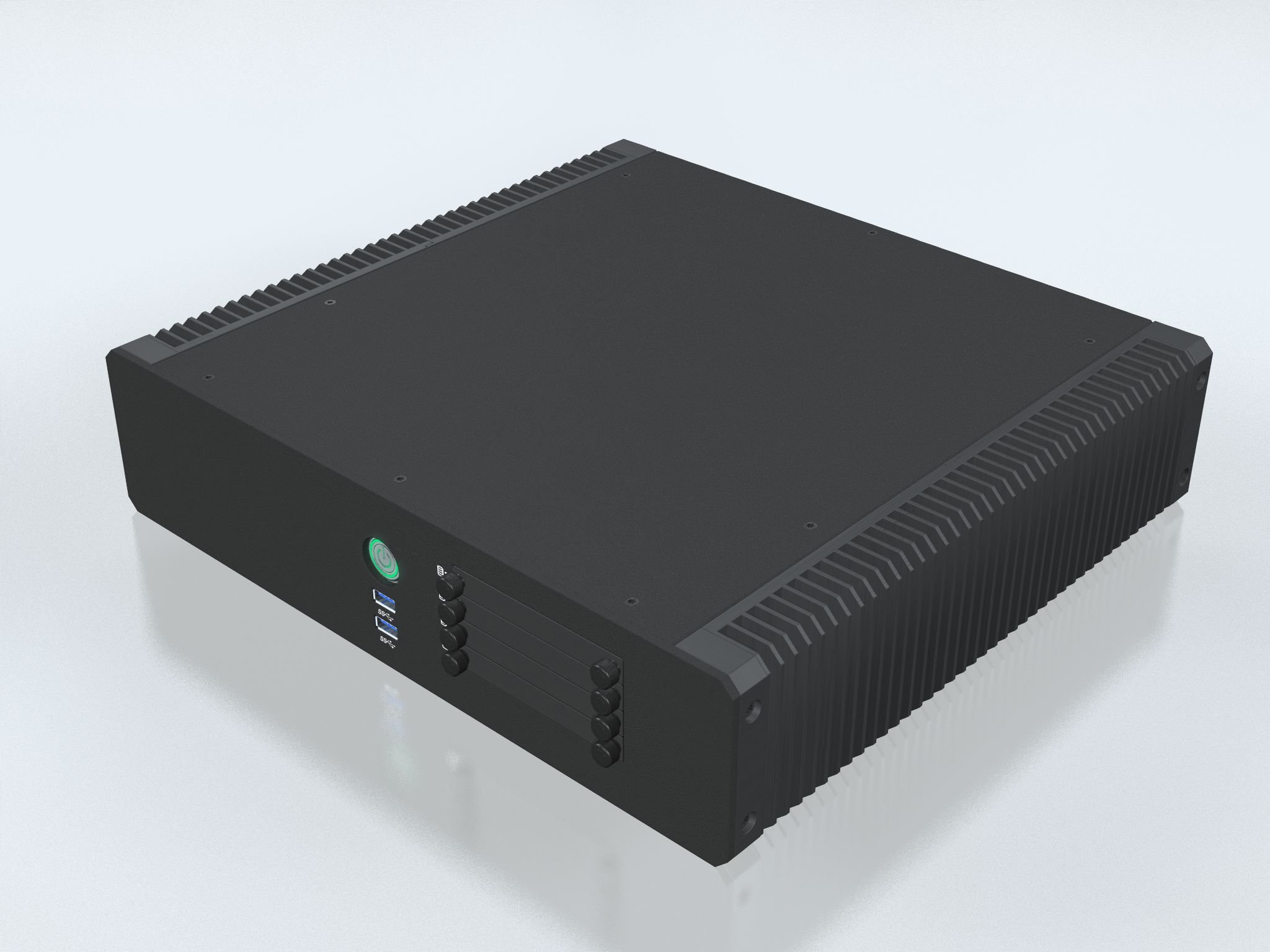

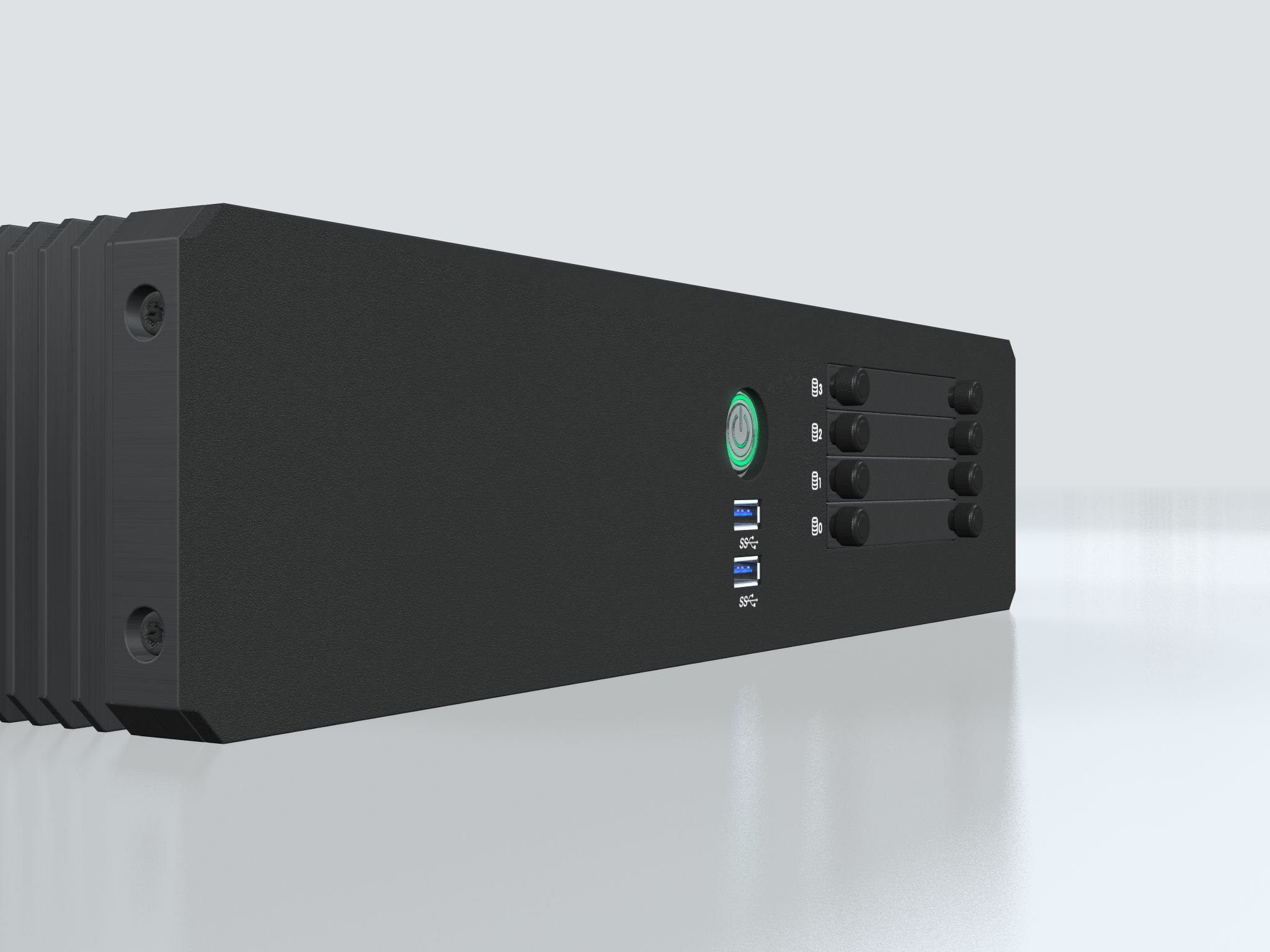

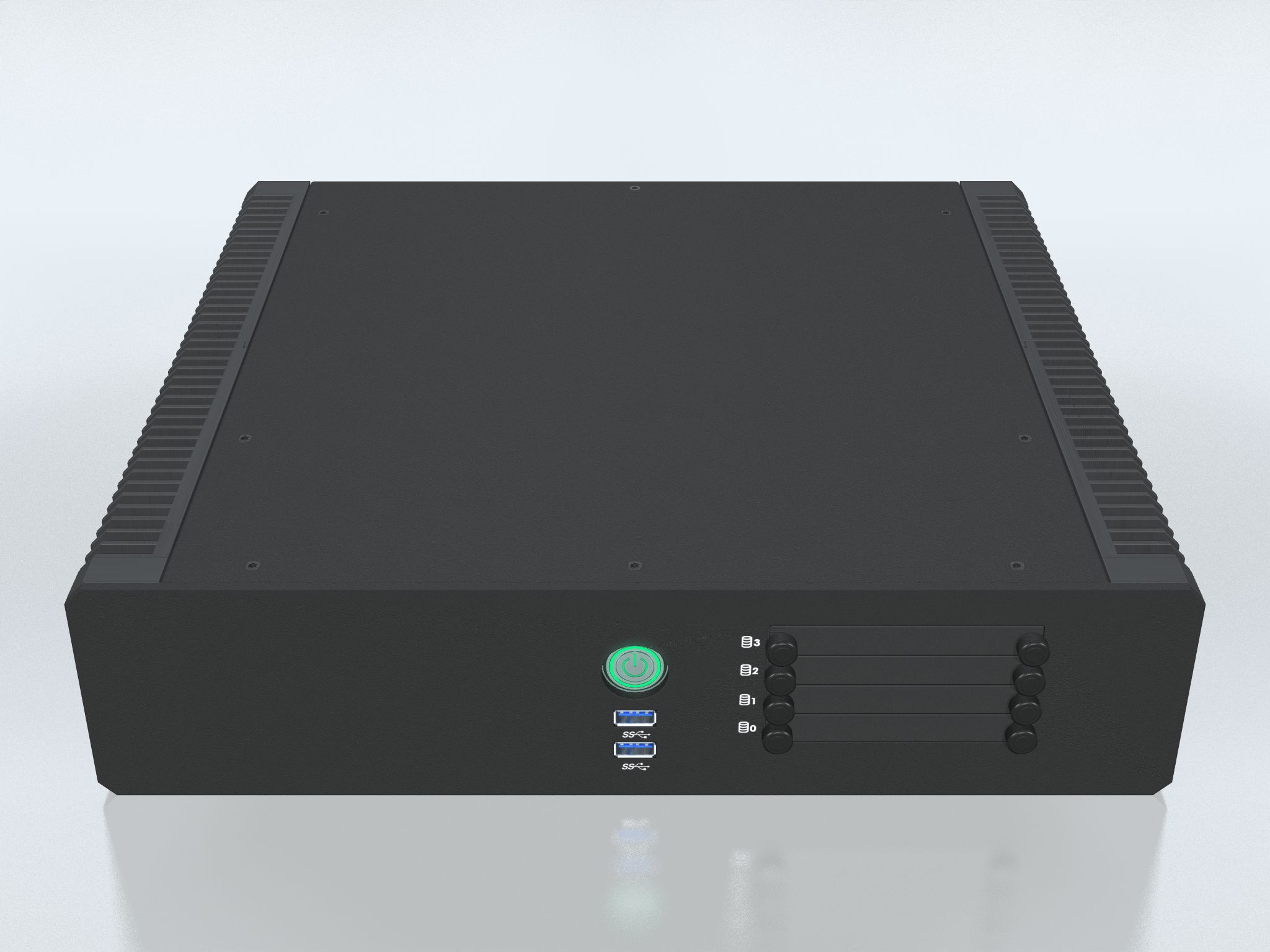

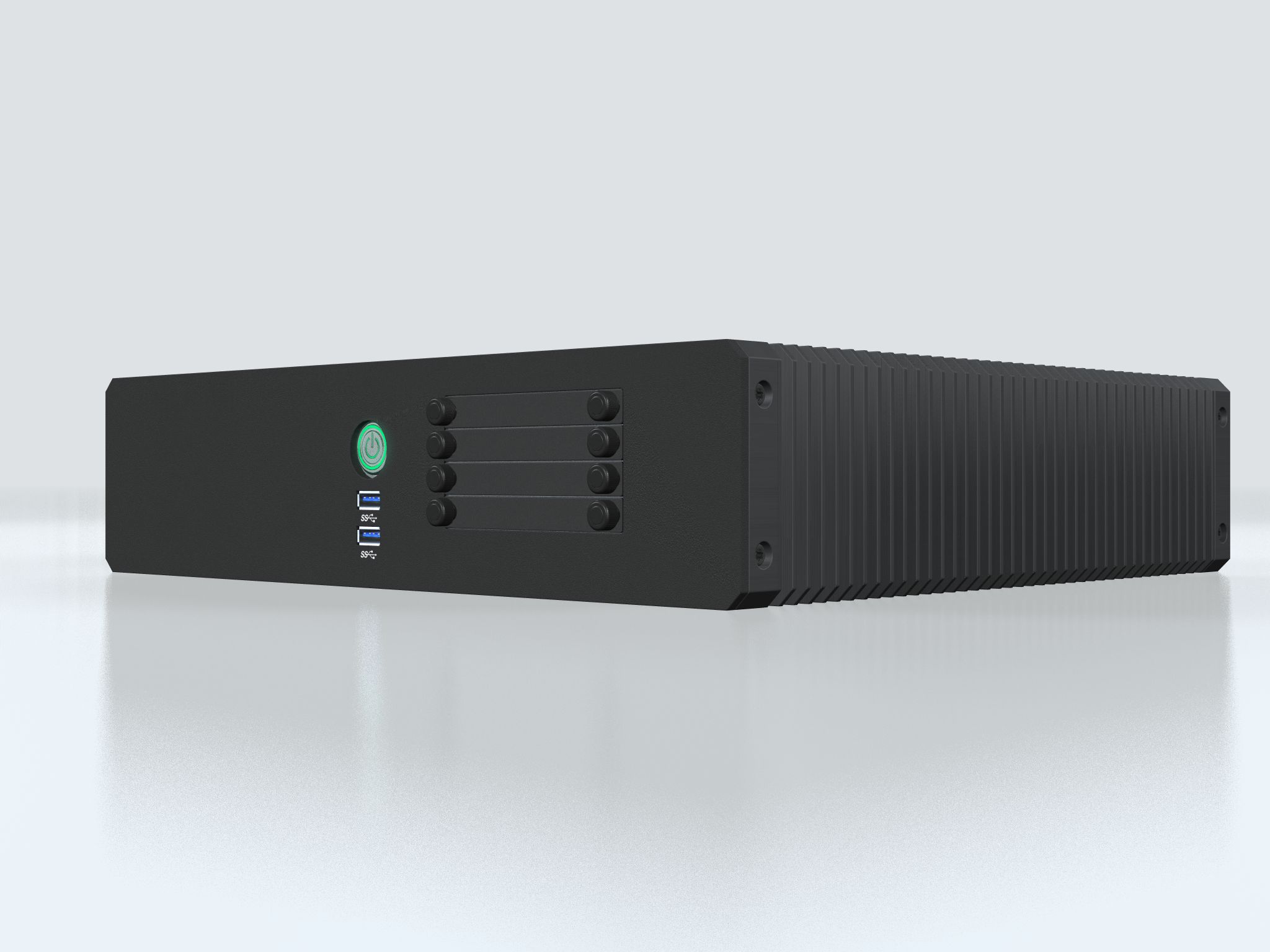

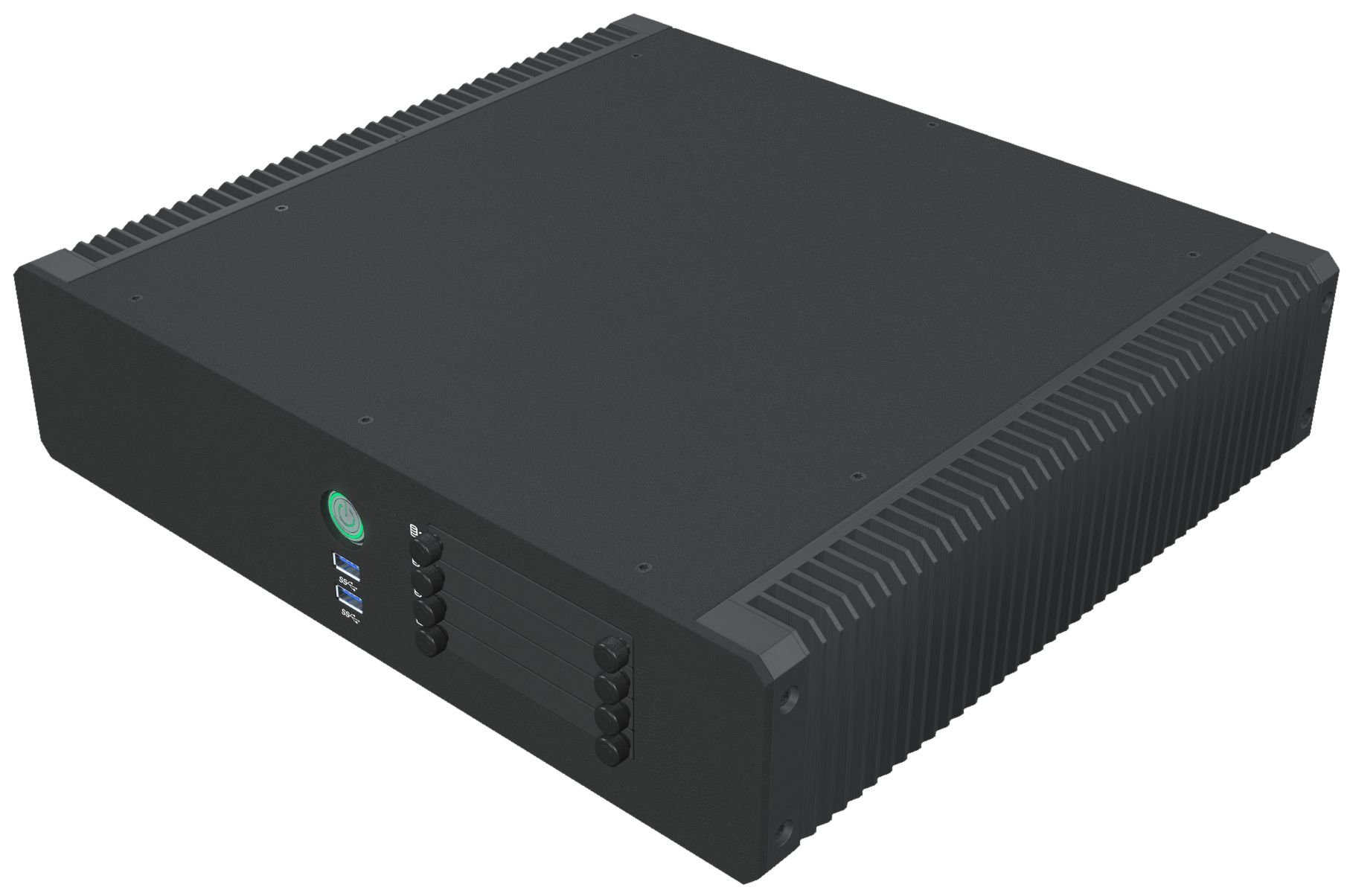

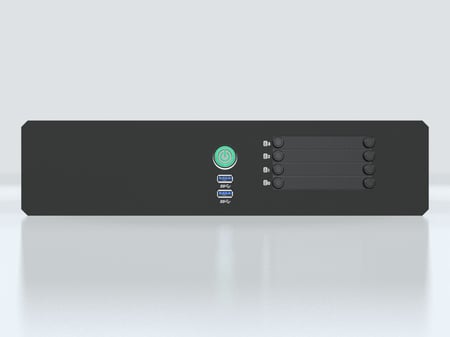

The HT20370 model is the successor to the best in class and highly successful ENIX-2087 computer. The new model incorporates latest processor technologies and enhanced feature sets, thus providing greater versatility for high-end maritime system applications. This HT20370 model features 4 removable bay/trays in front. A model with 2 removeable bays/trays is also available.

Fanless

IoT Enabled

TPM 2.0

Send Request

Description

Specifications

Installed Operating System Options:	Windows® 10 IoT Enterprise 2019 LTSC (64bit) installed, review datasheet for other options
Storage Options:	2 or 4 x 2.5" Removable Front Trays with options of: - 2.5"/M.2 SSD SATA 3.0 (6GB/s) 240GB (0.9PBW),480GB (1.2PBW),960GB (3.4PBW), 1.9TB (7.1PBW) M.2 Storage (PCIe options): 1 x M.2 2280 M-key (one SATA + NVMEx4) 1 x M.2 2230 E-Key (PCIe + USB for WiFi)
Processor / CPU and FSB Speed Options:	1 x Intel® Core™ i3-9100TE, 4-Core 2.20GHz - 3.20GHz, 6MB Cache or 1 x Intel® Core™ i5-9500TE, 6-Core 2.20GHz - 3.60GHz, 9MB Cache or 1 x Intel® Core™ i7-9700TE, 8-Core 1.80GHz - 3.80GHz, 12MB Cache
Memory Options:	1 x 8GB (single channel, DDR4) installed. Max 64GB RAM possible, Single or Dual Channel available Options: Single Channel: 1 x 8GB (2400MHz) Dual Channel: 2 x 8GB (2400MHz), 2 x 16GB (2400MHz), 2 x 32GB (2666MHz).
System+Graphics Chipset / Connectors:	Intel® Q370 / Intel® UHD 630, DirectX Support 12.0, Shader Model 6.4, OpenCL 2.1, OpenGL Support 4.5/linux, Vulkan 1.1.97 1 x USB-C + 2 x DisplayPort 1.2 (2 x Display clone + 1 extended)
Max Resolution / Max Hz:	Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS:	UEFI, ACPI support
PCI Slots / PCIe Slots:	1 x PCIe 3.0 x16* + 2 x PCIe 3.0 x4 (1 x x8) + 1 x PCIe 3.0 x1 *reserved for additional graphics card, see Factory Mounted Options
Media Drive(s):	None
LPT / Parallel Port:	None or option: SX-118A: 1 x Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP, PCIe x1 card
Serial Port(s):	1 x DB9M, RS-232/RS-422/RS-485 un-isolated Baud Rate: Max 115.2Kbps
Ethernet Port(s):	2 x RJ-45, LAN 10/100/1000Mbps,Intel®,Support for Intel® Teaming 2 x RJ-45, LAN 10/100/1000Mbps (non intel)
USB Port(s):	2 x USB 3.1 Type A (<3m) ports in front 4 x USB 3.1 Type A (<3m) ports in rear 1 x USB-C (DisplayPort - Power Distrubution enabled, 60W) in rear
Keyboard and Mouse Ports:	None
Audio Ports:	Realtek HD Audio supports 2.0 channel, Mic. in, Line out (2x3.5mm Jack) + Audio 2W Amplified with Line-in, Line-Out, Mic via 1 x DB9F
Buzzer:	None
Power Manager and Monitoring:	ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step

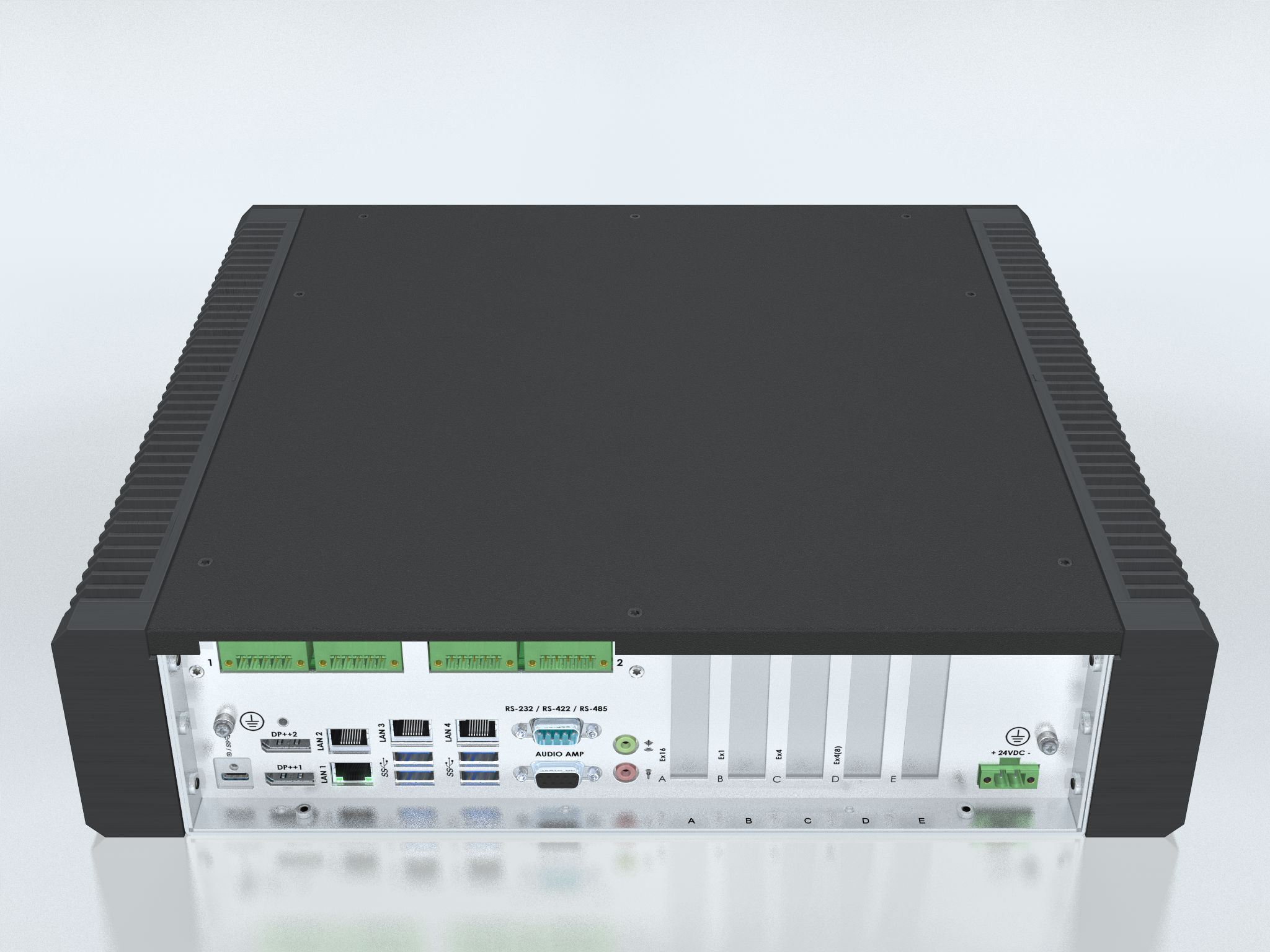

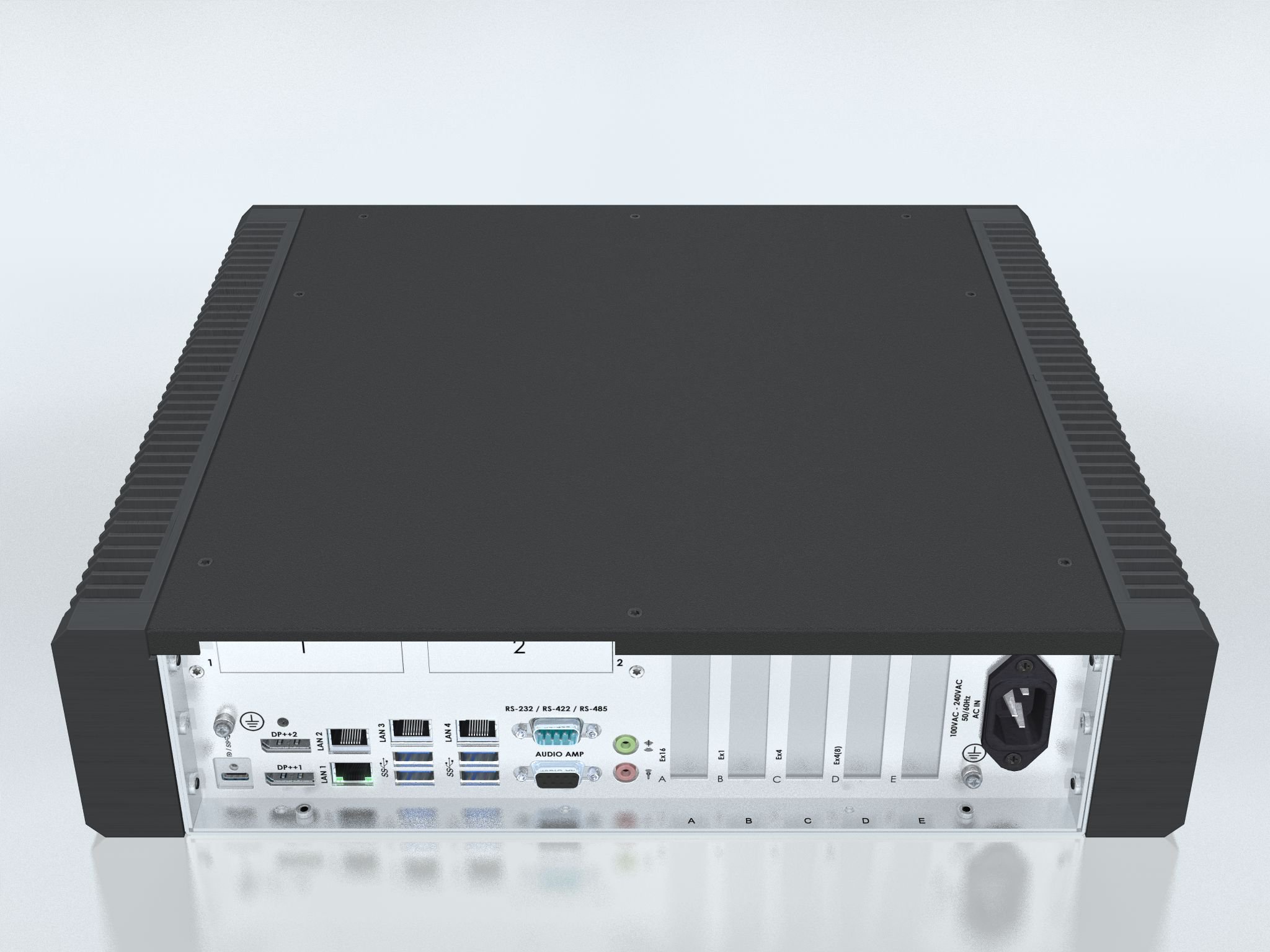

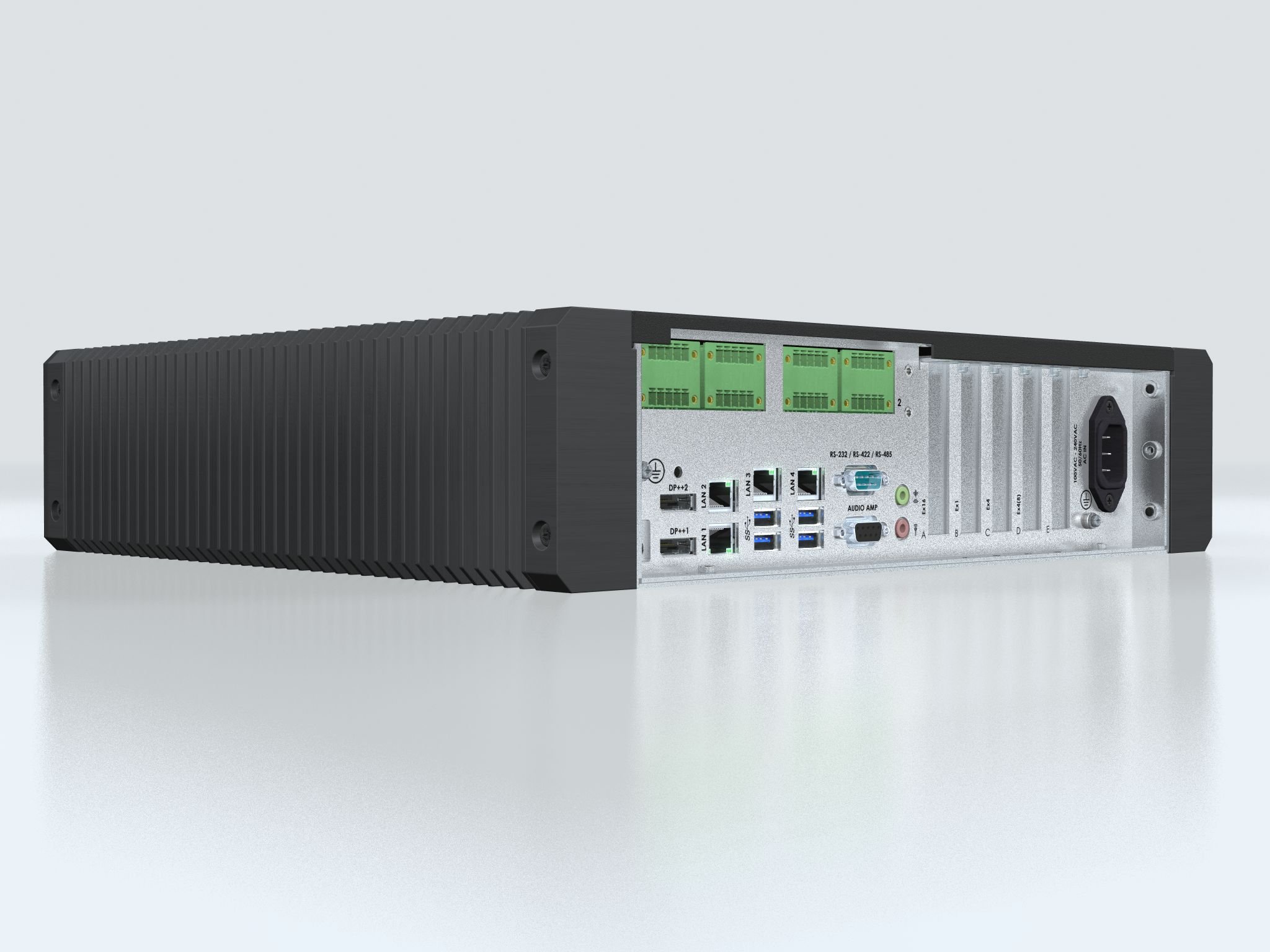

Power Specifications and Consumption:	100-240V AC - 50/60Hz or 24VDC Operating 40W (typ) - 240W (max) If AC Power IN: 1 x Std IEC inlet If DC Power IN: 1 x 2-pin Terminal Block 5.08
Digital I/O Connectors:	None or option: 1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
Key Features:	High Performance, Service friendly, Includes mounting brackets, LAN Wakeup, USB Boot, Trusted Platform Module 2.0 (TPM2.0), Intel® Management Engine. True power on after power fail, Firmware Raid
Product Dimensions and Weight:	W:380.14 [14.97"] x H:88.90 [3.50"] x D:351.10 [13.82"] mm [inch] 2U Rack size in height. Approx 7.5kg / 16.5lbs
Product Carton Size and Weight:	L:580.00 [22.83"] x W:160.00 [6.30"] x H:470.00 [18.50"] mm [inch] 10.0kg / 22.0lbs

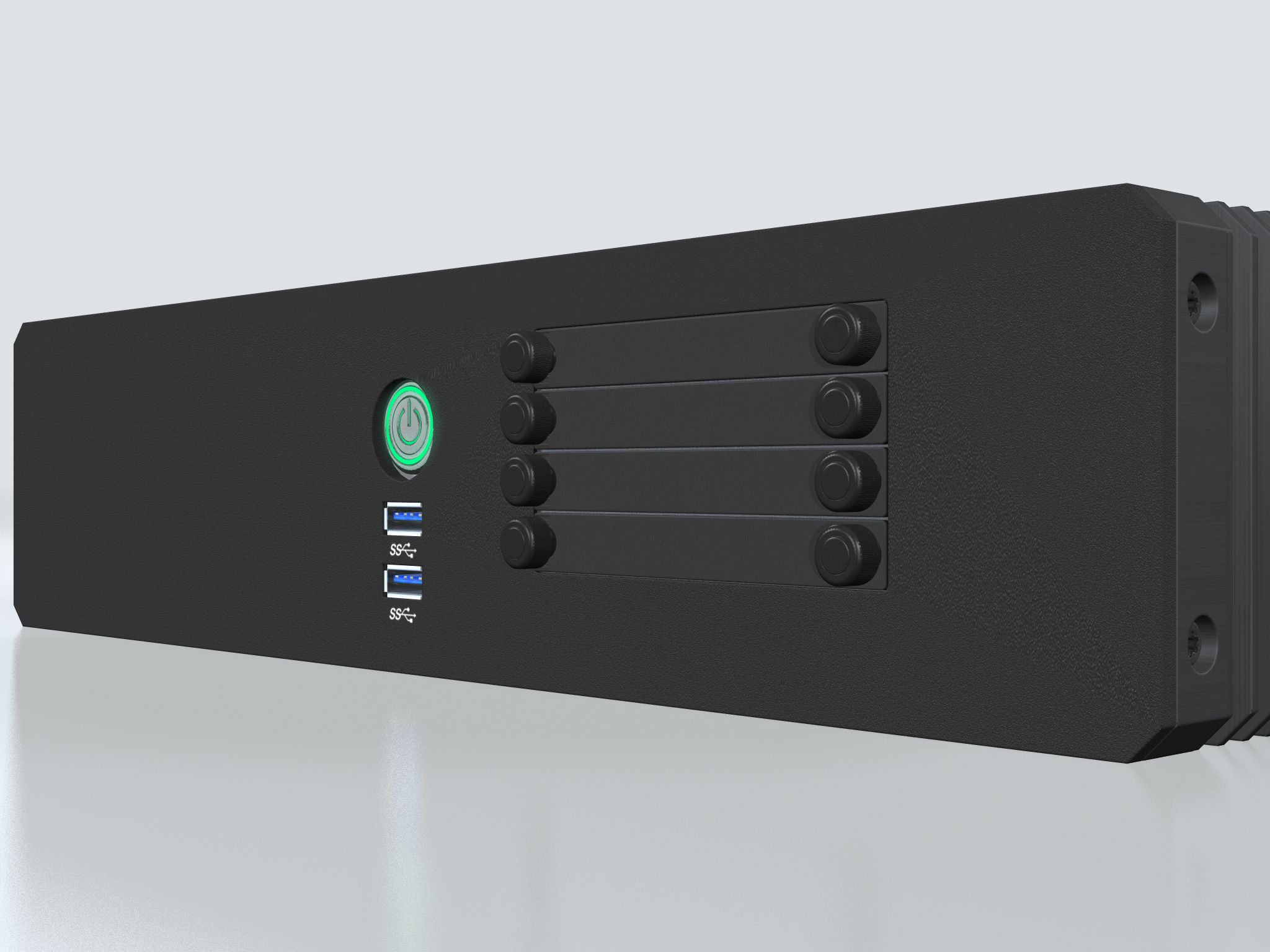

User Controls / Activity:	Front: Power/Reset/Power LED Combined Function
Factory Options:	• PNY NVIDIA T400 4GB: PCIe x16, 3x mDP 1.4, 4GB GDDR6 • CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485) • X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+ • I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45 • HTA2020002-AD1033: CAN isolated, 2 channel module* • HTA2020002-SLCAN: Socket CAN isolated, 2 channel module* • PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) module • PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT module* • PCA200828-1: COM RS-422/485 isolated NMEA 4 ch., 5-pin T. Block 3.81* • PCA100309-1: Dual Isolated RS-232, 2xDB9 module* • HT EPB STD-A3: Remote ON/OFF Kit *For all Factory Mounted Options Combinations, review User Manual.
Accessories:	• HT RMK STD-E1: 2U Rack Mount Kit 19" - HT20xxx • HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail&mount kit for 19" Rack • HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail&mount kit for 19" Rack • HT MBK STD-E1: Desktop Mounting Kit HT20xxx - Plate Shaped • JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle • HT 00a300 MSOS: OS options -> http://www.hattelandtechnology.com/os • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • VSDDPVGA340 / HT DPM2VGAF-A1: 1 x DP to VGA adapter • RC3473 / HT DPM2DVI-DF-A1: 1 x DP to DVI adapter • HT MBK STD-F1: Mounting Bracket Kit HT20xxx - L-Shaped (included w/delivery) • ZA-A390: Mini DP to DVI (female) • ZA-A391: Mini DP to HDMI (female) • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HD 000TR SX1-A1: 1 x Removable Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device* • HD 000TR SX2-A3: 1 x Removable Tray 2.5" w/4xM3x4mm Phillips Countersunk Screws • HDMI adapter for Nvidia Graphics Card: QSP-MINIDP/HDMIV2 • HT RET STD-A3: 1 x Cable Retainer/Relief Kit (included w/delivery) • VSD203400-1: External Power Button Cable 2m • VSD203400-2: External Power Button Cable 5m • VSD203733-1: External Power Button Cable 4.6m (no power button included)
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 150 [59.06"] - Steering: 130 [51.18"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

Specifications last updated: April 8, 2025 @ 07:50
