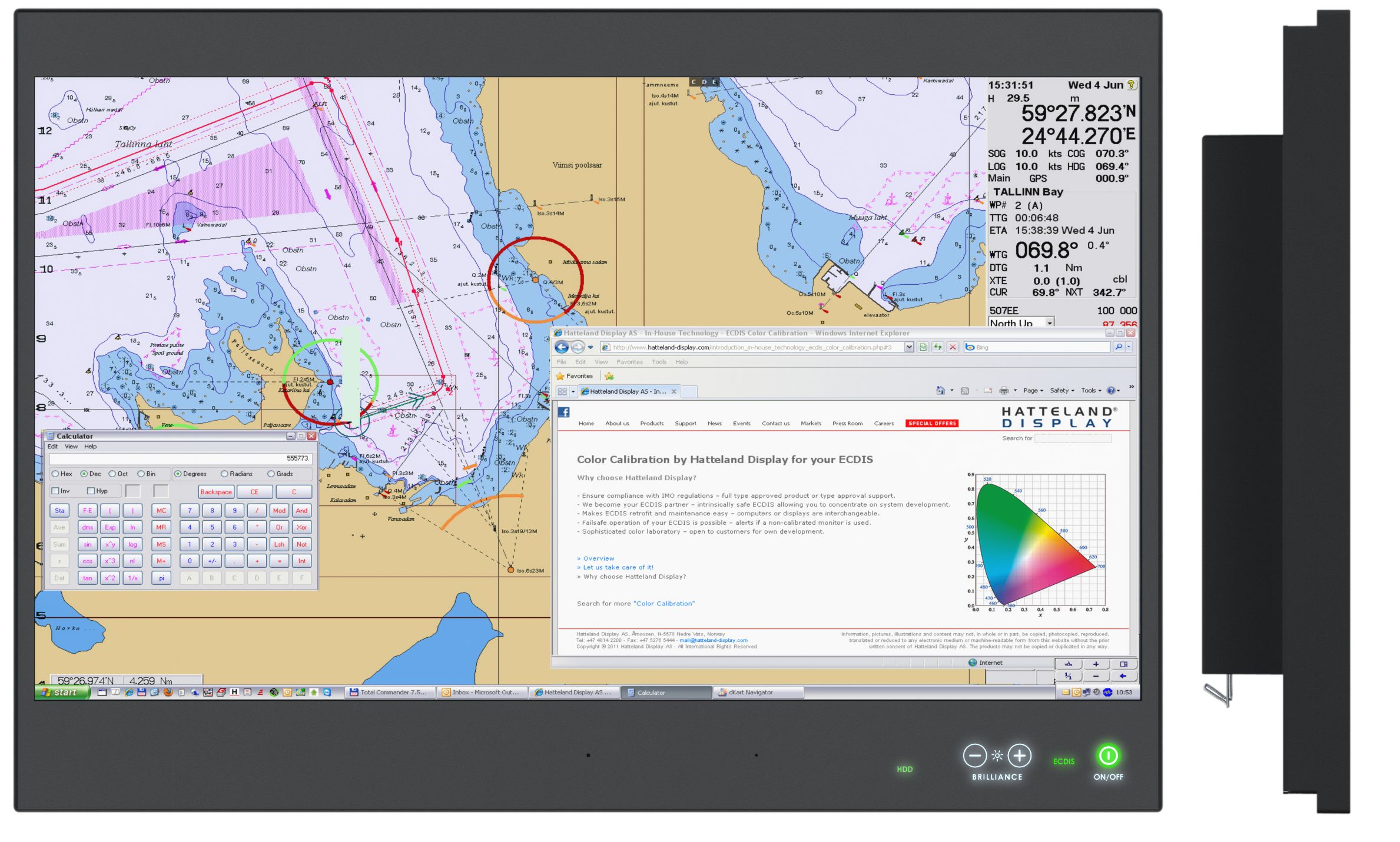

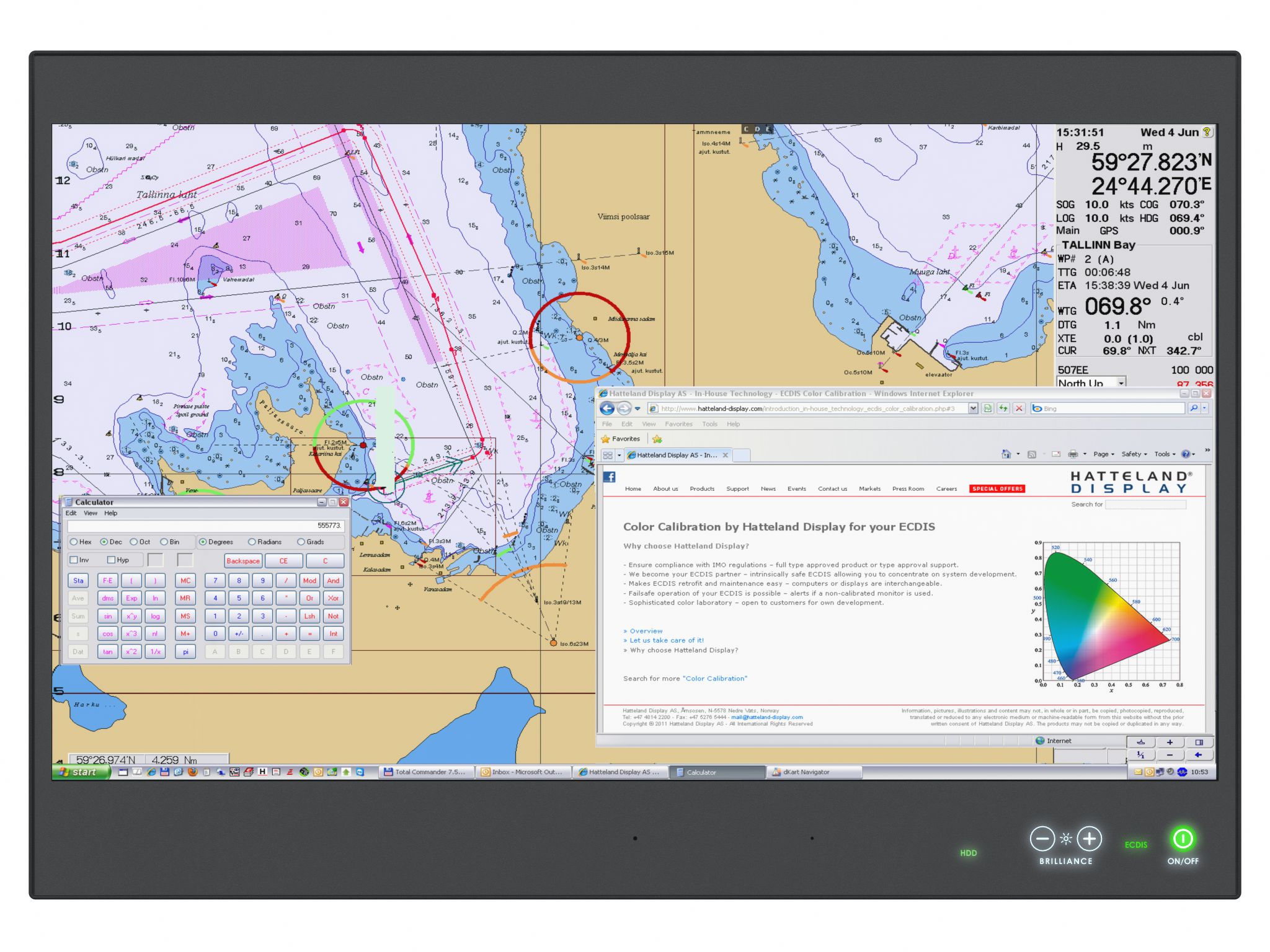

Panel Computer - HATTELAND® Series X G2

The Series X Generation 2 (G2) Panel Computer range is a flexible all in one monitor & PC solution, designed and type approved for the professional marine segment, where reliability and long life time are key prerequisites for the industry. The product range combines state of the art monitor and computer technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The high performance MMC Panel Computer models provide a wide choice of monitor size and format, along with various processor and storage options. The compact, all-in-one MMC solution is the ideal one for all ship navigation or automation installations. This range with all it’s versitility and capability provides a robust and cost effective platform from which to run multiple applications and display and manage data.

full dimming, multipower all as standard. In addition there are options such as SSD storage mediums, Multiple interface configurations and several OS options. The product range can also accomodate and combine optical bonding and ECDIS calibration. By factory standards the 27 inch unit is ECDIS Compliant.

Typenumber (Long):	HD 27T22 MxC-xxx-xxxUxx
TFT Technology:	LED Backlight Technology, Color Active Matrix, Widescreen, a-SI (amorphous silicon) Thin Film Transistor (TFT)
Viewable Size and Active Area:	27.0 inch - 597.60 [23.53"] (H) x 336.15 [13.23"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.31125 (H) x 0.31125 (V) mm
Aspect Ratio and Response Time:	16:9 - 12ms (typ, on/off)
Light Intensity and Contrast Ratio:	300 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	640 x 480 to 4096 x 2304
Power Specifications and Consumption:	24VDC Operating DC: 72W (typ) - 156W (max)
Product Features:	Dimmable 0-100%, Buzzer, Multi-power AC & DC, TPM2.0, GPIO, LAN Wakeup, USB Boot&Wakeup, Firmware Raid
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	Internal Storage: 1 x SSD SATA, Type m.2 (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW)) and/or 2 x 2.5' ' Removable Tray. Option: 1 or 2 can be installed of: SSD SATA (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW))
CPU / Processor Options:	1 x Intel® Quad Core™ i5-6500TE, 2.3/3.3GHz, 6MB Cache or 1 x Intel® Quad Core™ i7-7700T*, 2.9/3.8GHz, 8MB Cache or 1 x Intel® Dual Core Celeron™ G3900TE, 2.3/2.3GHz, 2MB Cache *Supported only by Windows® 10 IoT Enterprise
Memory Options:	2 x 4GB, 8GB, 16GB (260-pin, DDR4-2133, Dual Channel) Max 32GB (2x16GB)
System Chipset / Graphics Chipset:	Intel® GL82Q170 PCH / i5-6500TE CPU: Intel® HD Graphics 530 G3900TE CPU: Intel® HD Graphics 510 i7-7700T CPU: Intel® HD Graphics 630
BIOS / Buzzer:	EFI, ACPI Support. Preconfigured by factory / Buzzer: 3500Hz Onboard PC-Beeper
Power Manager and Monitoring:	AT, ACPI (S3/S4) - TPM2.0, Temperature, Fan and voltages status 256 Segments, 0, 1, 2...255 sec/min

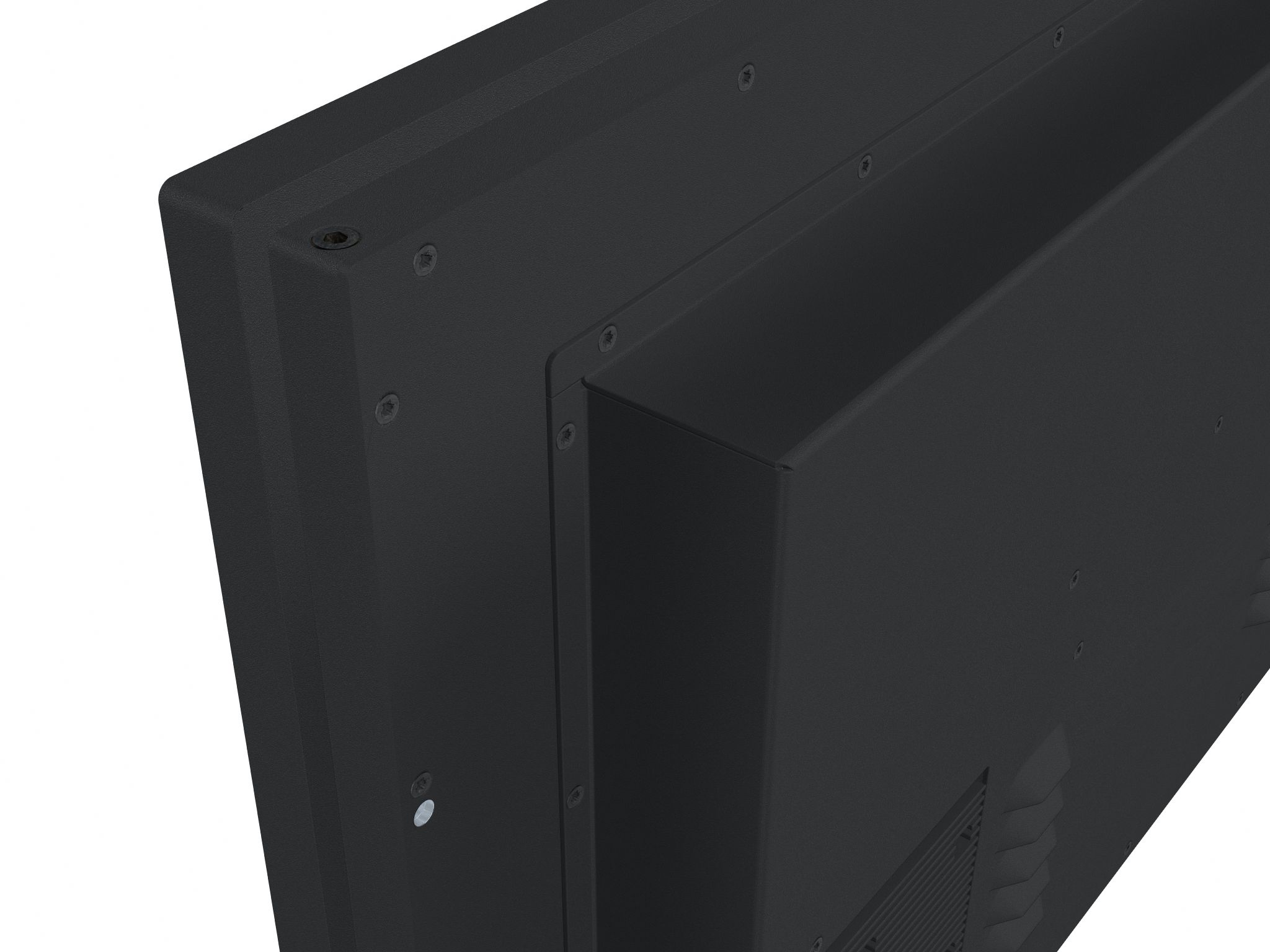

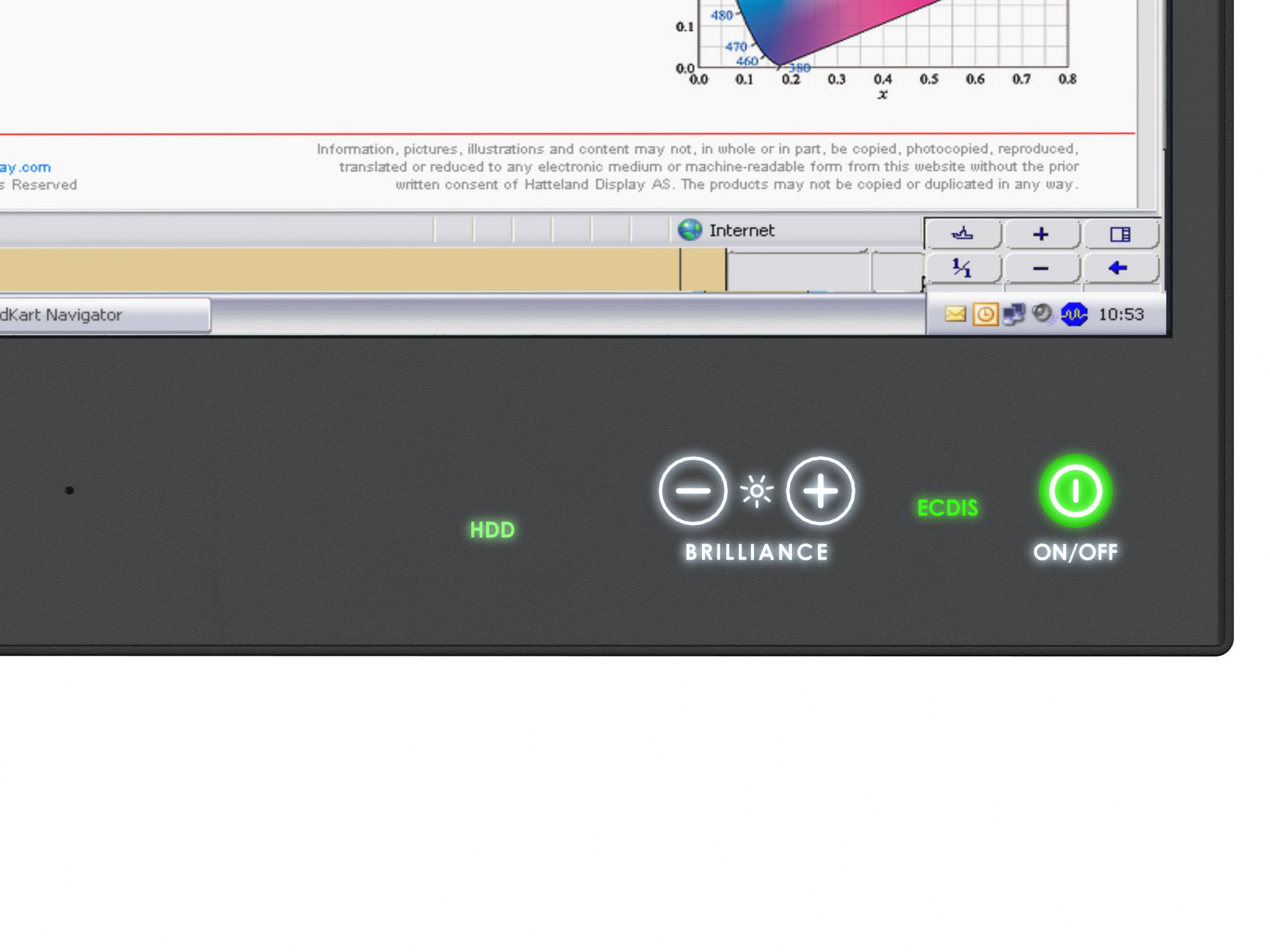

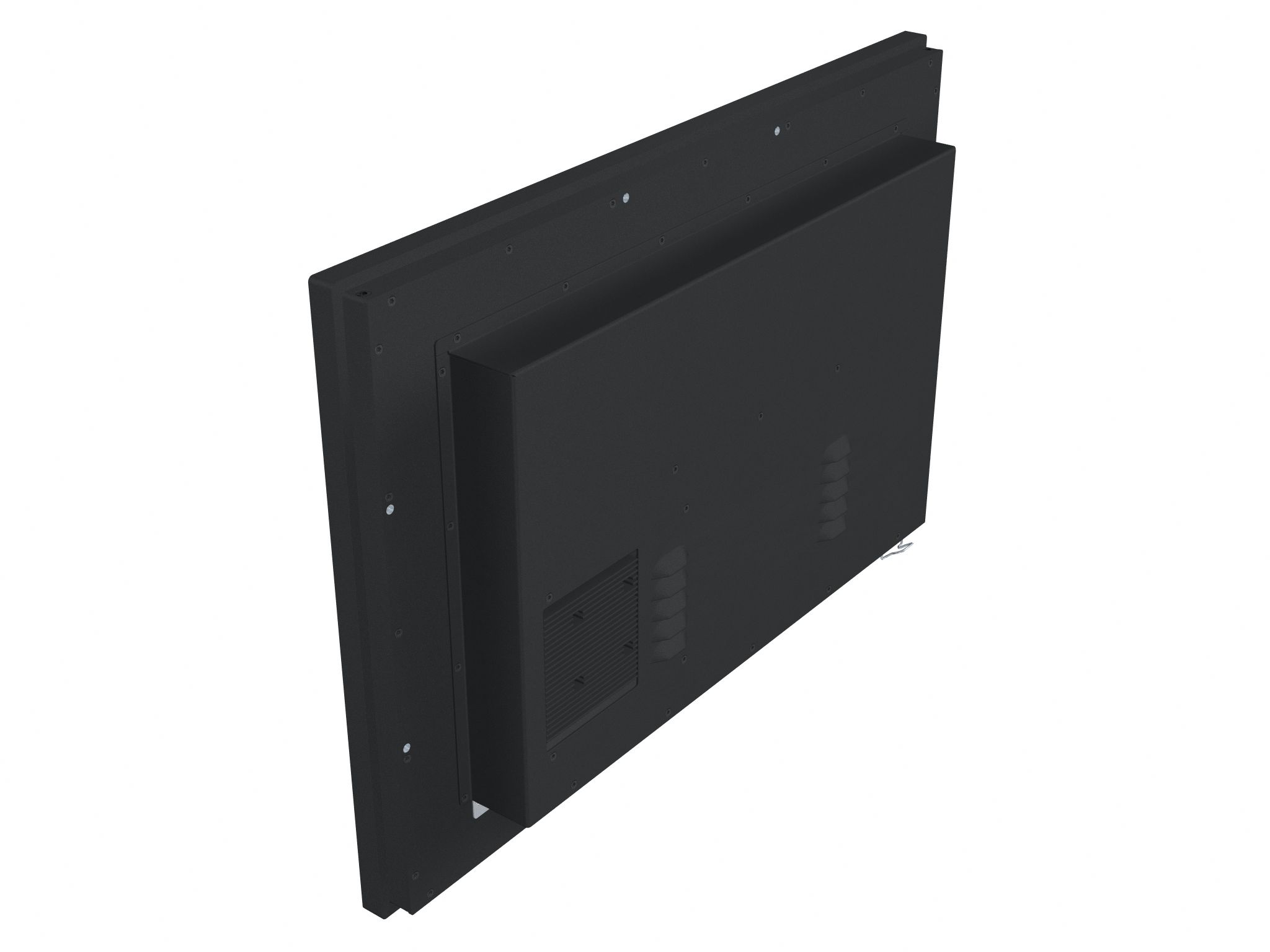

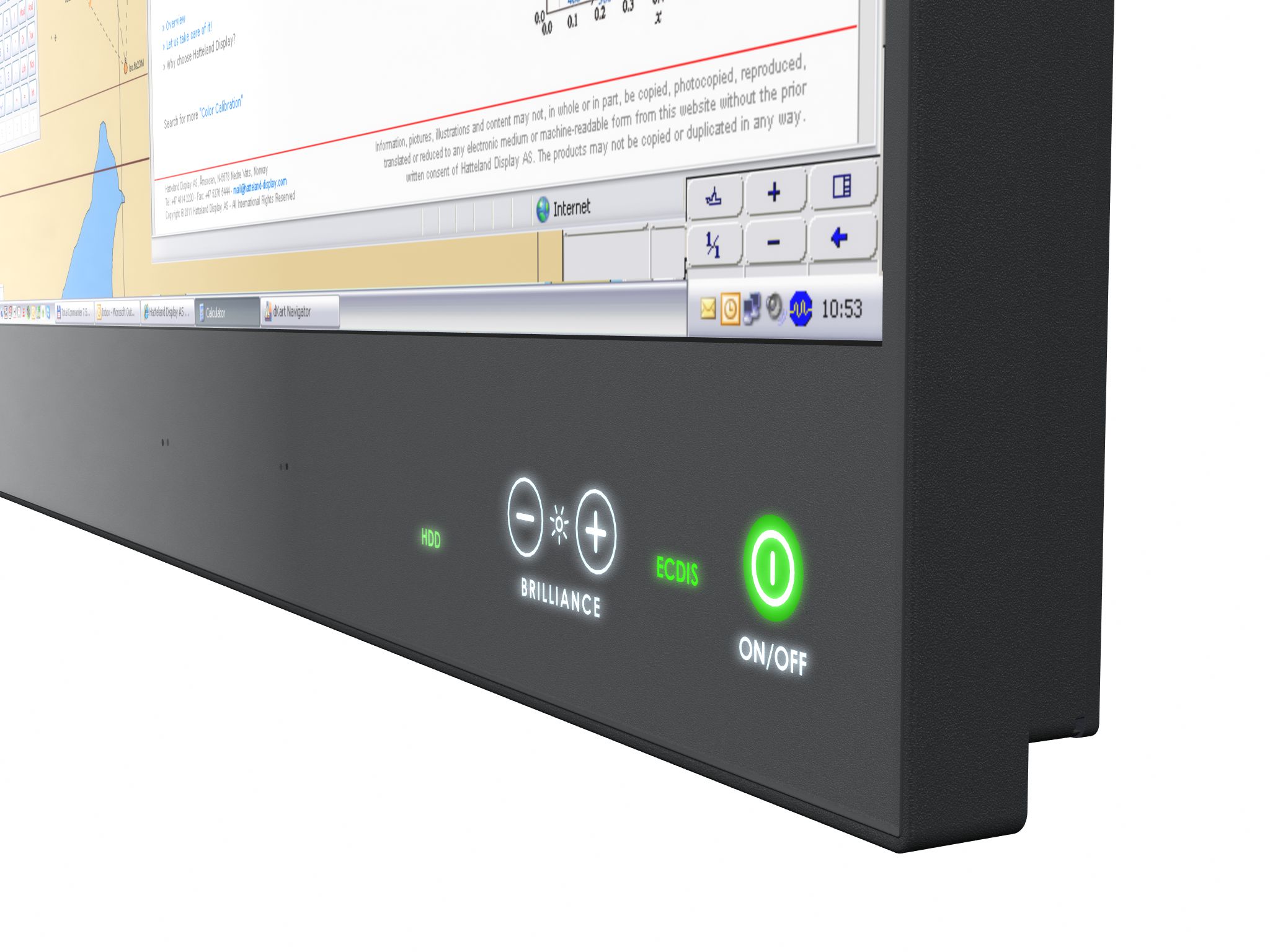

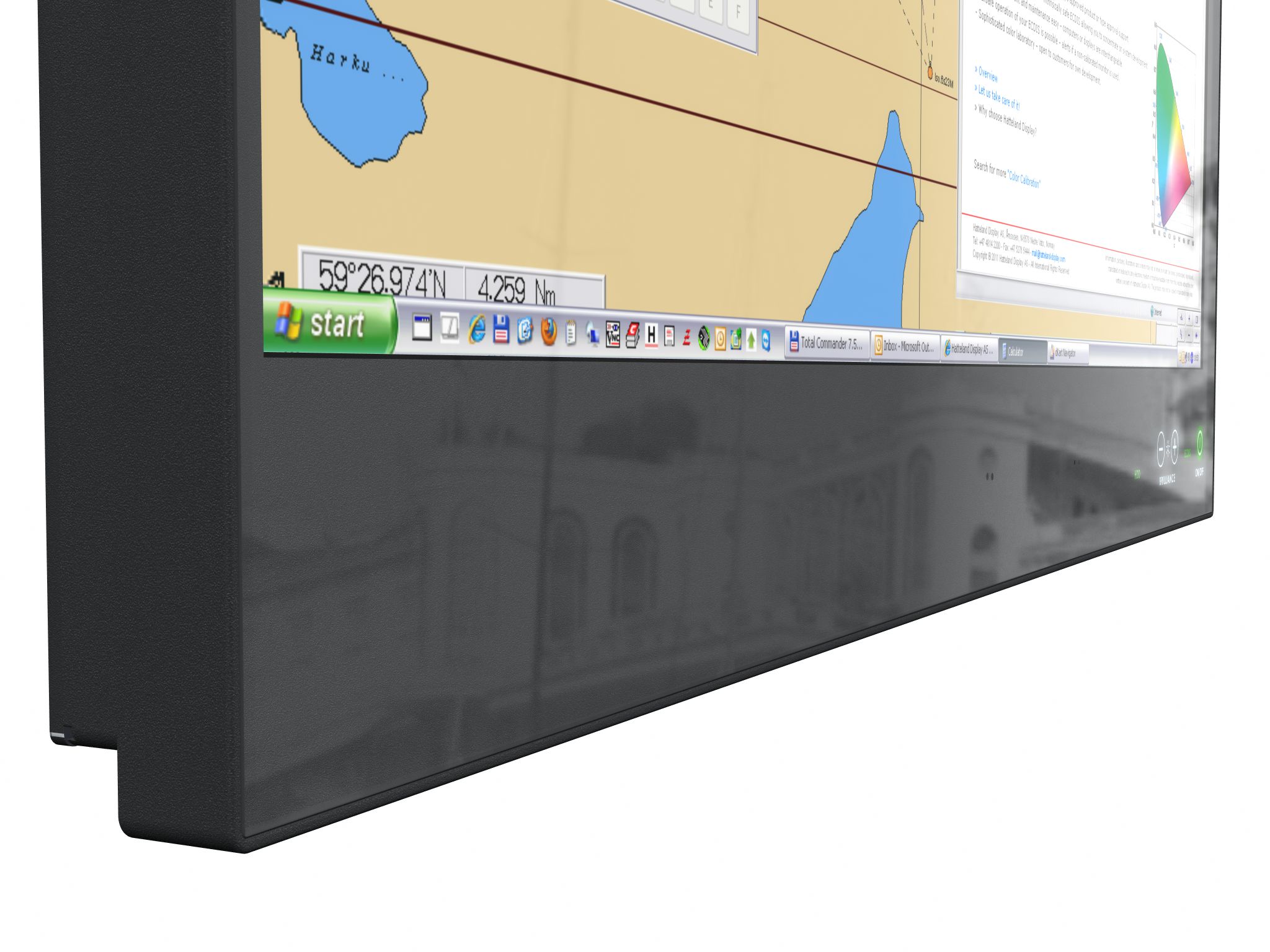

User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Power LED, Mode Status Indicators (ECDIS, HDD, Service), Buzzer (through glass), Light Sensor (behind glass)

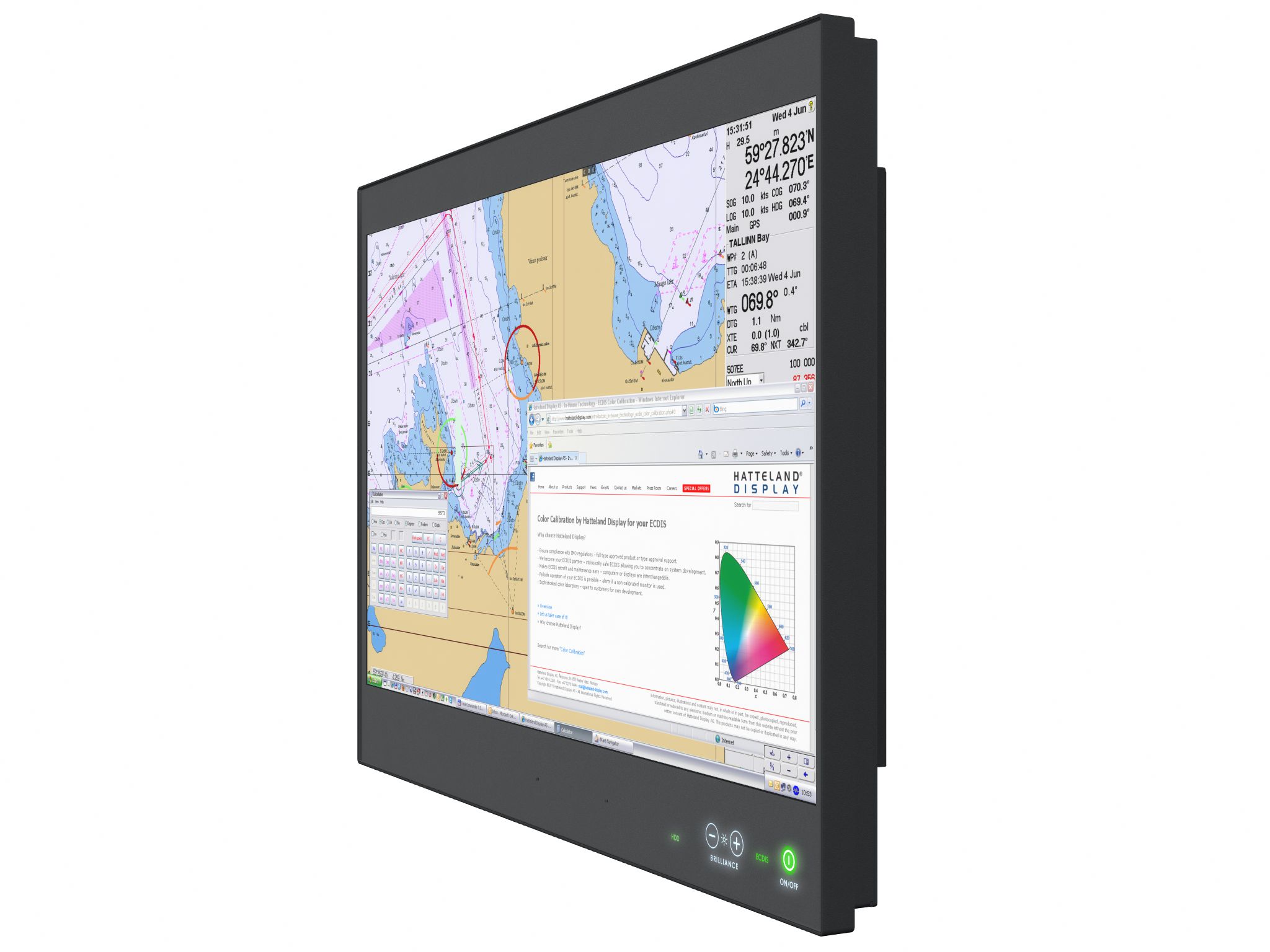

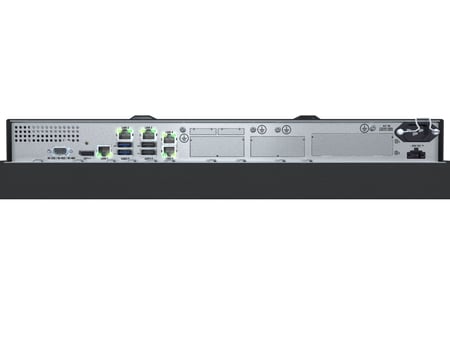

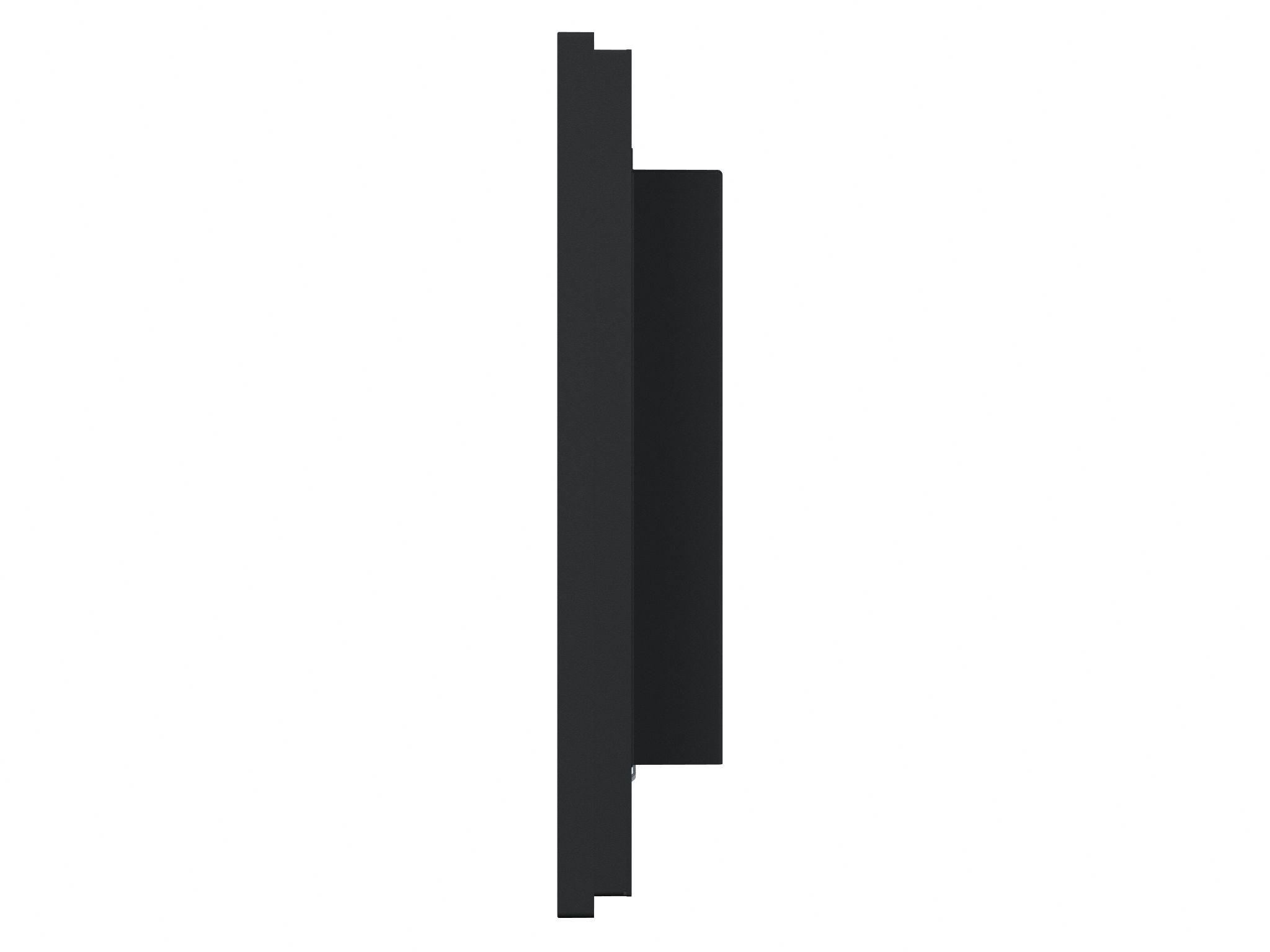

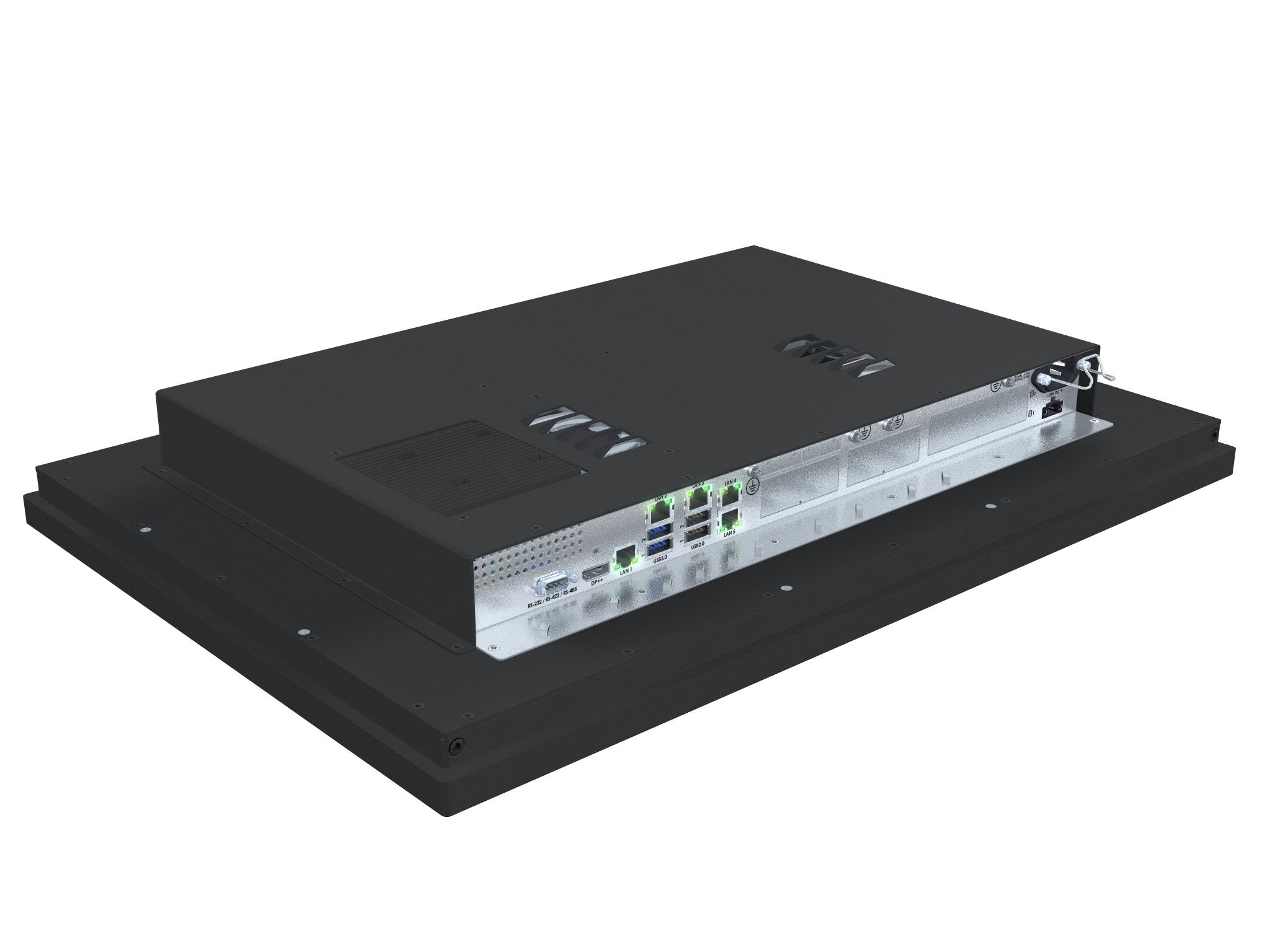

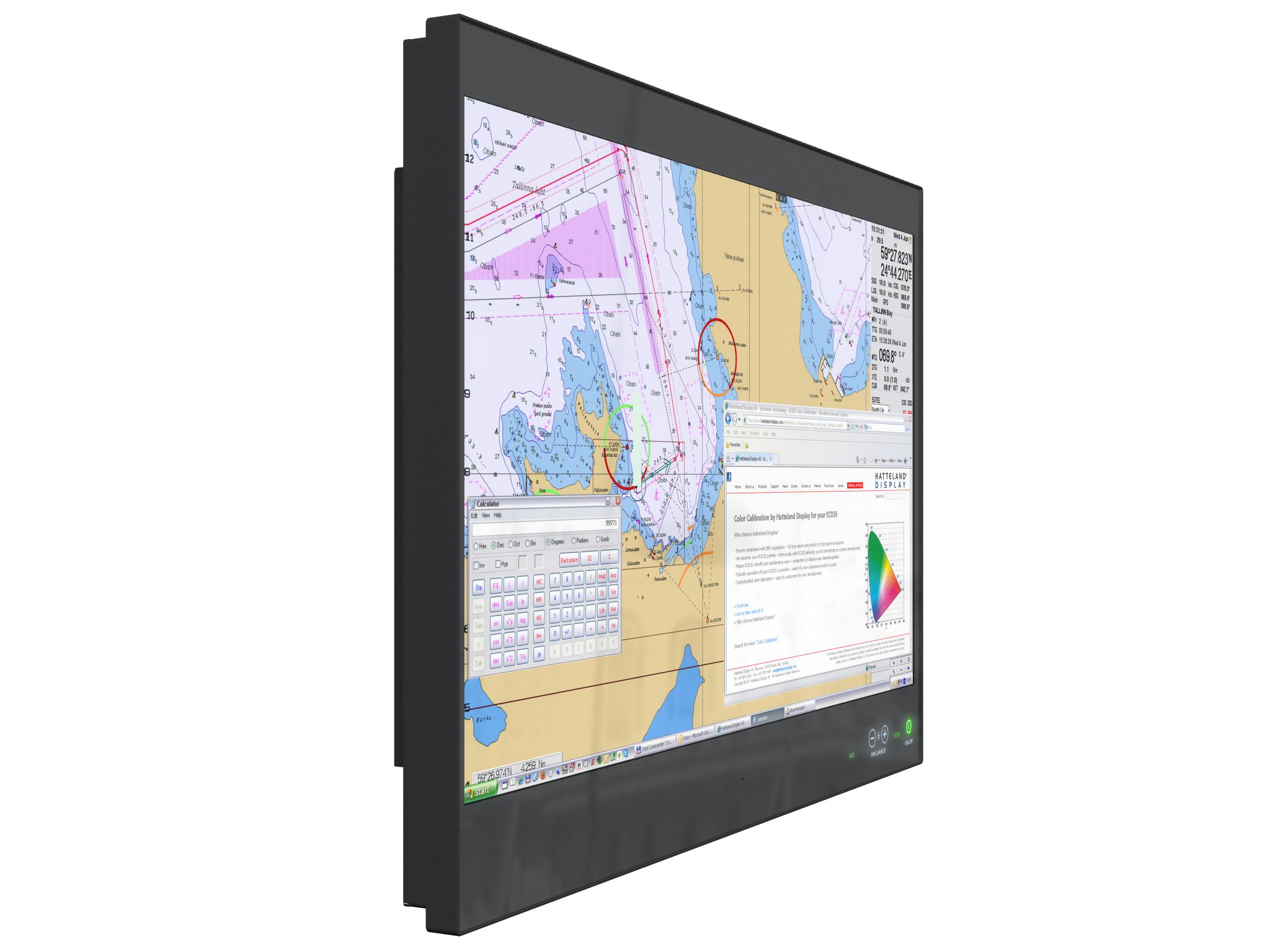

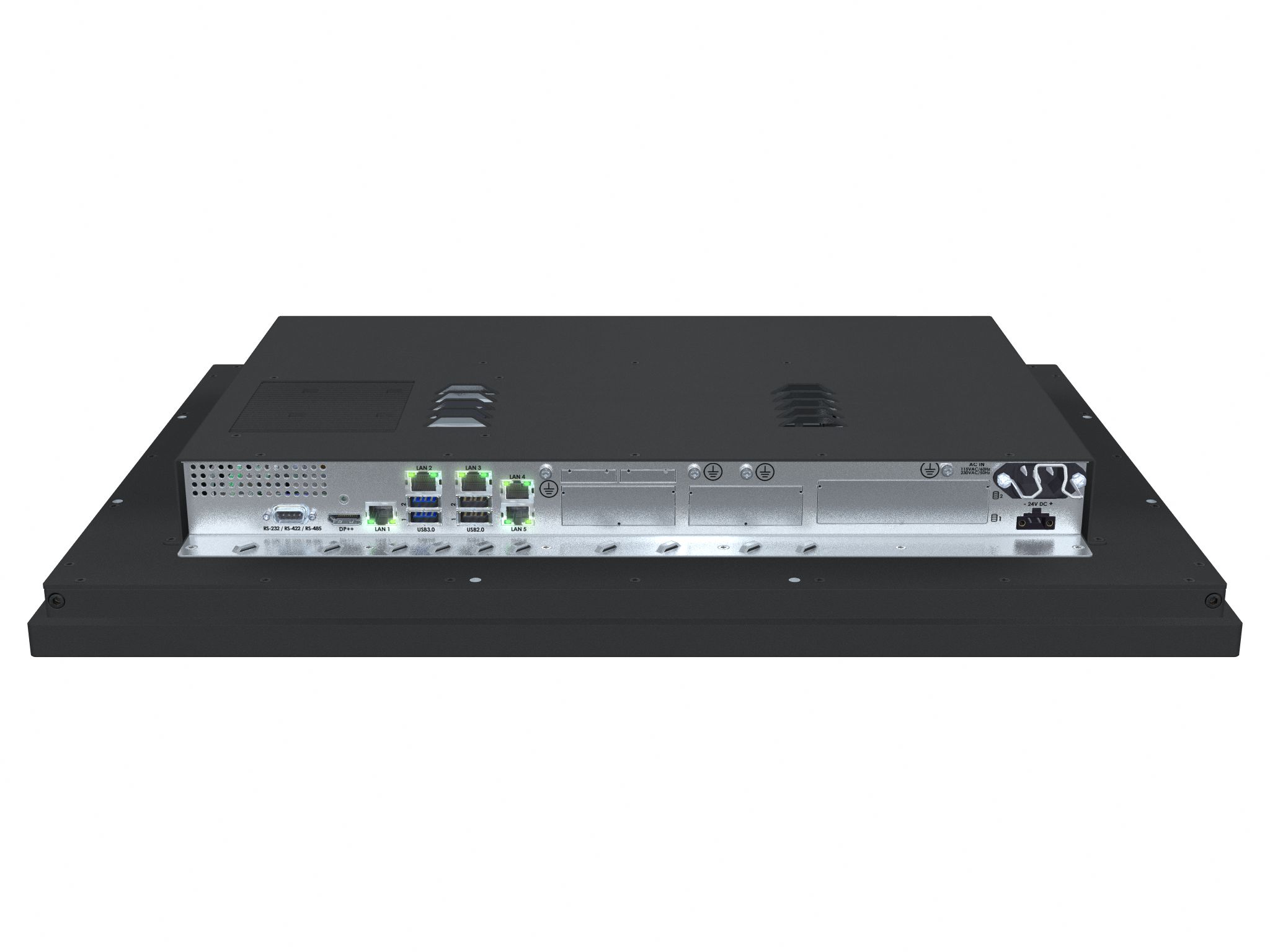

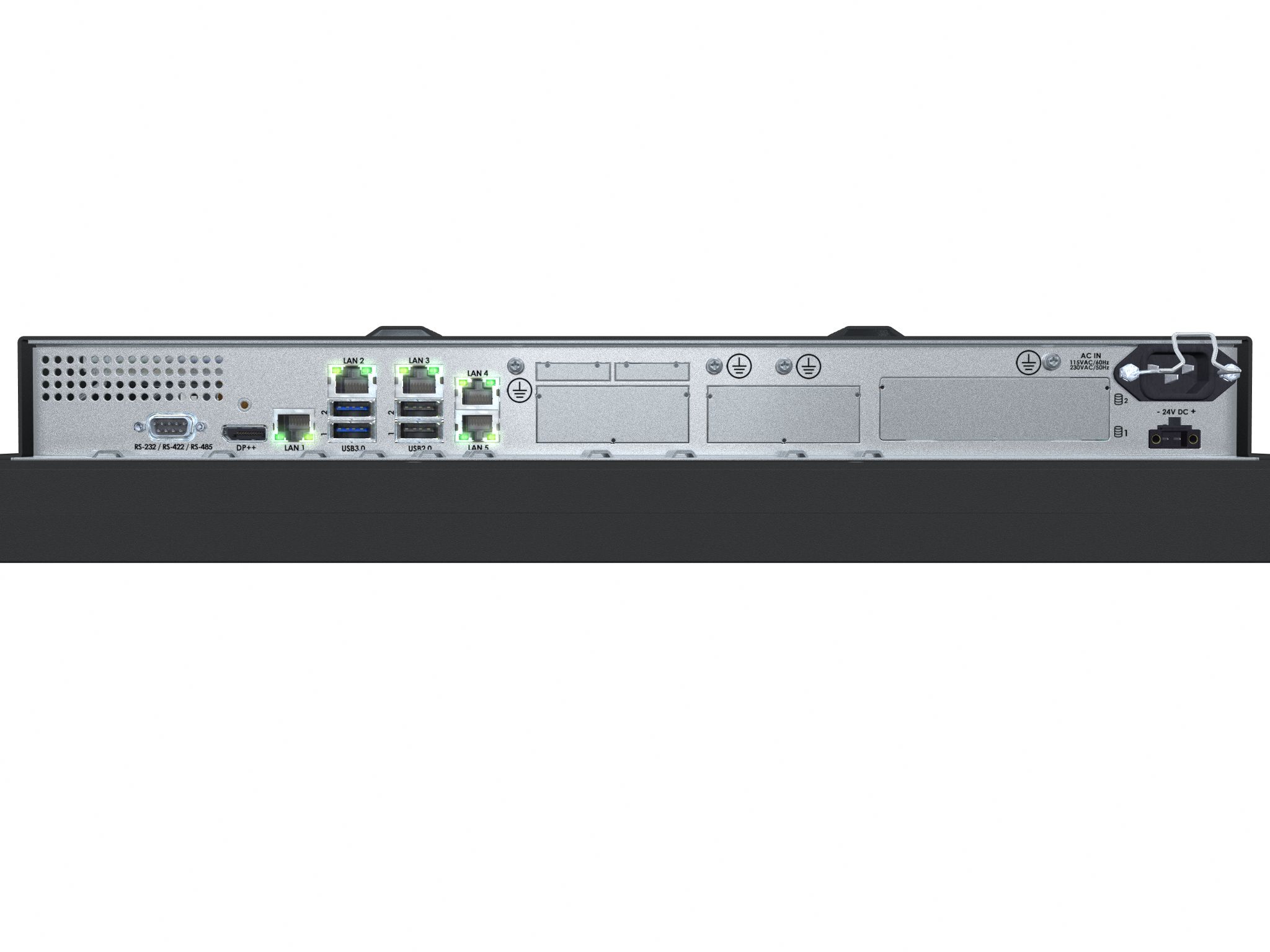

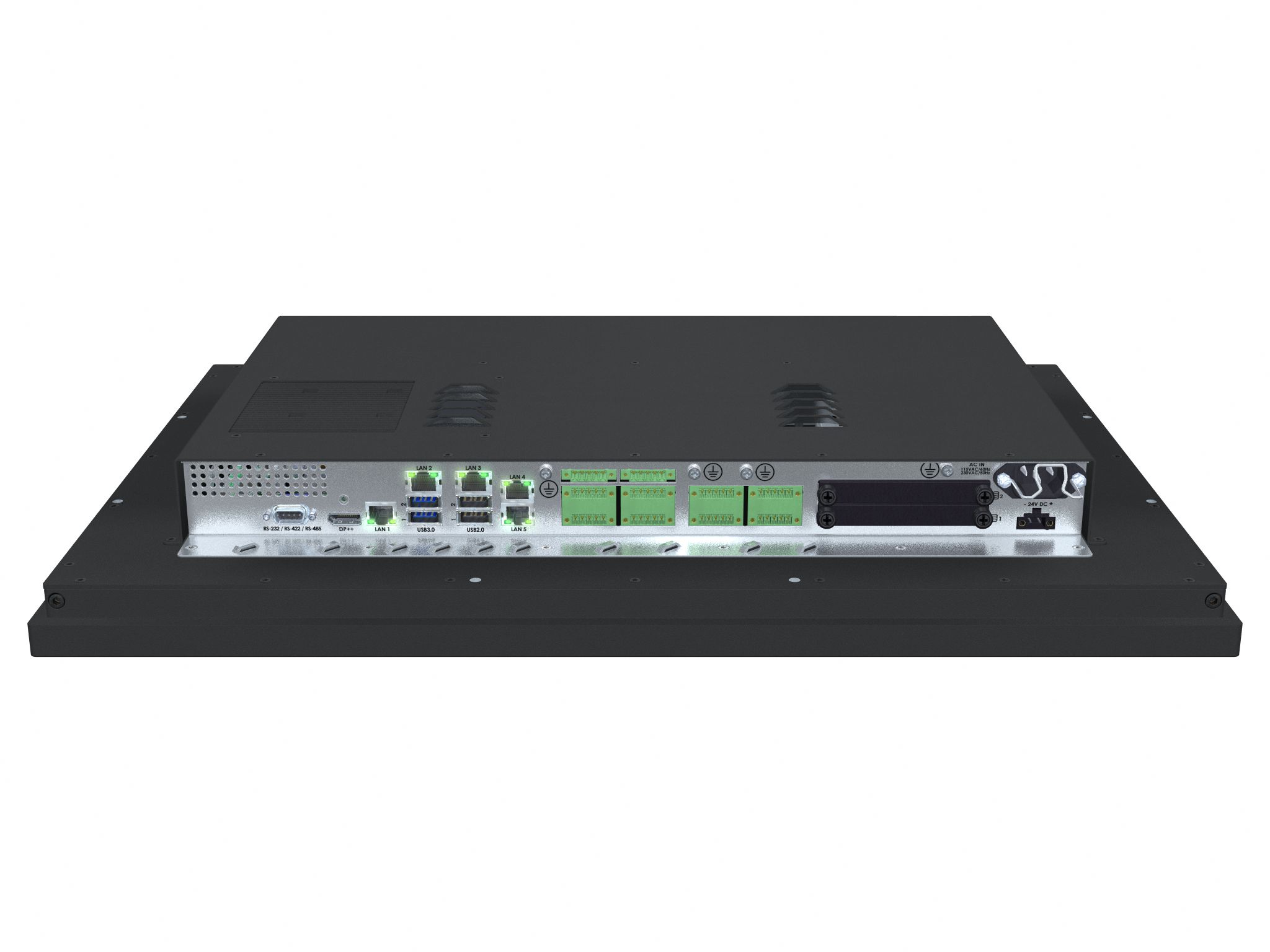

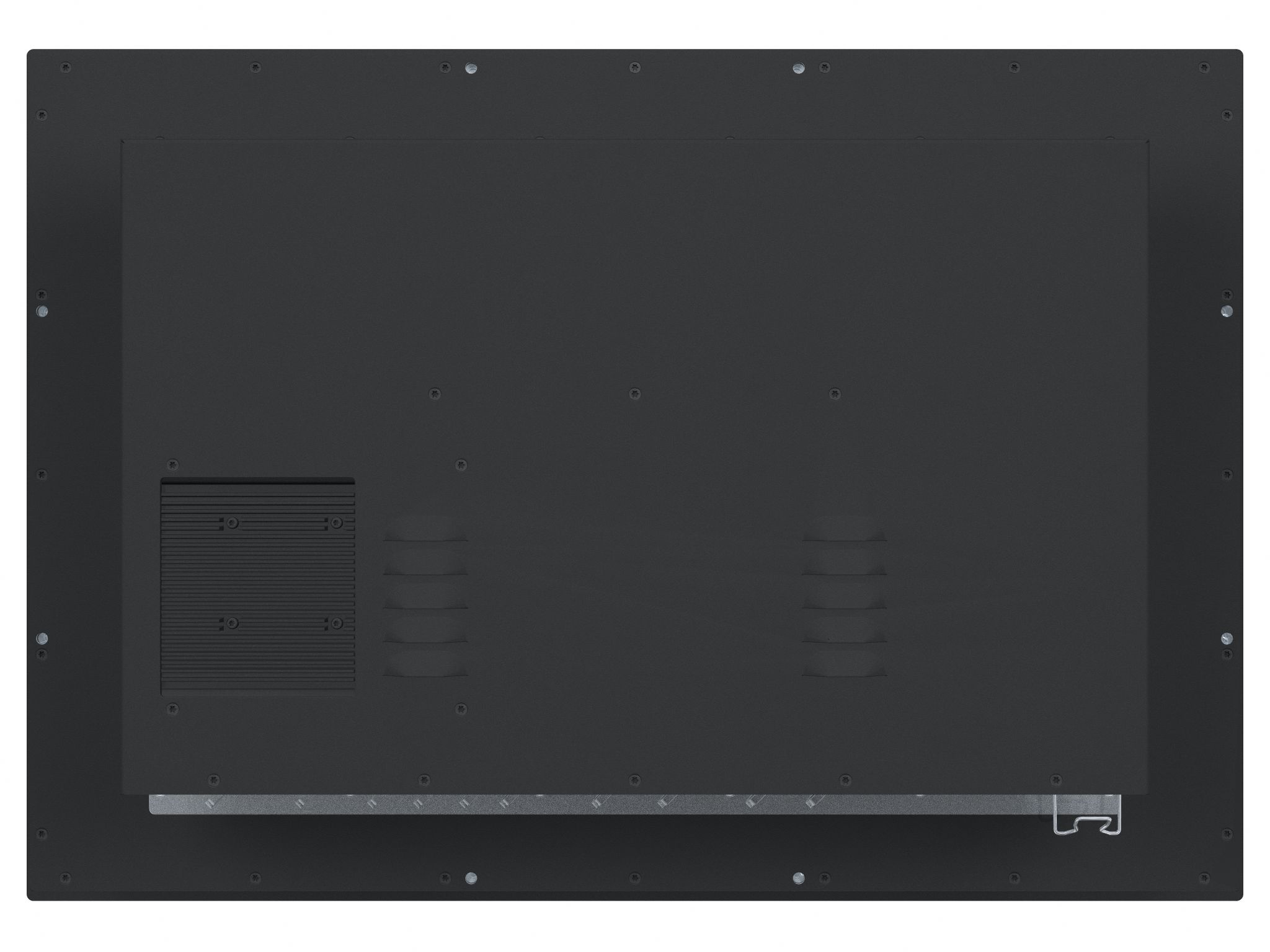

Connectors:	• Ethernet GBLan: 5 x RJ-45 • COM RS-232&422/485: 1 x DB9M non-isolated (RS mode in BIOS) • COM RS-232 (Internal): 1 x Internal Virtual COM (Software controlled) • USB2.0 (<5m): 2 x USB Type A (4-pin) • USB3.0 (<3m): 2 x USB Type A (9-pin) • DP++ 1.2 OUT: 1 x DisplayPort Female (Dual-Mode DP++) • AC Power IN: 1 x Std IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08 (Factory option) • If SSD Trays option: 2 x 2.5" Sized Tray/Bay (Factory option)

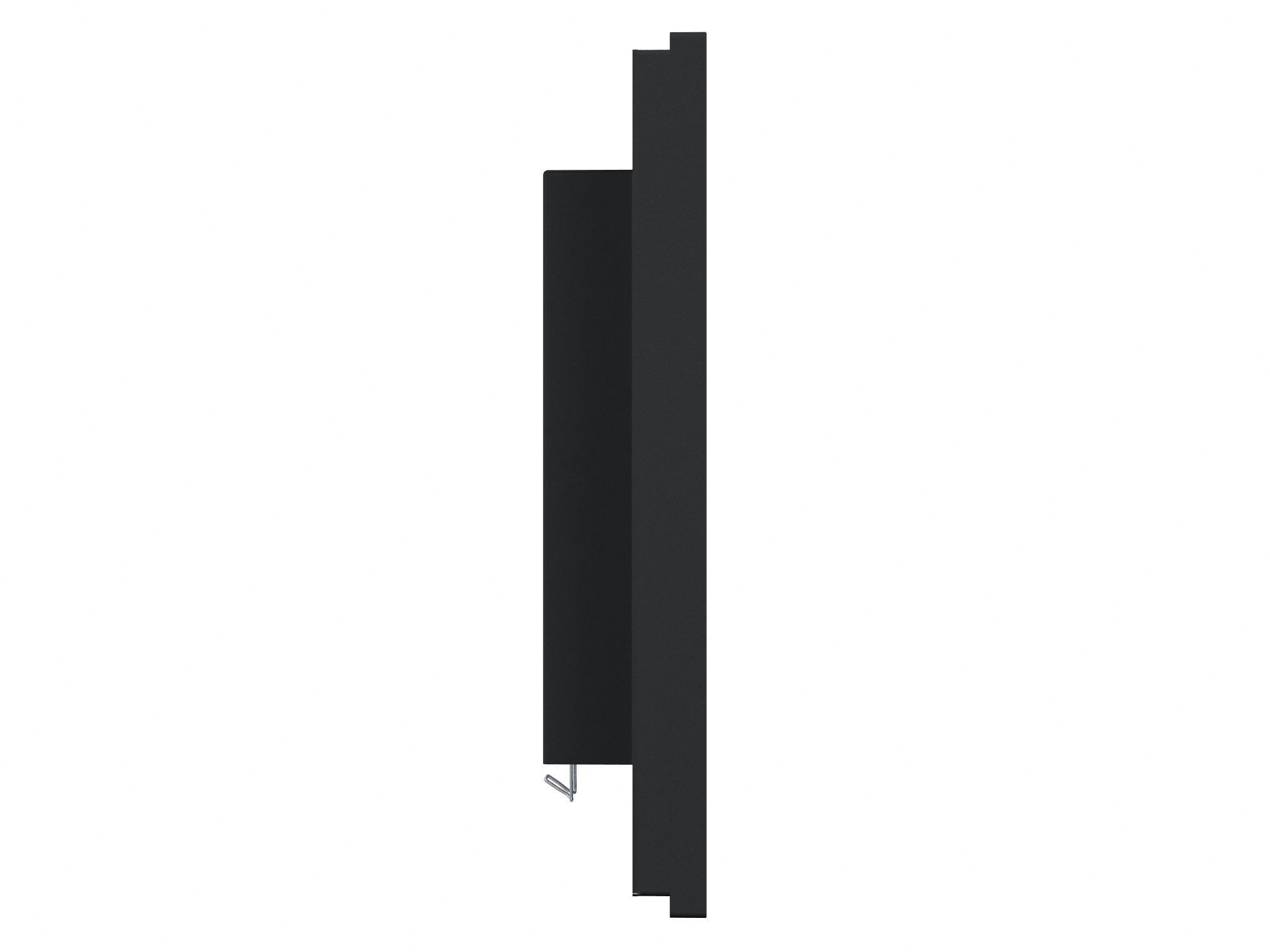

Product Dimensions and Weight:	W:621.00 [24.45"] x H:435.00 [17.13"] x D:94.50 [3.72"] mm [inch] Approx. 15kg / 33lbs
Product Carton Size and Weight:	L:765.00 [30.12"] x W:190.00 [7.48"] x H:615.00 [24.21"] mm [inch] Approx. TBD

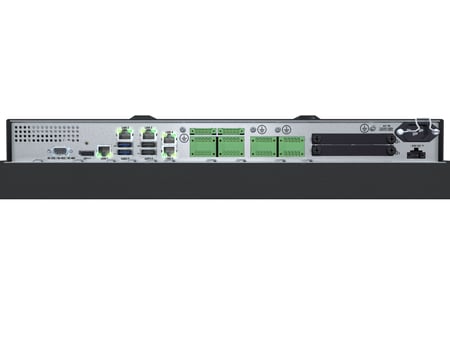

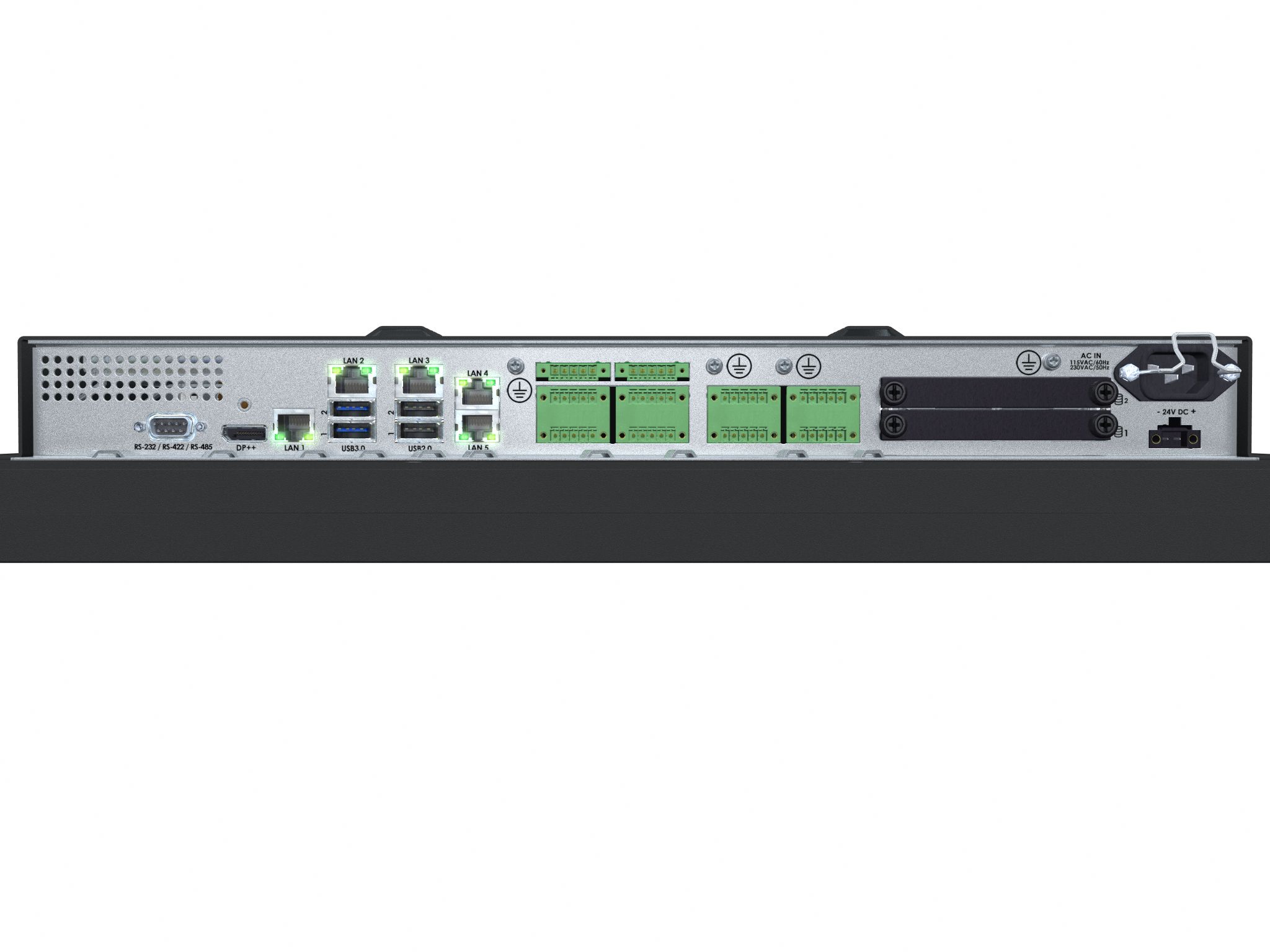

Factory Options:	• Optical Bonding Technology • Color Calibrated models (ECDIS) • Model with 2 x physical 2.5" removable Disk Bay/Tray • Variations of SSD Storage, RAM Memory, Operating System, CPU • 1 or 2 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel • 1 x HTA2020002-AD1033: CAN isolated 2 channel • 1 x HTA2020002-SLCAN: CAN isolated 2 channel, socketCAN • 1 x VSD101121-1: 2W Amplified Audio out via 1xDB9F+3x3.5mm Jack • 1 x PCA100297-1: Isolated Digital IO module,4 x Output/4 x Input • 1 x PCA100298-1: LAN 10/100Mbps, 2 ports RJ45 • 1, or 2 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module • 1 x Q170 IO: 1xNMEA RS422/485 isol.+2xDig. In&Out (Low Side switch)
Accessories:	• JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle • HD VED SX2-J1: 1 x VESA Adapter (100/100&200/100mm). Not EN60945 Tested • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested • HD CMB SX1-B1: 1 x Console Mount Kit. EN60945 Tested • HD 26COV SX1-A1: 1 x UV Sun Cover • HD 26TAP SX1-A1: 1 x Frame Adapter for JH 27T11 MMD Cutout (Retrofit) • P007178: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • JH 26TAP STD-A1: 1 x Frame Adapter for Series 1 Cutout (retrofit) • HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os • HD 000TR SX2-A2: 1 x Removable Front Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Front Tray 2.5" w/Storage Device
Capabilities / Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529). IP22=option
Compass Safe Distance:	Standard: 85.00 [33.46"] - Steering: 50.00 [19.69"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, IP66, BV - Bureau Veritas, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: June 10, 2025 @ 13:36
