HM 13T30 XRP

Overview

Panel Computer - Widescreen - LED - Optical Bonding - Shock Tested - Xtreme Rugged Marine - 13.3 inch

HM 13T30 XRP

Hatteland Technology's Xtreme Rugged Military Panel Computers (XRP) are designed to provide high-quality FHD resolution video and graphics performance into modern military/naval platforms. Designed for console-mount installations suited to be used in any environment and configuration.

icon
Widescreen
icon
LED-backlit
icon

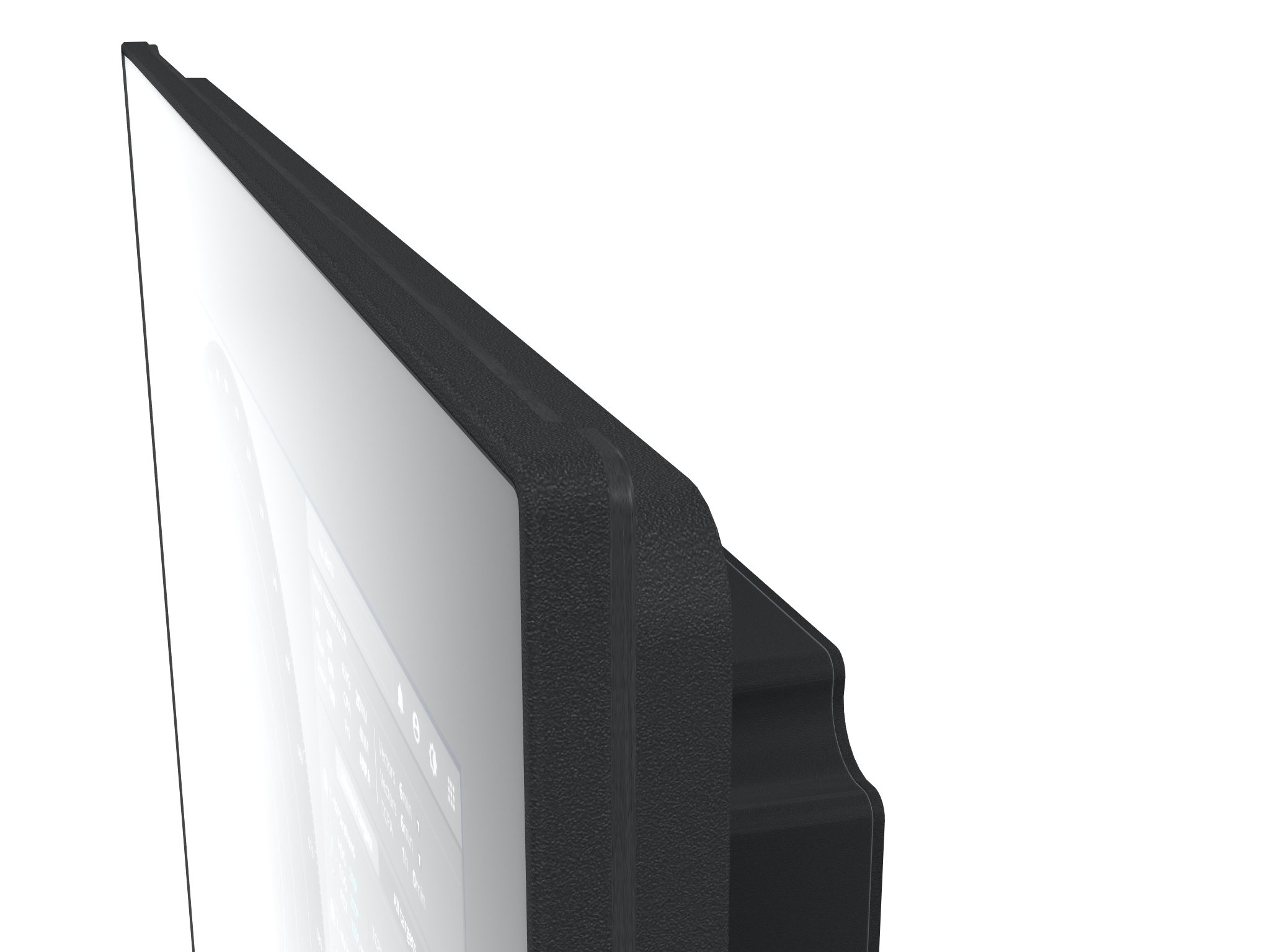

Optical Bonding
icon
Shock Tested
icon
MIL-STD 901D
icon
MIL-STD 461
icon
TPM 2.0
Send Request
Description

Panel Computer - Xtreme Rugged Marine

The XRP meets the requirements of MIL-S-901D, Grade B, Class I shock hard mounted eliminating the need for shock isolation in the rack or console, as well as MIL-STD-461E/F/G, and Marine requirements of IEC60945/IACS-E10.

Innovative Human Machine Interface (HMI) solutions open up new possibilities for the system integrator. A well implemented touch interface can be much simpler to use than a conventional mechanical button-based interface because it can show the user only those controls that are relevant to a particular operation, while all the controls in a conventional interface are always present.

The GLASS DISPLAY CONTROL™, or GDC, allows control of brightness through projected switches under the glass. Integrators can build software to work with our API to control brightness and other features. This model is delivered with Solid State Fanless Construction - No Moving Parts, Embedded light sensor, Buzzer and Aluminum Chassis with Glass Front as standard. Brightness is dimmable from 0-100%.
Specifications
Typenumber (Long): HM 13T30 XRP-208-3HNPAA
TFT Technology: LED Backlight Technology, IPS (in-plane switching), a-si TFT Active Matrix, Widescreen
Viewable Size and Active Area: 13.3 inch - 293.76 [11.57"] (H) x 165.24 [6.51"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1920 x 1080 (FHD) - 0.1529 (H) x 0.1529 (V) mm
Aspect Ratio and Response Time: 16:9 - 25ms (typ) (Tr+Tf)
Light Intensity and Contrast Ratio: 600 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.2 million (8bits x RGB)
Optimal Resolution and Hz: 1920 x 1080 @ 60 Hz
Detectable Resolutions: N/A
Power Specifications and Consumption: 9-32VDC
22W (typ) - 28W (high load / max)
Product Features: MULTITOUCH (Projected Capacitive Technology), Compact Design, Solid State Fanless Construction, No Moving Parts, API Support, Embedded light sensor, Buzzer, SCOM, AG Coated Front Glass, USB Dust Covers (USBC-24), RJ45 Dust Covers (PJC-45), USB Cable Support Bracket (HD KIT USB-A1), Console Mounting Bracket Kit, IP66 Mount Gasket (EPDM), for Flush/Console mount (P014441), optional Bulkhead/Deckhead mounting bracket or ATEX/EX Enclosure.
Installed Operating System (OS): Windows® 10 IoT Enterprise 2019 LTSC (64bit)
Product Distribution End Date November 2025
Storage Options: 1 x 128GB eMMC M.2
CPU / Processor Options: 1 x Intel® Atom® x5-E3930 Processor, 2M Cache, 1.30GHz / 1.80GHz
Memory Options: 1 x 4GB DDR3L SO-DIMM, Dual Channel
System Chipset / Graphics Chipset: Intel® SoC (System on a Chip) / Intel® HD Graphics 500
BIOS / Buzzer: AMI BIOS (supports ACPI)* / Buzzer according to EN60945
*Note: "Legacy Mode" option is not fully supported for System Chipset
and Microsoft® Windows® 10.
Power Manager and Monitoring: RTC (0.5s/day), Battery Alarm, TPM2.0, GPIO, WakeOnLan, Fast Boot, AT mode, USB Boot.
WatchDog Timer: 256 segments, 0, 1, 2...255 sec/min)
User Controls and Activity: Glass Display Control™ (GDC) IP66 with 3 x Configurable buttons, Status RGB LED, Buzzer (through glass), Light Sensor (behind glass)
Connectors: • USB2.0 (<5m): 4 x Type A
• Ethernet GbLAN 10/100/1000Mbps: 2 x RJ45
• DC Power: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight: W:355.00 [13.98"] x H:248.50 [9.78"] x D:66.80 [2.63"] mm [inch]
Approx 2.9kg / 6.4lbs TBD
Product Carton Size and Weight: L:445.00 [17.52"] x W:195.00 [7.68"] x H:355.00 [13.98"] mm [inch]
4.0kg / 8.8lbs
Factory Options: None
Accessories: • HD TMB SX2-A3: 1 x Table/Ceiling Mount Bracket. Not EN60945 Tested*
• HD VED SX2-L1: 1 x VESA Adapter(75/75,100/100). Not EN60945 Tested*
• HD 13COV STD-A1: 1 x UV Sun Cover
• HM T30 ADP-A1: 1 x Adapter Kit (See separate Datasheet)
• HD T30 AEX-A2: 1 x ATEX/EX Enclosure See separate Datasheet)
* Not applicable in combination with HM T30 APD-A1 / HD T30 AEX-A2
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: IP66: Front: Console mounted (with gasket)
IP22: Rear standalone:
0-30° (without rain cover), 0-90° (with HM T30 ADP-A1 or rain cover)
Compass Safe Distance: Standard: TBD [TBD'] - Steering: TBD [TBD'] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU RO MR - Mutual Recognition, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society, KR - Korean Register, BV - Bureau Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping

Environmental Performance:
Dry heat storage - 70.0°C / 158.0°F - MIL-STD 810F&G
Cold storage - -40.0°C / -40.0°F - MIL-STD 810F&G
Operating Temperature (typ) - -15.0°C / 5.0°F to +55.0°C / 131.0°F -
MIL-STD 810F&G
Humidity - 95% at 55.0°C / 131.0°F - IEC 60945 4th
Shock - 50g/11ms, 50g/30ms - MIL-STD 810F&G
Grade B Shock - Class I (hard-mounted) - MIL-S-901D
Rain (drip proof) - MIL-STD-810F&G Console mounted
Salt Fog/Mist - MIL-STD-810F&G IEC 60068-2-52 Kb
Vibration Testing - 4g - IEC60945 IACS-E10
Solar Radiation - 4000 kJ/m² - MIL-STD-810G Method 505.5 Procedure I**
Sand and Dust - <150um - MIL-STD-810G Method 510.5, Procedures I&II. Console Mounted**
Wind load - 1.5 kN/m² - TBD**
Snow and Ice Load - Top side to withstand:0.4 kN/m², Exposed system, start and operate: 0.22 kN/m² (4.5 lb/ft²) - TBD**
** = Theoretical analysis

EMI Testing:
CE102 - 10 kHz to 10 MHz, Figure CE102-1, Location:All - MIL-STD-461E
CS101 - 30 Hz to 150 kHz, All applications - MIL-STD-461E
CS114 - 10 kHz to 200 MHz, Figure CS114-1, Ships Non-metallic Below Deck - MIL-STD-461E
CS116 - 10 kHz to 100 MHz, Figure CS116-2, Air Force procurement - MIL-STD-461E
RE101 - 30 Hz to 100 kHz, Figure RE101-2, All Navy application - MIL-STD-461E
RE102 - 10 kHz to 18 GHz, Figure RE102-1, Location: Surface ship - MIL-STD-461E
RS101 - 30 Hz to 100 kHz, Figure RS101-1, All Navy applications - MIL-STD-461E
RS103 - 2 MHz to 18 GHz, 50V/m @2MHz->30MHz, and 10V/m @30MHz->18GHz - MIL-STD-461E
RS103 - 2MHz->18GHz 200V/m When console mounted - MIL-STD-461E**
** = Tested in non-accredited LAB
Specifications last updated: August 21, 2025 @ 10:14
Type Approvals
Downloads
Accessories

Latest Product Updates

News Stories:
5 Sep 2023
Product released to website.
