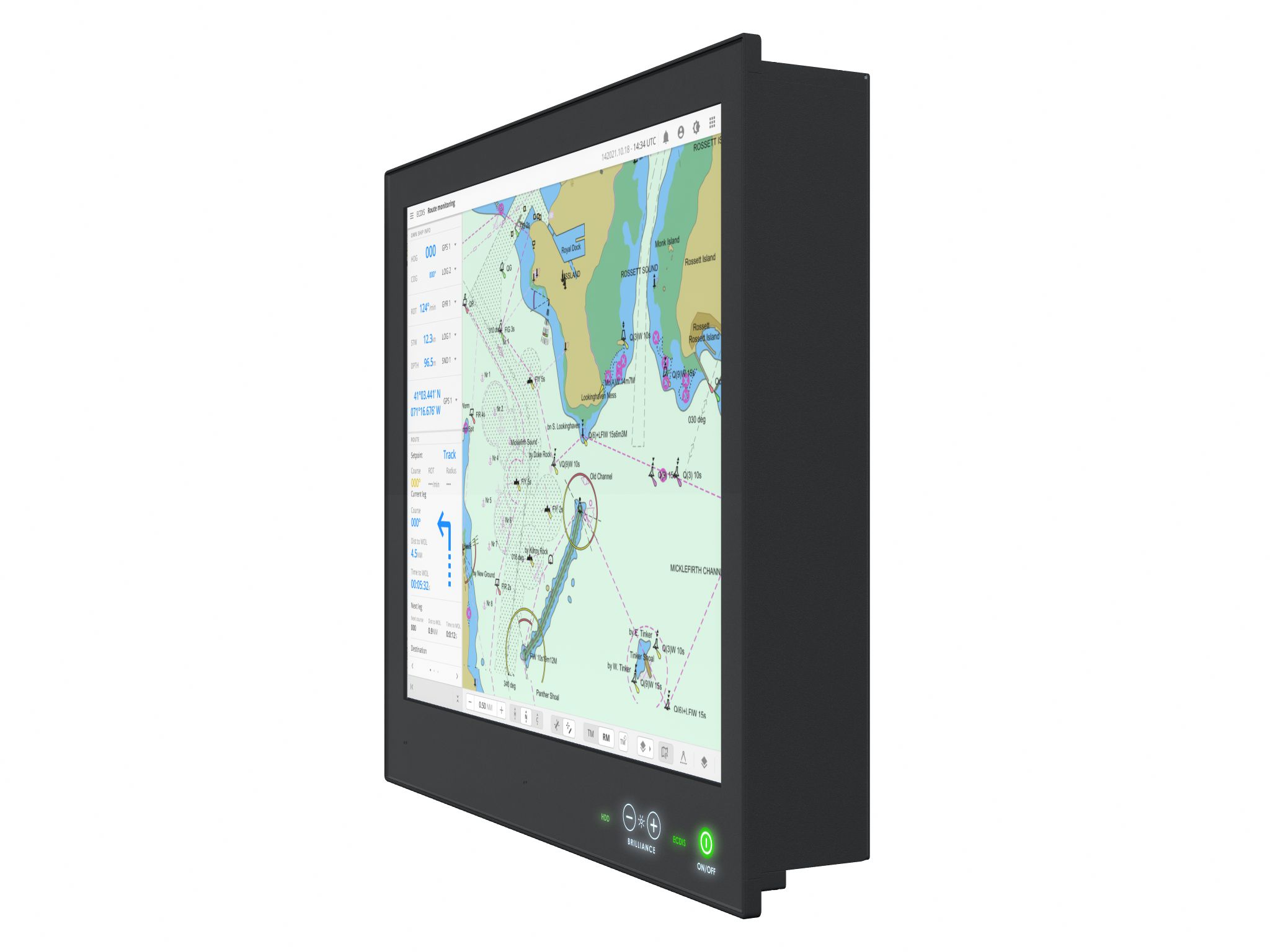

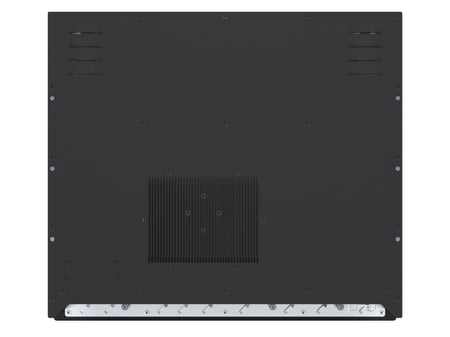

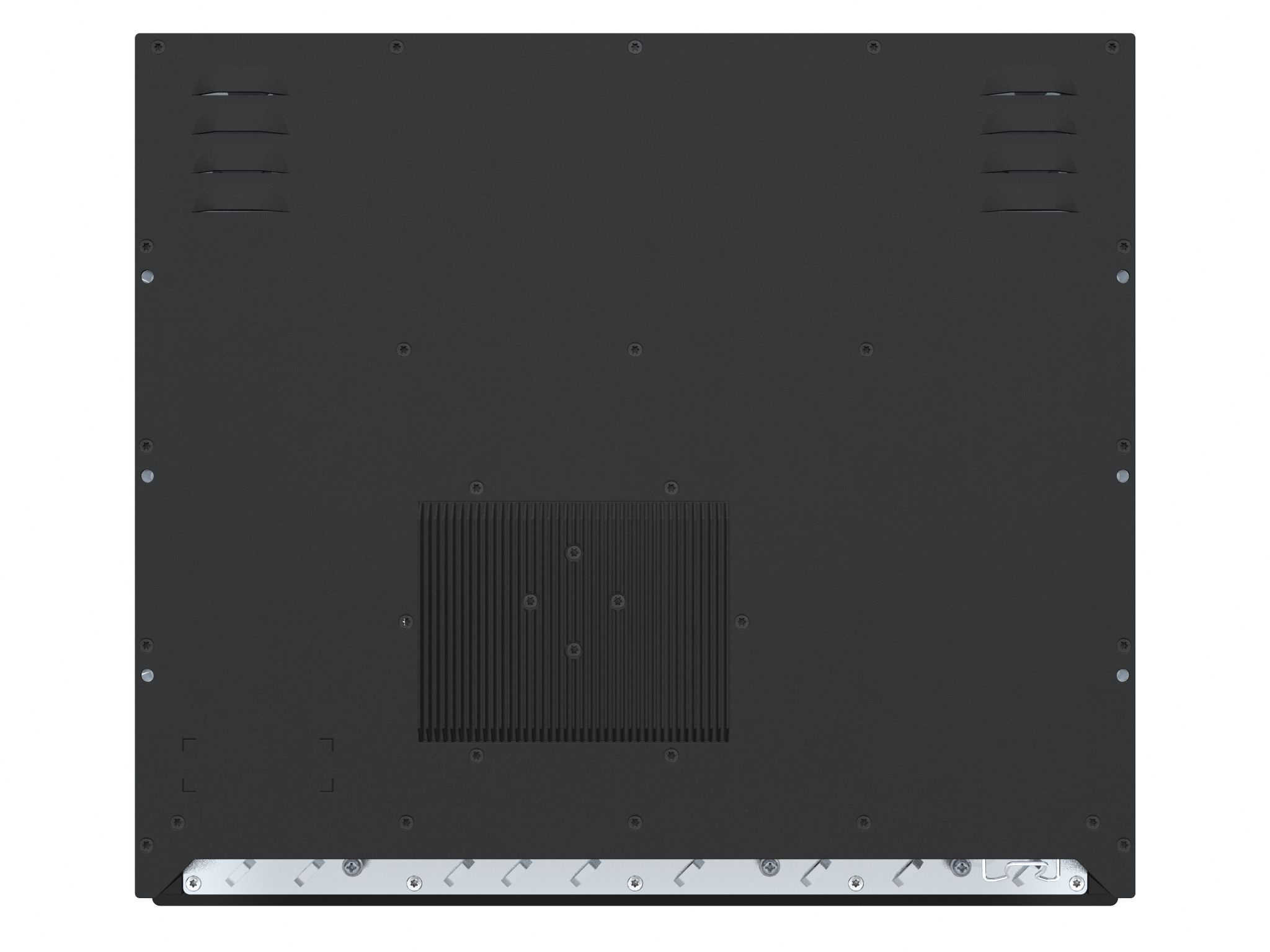

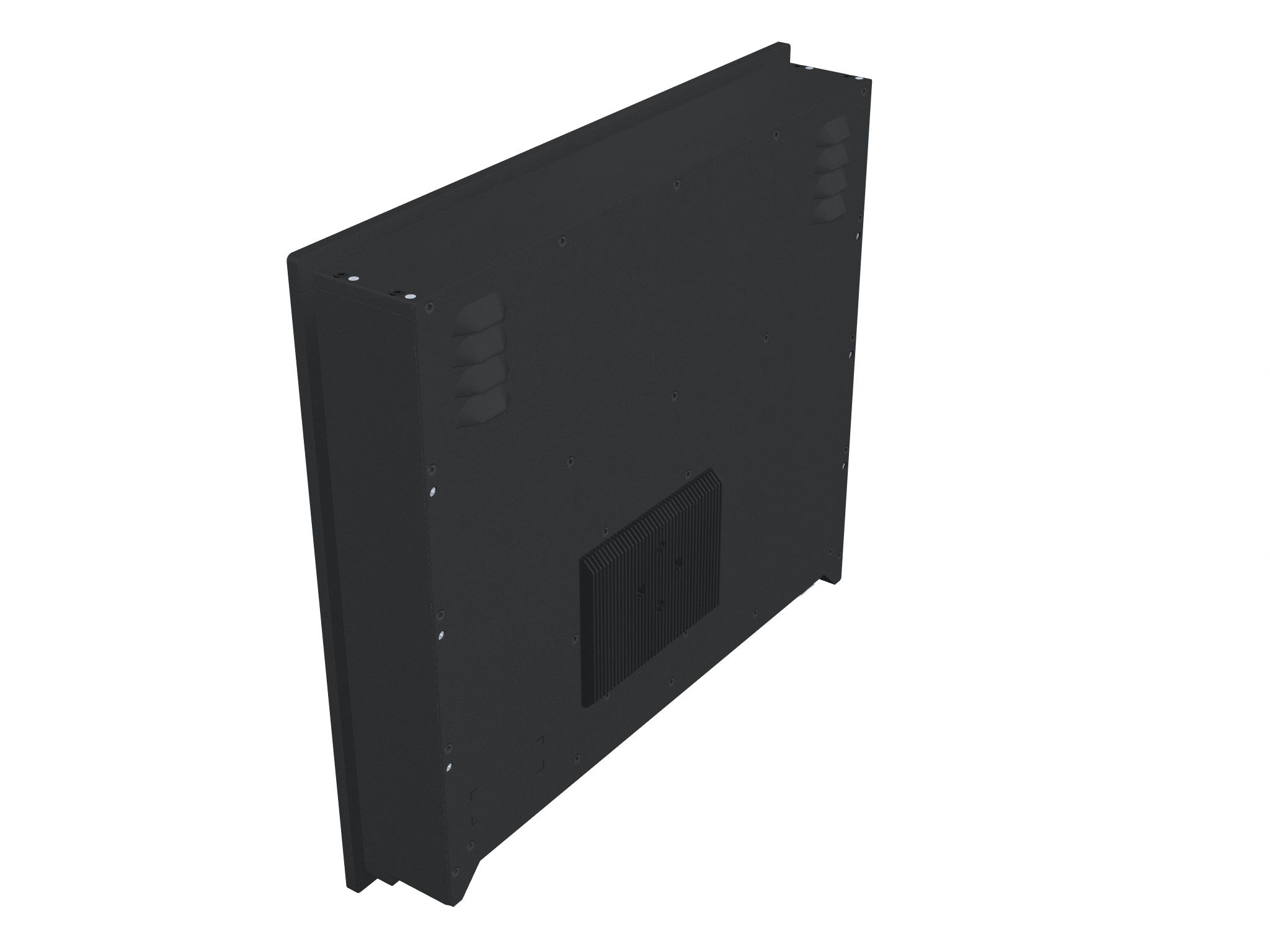

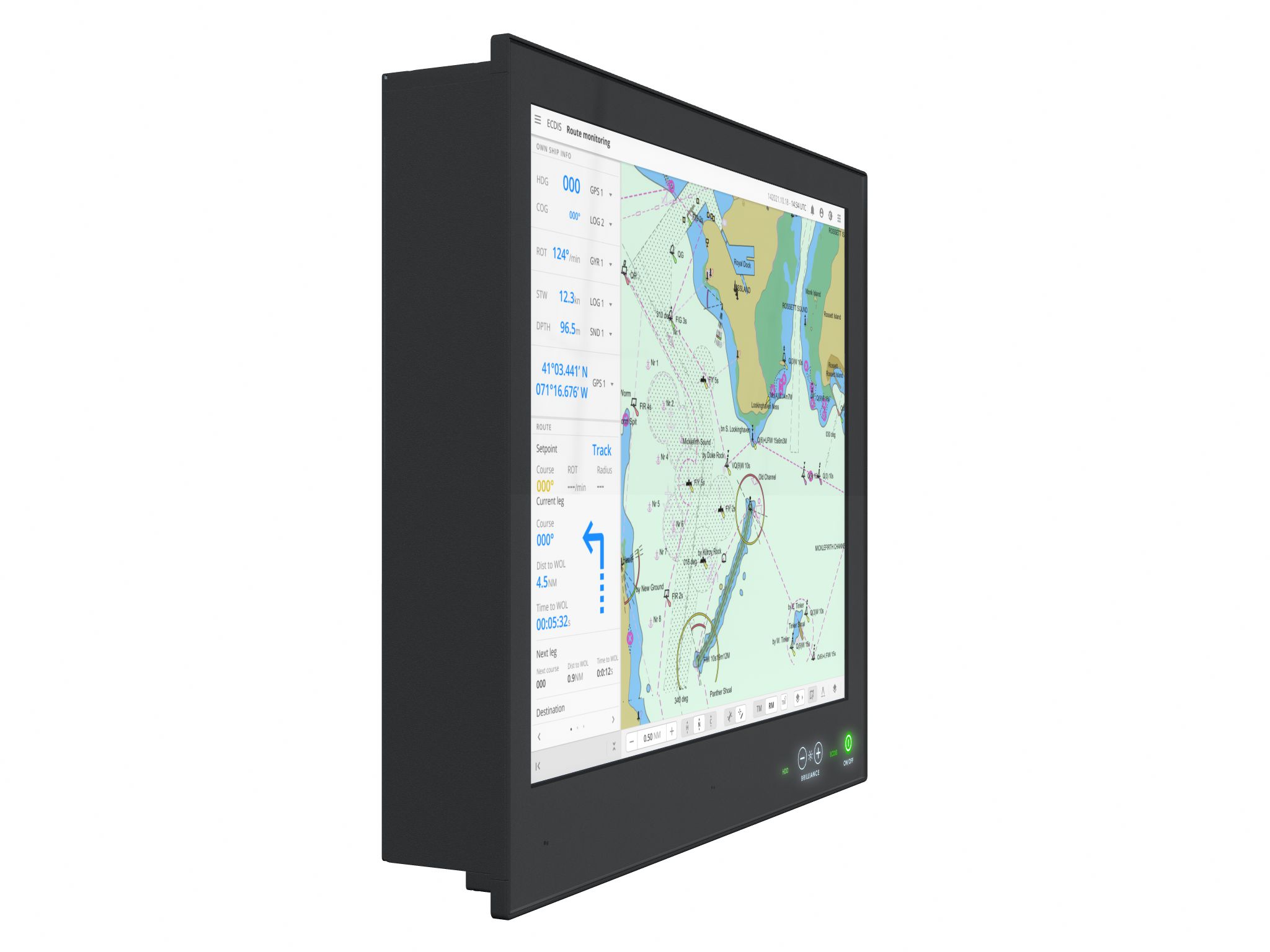

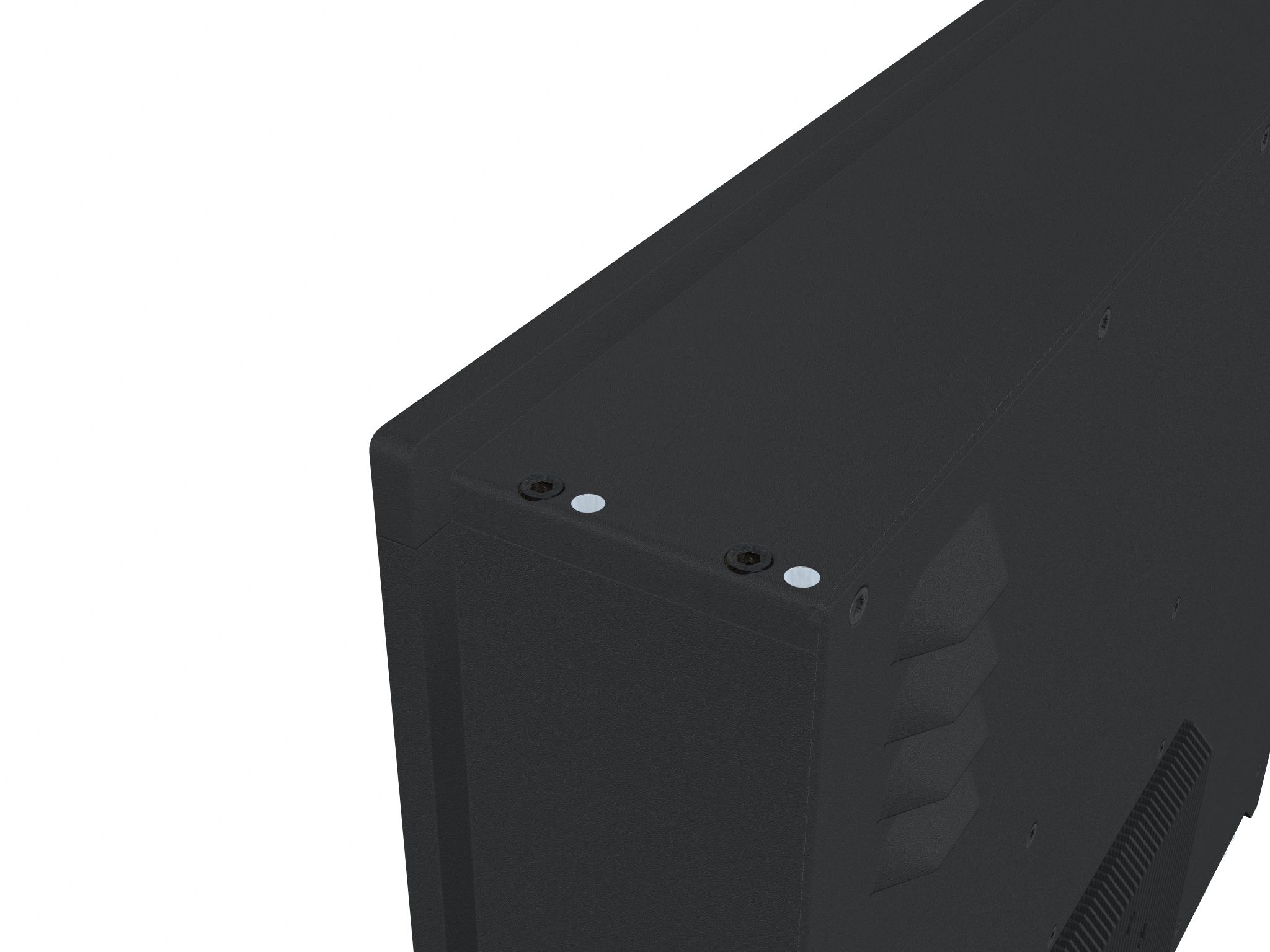

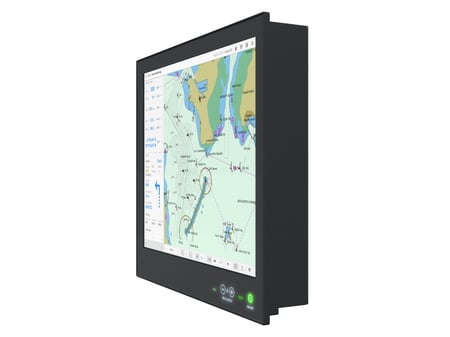

Panel Computer - HATTELAND® Series X G2

The Series X Generation 2 (G2) Panel Computer range is a flexible all in one monitor & PC solution, designed and type approved for the professional marine segment, where reliability and long life time are key prerequisites for the industry. The product range combines state of the art display and computer technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The high performance MMC Panel Computer models provide a wide choice of display size and format, along with various processor and storage options. The compact, all-in-one MMC solution is the ideal one for all ship navigation or automation installations. This range with all it’s versitility and capability provides a robust and cost effective platform from which to run multiple applications and display and manage data.

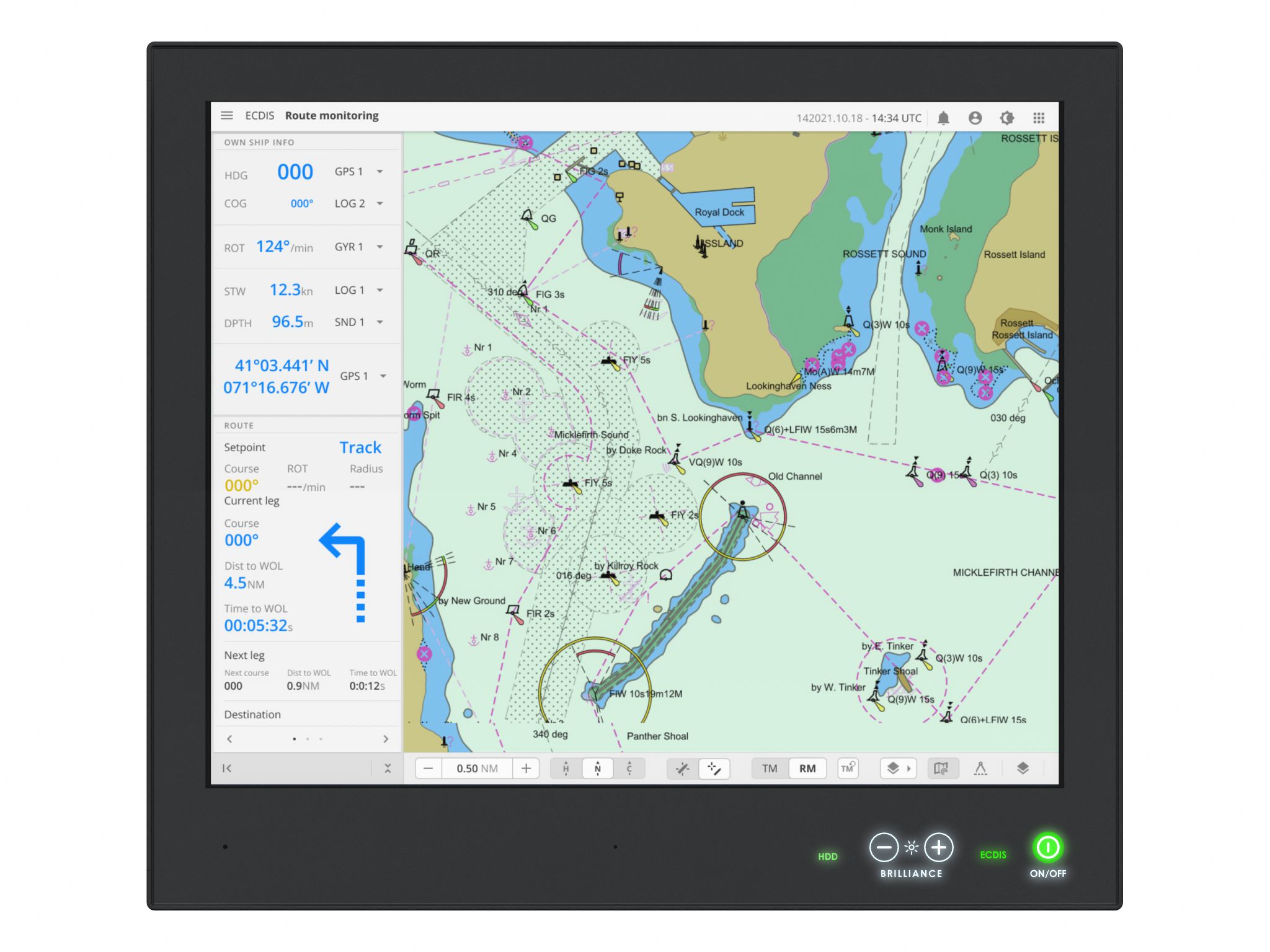

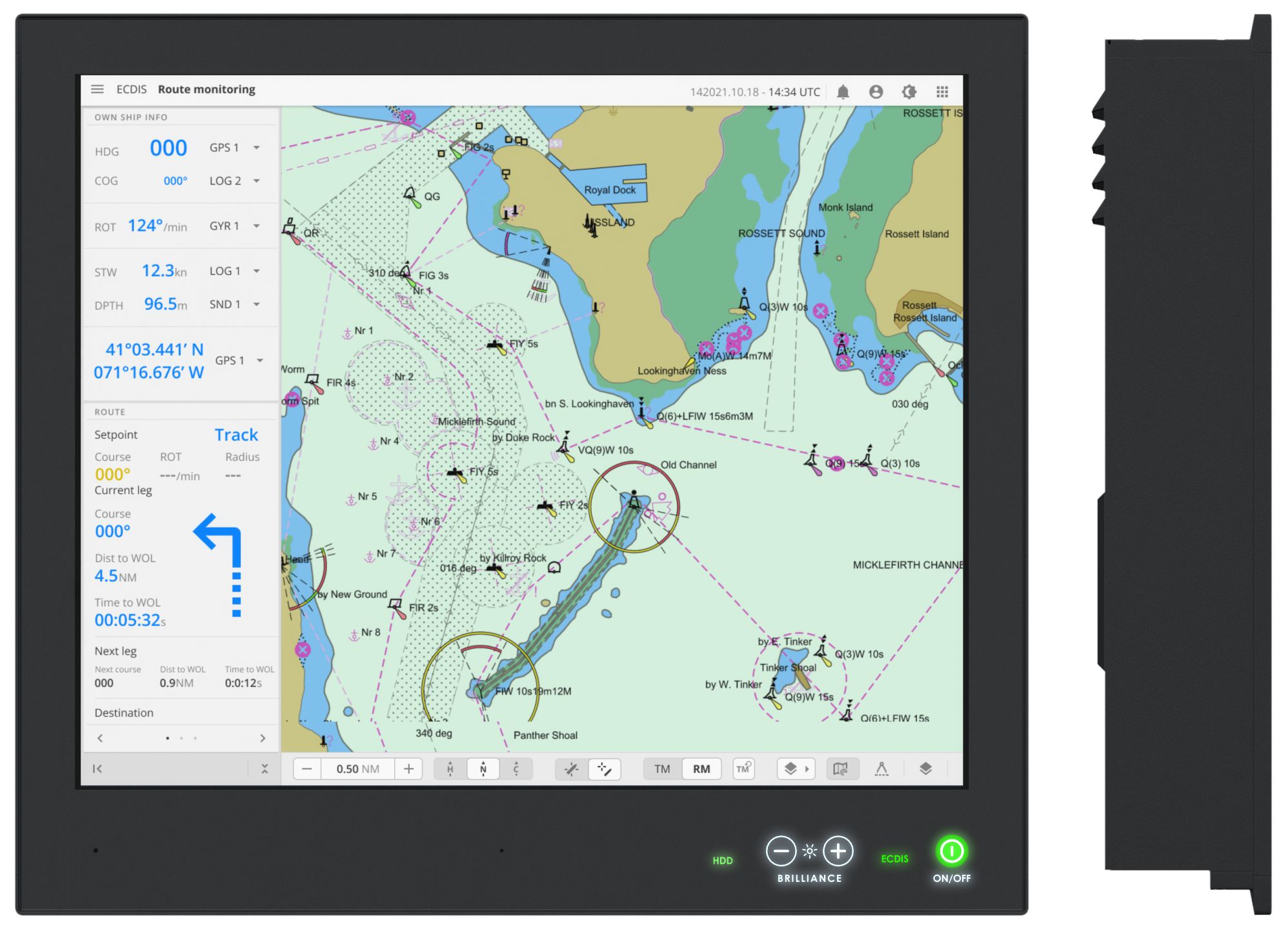

Series X Generation 2 (G2) Panel Computer feature Glass Display Control, LED Backlight Technology, full dimming and multipower all as standard. In addition there are options such as SSD storage mediums, Multiple interface configurations and several OS options. The product range can also accomodate and combine multi-touch screen, optical bonding and ECDIS calibration. By factory standards the 19 inch unit is ECDIS Compliant.

TFT Technology:	High Quality TFT with LED Backlight Technology, TFT active-matrix liquid crystal panel, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area:	19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time:	5:4 - 35ms (typical, "black" to "white")
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1500:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	DP++ Out Max Res.: 640 x 480 to 4096 x 2304 @ 60Hz
Power Specifications and Consumption:	24VDC Operating DC: 78.4W (typ) - 156W (max)
Product Features:	Dimmable 0-100%, Buzzer, Multi-power AC & DC, TPM2.0, GPIO, LAN Wakeup
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	Storage #1: 1 x SSD SATA Type m.2 internal. Enterprise 24/7, (according to JESD218 standard with JESD219 workload). Power loss protection. 240GB > 480GB Storage #2: 2 x 2.5" SSD SATA via Removable Tray 240GB > 3.84TB
CPU / Processor Options:	1 x Intel® i7-1185G7E 1.8GHz/4.4GHz 4/8, 12MB, 15W (standard) or 1 x Intel® i5-1145G7E 1.5GHz/4.1GHz 4/8, 8MB, 15W (standard) or 1 x Intel® i3-1115G4E 2.2GHz/3.9GHz 2/4, 6MB, 15W* or 1 x Intel® Celeron 6305E 1.8GHz 2/2, 4MB, 15W (standard) *On request (may be subject for MOQ)
Memory Options:	DDR4-3200, Dual Channel 8GB > 64GB
System Chipset / Graphics Chipset:	System Chipset: SOC Graphics chipsets: Intel® Iris® Xe Graphics 1.35Ghz, 96 exe units (for Intel® i7-1185G7E) Intel® Iris® Xe Graphics 1.30Ghz, 80 exe units (for Intel® i5-1145G7E) Intel® UHD Graphics for 11th Gen Intel® Processors 1.25Ghz,48 exe units (for i3-1115G4E) Intel® UHD Graphics 1.25Ghz,48 exe units (for Intel® Celeron 6305E)
BIOS / Buzzer:	EFI, ACPI Support. Preconfigured by factory / Buzzer: 3500Hz No Onboard PC-Beeper
Power Manager and Monitoring:	AT, ACPI (S3/S4) - TPM2.0, Temperature, Fan and voltages status 256 Segments, 0, 1, 2...255 sec/min

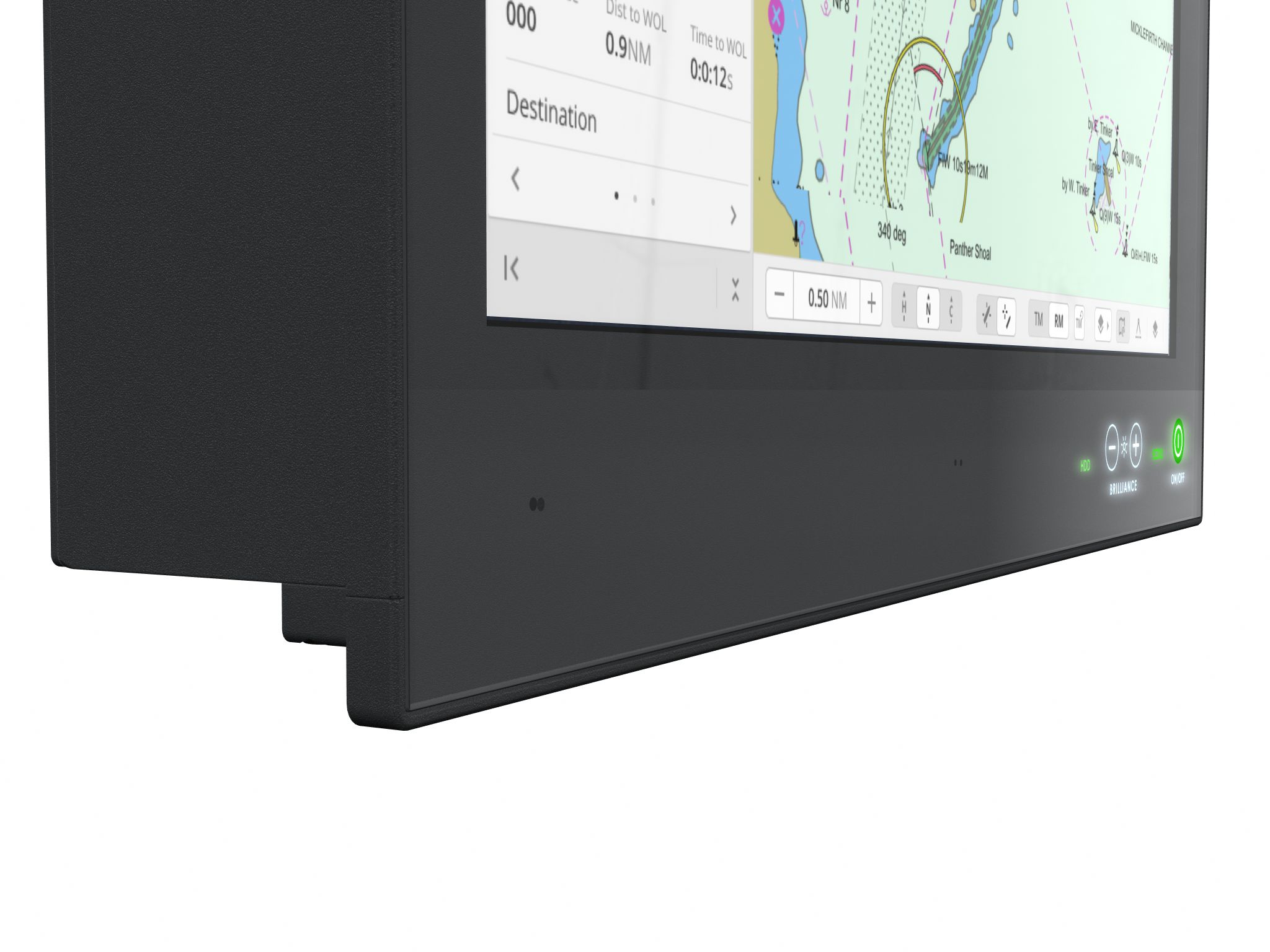

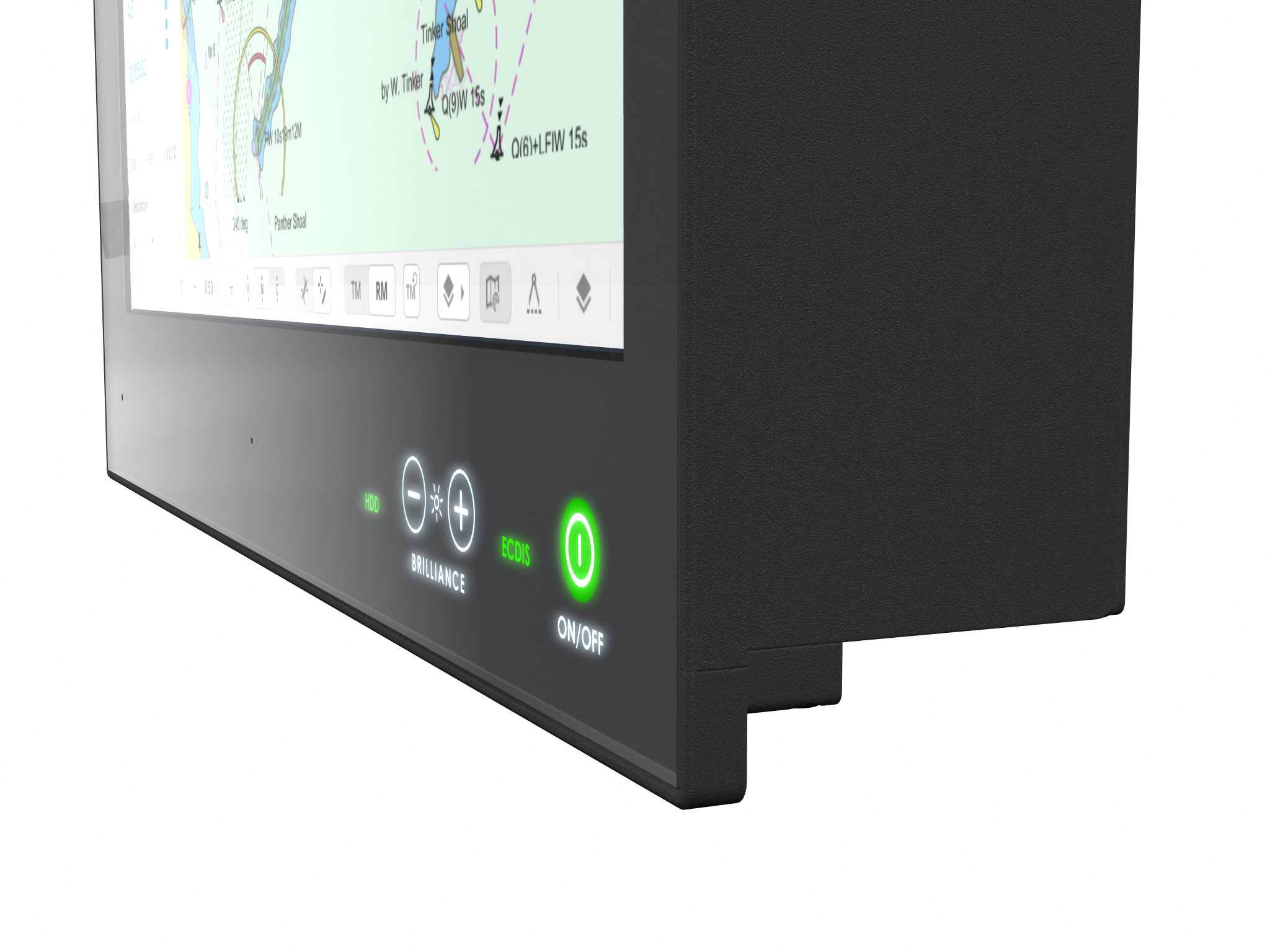

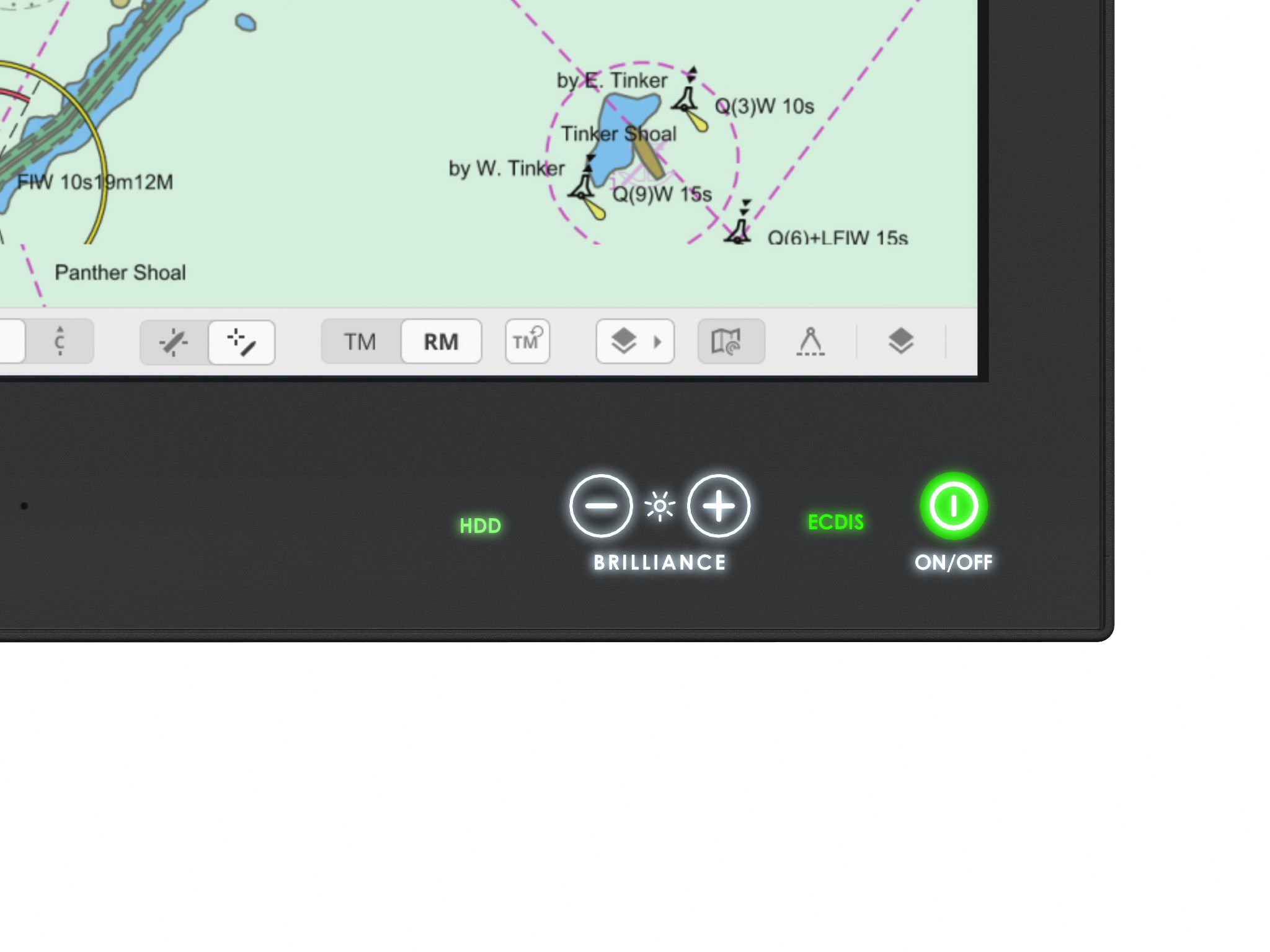

User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Power LED, HDD/SSD LED, Mode Status Indicator (Service), Buzzer (through glass), Light Sensor (behind glass)

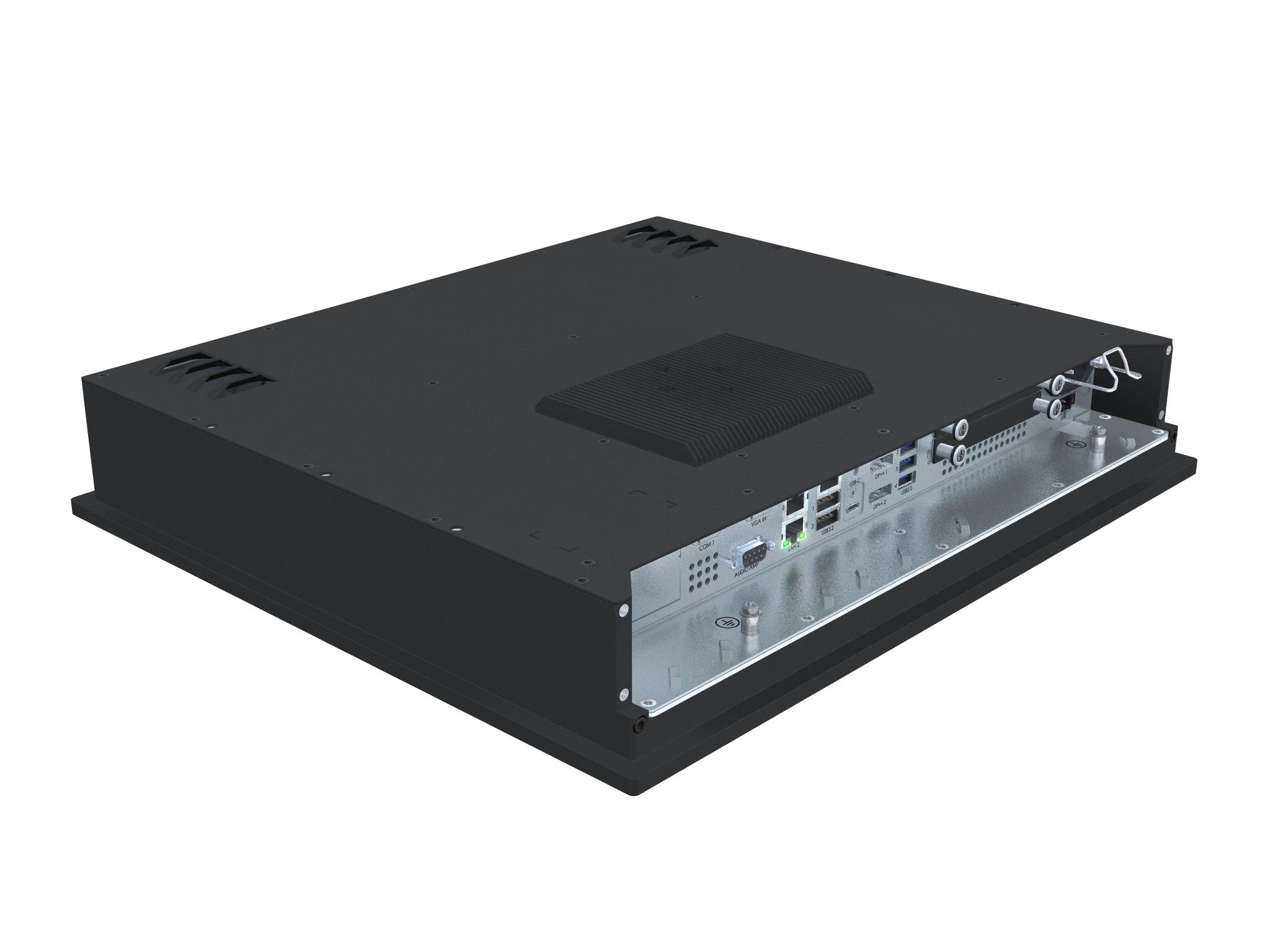

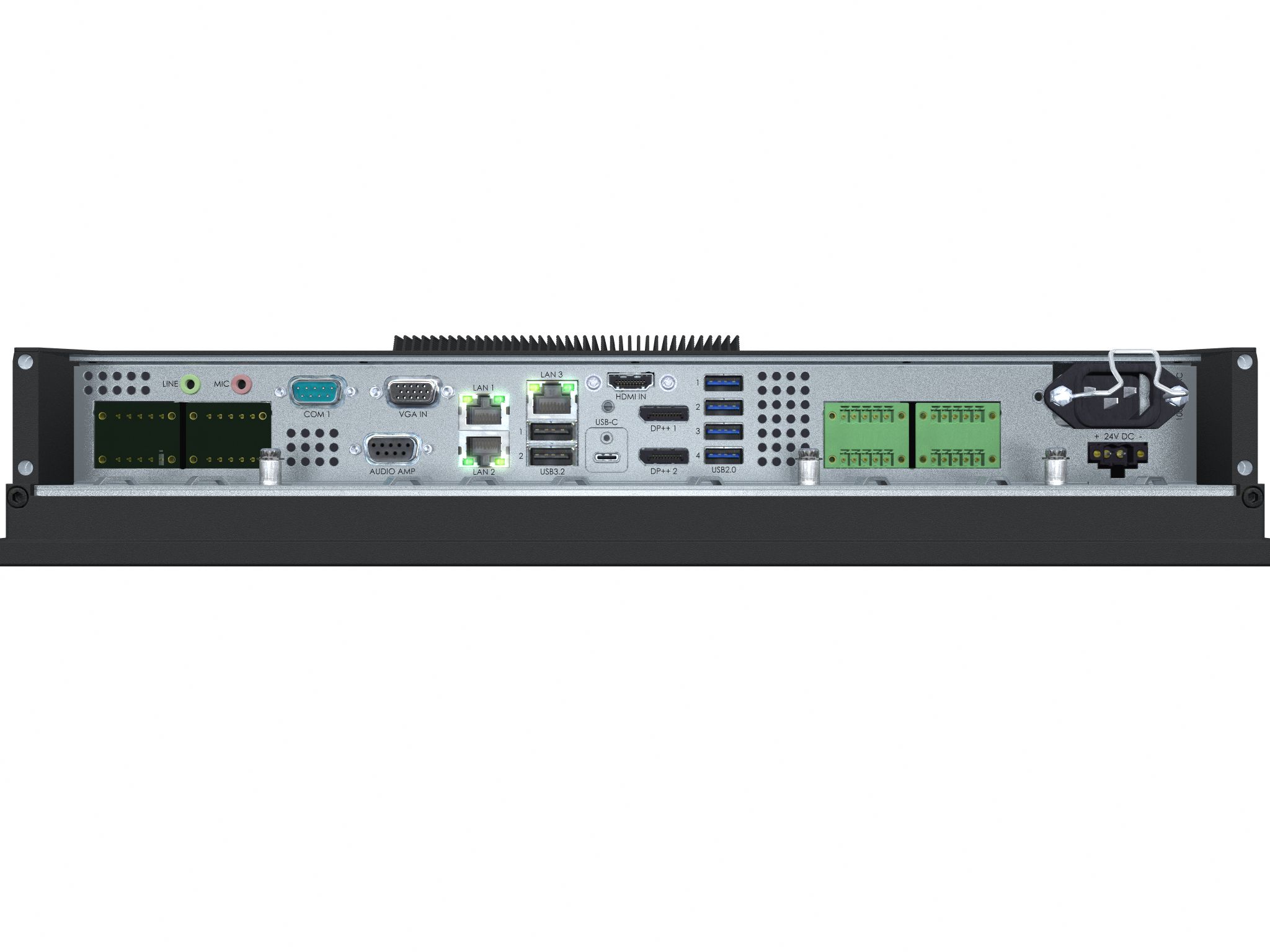

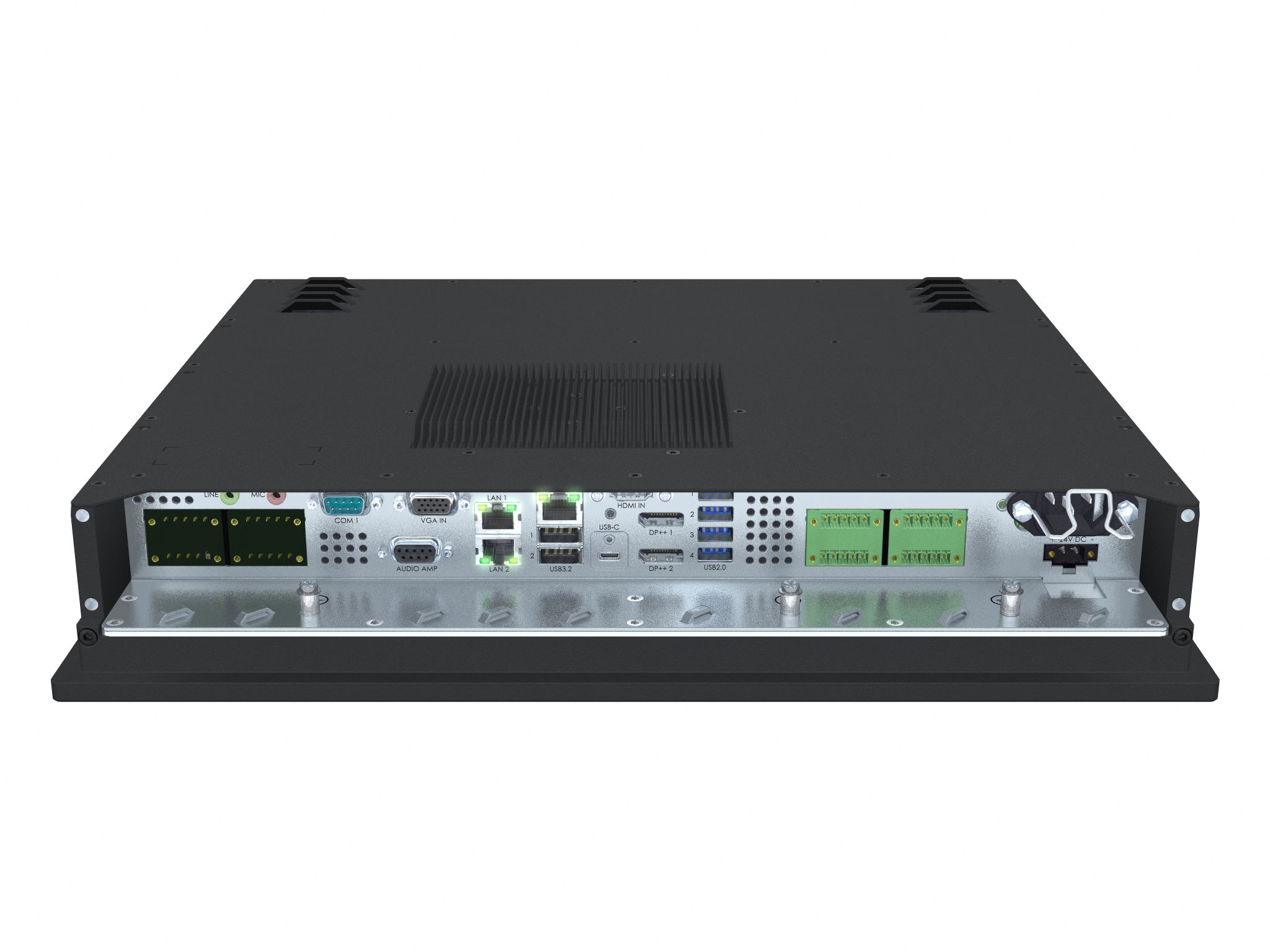

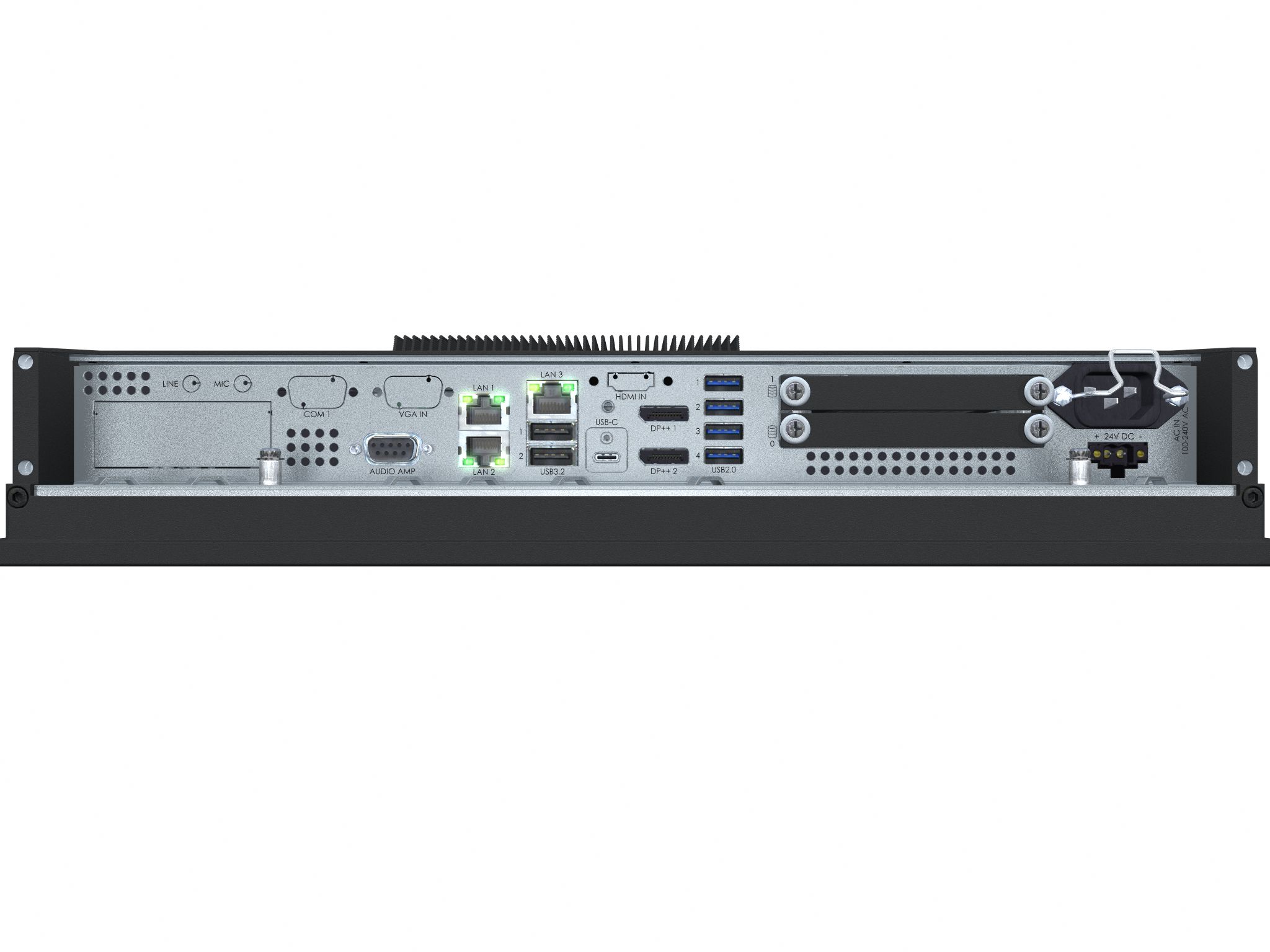

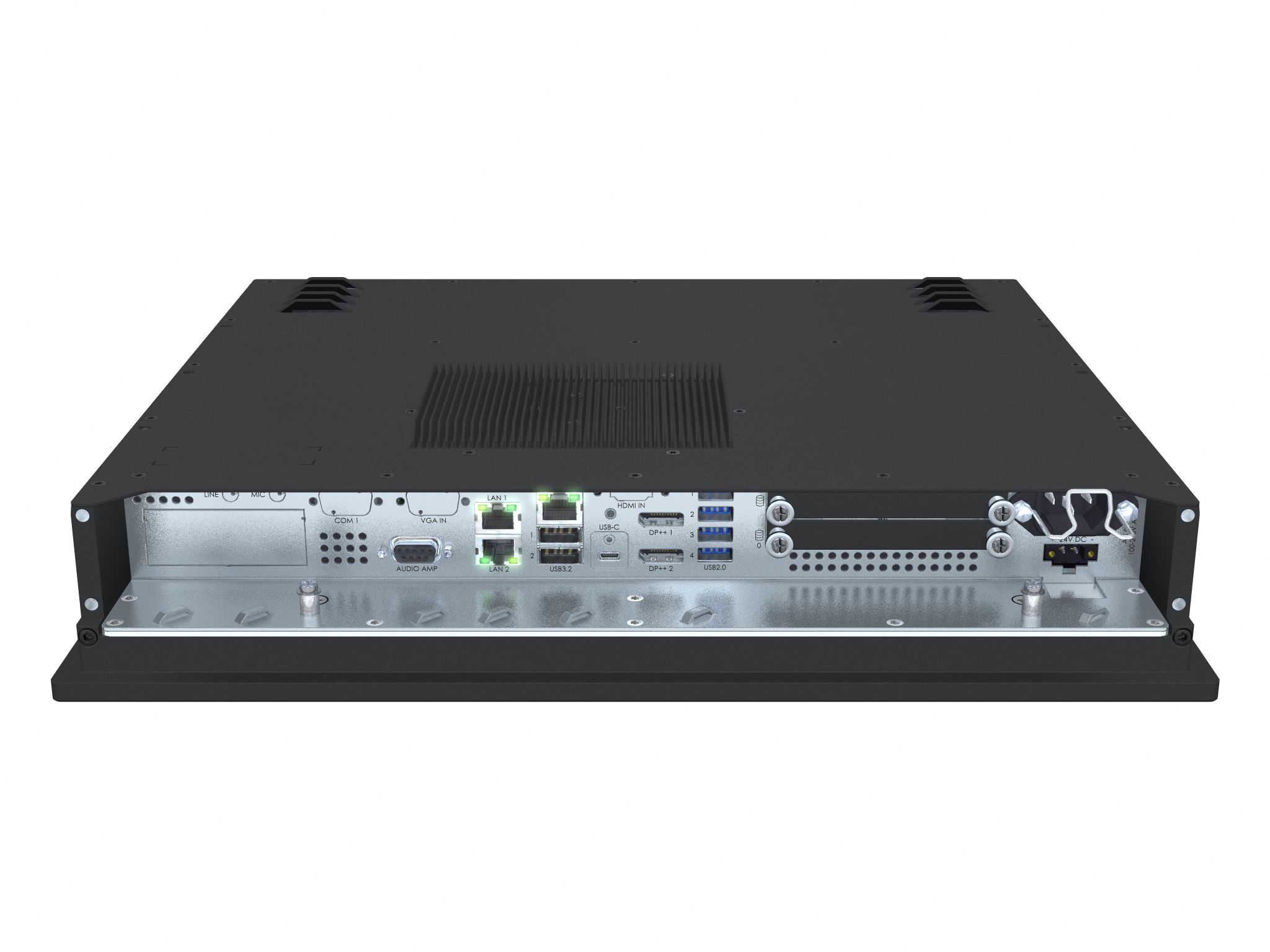

Connectors:	• USB-C: 1 x USB-C DP ALT mode, PD/DP (60W) • DP++ 1.2 OUT: 2 x DisplayPort Female (Dual-Mode DP++) • USB2.0 (<5m): 4 x USB Type A (4-pin) • USB3.0 (<3m): 2 x USB Type A (9-pin) • Ethernet GBLan: 3 x RJ-45 • Amplified Audio: 1 x DB9 Female 2W@70ºC • If SSD Trays option: 2 x 2.5" Sized Tray/Bay (Factory option) • AC Power IN: 1 x Std IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08

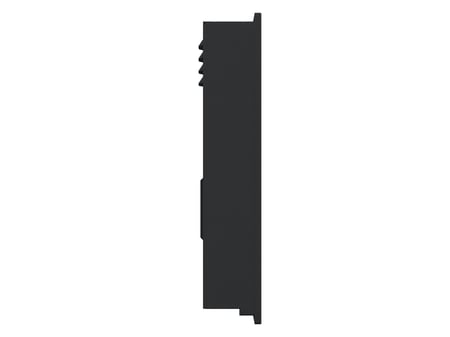

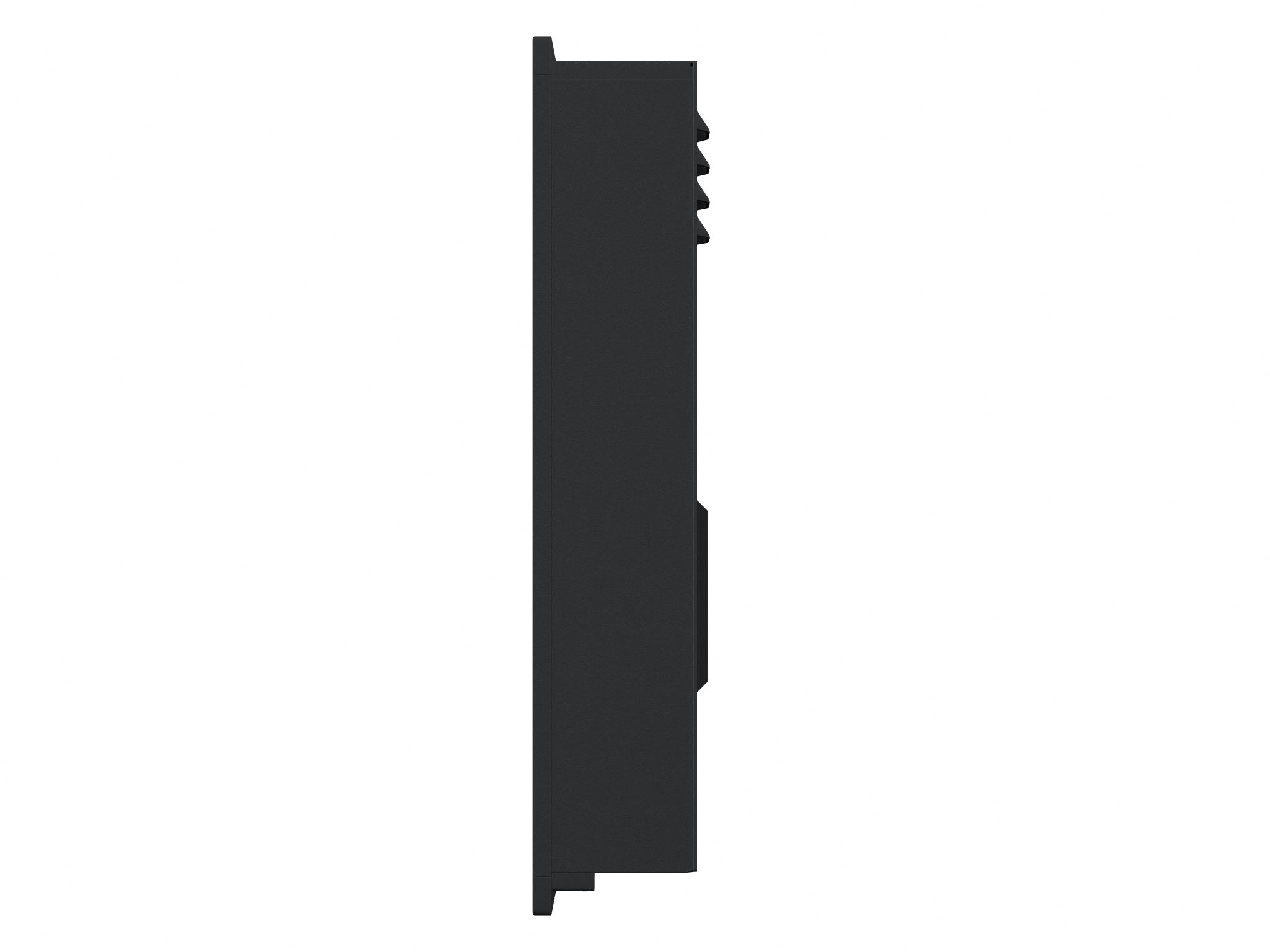

Product Dimensions and Weight:	W:429.00 [16.89"] x H:382.00 [15.04"] x D:80.00 [3.15"] mm [inch] Approx. 8.5kg / 18.7lbs
Product Carton Size and Weight:	L:530.00 [20.87"] x W:200.00 [7.87"] x H:540.00 [21.26"] mm [inch] Approx. TBDkg / TBDlbs

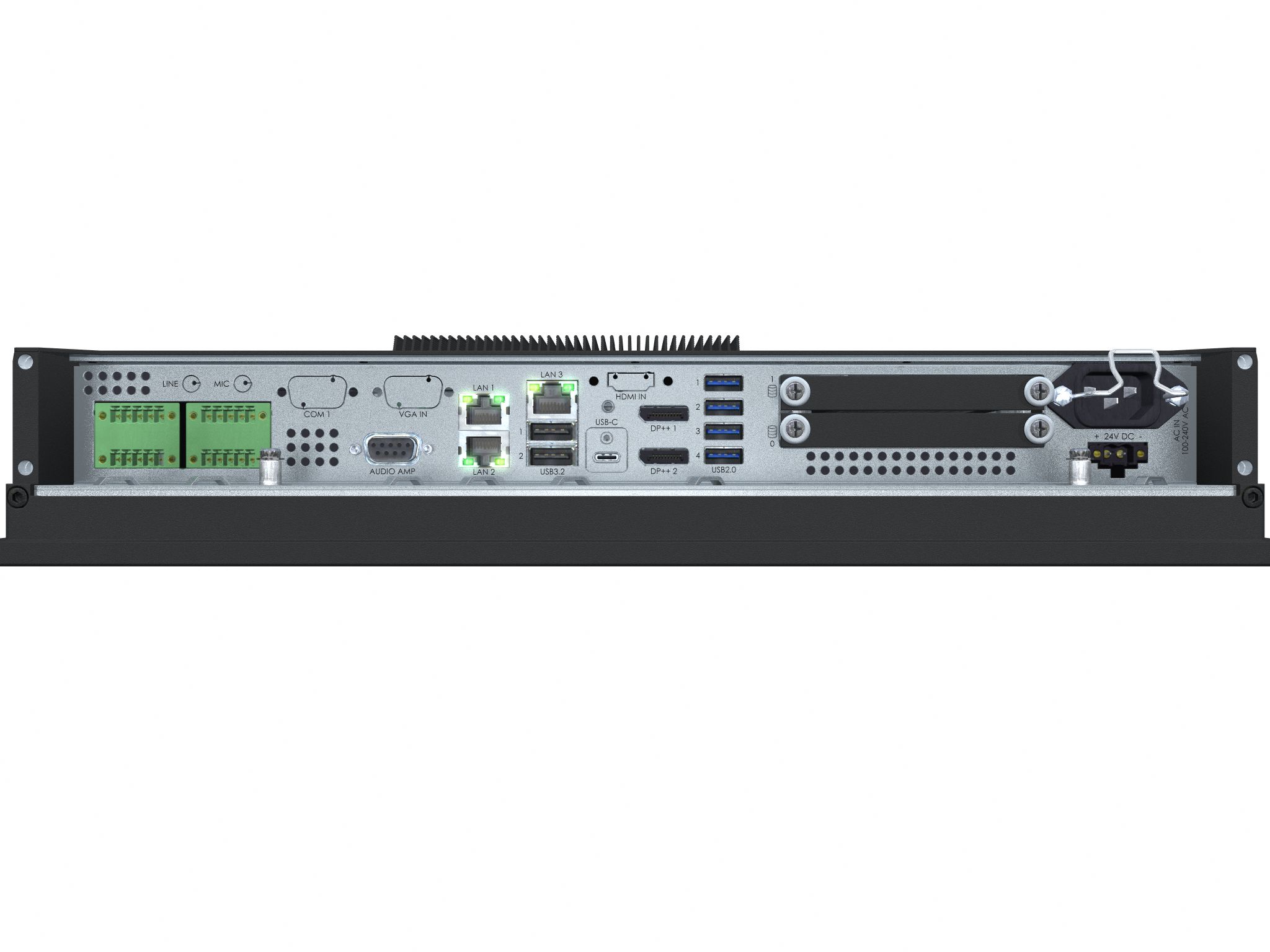

Factory Options:	Projected Capacitive Touch Screen (Multitouch,USB,Pen/Glove support) • Optical Bonding Technology • Color Calibrated models (ECDIS) • Multipower (AC & DC) or AC only model • Model with 2 x physical 2.5" removable Disk Bay/Tray • IP22 Model (Factory Mounted internal gaskets) • Variations of SSD Storage, RAM Memory, Operating System, CPU • 1 or 2 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module • 1 or 2 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel module • 1 x HTA2020002-AD1033: CAN isolated 2 channel module* • 1 x HTA2020002-SLCAN: CAN isolated 2 channel, socketCAN module* • 1 x PCA100297-1: Isolated Digital IO module, 4 x Output/4 x Input* • 1 x PCBAA21001: LAN 1Gbps, 2 x SFP module* • 1 x VSD203593-1: 2 x 3.5mm jack mic in, line out* • 1 x VSD203592-1: 1 x Isolated RS-232, DB9M connector* • 1 x PCA200827-1: 2 x RJ-45, PoE 12V 5,5A receiver module* • 1 x HT EPB STD-A2: External/Remote ON/OFF power button* *Only 1 of item can be installed Frame Grabber options (1 x supported via M.2 (PCIe x1) slot): • HD550N1 SDI M2: 1 x SDI IN, 1920x1080@60/50fps • HD550N1 HDV M2: 1 x HDMI IN+1 x VGA IN, 1920x1200p@60/50fps

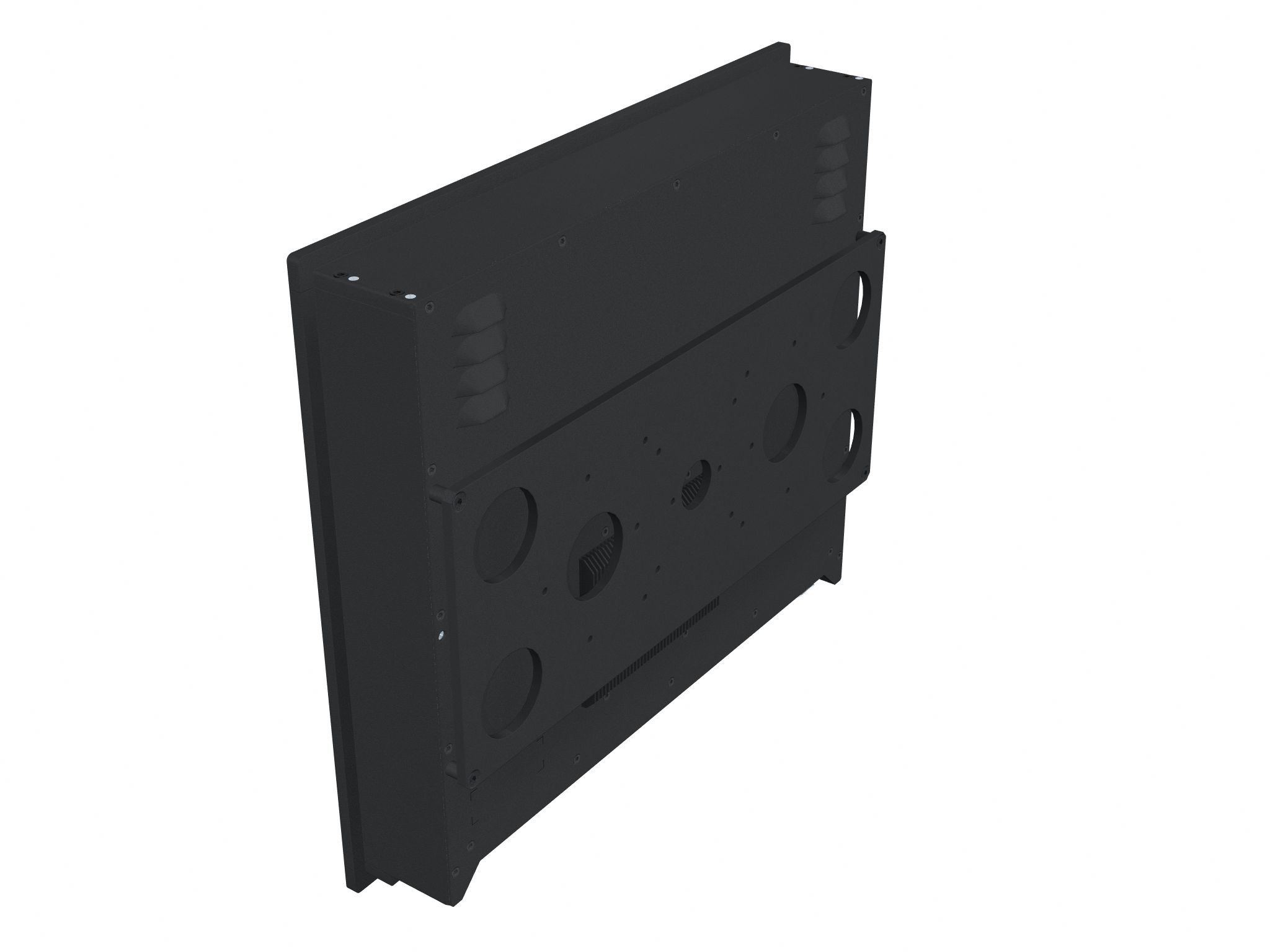

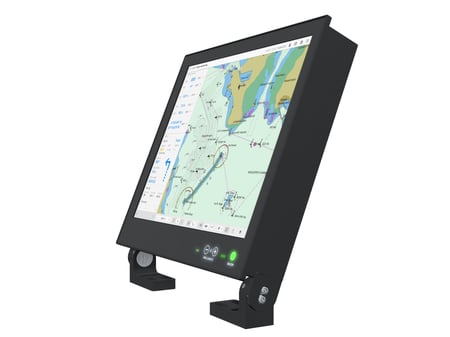

Accessories:	• JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle • HD CMB SX2-N1: 1 x Console Mount Kit. EN60945 Tested • HD TMB SX2-A1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX2-C1: 1 x VESA Adapter Kit (75/75, 100/100&200/100mm) • JH 19TAP STD-C1: 1 x Frame Adapter (19" Series 1 to Series X) retrofit • HD 19TAP SX2-C2: 1 x Frame Adapter (19" Series X to Series 2) retrofit • HD 19COV SX1-A1: 1 x UV Sun Cover • P007131-1: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount • HT 00262 OPT-A1/B1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1/B1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1/B1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2/B2: 1 x SLCAN isolated, 2 channel, USB ext. module • HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00277 OPT-B1: 2 x LAN 1Gbps, SFP, USB ext. module • VSD100779-1: External audio cable, DB9M to open leads mono 1m • HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os • HD 000TR SX2-A2: 1 x Removable Front Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Front Tray 2.5" w/Storage Device* *Where xxx=Size of device. yy=GB,TB. z=S (SSD) - Choose Device from table.
Capabilities / Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529). IP22=option
Compass Safe Distance:	Standard: 85.00 [33.46"] - Steering: 55.00 [21.65"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition by DNV*, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society* *=pending

Specifications last updated: May 8, 2025 @ 12:39
