Panel Computer - HATTELAND® Series E

Series E is the new cost effective Panel Computers portfolio from Hatteland Technology. Designed for 10 years manufacturing, all Series E Panel Computers integrate Intel® Tiger Lake processor-based computers, high quality display technology, fan-less design and low power consumption to deliver a fast and reliable all-in-one solution for diverse maritime applications.

The integrated nature of Series E Panel Computers enables tangible cost savings for maritime technology and equipment manufacturers as well as systems integrators. The portfolio features a range of display sizes, new data storage technology and a number of IO options, providing full flexibility to integrate the highest quality displays in a wider range of maritime technology. Especially suited to developing new bridge solutions, Series E Panel Computers make it possible to continue improving safety and efficiency through safe navigation, while still retaining focus on quality and cost.

Series E Panel Computers also meet the same extreme quality standards as the proven Series X Panel Computer range and feature LED Backlight Technology, full dimming (0-100%) all as standard. In addition there are options such as Multi-Power (AC/DC) inputs or Single AC input, SSD and m.2 storage mediums and Multiple interface configurations. The product range can also accommodate and combine multi-touch screen and optical bonding.

Typenumber (Long):	HD 21T36 MMC-xxx-xxxxxx
TFT Technology:	LED Backlight Technology, Widescreen, TFT Liquid Crystal Display module, VA (Vertical Alignment), a-si TFT Active Matrix
Viewable Size and Active Area:	21.5 inch - 476.06 [18.74"] (H) 267.79 [10.54"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.24795 (H) x 0.24795 (V) mm
Aspect Ratio and Response Time:	16:9 - 25ms (tr+tf) (typ)
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.77M colors (RGB 8-bit)
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz (If resolution is above/below 1:1, desktop scrolling mode will be used)
Detectable Resolutions:	640 x 480 to 4096 x 2304 @ 60Hz (DP++ Out Max Resolution)
Power Specifications and Consumption:	Multipower 100-240V AC - 50/60Hz+ 24VDC or Single AC Power Option 100-240V AC - 50/60Hz Operating AC/DC: 44W (typ) - 156W (max) Operating AC: 44W (typ) - 125W (max)
Product Features:	Low Power Consumption, Extended lifetime (+10 years), Fan-less Design, Dimmable 0-100%, Buzzer, Multi-power AC & DC or Single Power AC, Supports wide range of HD Expansion I/O Modules
Installed Operating System (OS):	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	Storage #1: 1 x SSD SATA Type m.2 internal. Enterprise 24/7, (according to JESD218 standard with JESD219 workload). Power loss protection. 240GB > 480GB Storage #2: 2 x 2.5" SSD SATA via Removable Tray 240GB > 3.84TB
CPU / Processor Options:	1 x Intel® Core™ i7-1185G7E 1.8GHz/4.4GHz 4/8, 12MB, 15W (standard) or 1 x Intel® Core™ i5-1145G7E 1.5GHz/4.1GHz 4/8, 8MB, 15W (standard) or 1 x Intel® Core™ i3-1115G4E 2.2GHz/3.9GHz 2/4, 6MB, 15W* or 1 x Intel® Celeron 6305E 1.8GHz 2/2, 4MB, 15W (standard) *On request (may be subject for MOQ)
Memory Options:	DDR4-3200, Dual Channel 8GB > 64GB
System Chipset / Graphics Chipset:	System Chipset: SOC Graphics chipsets: Intel® Iris® Xe Graphics 1.35Ghz, 96 exe units (for i7-1185G7E) Intel® Iris® Xe Graphics 1.30Ghz, 80 exe units (for i5-1145G7E) Intel® UHD Graphics for 11th Gen Intel® Processors 1.25Ghz,48 exe units (for i3-1115G4E) Intel® UHD Graphics 1.25Ghz,48 exe units (for Intel® Celeron 6305E)
BIOS / Buzzer:	EFI, ACPI Support. Preconfigured by factory / Buzzer: 3500Hz No Onboard PC-Beeper
Power Manager and Monitoring:	AT, ACPI (S3/S4) - TPM2.0, Temperature, Fan and voltages status 256 Segments, 0, 1, 2...255 sec/min

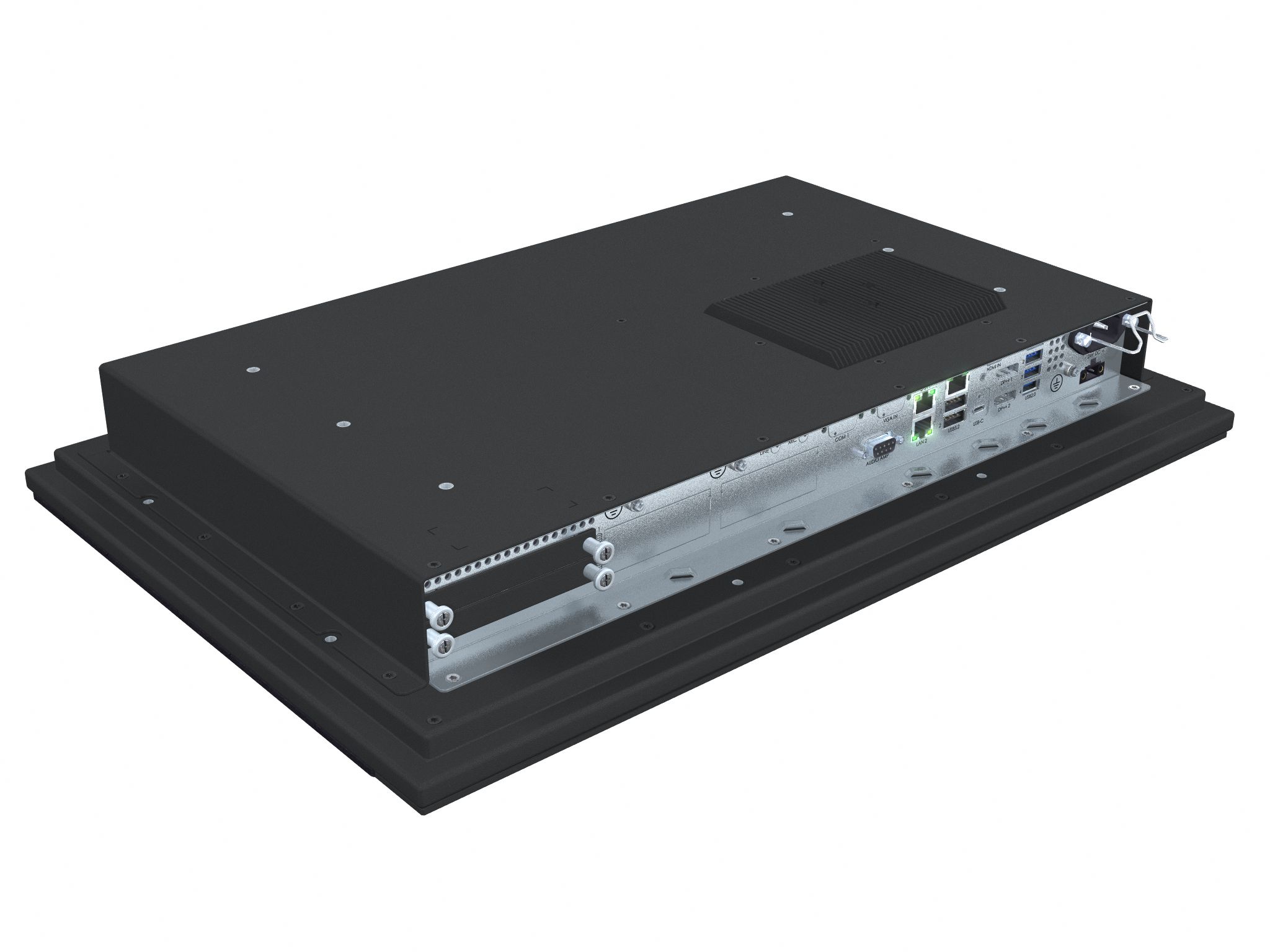

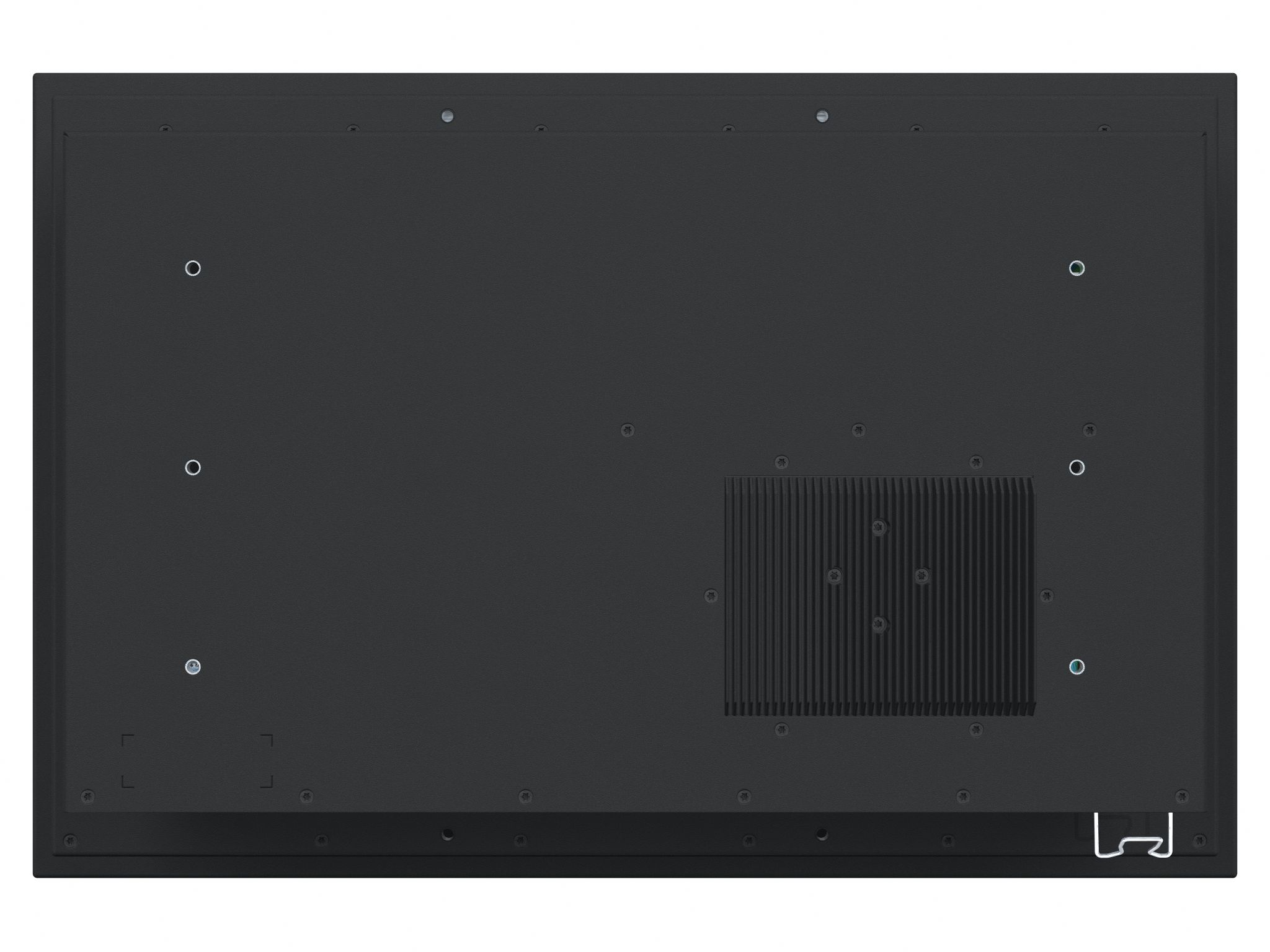

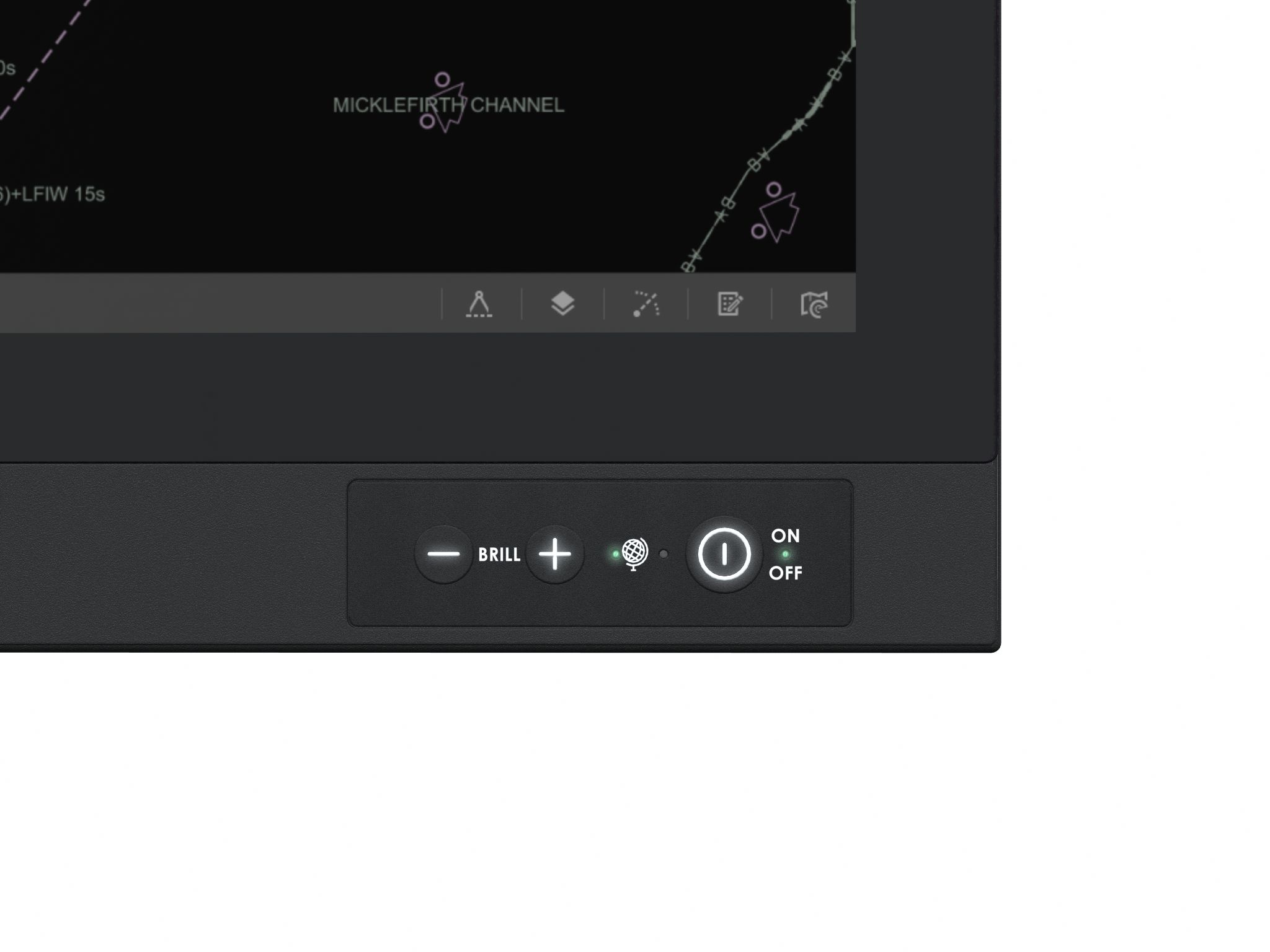

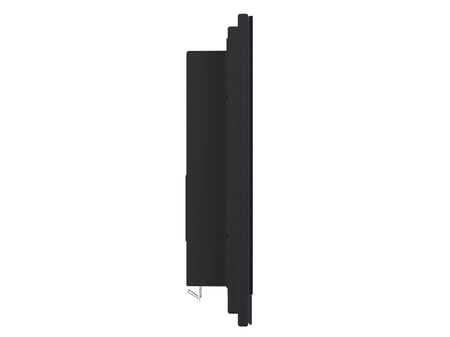

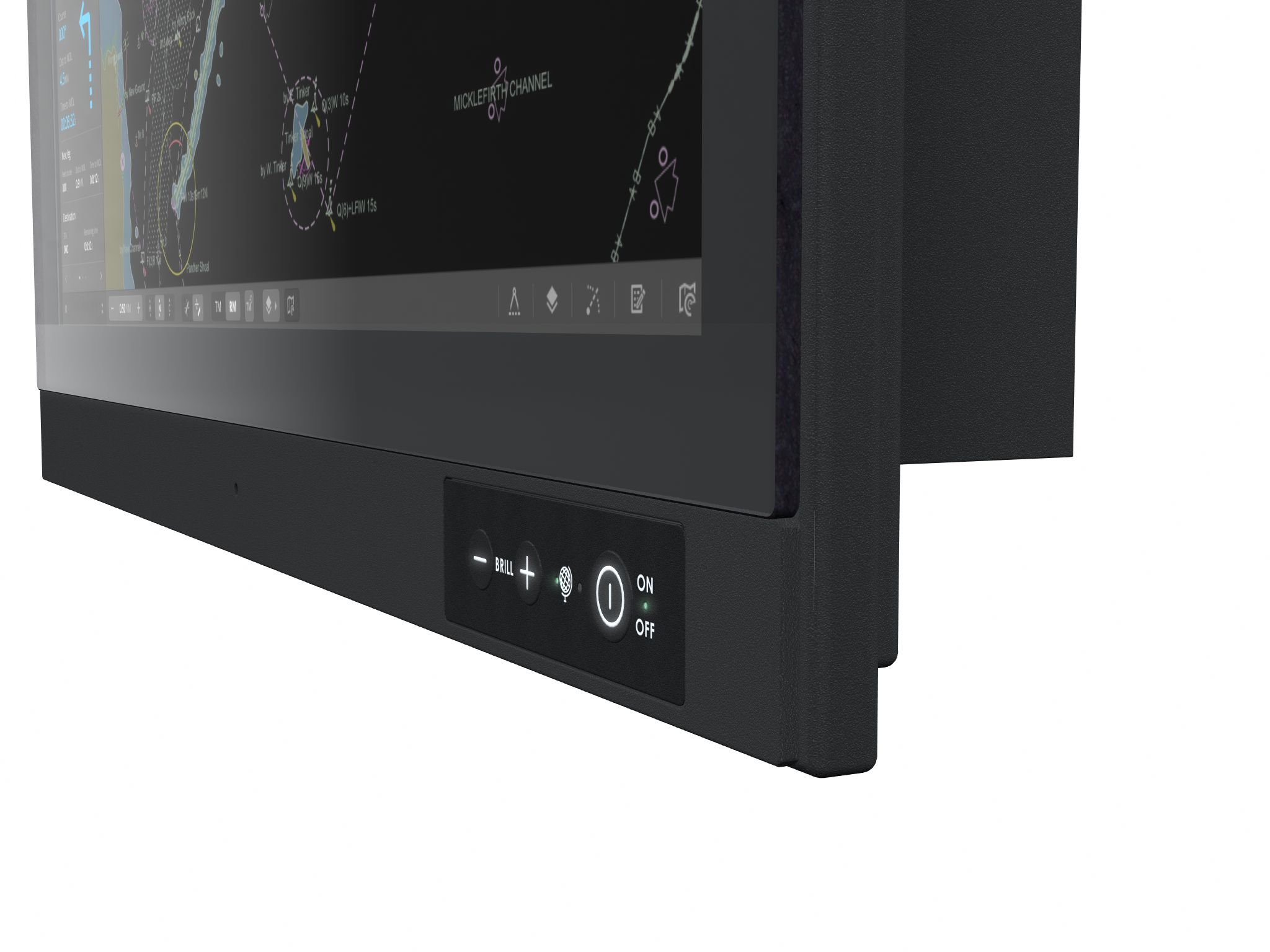

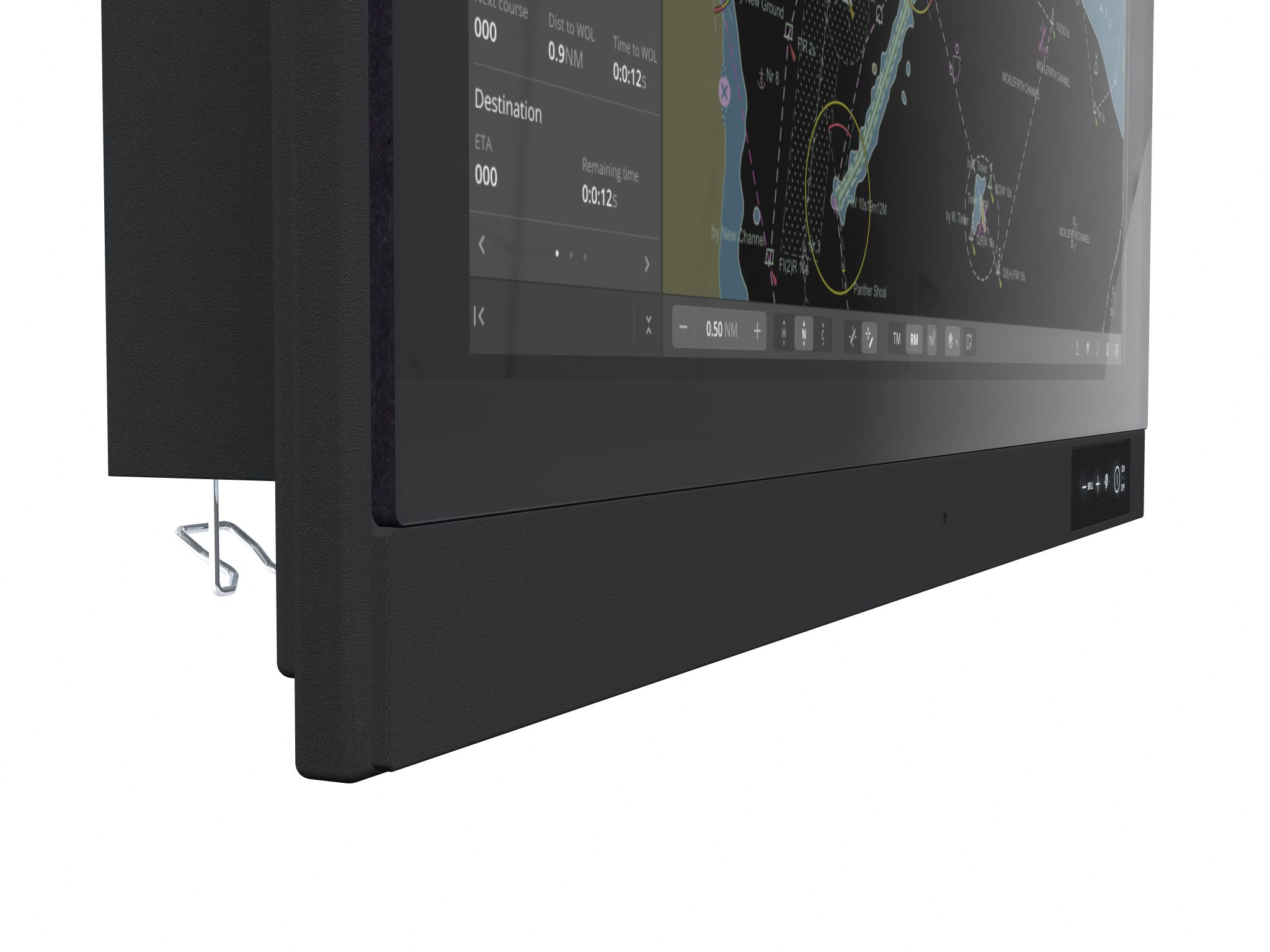

User Controls and Activity:	On Front Bezel (IP66), Tactile buttons: Power On/Off, Brightness Control (-/+), Power LED, ECDIS LED, Buzzer (75-85dB), Light Sensor

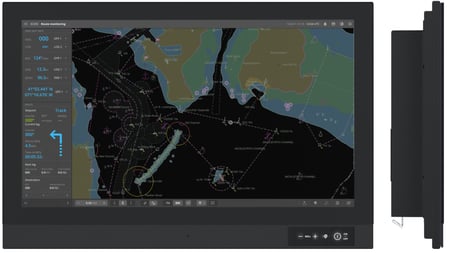

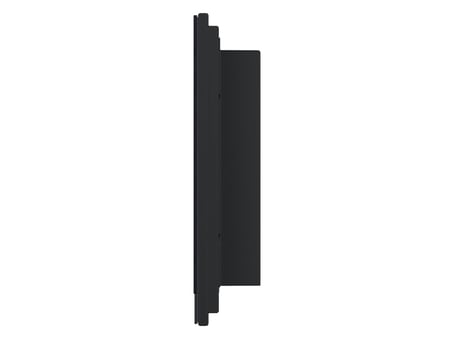

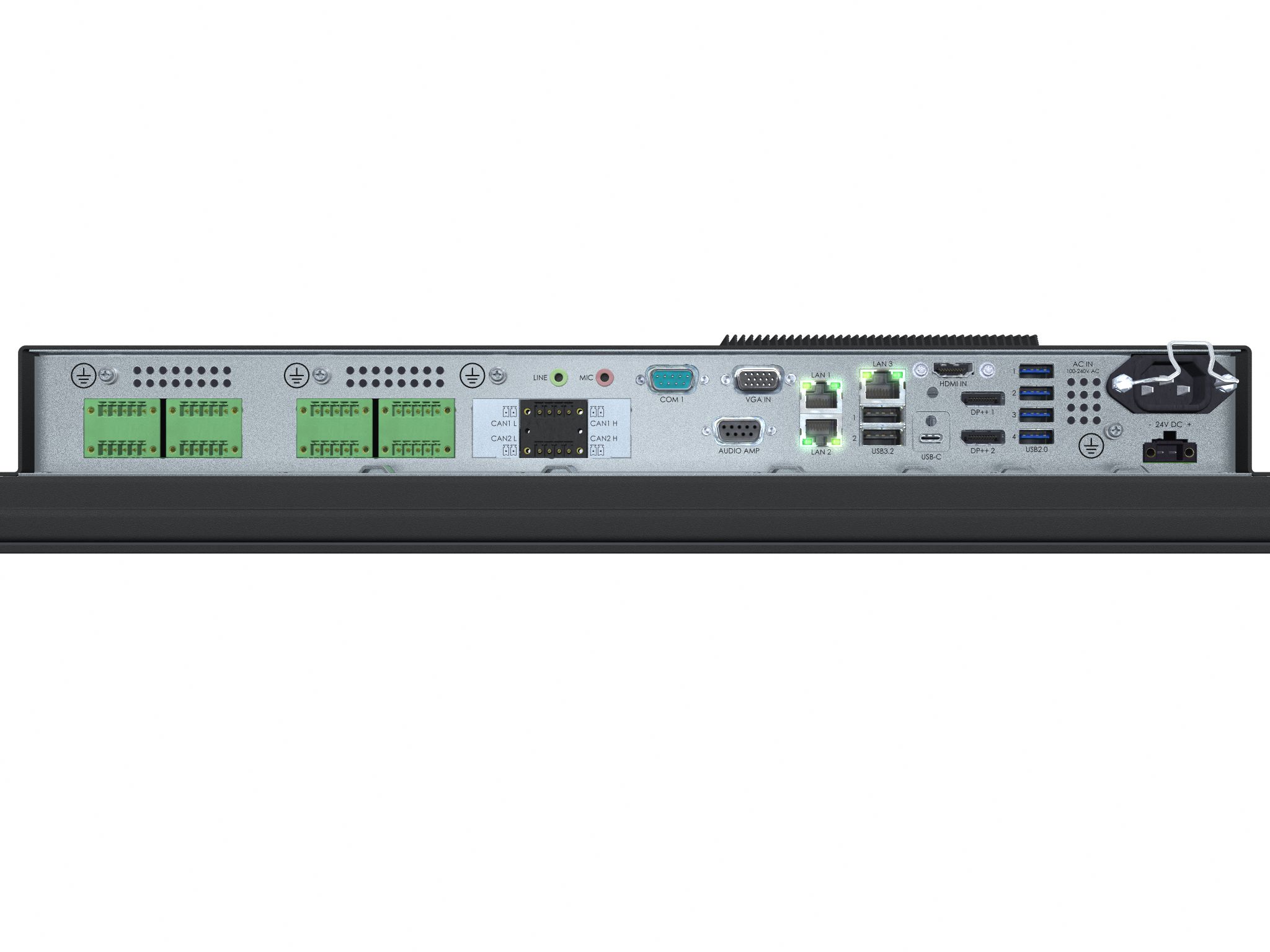

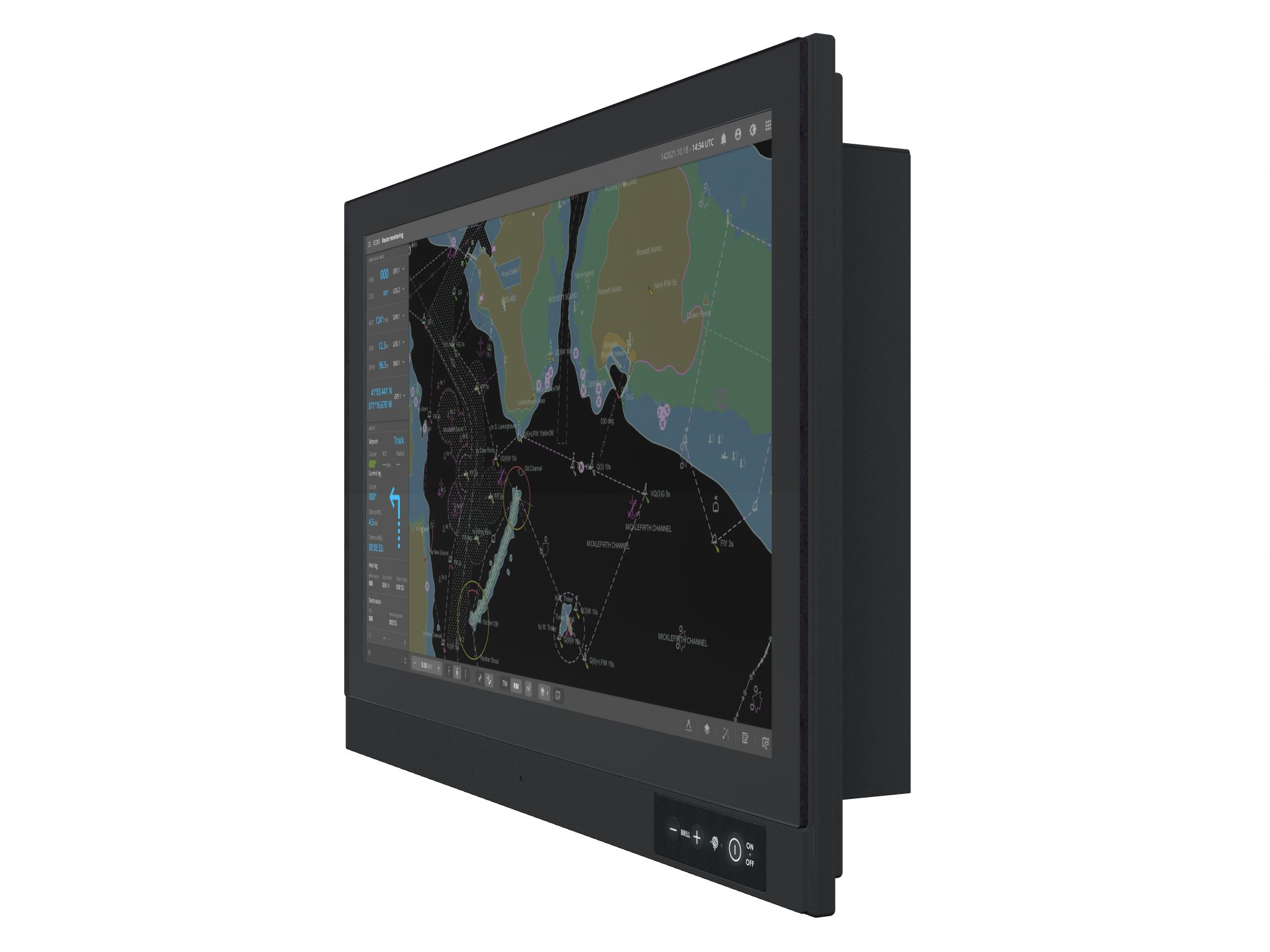

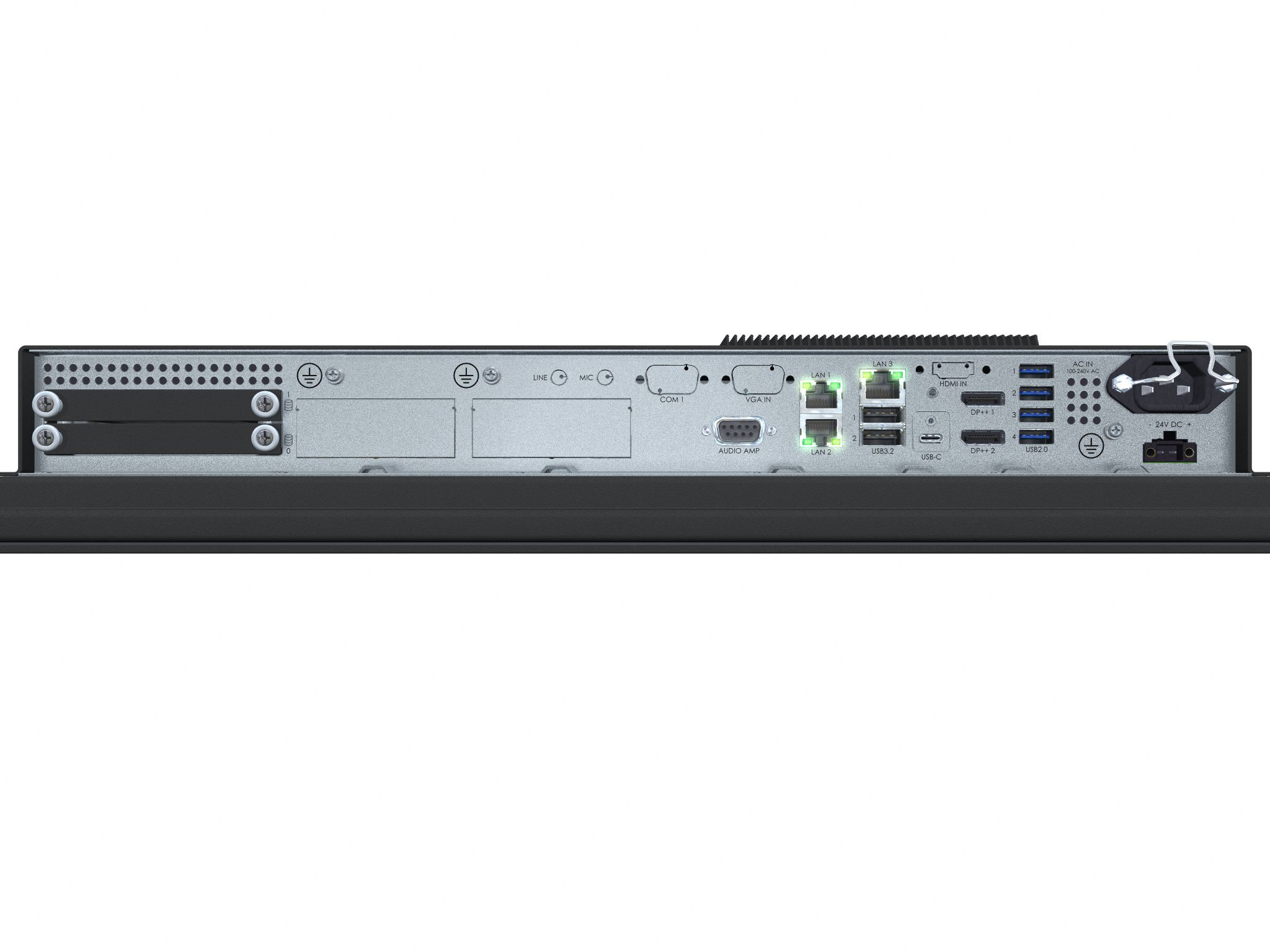

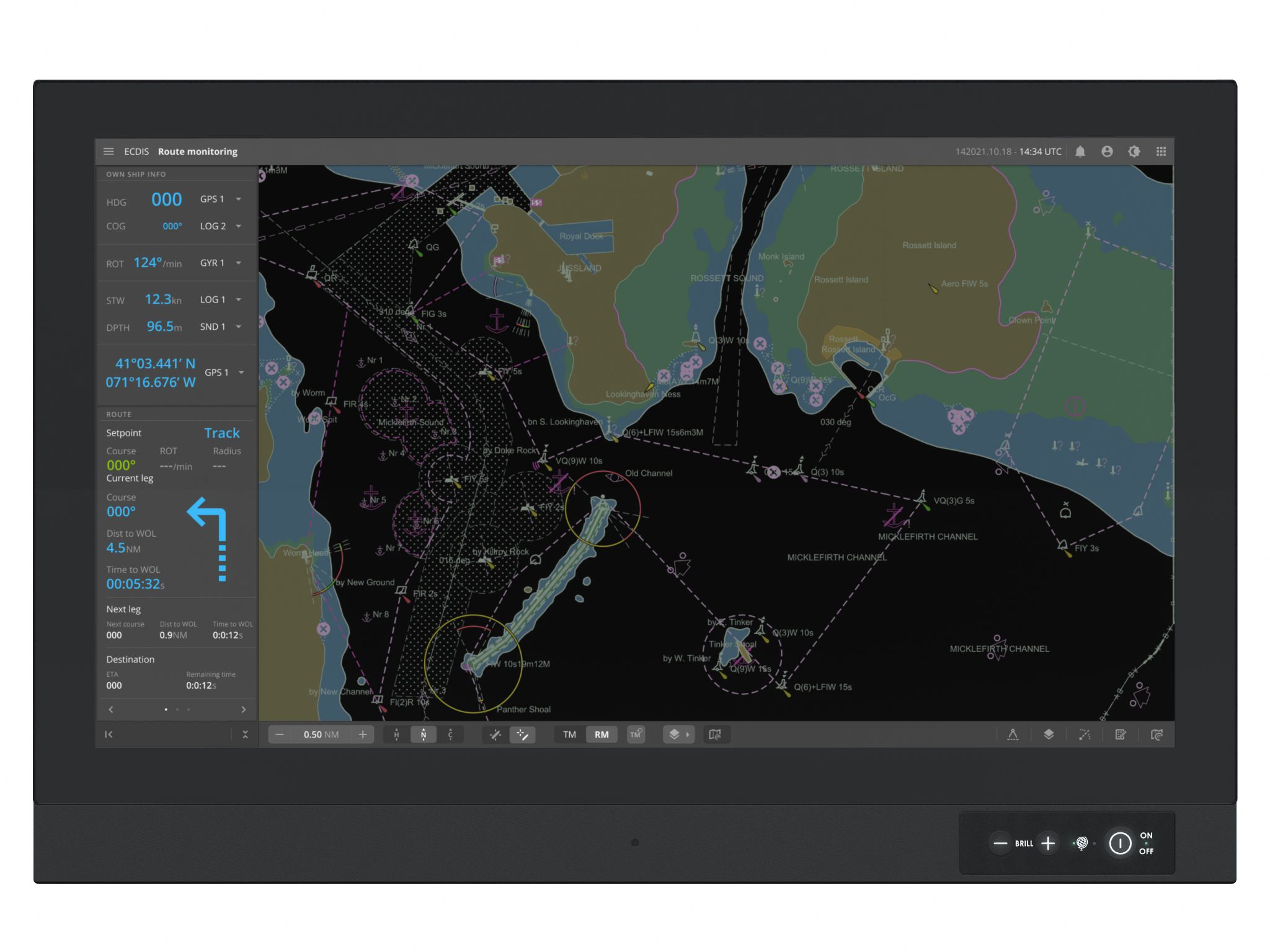

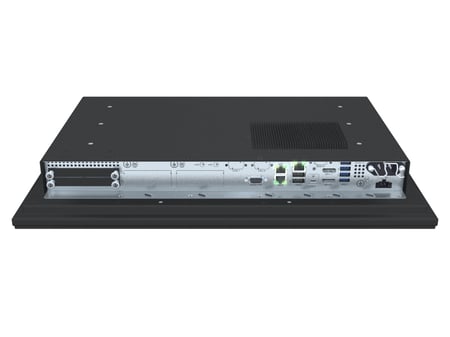

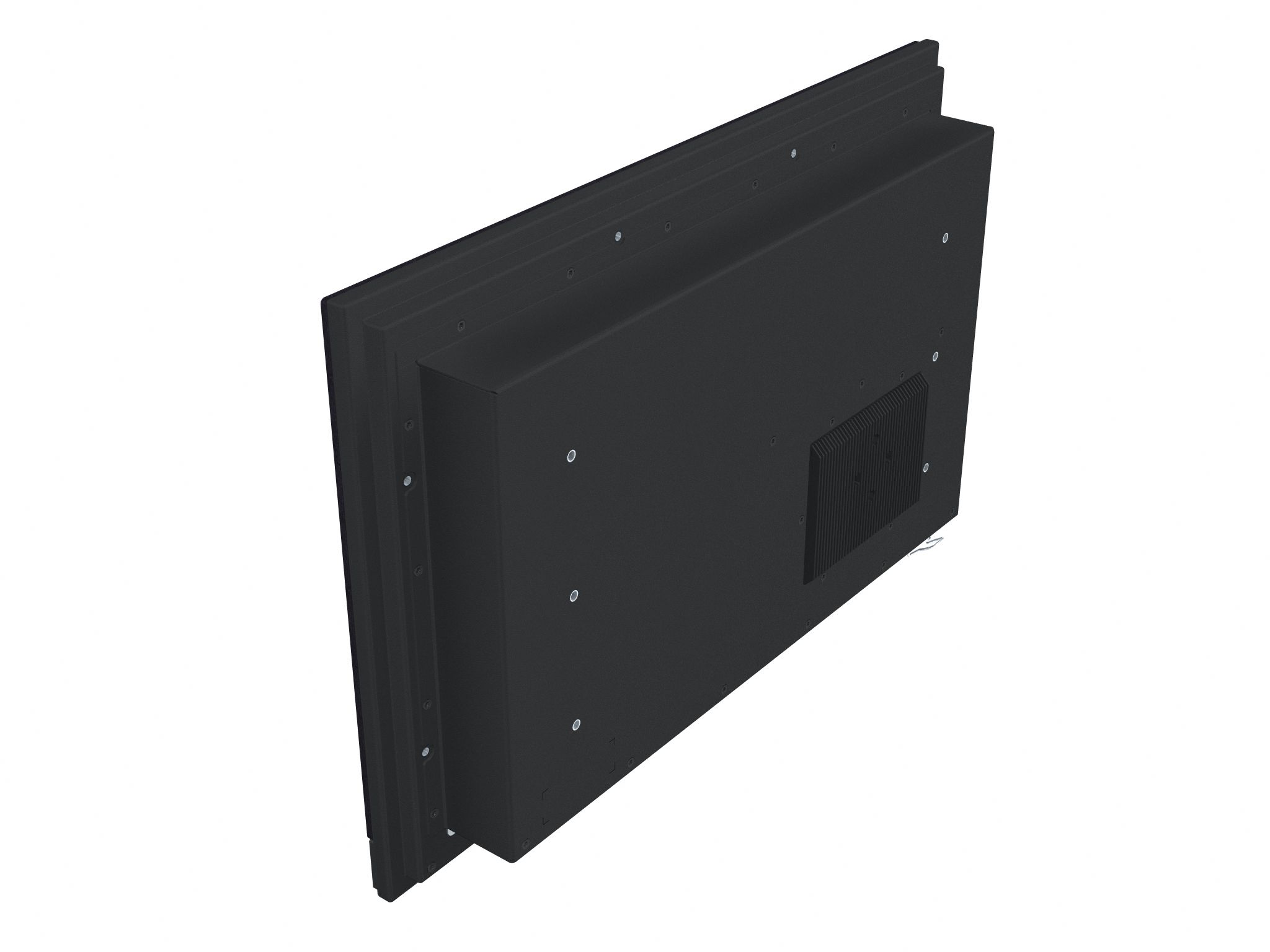

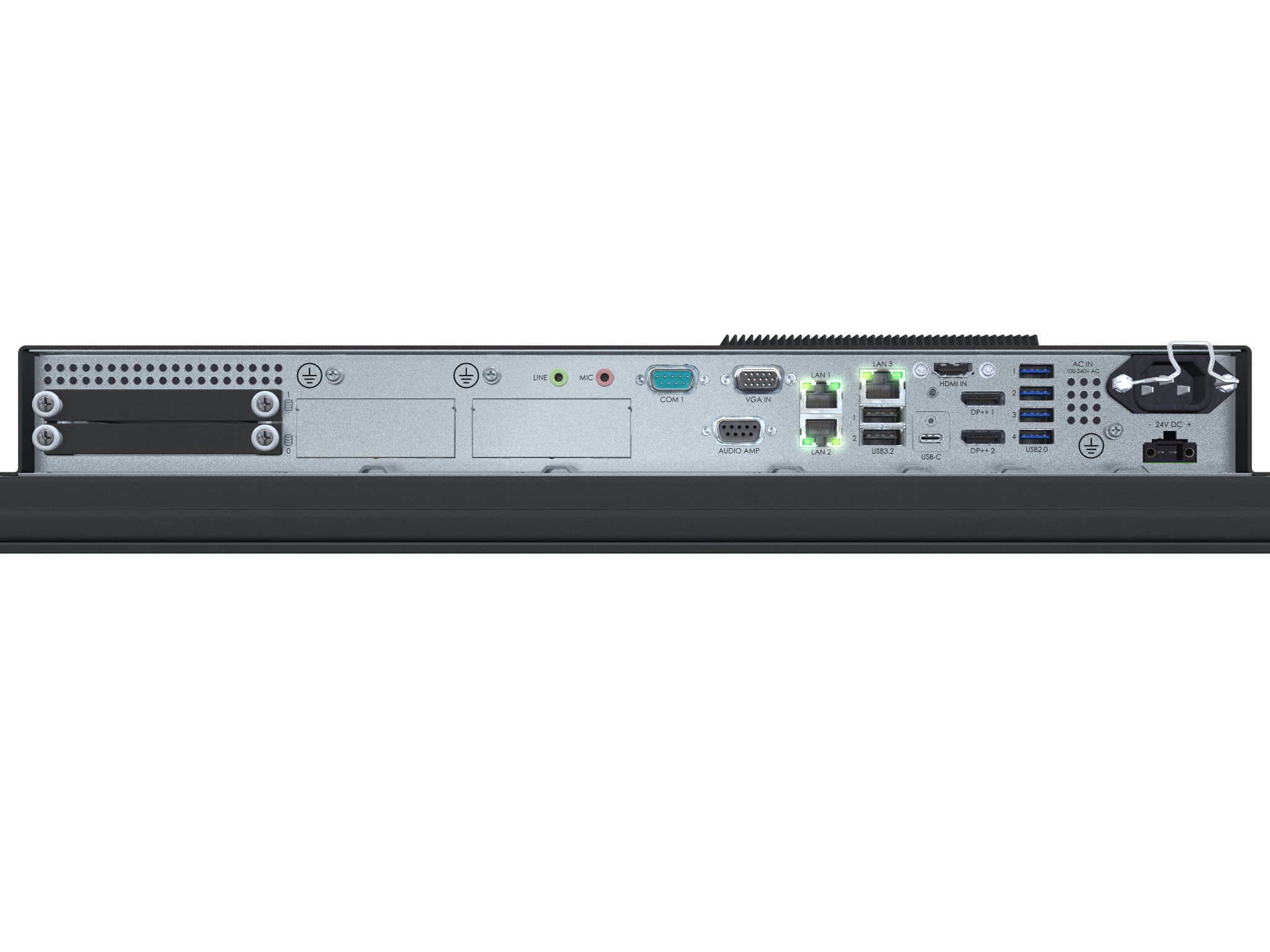

Connectors:	• USB-C: 1 x USB-C DP ALT mode, PD/DP (60W) • DP++ 1.2 OUT: 2 x DisplayPort Female (Dual-Mode DP++) • USB2.0 (<5m): 4 x USB Type A (4-pin) • USB3.0 (<3m): 2 x USB Type A (9-pin) • Ethernet GBLan: 3 x RJ-45 • Amp Audio: 1 x DB9 Female 2W@70°C • If SSD Trays: 2 x 2.5" Sized Tray/Bay (Factory option) • AC Power IN: 1 x Std IEC inlet • if DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:536.00 [21.10"] x H:358.50 [14.11"] x D:87.26 [3.44"] mm [inch] Approx. 7kg / 15.43lbs
Product Carton Size and Weight:	L:700.00 [27.56"] x W:185.00 [7.28"] x H:585.00 [23.03"] mm [inch] 11.0kg / 24.2lbs

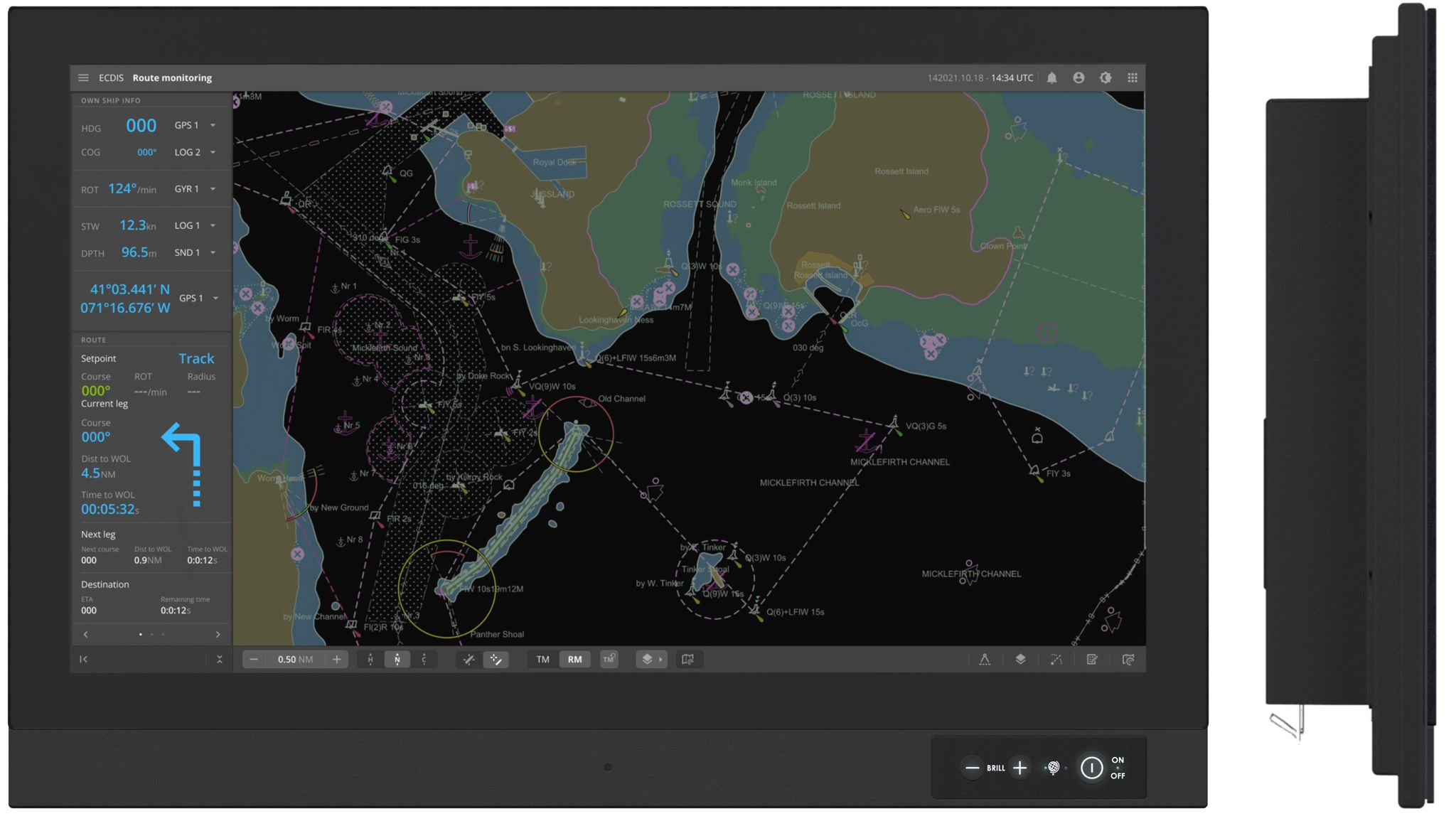

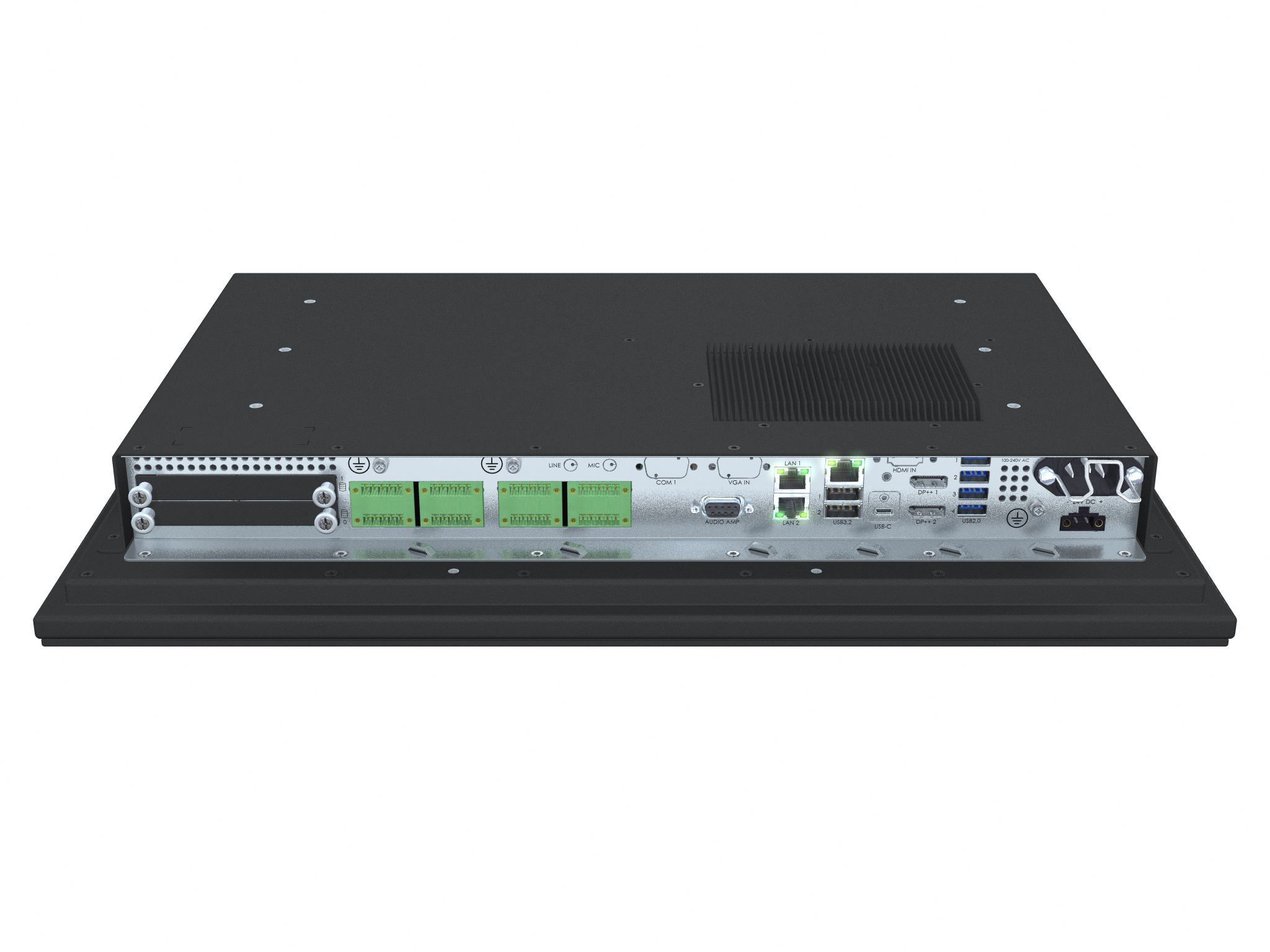

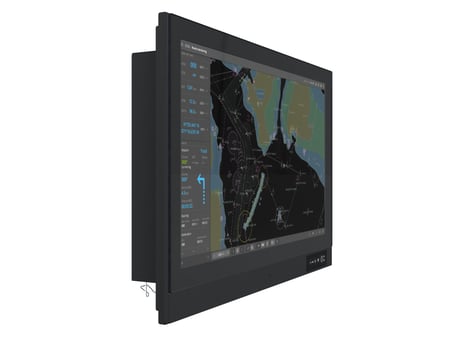

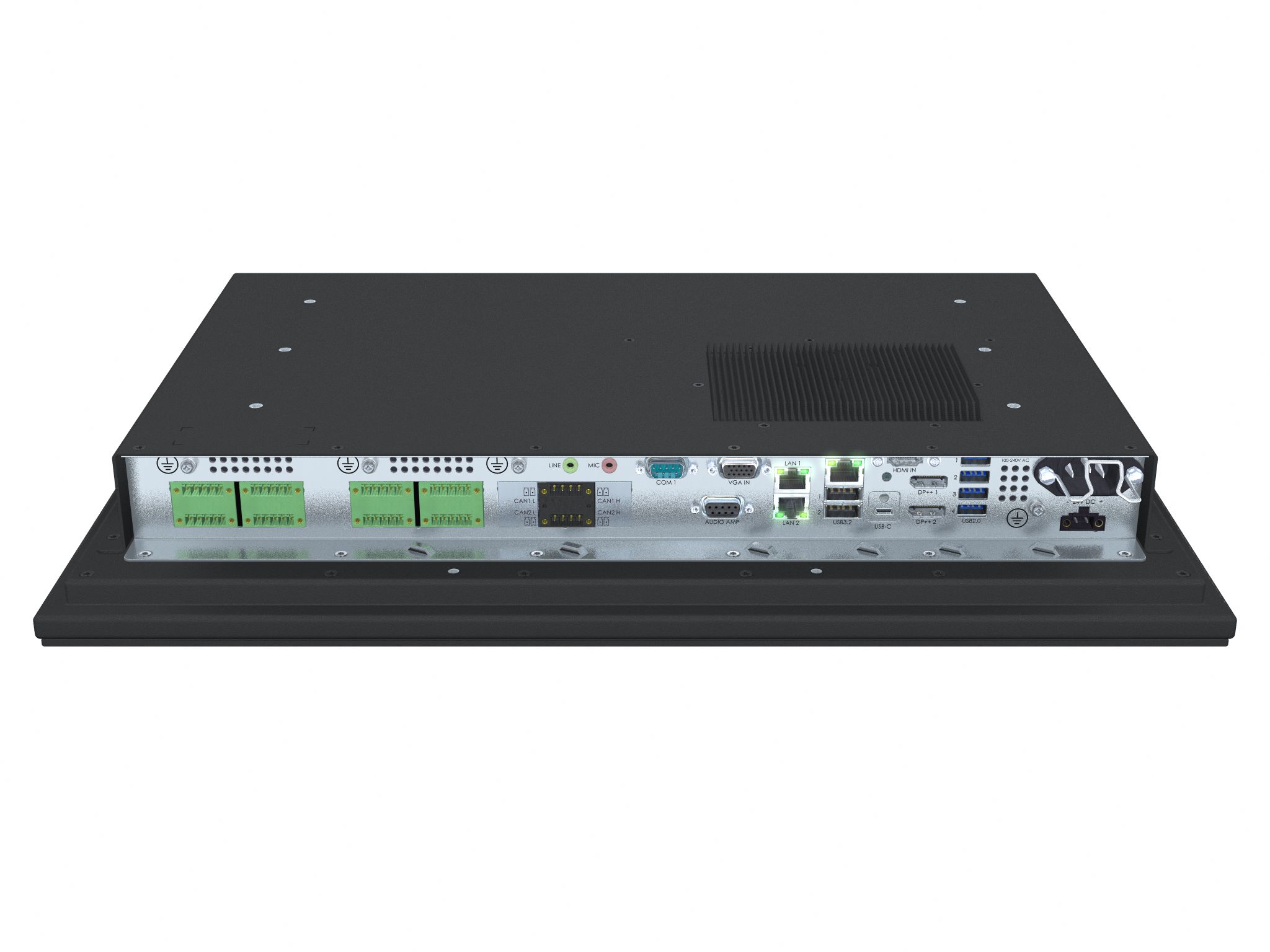

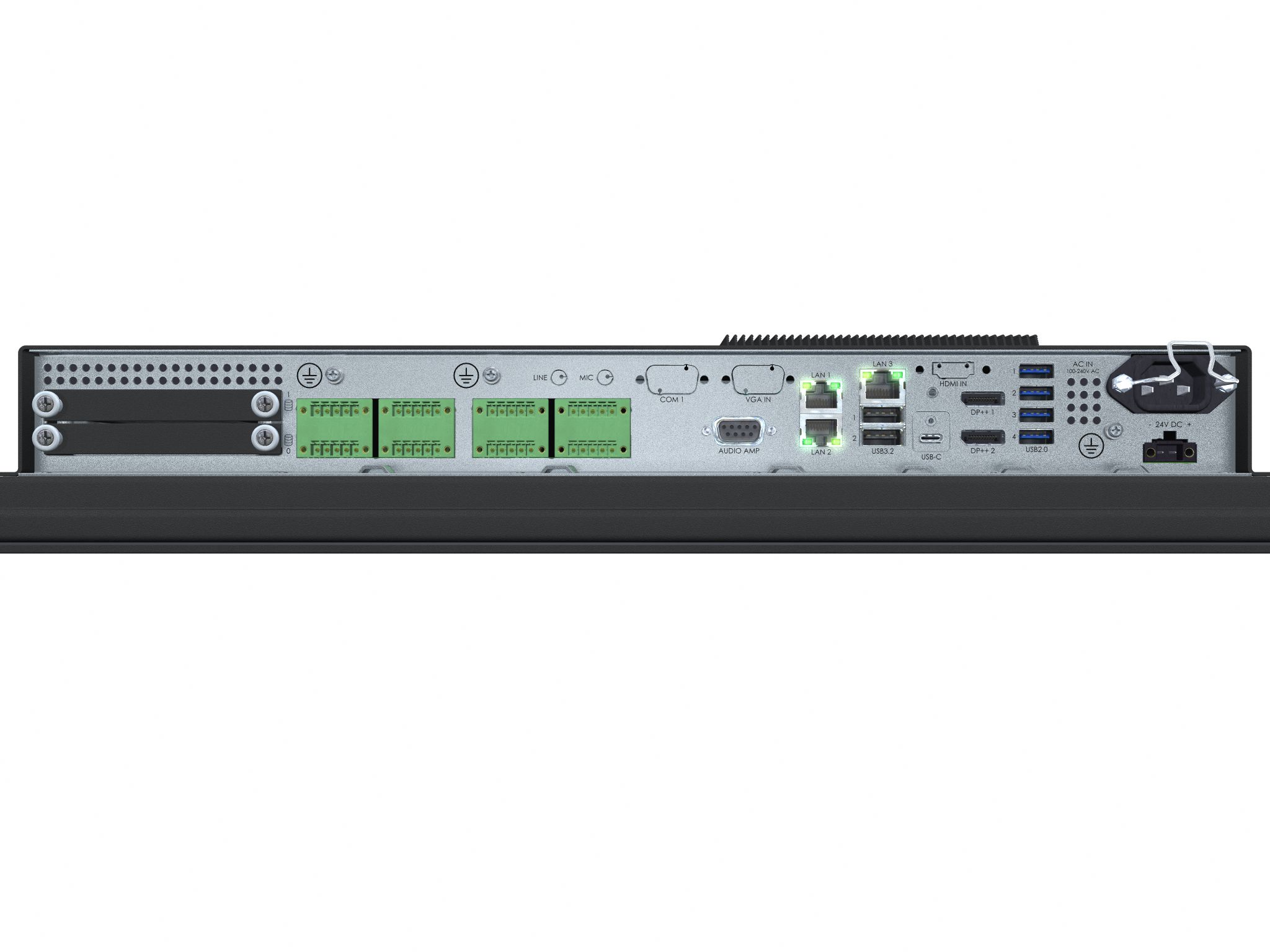

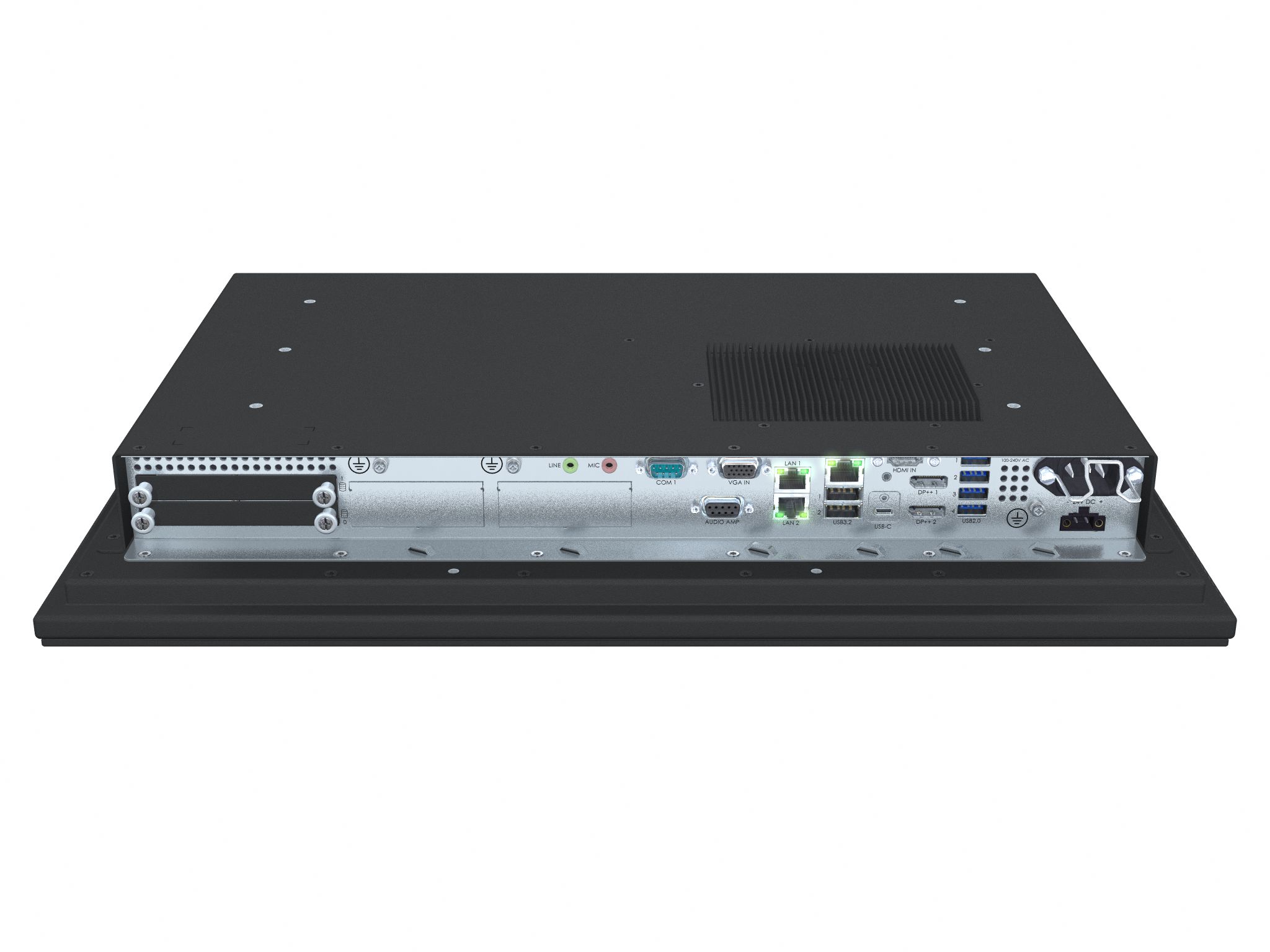

Factory Options:	• Projected Capacitive Touch Screen (Multitouch,USB,Pen/Glove support) • Optical Bonding Technology • Multipower (AC & DC) or AC only model • IP22 Model (Factory Mounted internal gaskets) • Variations of SSD Storage, RAM Memory, Operating System, CPU • Model with 1 x Diskbay with support for 2 x 2.5" and max 2 Modules • Model with 3 x Modules, no Diskbay Modules available (depending on base model above): Review full configuration matrix in User Manual INB101990-1 • 1,2 or 3 x PCA200828-1: 4xCOM RS-422/485 isolated NMEA 4 channel module • 1,2 or 3 x PCA100309-1: Dual Isolated RS-232, connector 2xDB9M module • 1 x HTA2020002-AD1033: CAN isolated 2 channel or 2 x 4 channel module* • 1 x HTA2020002-SLCAN: CAN isolated, 2 channel, socketCAN module* • 1 x PCA100297-1: Isolated Digital IO module,4 x OUT/4 x IN* • 1 or 2 x PCBAA21001: LAN 1Gbps, 2 x SFP module • 1 x VSD203593-1: 2 x 3.5mm jack mic in, line out* • 1 x VSD203592-1: 1 x Isolated RS-232, DB9M connector* • 1 x PCA200827-1: 2 x RJ-45, PoE 12V 5,5A receiver module* • 1 x HT EPB STD-A2: External/Remote ON/OFF power button* *Only 1 of item can be installed Frame Grabber options (1 x supported via M.2 (PCIe x1) slot): • HD550N1 SDI M2: 1 x SDI IN, 1920x1080@60/50fps • HD550N1 HDV M2: 1 x HDMI IN+1 x VGA IN, 1920x1200p@60/50fps
Accessories:	• HD CMB SE1-B1: 1 x Console Mount Kit. EN60945 Tested** • HD TMB SE1-B1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Adapter, not EN60945 Tested • JH C01MF A-A: 1 x USB Cable 1m, TypeA-Chassis mount receptacle • HT 00262 OPT-A1/B1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1/B1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1/B1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2/B2: 1 x SLCAN isolated, 2 channel, USB ext. module • HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00277 OPT-B1: 2 x LAN 1Gbps, SFP, USB ext. module • VSD100779-1: External audio cable, DB9M to open leads mono 1m • HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os • HD 000TR SX2-A2: 1 x Removable Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device* *Where xxx=Size of device. yy=GB,TB. z=S (SSD) - Choose Device from table. **Included in delivery
Capabilities / Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529). IP22=option
Compass Safe Distance:	Standard: 70.00 [27.56"] - Steering: 60.00 [23.62"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition*, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society *=pending

Specifications last updated: June 17, 2025 @ 07:48
