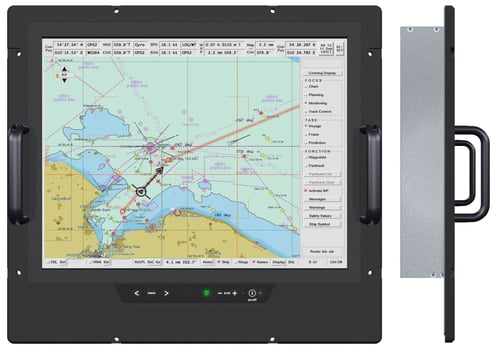

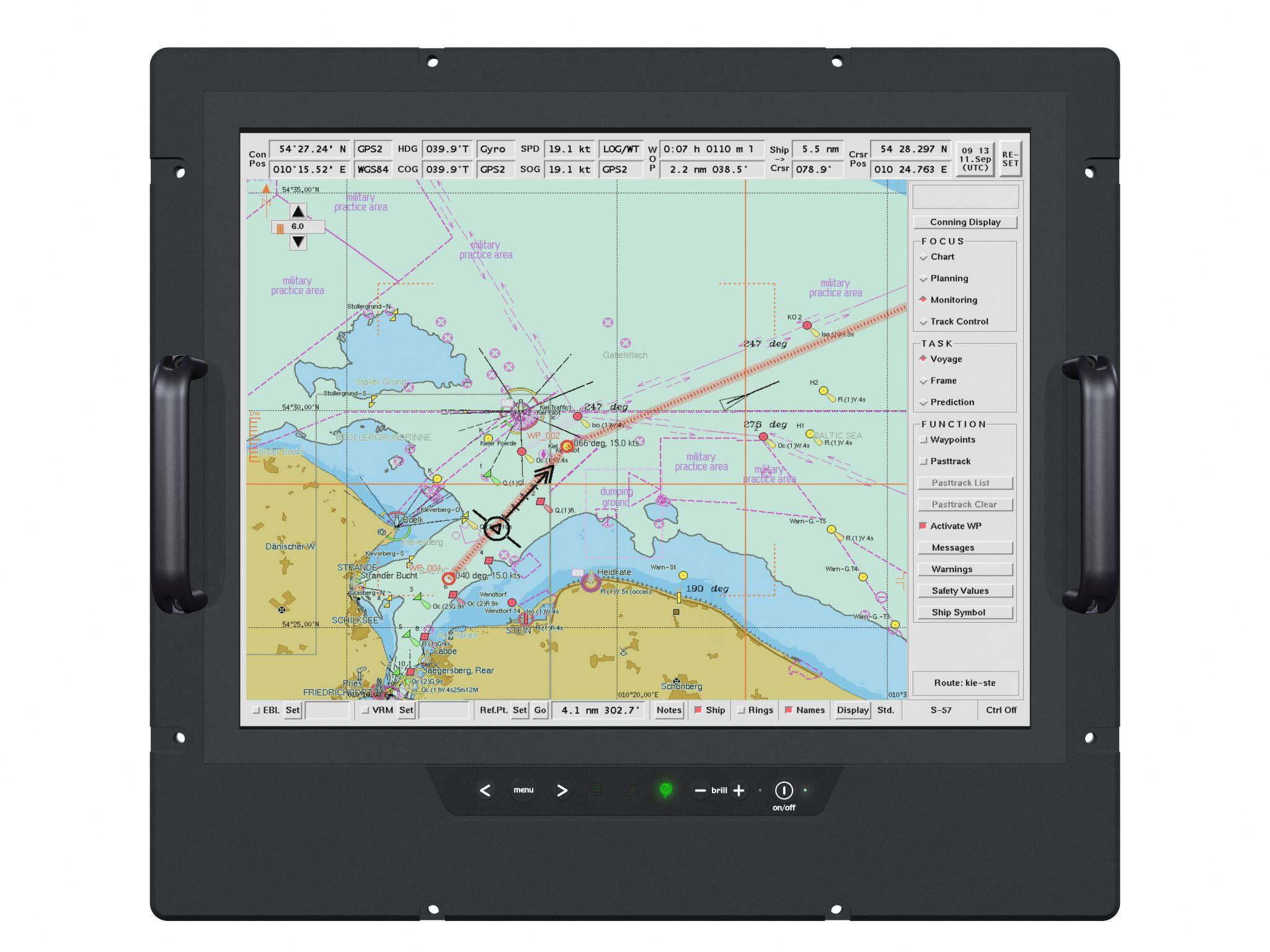

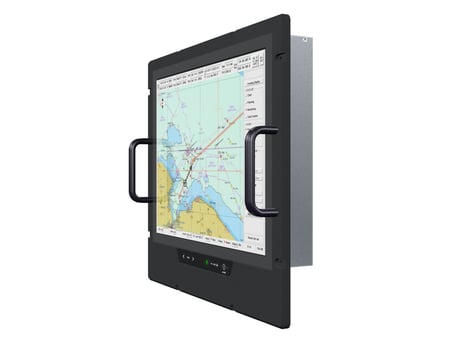

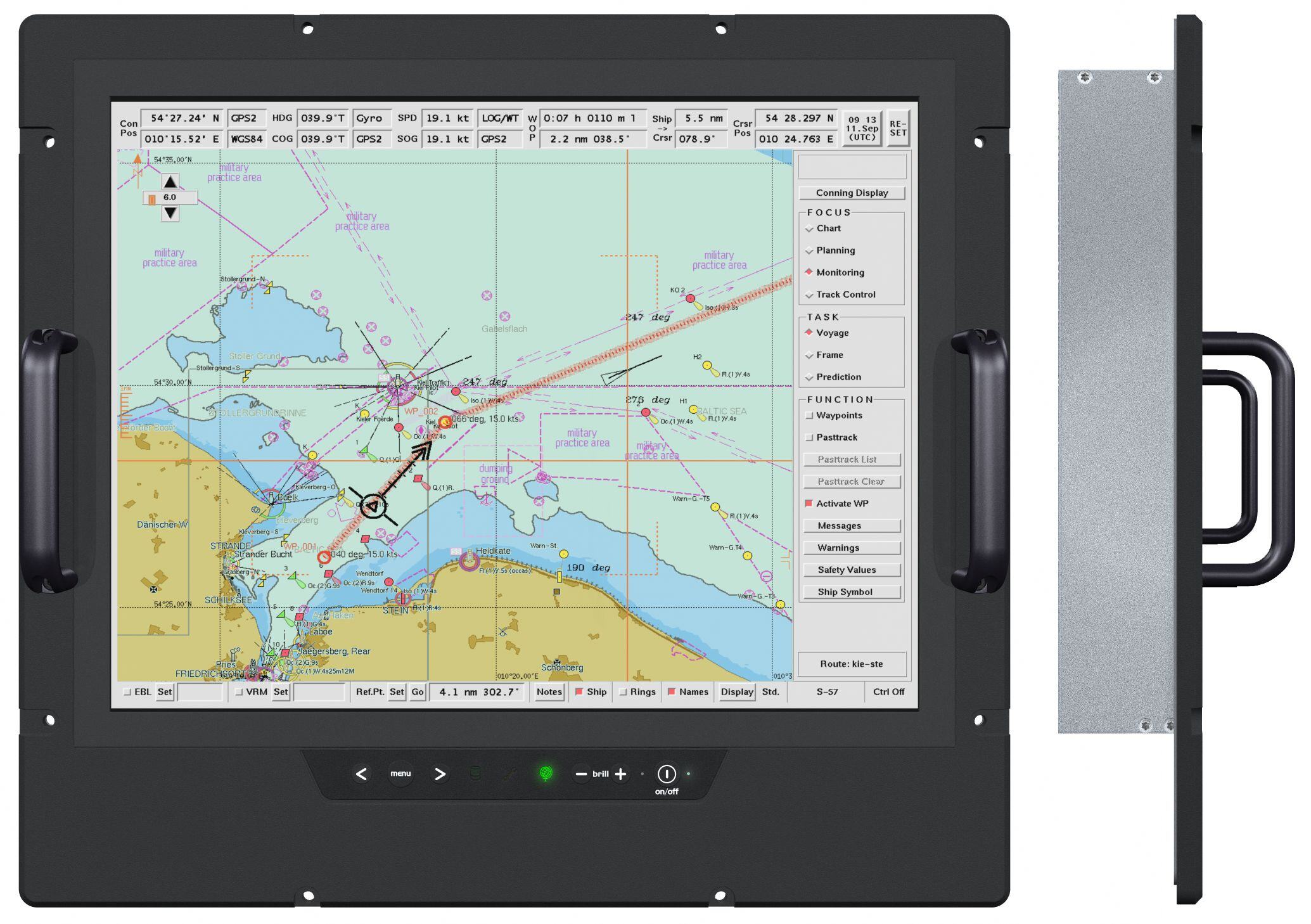

Monitor - MIL Qualified

These monitors are designed for seamless integration into console-mount setups and feature adaptable 19-inch rack mounting (2xxx version), ensuring versatile deployment across diverse environments and configurations. They serve as direct replacements for legacy 20.1-inch UXGA monitors despite the new models have a 21,3-inch UXGA size the form factor and mounting are maintained the same.

Tested and certified to meet stringent military standards, including MIL-DTL-901E Grade A, Class I shock hard mounted, MIL-STD-167-1A, MIL-STD-461G, and MILSTD-810 G, these monitors eliminate the need for additional shock isolation in both rack and console installations. Enhanced by our proprietary Optical Bonding technology, they deliver exceptional clarity, vivid colours, and superior image quality, ideal for information-intensive applications.

Featuring a fully adjustable backlight system (0-100%), these monitors are designed for continuous operation, day or night. They incorporate cutting-edge high-definition display technology with brightness levels exceeding 400 NITS and a contrast ratio of 1800:1, facilitating the efficient presentation of large datasets on a single screen, thereby optimizing operational efficiency.

Flexible I/O options support both analogue and digital inputs, along with AC and DC power (Multipower) connectivity, and an optional PCAP touchscreen (compatible with flash gear gloves). This combination is enhancing adaptability to diverse operational requirements in modern naval and military system designs. By factory standards the 21.3-inch unit is ECDIS Compliant.

The 21.3-inch monitor units manufactured by Hatteland Technology establish and sets a new benchmark for costeffective extreme rugged displays designed for mission-critical systems.

TFT Technology:	LED Backlight Technology, TFT (Thin Film Transistor) Active Matrix, RGB Vertical Stripe, Optical Bonding Technology
Viewable Size and Active Area:	21.3 inch - 432.00 [17.01"] (H) x 324.00 [12.76"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1600 x 1200 (UXGA) - 0.270 (H) x 0.270 (V) mm
Aspect Ratio and Response Time:	4:3 - 20 ms (typical), rise + fall
Light Intensity and Contrast Ratio:	500 cd/m² (typ) - 1800:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz:	1600 x 1200 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Front Bonded, Qualified for shock, vibration & EMI, Fully adjustable backlight (0-100%), PIP (Picture-in-Picture), Serial Communication (SCOM) Interface, Toughened Glass, Suitable for C4i, navigation and automation, Detachable Front Handles included with delivery, Optional Brightness Control Potmeter model available, EMI gasket (AMS-3195) for console mounting (P020517), Replaces previous HM 20T2 XRD-MAx-1OVx models.
Power Specifications and Consumption:	Multi-power 115-230VAC - 50/60Hz + 24VDC 40W (typ) - 156W (max) Inrush Current: 50A for VAC/VDC, Max. @ 25.0°C / 77.0°F

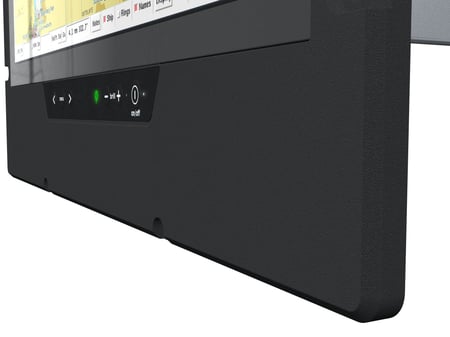

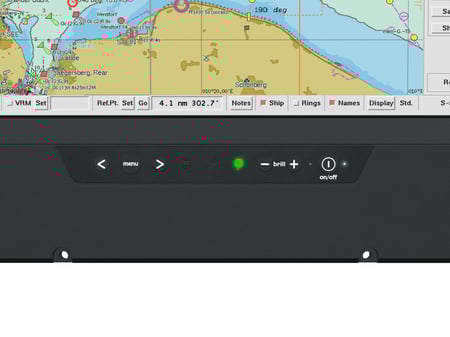

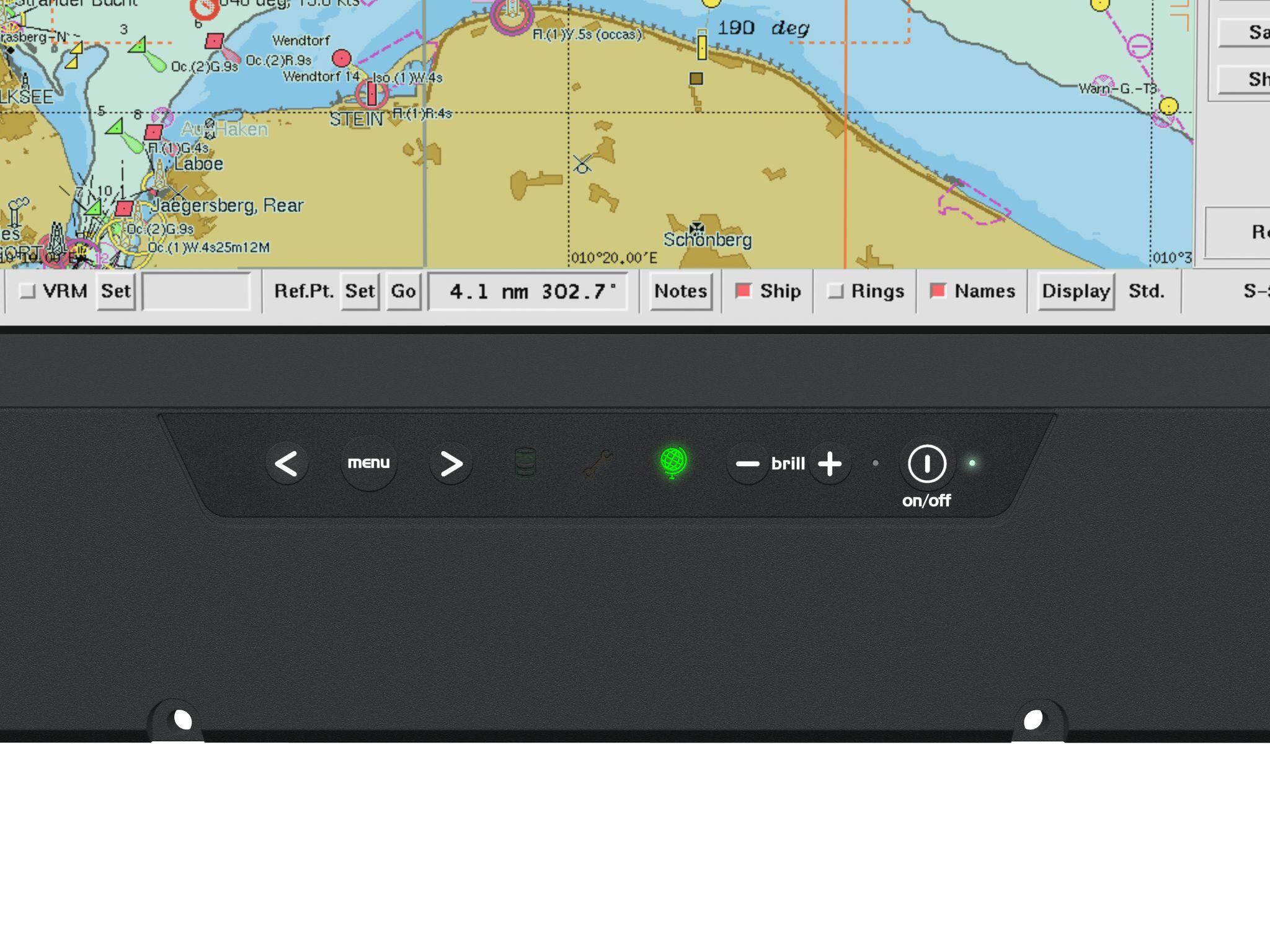

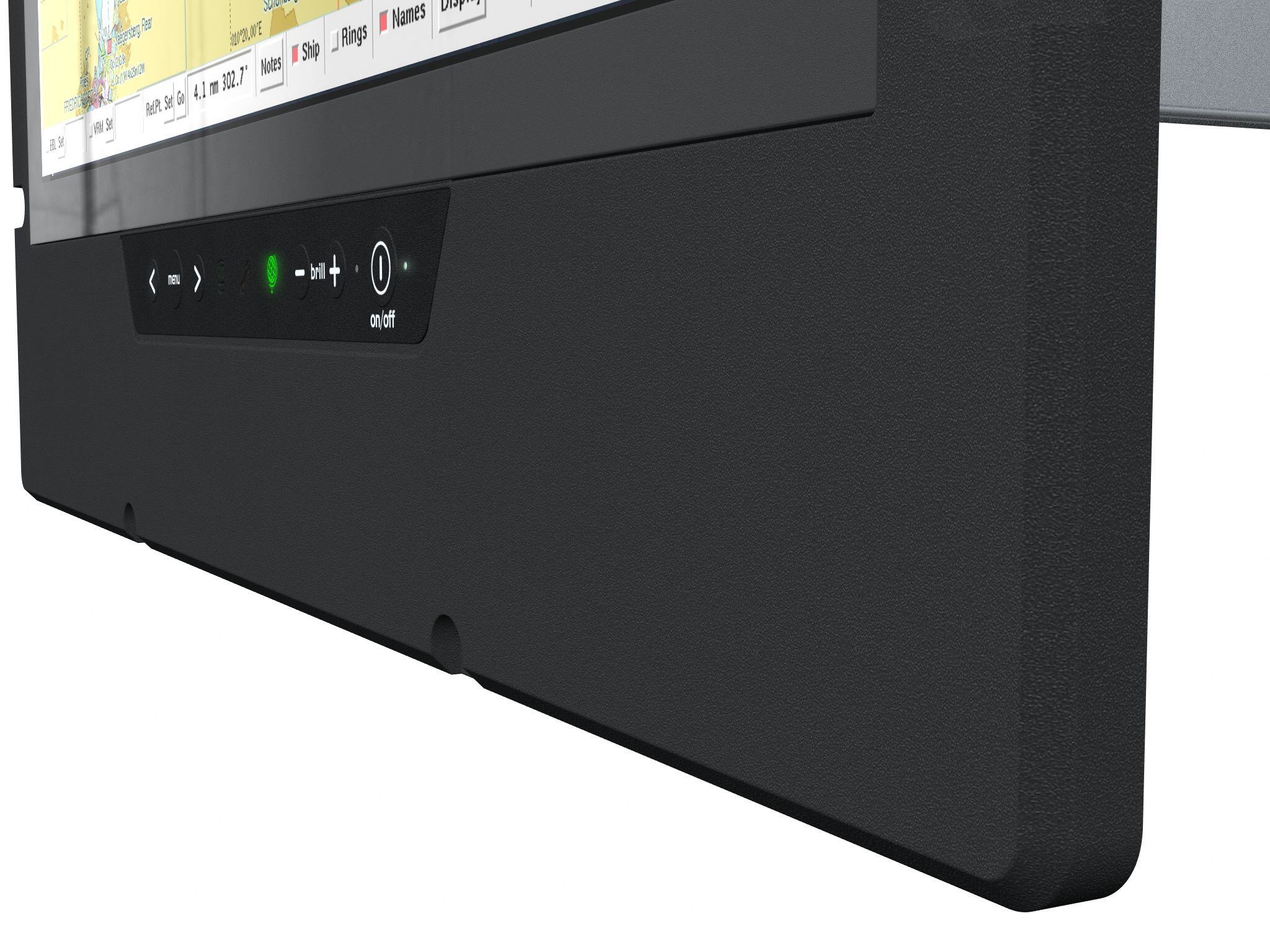

User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: • Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm) • Power On/Off button, On Screen Display control (OSD) button • Up/Down OSD Navigation / Hotkey buttons +/- Brightness Control Buttons
Connectors:	• DVI-D Input: 1 x 24p DVI (female) • VGA Input: 1 x 15p HD D-SUB (female) • HDMI 2.0 Input: 1 x 19p HDMI (female) • DP 1.2 Input: 1 x 20p DisplayPort (female) • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated • SCOM Ethernet: 1 x RJ45 Connector (for Remote Control) • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated. • SCOM+Touch: 1 x USB TYPE A Connector (female) • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • FW Update: 1 x USB TYPE A (female) - For Firmware Update via USB Memory Stick • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08

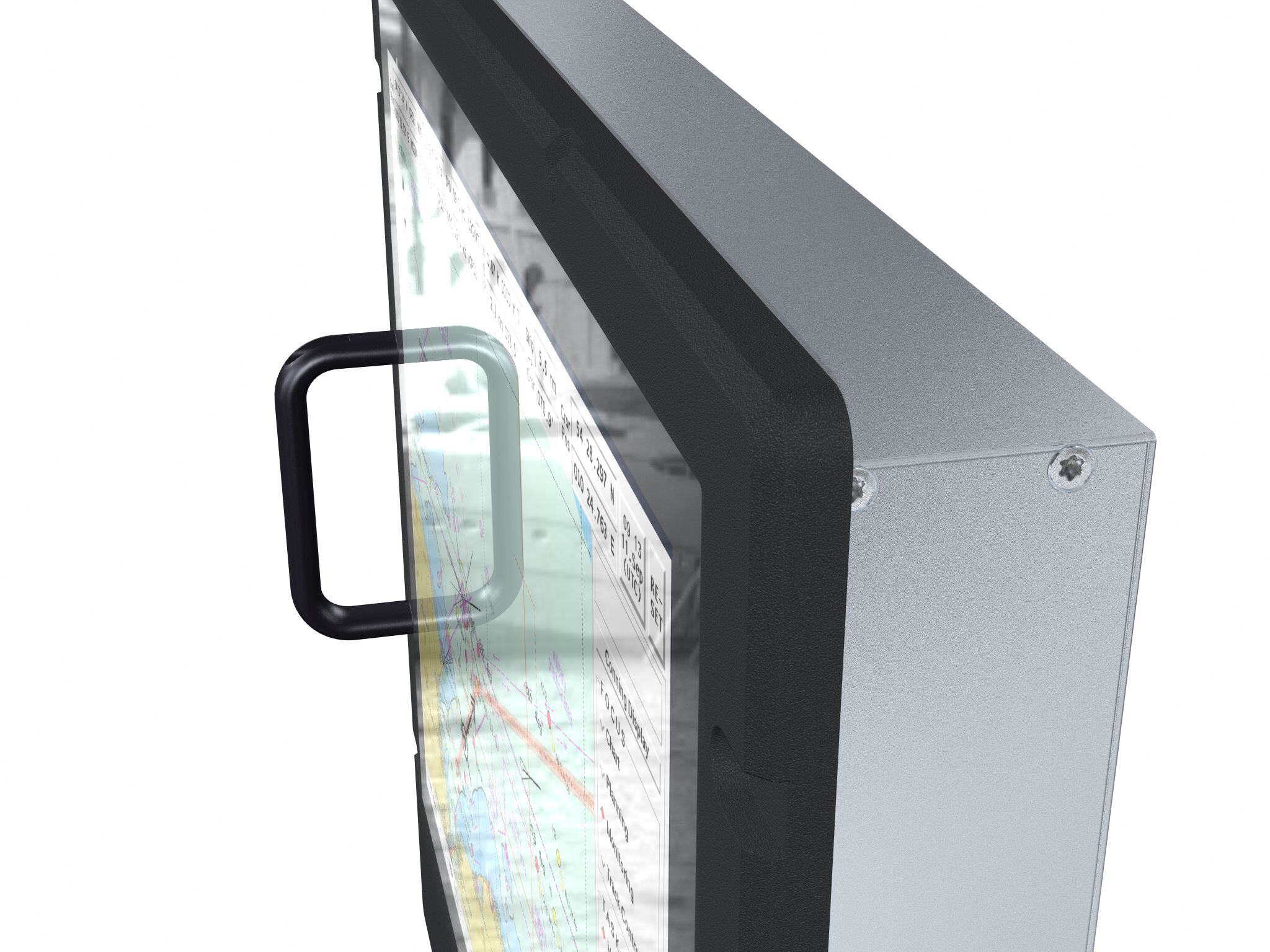

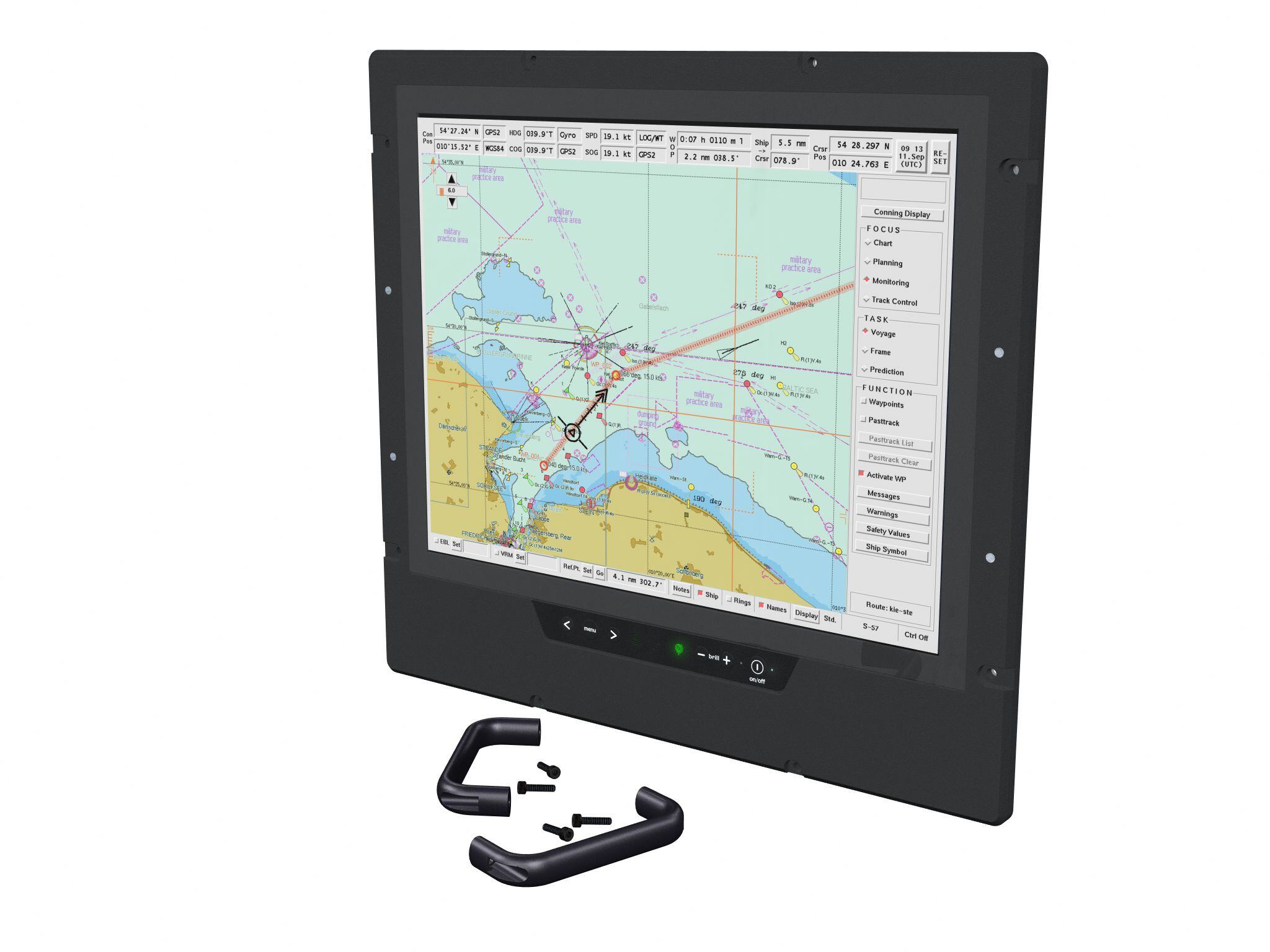

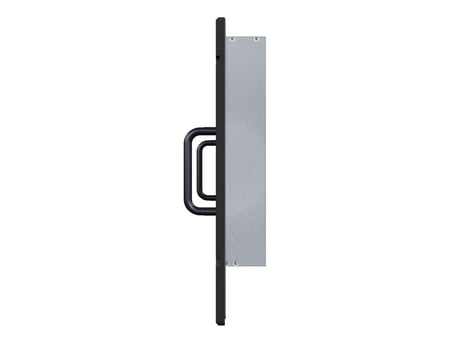

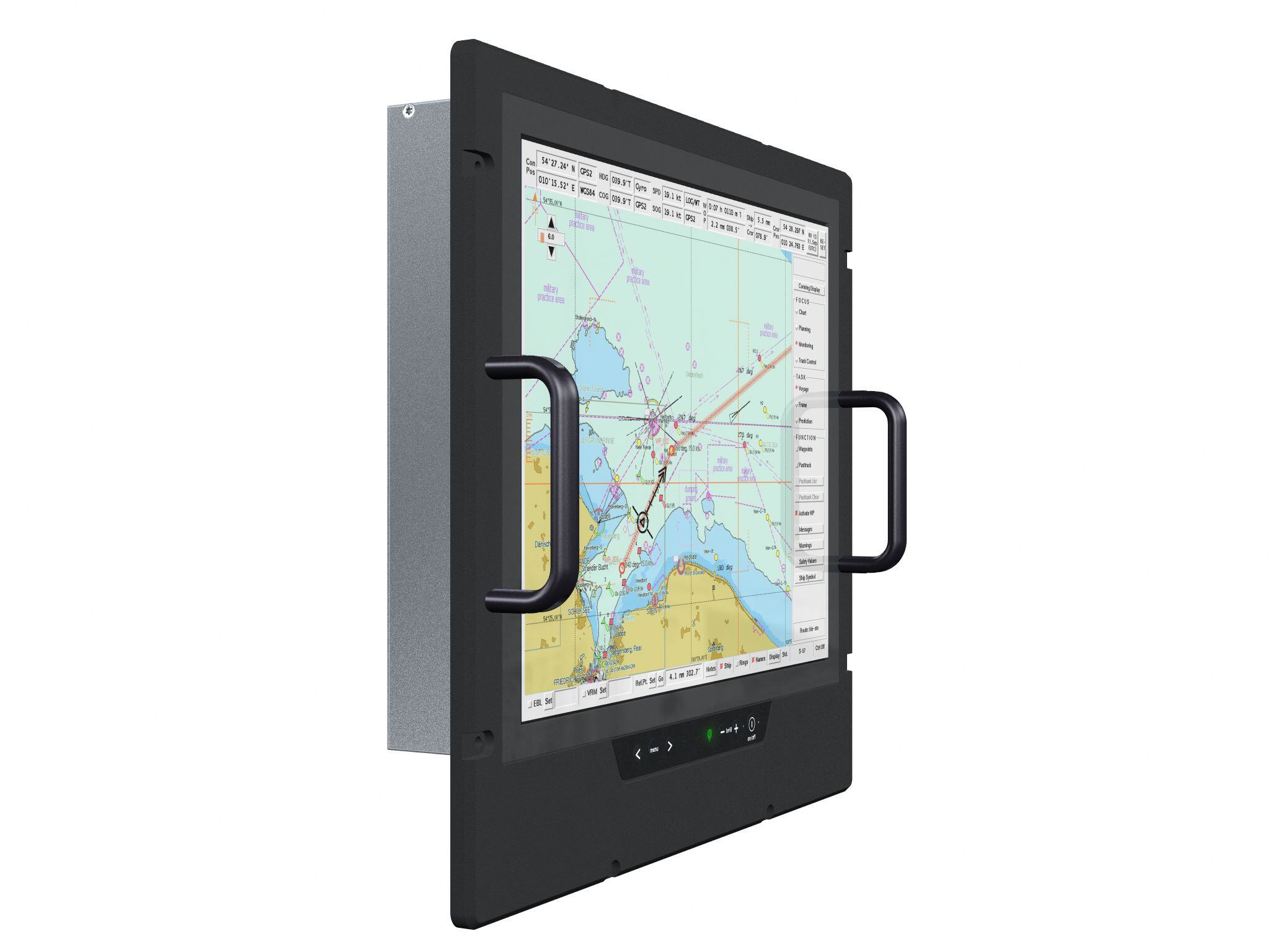

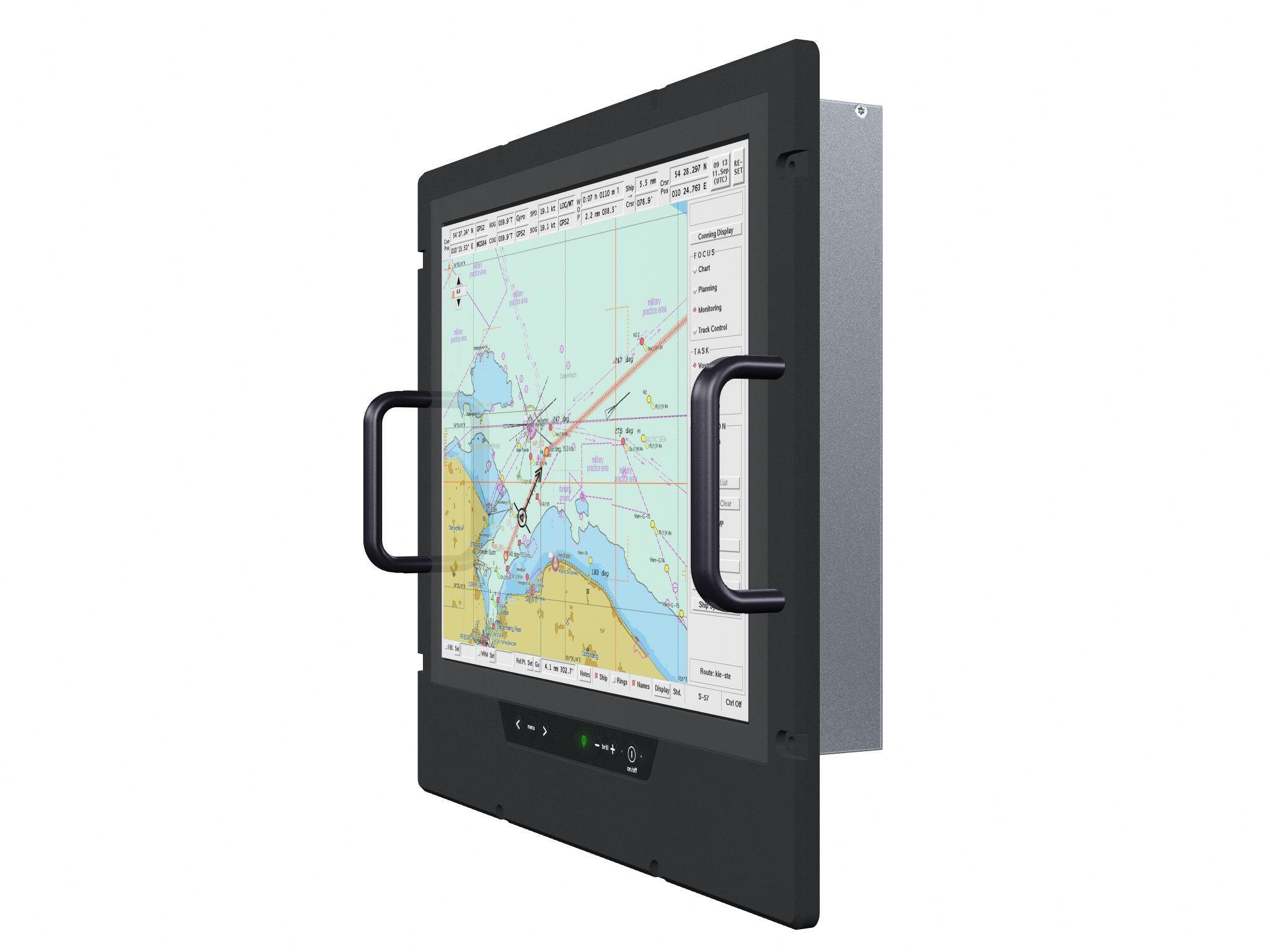

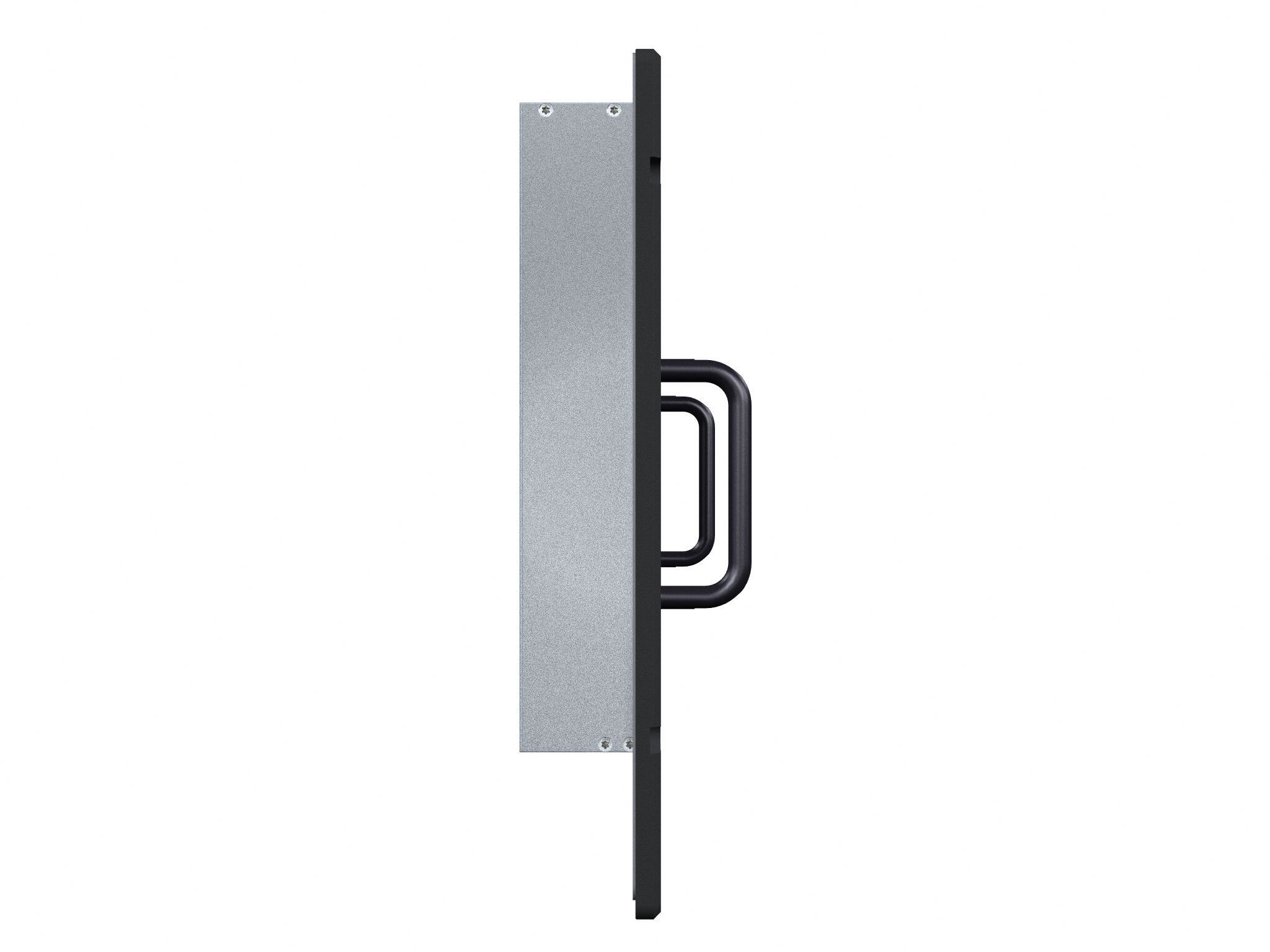

Product Dimensions and Weight:	Without Handles: • W:534.00 [21.02"] x H:481.00 [18.94"] x D:81.00 [3.19"] mm [inch] With Handles: • W:534.00 [21.02"] x H:481.00 [18.94"] x D:132.00 [5.20"] mm [inch] • Weight: Approx. 13.7kg / 30.1lbs • Detachable Front Handles included loose with delivery. • 4 x Slot MushRoom Head Screw M5x10 (0170280001VR) factory mounted on Front Frame. Remove if Handles are used/mounted.
Product Carton Size and Weight:	L:635.00 [25.00"] x W:185.00 [7.28"] x H:645.00 [25.39"] mm [inch] Approx. 16kg / 35lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB) • Color Calibrated models (ECDIS) • Front Brightness Control Potmeter
Accessories:	• 1 x P020517 - EMI gasket for console mount. Sponge Silicone AMS-3195
Capabilities - Prepared for:	N/A
Operating Temperature:	AC: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810G&H) DC: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810G&H) Humidity up to 95% at +55.0°C / 131.0°F (IEC 60945 4th)
Storage Temperature:	Dry Heat: +70.0°C / 158.0°F (MIL-STD 810G&H) Cold: -40.0°C / -40.0°F (MIL-STD 810G&H) Humidity up to 95% at 55.0°C / 131.0°F (IEC 60945 4th)
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 70.00 [27.56"] - Steering: 35.00 [13.78"] cm [inch]
Type Approval, Testing and Certificates:	MIL-STD 461G (*1), MIL-STD 810G&H (*1), MIL-STD-167-1A (*1), MIL-DTL-901E Class I (hard-mounted) Grade A Shock (*1), IEC 60945 4th (EN 60945:2002) (*1), IACS E10 (*1), BV - Bureau Veritas, EU RO MR - Mutual Recognition, ClassNK - Nippon Kaiji Kyokai, LRS - Lloyd's Register of Shipping, CCS - China Classification Society, ABS - American Bureau of Shipping, KR - Korean Register of Shipping * = pending Environmental Performance: Shock: 30g & 50g/11ms, 50g/30ms (MIL-STD 810G&H) Grade A Shock: Class 1 (hard-mounted) (MIL-DTL-901E) Rain (drip proof): MIL-STD-810G&H - Console mounted Salt Fog: MIL-STD-810G&H Vibration Testing: MIL-STD-167-1A EMI Testing: MIL-STD 461G, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103 Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 8, 2025 @ 13:05
