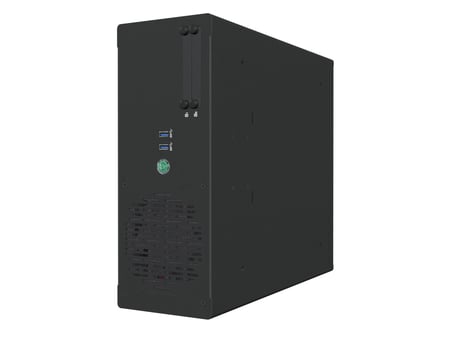

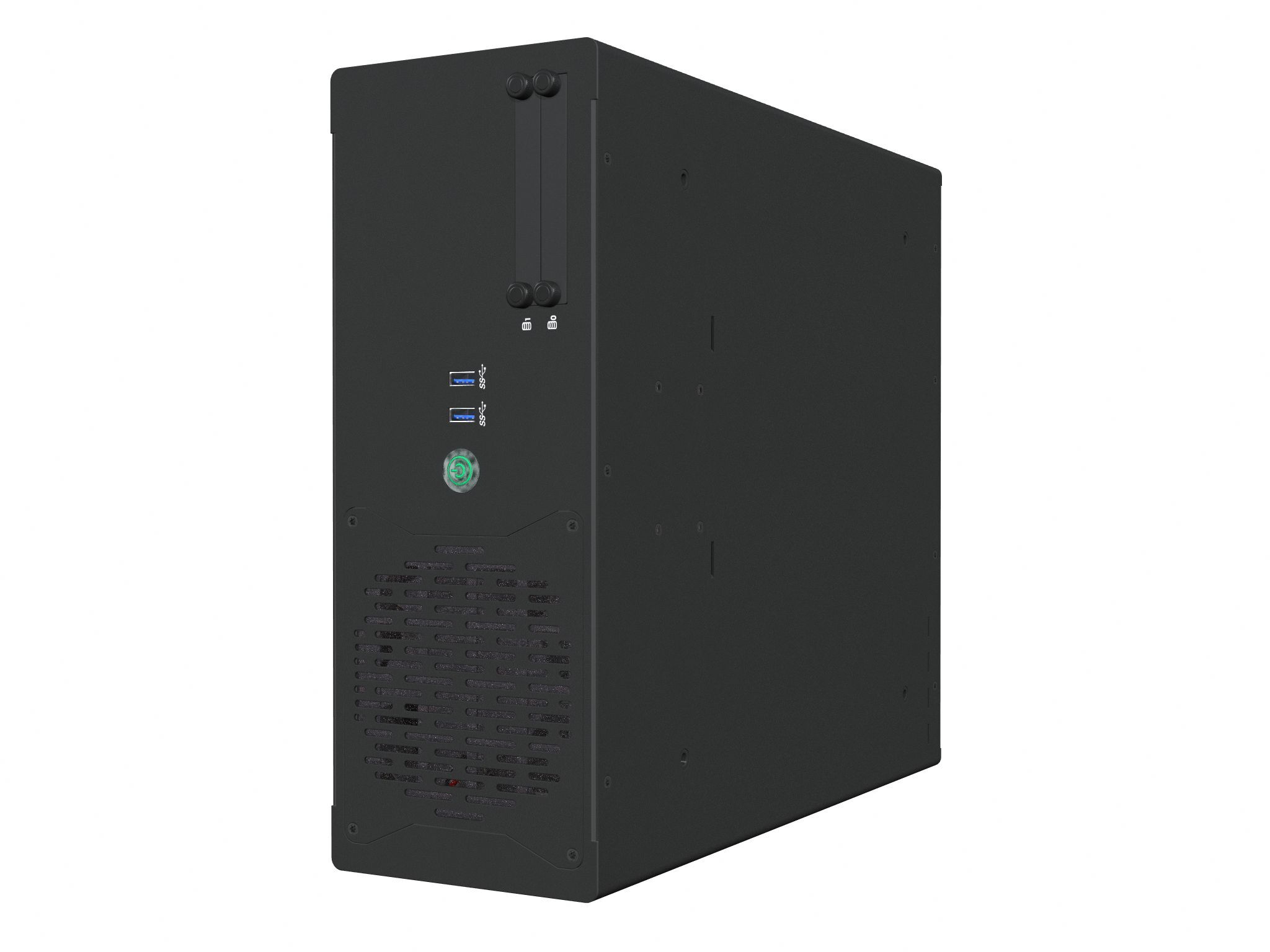

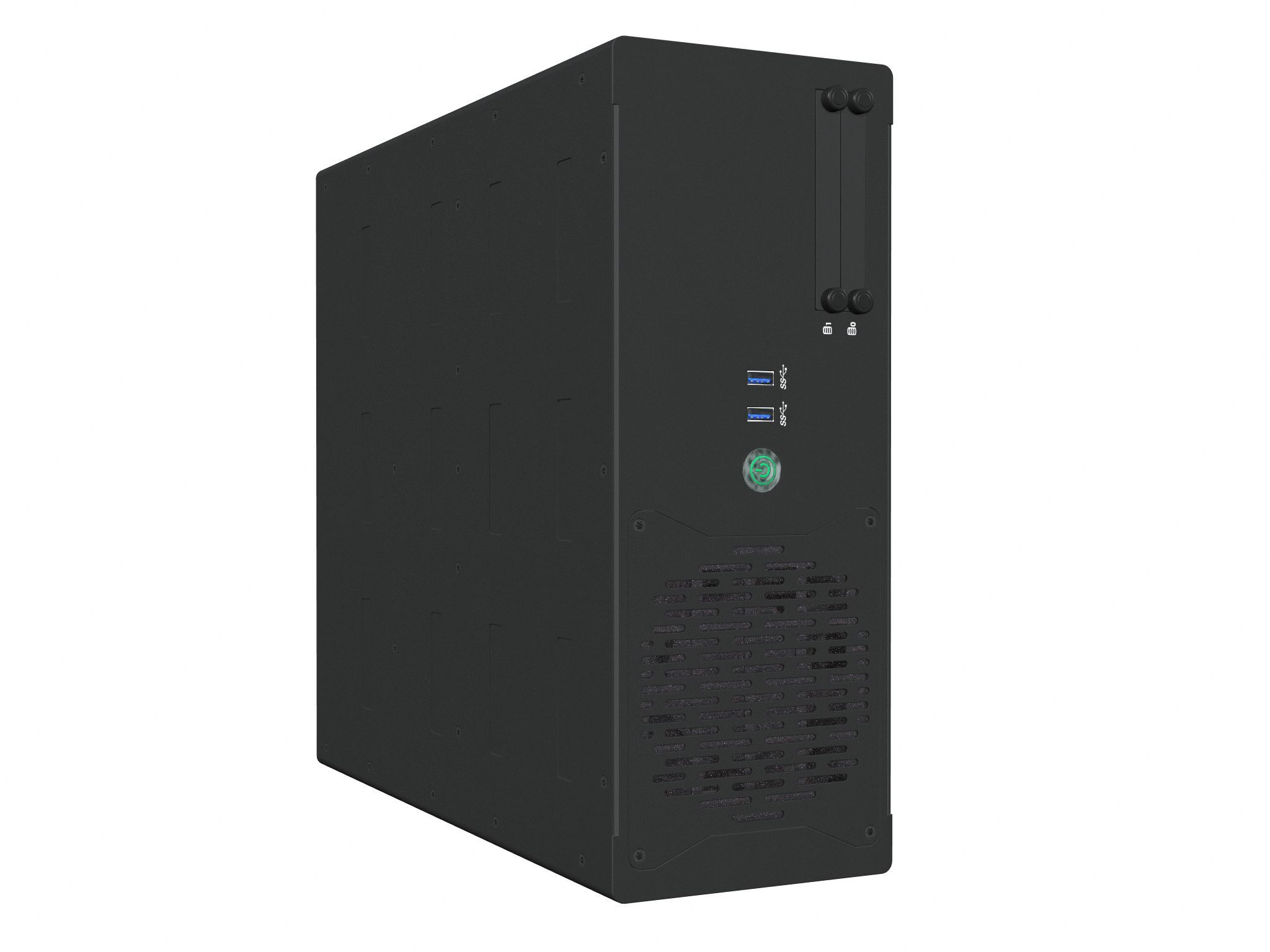

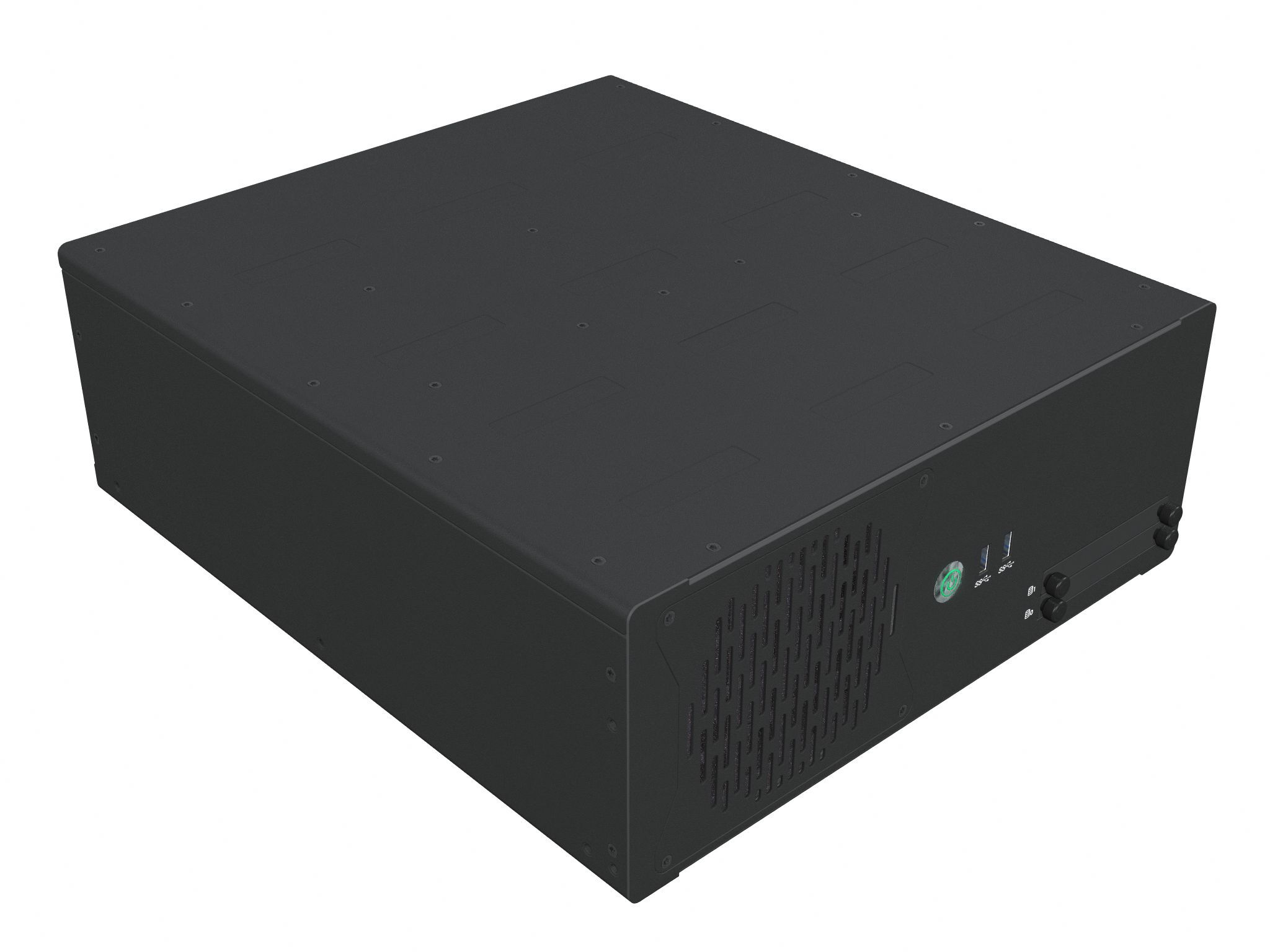

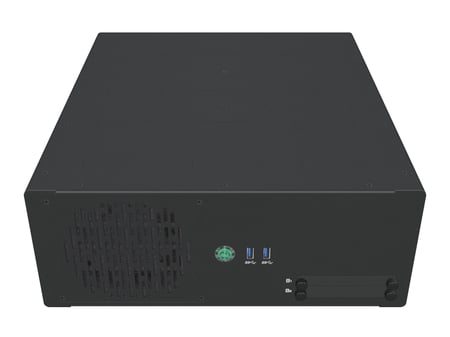

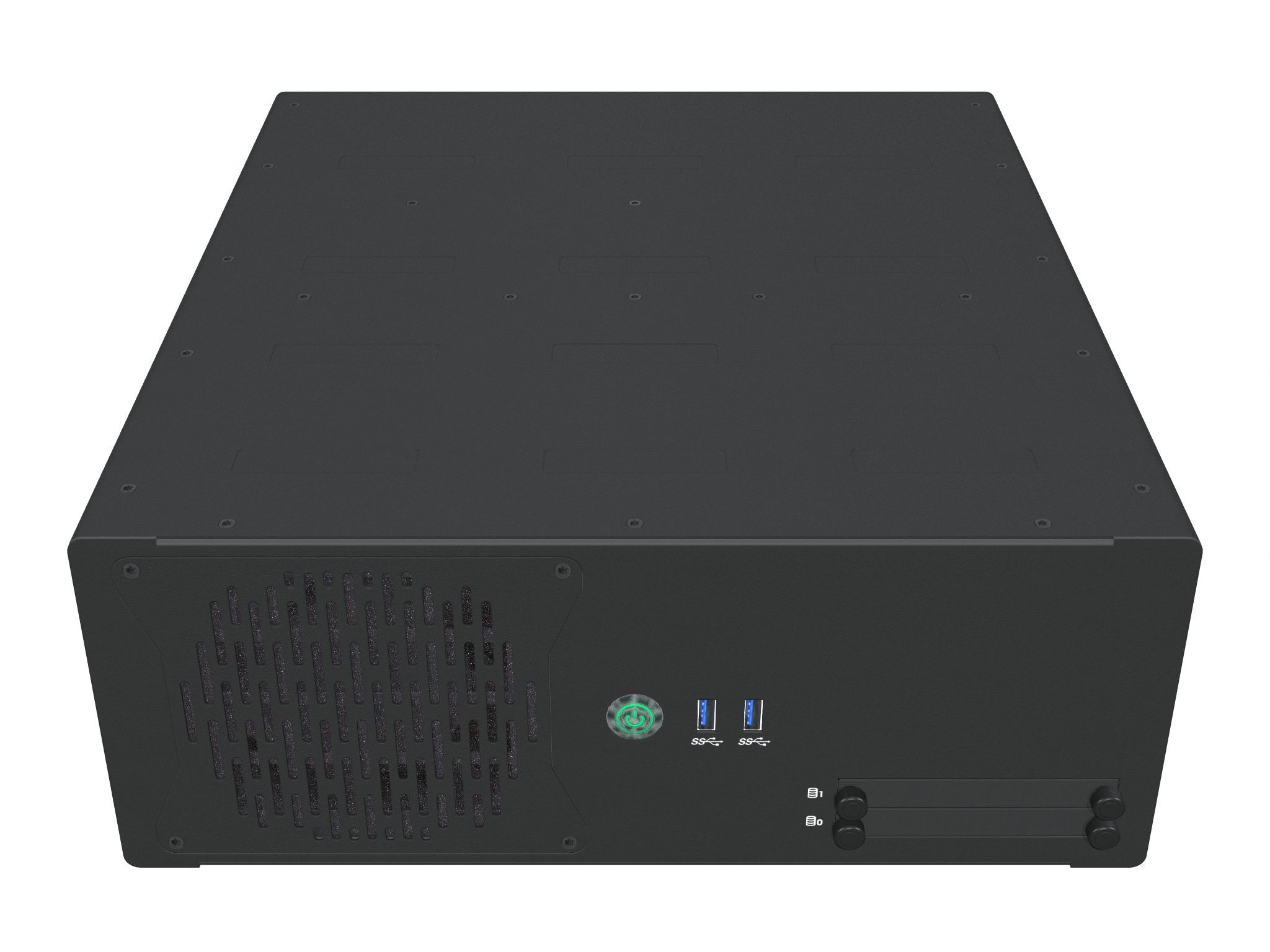

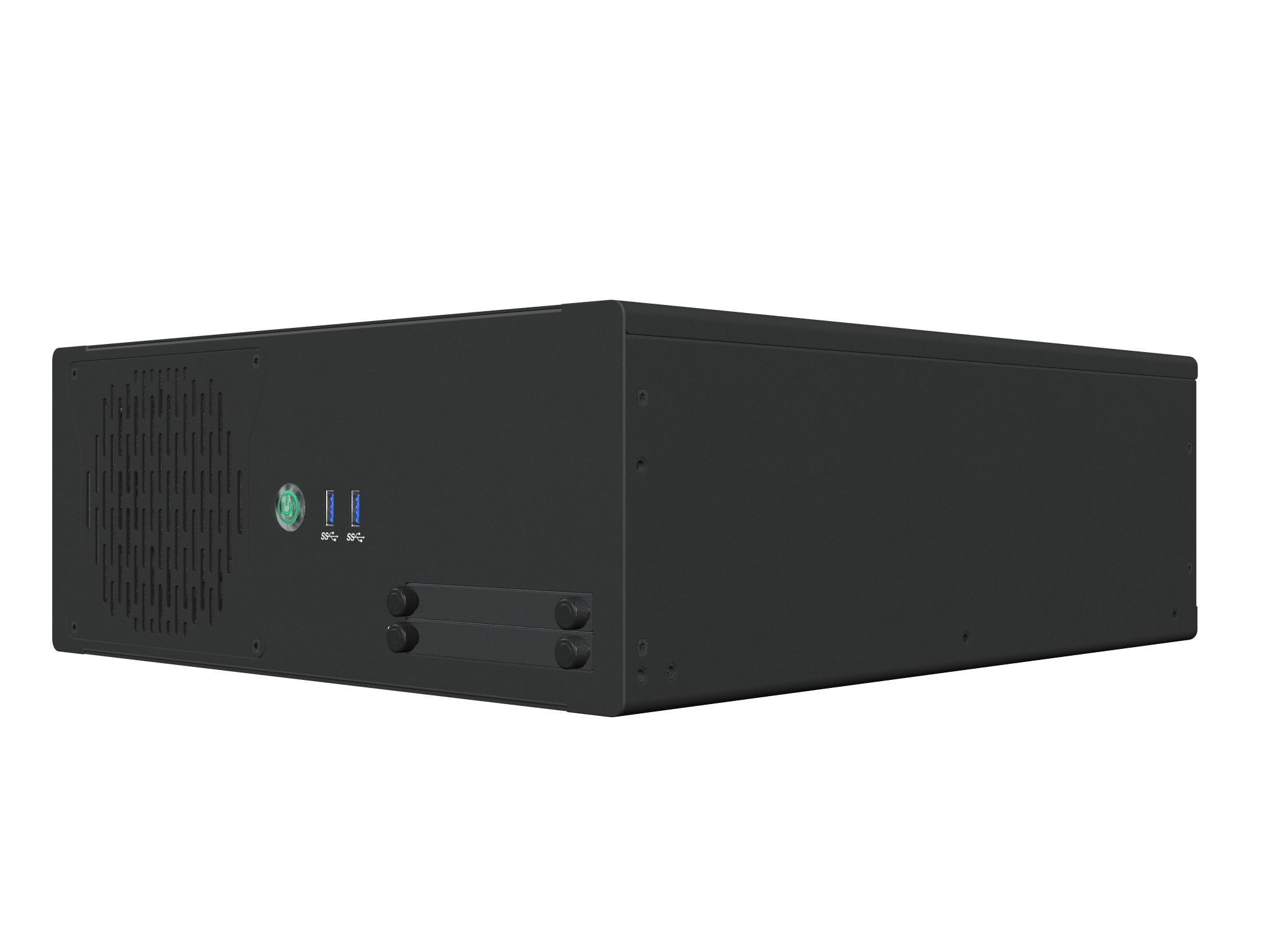

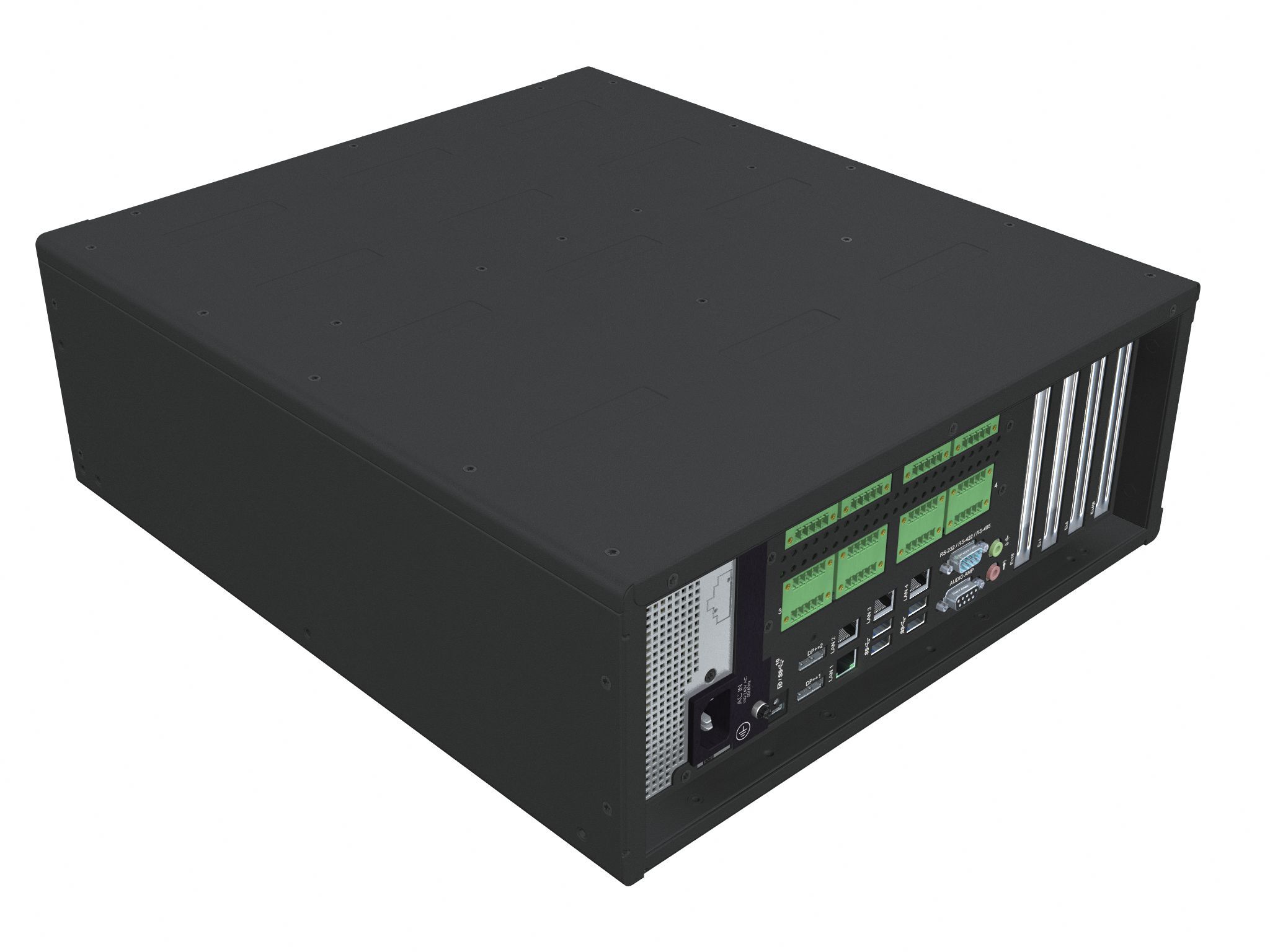

HTC04-yy-AC yyyyyyy
|
None or Standard OS/Customized image, review datasheet for list.
|

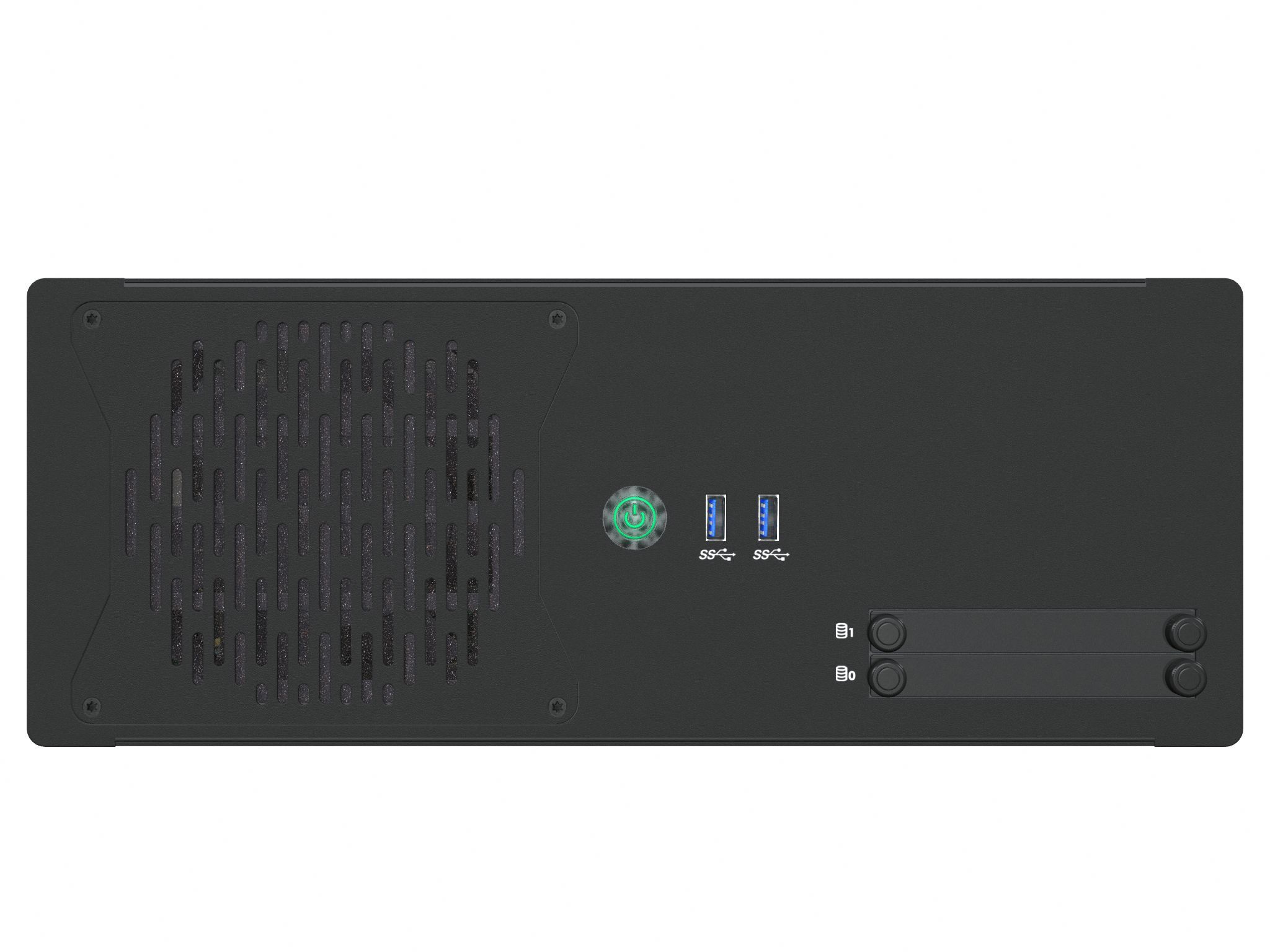

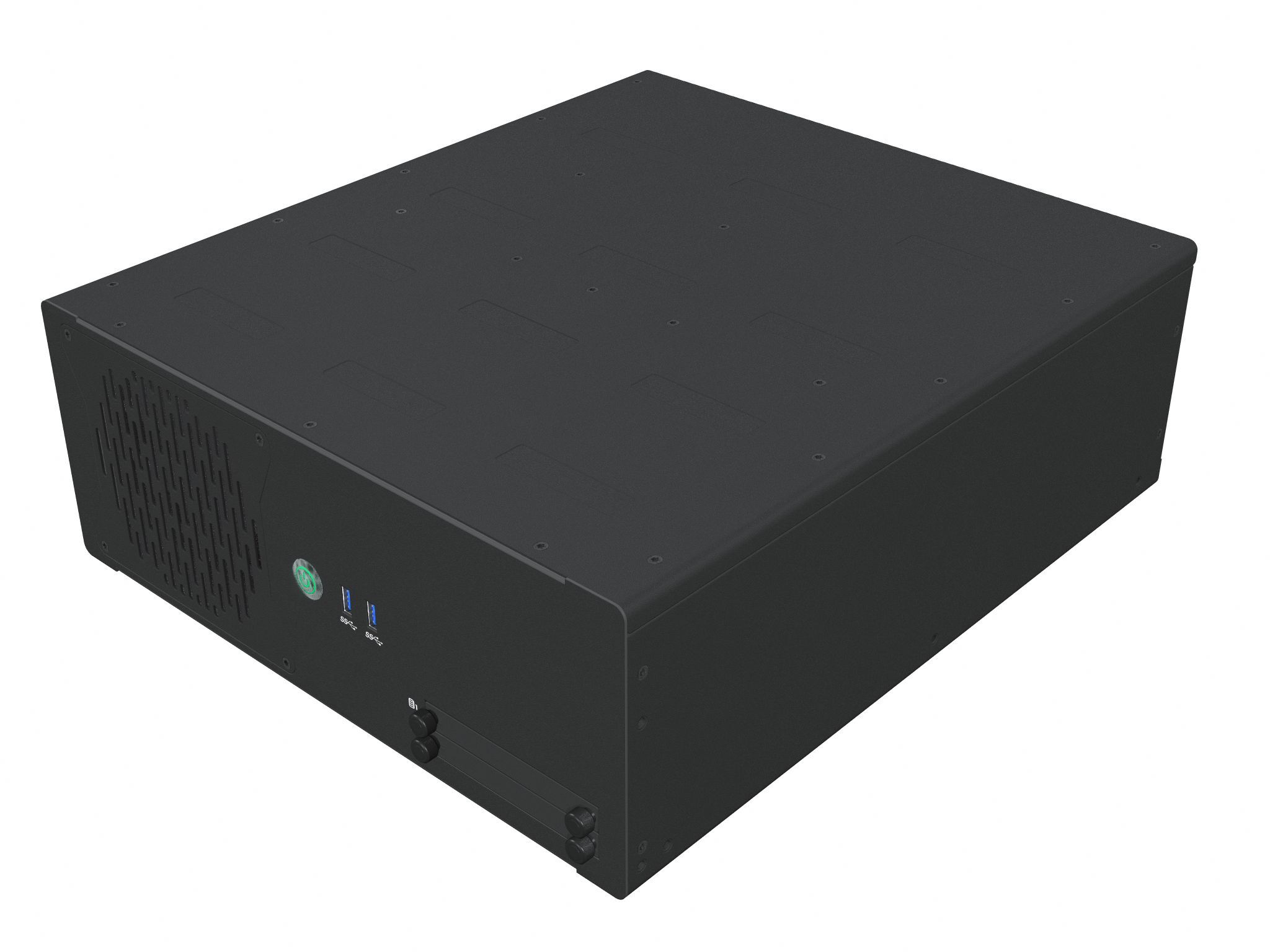

2 or 4 x 2.5" Removable Front Trays with options of:
- 2.5"/M.2 SSD SATA 3.0 (6GB/s)
240Gb (0.9PBW),480Gb (1.2PBW),960Gb (3.4PBW), 1.92Tb (7.1PWB)
M.2 Storage (PCIe options):
1 x M.2 2280 M-key (one SATA + NVMEx4)
1 x M.2 2230 E-Key (PCIe + USB for WiFi)
|
1 x Intel® Core™ i3-10100E, 4-Core 3.20GHz - 3.80GHz, 6MB Cache
or 1 x Intel® Core™ i5-10500E, 6-Core 3.10GHz - 4.20GHz, 12MB Cache
or 1 x Intel® Core™ i7-10700E, 8-Core 2.90GHz - 4.50GHz, 12MB Cache
or 1 x Intel® Core™ i9-10900E, 10-Core 2.80GHz - 4.70GHz 20MB Cache
|
1 x 8GB (single channel, DDR4 SO-DIMM 260-pin) installed.
Max 64GB RAM possible, Single or Dual Channel available
Options:
Single Channel: 1 x 8GB (2400MHz)
Dual Channel: 2 x 8GB (2400MHz), 2 x 16GB (2400MHz), 2 x 32GB (2666MHz).
|
Intel® Q470 / Intel® UHD 630, DirectX Support 12.0, Shader Model 6.4, OpenCL 2.1, OpenGL Support 4.5/linux, Vulkan 1.1.97
1 x USB-C + 2 x DisplayPort 1.2 (2 x Display clone + 1 extended)
|
Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
|
UEFI, ACPI support
|

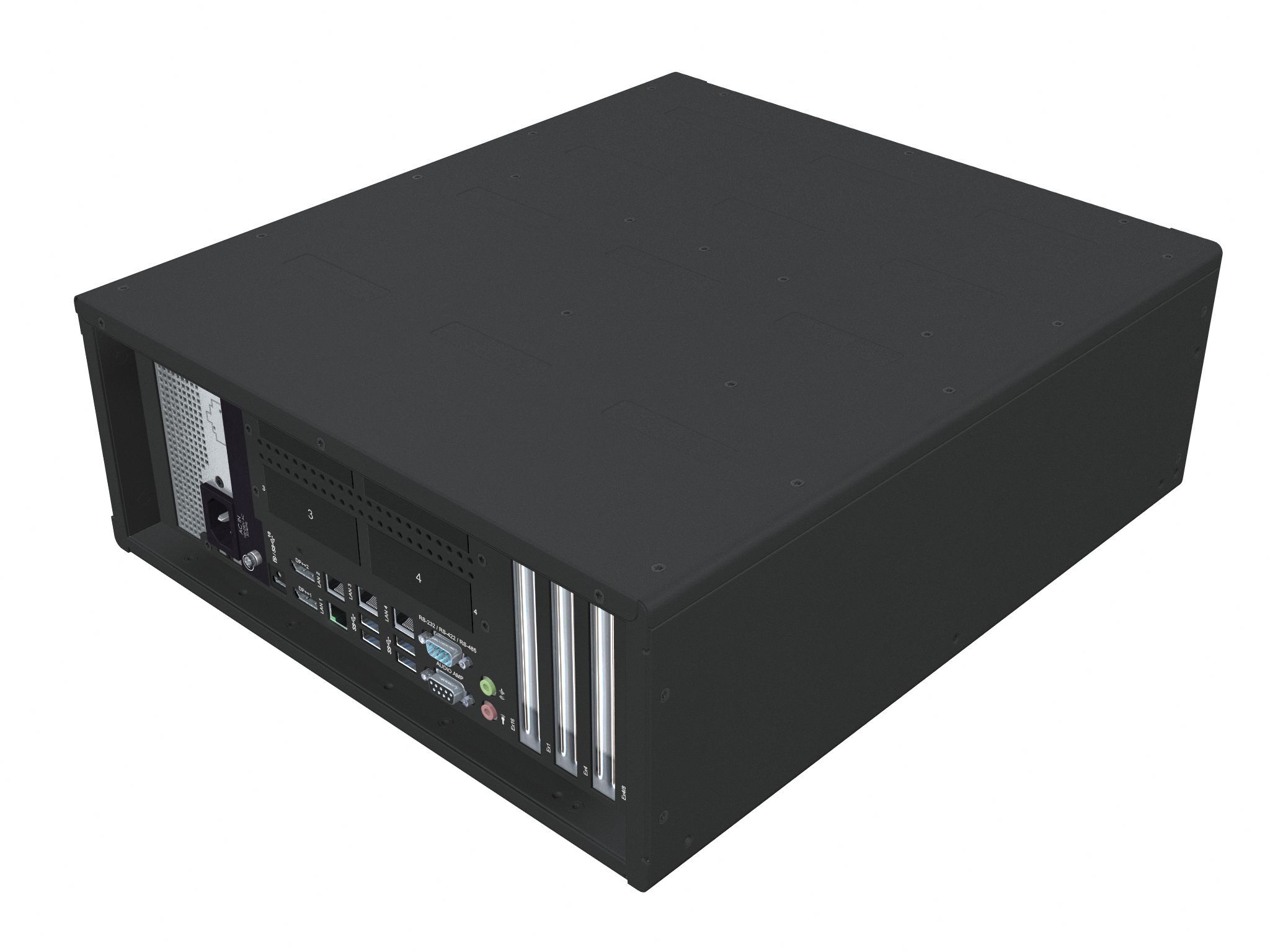

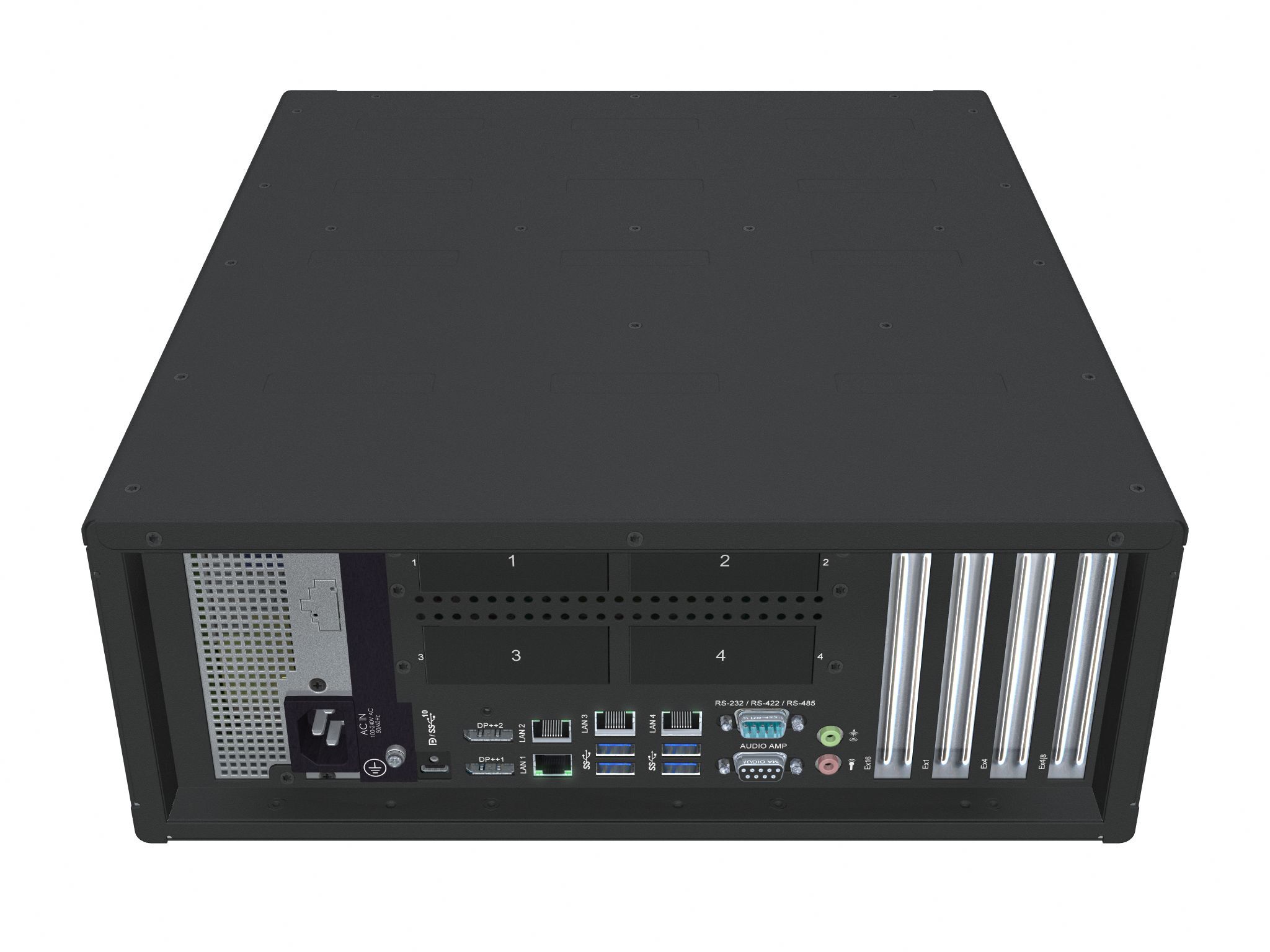

1 x PCIe 3.0 x16 (reserved for additional Graphics Card, See Factory Mounted options below)
1 x PCIe 3.0 x4 (x8 socket)
1 x PCIe 3.0 x4
1 x PCIe 3.0 x1
All slots are Full Height&Full Length profile
|
None
|
None
|

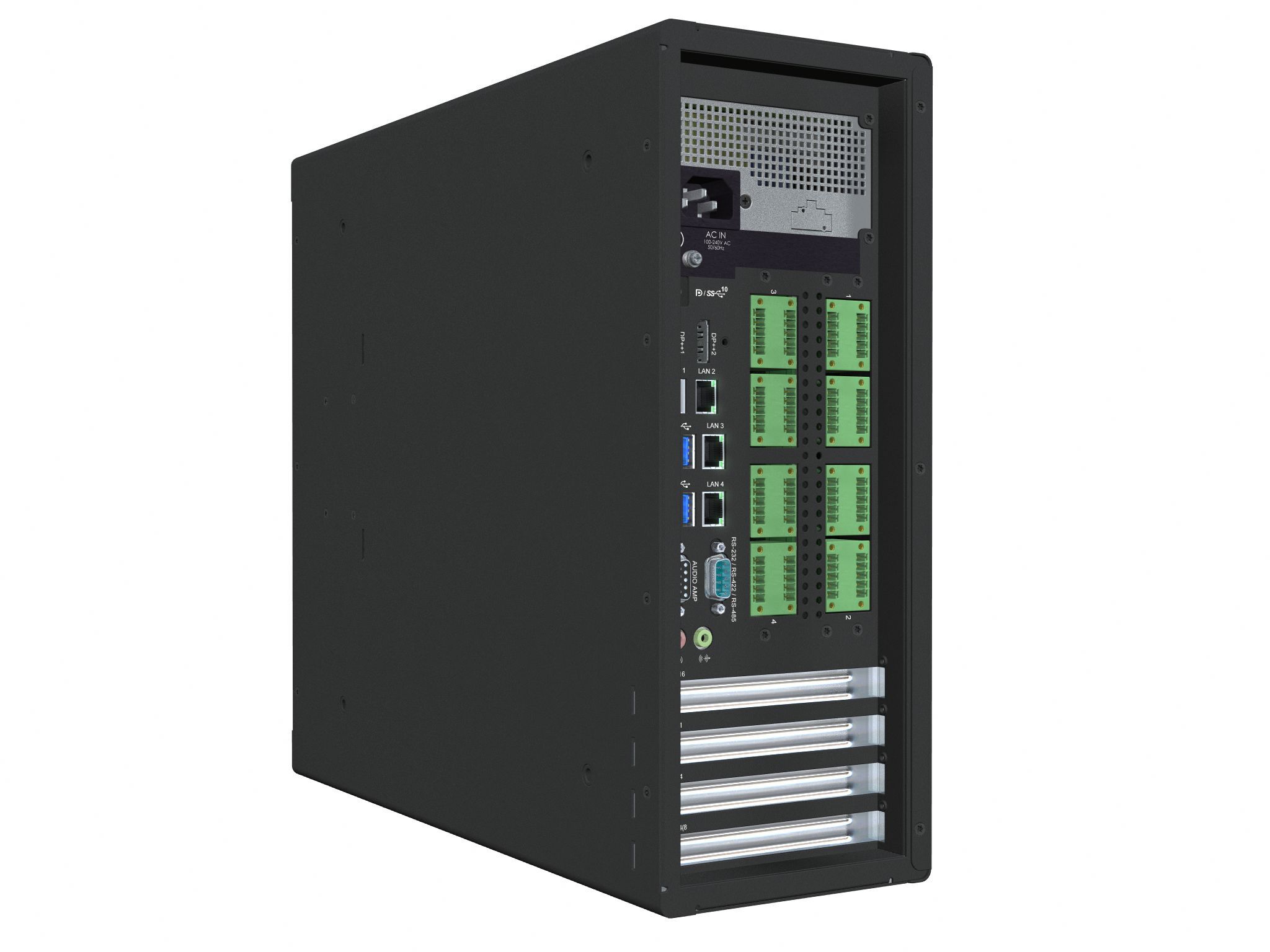

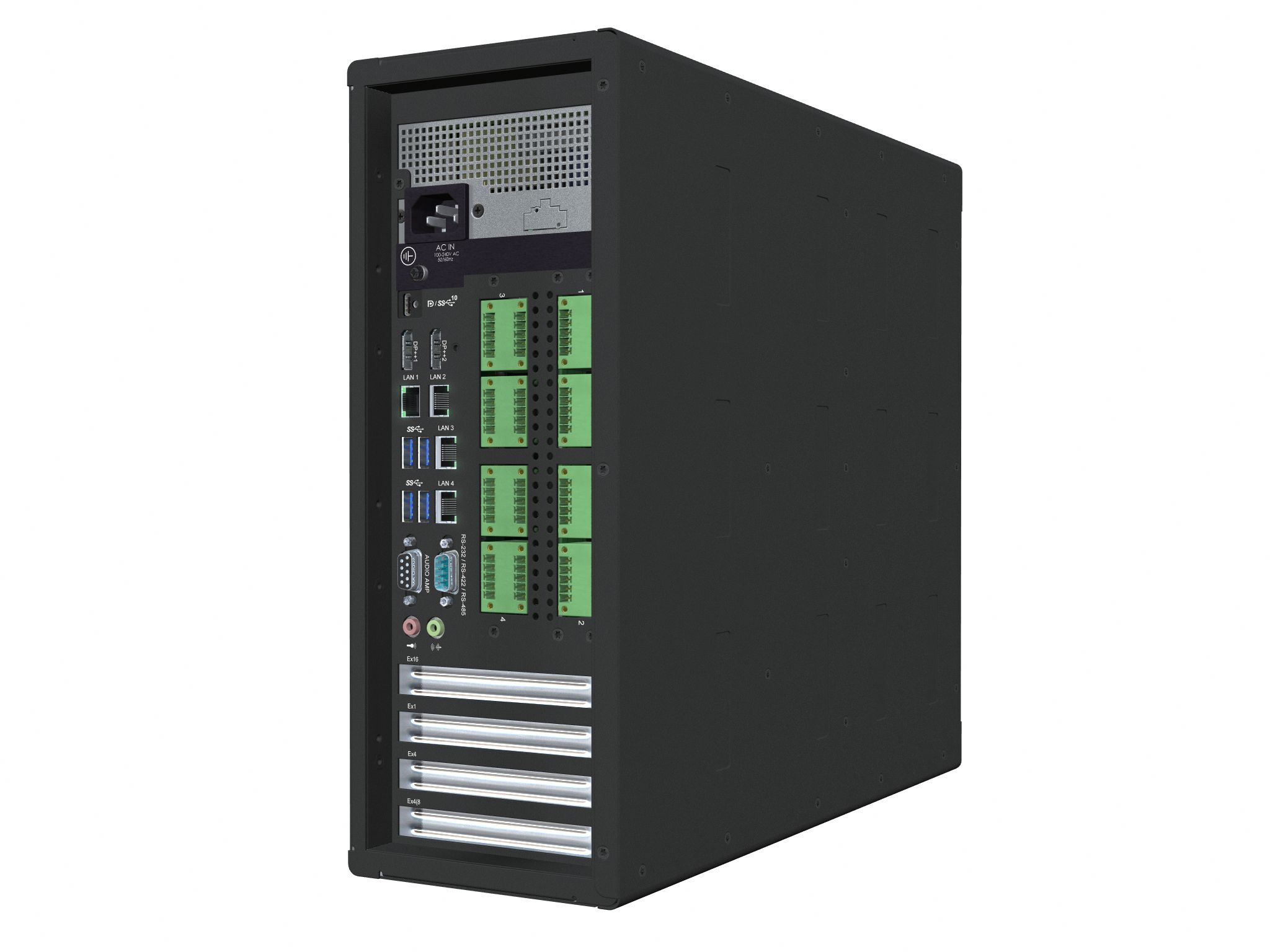

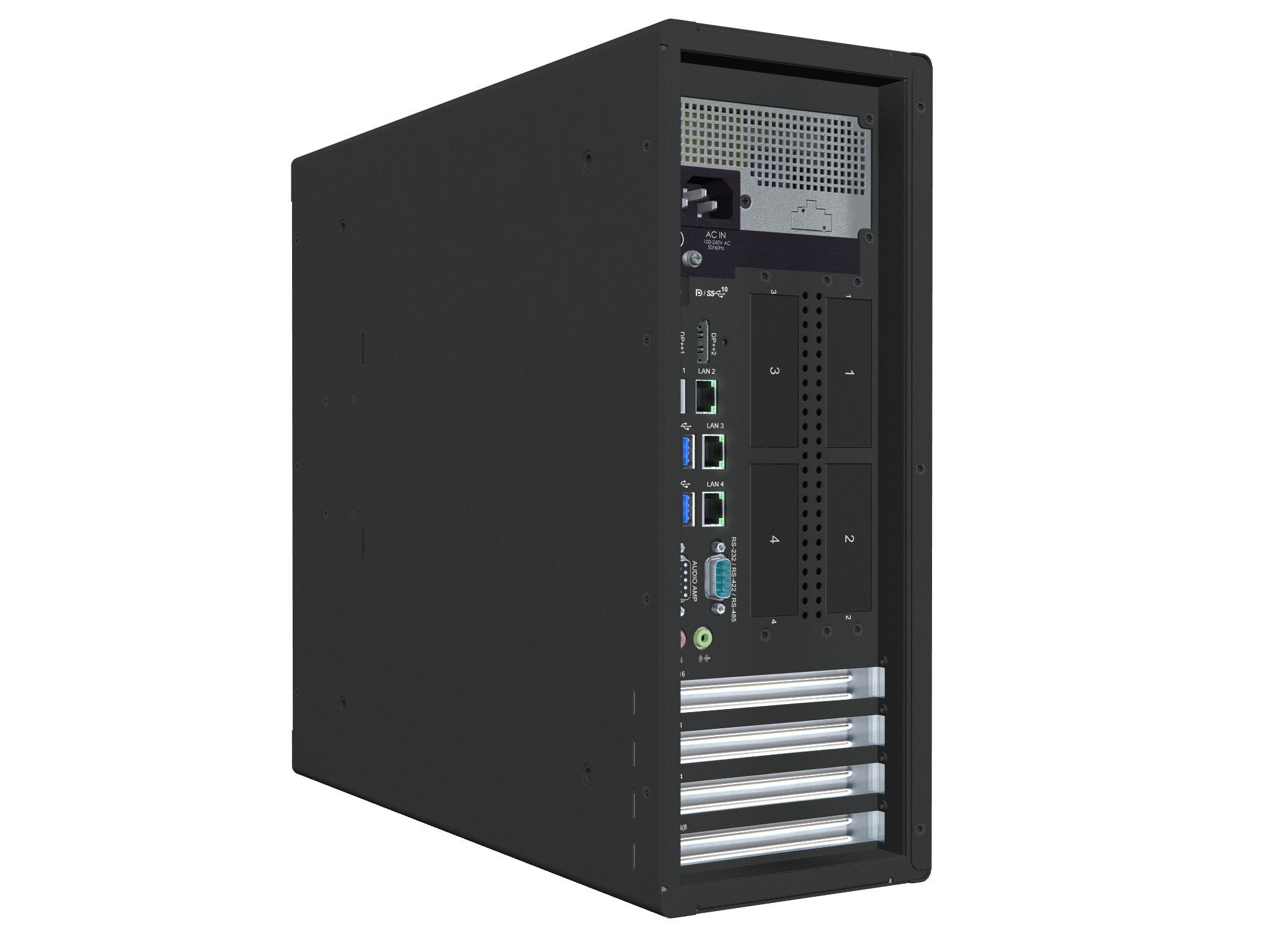

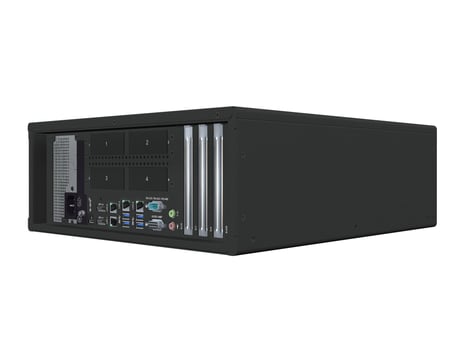

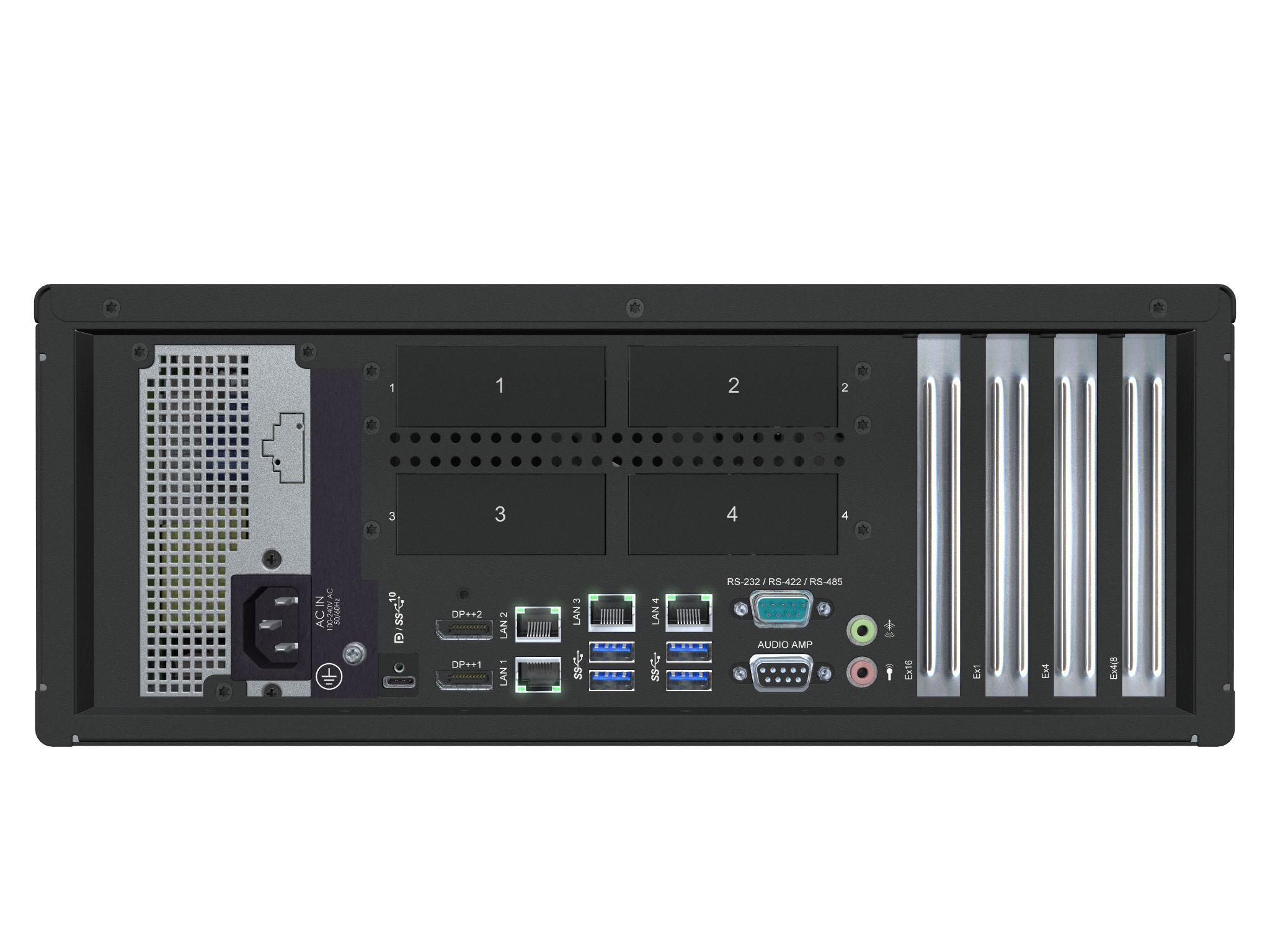

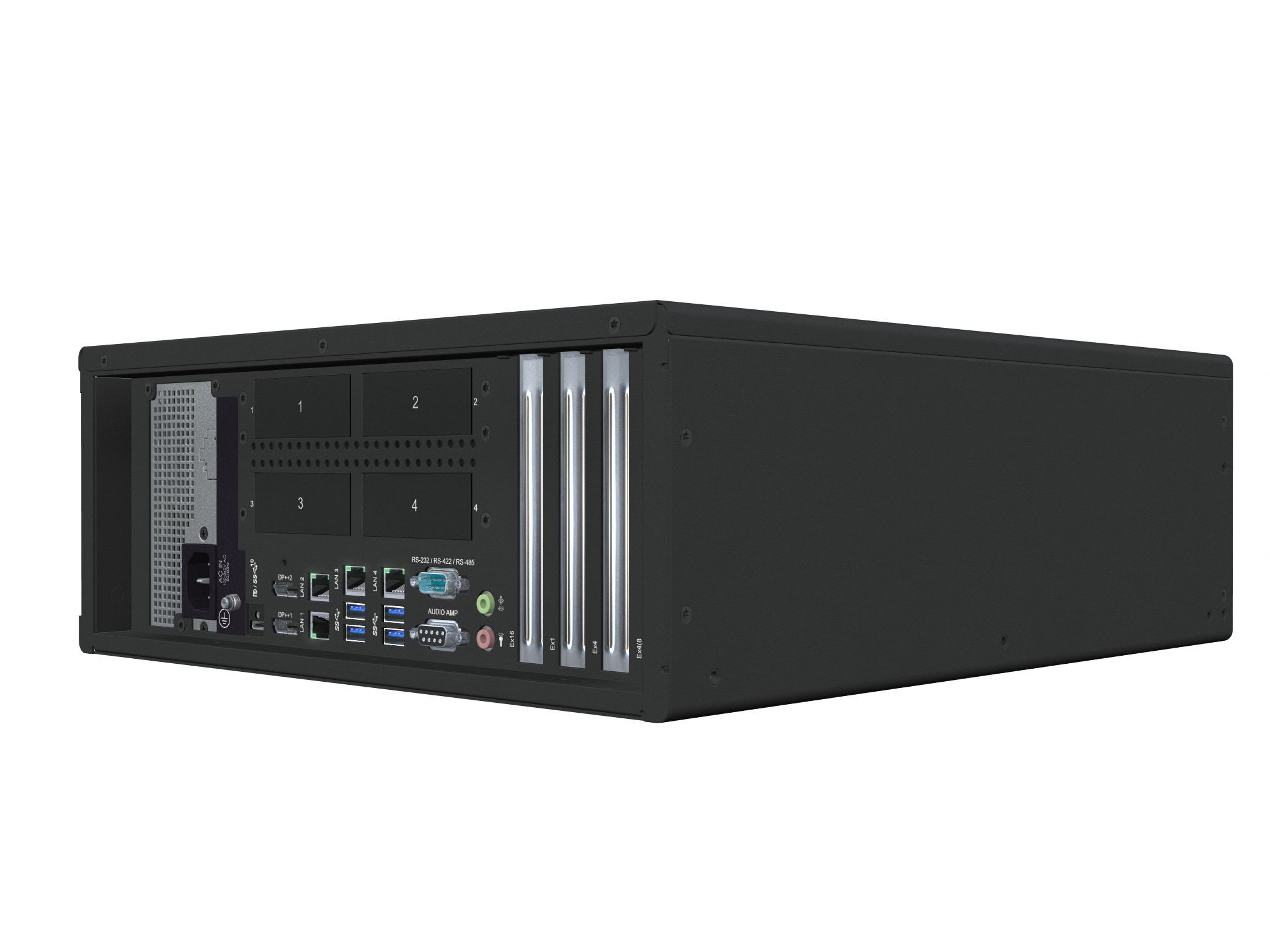

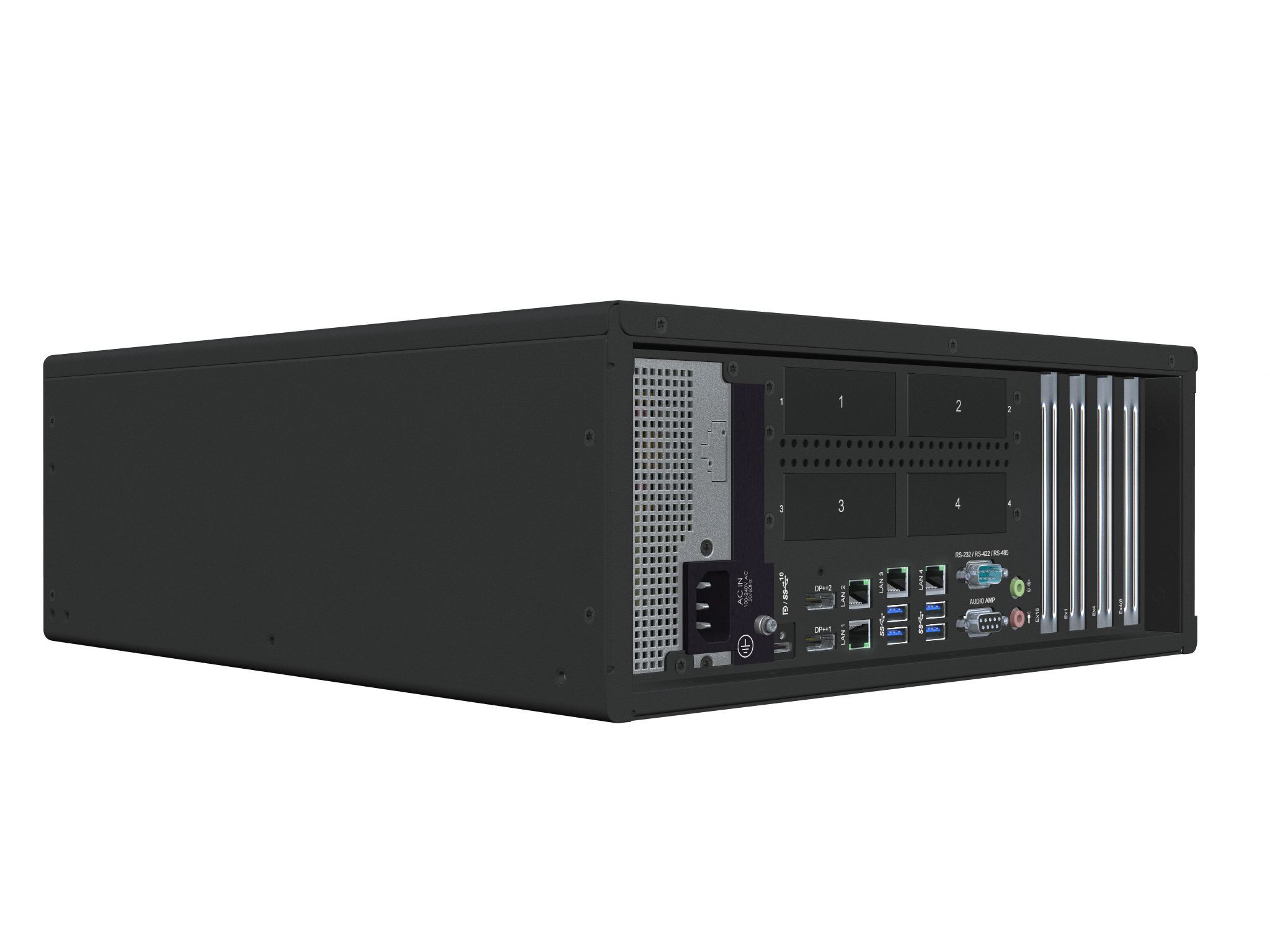

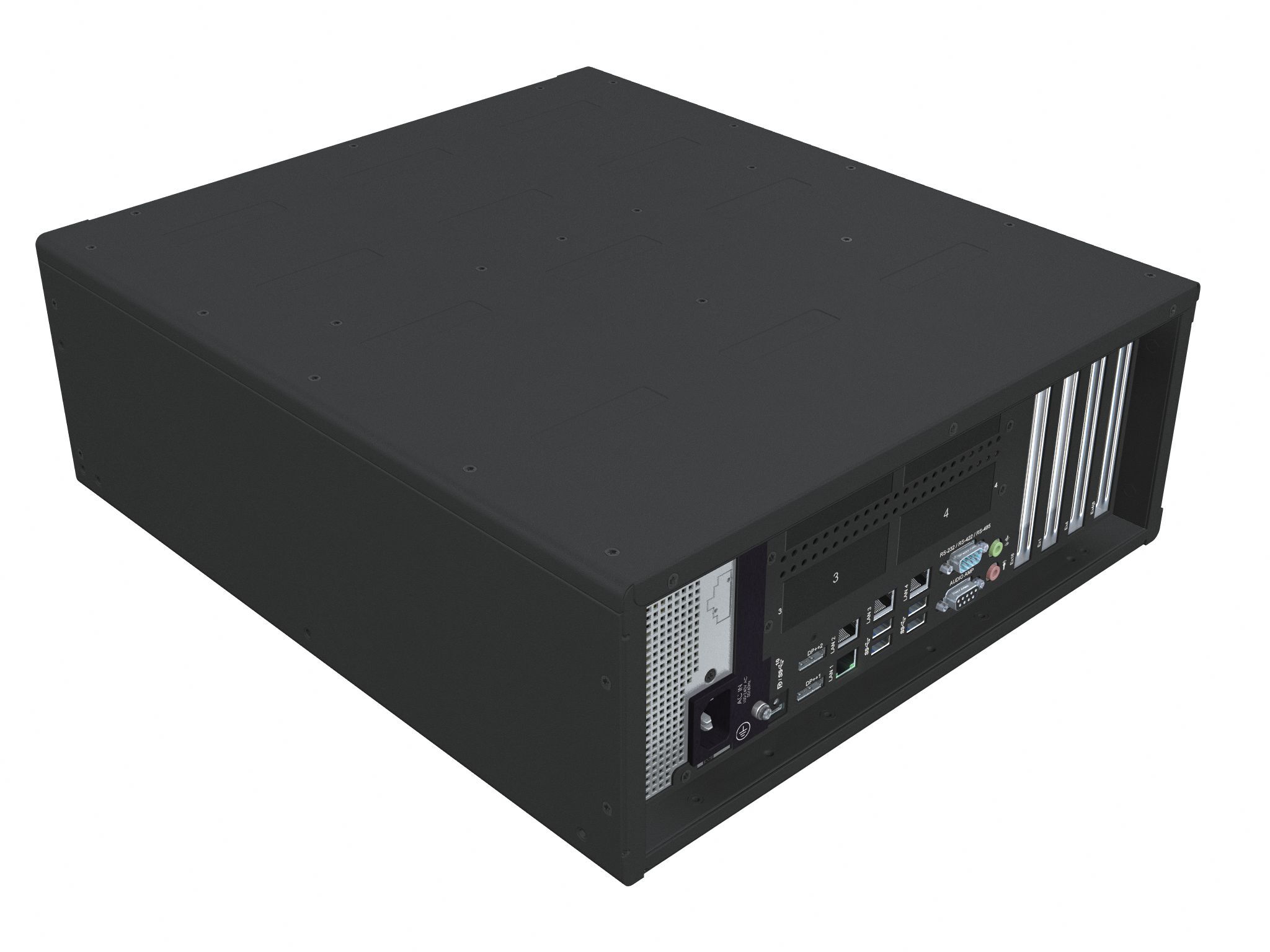

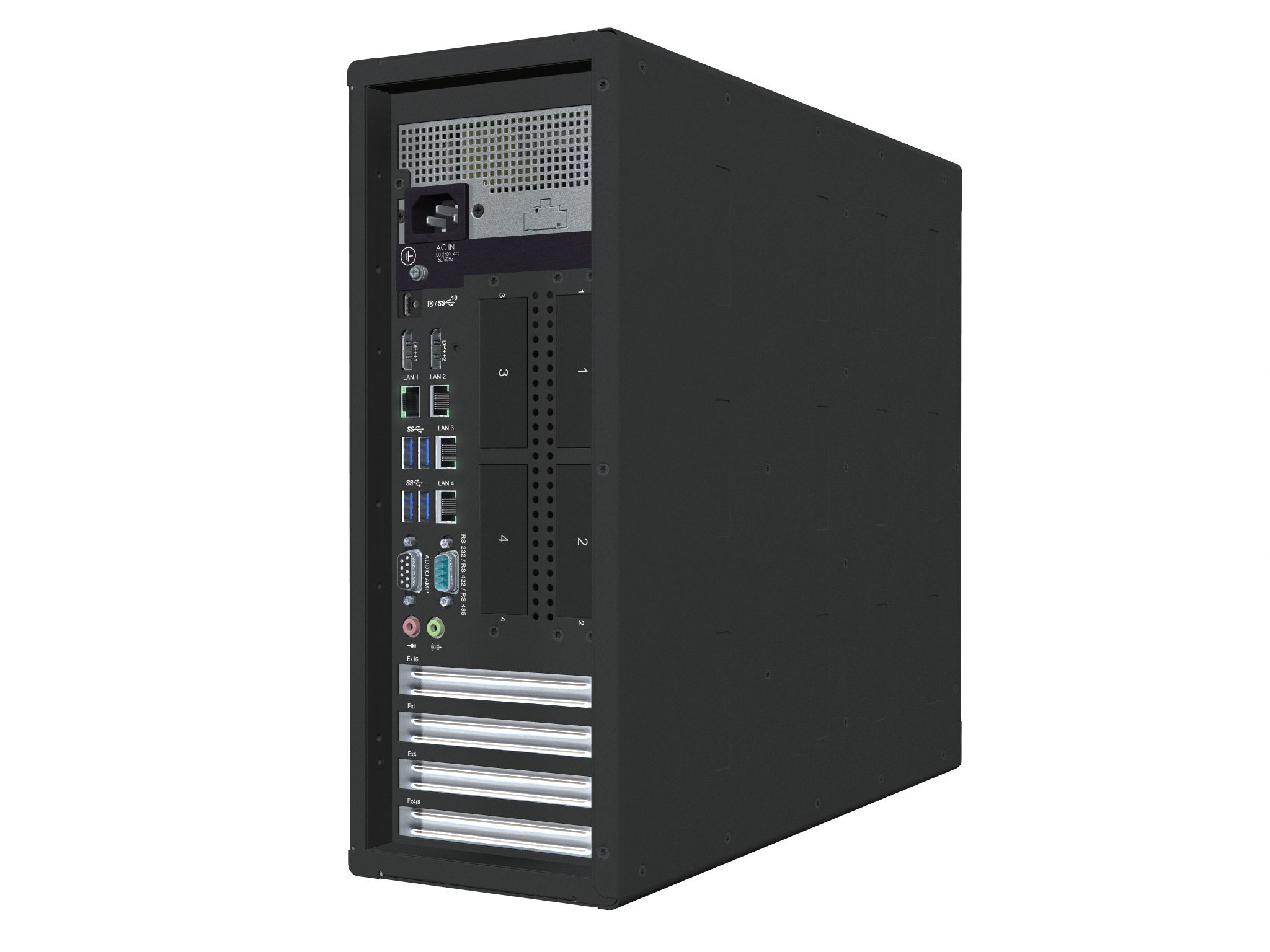

1 x DB9M, RS-232/RS-422/RS-485 un-isolated, Baud Rate: Max 115.2Kbps
|
2 x LAN 10/100/1000Mbps, Intel®, Support for Intel® Teaming, RJ-45
2 x LAN 10/100/1000Mbps (non intel), RJ-45
|

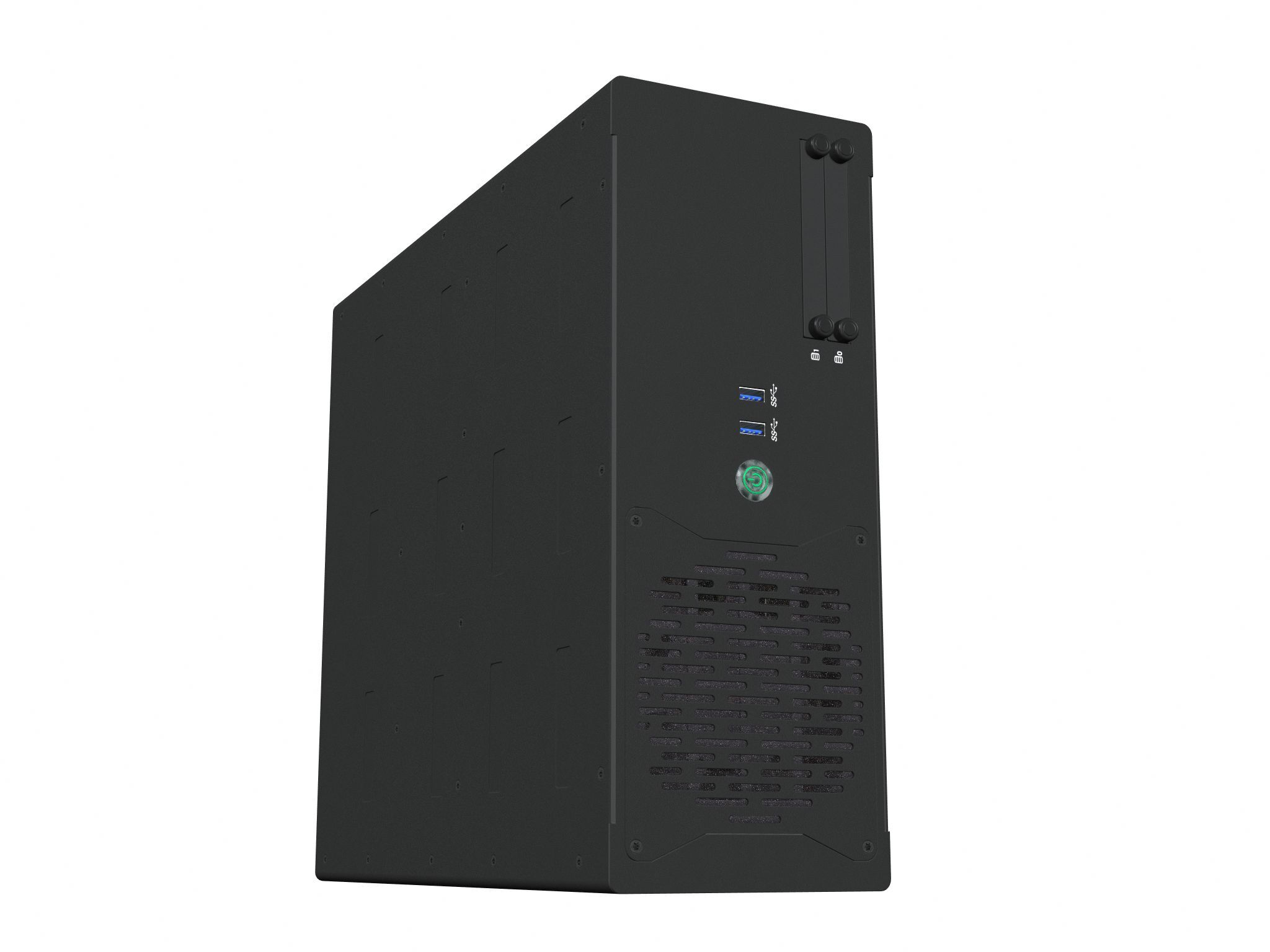

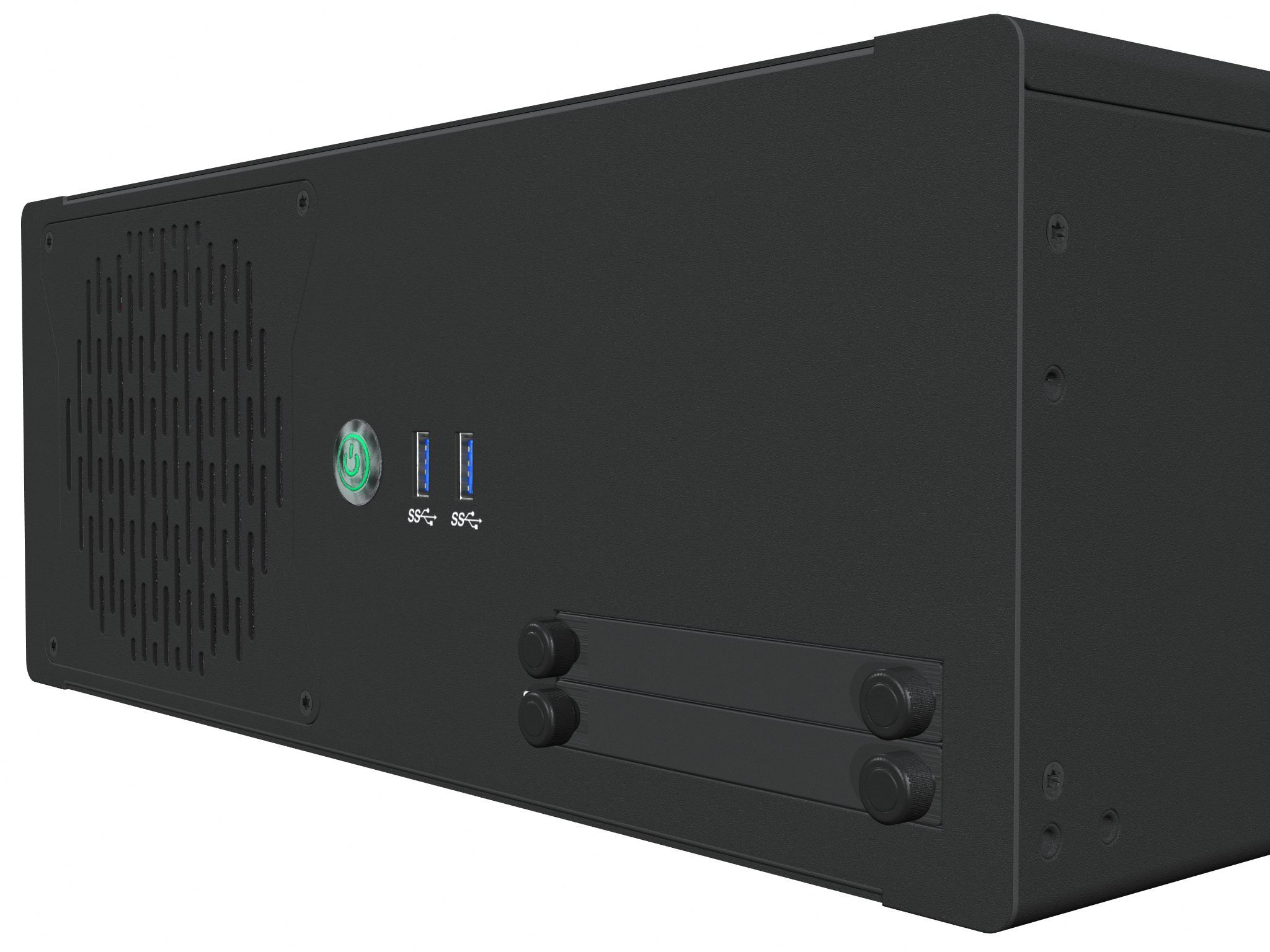

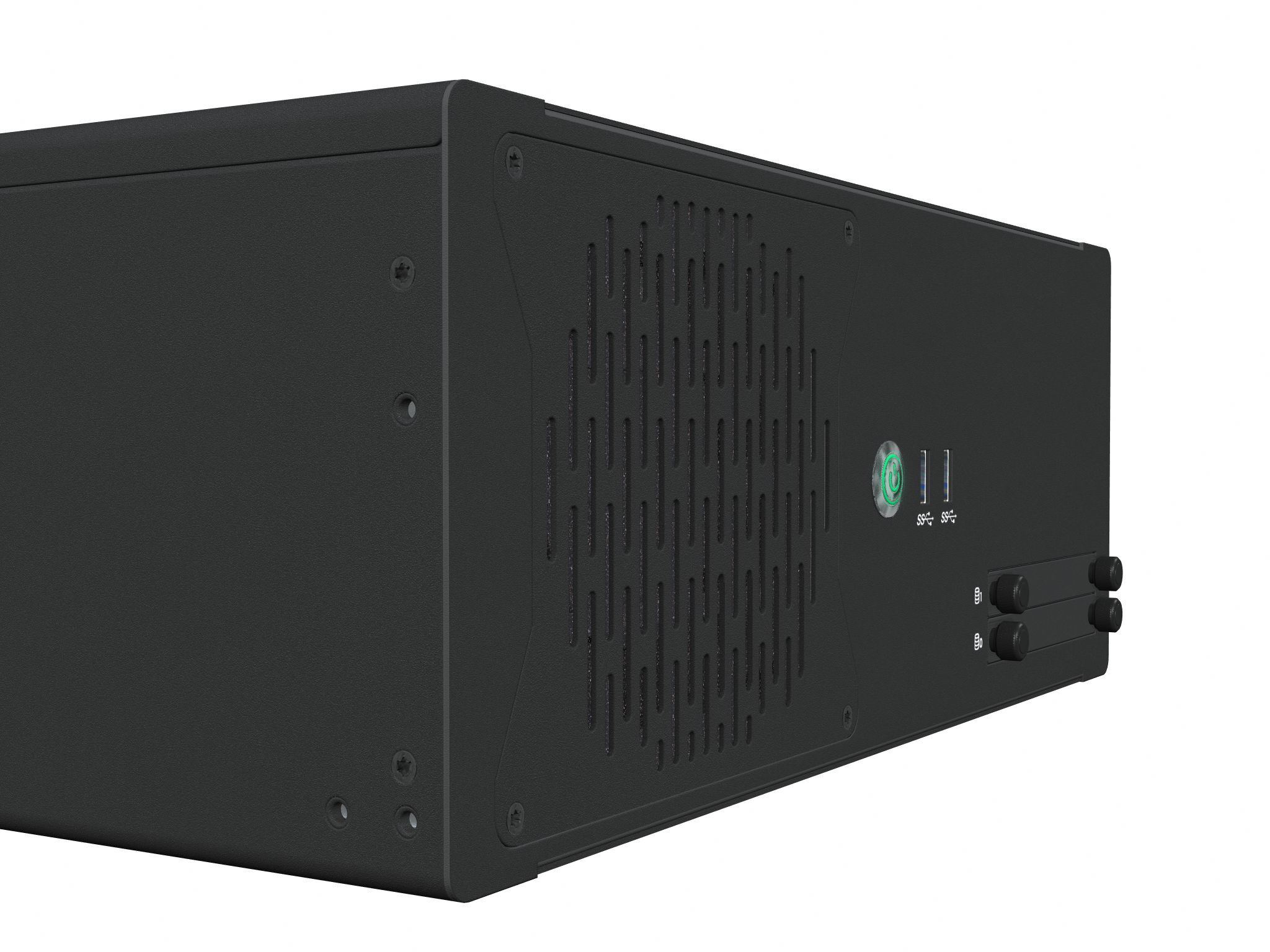

2 x USB 3.1 Type A (<3m) ports in front
4 x USB 3.1 Type A (<3m) ports in rear
1 x USB-C (DisplayPort - Power Distrubution enabled, 60W) in rear
|
None
|
Realtek HD Audio supports 2.0 channel, Mic. in, Line out (2x3.5mm Jack) + Audio 2W Amplified with Line-in, Line-Out, Mic via 1 x DB9F
|
None
|
ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
|
100-240V AC - 50/60Hz
Operating: 85W Typical - 135W High Load (excluding external additional loads) - 350W Max (at label, theoretically MAX defined by PSU)
AC Power IN: 1 x Std IEC inlet
|
None or option:
1 x PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT
|
High Performance, Easy Removable Front Air Filter, Internal Cooling fan in front (120x120mm), Service friendly, Includes mounting brackets, LAN Wakeup, USB Boot, Trusted Platform Module 2.0 (TPM2.0), Intel® Management Engine. True power on after power fail.
|
W:345.00 [13.58''] x H:133.00 [5.24''] x D:392.30 [15.44''] mm [inch]
3U Rack size in height. Approx 9kg / 19.8lbs
|
L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch]
Approx. 12kg / 26.4lbs
|
Front: Power/Reset/Power LED Combined Function
|
• PNY NVIDIA A400: PCIe 4.0 x8, 4x mini DP, 4 GB GDDR6
• PNY NVIDIA A1000: PCIe 4.0 x8, 4x mini DP, 8GB GDDR6
• PNY NVIDIA 2000 ADA: PCIe 4.0 x8, 4x mini DP, 16GB GDDR6 with ECC
• CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485)
• X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45
• I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45
• X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+**
• HT LAN-F INT: 2x SFP-1000BaseLX-RGD-C**

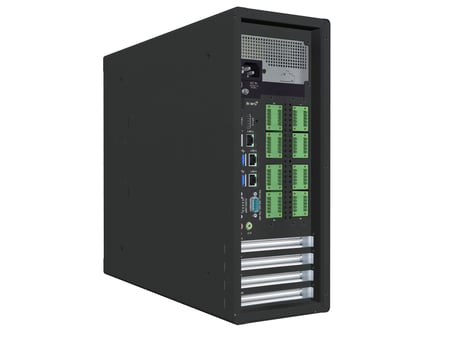

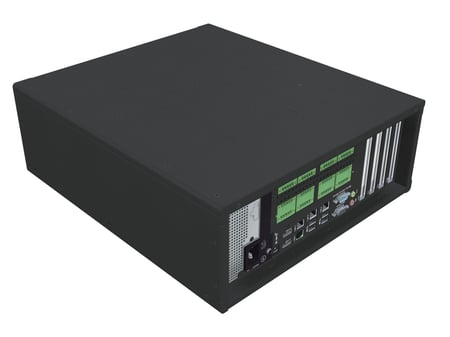

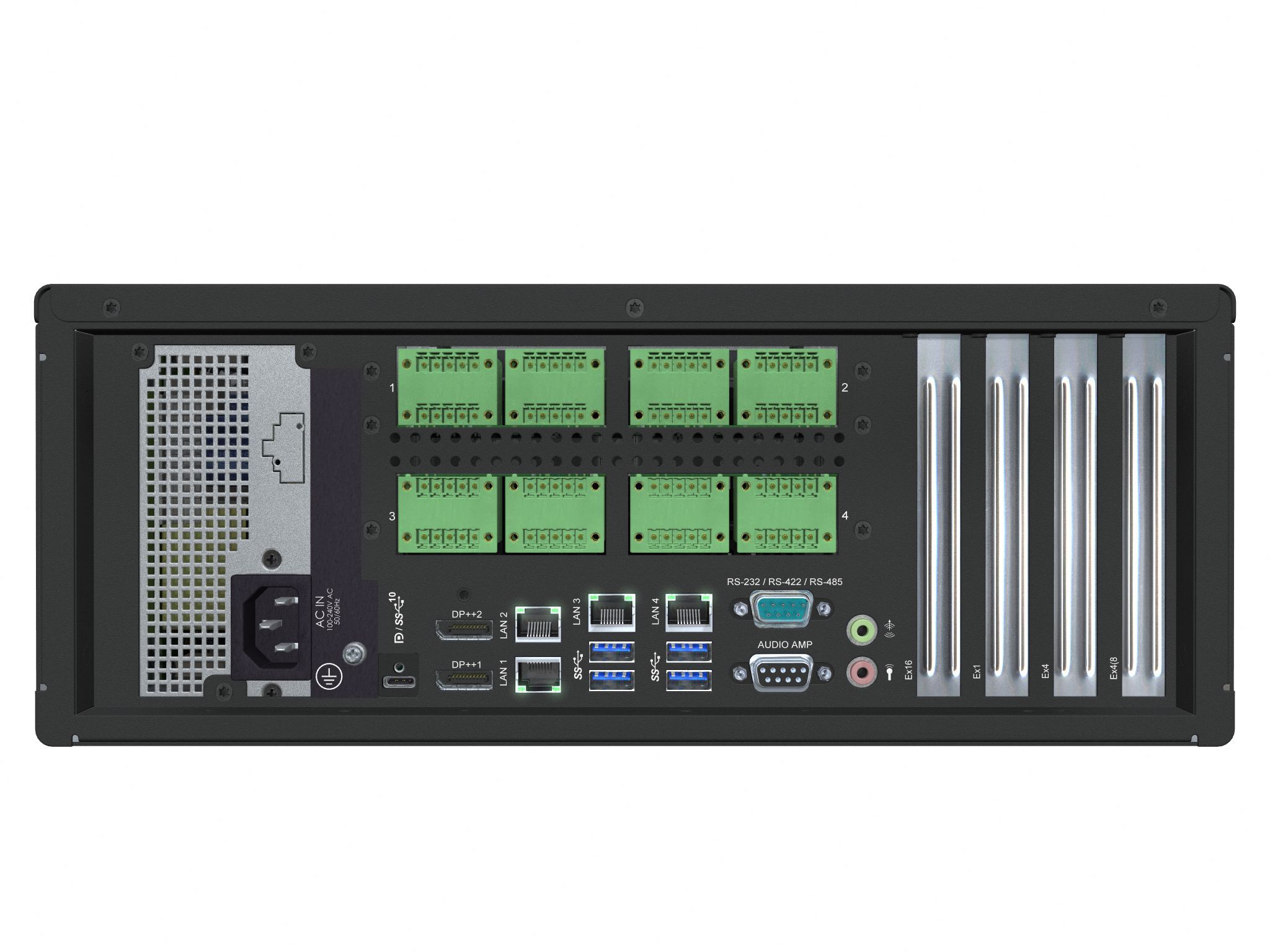

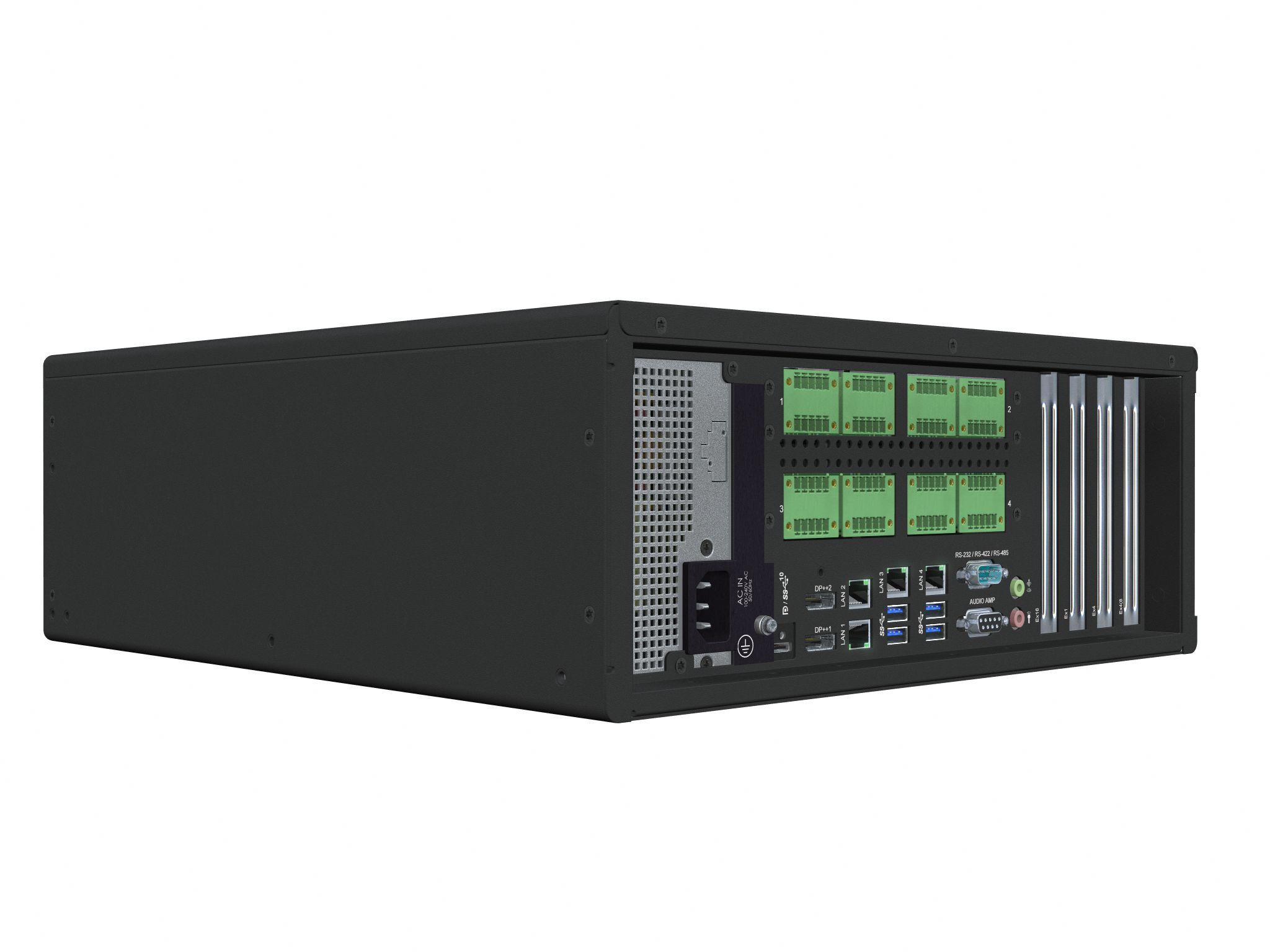

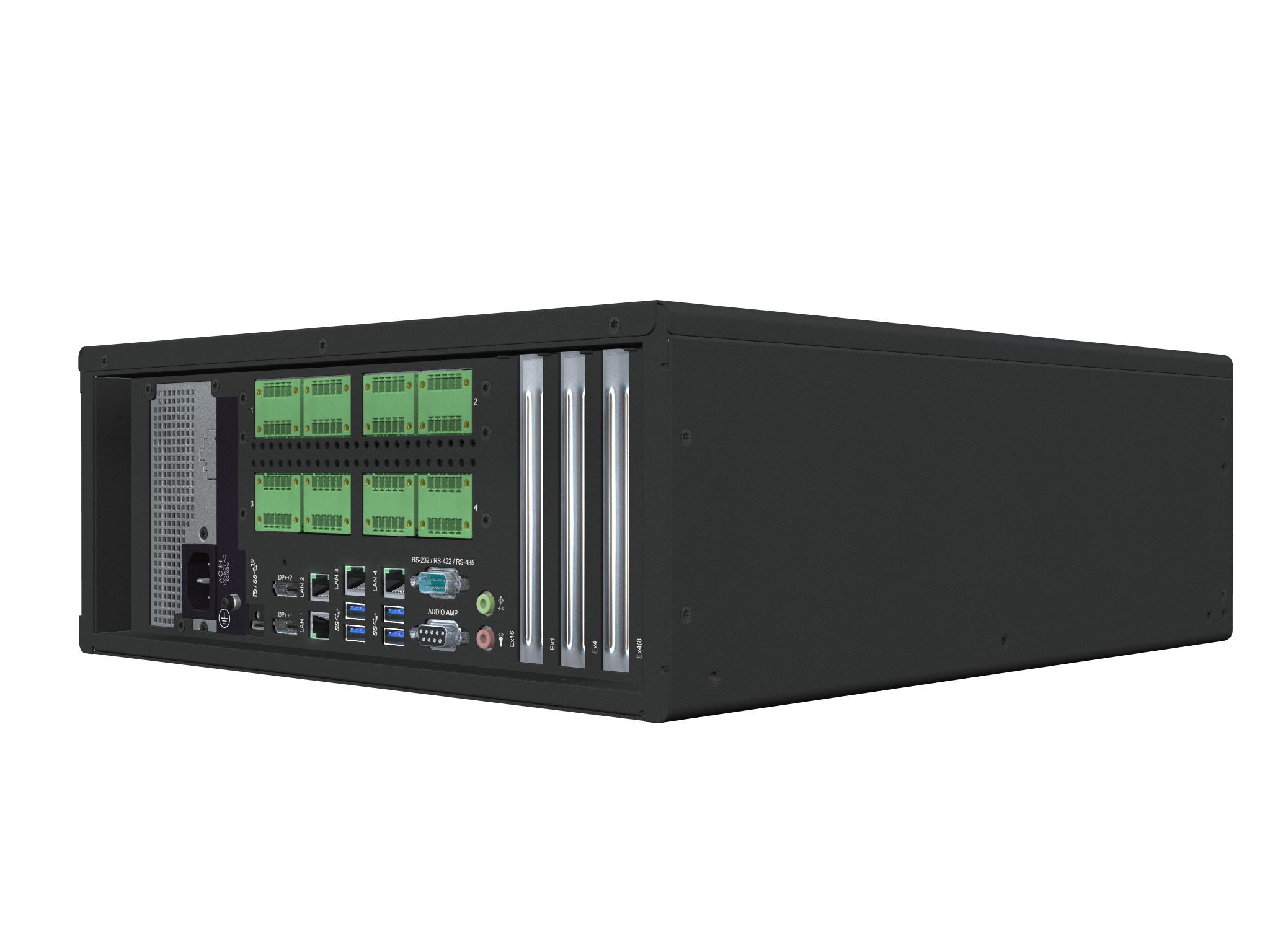

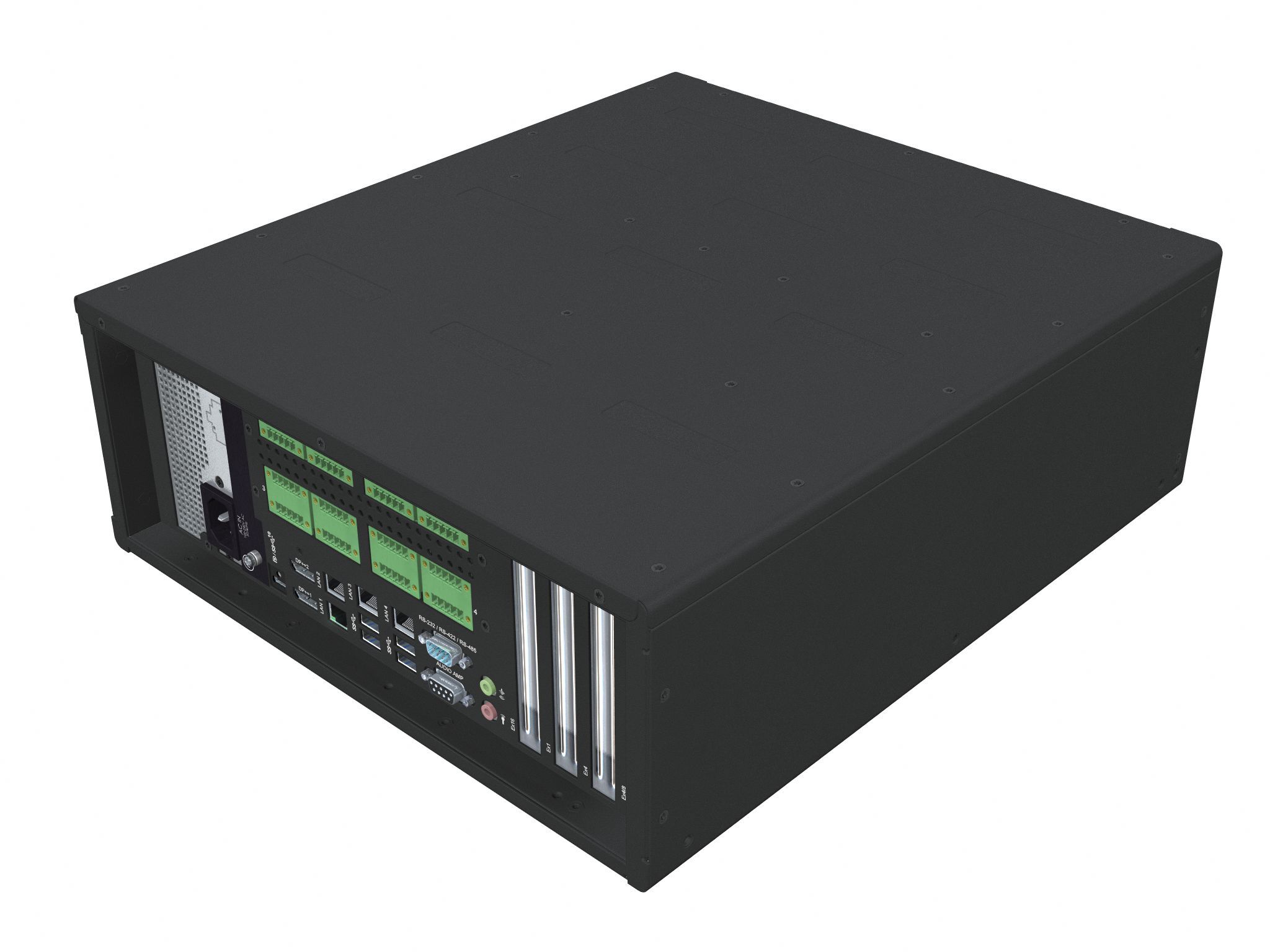

• PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT*
• PCA100309-1: Dual Isolated RS-232, 2xDB9 module*
• PCA200828-1: COM RS-422/485 isolated NMEA 4 channel, 5-pin T. Block 3.81*
• PCA200898-1: NMEA Kit (4xRS422/RS485 isolated) SW Configurable
• HTA2020002-SLCAN: Socket CAN isolated, 2 channel module*
• HTA2020002-AD1033: CAN isolated, 2 channel module*
• HT EPB STD-A4: REMOTE ON/OFF Module
• HD550N1 HDV M2: Frame grabber HDMI / RGB
• HD550N1 SDI M2: Frame grabber SDI-HD
* For all Factory Mounted Options, review User Manual for possible HW combinations.
**In combination with graphic-card, only USB 2.0 in front. Installed in x4 slot.
|
• HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mounting kit for 19" Rack
• HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mounting kit for 19" Rack
• HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit(compatible with HT00224/00225)
• HT 00226 OPT-A1: 2 x Mounting Bracket, 4mm SECC+Zinc Plating, RAL9011
• JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle
• HT 00275 OPT-A1: 1 x PCI Mount Kit EN60945, Low Profile (LP, any len.)
• H733S30Q20-SP000-0: 1 x Replacement Front Air Filter w/4 screws

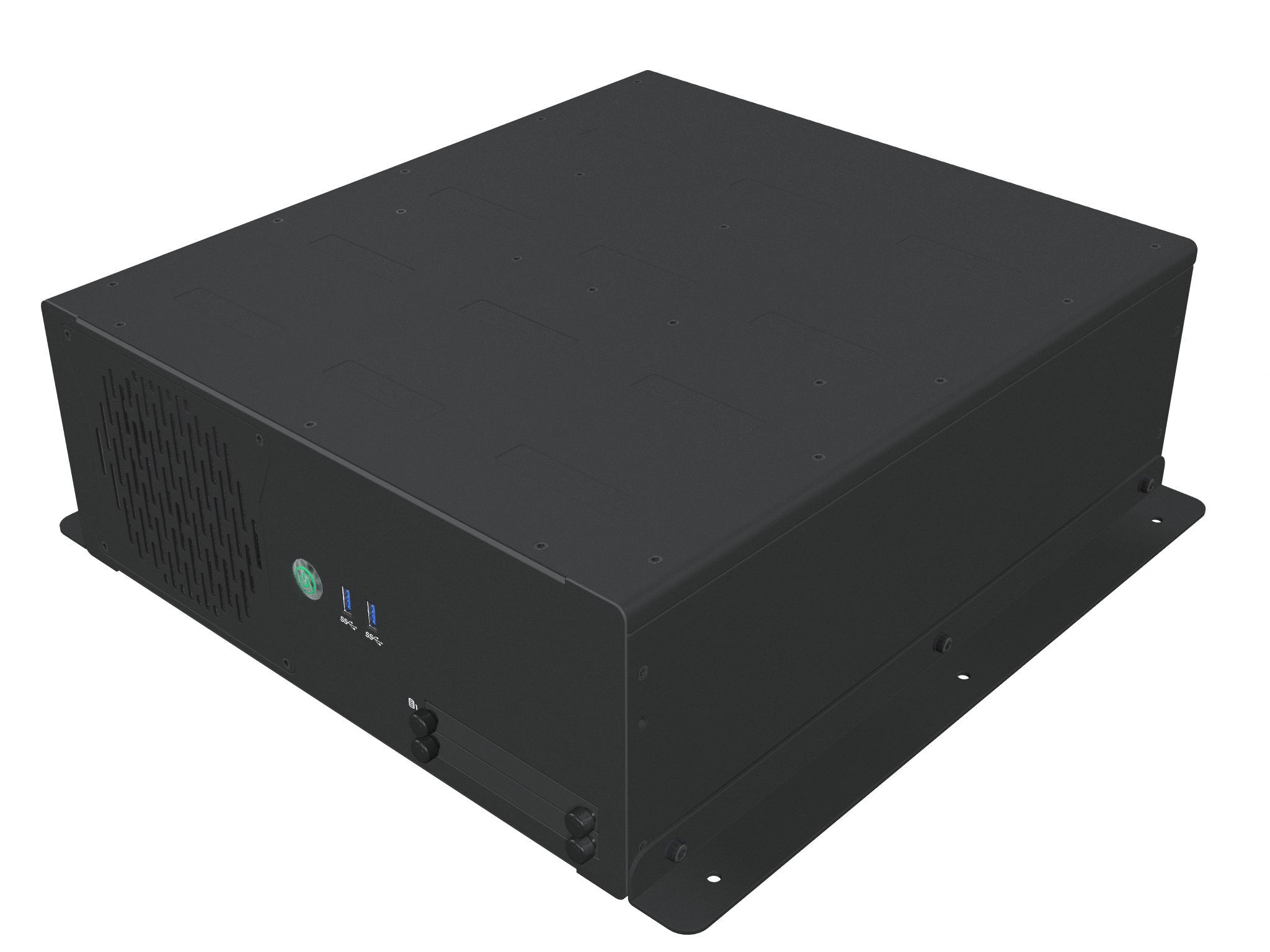

• HT MBK STD-C1: Mounting Bracket Kit HTC03/HTC04 - L-Shaped
• HD 000TR SX2-A3: 1 x Removable Tray 2.5" w/4xM3x4mm Phillips Countersunk Screws

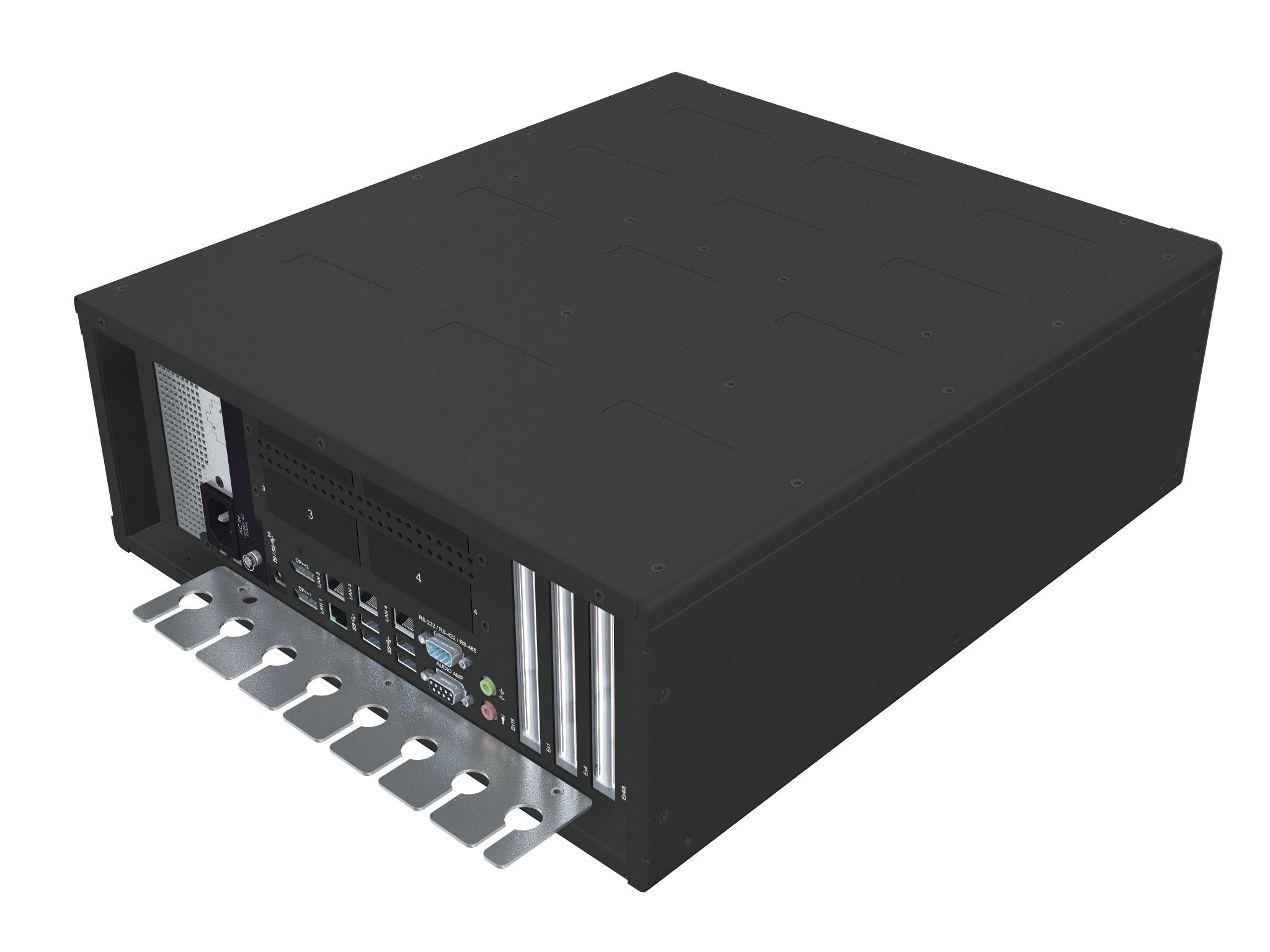

• HT RET STD-A3: 1 x Cable/Retainer Kit
• 895-0492: USB-C cable, 2m
• VSD203404-1: USB-C to DP Adapter 2M 4K@30Hz
• HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module
• HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module
• HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
• HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
• HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module
• VSDDPVGA340 / HT DPM2VGAF-A1: 1 x DP to VGA adapter
• RC3473 / HT DPM2DVI-DF-A1: 1 x DP to DVI adapter
• DVI-D: QSP-MINIDP/DVIV2
• DP adapter: QSP-MINIDP/DPV3
• HDMI adapter: QSP-MINIDP/HDMIV2
• VGA adapter: QSP-MINIDP/VGA
• HT 00300 MSOS: OS options -> www.hattelandtechnology.com/os
• HD xxxyy SX1-z1: 1 x Removable Tray 2.5" w/Storage Device*
|
None
|
-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
|
-20.0°C / -4.0°F to +70.0°C / 158.0°F, Humidity up to 95%
|
Standard: 125.00 [4.92"] - Steering: 90.00 [3.54"] cm [inch]
|
IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping*, CCS - China Classification Society*, BV - Bureau Veritas*, ClassNK - Nippon Kaiji Kyokai*
*=pending
|
