CONFIGURATIONS AND APPLICATIONS
On board with everything.
Whether you’re looking for a reliable unit for light automation tasks, a top performer for heavier graphics processing, or anything in between, the HTB40 can be configured to meet your requirements.
It comes in two fanless models, long and short. They both offer a wide range of options, including choice of processors, interface modules, scalable SSD storage and much more.
PERFORMANCE AND LONGEVITY
All the benefits of fanless.
Dust and humidity can harm the internal parts of a PC. But not if it's kept outside.

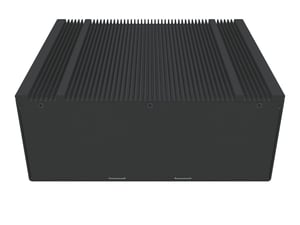

HTB40s are completely sealed off. The ribbed cabinets act as heatsinks, ensuring efficient heat dissipation without fans. The result is a silent computer whose performance will not deteriorate due to particle deposition or moisture.
INSTALLATION AND MOUNTING
Fits any vessel.
The HTB40 platform was designed to accommodate any scenario.
Not only when it comes to the small stuff, such as CPUs and expansion cards. It even applies to the shape and size, and how you prefer to install it.

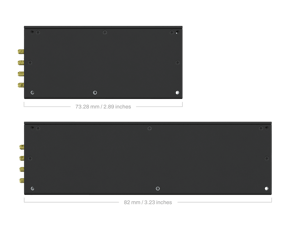

With two different form factors available (short depth and long depth), the HTB40 offers flexible installation options, including 3U rack mounting in pairs.
Be it a trawler, a supply ship, or a superyacht, you'll be guaranteed to fit (and benefit from) a HTB40.
COMPARISON
Which one is best suited for you?
Compare the HTB40s and see which model best meets your requirements.
Long Depth
HTB40G
HTB40G
Short Depth
HTB40K
HTB40K
System Specifications
Supported CPU
Intel® Core™ i7-1265UE, Intel® Core™ i5-1245UE,
Intel® Core™ i3-1215UE or Intel® Core™ Celeron 7305E
Intel® Core™ i3-1215UE or Intel® Core™ Celeron 7305E
Intel® Core™ i7-1265UE, Intel® Core™ i5-1245UE,
Intel® Core™ i3-1215UE or Intel® Core™ Celeron 7305E
Intel® Core™ i3-1215UE or Intel® Core™ Celeron 7305E
Memory / RAM
Max 64GB - DR5-4800, 2 slots
Max 64GB - DR5-4800, 2 slots
System Chipset
Integrated (12th Generation Intel® Core™ U-series)
Integrated (12th Generation Intel® Core™ U-series)
Graphics Chipset
Intel® Iris® Xe or Intel® UHD
Intel® Iris® Xe or Intel® UHD
Max Resolution Out
7680 x 4320 @ 60Hz Max via DisplayPort
7680 x 4320 @ 60Hz Max via DisplayPort
Storage Options
2.5" SSD SATA: 240GB up to 1.9TB
or m.2 SATA/NVMe: 240GB, 480GB
or m.2 SATA/NVMe: 240GB, 480GB
2.5" SSD SATA: 240GB up to 1.9TB
Default Connectivity (more available as Factory Options)

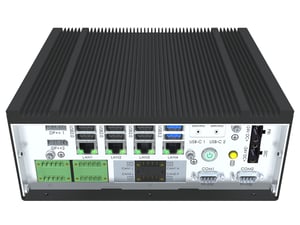

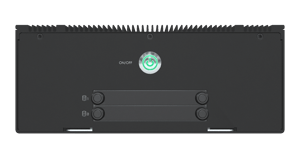

Front
2 x Removeable SSD Bays
None
Rear
2 x DP++ 1.4a
4 x RJ-45 LAN
6 x USB2.0 Type A
2 x USB3.2 Type A
2 x USB-C
4 x RJ-45 LAN
6 x USB2.0 Type A
2 x USB3.2 Type A
2 x USB-C
2 x DP++ 1.4a
4 x RJ-45 LAN
6 x USB2.0 Type A
2 x USB3.2 Type A
2 x USB-C
4 x RJ-45 LAN
6 x USB2.0 Type A
2 x USB3.2 Type A
2 x USB-C
Size and Weight
Width
220.00 mm / 8.66 inches
220.00 mm / 8.66 inches
Height
89.00 mm / 3.50 inches
88.90 mm / 3.50 inches
Depth
300.00 mm / 11.81 inches
192.00 mm / 7.56 inches
Weight
3.7 kg / 8.1 lbs
2.5 kg / 5.5 lbs
Power Specifications
Power Inputs
Multi Power: 100-240VAC 50/60Hz + 24VDC - 60W PSU
1 x STD IEC + 1 x 2-pin T-Block 5.08
or
Single AC Input: 100-240VAC 50/60Hz - 300W PSU
1 x STD IEC
1 x STD IEC + 1 x 2-pin T-Block 5.08
or
Single AC Input: 100-240VAC 50/60Hz - 300W PSU
1 x STD IEC
Dual DC Input 24VDC
2 x 2-pin Terminal Block 5.08
2 x 2-pin Terminal Block 5.08
Power Consumption
Operating AC+DC: 37W (typ) - 75W (max)
Operating AC: 52W - 336W (max)
Operating AC: 52W - 336W (max)
Operating : 52W (typ) - 75W (max)
