2_DSC09948

The Seven Seas. In 4K.

HATTELAND® SERIES X MVD

Level up your bridge and make the most of your data.

The Series X MVD is a family of large-size marine monitors. Available as 32", 43" and 55" models – all in 4K UHD – they enable the presentation of large amounts of data onto one screen instead of multiple monitors. Series X MVDs combine sleek exteriors with extensive certifications and type approvals: An exceptionally capable monitor range for all onboard applications, including ECDIS, IBS, Automation, and CCTV.

The icon illustrates a slim frame, a key characteristic of the Hatteland Technology T40 line of maritime monitors.
Slim
4K icon
4K
The icon illustrates a ship, because the Hatteland Technology T40 line of maritime monitors are IEC 60945 approved.
IEC 60945
The icon shows a monitor detached from its base. This illustrates the modular concept of the Hatteland Technology T40 line of maritime monitors.
Modular

HATTELAND® Series X MVD comes in three sizes, each with several different mounting options.

Factory options include Optical Bonding, Colour Calibration for ECDIS, and Projected Capacitive Touch Screen (PCAP).

Browse product range
Request a quote
T40_range_transparent

The art of reduction.

With the latest generation Series X MVDs (T40), we have pinched the frame down to a minimum. This saves space and gives your bridge an even sleeker appearance.

The T40 also weighs considerably less: We were able to trim 24 kilograms (53 pounds) off the 55-inch — a reduction of 35 percent*.

*Comparing console-mount T22 to console-mount T40, including console bracket.

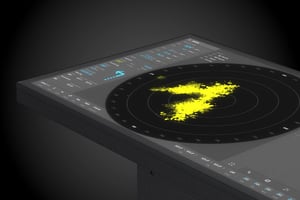

This illustration shows the T40 maritime monitors’ slimmer frame, which reduces the overall size and guarantees the ship bridge a sleek, modern look.

Tested. Approved.

Having completed the rigorous testing required for safety-critical applications such as navigation and radar, Series X MVDs belong to our long line of IEC 60945-approved monitors.

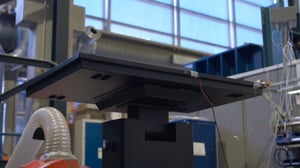

Testing of the Series X MVD T40_2

Meet the modular chart table.

Designed for flexibility, the Series X MVD features a modular design concept.

Installation gets easier than ever and servicing becomes a breeze. Furthermore, the base unit supports both the 43 inch and the 55 inch, in case you want to make a switch.

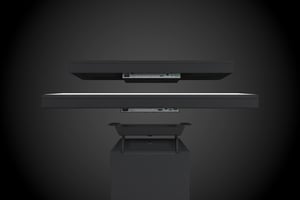

The illustration shows a 43 inch and a 55 inch Hatteland Technology monitor hovering above the chart table base, showing how the T40 is modular, with monitors interchangeable.

The ultimate flex.

Whether you are navigating, planning your next route, or monitoring the radar, long hours on the bridge can take their toll.

For enhanced visibility and ergonomics, the Series X MVD base unit features a 70° degree tilt range.

Browse product range
Request a quote

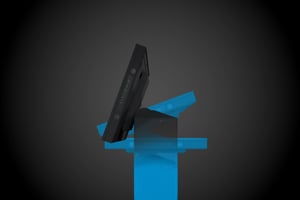

This illustration indicates how the HATTELAND® SERIES X MVD chart tables (43 and 55 inch) can be tilted from flat to upright position. This makes the monitor range highly ergonomical and user friendly.
Comparison

Which one is best suited for you?

Find the ideal Series X MVD for your needs.

hd32t40
hd43t40mvd
hd55t40mvd
32"
HD 32T40 MVD
43"
HD 43T40 MVD
55"
HD 55T40 MVD
Mounting
Console
Wall mounting
Floor stand
Chart table
Display
Resolution
UHD, 4K (3840 x 2160)
UHD, 4K (3840 x 2160)
UHD, 4K (3840 x 2160)
Display technology
TFT, LED backlight
TFT, LED backlight
TFT, LED backlight
Response time
12 ms (typical) (G to G)
8 ms (typical) (G to G)
6.5 ms (typical) (G to G)
Light intensity
350 cd/m2 (typical)
500 cd/m2 (typical)
450 cd/m2 (typical)
Contrast ratio
1000:1 (typ)
3000:1 (typ)
4000:1 (typ)
Size and Weight
Width
760 mm / 29.92 inches
1004.7 mm / 39.55 inches
1292.6 mm / 50.88 inches
Height
465 mm / 18.31 inches
598 mm / 23.54 inches
763.4 mm / 30 inches
Depth
83.5 mm/ 3.28 inches
108 mm / 4.25 inches
121.6 mm / 4.78 inches
Weight
13.52 kg / 29.80 lbs
25.40 kg / 56.00 lbs
45.50 kg / 100.31 lbs
Factory Options
Projected Capacitive Touch Screen (USB, Multitouch 10 fingers)
Projected Capacitive Touch Screen (USB, Multitouch 10 fingers)
Projected Capacitive Touch Screen (USB, Multitouch 10 fingers)
Optical bonding
Optical bonding
Optical bonding
Color calibration (ECDIS)
Color calibration (ECDIS)
Color calibration (ECDIS)
Accessories
Mount gasket for flush/console mount (IP66)
External remote control
External tactile display controls
Console Mounting Bracket Kit (EN60945)
Retro adapter kit for console T22 to T40
VESA adapter
Certifications and Type approvals
ABS - American Bureau of Shipping
BV - Bureau Veritas
CCS - China Classification Society
ClassNK - Nippon Kaiji Kyokai
EU RO MR - Mutual Recognition by DNV
IACS E10
IEC 60945 4th (EN 60945:2002)
KR - Korean Register of Shipping
LRS - Lloyd’s Register of Shipping
RINA - Registro Italiano Navale
More information
32" model
43" models
55" models
